Description

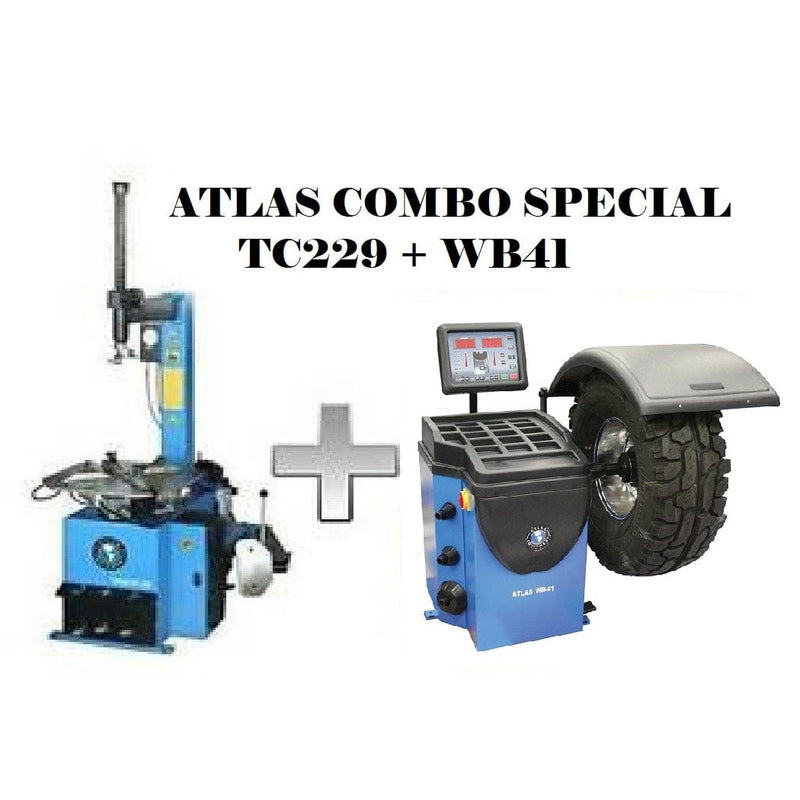

The Atlas® TC229 & WB41 Combo Package is an excellent choice for homeowners, small repair shops, and ATV or motorcycle dealers who need a reliable tire changing and balancing solution. This setup includes the Atlas® TC229 Rim-Clamp Swing Arm Tire Changer and the Atlas® WB41 Computerized Spin Balancer, both designed for precision, ease of use, and long-lasting performance. Operating on 110V power, both machines are CE certified and covered by the Atlas® 1-Year Parts-Only Warranty.
Features

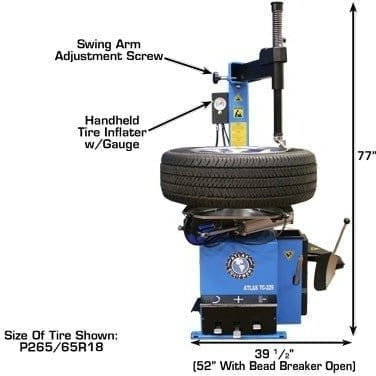

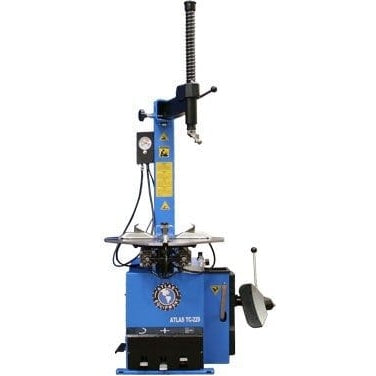

Atlas® TC229 Tire Changer
-
Rim-Clamp Swing Arm Design: Suitable for steel, aluminum, and alloy wheels.
-

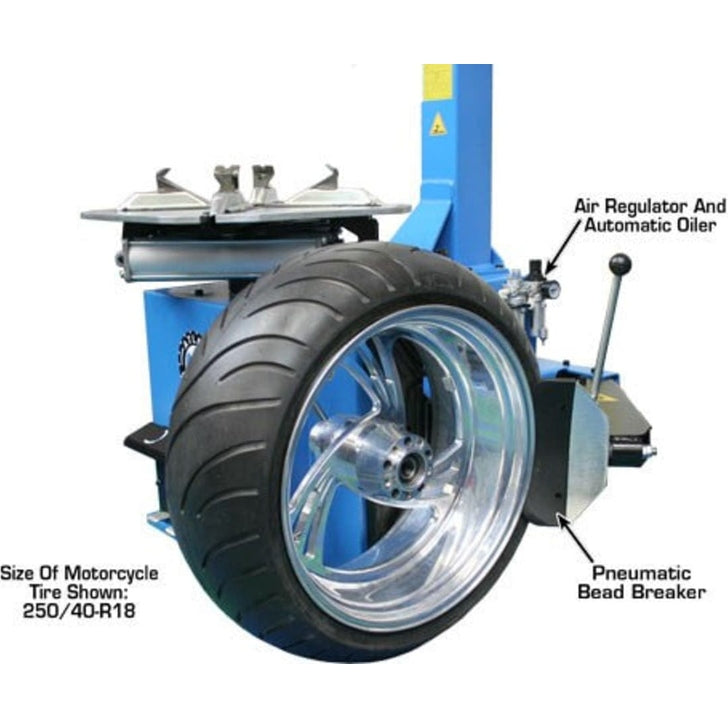

Air-Operated Jaws & Bead Breaker: Ensures powerful and consistent operation (requires external air supply).
-

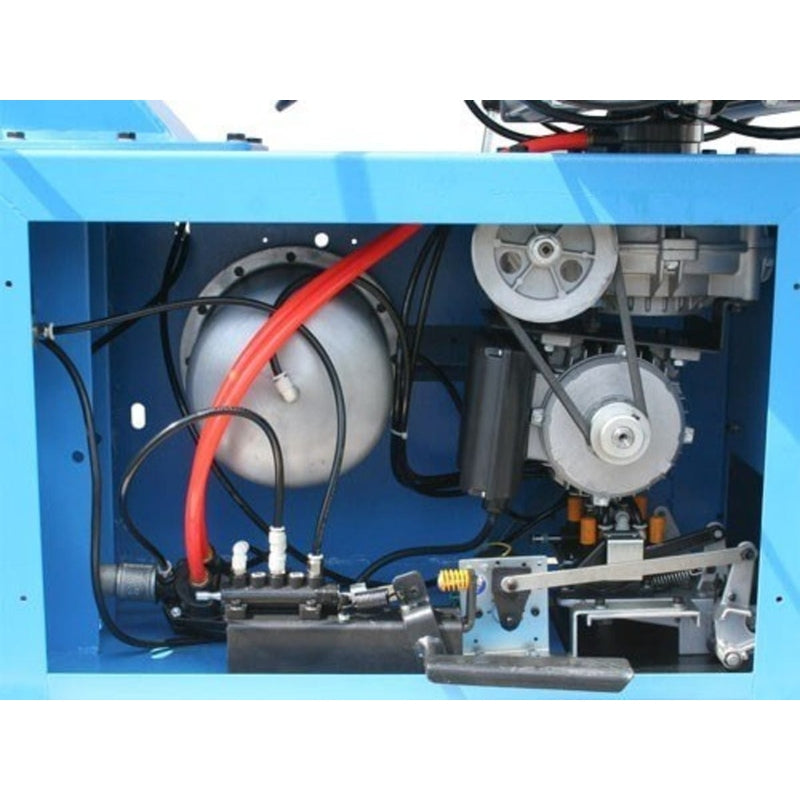

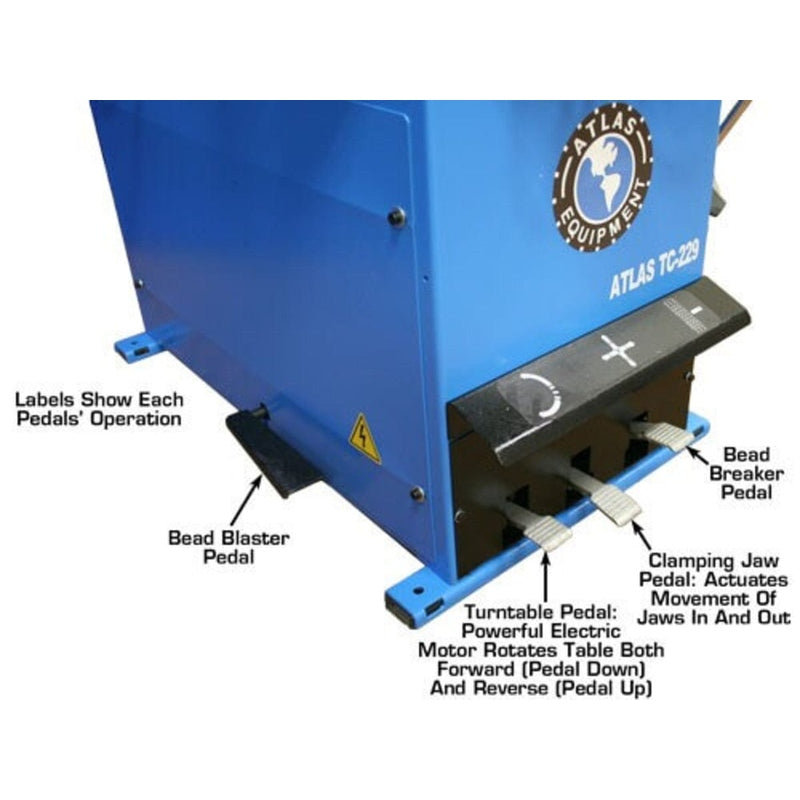

Electric Turntable: Smooth, efficient rotation for mounting and demounting tires.
-
Adjustable Jaws: Three mounting positions for versatility across various wheel sizes.
-

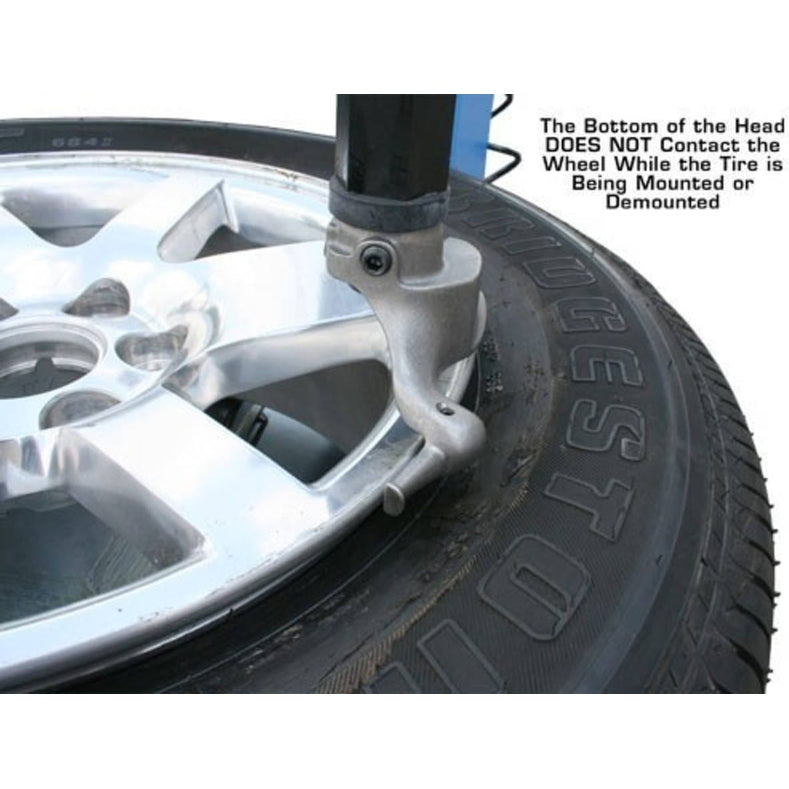

Durable Mount/Demount Head: Metal head with metal roller and replaceable plastic inserts.
-
Integrated Inflator Box with Gauge: Conveniently mounted on the column for easy access.
-

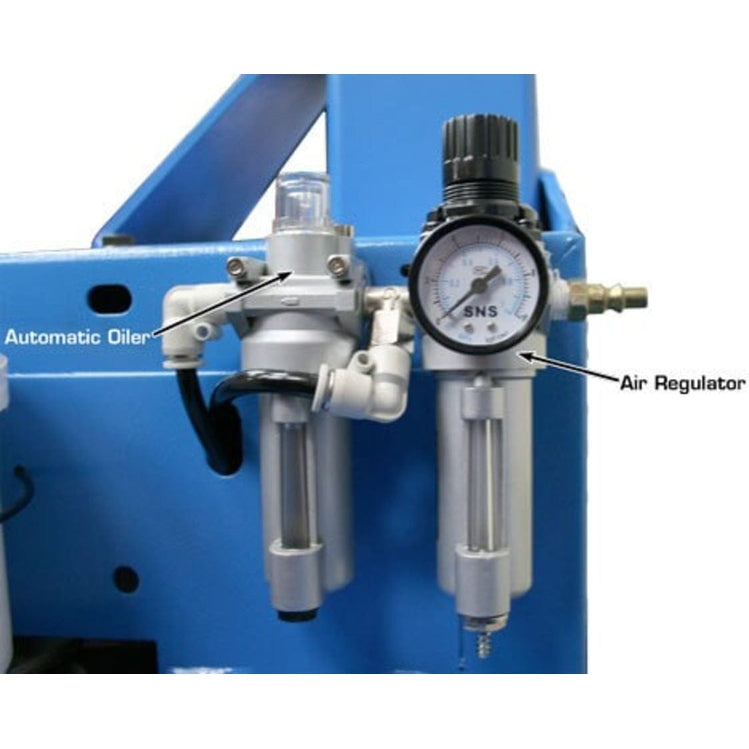

Filter, Regulator & Lubricator Included: Extends equipment life and maintains consistent performance.
-
Accessory Kit Included: 20″ tire tool, lube bucket with brush, large plastic jaw covers, and plastic shovel protector.
-

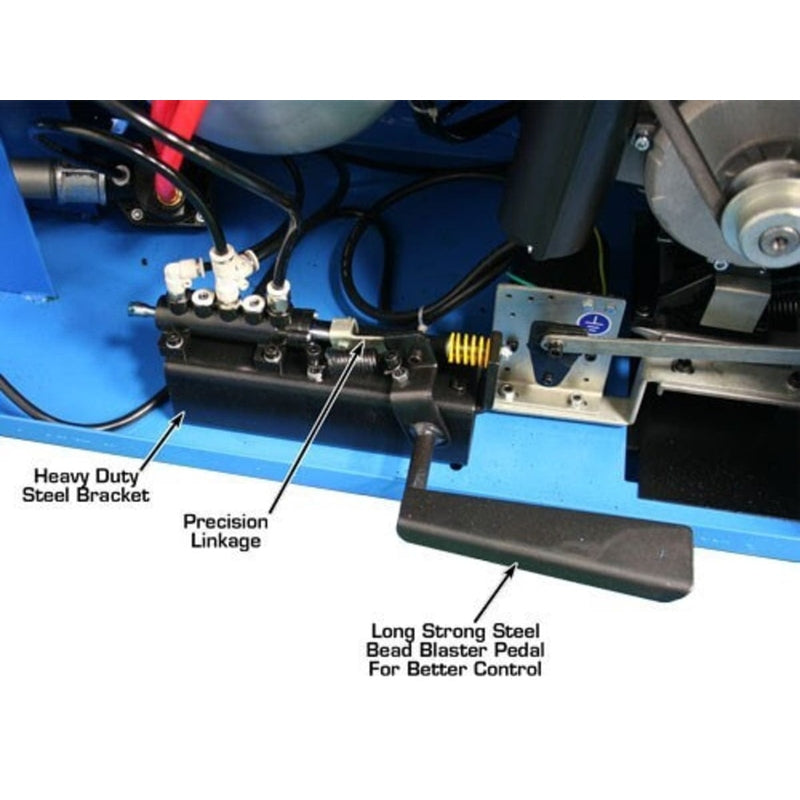

Built-in “Bead Blaster”: Assists in seating stubborn tire beads.

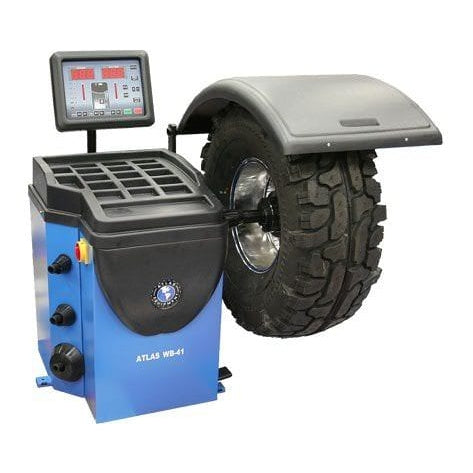

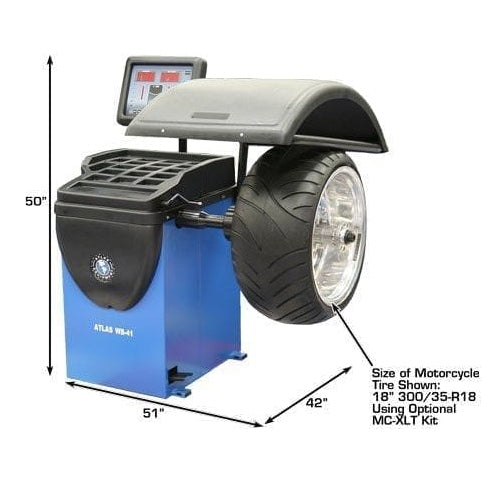

Atlas® WB41 Wheel Balancer
-
Computer-Controlled Spin Balancer: Offers high precision and consistent results.
-

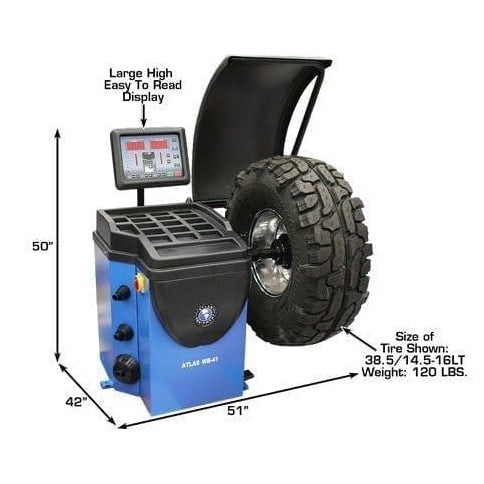

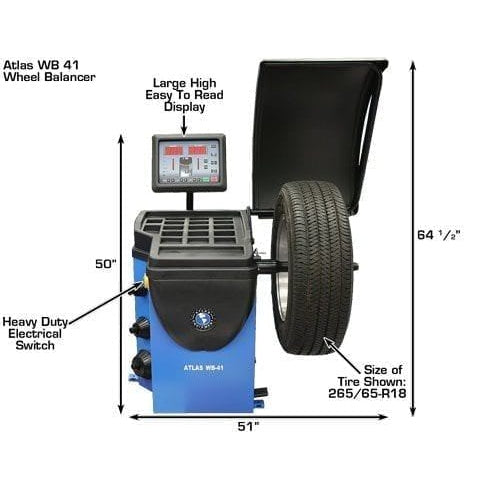

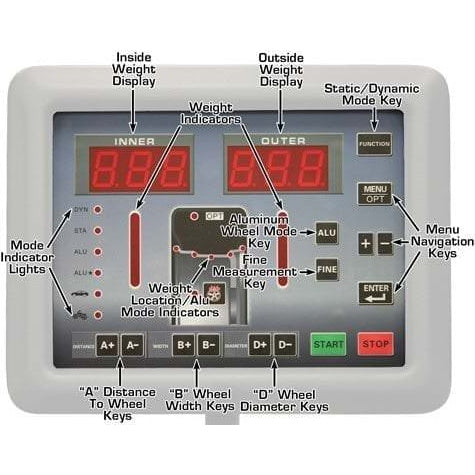

Easy-to-Read Elevated Display: Improves visibility and workflow.
-
Large Wheel Weight Tray: Provides ample space for tools and weights.
-
Automatic Brake System: Engages via pedal or automatically during operation.
-
Auto Start/Stop Function: Begins balancing when the hood is lowered and stops when raised.
-
Static & Dynamic Modes: Accommodates different wheel types and balancing needs.
-
Rapid Optimization (OPT): Enhances accuracy and reduces vibration.
-
Self-Diagnosing & Self-Calibrating: Ensures accuracy with minimal maintenance.
-
User-Friendly Display: Shows readings in grams/ounces and mm/inches.
-
Portable Design: No anchor-down installation required.
-

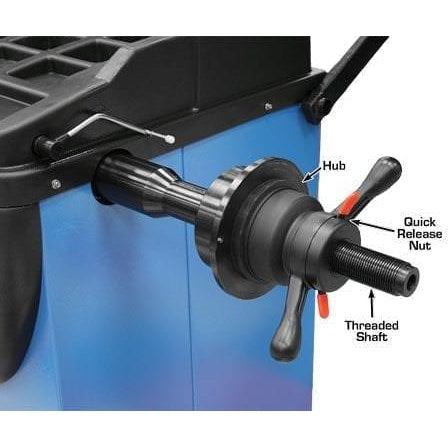

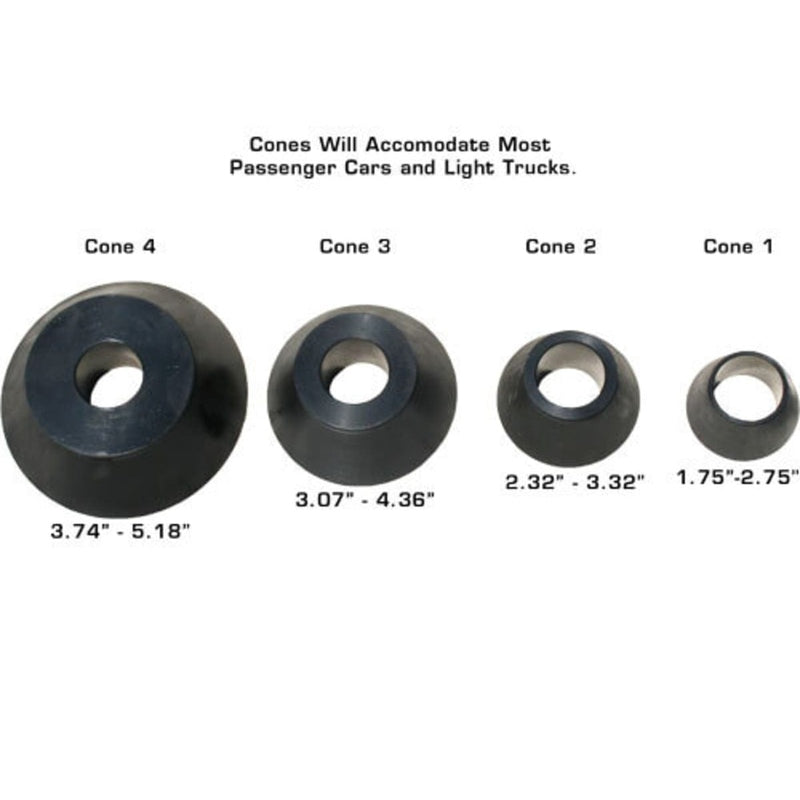

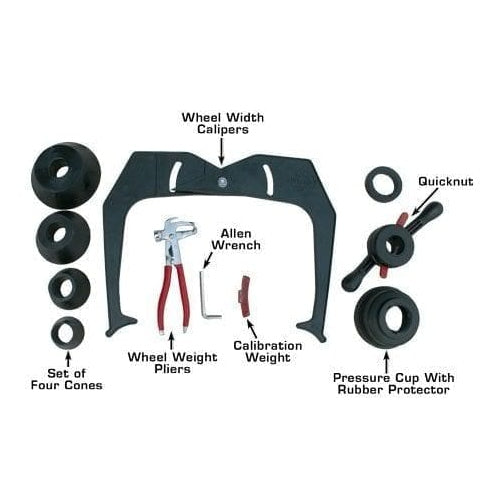

Included Accessories: Plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers.
Specifications
Atlas® TC229 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

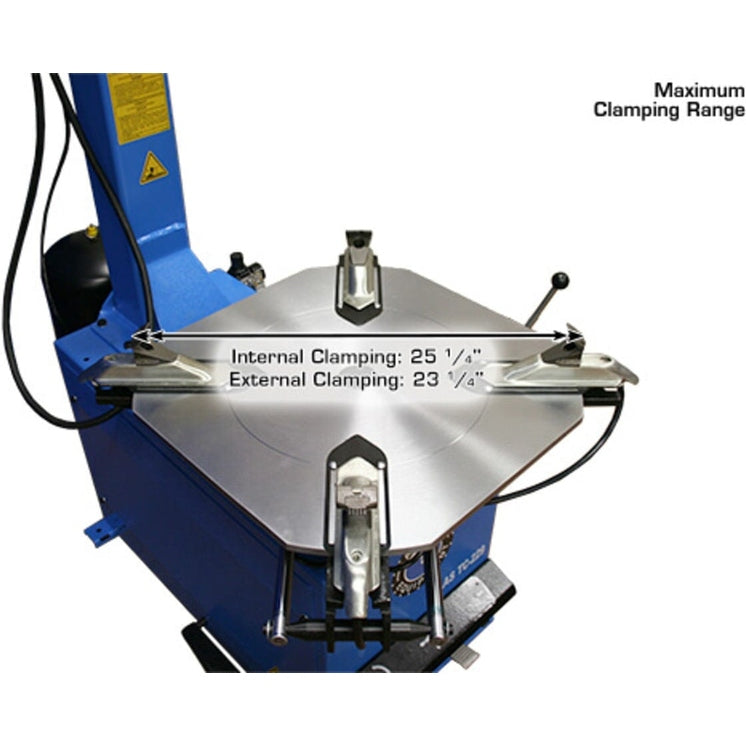

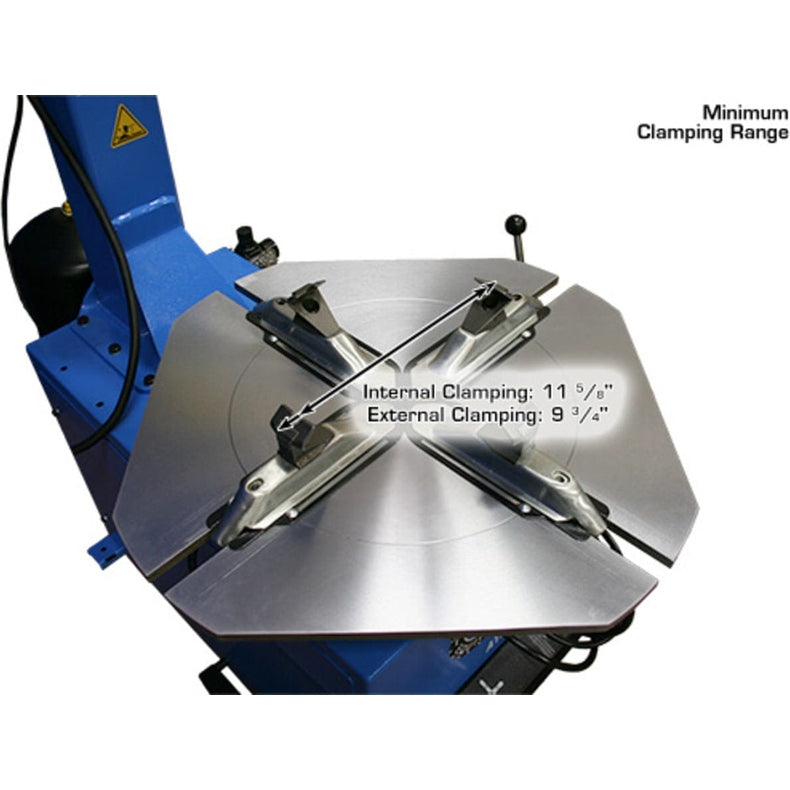

| External Locking Rim Dimensions | 9¾"–21⅝", 10¾"–22½", 11⅝"–23¼" |
| Internal Locking Rim Dimensions | 11⅝"–23¼", 12⅝"–24¼", 13½"–25¼" |
| Max Tire Diameter | 39" |
| Max Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

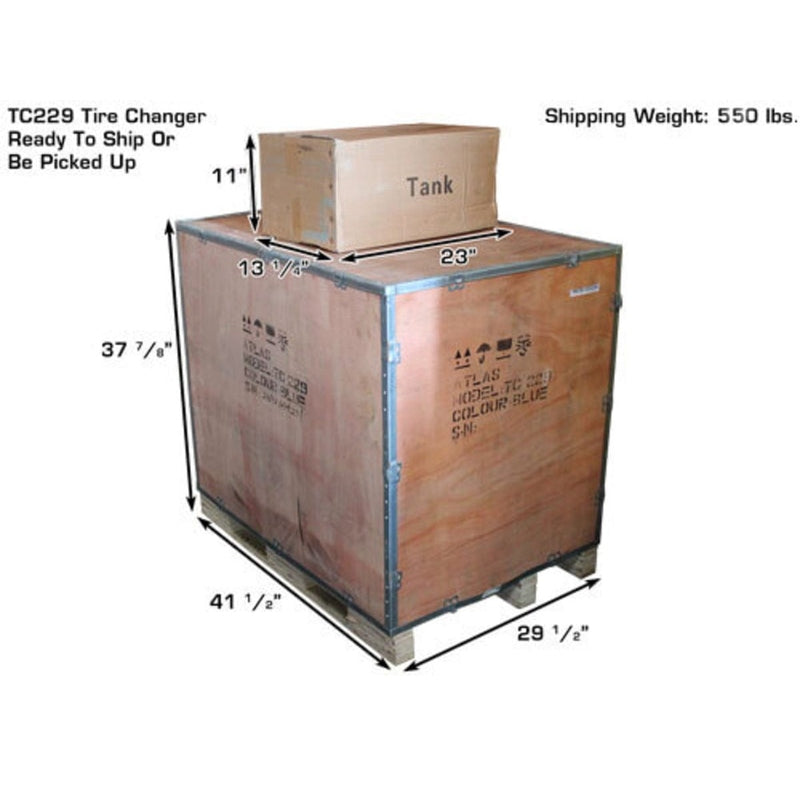

| Shipping Weight | 550 lbs |
Atlas® WB41 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10"–32" |
| Rim Width | 1½"–20" |

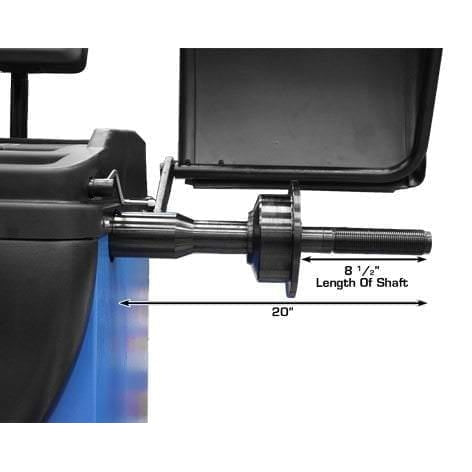

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |

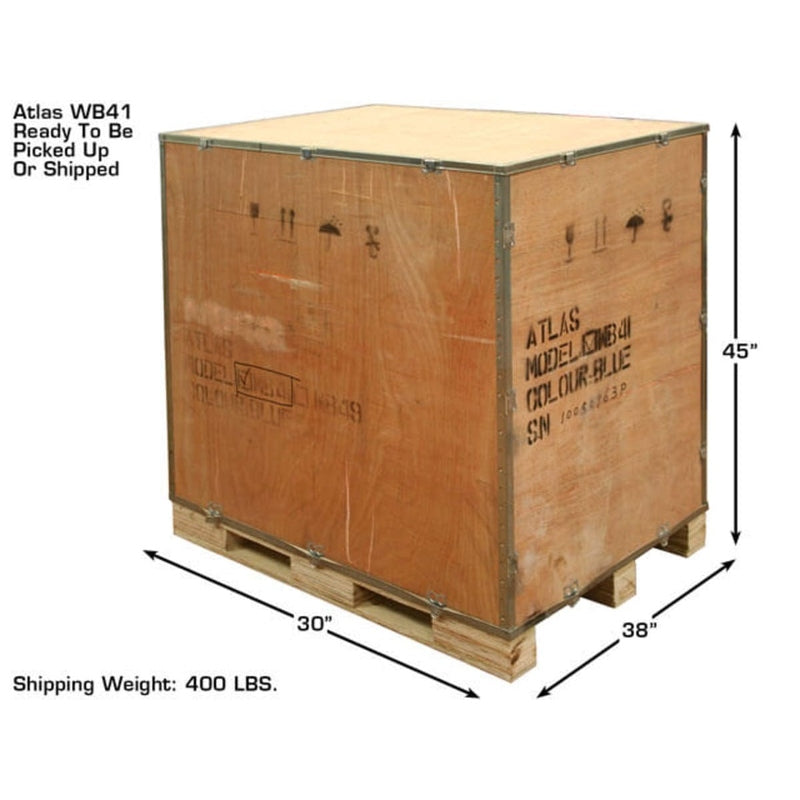

| Shipping Weight | 400 lbs |
The Atlas® TC229 & WB41 Combo provides a practical, efficient, and cost-effective solution for small-scale and light commercial tire service operations — combining power, precision, and reliability in one professional-grade package.
