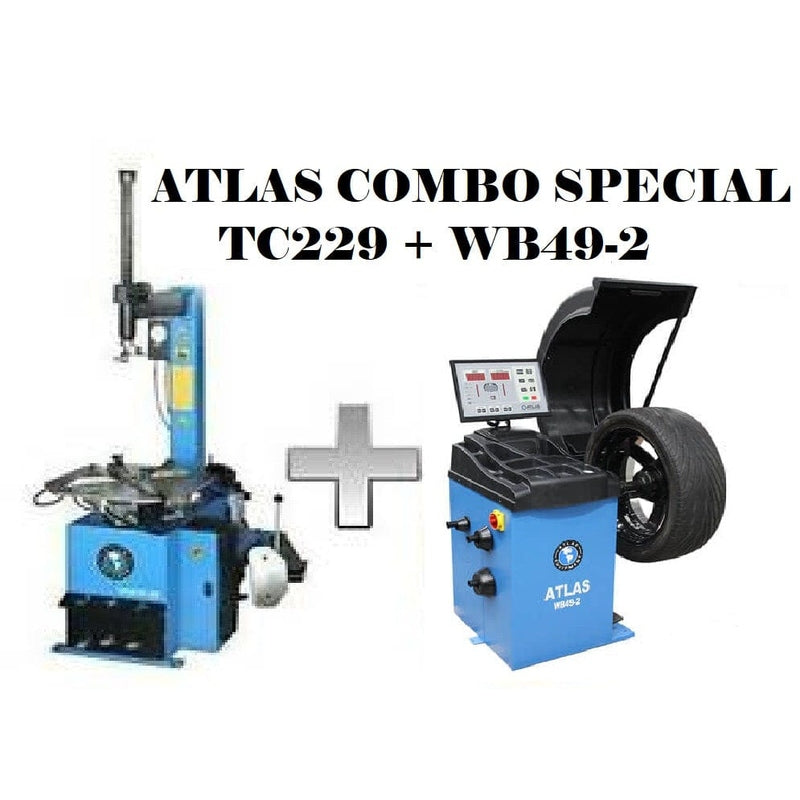

The Atlas® TC229 & WB49-2 Combo Package provides a professional-grade tire service solution ideal for commercial garages and high-volume shops. This package includes the Atlas® TC229 Rim-Clamp Swing Arm Tire Changer and the Atlas® WB49-2 Computerized Spin Balancer, delivering precision, efficiency, and durability for everyday use. Both machines operate on 110V power, are CE certified, and come backed by the Atlas® 1-Year Parts-Only Warranty, ensuring dependable performance and peace of mind.
Features

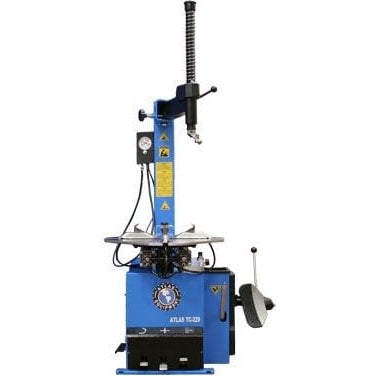

Atlas® TC229 Tire Changer
-
Rim-Clamp Swing Arm Design: Built for durability and easy operation when servicing a wide range of wheel types.
-

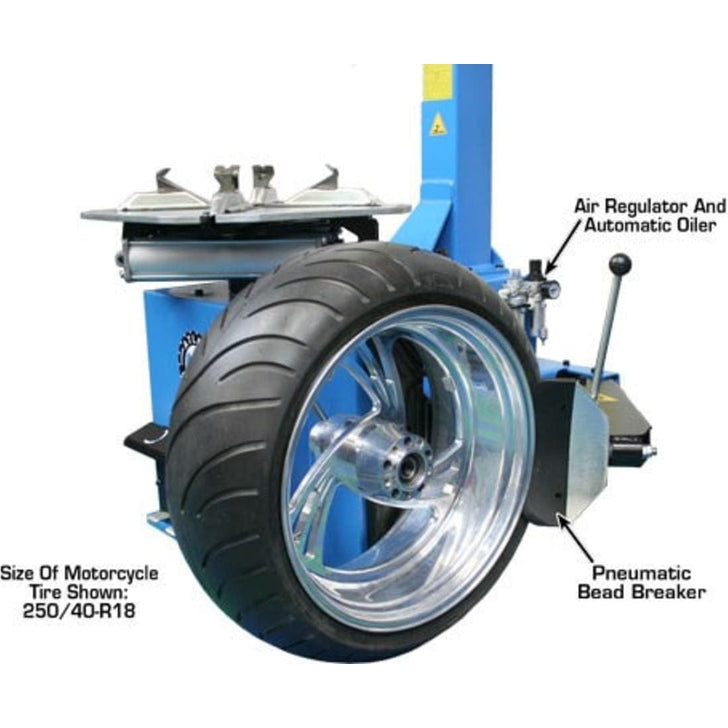

Air-Operated Jaws & Bead Breaker: Provides reliable power for quick and secure tire removal (external air supply required).
-
Electric Turntable: Ensures smooth and consistent rotation for efficient tire changing.
-
Three-Position Adjustable Jaws: Accommodates various rim sizes with a secure grip.
-

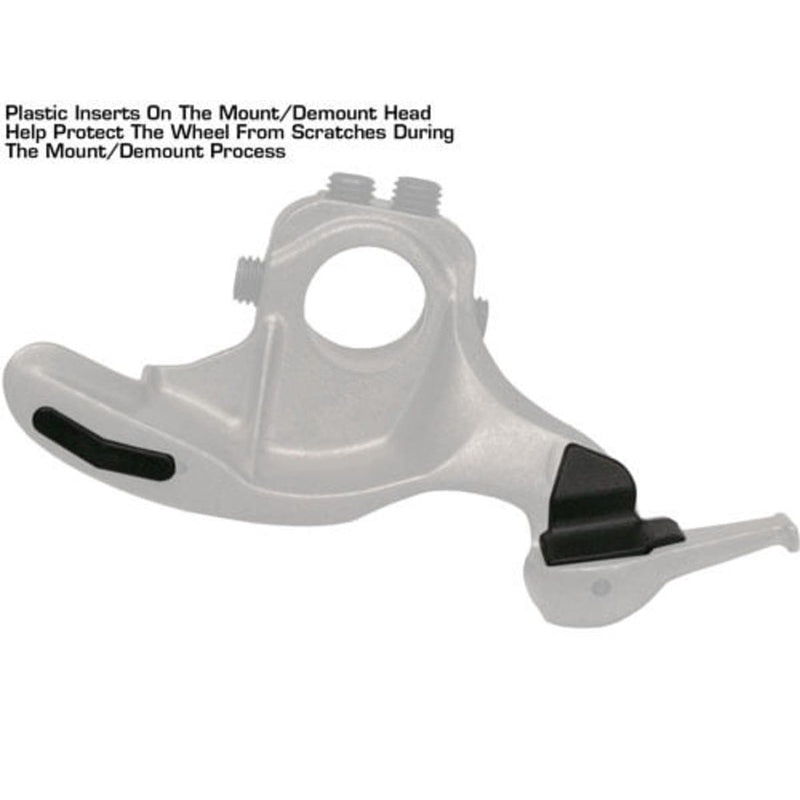

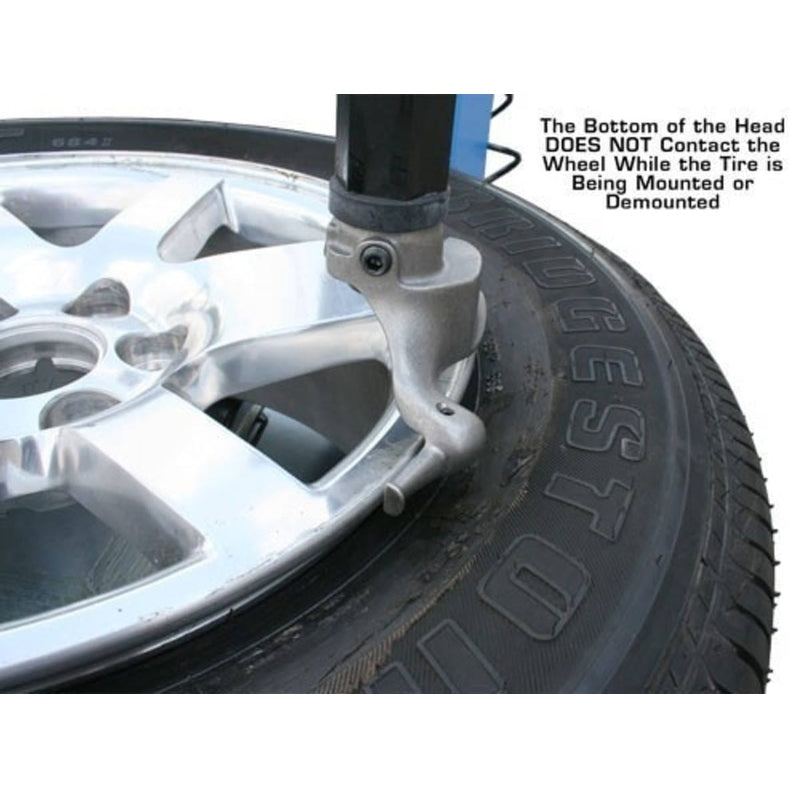

Metal Mount/Demount Head: Includes a metal roller and replaceable plastic inserts to protect rims.
-

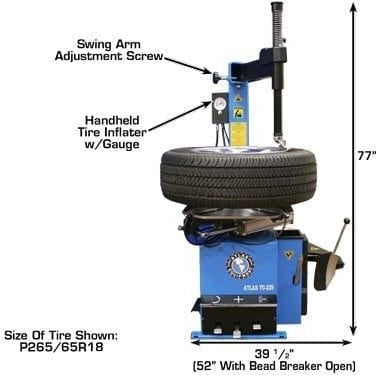

Integrated Inflator Box with Gauge: Conveniently mounted on the column for quick inflation control.
-

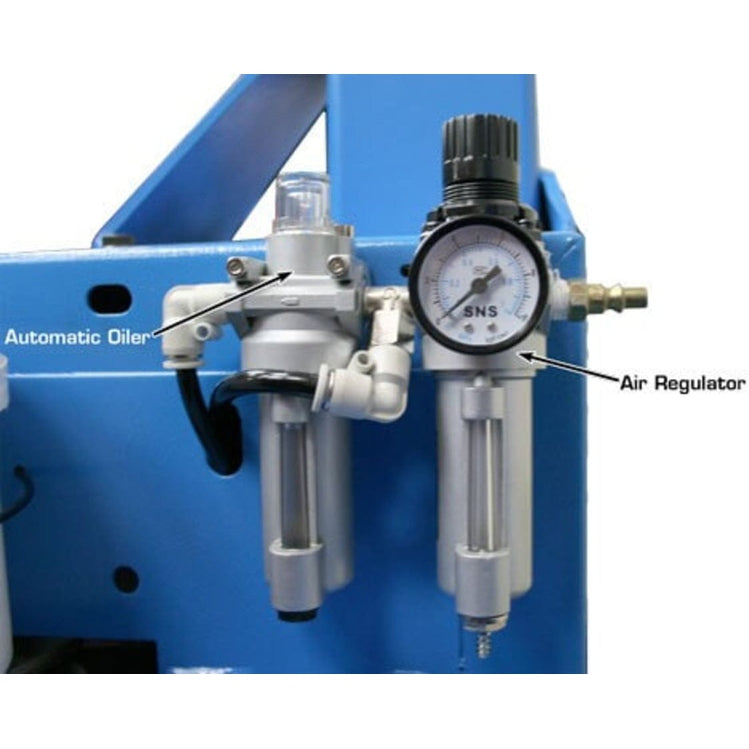

Filter, Regulator, and Lubricator Included: Keeps the pneumatic system clean and well-lubricated.
-

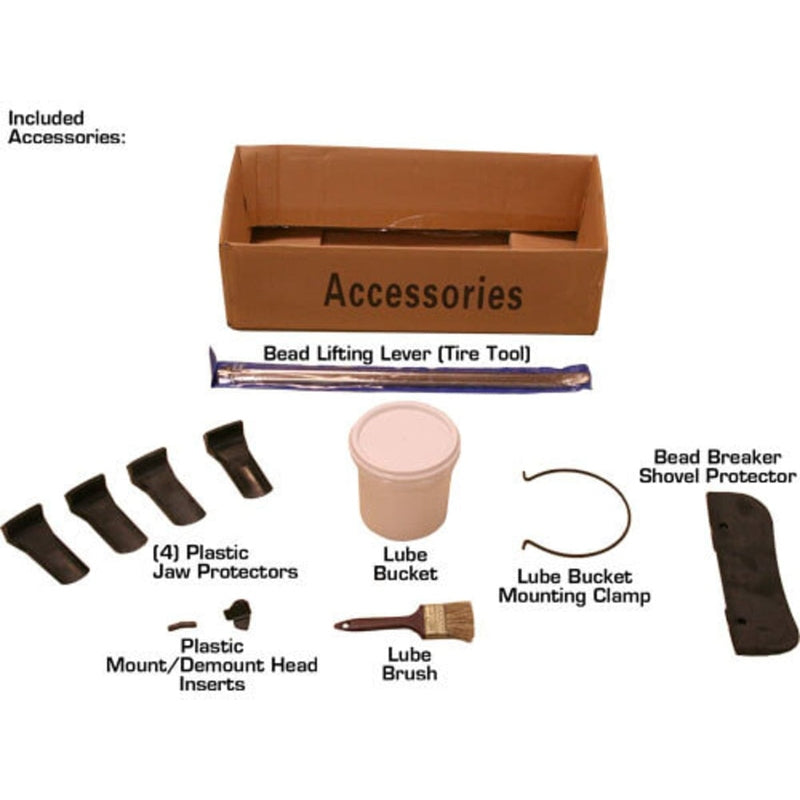

Essential Accessories:
-
20" tire tool
-
Lube bucket and brush
-
Plastic jaw covers
-
Plastic bead breaker cover
-
Replacement plastic inserts for the M/D head
-
-

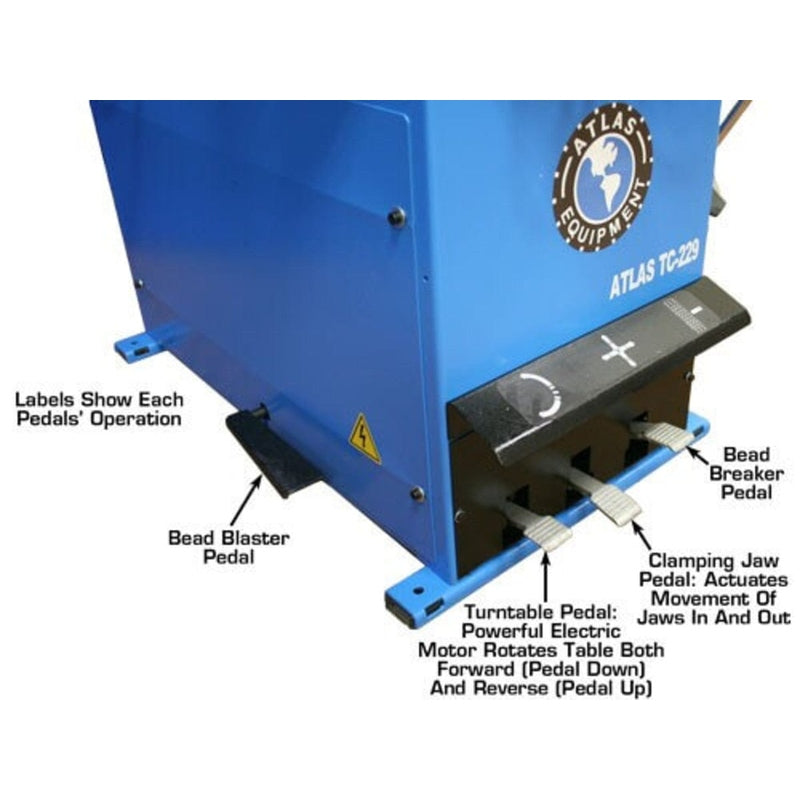

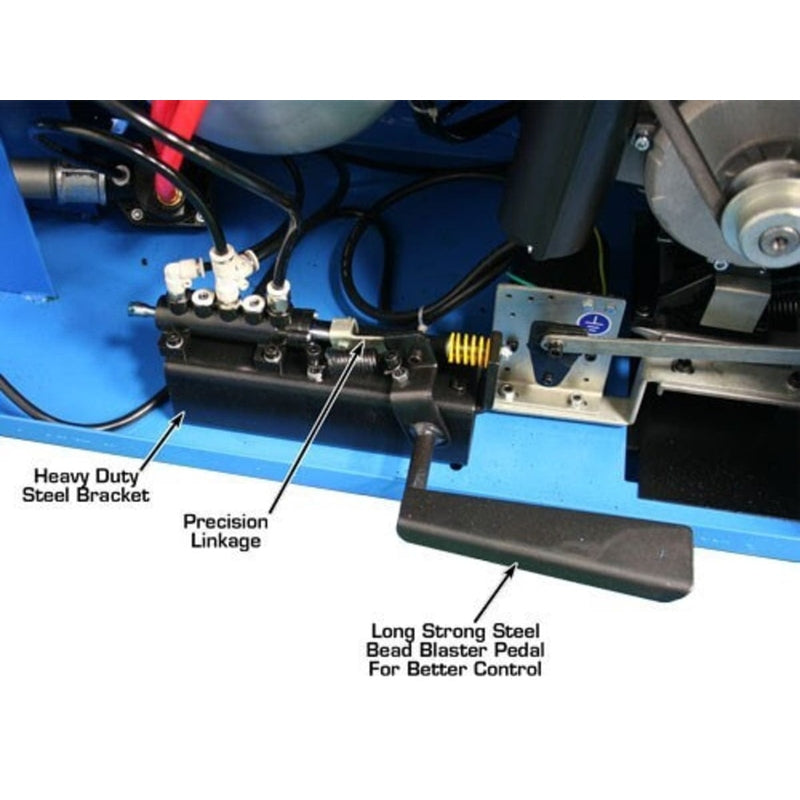

Built-In “Bead Blaster”: Helps seat tough beads quickly and effectively.

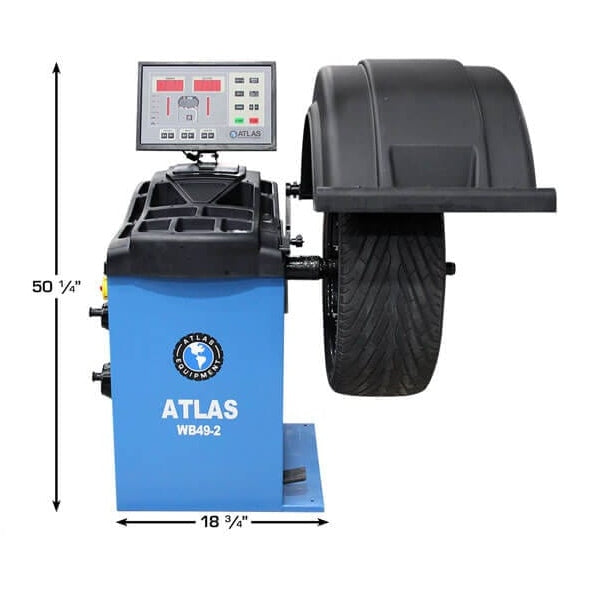

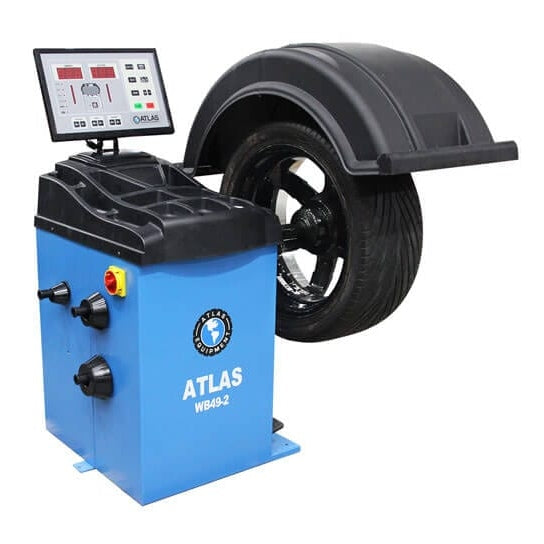

Atlas® WB49-2 Wheel Balancer
-
Motorized, Computer-Controlled Spin Balancer: Provides fast, precise balancing for a variety of wheels.
-

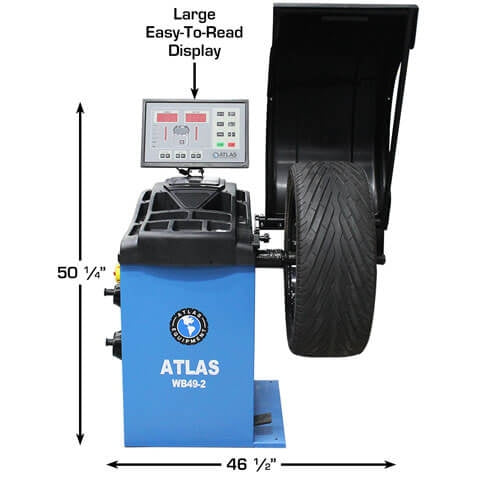

Raised, Easy-to-Read Display: Clear and ergonomic control interface for user convenience.
-
Large Wheel Weight Tray: Keeps tools and weights organized.
-
Automatic 2D Data Entry: Simplifies setup for faster operation.
-
3D Data Entry Option (Sold Separately): For fully automatic width measurement.
-
Split-Weight Function: Allows hidden placement of wheel weights behind spokes for a cleaner look.
-
Automatic LED Light & Auto-Positioning: Improves visibility and accuracy during balancing.
-
Pedal-Operated Brake & Auto Start/Stop: Streamlined workflow with automatic operation when hood is lowered or raised.
-
Static and Dynamic Balancing Modes: Suitable for various wheel types and applications.
-
Rapid Optimization (OPT): Minimizes wheel vibration for smoother rides.
-
Self-Diagnosing & Self-Calibrating System: Ensures consistent accuracy over time.
-
Stable & Accurate Readings: Exceptional reliability in detecting imbalance between planes.
-
Dual Measurement Display: Choose between grams or ounces, and millimeters or inches.
-
No Anchor-Down Installation Required.
-

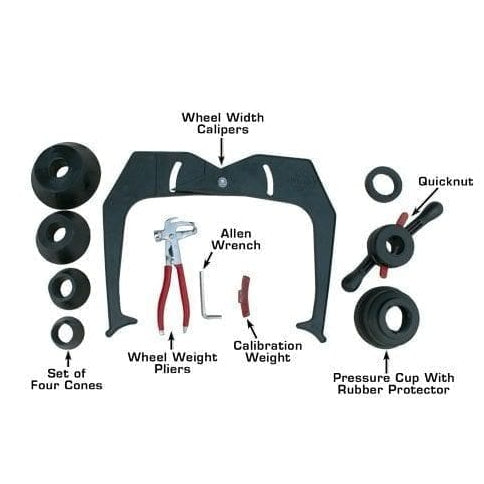

Included Accessories:
-

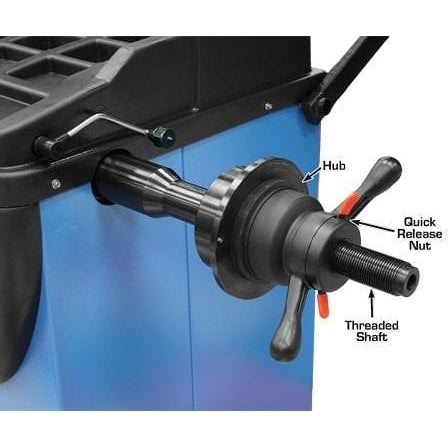

Plastic quick-release nut
-

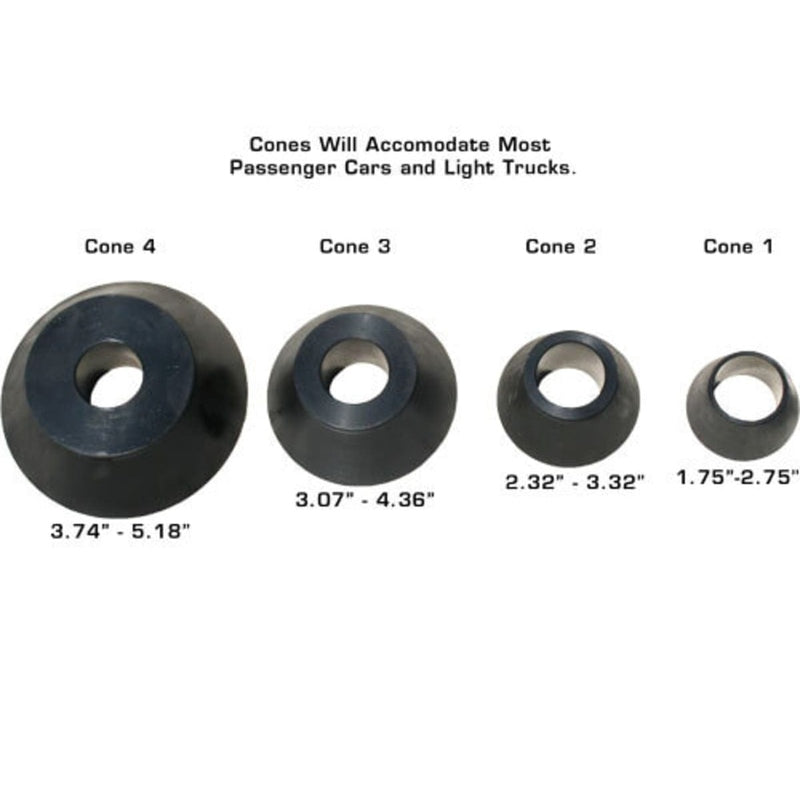

4 centering cones
-
Wheel weight pliers
-
Measuring calipers
-
Specifications
Atlas® TC229 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

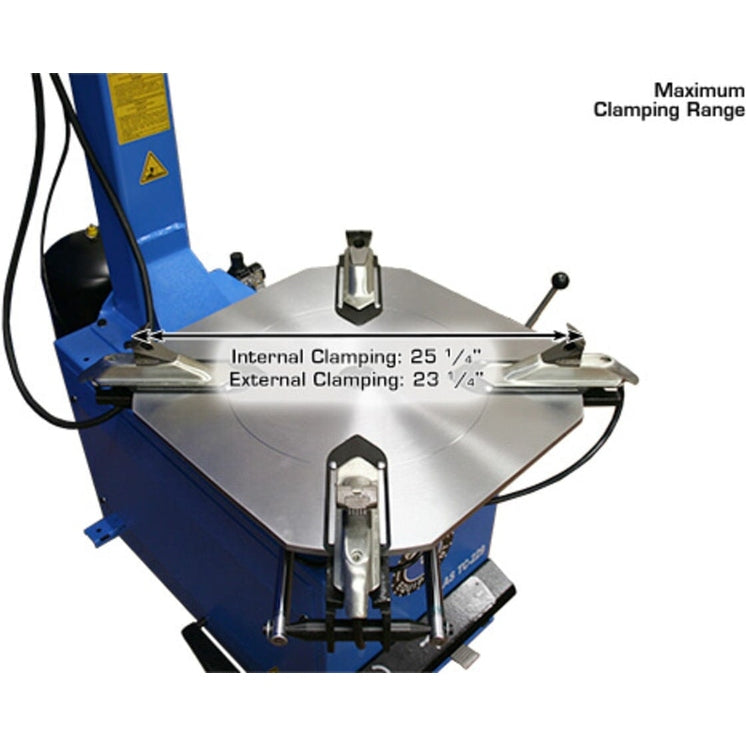

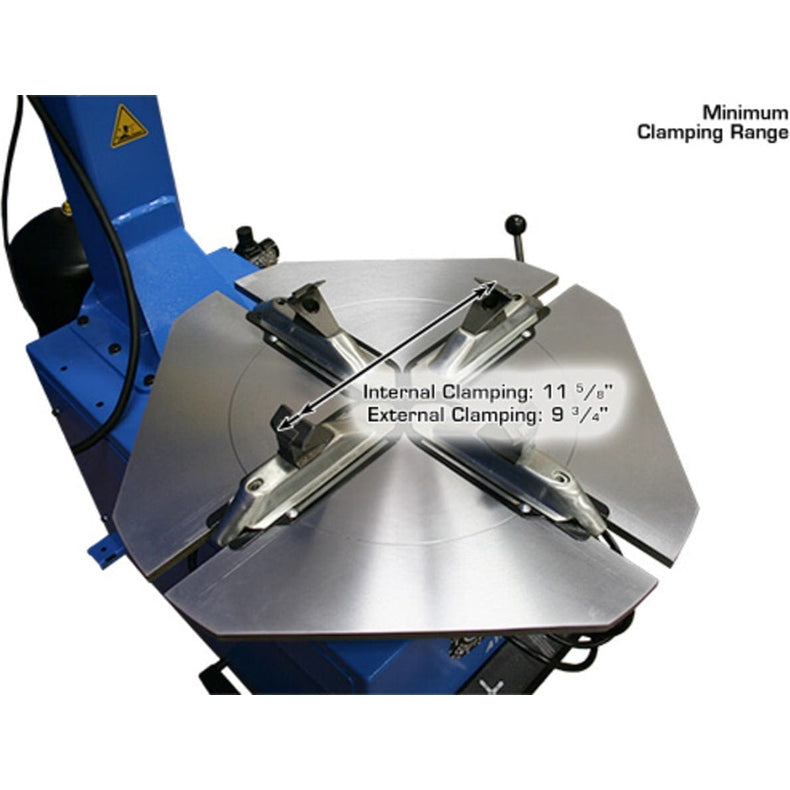

| External Locking Range (3 Positions) | 9¾"–21⅝" / 10¾"–22½" / 11⅝"–23¼" |
| Internal Locking Range (3 Positions) | 11⅝"–23¼" / 12⅝"–24¼" / 13½"–25¼" |
| Max Tire Diameter | 39" |
| Max Wheel Width (Bead Breaker) | 13" |

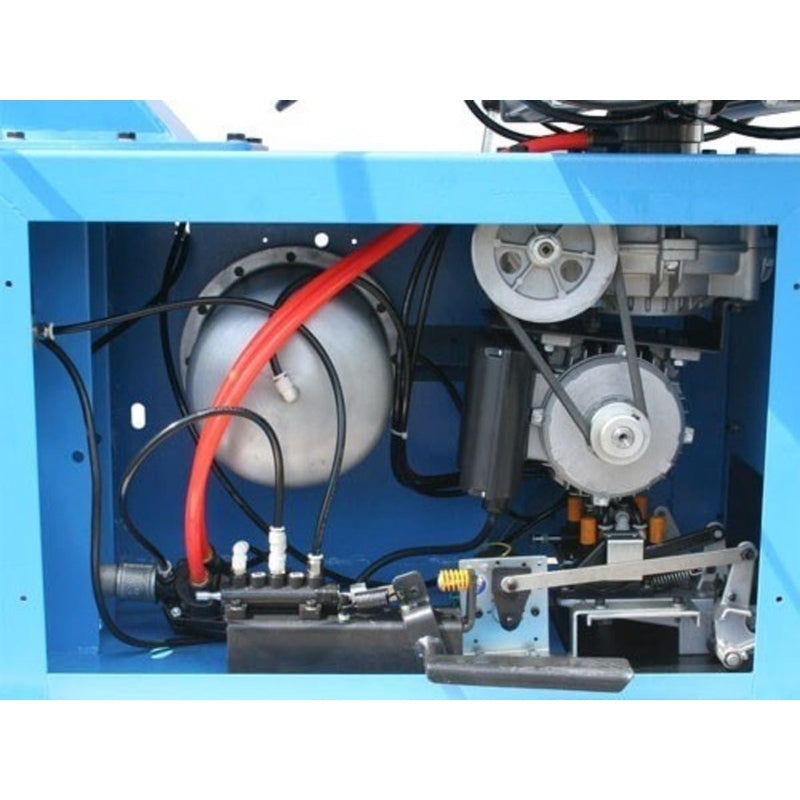

| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

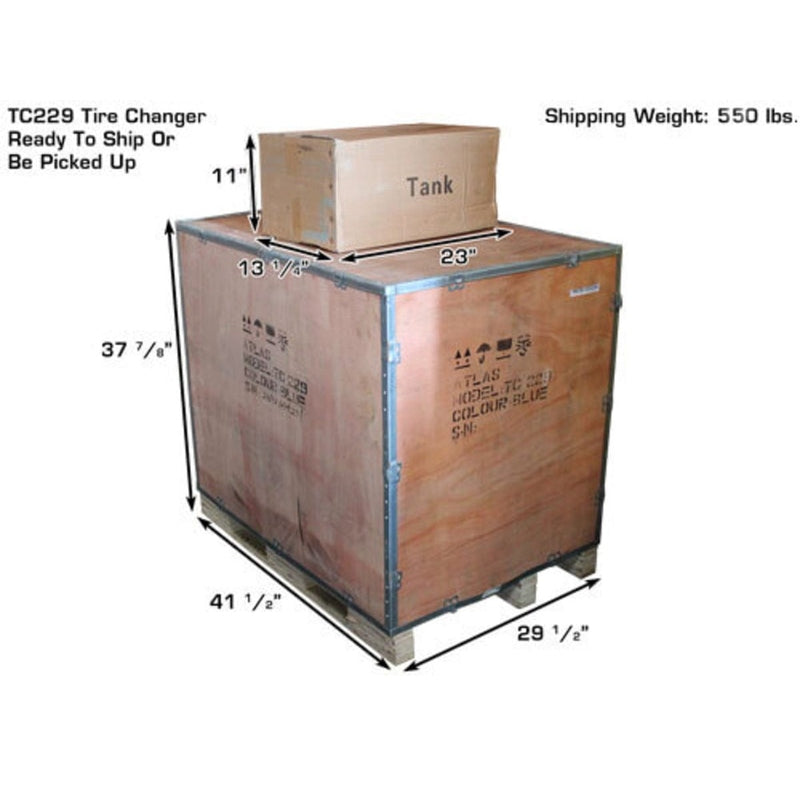

| Shipping Weight | 550 lbs |

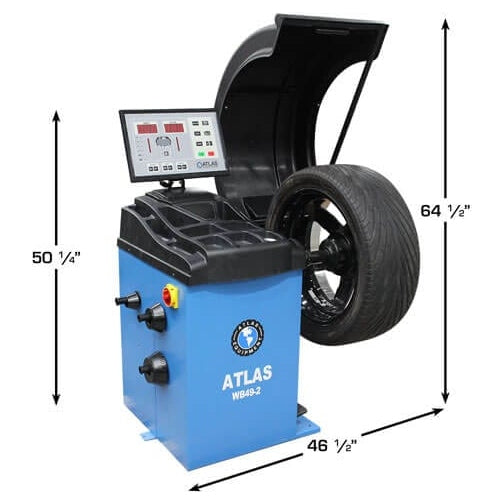

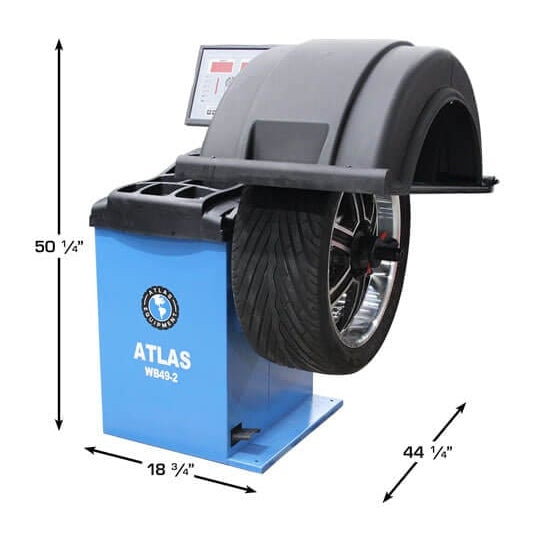

Atlas® WB49-2 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10"–32" |
| Rim Width | 1½"–20" |

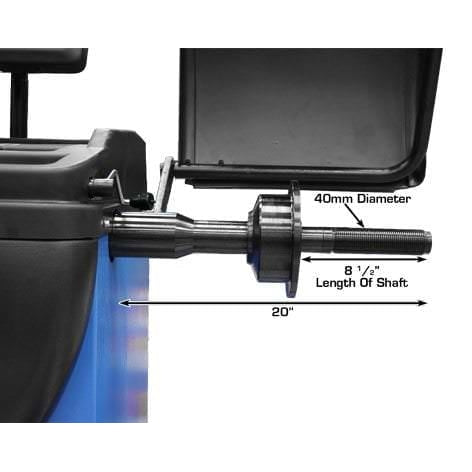

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Automatic 2D (3D Optional) |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |
| Shipping Weight | 400 lbs |
This Atlas® TC229 & WB49-2 Combo is the perfect solution for commercial tire shops seeking reliable, efficient, and professional-grade tire changing and balancing performance — all in one powerful package.
