The Atlas TC229DAA is the TC229 rim-clamp tire changer with the Atlas DAA-SA dual assist arm package added, so one person can handle stiff-sidewall, low-profile and run-flat tires. The left arm has a pressing block and lifting disk and the right arm a bead roller and lifting disk. It also has a built-in Beadblaster, a 5,500 lb bead breaker and three-position jaws, and handles tires up to 39″ in diameter on 110V with shop air at 90–110 PSI. Compare all tire changers or more Atlas equipment. Financing is available through Approve and Shop Pay.

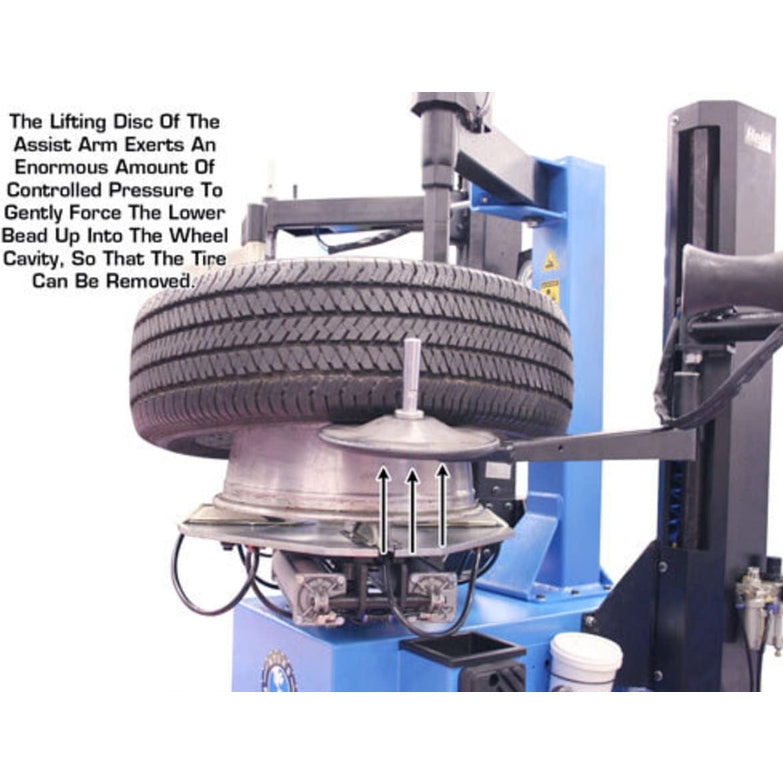

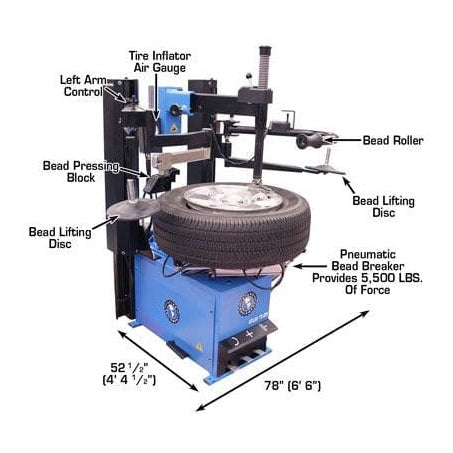

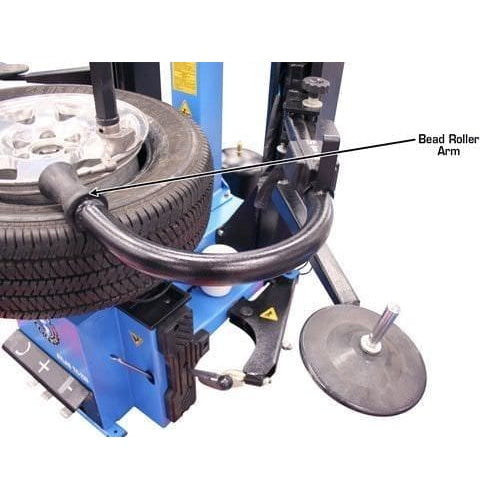

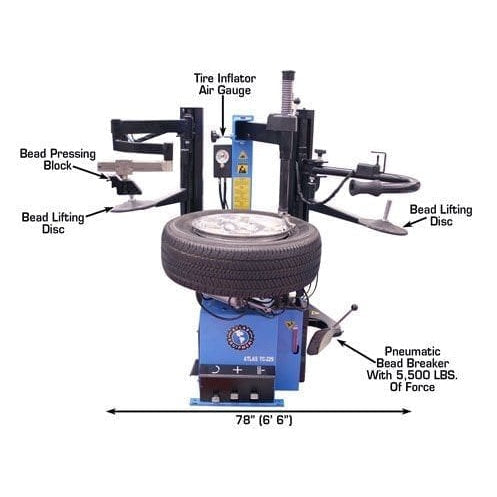

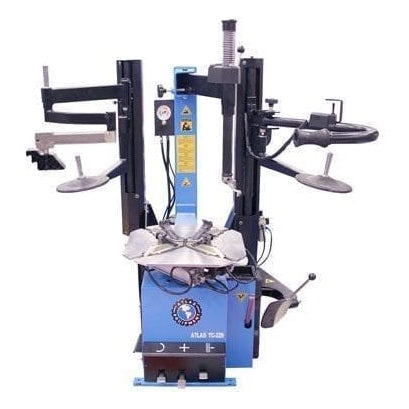

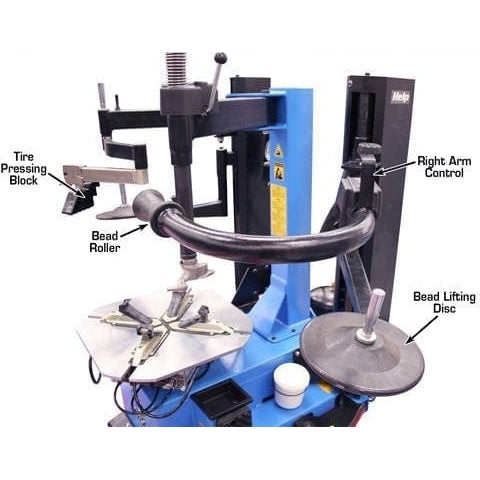

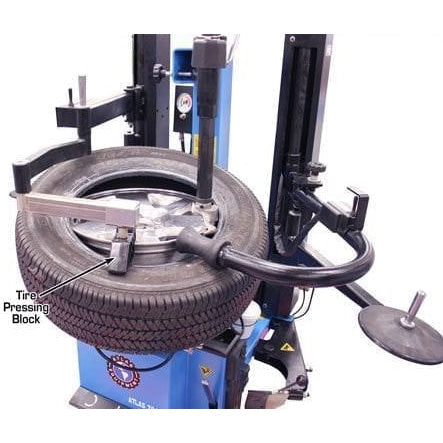

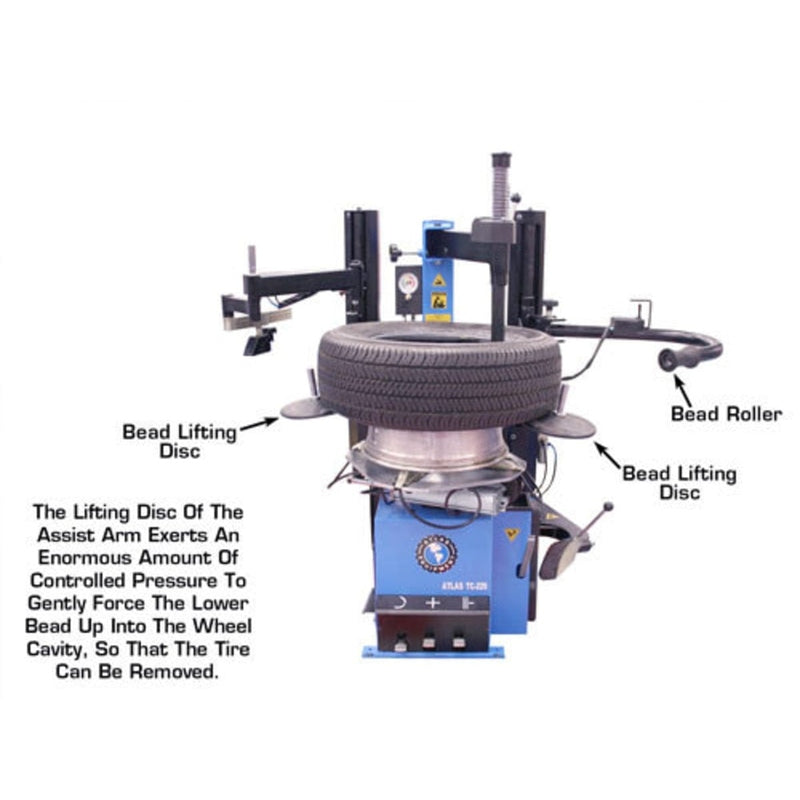

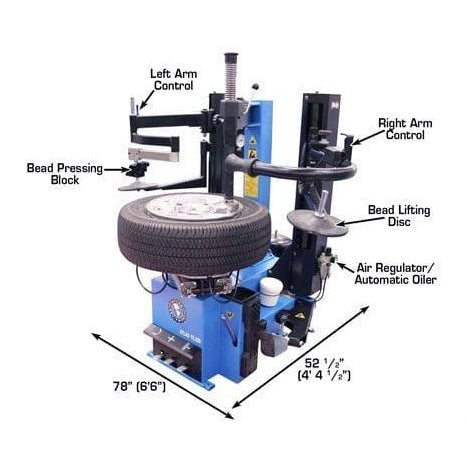

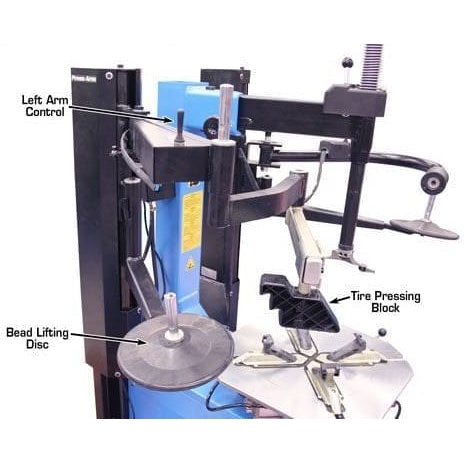

The Atlas® TC229DAA Rim Clamp Swing Arm Tire Changer is an excellent choice for homeowners, small repair shops, or ATV/motorcycle service centers. This upgraded TC229 model includes the Atlas® DAA-SA Dual Assist Arm Package — featuring a left-hand assist arm with a pressing block and lifting disk, and a right-hand arm equipped with a bead roller and lifting disk. These dual assist arms serve as an invaluable aid for handling stiff sidewall, low-profile, or run-flat tires, allowing a single operator to work more efficiently and safely.

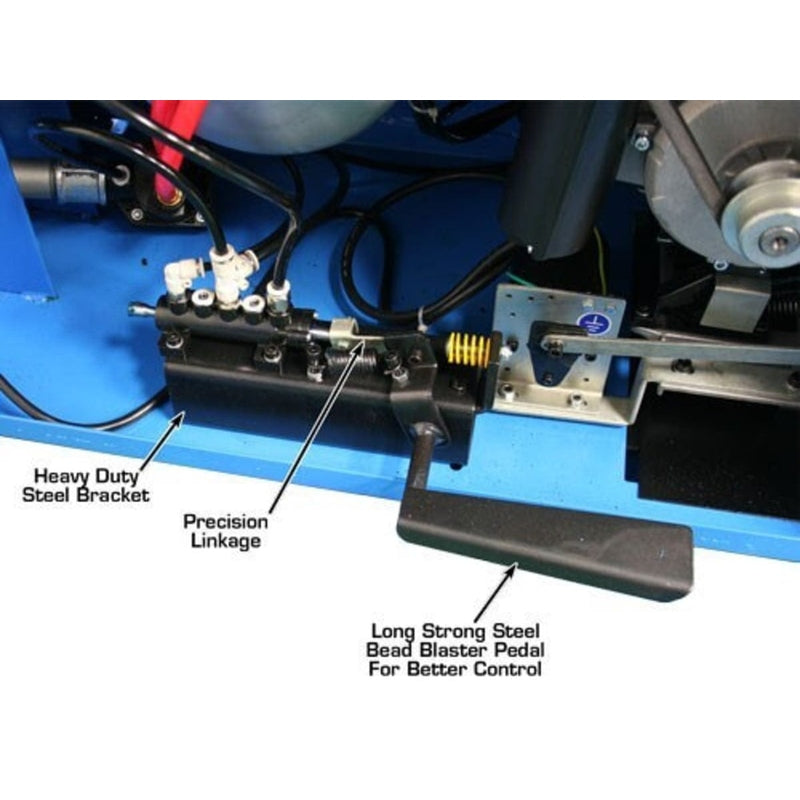

This unit also incorporates a built-in “Beadblaster” inflation system, designed to help seat even the toughest tire beads quickly and effectively. If you expect to work on larger tires, such as those for heavy-duty trucks, SUVs, or agricultural equipment, the Atlas® TC289 may be a better fit.
The Atlas® wheel clamp tire changers are built to service both high-end alloy wheels and standard steel rims without causing damage. The powerful side-mounted bead breaker easily handles rusted or stubborn beads, while the adjustable turntable jaws securely grip rims without marring their finish. The jaws offer three position settings to accommodate a wide range of wheel sizes, ensuring maximum flexibility in your shop.
Some assembly is required upon delivery.
Key Features
-
Rim Clamp / Swing Arm Tire Changer
-
Dual Assist Arms Included
-

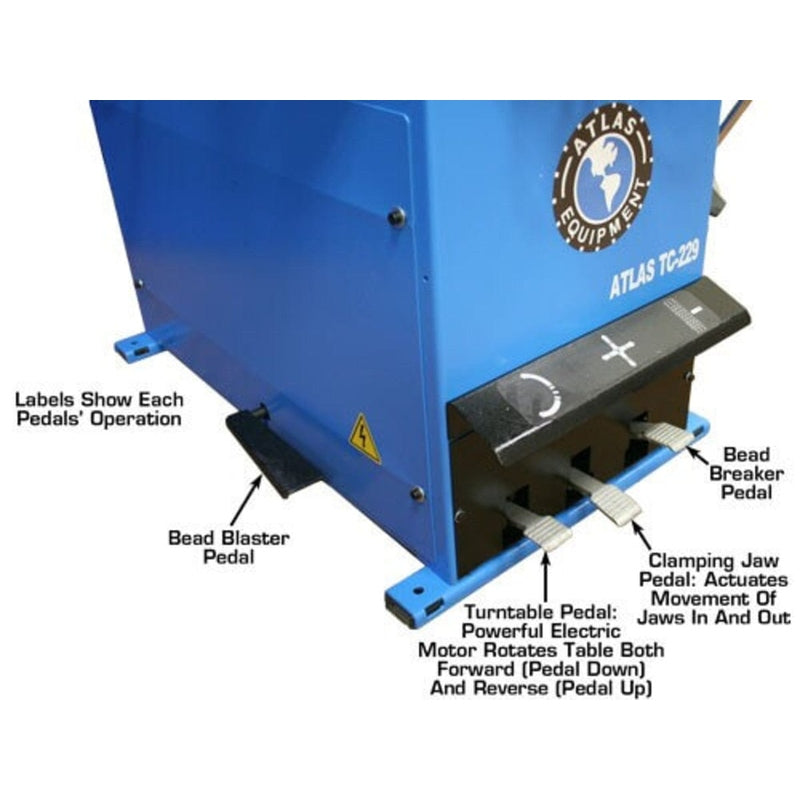

Air-operated jaws and bead breaker (requires external air supply)
-

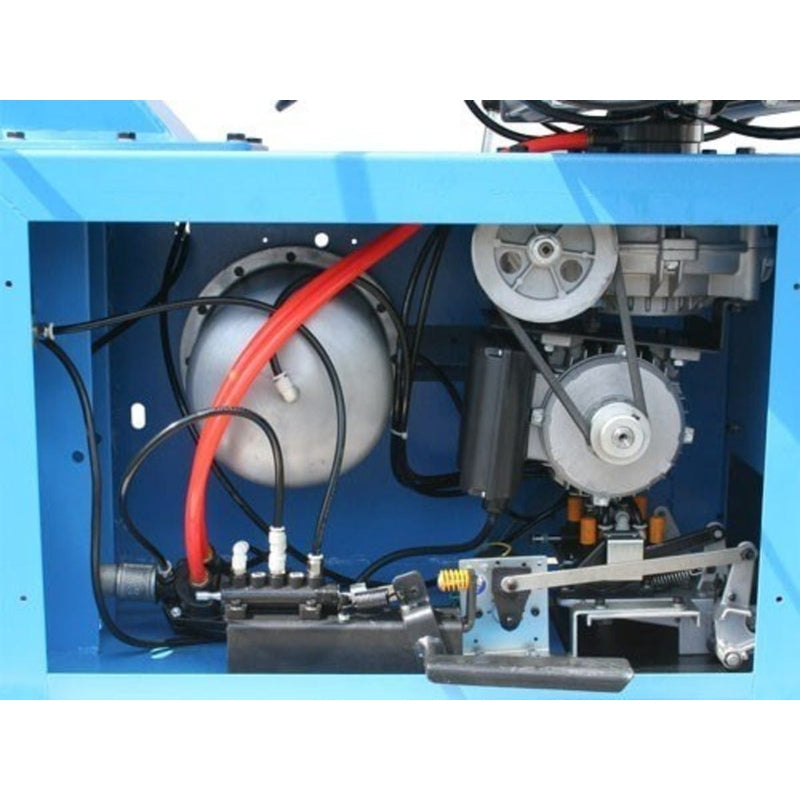

Electric-powered turntable
-

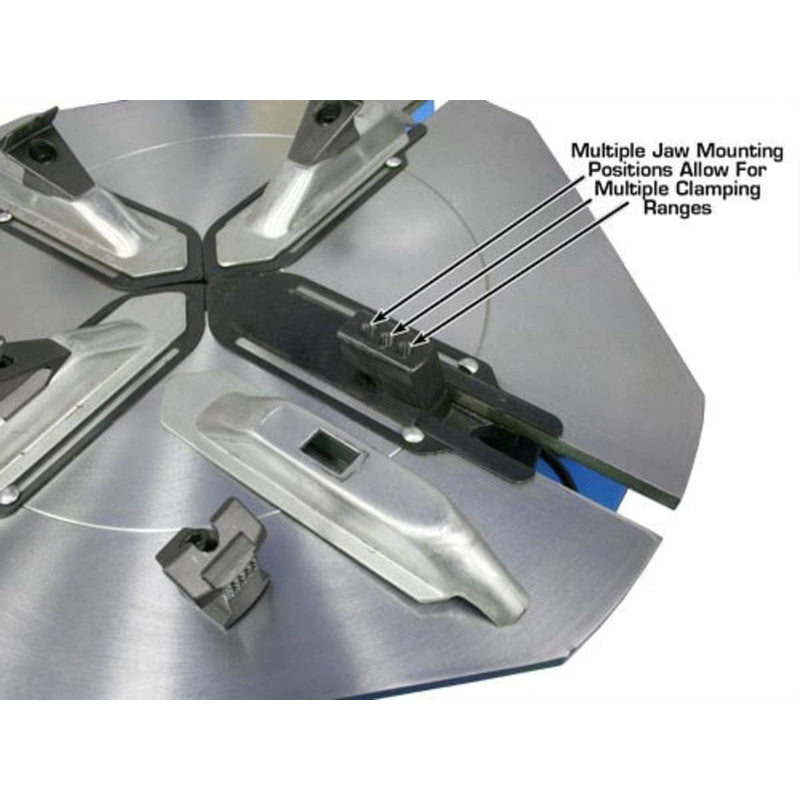

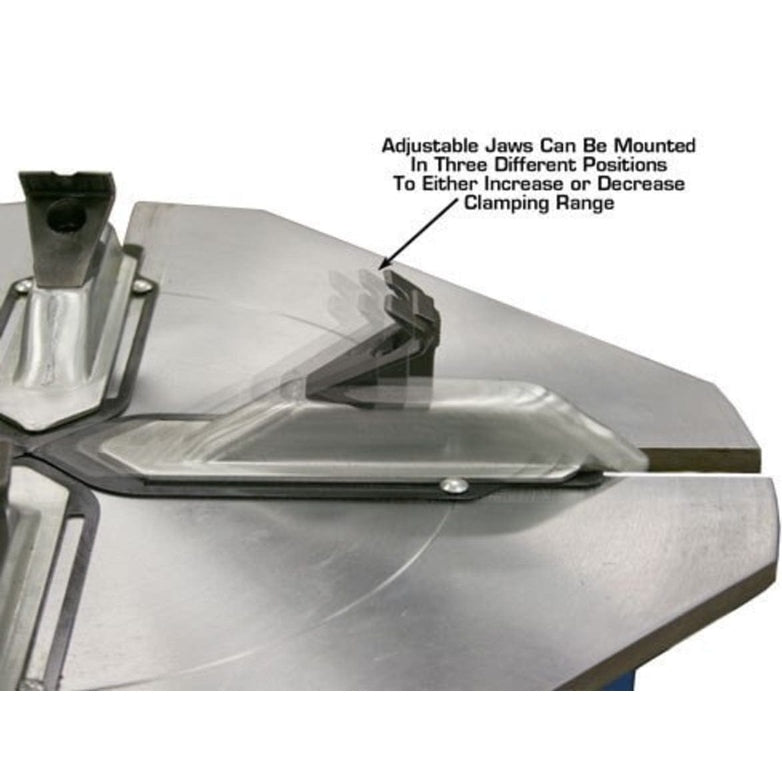

Adjustable jaws with three mounting positions
-

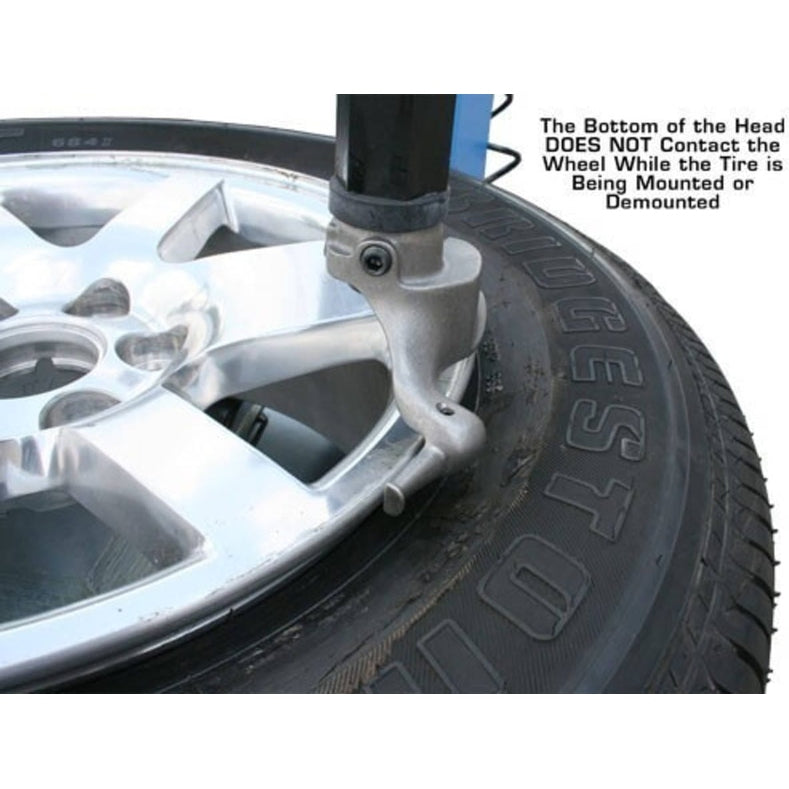

Metal mount/demount head with roller or replaceable plastic inserts
-
Column-mounted inflator box with gauge
-

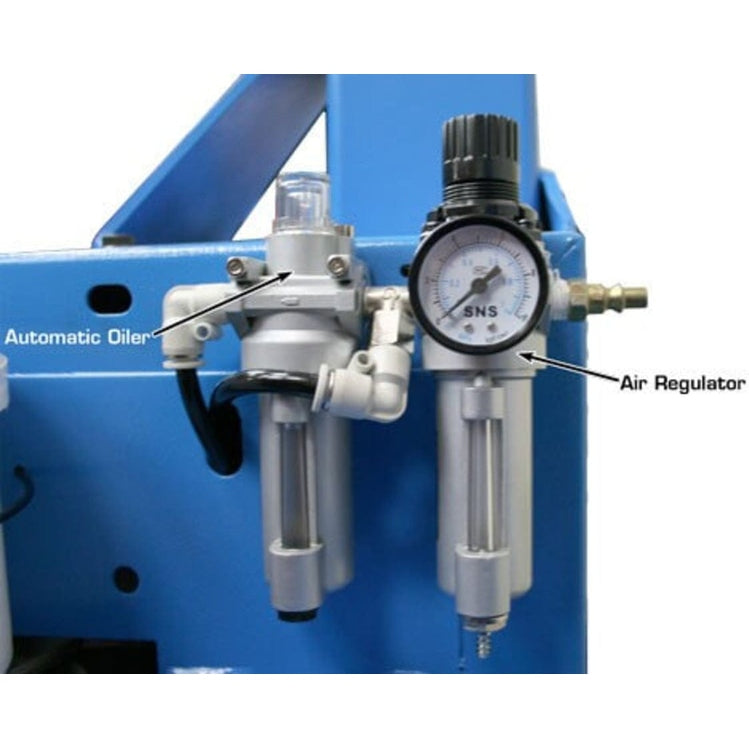

Built-in filter/regulator/lubricator
-
20″ tire tool and lube bucket with brush included
-
Set of large plastic jaw covers and bead breaker shovel protector
-
Replacement plastic inserts for mount/demount head included
-

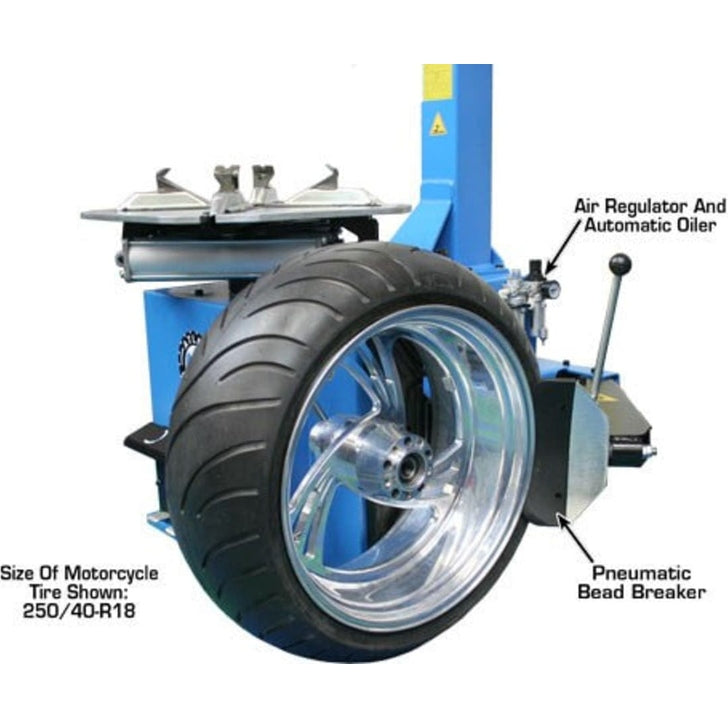

Motorcycle and ATV adapters available (sold separately)
-
Integrated “Beadblaster” inflation system
-

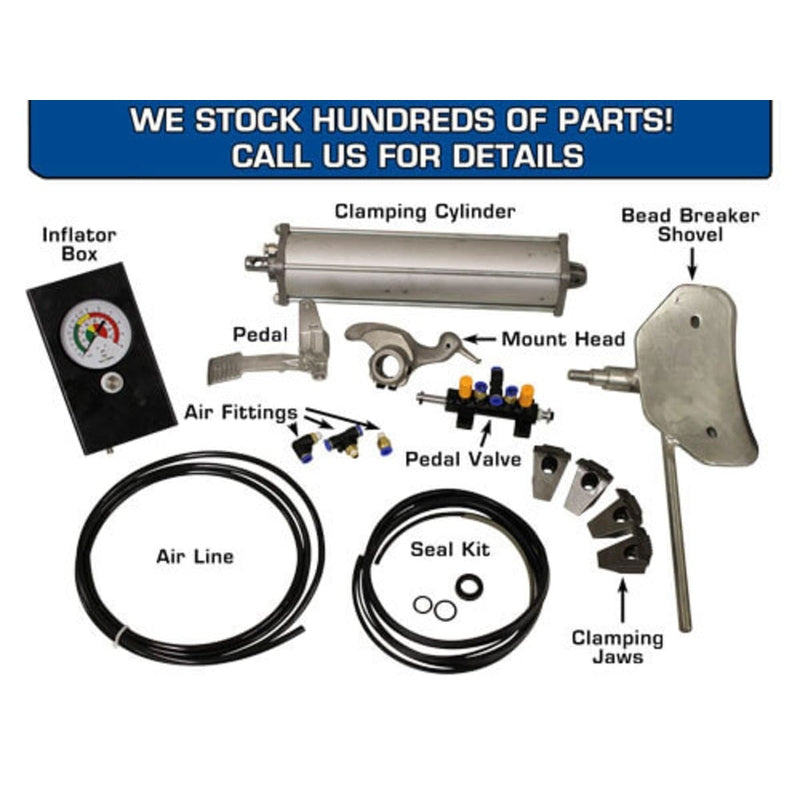

Replacement parts and wear items always in stock
-
1-Year Parts Warranty
Specifications
| Specification | Detail |
|---|---|
| Rims | Steel, Aluminum, Alloy |

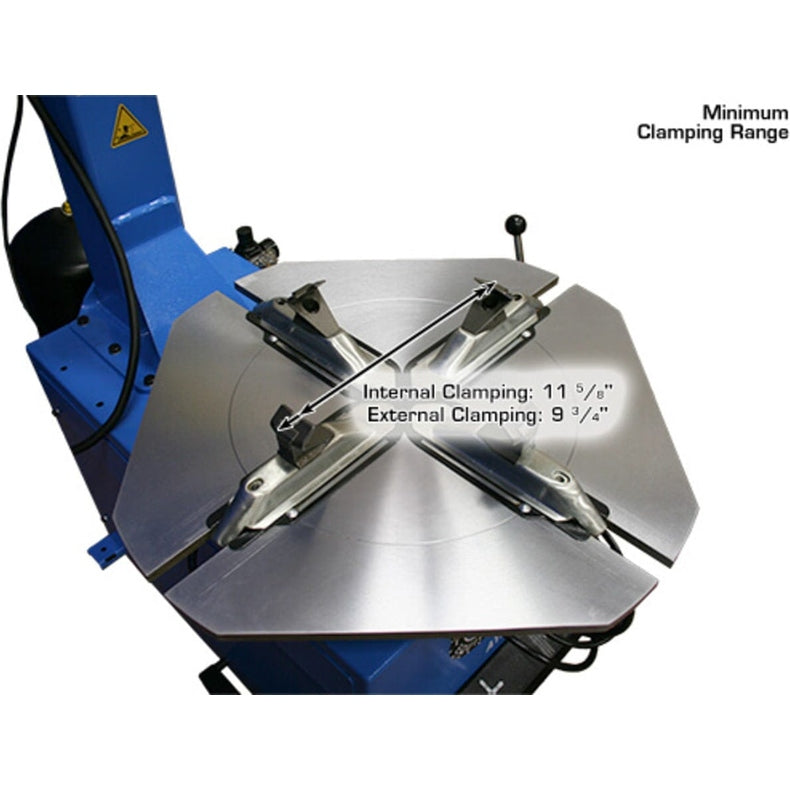

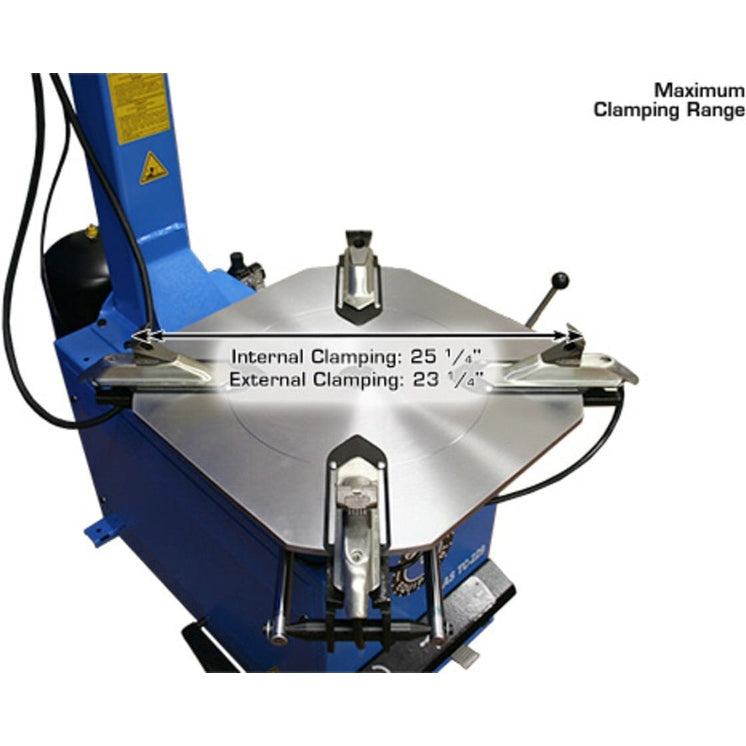

| External Locking Range (3 Positions) | 1) 9 ¾″ – 21 ⅝″ 2) 10 ¾″ – 22 ½″ 3) 11 ⅝″ – 23 ¼″ |
| Internal Locking Range (3 Positions) | 1) 11 ⅝″ – 23 ¼″ 2) 12 ⅝″ – 24 ¼″ 3) 13 ½″ – 25 ¼″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

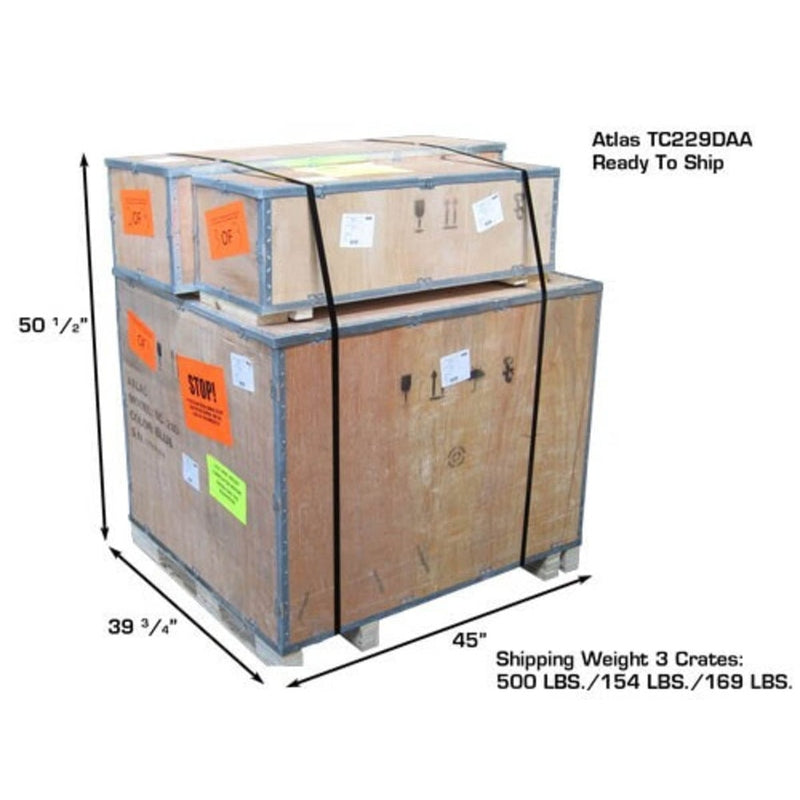

| Shipping Weight | 850 lbs |
