Description
Description

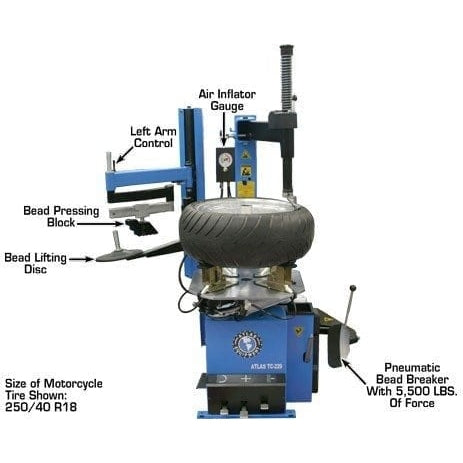

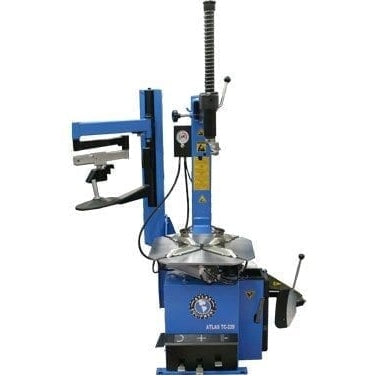

The Atlas® TC229LH rim-clamp swing arm tire changer is an excellent choice for homeowners, small commercial garages, and ATV or motorcycle dealers. This model comes equipped with the Atlas® Left Hand Assist (LHA) arm, designed to make tire changes easier and safer. The LHA arm provides additional support for handling stiff sidewall and low-profile tires—acting like an extra set of hands to save both time and effort.
The TC229LH also includes a built-in Beadblaster system, which delivers a high-volume burst of air to help seat tough, hard-to-inflate tires. For those who expect to service larger pickup, SUV, or agricultural tires, upgrading to the Atlas® TC289 may be the better long-term option.
Engineered for precision and durability, the Atlas® wheel clamp tire changers are ideal for use on both steel and high-end alloy wheels. The powerful side-mounted bead breaker quickly loosens even rusted or stubborn beads without damaging the rim. Adjustable turntable jaws—complete with optional plastic covers—securely grip the wheel and can be repositioned in three settings to accommodate a wide range of tire sizes.
Note: Some assembly is required after purchase.
Features
-
Rim Clamp / Swing Arm Design: Simple and reliable operation for a wide range of wheel types.
-

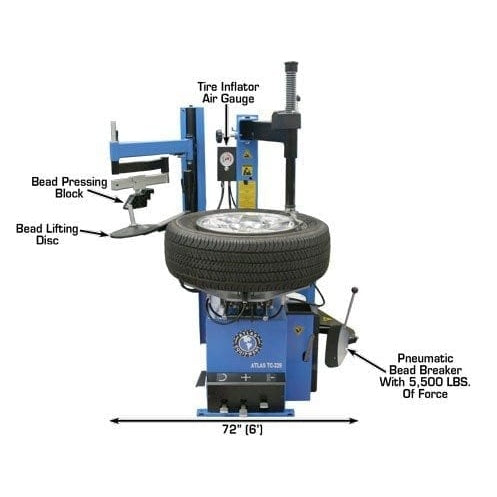

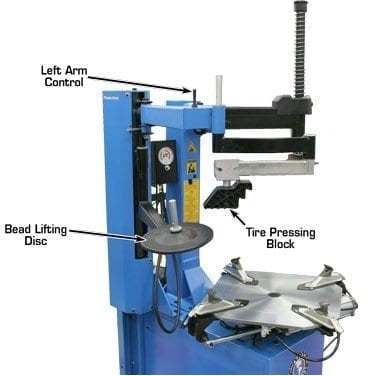

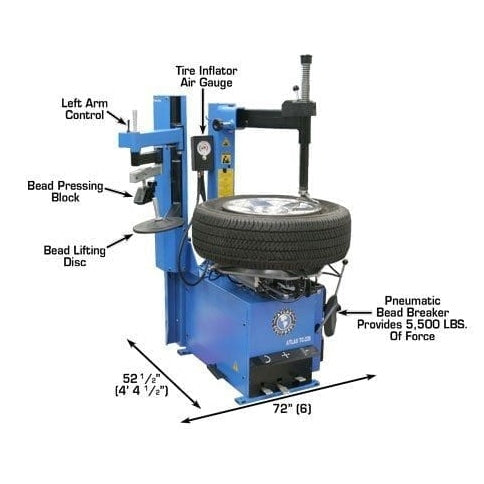

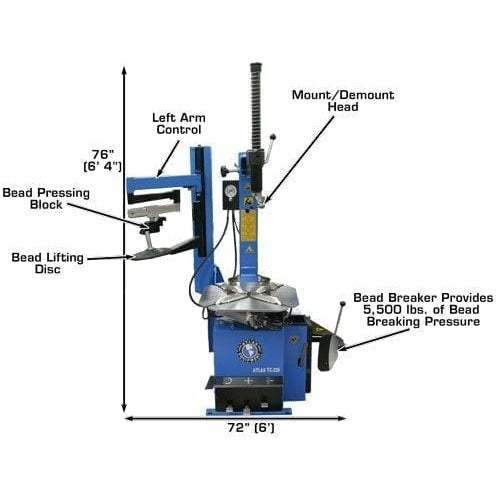

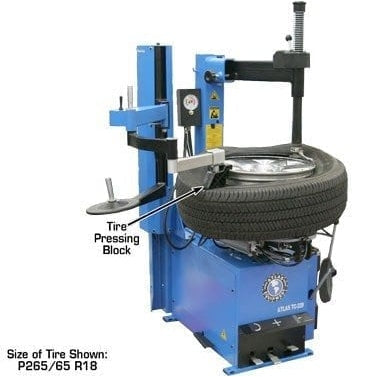

Left Hand Assist Arm Included: Provides pressing block/disk to assist with low-profile and stiff sidewall tires.
-
Air-Operated Jaws & Bead Breaker: Requires external air supply for dependable pneumatic control.
-

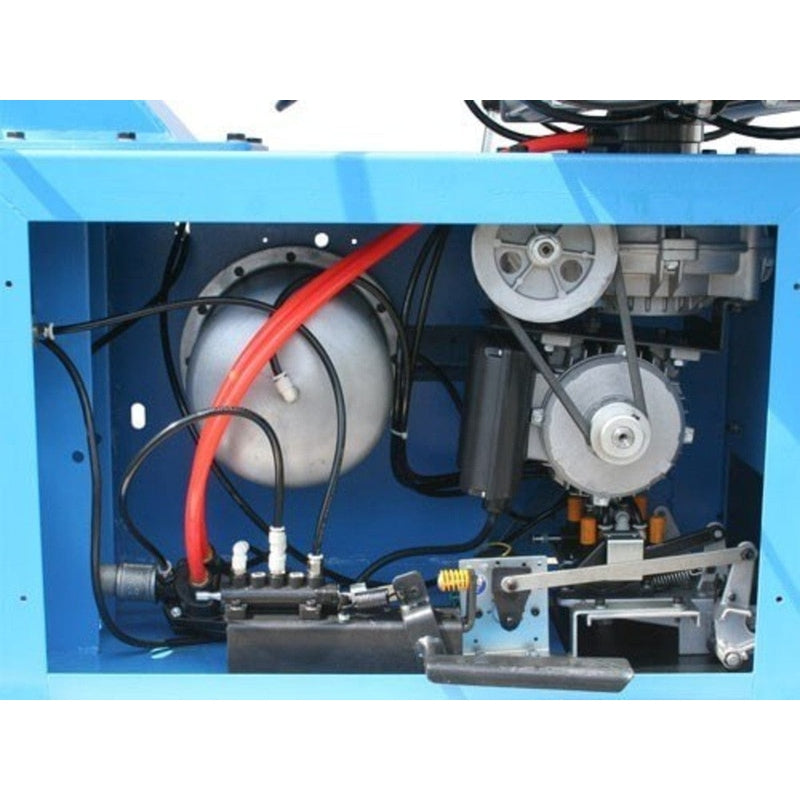

Electric Turntable: Smooth, consistent operation for efficient mounting and demounting.
-
Adjustable Jaws: Three mounting positions for flexible clamping range.
-

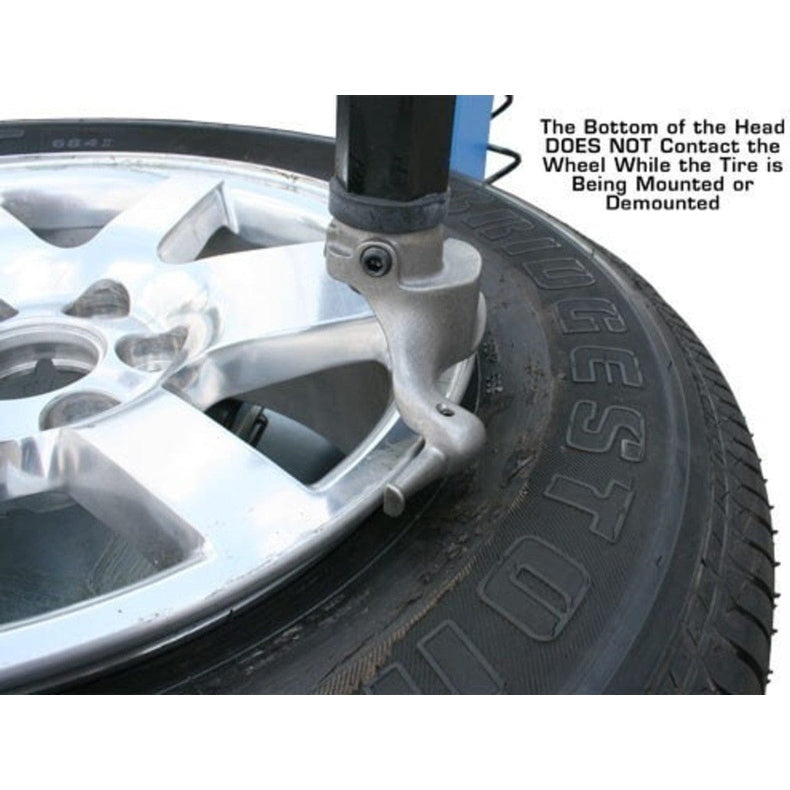

Durable Mount/Demount Head: Metal construction with roller and replaceable plastic inserts.
-
Integrated Inflator Box with Gauge: Conveniently mounted on the column for easy access.
-

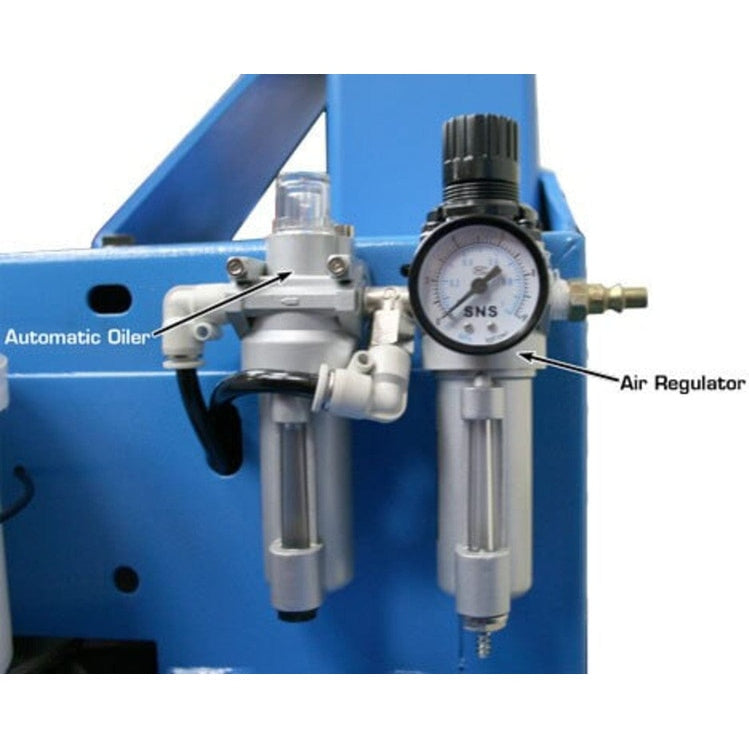

Filter / Regulator / Lubricator Included: Maintains clean air supply and optimal system performance.
-
Comprehensive Accessory Kit: Includes 20″ tire tool, lube bucket with brush, jaw covers, and replacement inserts.
-

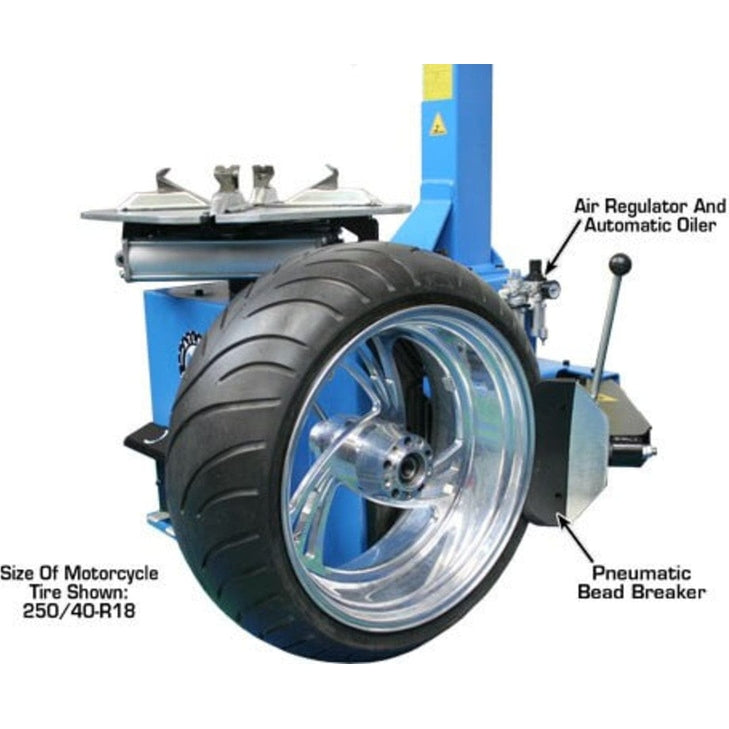

Optional Adapters Available: Motorcycle and ATV adapters sold separately.
-

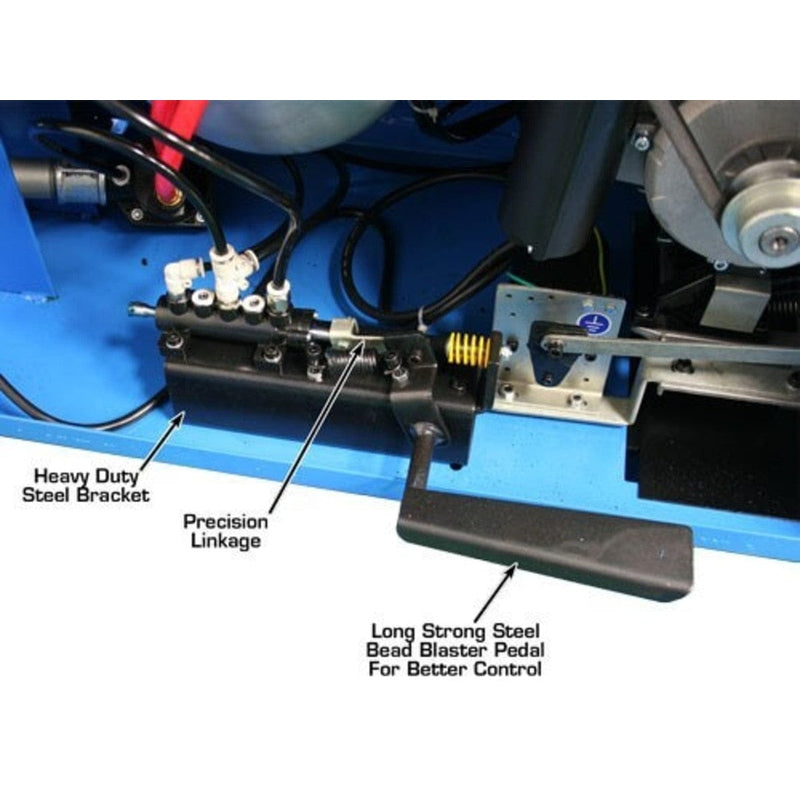

Built-In “Beadblaster” System: Assists in inflating hard-to-seat tires.
-

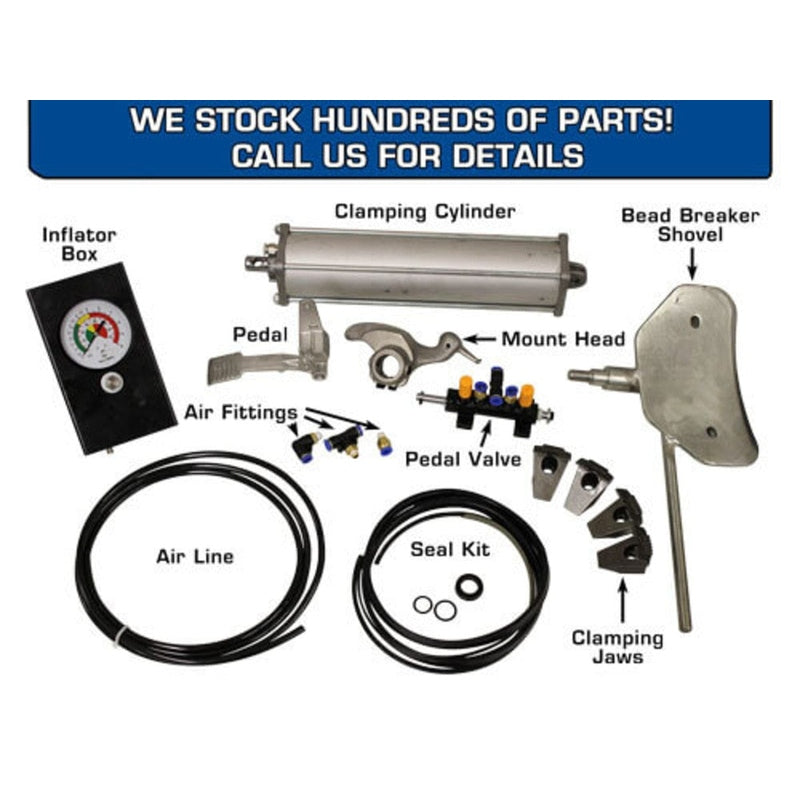

Reliable Support: Replacement parts and wear items always in stock.
-
Warranty: Covered by a 1-year parts-only warranty.
Specifications
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

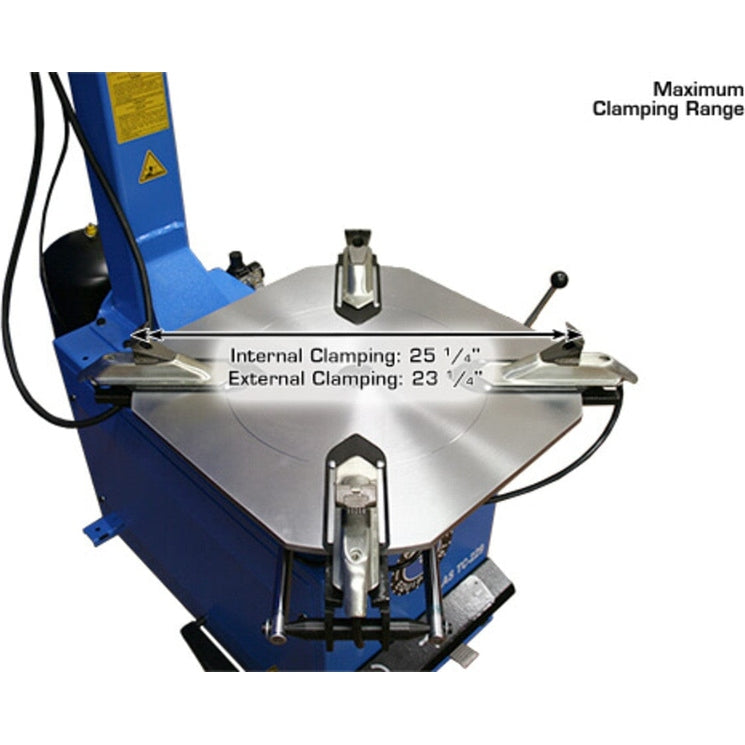

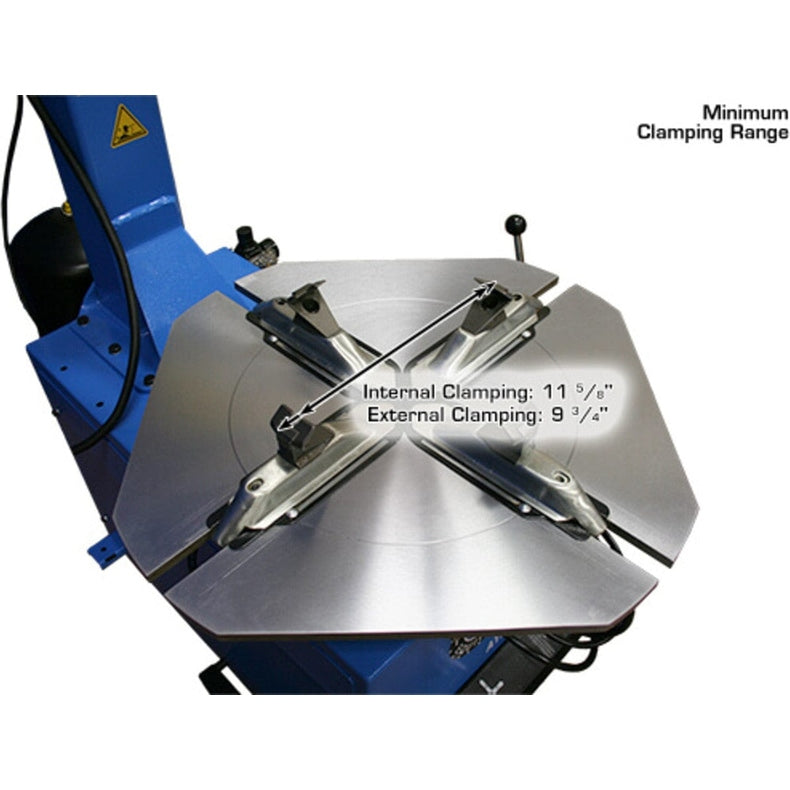

| External Locking Rim Dimensions (3 Positions) | 1) 9¾"–21⅝" 2) 10¾"–22½" 3) 11⅝"–23¼" |
| Internal Locking Rim Dimensions (3 Positions) | 1) 11⅝"–23¼" 2) 12⅝"–24¼" 3) 13½"–25¼" |
| Maximum Tire Diameter | 39" |
| Maximum Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (do not exceed 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 750 lbs |
