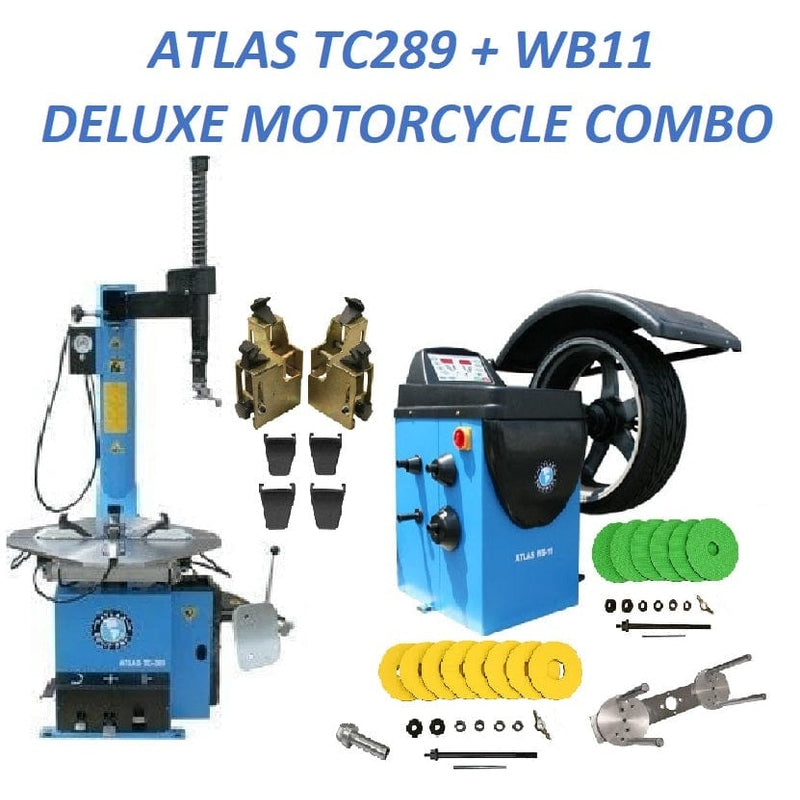

The Atlas® TC289 & WB11 Combo Package with motorcycle adapters delivers a complete and versatile tire service solution for motorcycles, cars, and light trucks. This setup includes the Atlas® TC289 Rim-Clamp Swing Arm Tire Changer and the Atlas® WB11 Computerized Spin Balancer, both operating on 110V power and built for precision and reliability. Ideal for farms, homeowners, and professional workshops, this package makes tire changing and balancing simple, efficient, and cost-effective. Both machines are CE certified and backed by the Atlas® 1-Year Parts-Only Warranty for added peace of mind.
Features

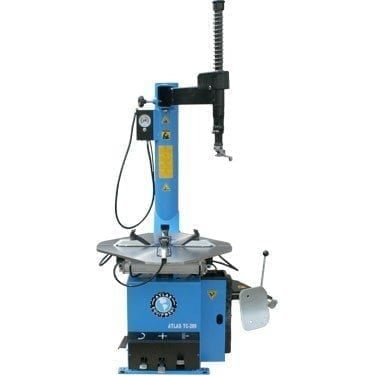

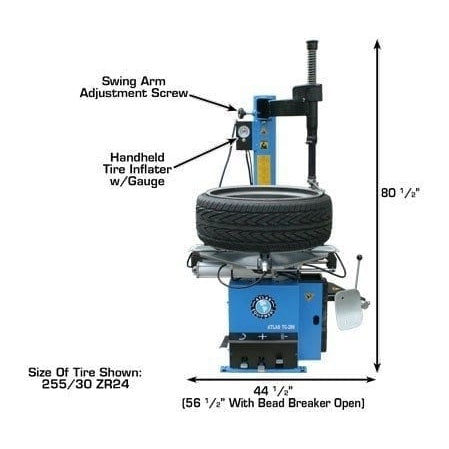

Atlas® TC289 Tire Changer
-
Rim-Clamp Swing Arm Design: Provides strong, stable performance and easy access for mounting and dismounting tires.
-

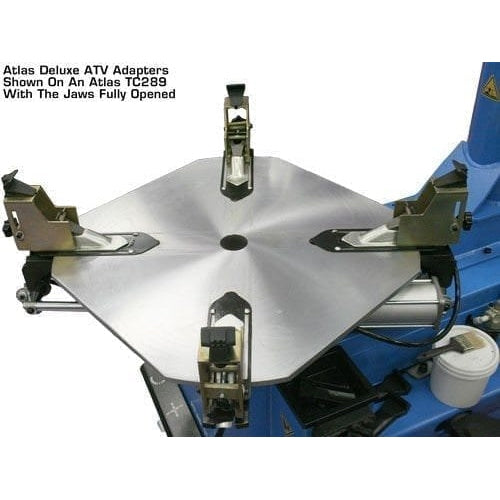

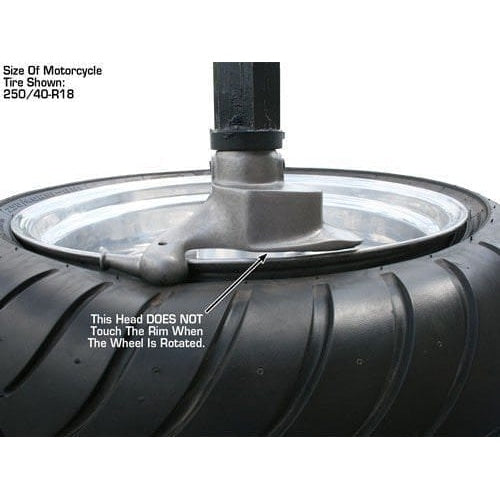

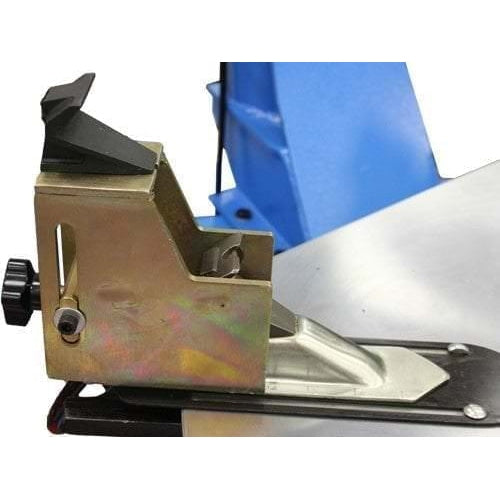

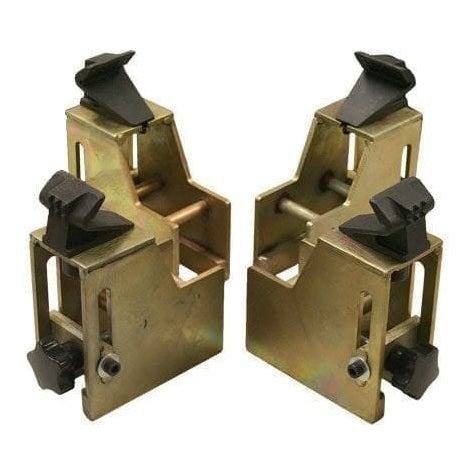

Includes Deluxe Motorcycle Adapters: Comes with plastic jaw covers for added rim protection.
-
Extra-Large Turntable: Offers increased clearance for handling a wide variety of wheel sizes.
-

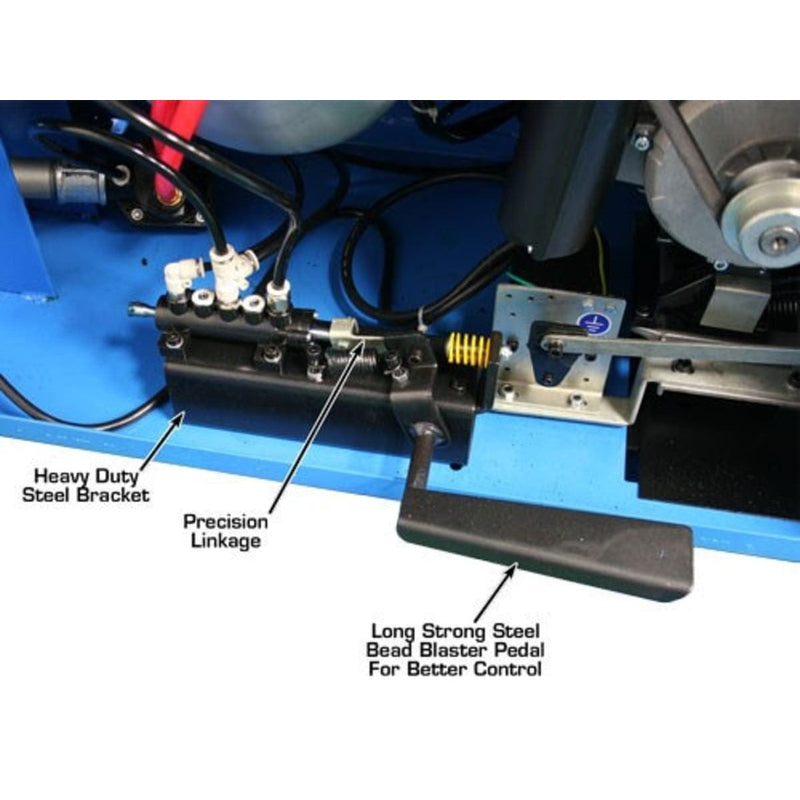

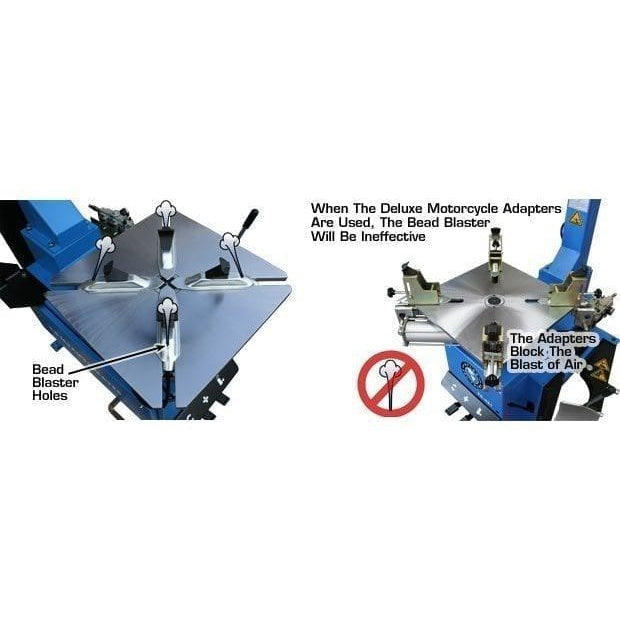

Built-In “Bead Blaster”: Speeds up tire seating by directing air blasts at the bead.
-

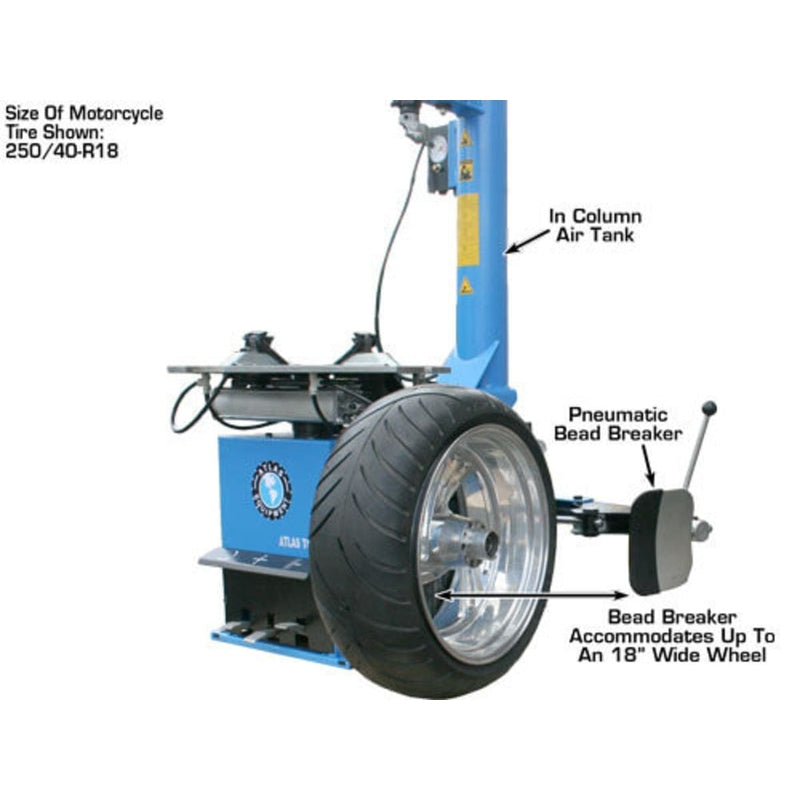

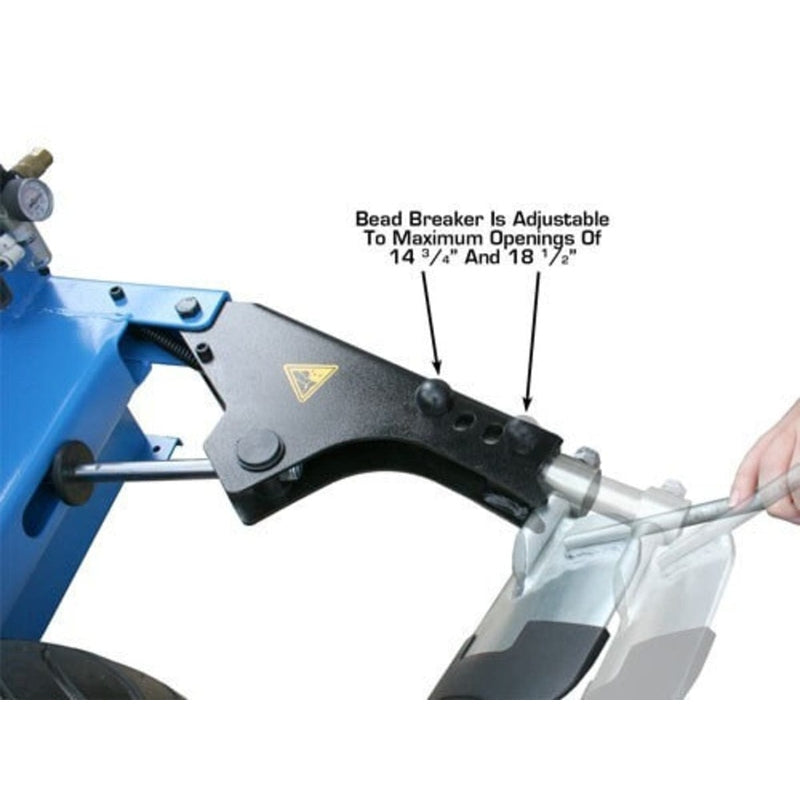

Adjustable Bead Breaker Plate: Accommodates different wheel and tire combinations.
-

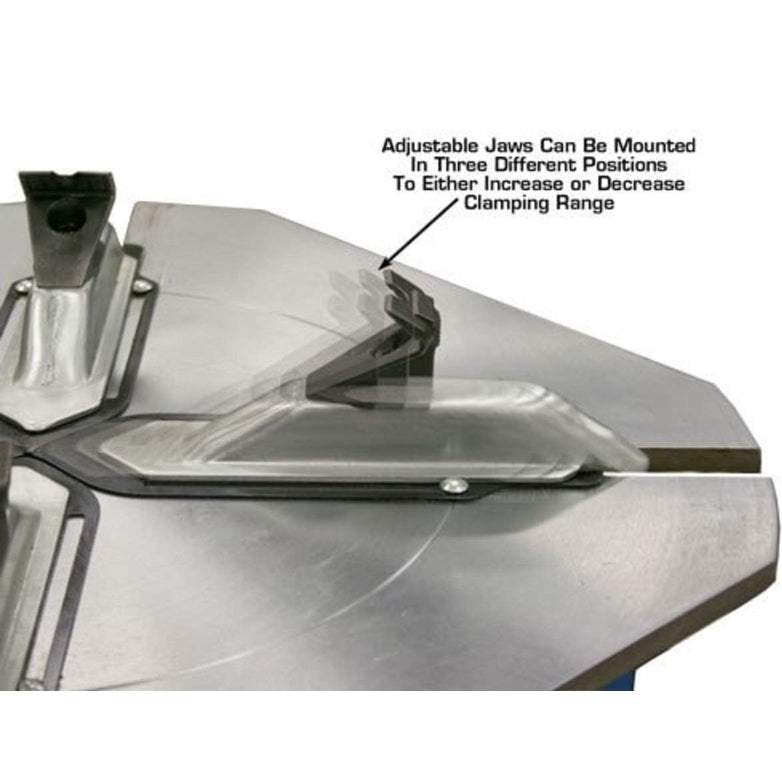

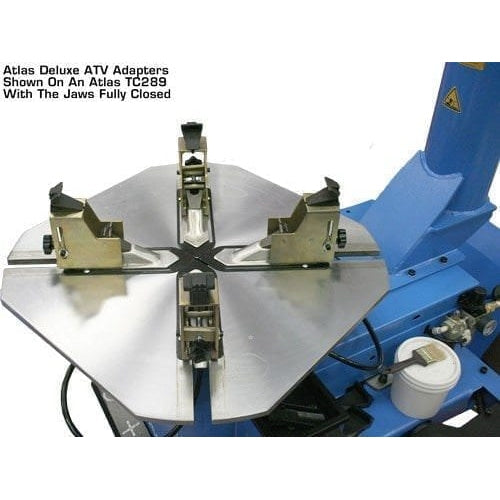

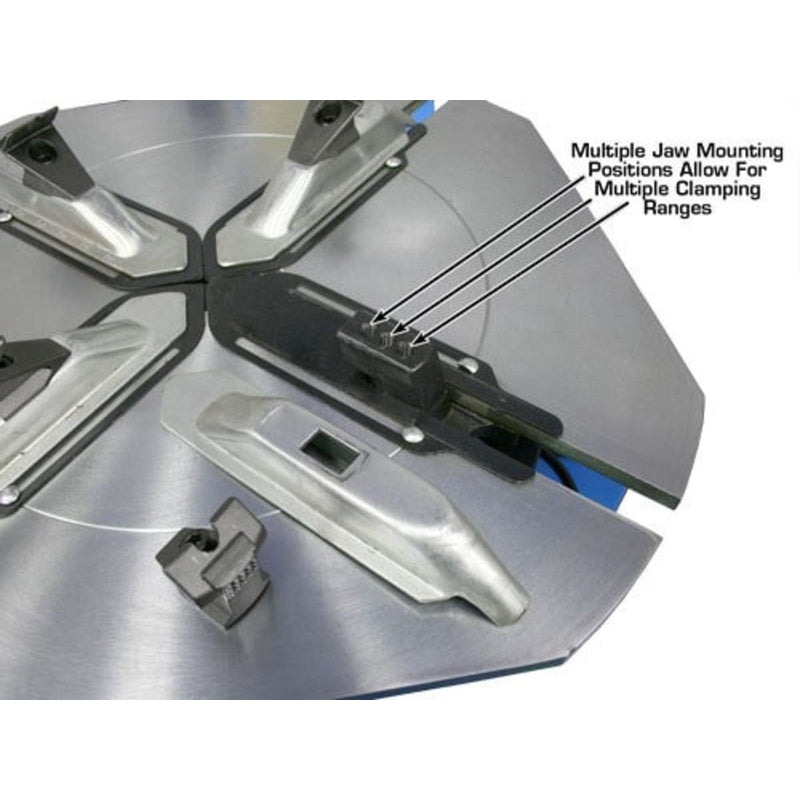

Three-Position Adjustable Jaws: Enables a secure grip on various rim sizes.
-
Integrated Oiler, Filter, and Regulator: Ensures consistent air quality (external air supply required).
-
Protective Components Included: Comes with plastic protectors to safeguard rims during service.
-
Complete Accessory Kit: Includes tire tool, lube bucket, and brush for convenience.
-
Inflation Box with Pressure Gauge: Provides accurate inflation control during operation.

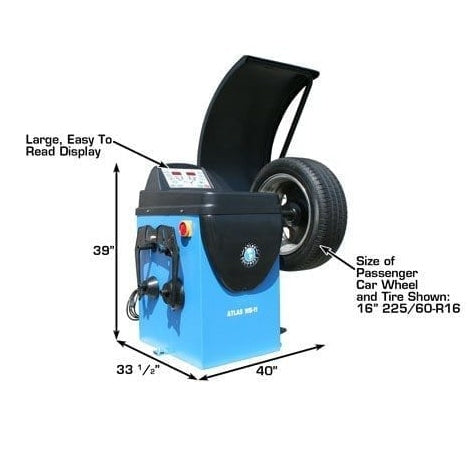

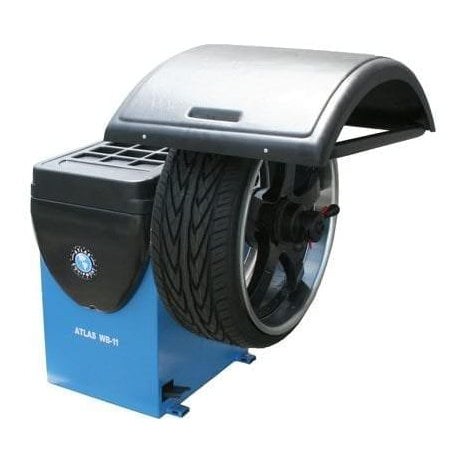

Atlas® WB11 Wheel Balancer
-
Precision Computer-Controlled Operation: Ensures smooth, accurate balancing for both car and motorcycle wheels.
-

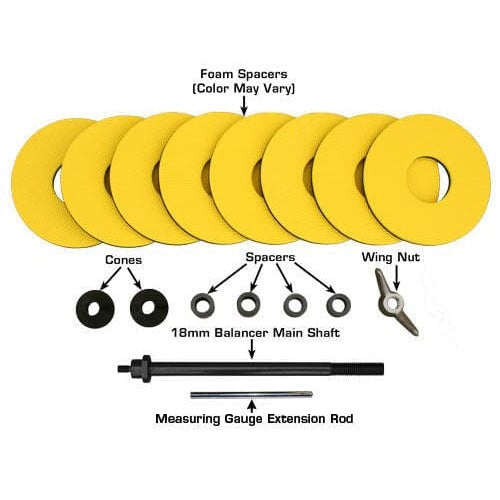

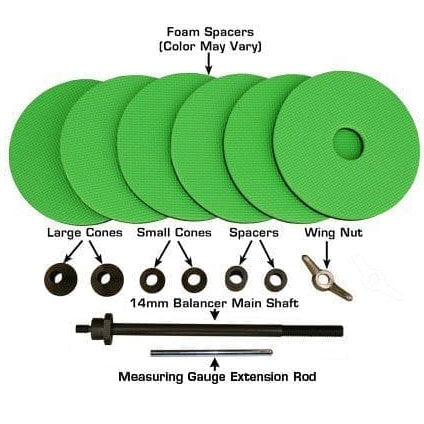

Motorcycle Adapter Kits Included:
-

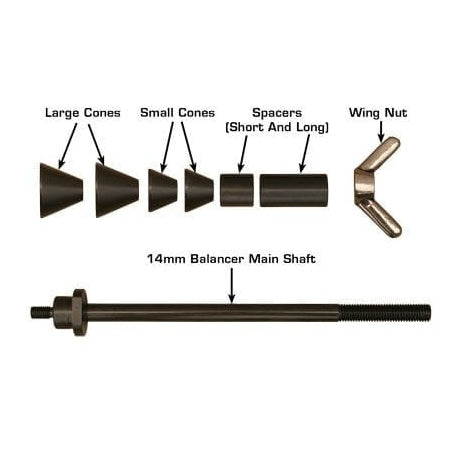

14mm Standard Adapter Kit
-
19mm Large Adapter Kit
-

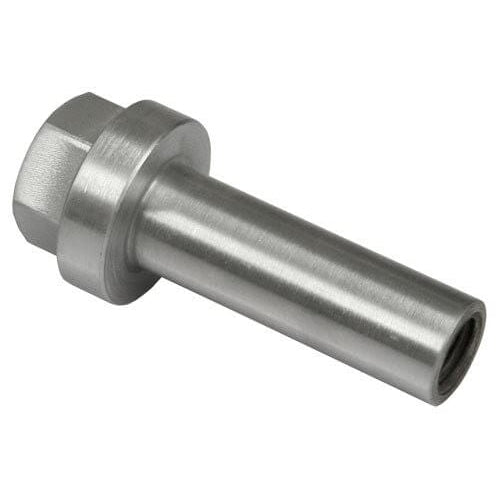

19mm Extension Nut
-
Spoke Support Adapter
-
-

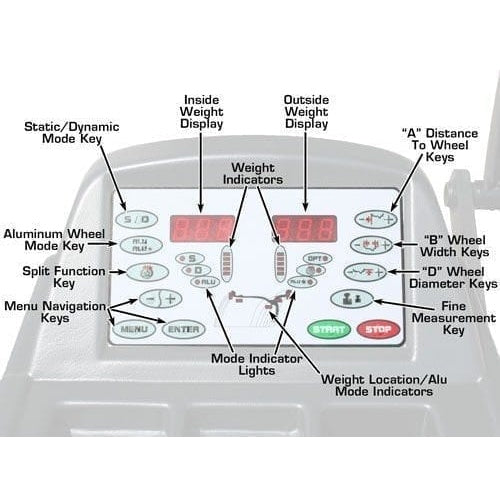

Multiple Balancing Modes: Supports static and dynamic modes for different wheel types.
-
Rapid Optimization (OPT): Quickly finds the best wheel position for reduced weight use.
-
Self-Diagnosis and Calibration: Simplifies maintenance and ensures ongoing accuracy.
-
Dual Unit Display: Results can be viewed in grams or ounces, and in millimeters or inches.
-

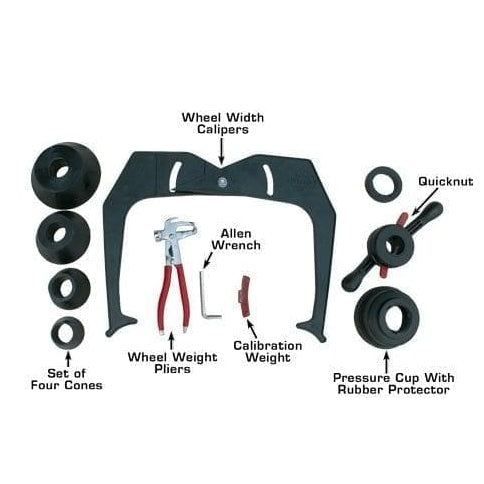

Included Accessories:
-

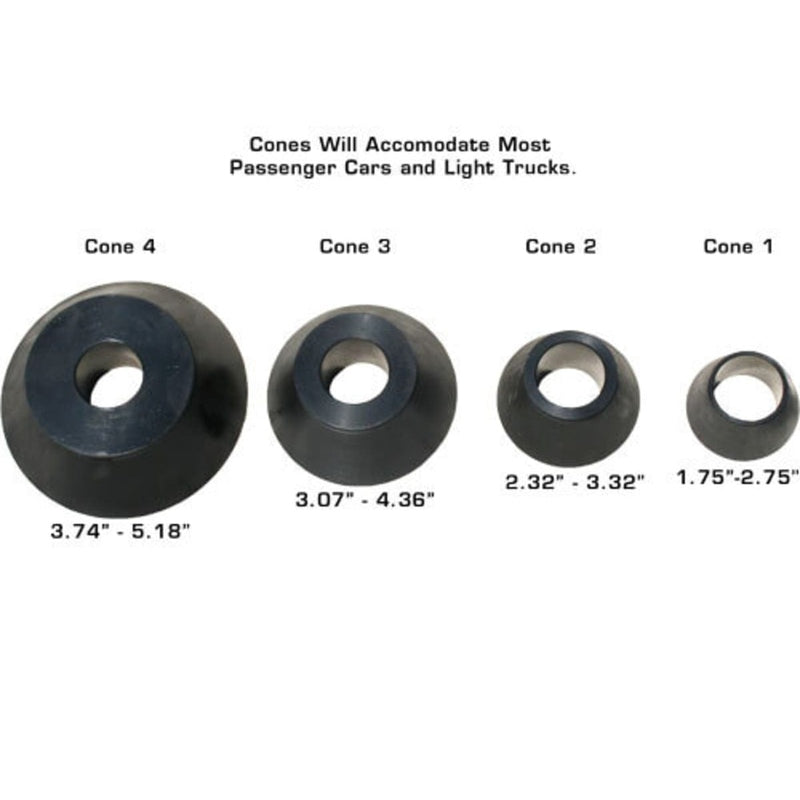

Four centering cones
-

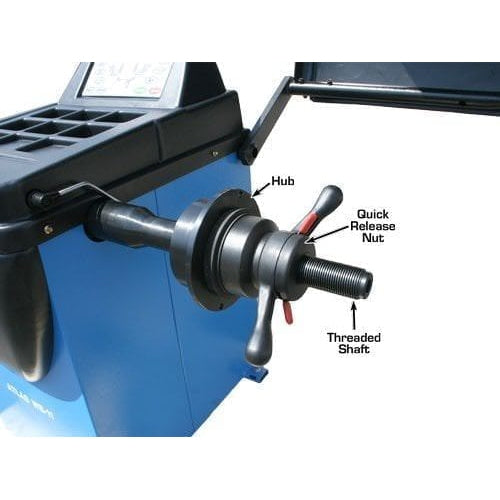

Plastic quick-release nut
-
Wheel weight pliers
-
Measuring calipers
-
Specifications
Atlas® TC289 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

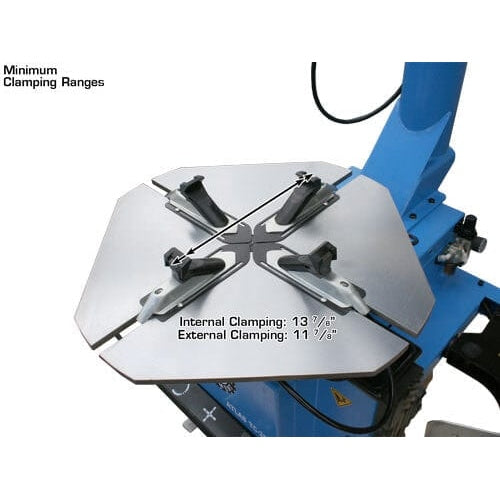

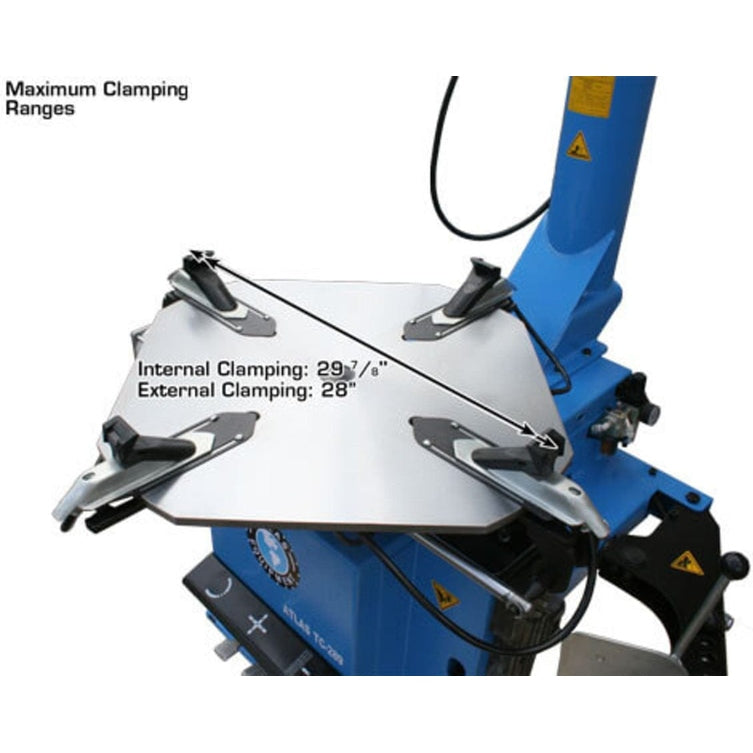

| External Locking Range (3 Positions) | 11 ⅞"–26" / 12 ⅞"–27" / 13 ¾"–28" |
| Internal Locking Range (3 Positions) | 13 ⅞"–27 ⅞" / 14 ⅝"–28 ⅞" / 15 ⅝"–29 ⅞" |
| Max Tire Diameter | 47" |
| Max Wheel Width (Bead Breaker) | 18" |

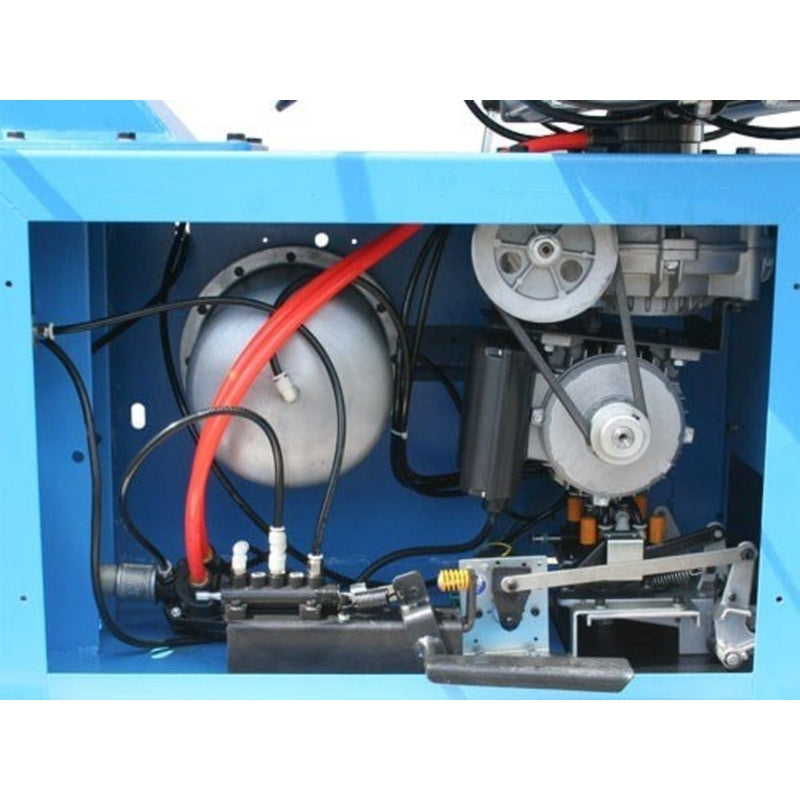

| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

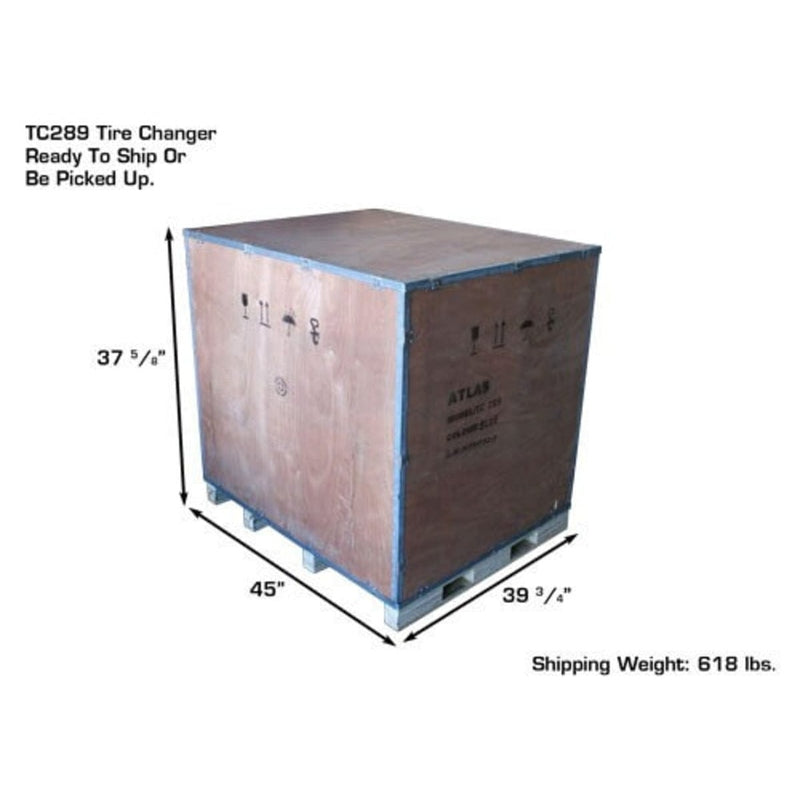

| Shipping Weight | 620 lbs |

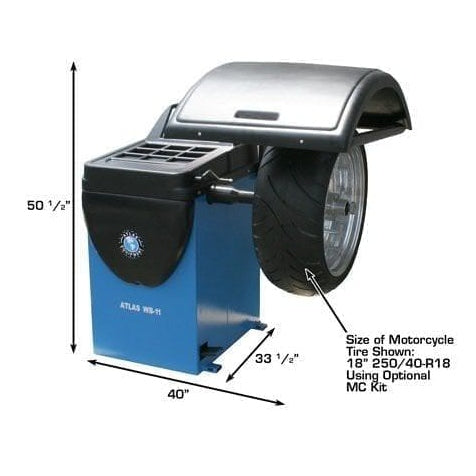

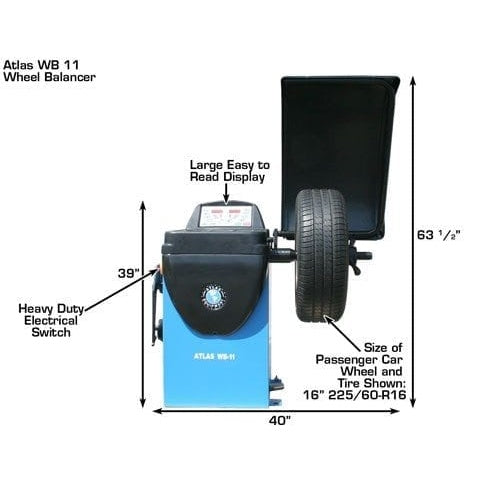

Atlas® WB11 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10"–32" |
| Rim Width | 1½"–20" |

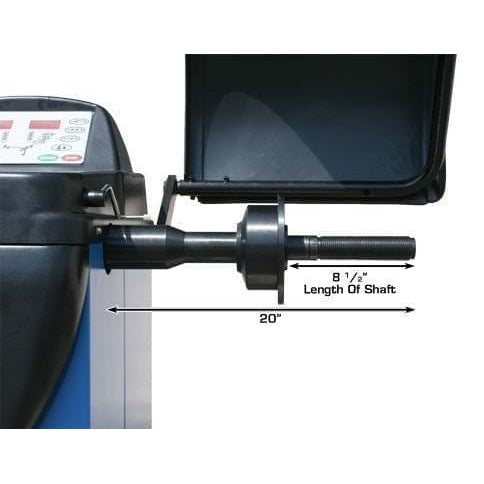

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |

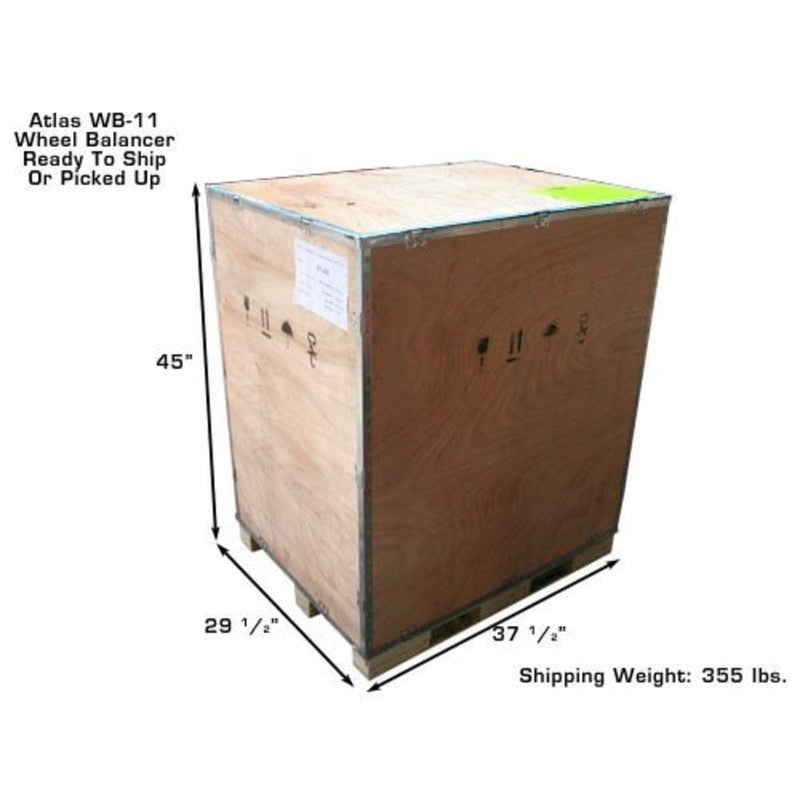

| Shipping Weight | 355 lbs |
This Atlas® TC289 & WB11 Motorcycle Combo delivers professional-grade performance and versatility, making it a smart investment for anyone servicing motorcycles, cars, or light truck tires — from small garages to full-service repair shops.
