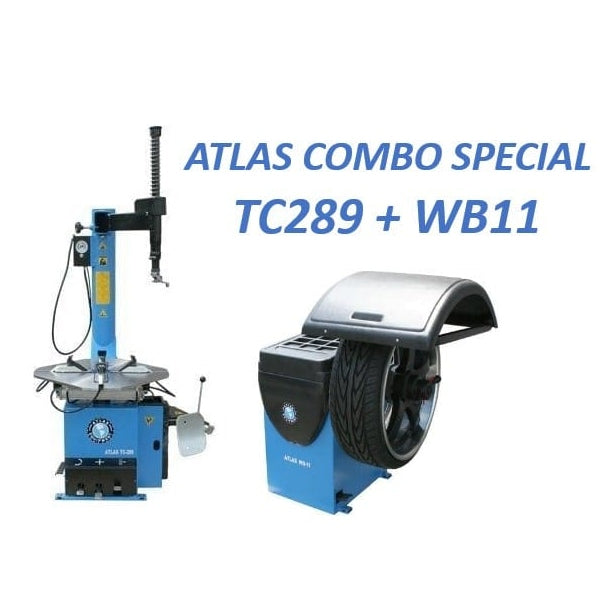

The Atlas® TC289 & WB11 Combo Package delivers an efficient and reliable tire service solution designed for shops, farms, and homeowners alike. This package includes the Atlas® TC289 Rim-Clamp Swing Arm Tire Changer and the Atlas® WB11 Computerized Spin Balancer, offering a powerful and user-friendly setup for tire changing and balancing. Both machines operate on 110V power, are CE certified, and are backed by the Atlas® 1-Year Parts-Only Warranty, ensuring dependable performance and peace of mind.
Features

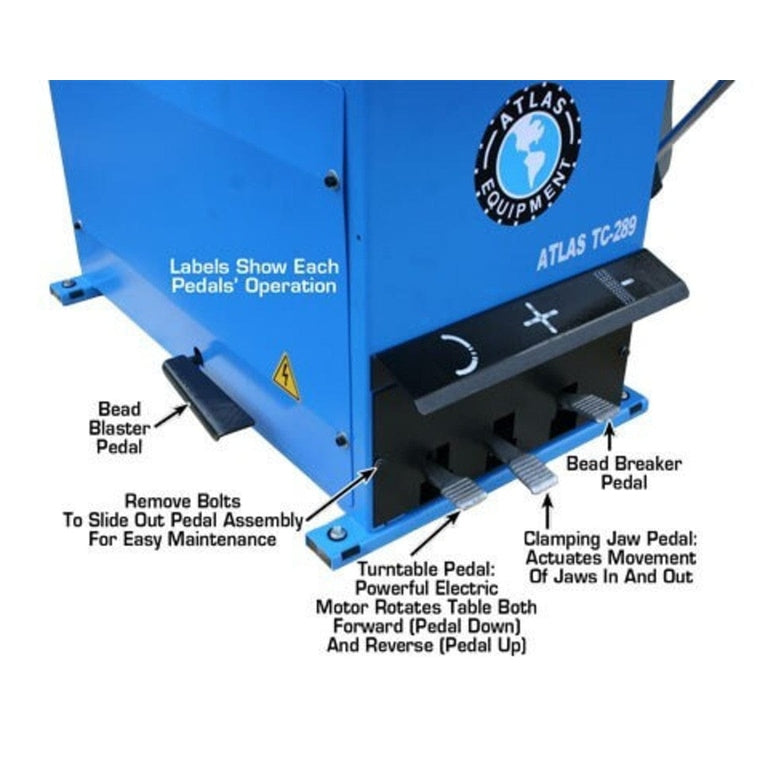

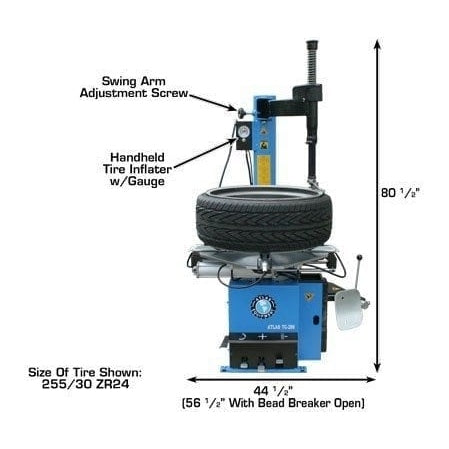

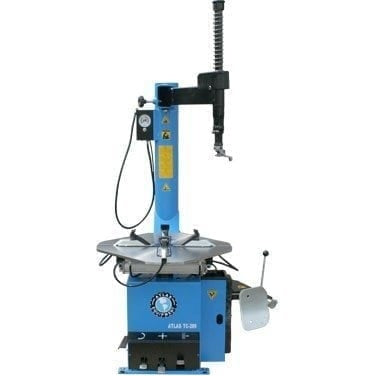

Atlas® TC289 Tire Changer
-
Rim-Clamp Swing Arm Design: Built for versatility, ideal for servicing a wide range of wheel types.
-
Extra-Large Turntable: Provides additional clearance for larger wheels.
-

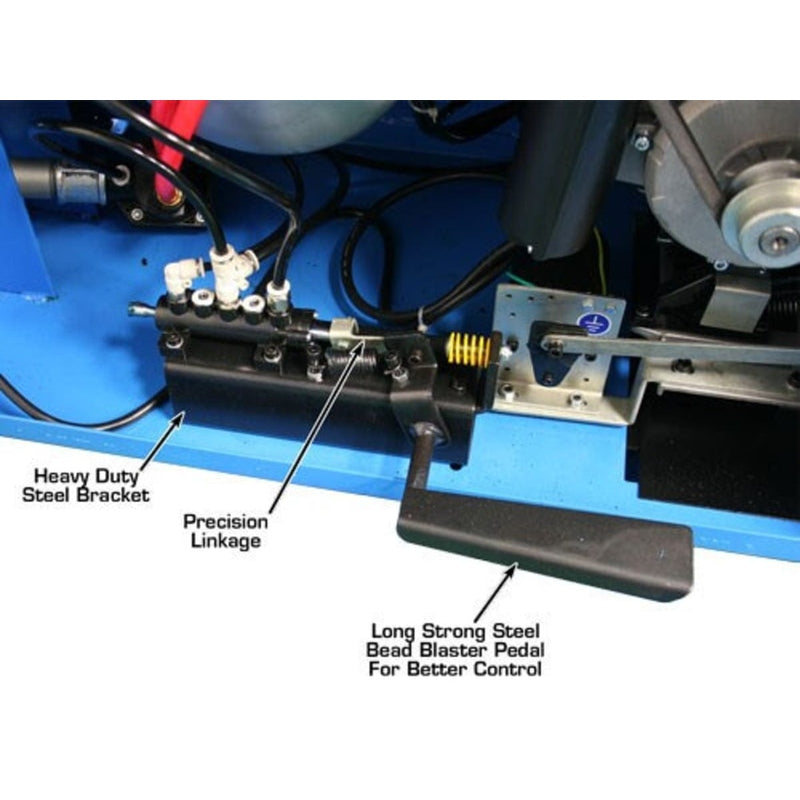

Integrated Bead Blaster: Helps seat beads quickly and efficiently.
-

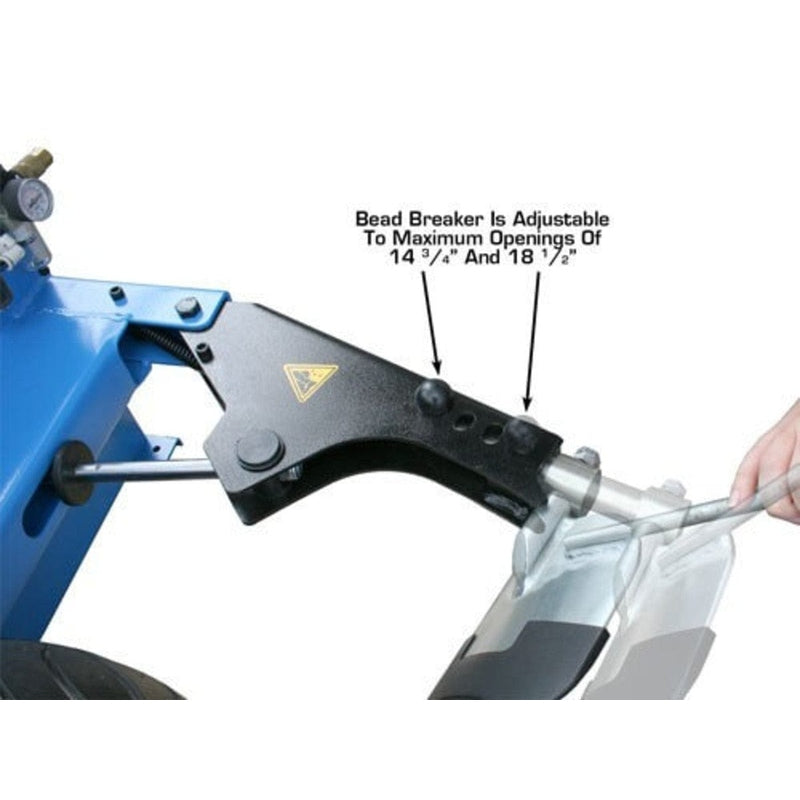

Adjustable Bead Breaker Plate: Ensures secure operation across various wheel sizes.
-

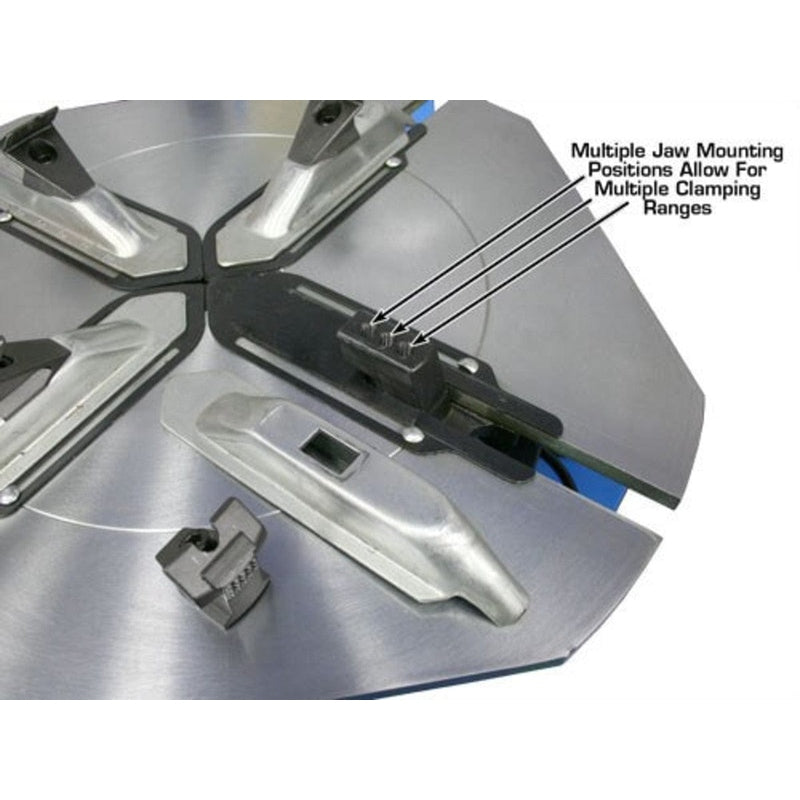

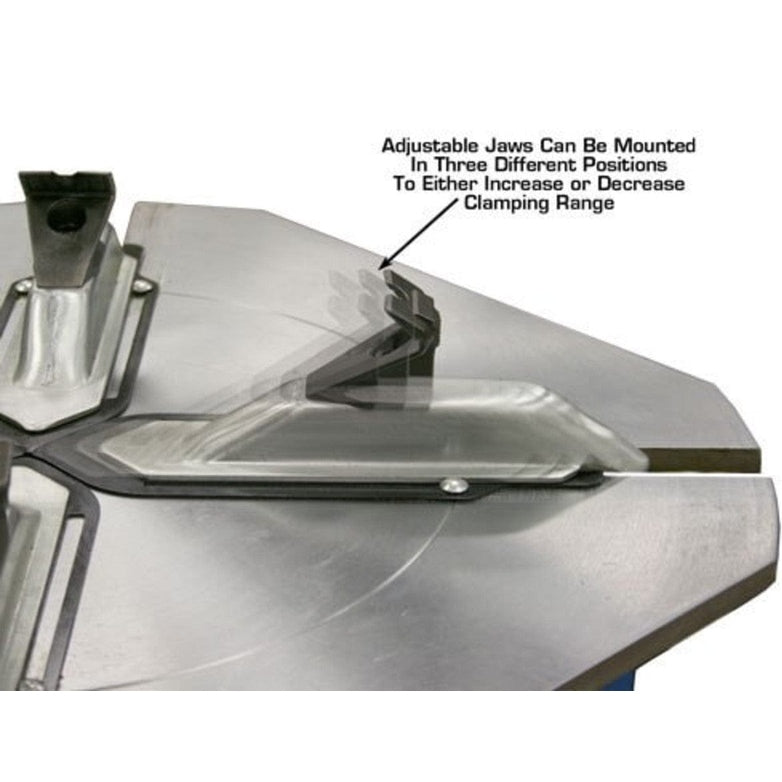

Three-Position Adjustable Jaws: Offers flexibility for multiple rim dimensions.
-
Air System Included: Oiler, filter, and regulator come standard (external air supply required).
-

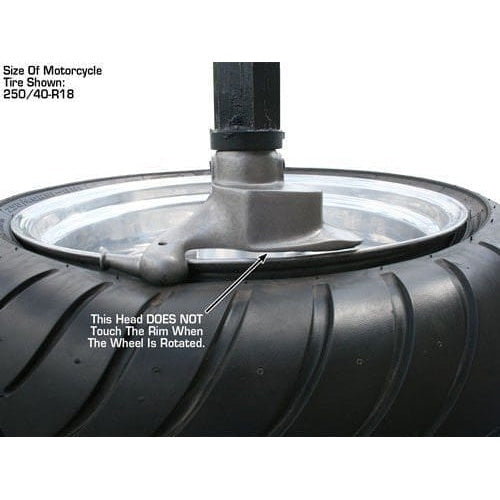

Protective Components: Plastic protectors prevent rim and tool damage.
-
Complete Tool Kit: Includes tire iron, lube bucket, and lube brush.
-
Inflation Box with Pressure Gauge: Provides accurate and convenient inflation control.

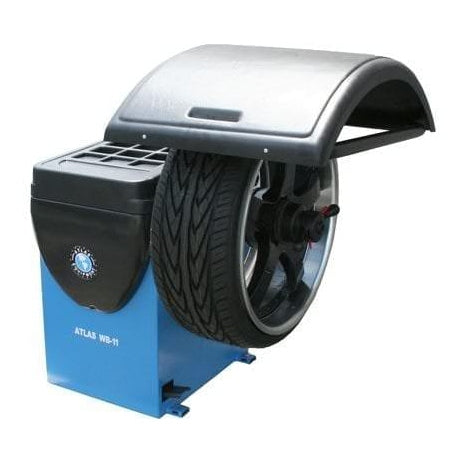

Atlas® WB11 Wheel Balancer
-
Computer-Controlled Spin Balancer: Ensures accurate and consistent wheel balancing.
-
Static and Dynamic Modes: Suitable for both car and light truck tires.
-
Rapid Optimization (OPT): Reduces vibration and improves balance precision.
-
Self-Diagnosis and Self-Calibration: Simplifies setup and ensures long-term accuracy.
-

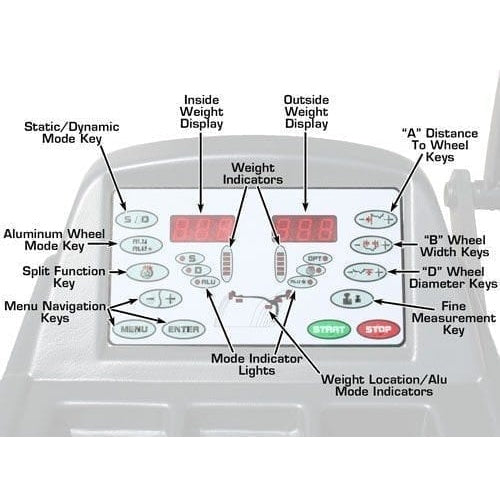

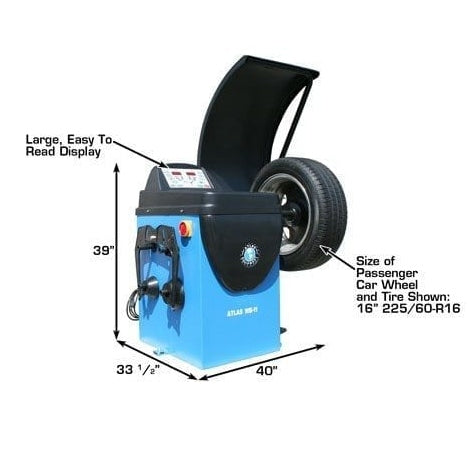

Multi-Unit Display: Switch between grams/ounces and millimeters/inches.
-

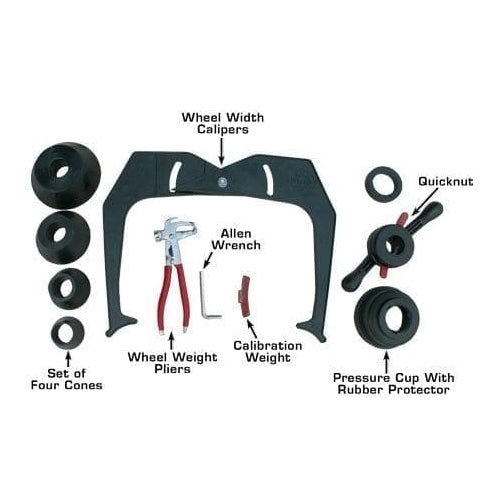

Included Accessories:
-

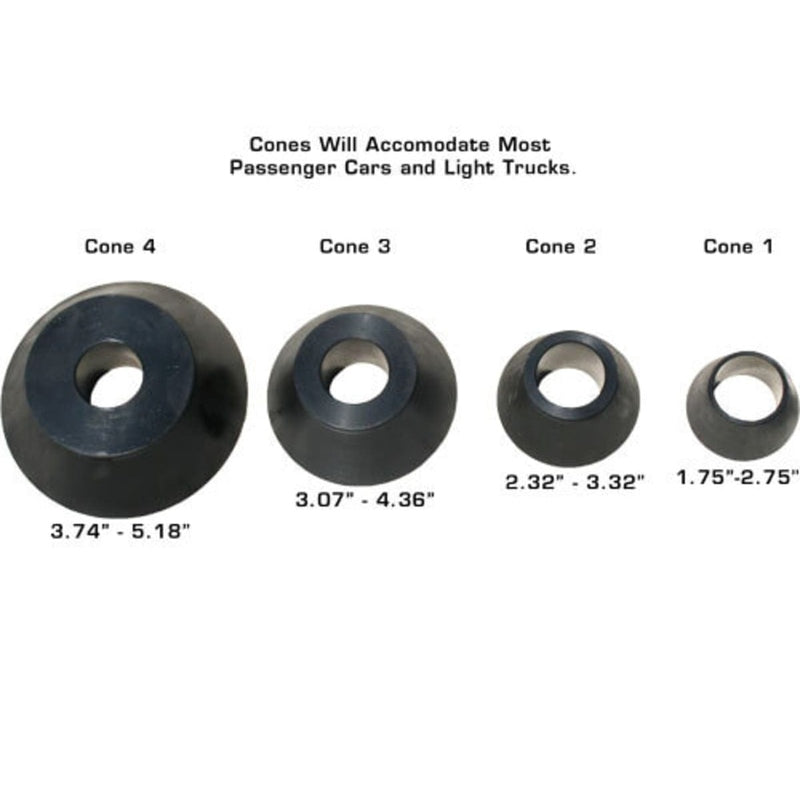

4 centering cones
-

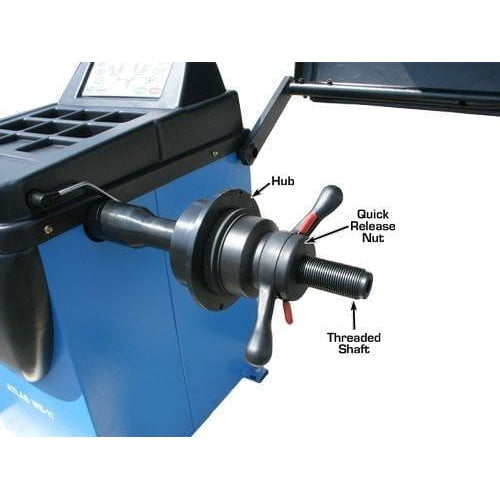

Plastic quick-release nut
-
Wheel weight pliers
-
Measuring calipers
-
Specifications
Atlas® TC289 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

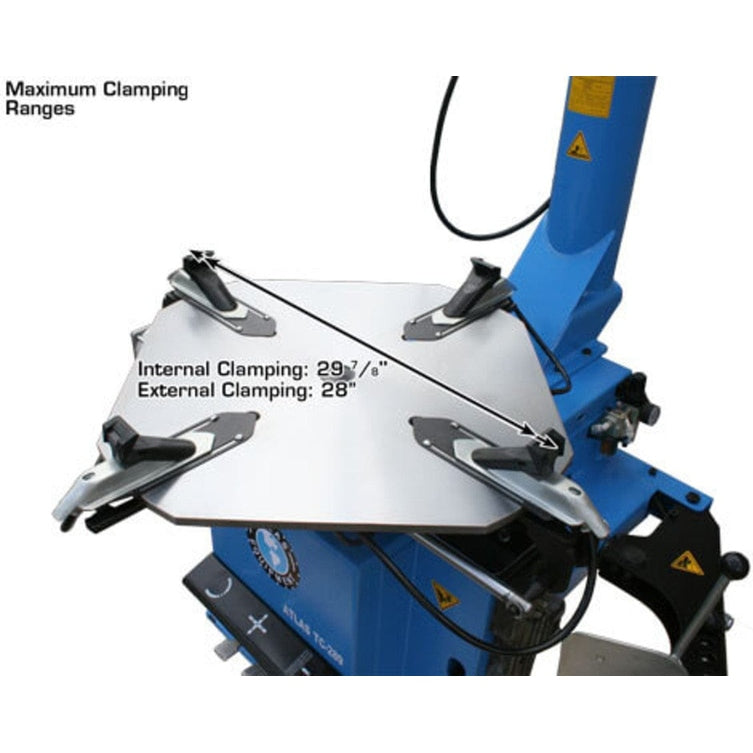

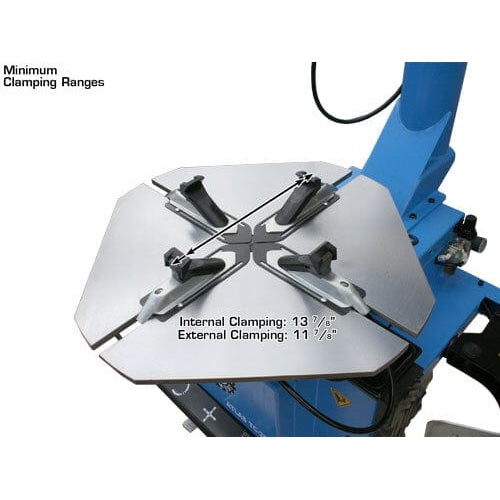

| External Locking Rim Dimensions | 11⅞"–26", 12⅞"–27", 13¾"–28" |
| Internal Locking Rim Dimensions | 13⅞"–27⅞", 14⅝"–28⅞", 15⅝"–29⅞" |
| Max Tire Diameter | 47" |

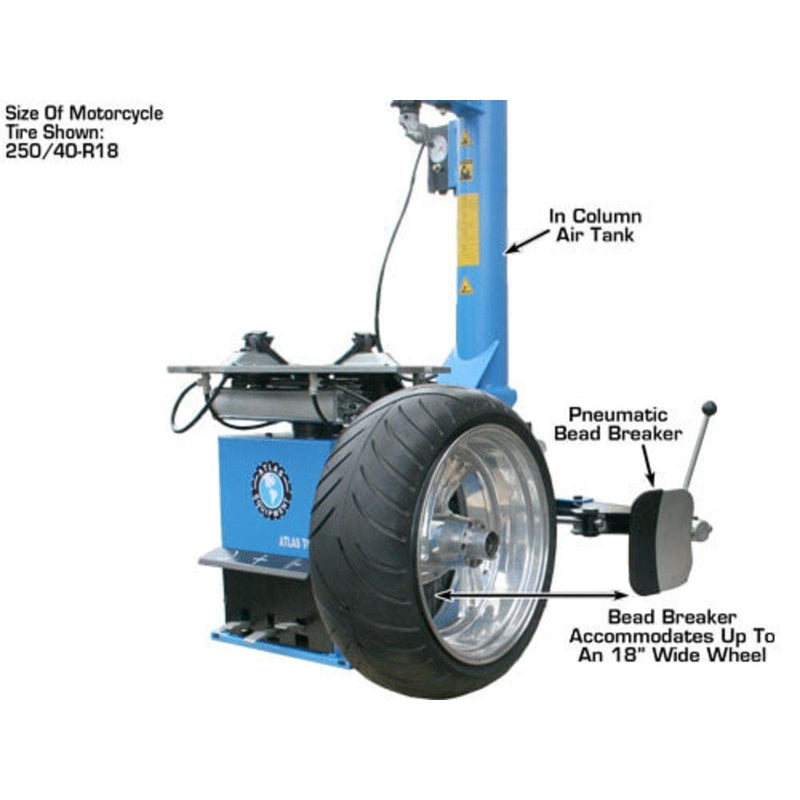

| Max Wheel Width (Bead Breaker) | 18" |

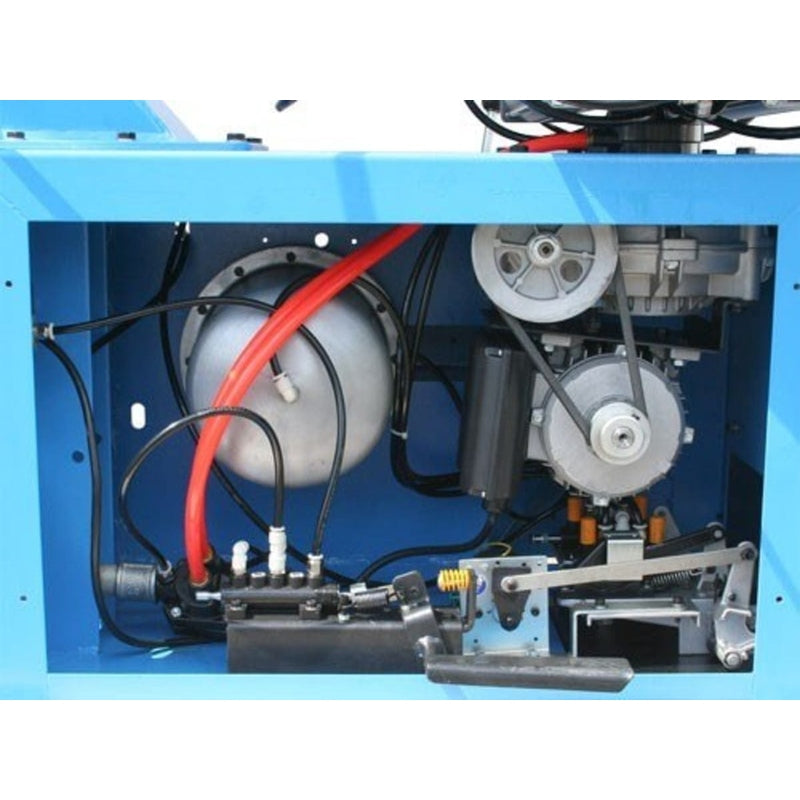

| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

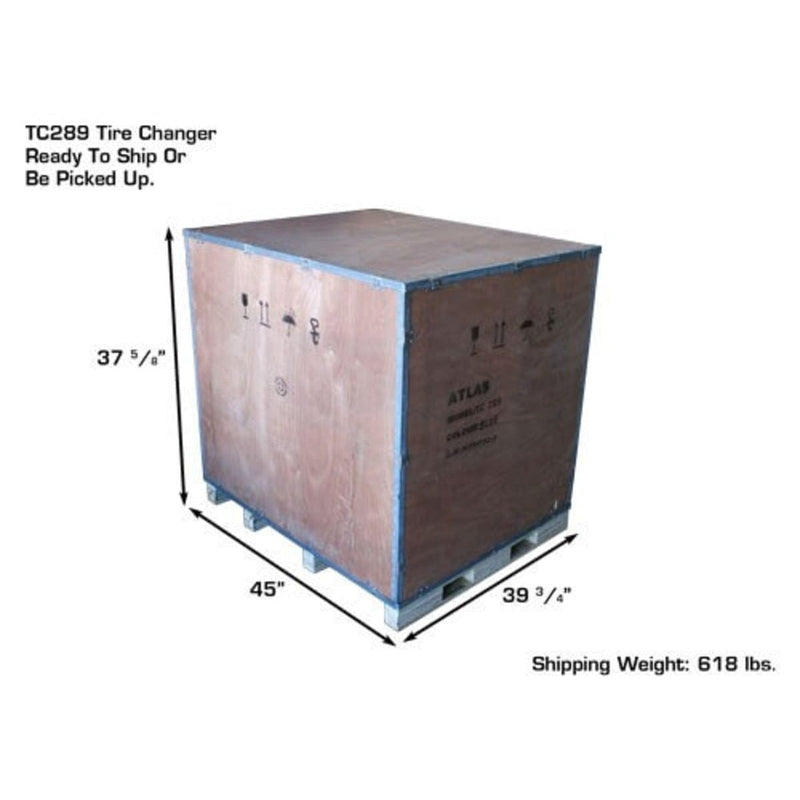

| Shipping Weight | 620 lbs |

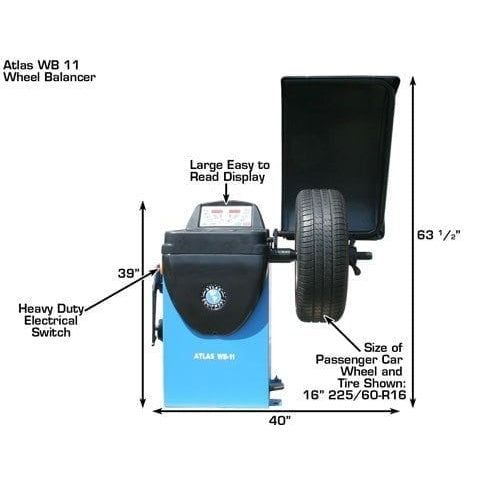

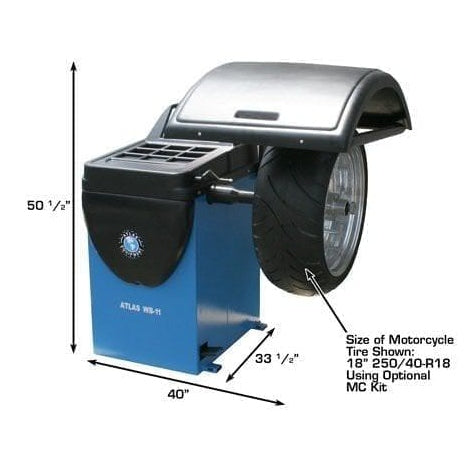

Atlas® WB11 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10"–32" |
| Rim Width | 1½"–20" |

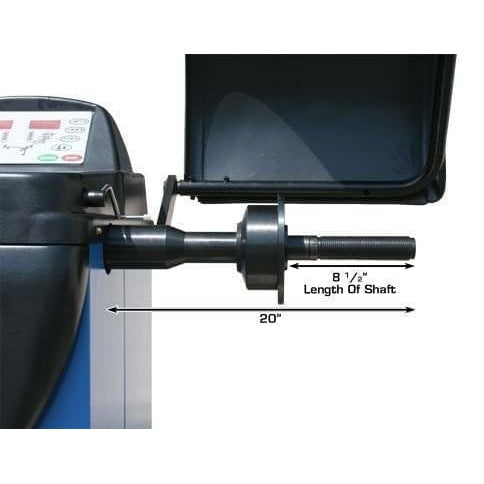

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |

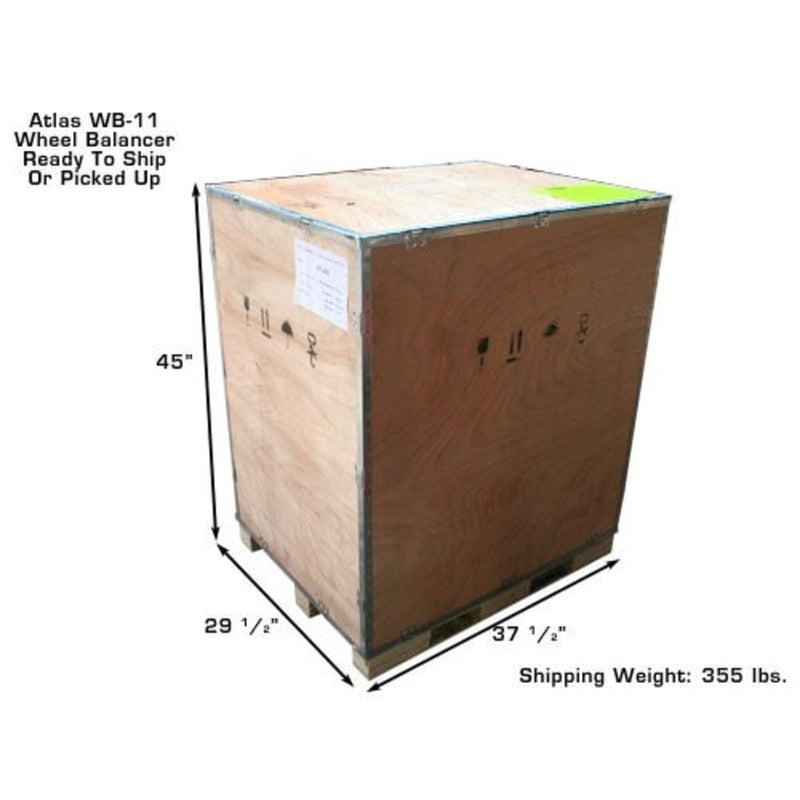

| Shipping Weight | 355 lbs |
The Atlas® TC289 & WB11 Combo provides a cost-effective, high-quality tire service setup — ideal for professionals and enthusiasts who need reliable performance, simplicity, and precision in every job.
