Description
The Atlas® TC289 Tire Changer and WB41 Wheel Balancer Combo is a complete tire service solution designed for versatility, reliability, and ease of use. Ideal for farms, homeowners, and professional shops of any size, this package allows you to change and balance tires efficiently with professional-grade accuracy. Both machines operate on 110V power, are CE approved, and backed by the Atlas® 1-year parts-only warranty, ensuring lasting performance and value.
Features

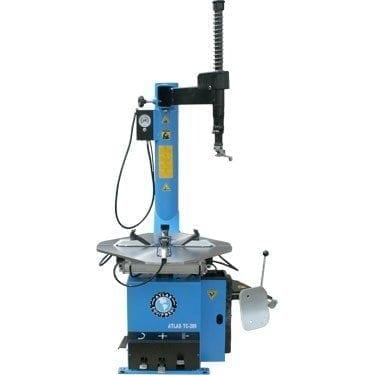

Atlas® TC289 Rim Clamp / Swing Arm Tire Changer
-
Rim Clamp / Swing Arm Design: Versatile setup compatible with a wide range of tire and rim types.
-
Extra-Large Turntable: Provides additional clearance for larger wheels and tires.
-

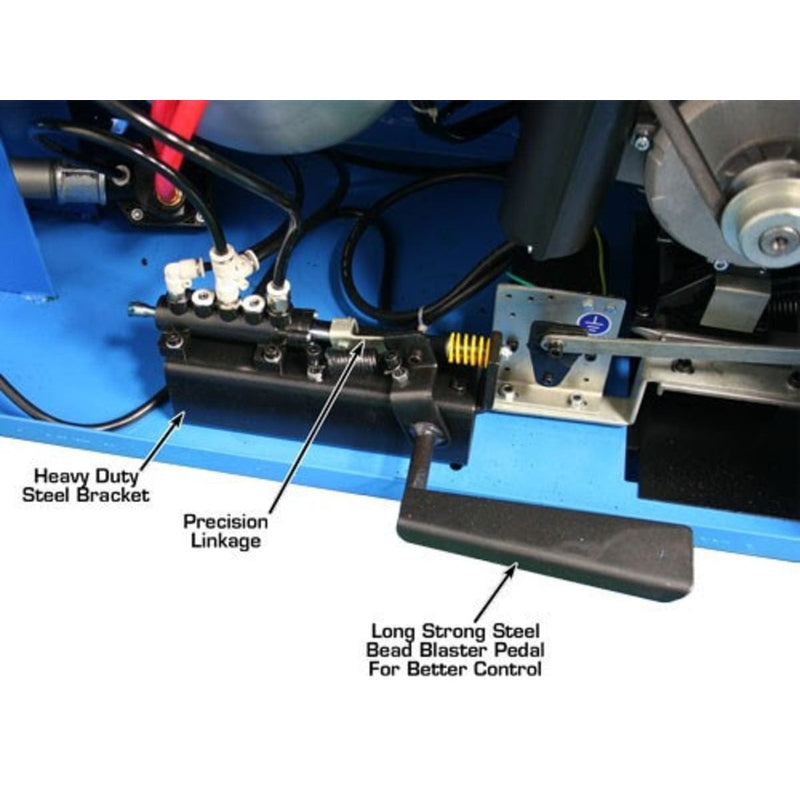

Built-In Bead Blaster: Assists in rapid and secure tire seating.
-

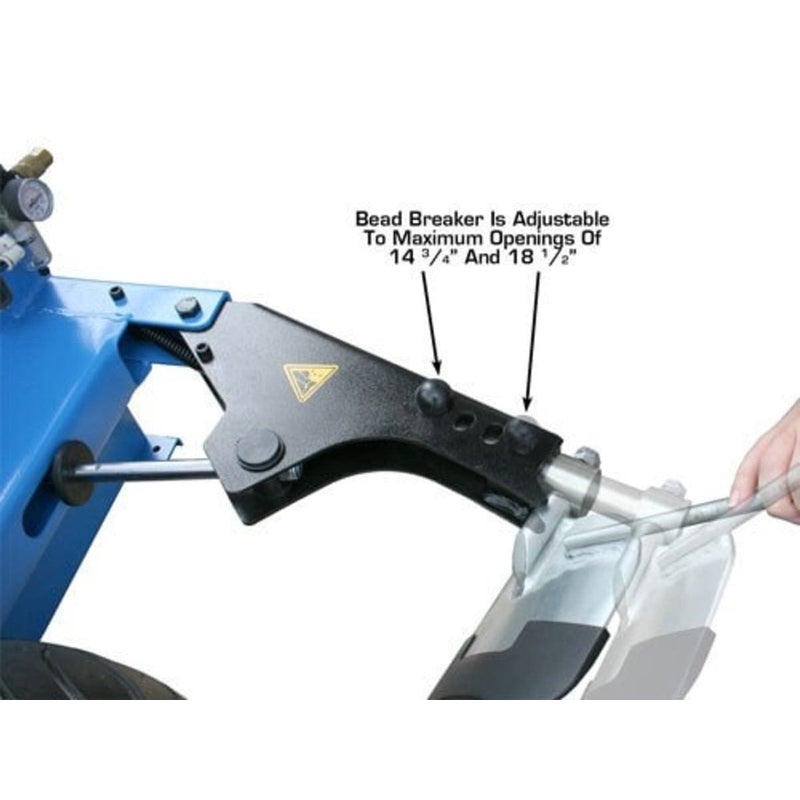

Adjustable Bead Breaker Plate: Customizable for varying wheel sizes and configurations.
-

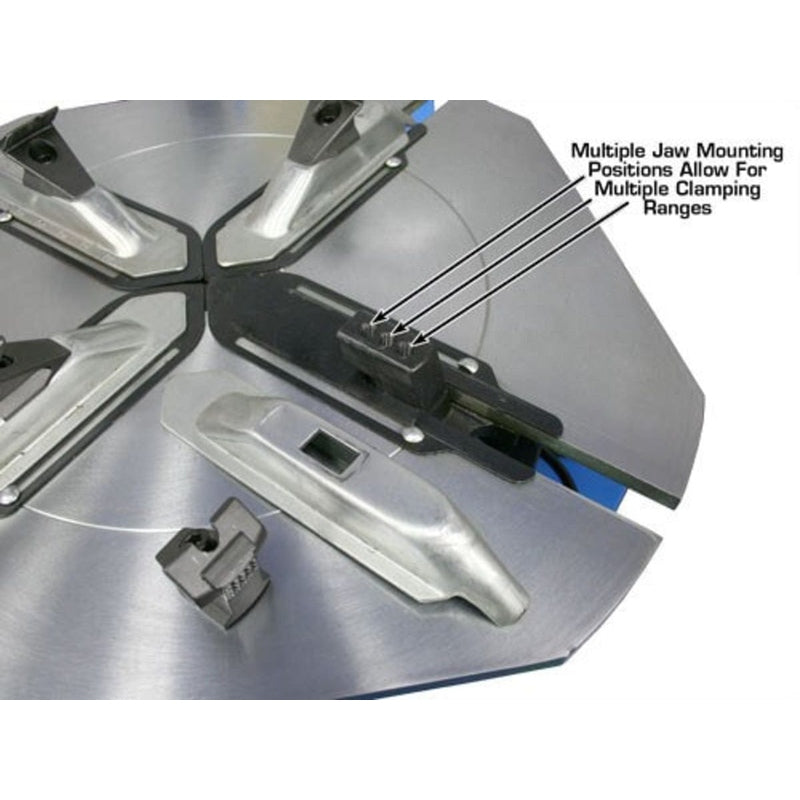

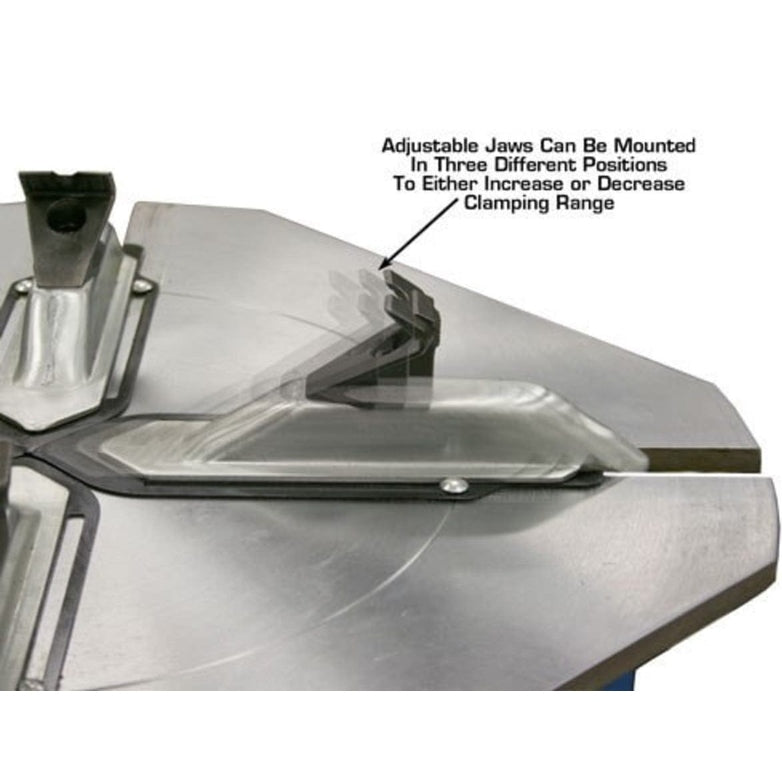

Three Mounting Positions: Adjustable jaws accommodate multiple rim diameters for flexibility.
-
Oiler, Filter, and Regulator Included: Keeps the pneumatic system clean and efficient (requires external air supply).
-
Plastic Rim Protectors: Prevents scratching and damage during tire removal and installation.
-
Complete Accessory Kit: Includes tire tool, lube bucket, and lube brush.
-
Inflation Box with Pressure Gauge: Provides accurate and controlled inflation during service.

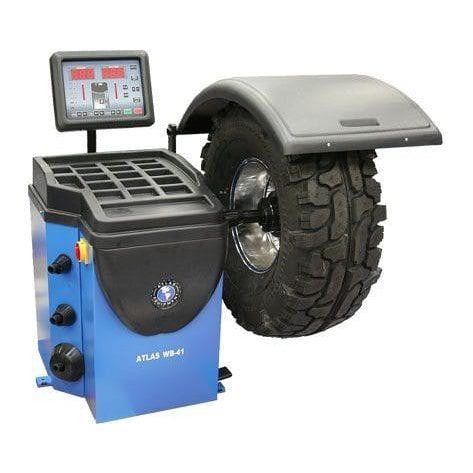

Atlas® WB41 Computerized Spin Wheel Balancer
-
Computer-Controlled Precision: Ensures accurate, reliable wheel balancing.
-

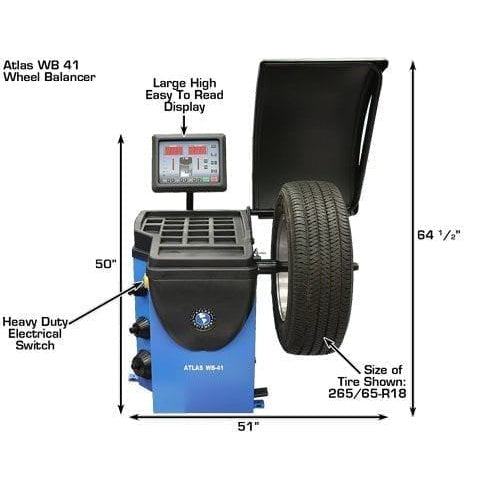

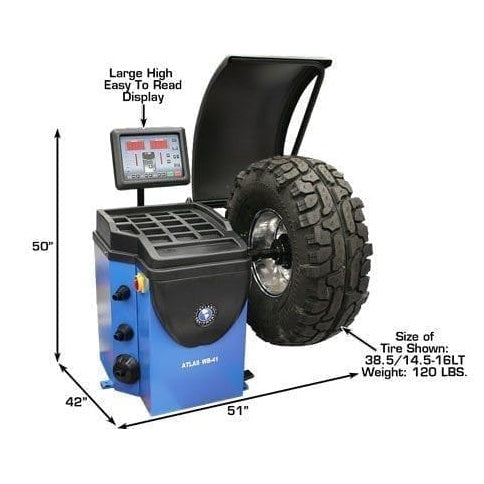

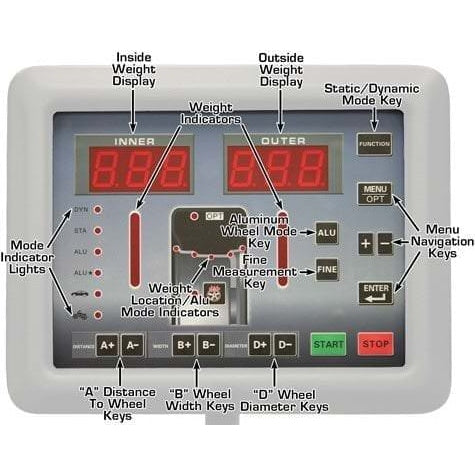

Raised, Easy-to-Read Display: Conveniently positioned for quick reference during operation.
-
Large Wheel Weight Tray: Offers ample space for tools and wheel weights.
-
Static and Dynamic Balancing Modes: Handles a wide range of balancing requirements.
-
Rapid Optimization (OPT): Speeds up balancing without sacrificing precision.
-
Self-Diagnosis and Calibration: Simplifies maintenance and improves accuracy.
-
Dual Measurement Units: Displays results in grams or ounces, and in metric or imperial units.
-

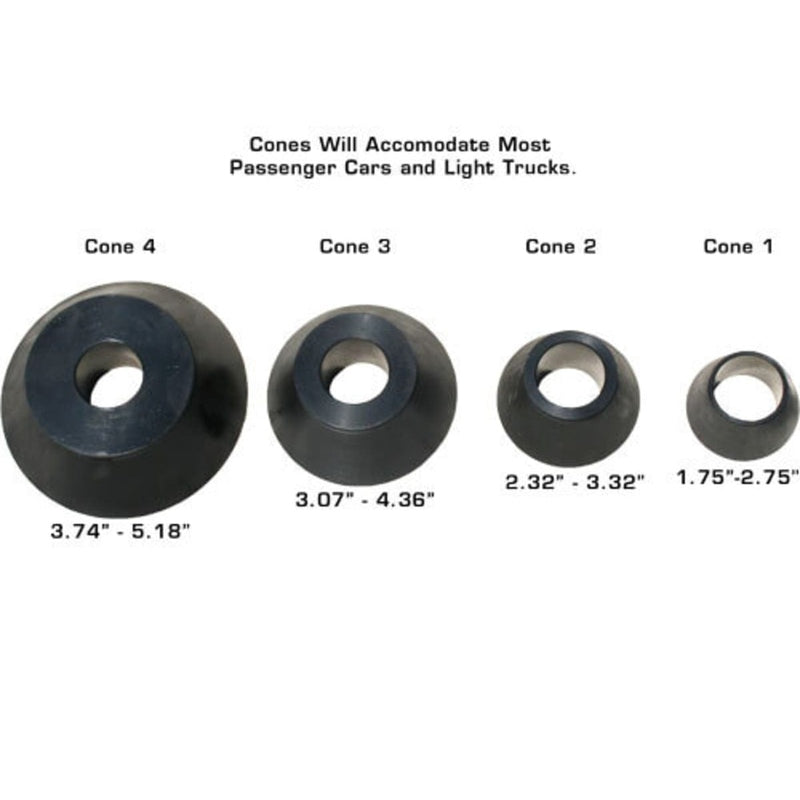

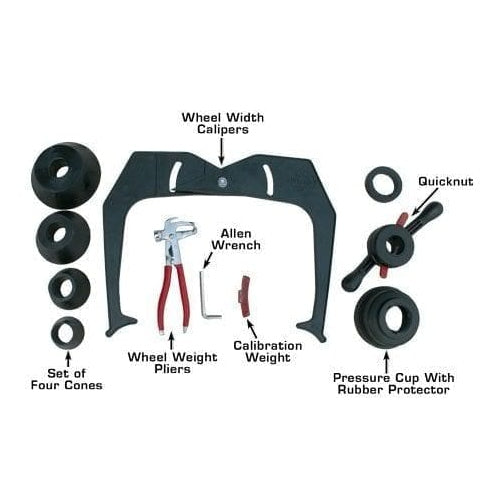

Included Accessories: Comes with 4 centering cones, plastic quick-nut, wheel weight pliers, and measuring calipers.
Specifications

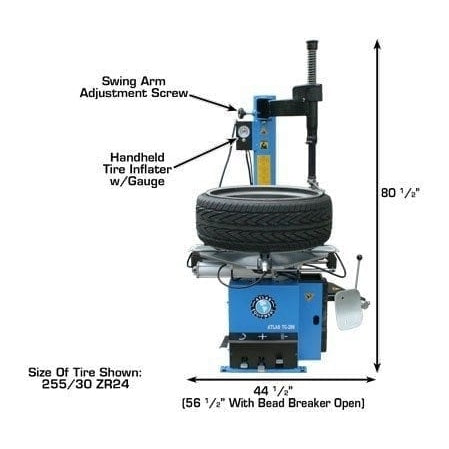

Atlas® TC289 Tire Changer
| Specification | Details |
|---|---|
| Compatible Rims | Steel, Aluminum, Alloy |

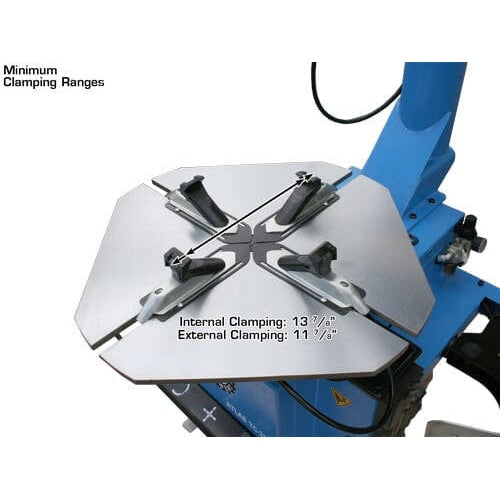

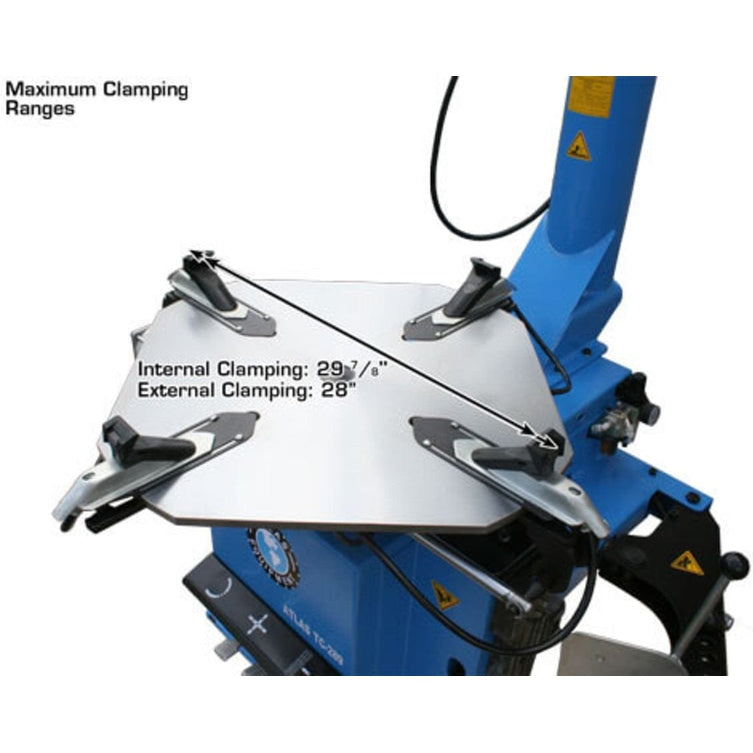

| External Locking Rim Dimensions (3 Positions) | 1) 11 7/8"–26" 2) 12 7/8"–27" 3) 13 3/4"–28" |
| Internal Locking Rim Dimensions (3 Positions) | 1) 13 7/8"–27 7/8" 2) 14 5/8"–28 7/8" 3) 15 5/8"–29 7/8" |
| Max Tire Diameter | 47" |

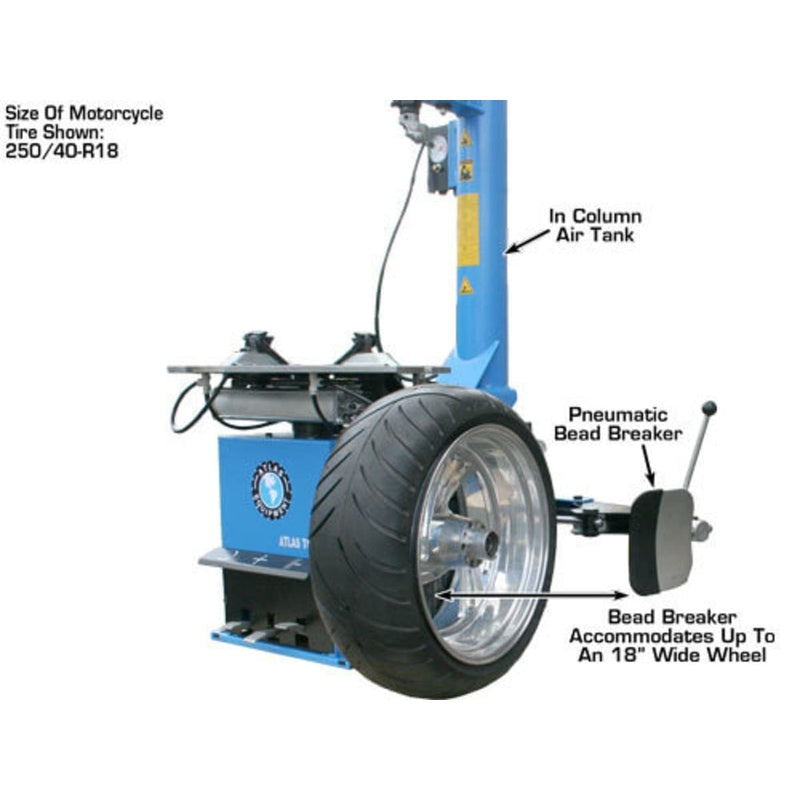

| Max Wheel Width (Bead Breaker) | 18" |

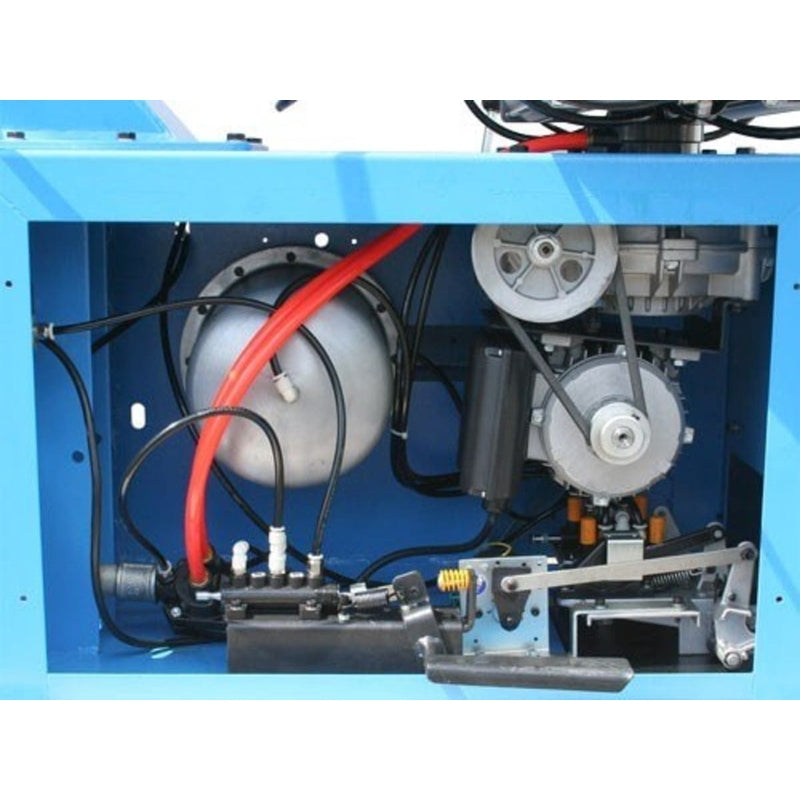

| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do not exceed 140 PSI) |
| Operating Voltage | 110V |

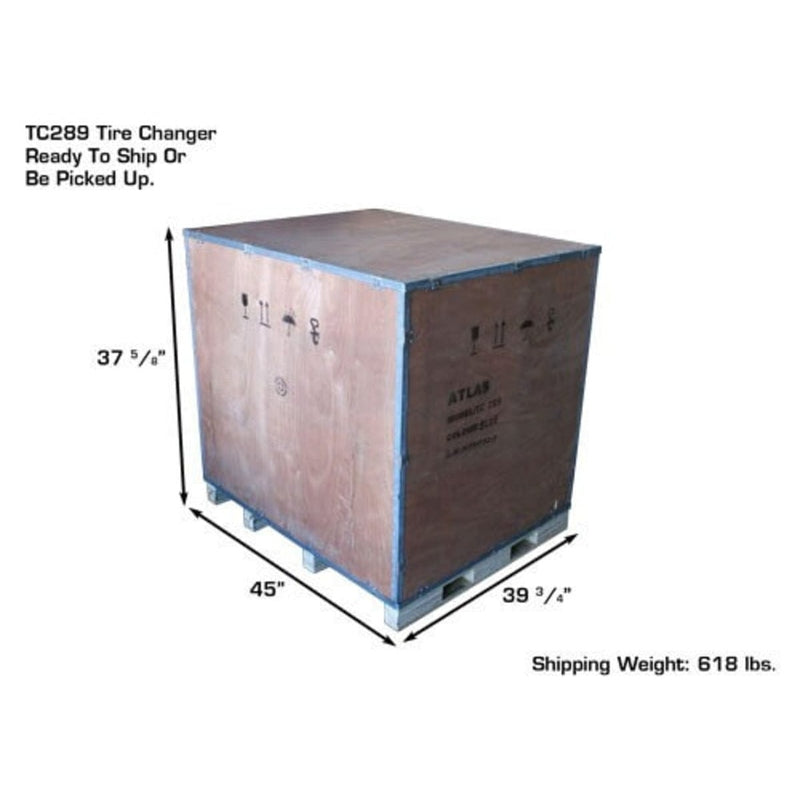

| Shipping Weight | 620 lbs |

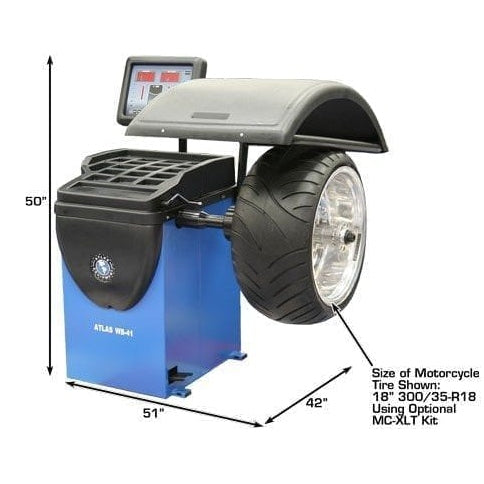

Atlas® WB41 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" (3' 6") |
| Rim Size Range | 10"–32" |
| Rim Width | 1.5"–20" |

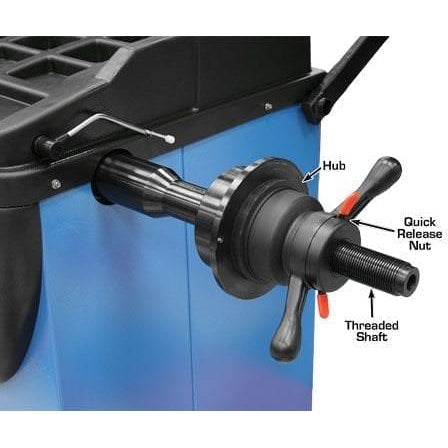

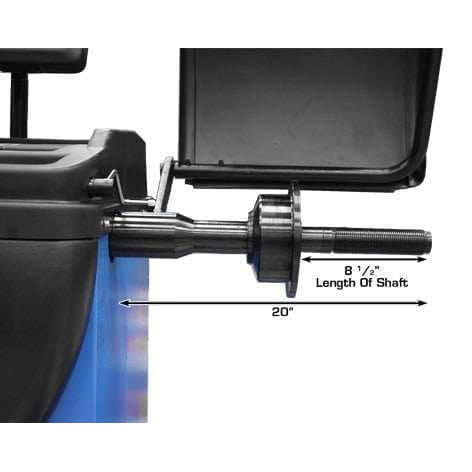

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual for all dimensions |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self-Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110V |

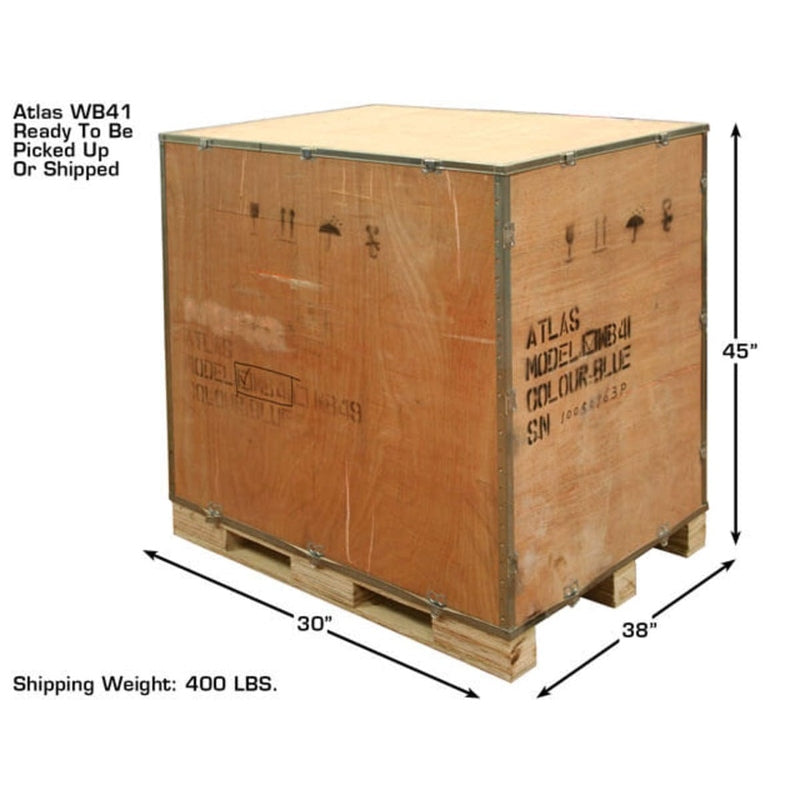

| Shipping Weight | 400 lbs |
This Atlas® TC289 + WB41 Combo is engineered for dependable performance and straightforward operation — making it the perfect all-in-one setup for efficient, accurate, and safe tire changing and balancing in any workshop or garage.
