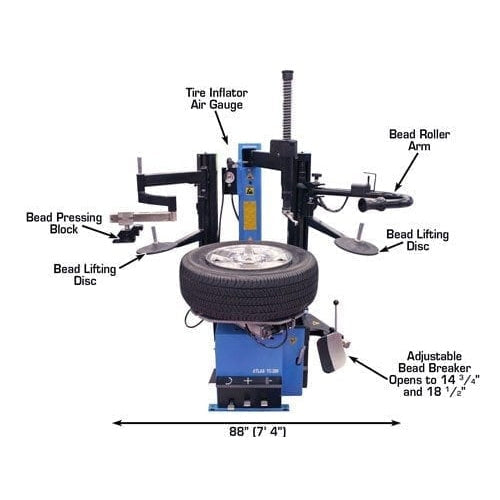

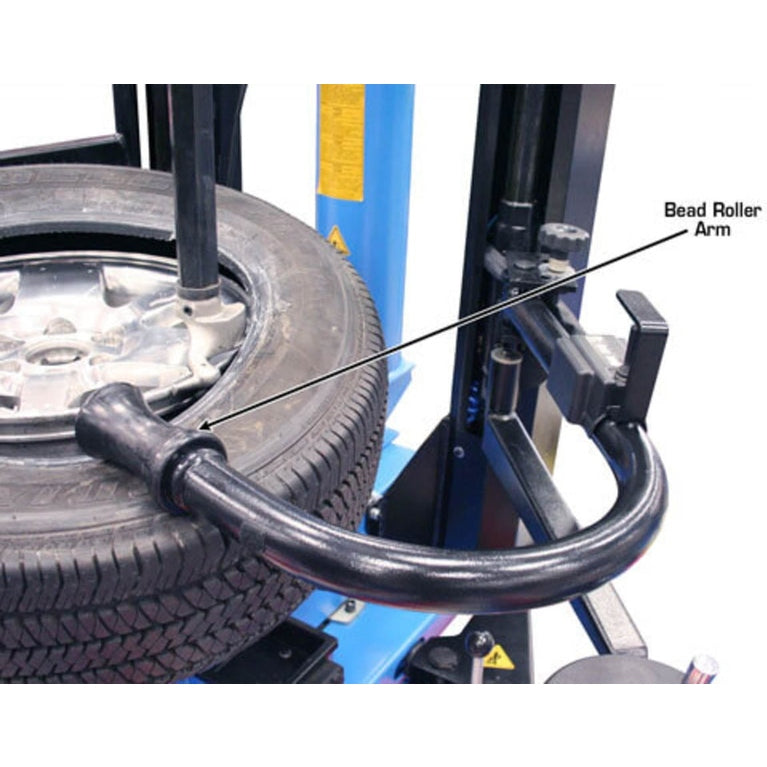

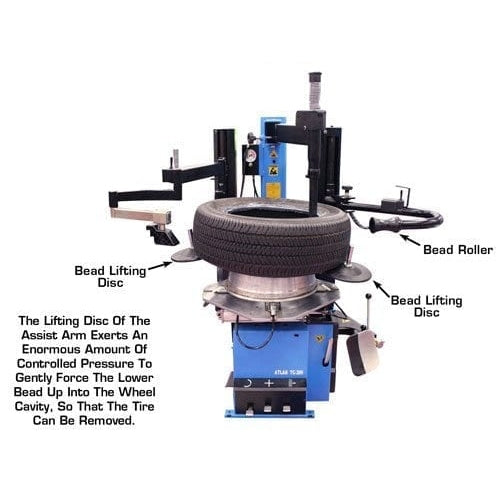

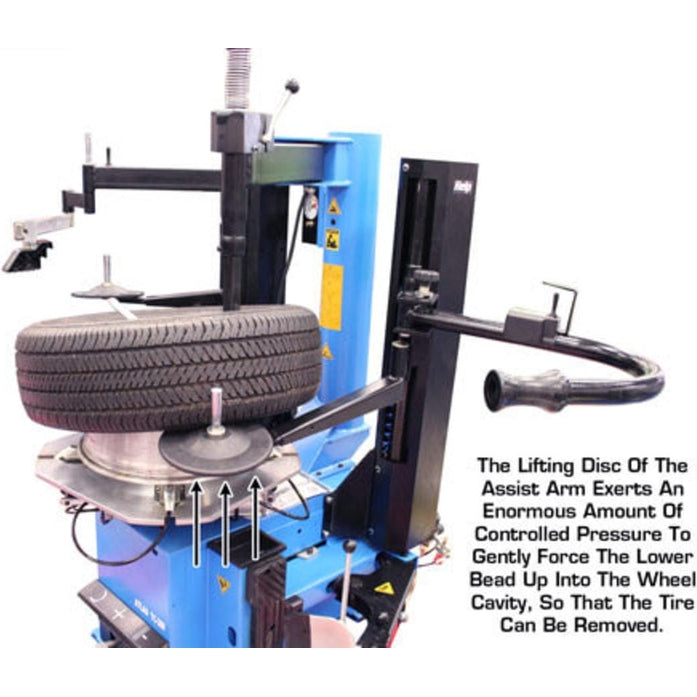

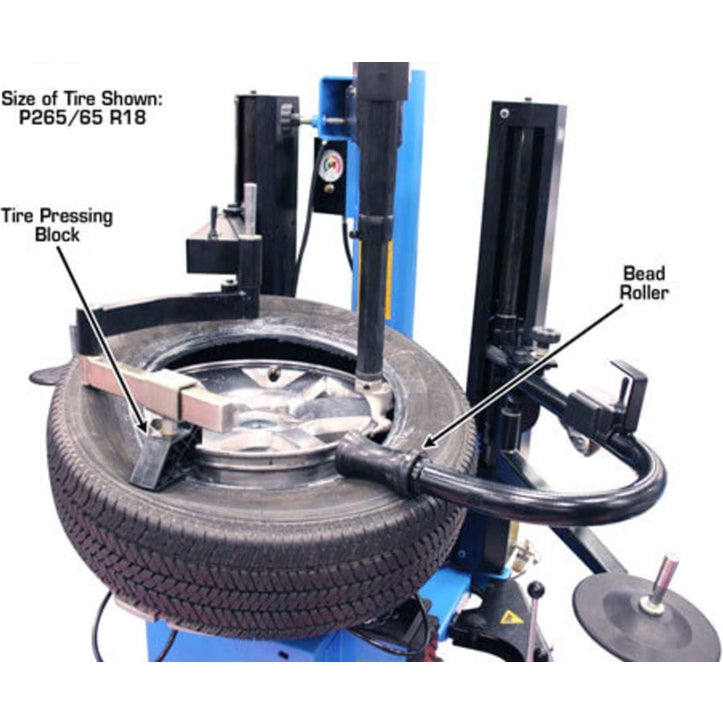

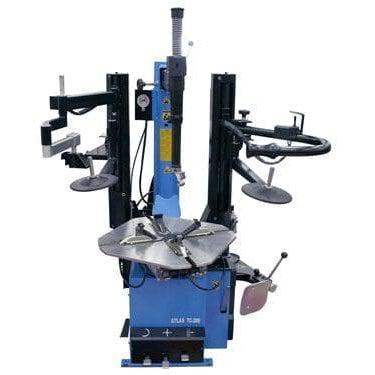

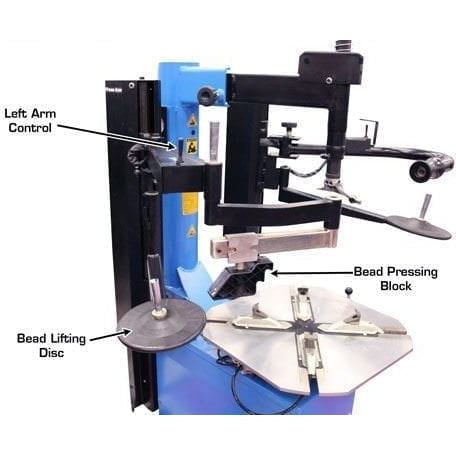

The Atlas® TC289DAA rim-clamp swing arm tire changer is the ideal solution for general automotive service departments, mid-sized tire shops, and farm equipment maintenance. This model comes equipped with the Atlas® DAA-SA dual assist arm package — featuring a left-hand assist arm with a pressing block and lifting disk, and a right-hand assist arm with a bead roller and lifting disk. These dual assist arms are essential for efficiently handling stiff sidewall, low-profile, and run-flat tires, acting like an extra set of hands to help a single operator work faster and with less effort.
Engineered with a large turntable and generous clearance, the TC289DAA can easily manage oversized wheels and tires, making it an excellent choice for servicing large SUVs, one-ton trucks, and similar vehicles. The integrated Beadblaster system provides a powerful air burst to seat even the most stubborn sidewalls or hard-to-inflate tires.
Like all Atlas® wheel clamp tire changers, the TC289DAA is built to handle both high-end alloy and durable steel wheels safely — ensuring that neither the rim nor the tire is damaged during service. The adjustable side-mounted bead breaker delivers exceptional power to free even corroded or rusted beads, while the turntable’s three-position adjustable jaws offer flexibility for different wheel sizes. Optional plastic jaw covers protect delicate rims during operation.
Note: Assembly is required after purchase.
Features
-

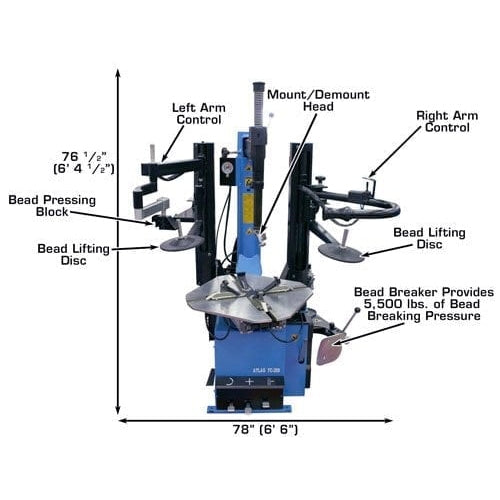

Heavy-Duty Rim Clamp / Swing Arm Tire Changer
-
Extra-large turntable providing increased clearance for oversized wheels
-

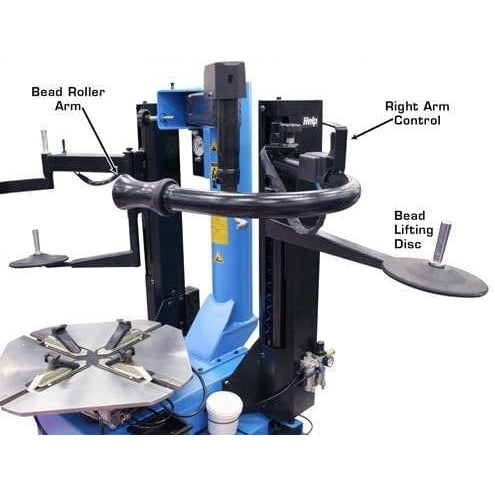

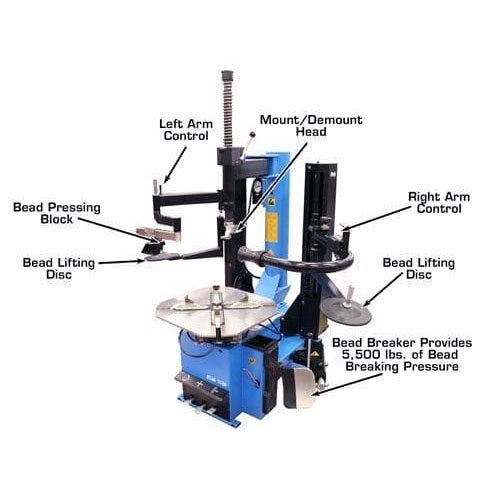

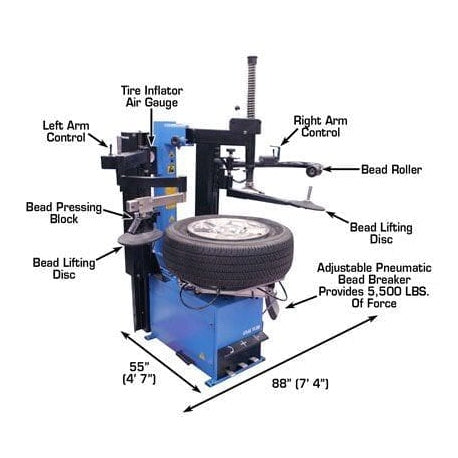

Equipped with dual assist arms for handling low-profile and run-flat tires
-

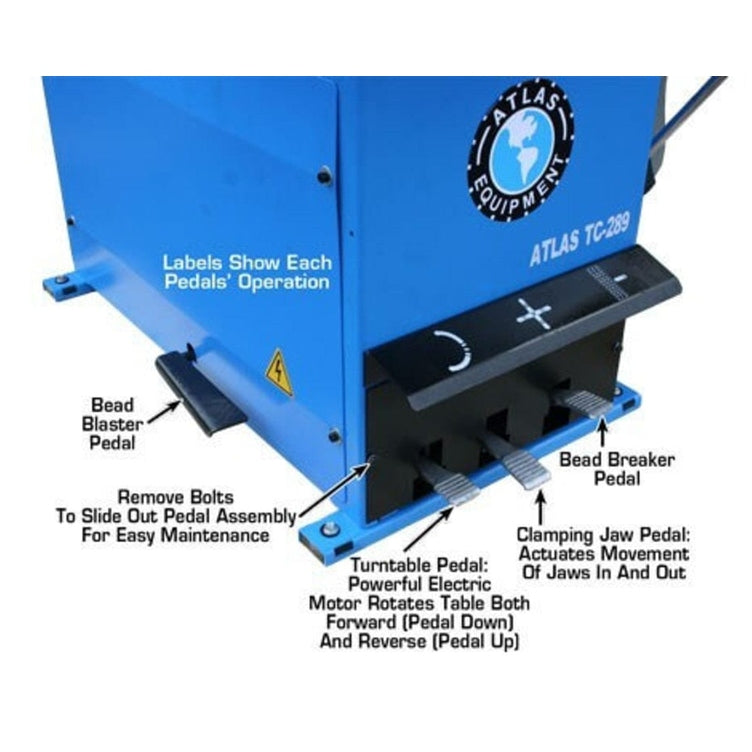

Air-operated jaws and bead breaker (requires external air supply)
-

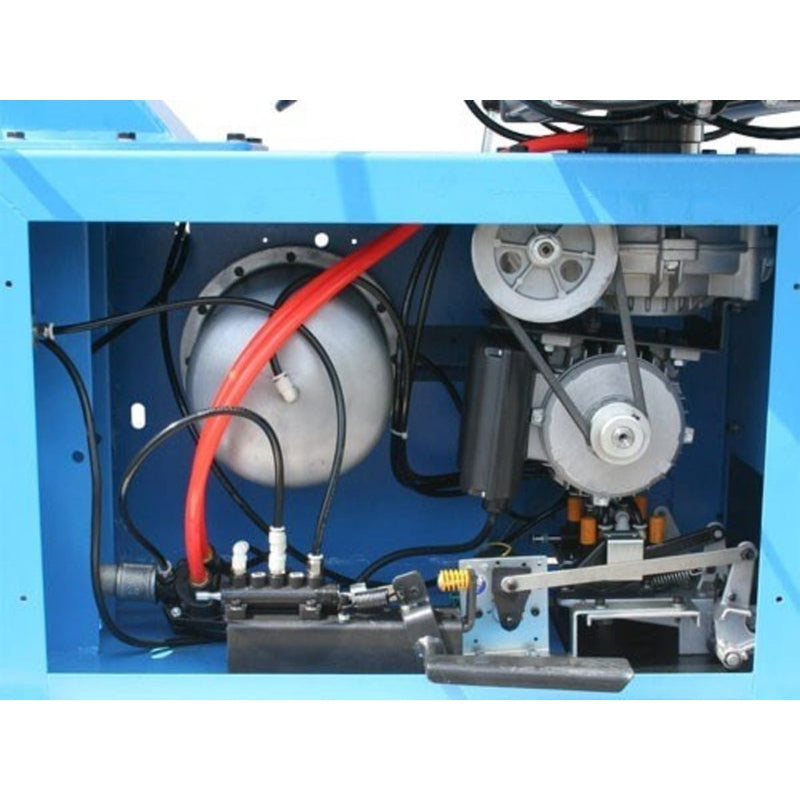

Electric-powered turntable for smooth operation
-

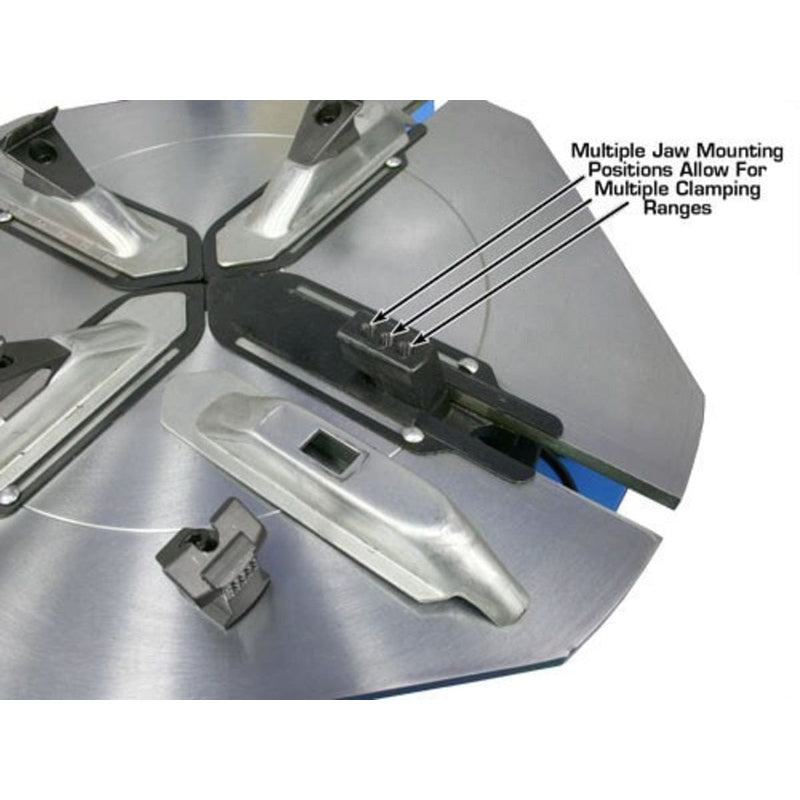

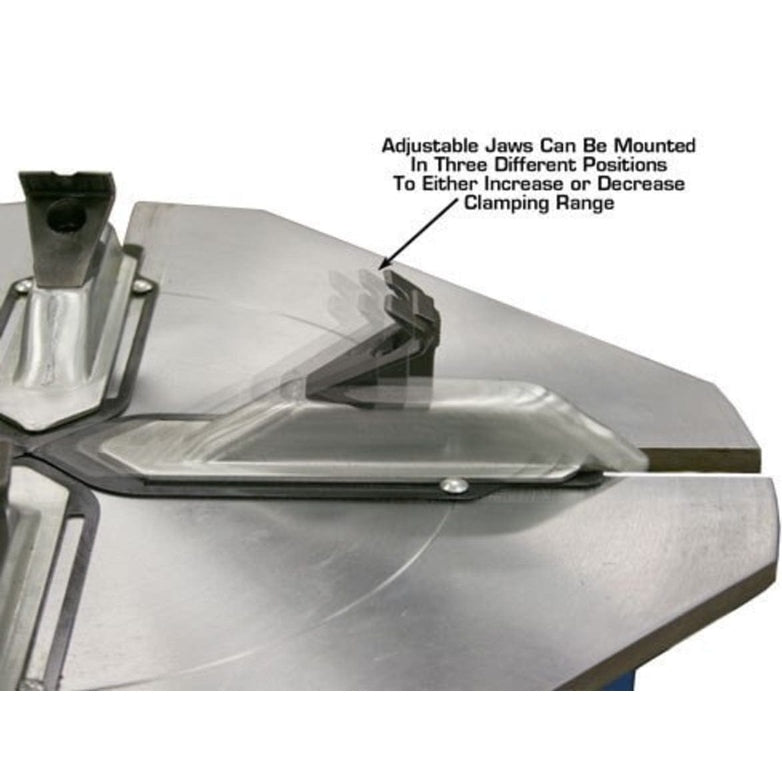

Adjustable jaws with three mounting positions for various wheel sizes
-

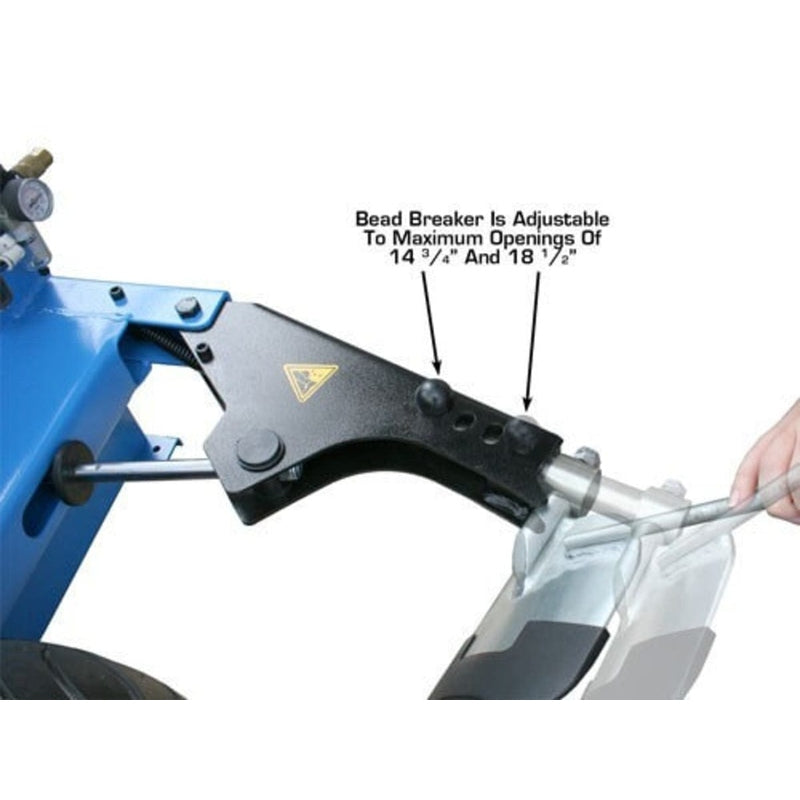

Adjustable bead breaker plate for added versatility
-

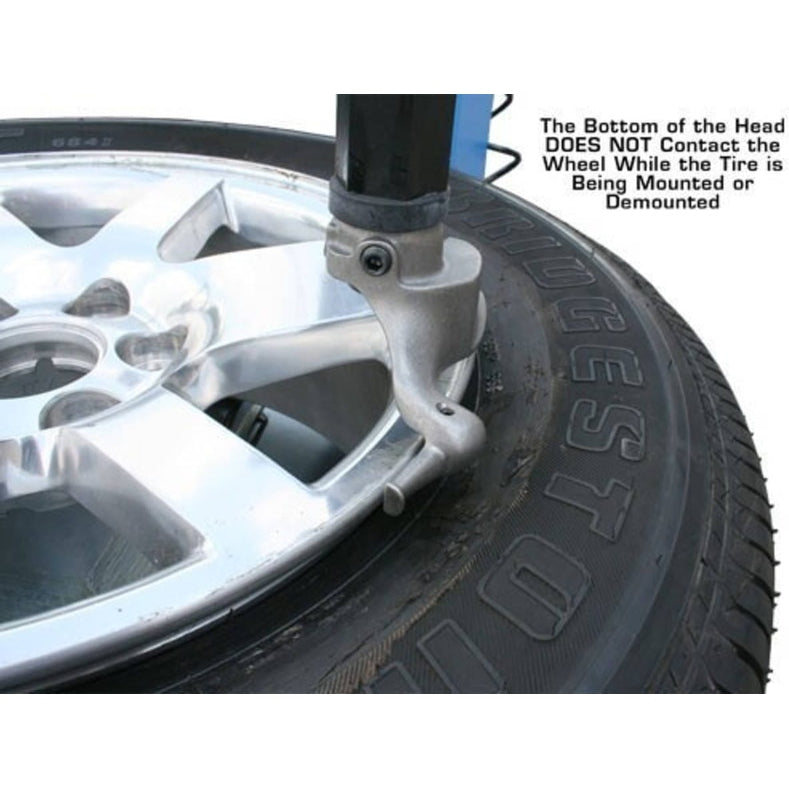

Durable metal mount/demount head with roller or replaceable plastic inserts
-
Column-mounted inflator box with integrated pressure gauge
-
Includes filter, regulator, and lubricator for consistent air system performance
-
Comes with a 20″ tire tool, lube bucket, and brush
-
Includes large plastic jaw covers and bead breaker shovel protector
-
Multiple replacement plastic inserts for mount/demount head included
-

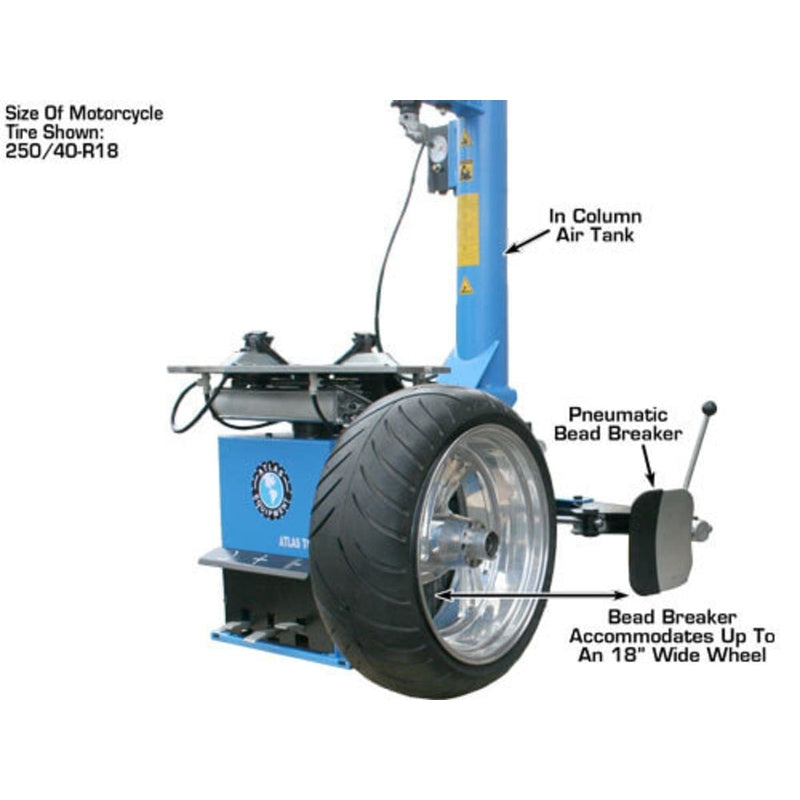

Compatible with optional motorcycle and ATV adapters (sold separately)
-

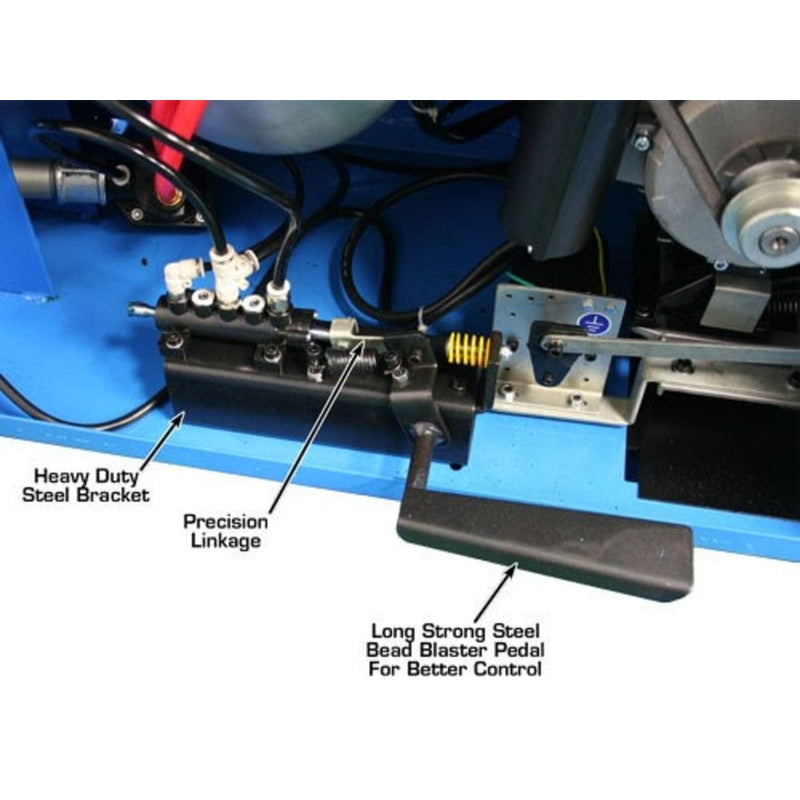

Built-in “Beadblaster” system for quick inflation of tough sidewalls
-

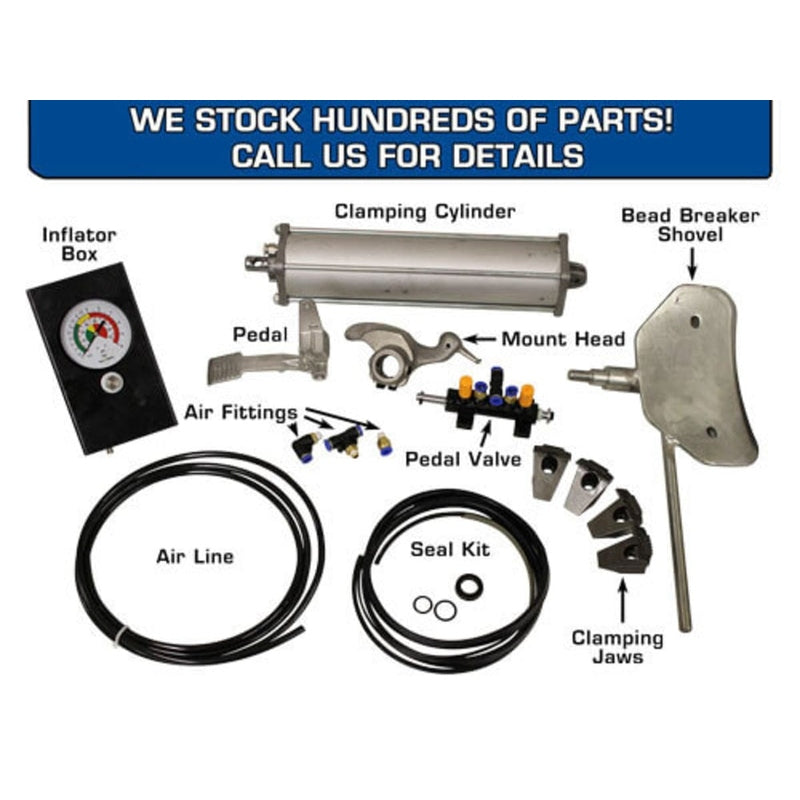

Replacement parts and wear items readily available
-
Backed by a 1-Year Parts-Only Warranty
Specifications – Atlas® TC289
| Specification | Detail |
|---|---|
| Compatible Rims | Steel, Aluminum, Alloy |

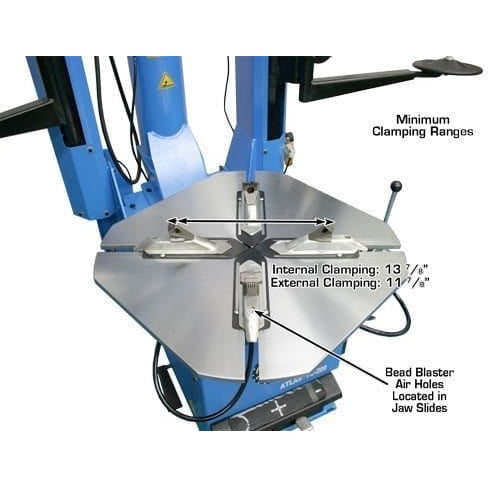

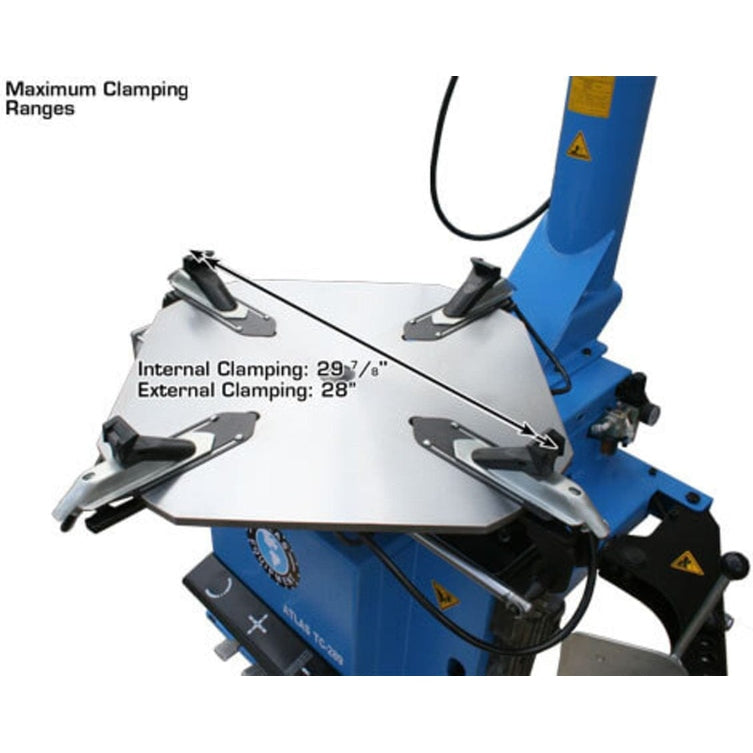

| External Locking Rim Range (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Rim Range (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor Power | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (must not exceed 140 PSI) |
| Operating Voltage | 110V |

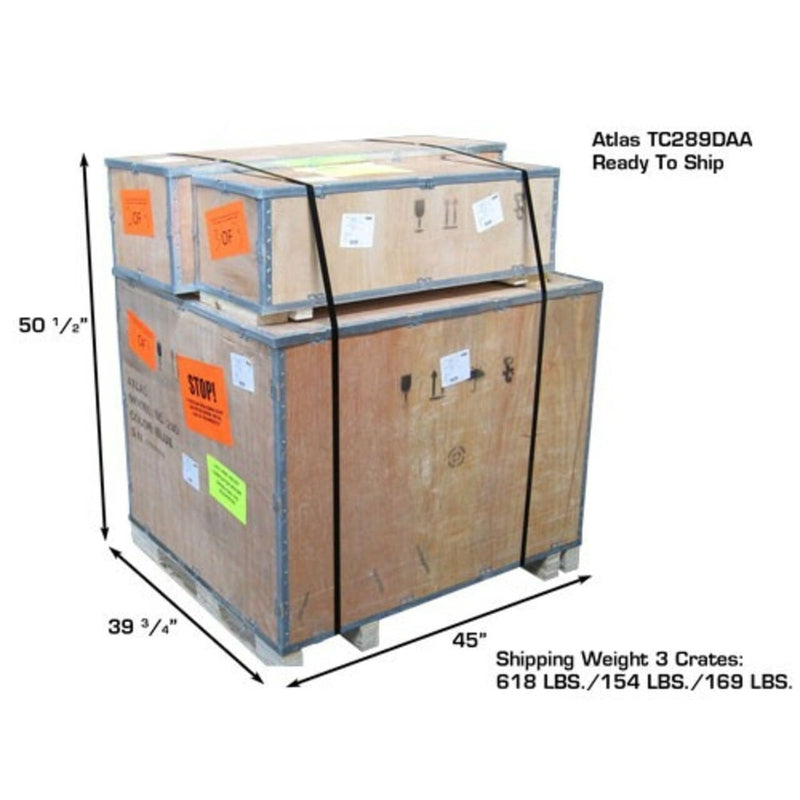

| Shipping Weight | 920 lbs |
