Description

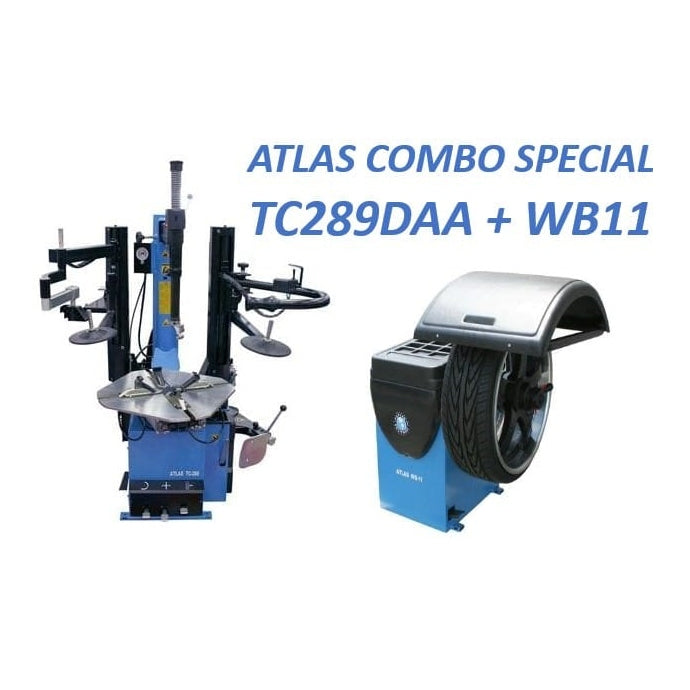

The Atlas® TC289 Tire Changer and WB11 Wheel Balancer Combo delivers a complete, dependable tire service solution — perfect for farms, homeowners, small garages, and professional shops of any size. Both machines run on 110V power, are CE approved, and backed by the trusted Atlas® 1-year parts-only warranty. This combination provides the ideal balance of performance, convenience, and durability for those looking to efficiently change and balance tires with professional precision.
Features

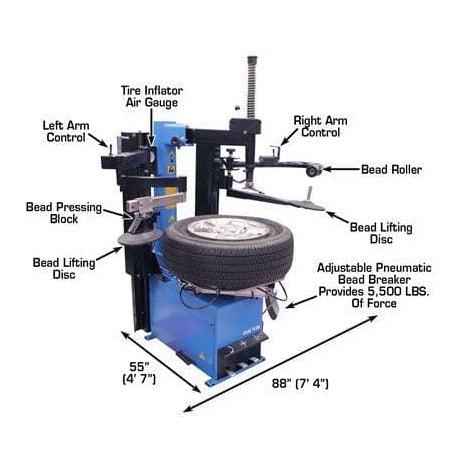

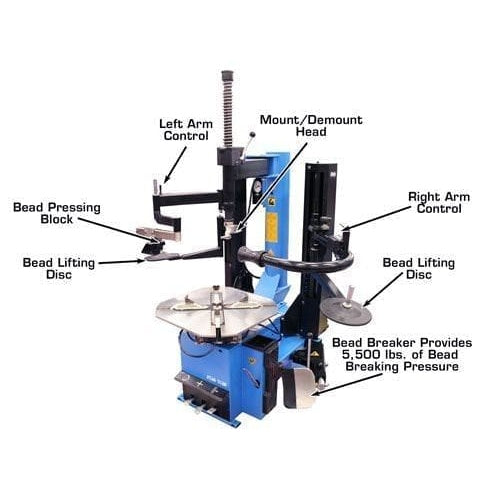

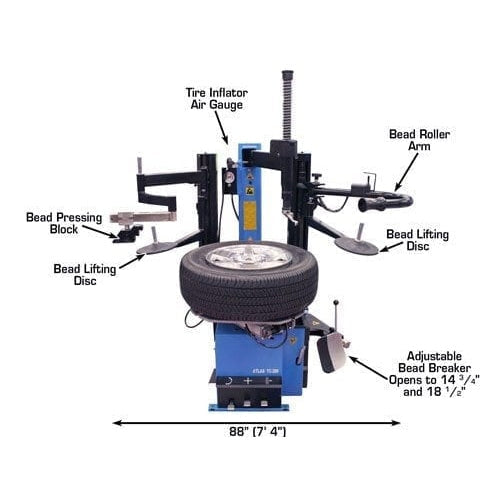

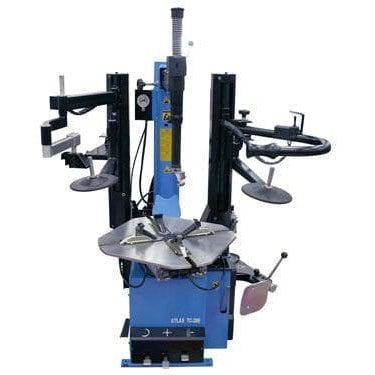

Atlas® TC289DAA Rim Clamp/Swing Arm Tire Changer
-

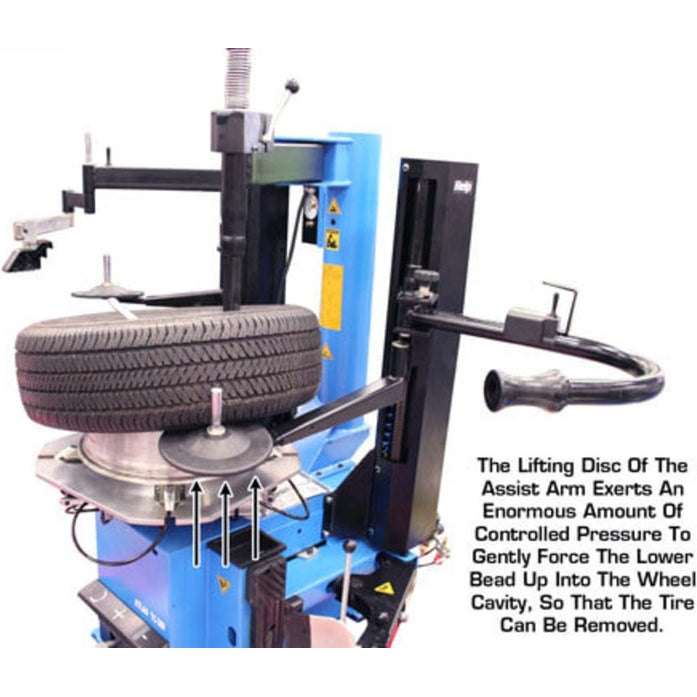

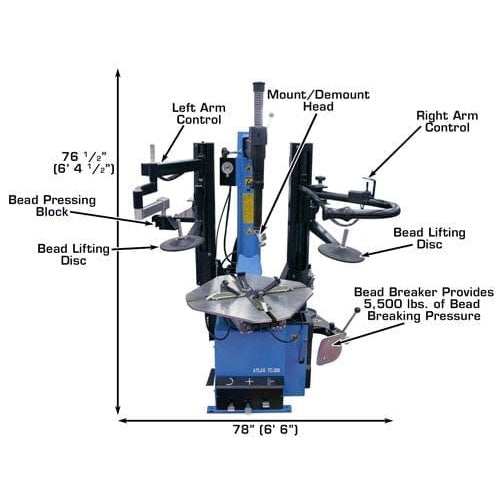

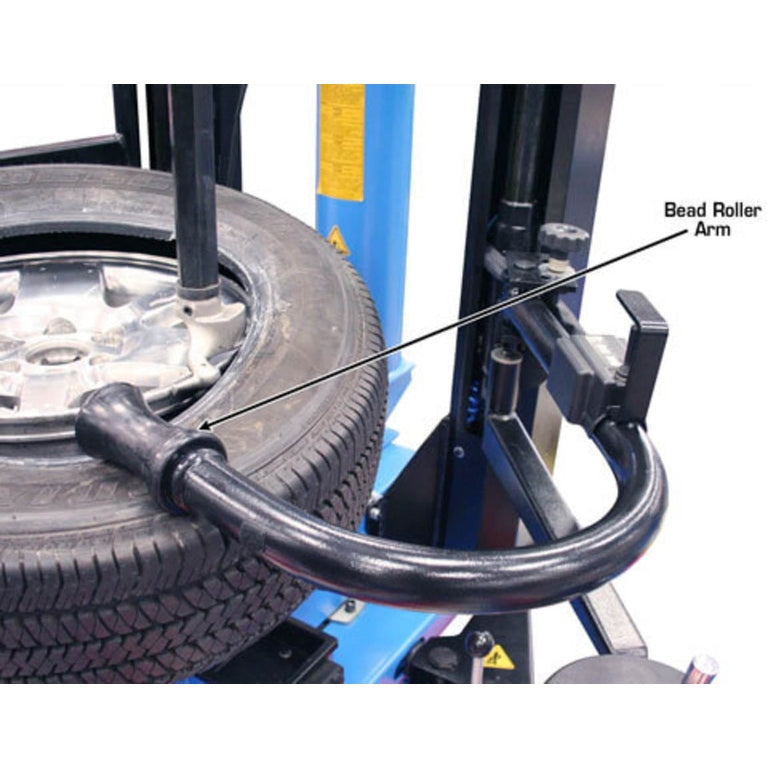

Dual Assist Arms: Includes both left-hand and right-hand assist arms for easier tire handling.
-
Extra-Large Turntable: Provides additional clearance for larger wheels.
-

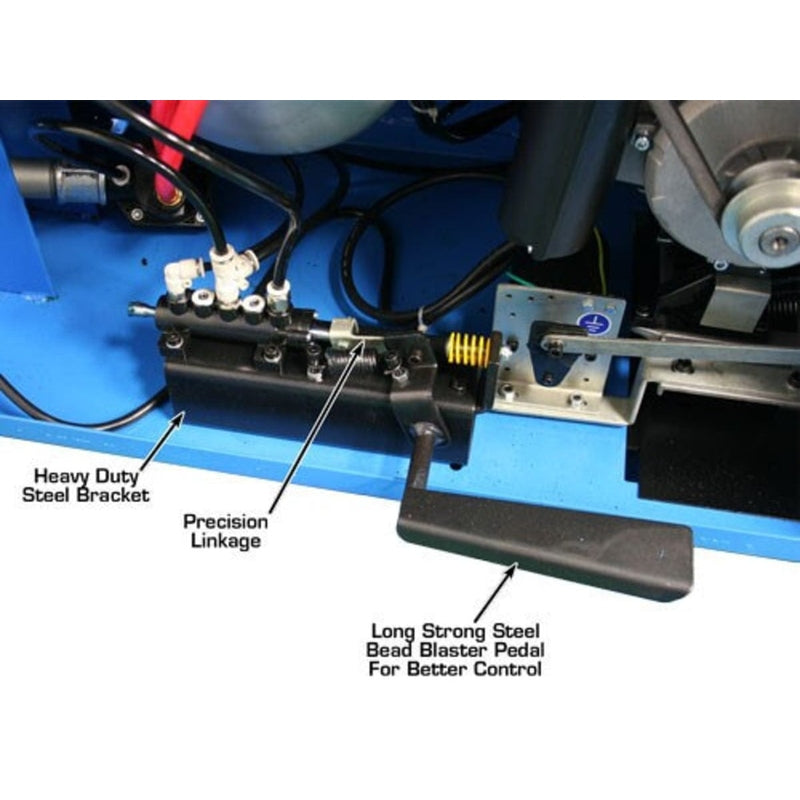

Built-In Bead Blaster: Ensures quick and reliable tire seating.
-

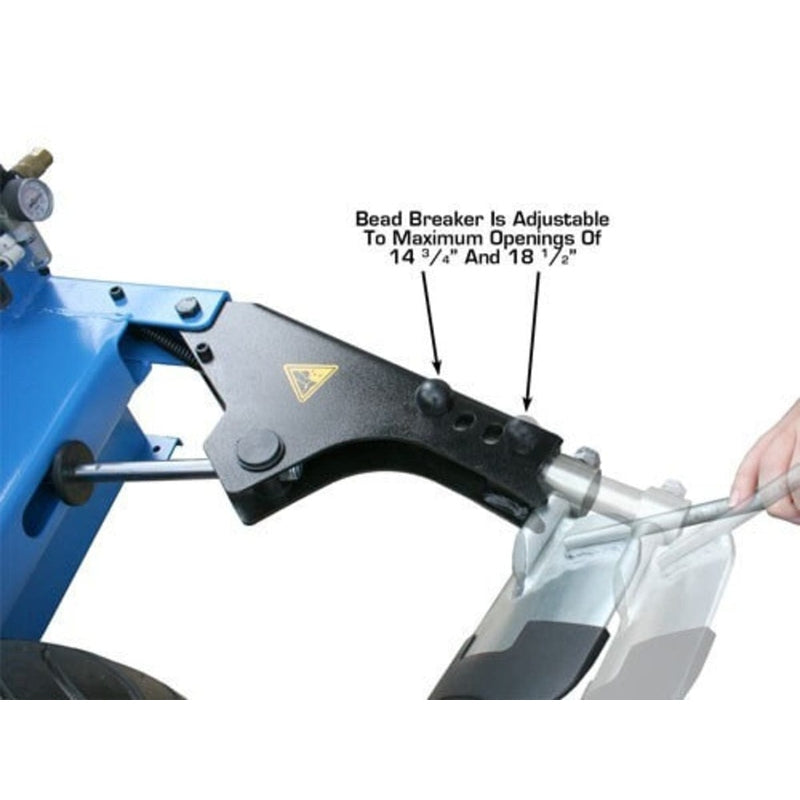

Adjustable Bead Breaker Plate: Customizable for a variety of wheel sizes.
-

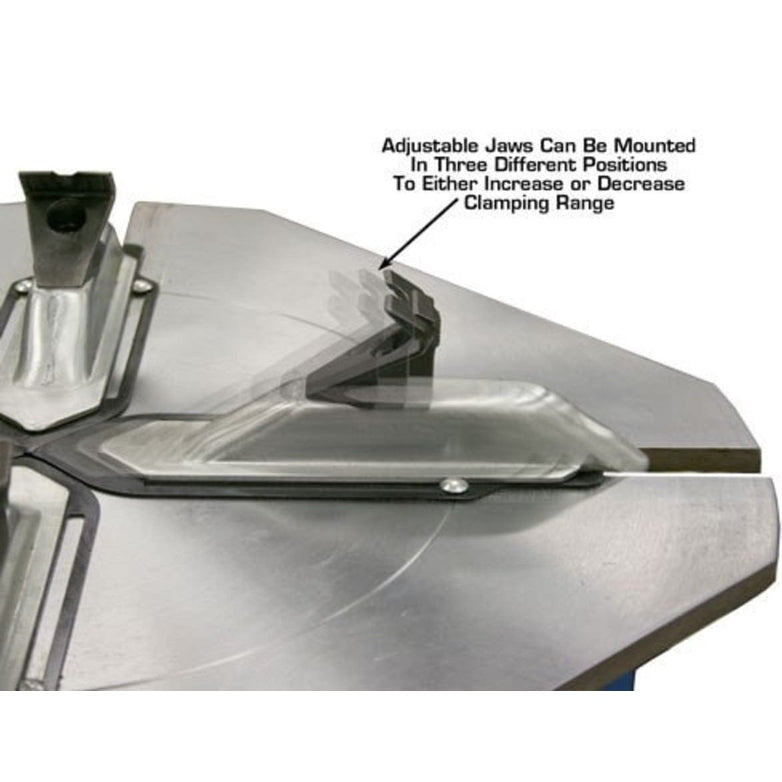

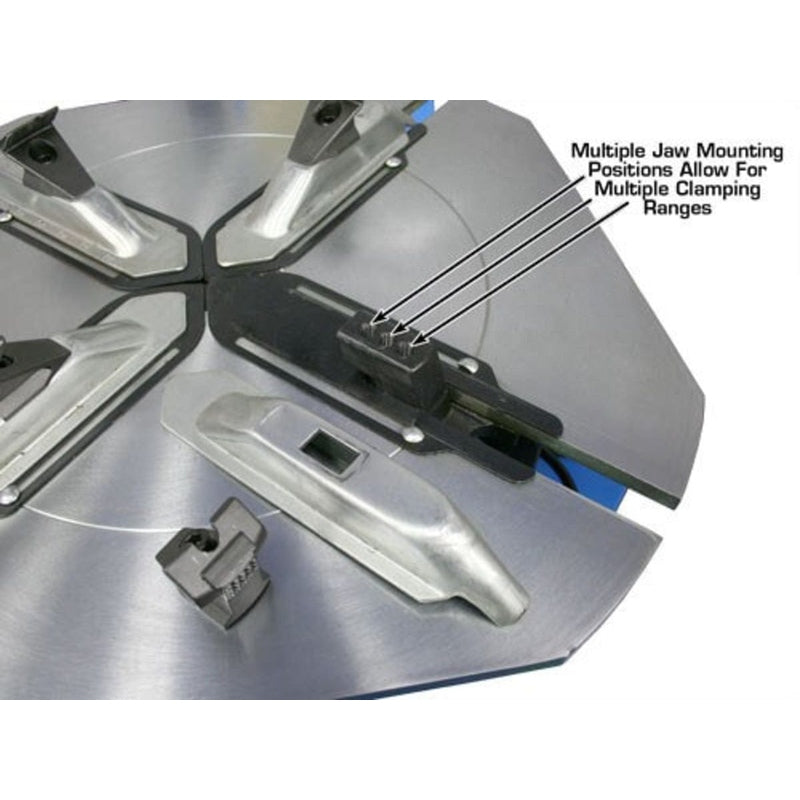

Three Mounting Positions: Adjustable jaws accommodate different rim dimensions.
-
Oiler, Filter, and Regulator Included: Keeps the pneumatic system operating smoothly (external air supply required).
-
Protective Accessories Included: Comes with plastic protectors to prevent rim damage.
-
Complete Tool Set: Includes a tire tool, lube bucket, and lube brush for efficient service.
-
Inflation Box with Gauge: Allows precise inflation control during installation.

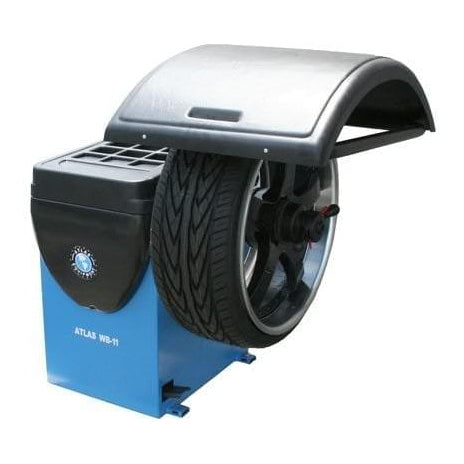

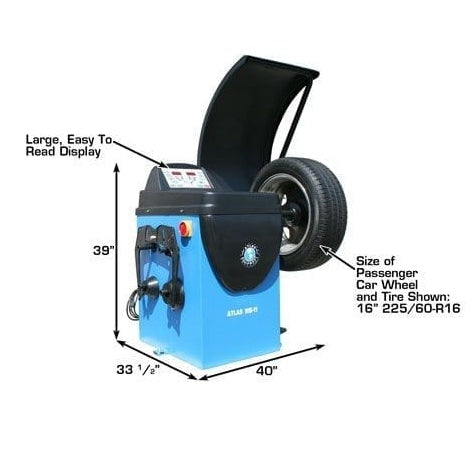

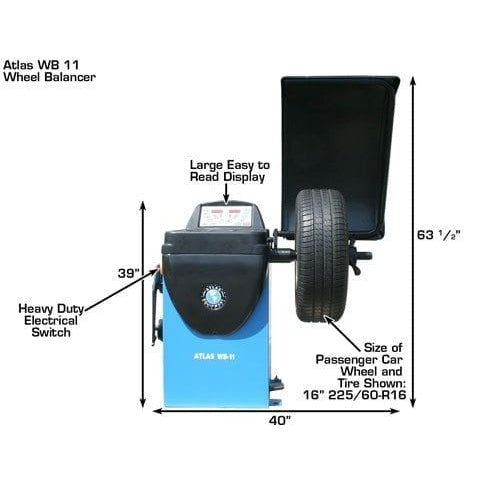

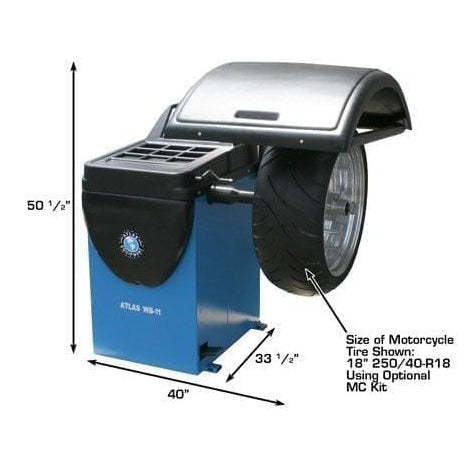

Atlas® WB11 Computerized Wheel Balancer
-

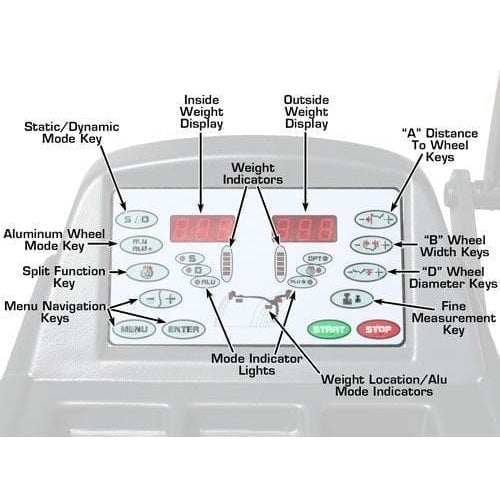

Computer-Controlled Spin Balancer: Provides accurate and consistent balancing results.
-
Static and Dynamic Modes: Supports both single-plane and multi-plane balancing.
-
Rapid Optimization (OPT): Speeds up the balancing process while maintaining precision.
-
Self-Diagnosis and Self-Calibration: Built-in features for easy maintenance and accuracy.
-
Measurement Options: Displays results in grams or ounces, and in metric or imperial units.
-

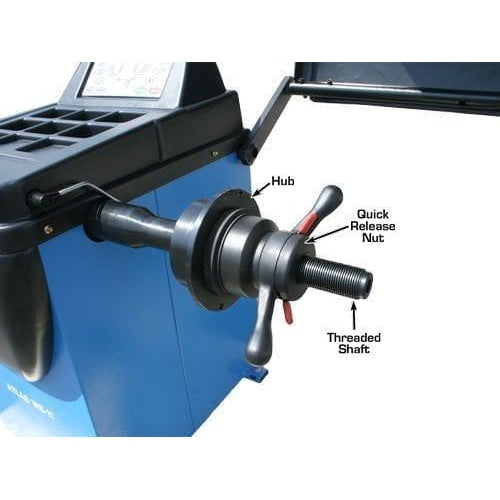

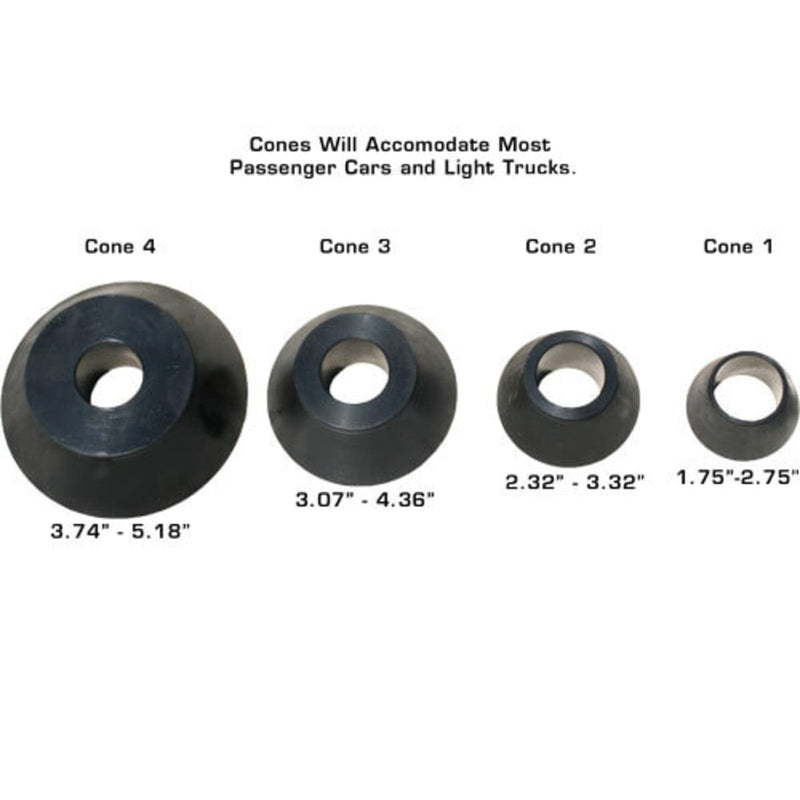

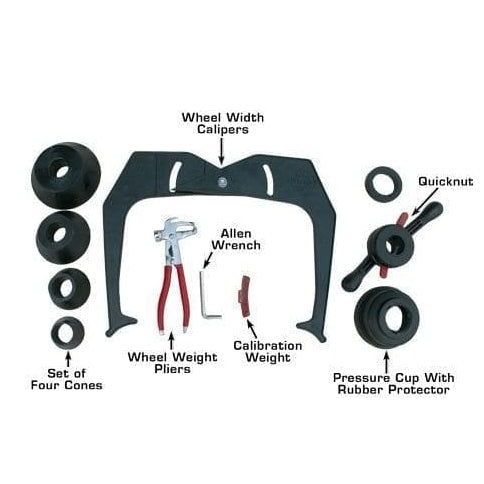

Complete Accessory Kit: Includes 4 centering cones, plastic quick-release nut, wheel weight pliers, and measuring calipers.
Specifications
Atlas® TC289 Tire Changer
| Specification | Details |
|---|---|
| Compatible Rims | Steel, Aluminum, Alloy |

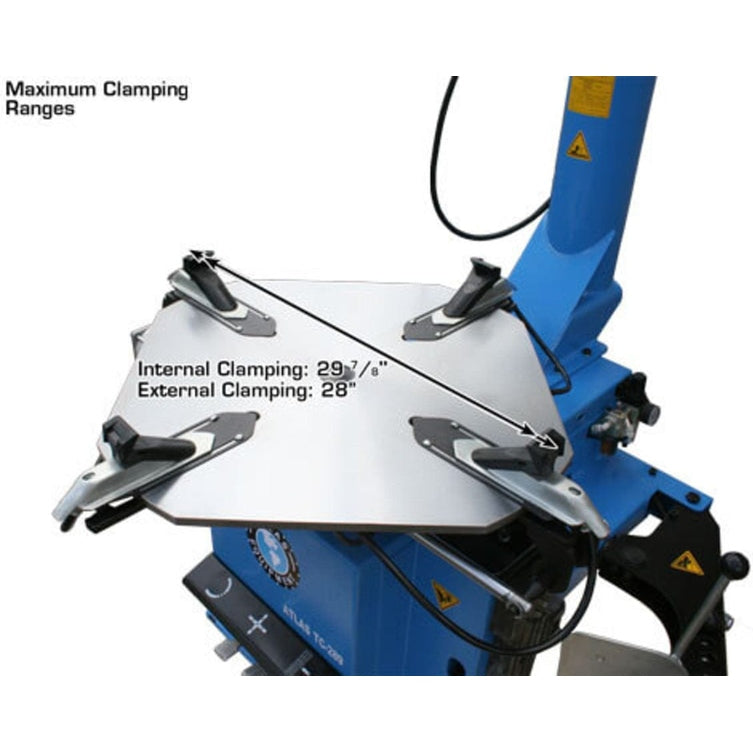

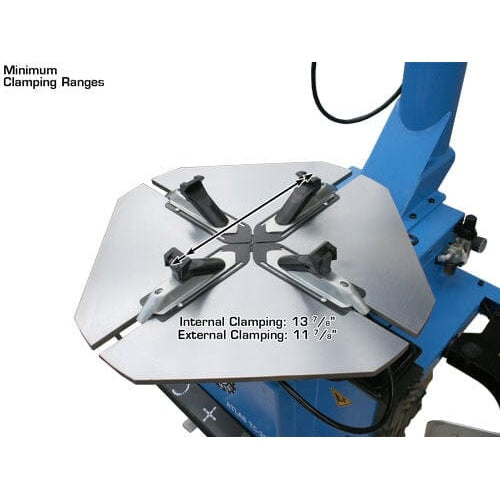

| External Locking Rim Dimensions (3 Positions) | 1) 11 7/8"–26" 2) 12 7/8"–27" 3) 13 3/4"–28" |
| Internal Locking Rim Dimensions (3 Positions) | 1) 13 7/8"–27 7/8" 2) 14 5/8"–28 7/8" 3) 15 5/8"–29 7/8" |
| Max Tire Diameter | 47" |
| Max Wheel Width (Bead Breaker) | 18" |

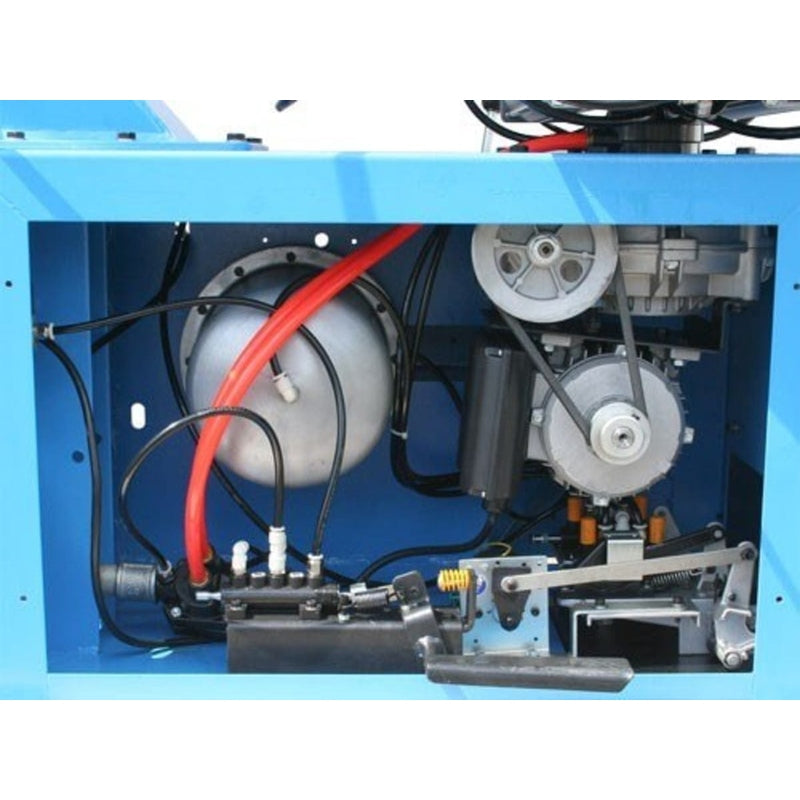

| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |

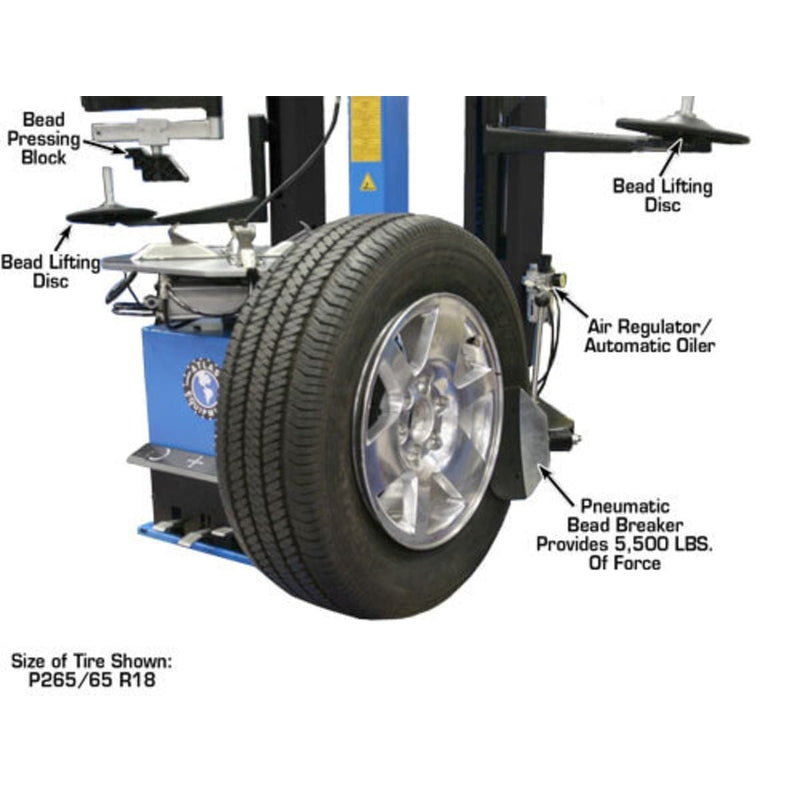

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do not exceed 140 PSI) |
| Operating Voltage | 110V |

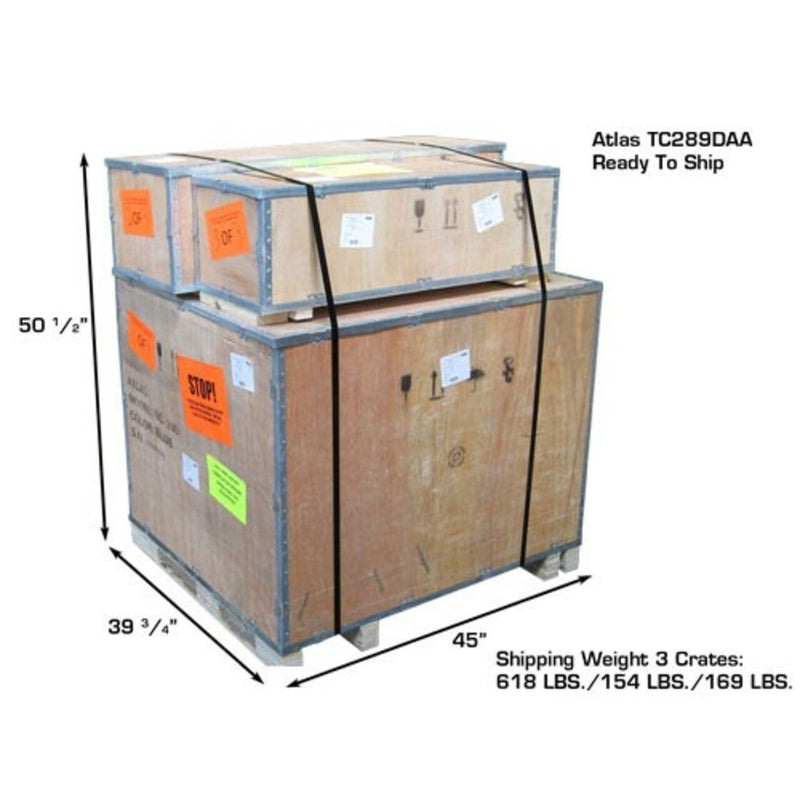

| Shipping Weight | 620 lbs |
Atlas® WB11 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" (3' 6") |
| Rim Size Range | 10"–32" |
| Rim Width | 1.5"–20" |

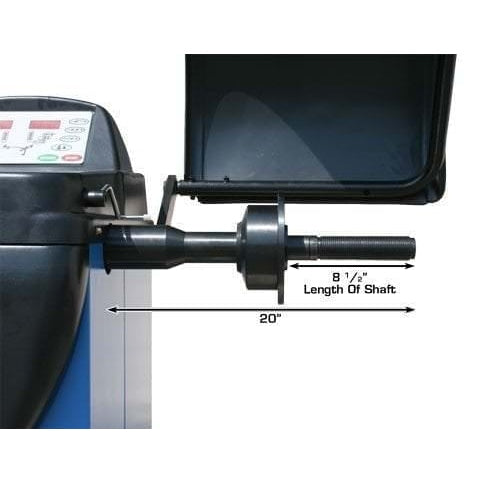

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual for all dimensions |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self-Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110V |

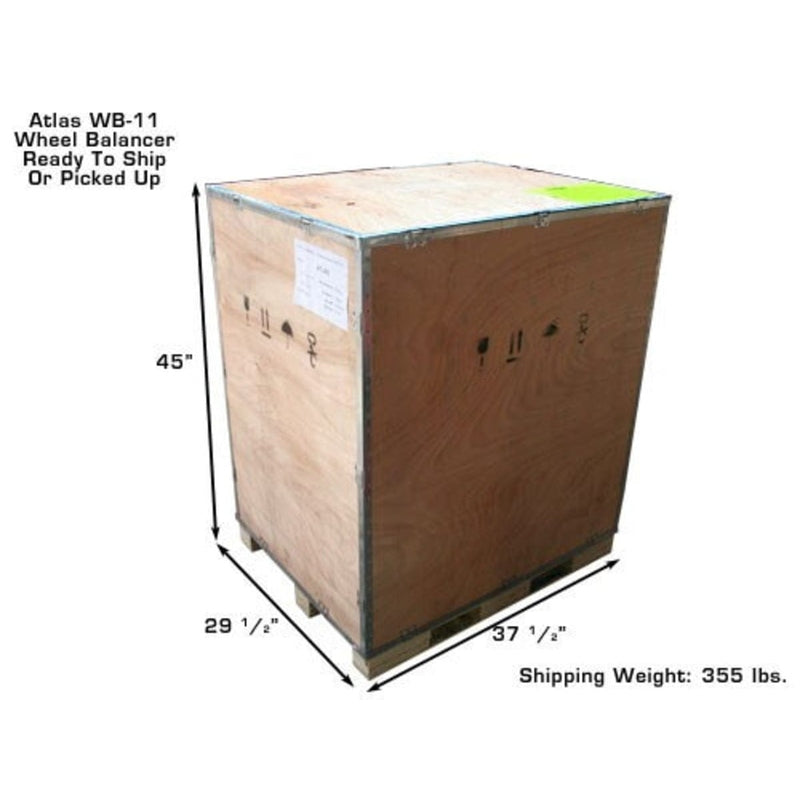

| Shipping Weight | 355 lbs |
This Atlas® TC289 + WB11 Combo offers professional-grade reliability in a user-friendly, 110V setup — the perfect combination for efficient, accurate, and safe tire changing and balancing at any skill level.
