Description

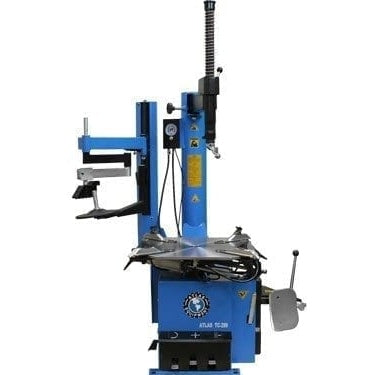

The Atlas TC289LH is an extra-large rim-clamp, swing-arm tire changer with the Atlas left-hand assist arm, for general repair shops, medium tire shops, farms and homeowners with bigger tires. Its large turntable and extra clearance handle tires up to 47″ in diameter and 18″ wide, and the 5,500 lb bead breaker loosens stubborn beads. The assist arm works like an extra set of hands on stiff-sidewall and low-profile tires. It runs on 110V with shop air at 90–110 PSI. Compare all tire changers or more Atlas equipment. Financing is available through Approve and Shop Pay.
The Atlas® TC289LH Rim Clamp Swing Arm Tire Changer is an excellent solution for general automotive service departments, medium-sized tire shops, and even homeowners or farmers working with larger tires. This version of the TC289 includes the Atlas® LHA (Left Hand Assist) Arm, a valuable feature designed to simplify the process of changing stiff sidewall and low-profile tires. The assist arm acts as an extra set of hands, allowing a single operator to work more efficiently and with less physical strain.
Built for versatility and strength, the TC289LH offers an extra-large turntable and maximum clearance, making it ideal for servicing large-diameter tires found on heavy-duty trucks, SUVs, and agricultural equipment. The integrated “Beadblaster” inflation system assists in seating even the toughest sidewalls and “hard-to-inflate” tires with ease.
Like all Atlas® wheel clamp tire changers, the TC289LH is engineered to service both premium alloy and standard steel wheels safely and precisely. Its adjustable side-mounted bead breaker delivers powerful performance, capable of freeing even rusted or stubborn beads without damaging the rim. The turntable jaws, which can be fitted with protective plastic covers, securely grip the rim without scratching or marking the surface. These jaws can be set in three adjustable positions, expanding or reducing the clamping range to accommodate a wide variety of tire sizes.
Some assembly is required upon delivery.
Features (Rephrased)
-

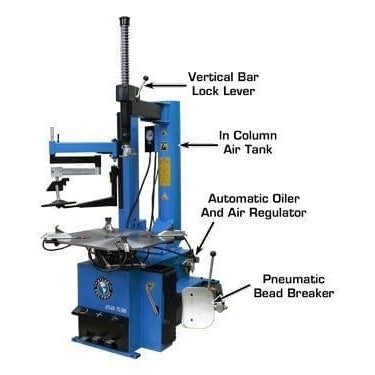

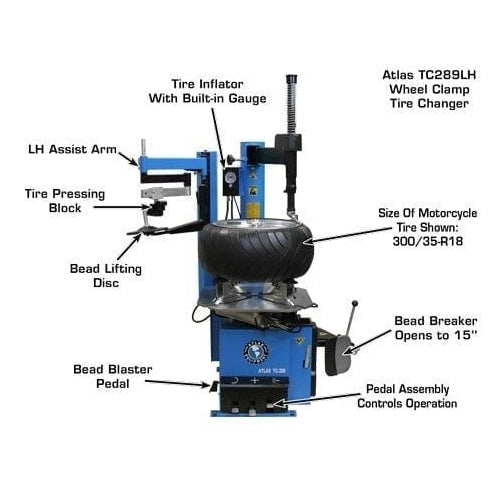

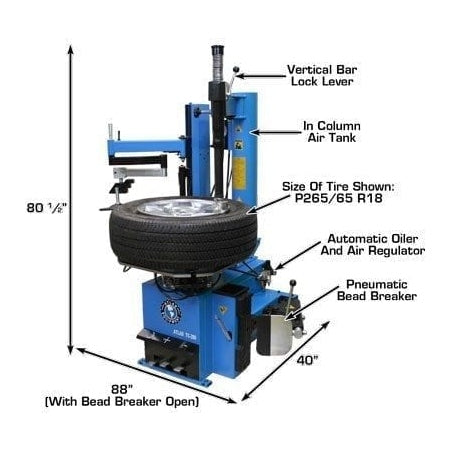

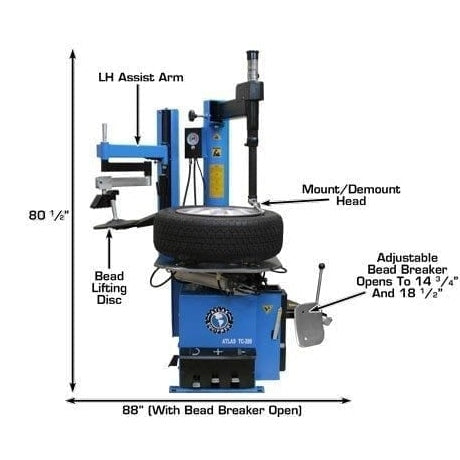

Large Rim Clamp / Swing Arm Tire Changer
-
Oversized turntable providing increased clearance for larger tires
-

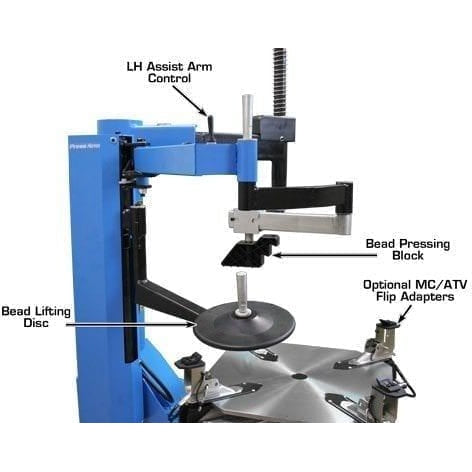

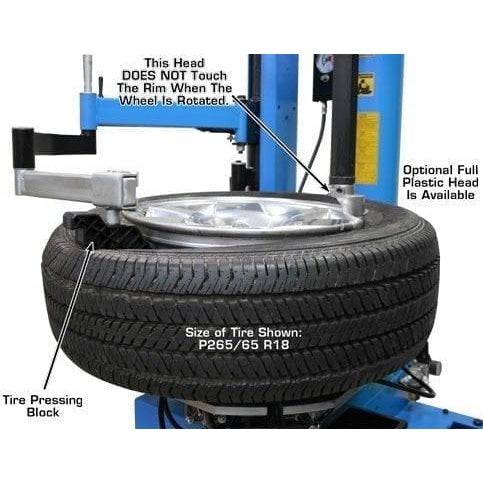

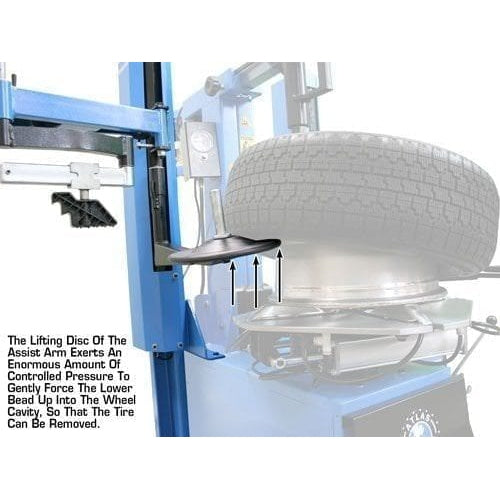

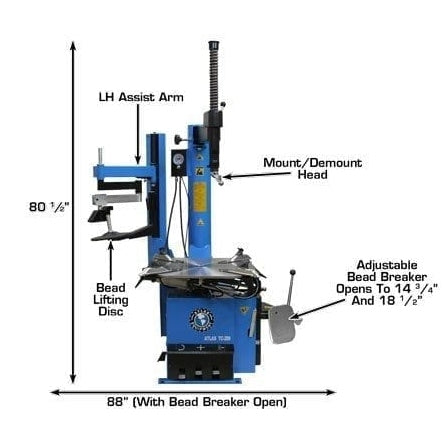

Left-Hand Assist Arm with pressing block and lifting disk included
-

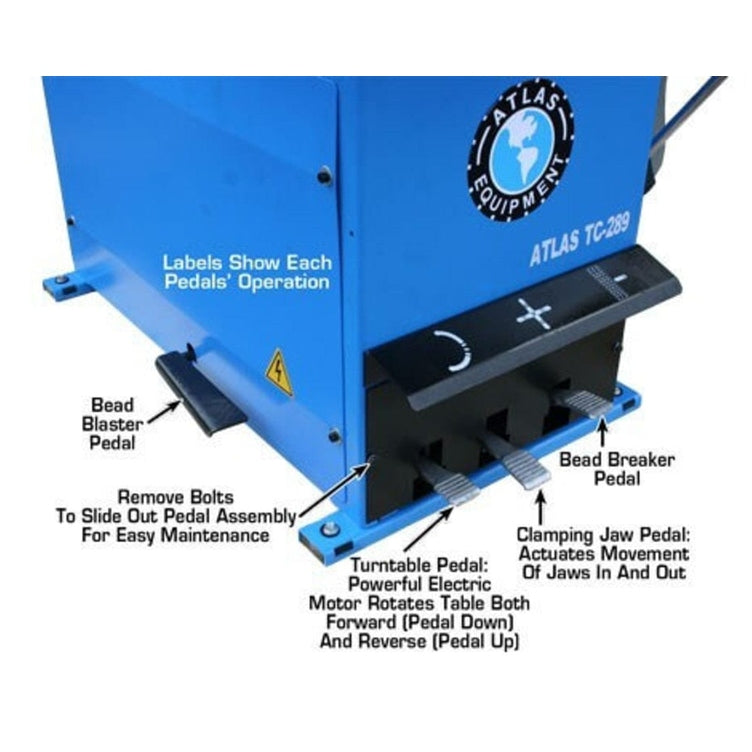

Air-operated jaws and bead breaker (requires external air supply)
-

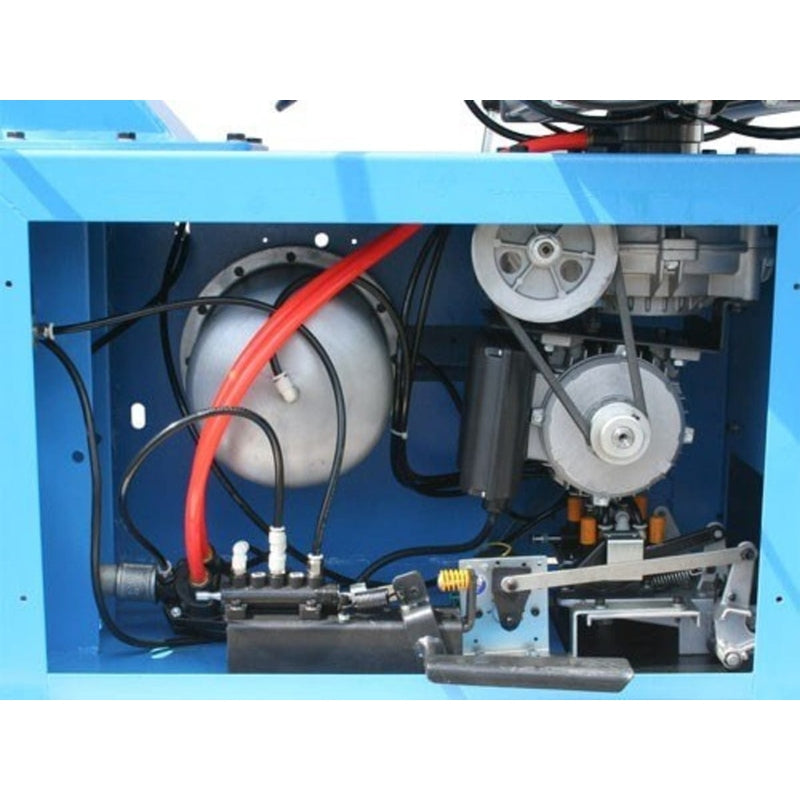

Electric-powered turntable for smooth operation
-

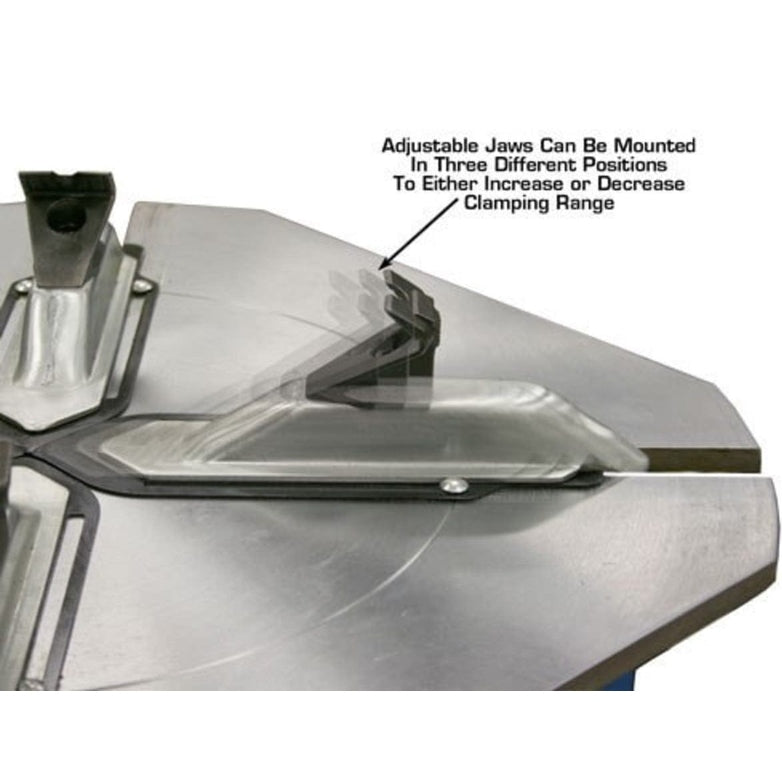

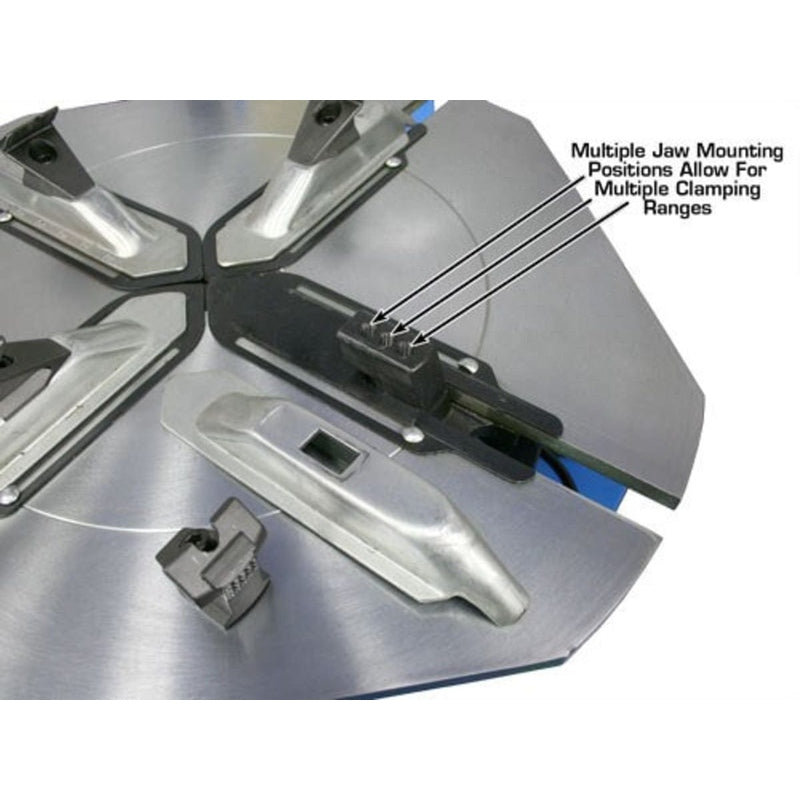

Adjustable jaws with three mounting positions for flexible clamping range
-

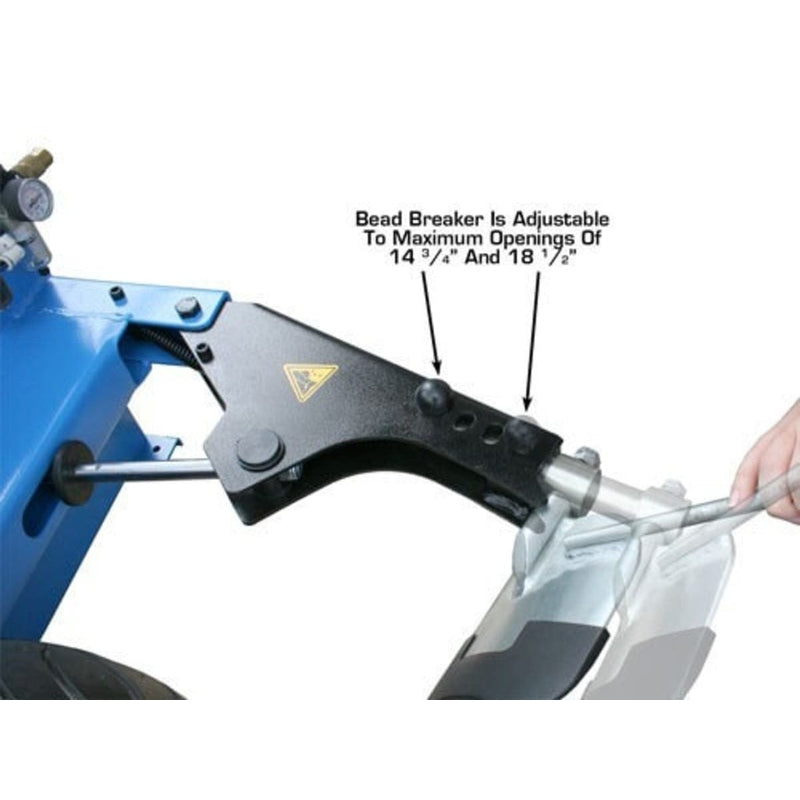

Adjustable bead breaker plate for improved versatility
-

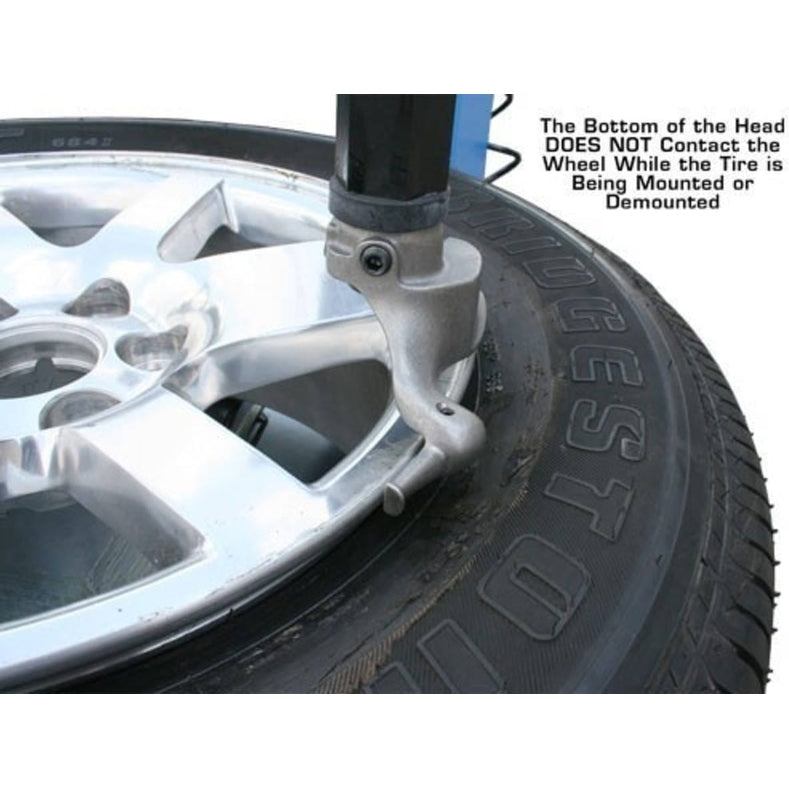

Durable metal mount/demount head with metal roller or replaceable plastic inserts
-
Column-mounted inflator box with integrated pressure gauge
-

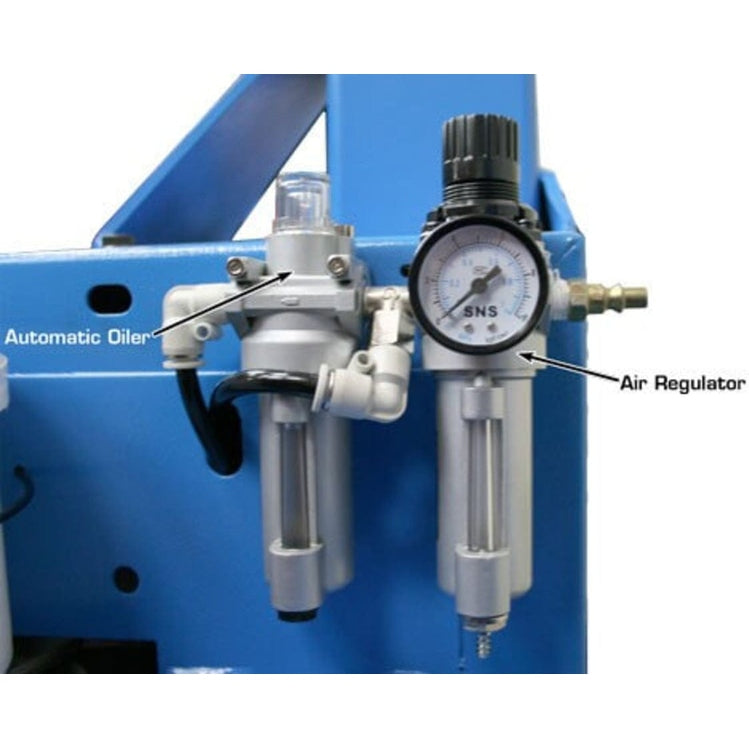

Includes filter, regulator, and lubricator system
-
20″ tire tool and lube bucket with brush included
-
Set of large plastic jaw covers and bead breaker shovel protector included
-
Multiple replacement plastic inserts for the mount/demount head included
-
Motorcycle and ATV adapters available (sold separately)
-

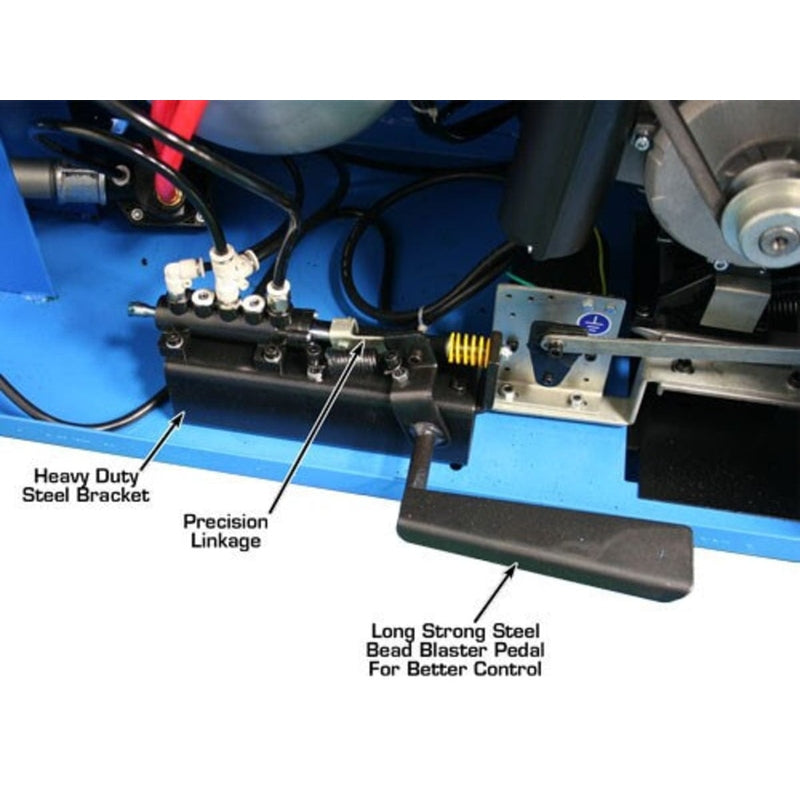

Built-in “Beadblaster” system for efficient tire inflation
-

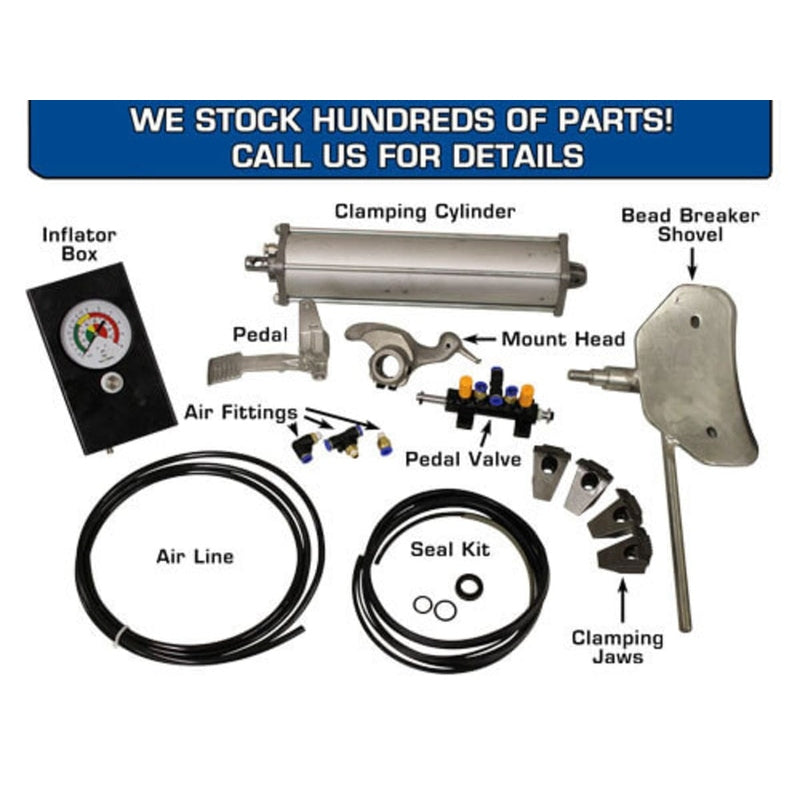

Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty
Specifications
| Specification | Detail |
|---|---|
| Rims | Steel, Aluminum, Alloy |

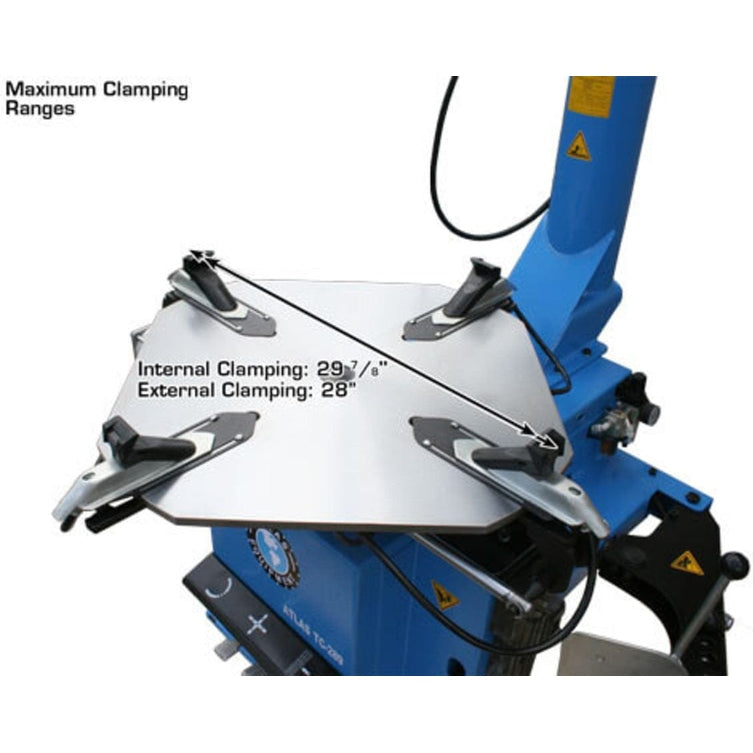

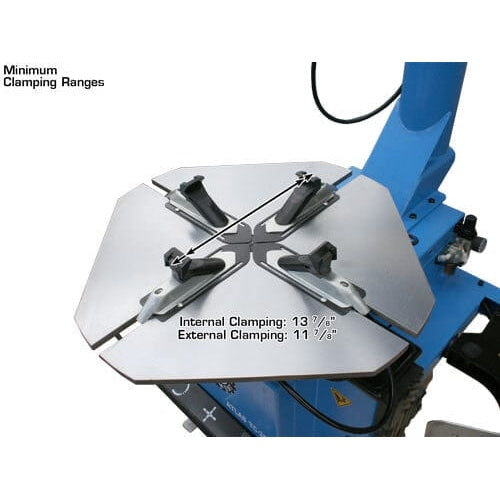

| External Locking Range (3 Positions) | 1) 11 ⅞″ – 26″ 2) 12 ⅞″ – 27″ 3) 13 ¾″ – 28″ |
| Internal Locking Range (3 Positions) | 1) 13 ⅞″ – 27 ⅞″ 2) 14 ⅝″ – 28 ⅞″ 3) 15 ⅝″ – 29 ⅞″ |
| Maximum Tire Diameter | 47″ |

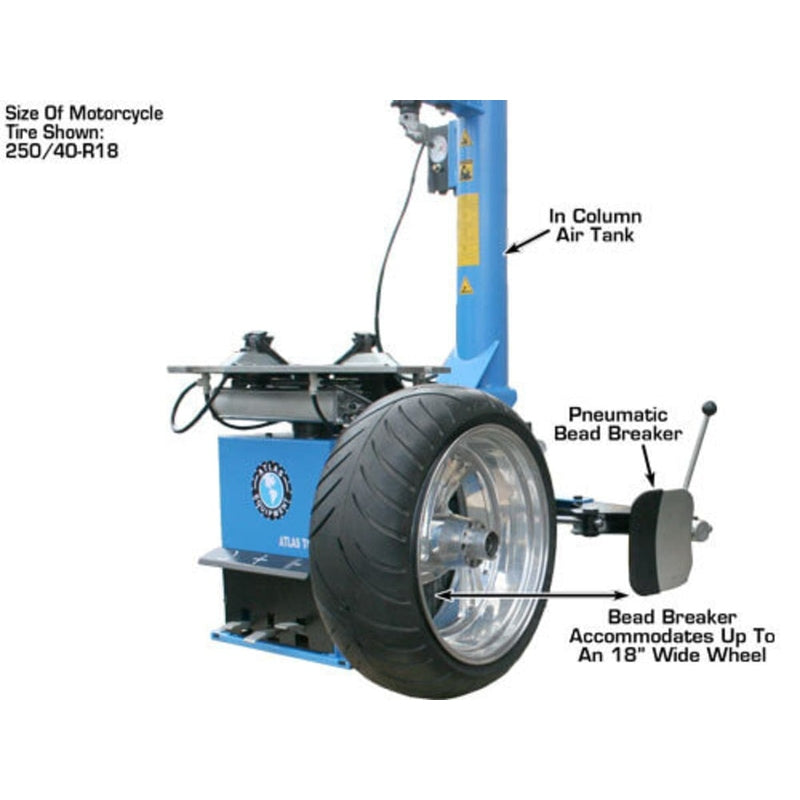

| Maximum Wheel Width (Bead Breaker) | 18″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

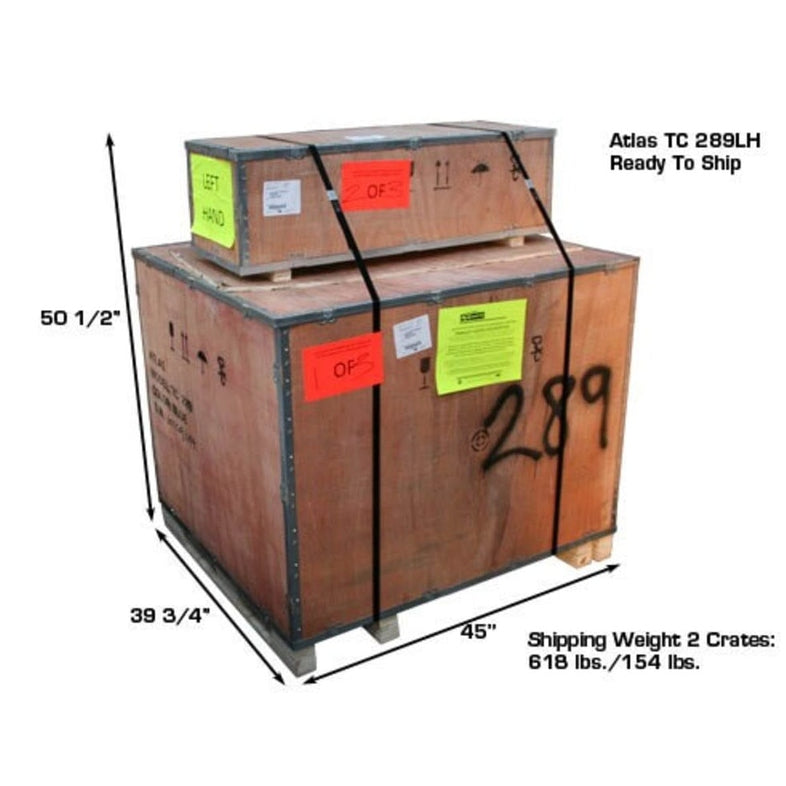

| Shipping Weight | 800 lbs |
