Description

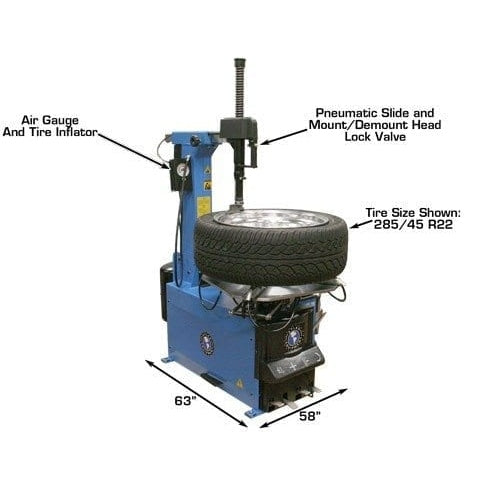

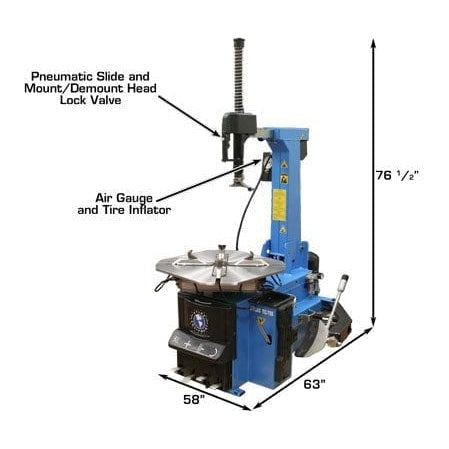

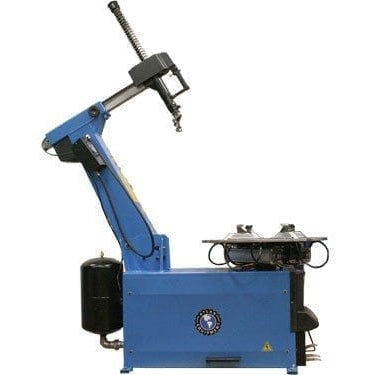

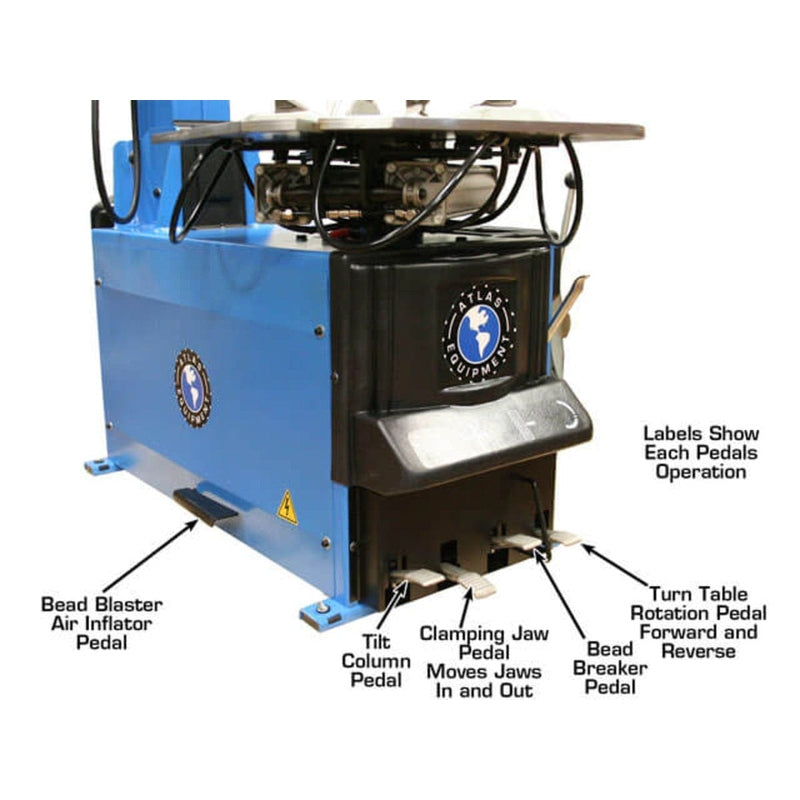

The Atlas® TC755 is a professional-grade tilt-back rim clamp tire changer, ideal for high-volume tire dealers and large automotive service centers. Its foot-operated tilt-back column allows for fast and efficient mounting and demounting of tires without the need to reposition the arm, providing a smooth workflow and preventing accidental contact with the column.

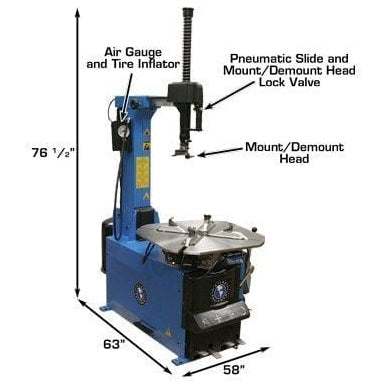

This model features a pneumatic locking mount/demount head, minimizing the risk of movement during operation and protecting both the rim and tire. The extra-large turntable can securely clamp most 26-inch chrome rims without additional adapters, making it a versatile solution for modern tire service operations. For even greater efficiency, the Atlas® TC755 can be upgraded with the E-Z Assist Arm or Dual Assist Arm Package for handling low-profile and stiff-sidewall tires with ease.

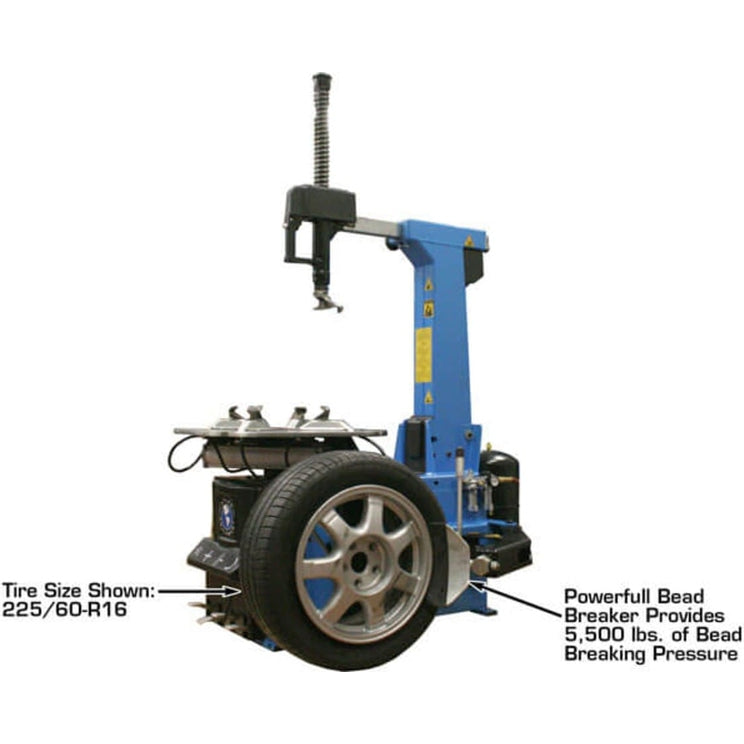

Equipped with a built-in “Beadblaster” inflation system, the TC755 makes quick work of seating even the toughest tire beads. Its hand-controlled bead breaker delivers powerful, precise action capable of breaking stubborn or corroded beads without damaging the rim. The turntable jaws, protected by optional plastic covers, hold the wheel securely and can be adjusted to three positions to expand or reduce the clamping range for a wide variety of tire types.
Note: The Atlas® TC755 requires partial assembly upon delivery.
Features
-

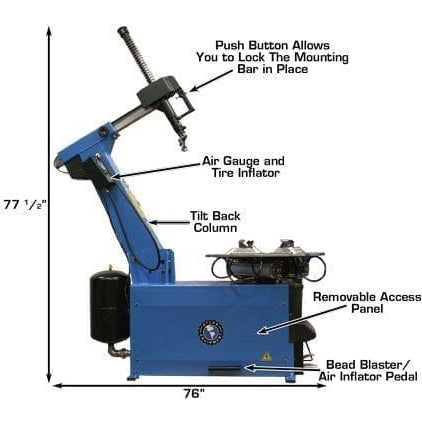

Tilt-Back Column Tire Changer: Convenient tilt-back design for fast mounting and demounting.
-
Rim-Clamp Style: Securely holds a wide range of wheel types.
-
Extra-Large Turntable: Provides greater clearance and flexibility for larger wheels.
-
Air-Operated Jaws & Bead Breaker: Requires external air supply for powerful, reliable performance.
-

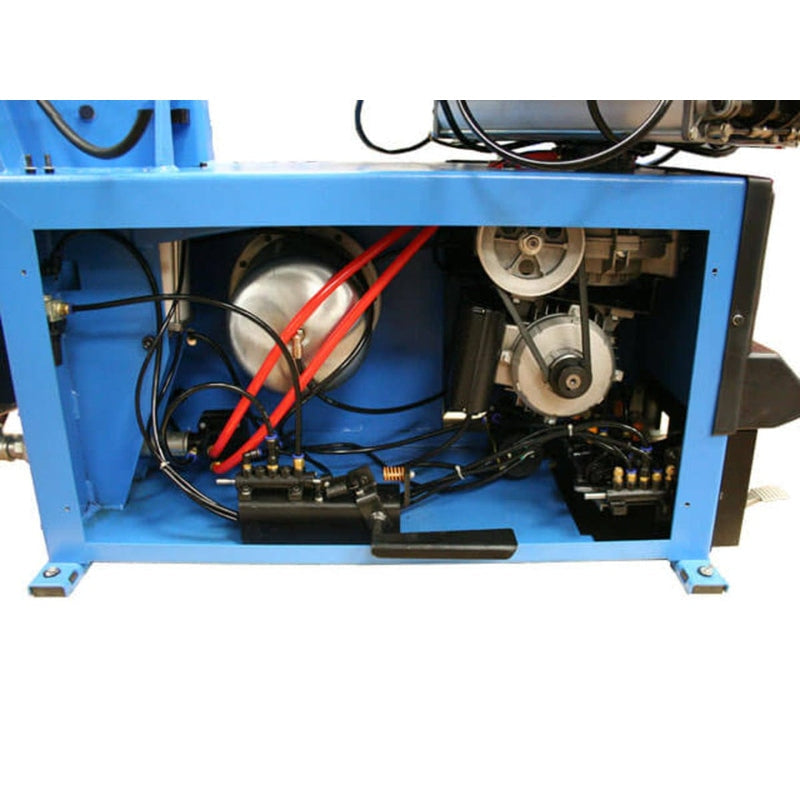

Electric Turntable: Smooth and efficient operation for consistent control.
-

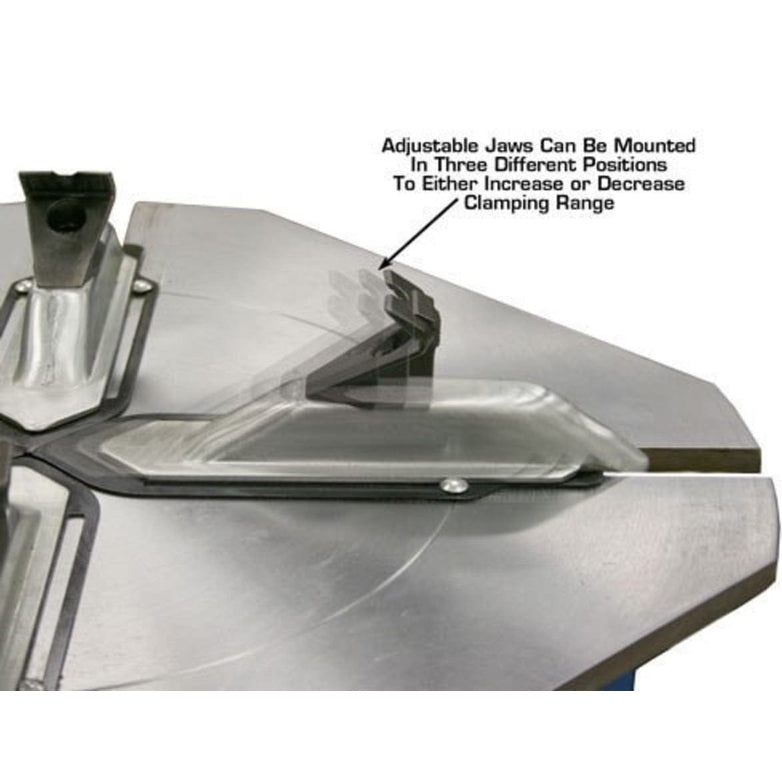

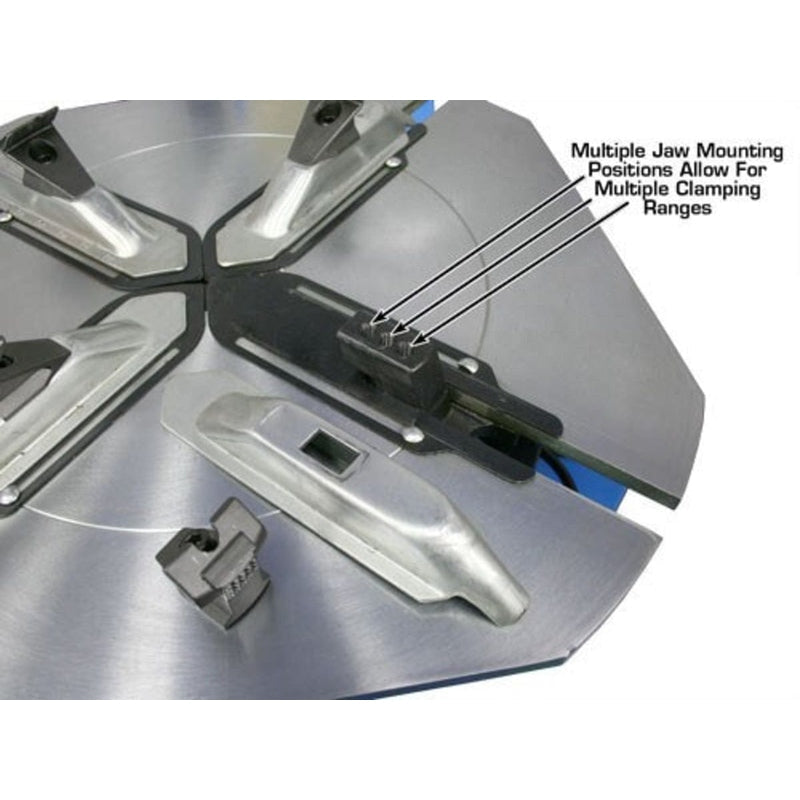

Adjustable Jaws: Three mounting positions to accommodate various wheel sizes.
-
Button-Controlled Bead Breaker: Blade-mounted control for precise operation.
-
Durable Mount/Demount Head: Metal construction with roller or replaceable plastic inserts.
-

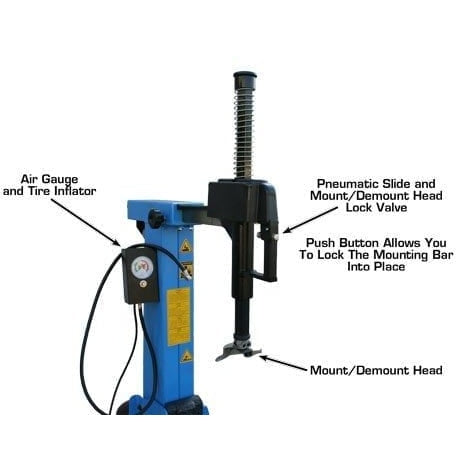

Integrated Inflator Box with Gauge: Convenient, column-mounted inflation system.
-

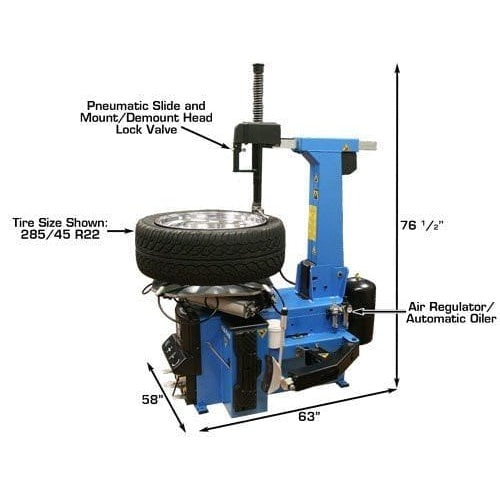

Filter/Regulator/Lubricator Included: Keeps pneumatic systems clean and efficient.
-
Accessory Package Included: 20″ tire tool, lube bucket with brush, large jaw covers, bead breaker shovel cover, and extra plastic inserts for the mount/demount head.
-
Built-In “Beadblaster” System: Assists in seating stiff sidewalls and hard-to-inflate tires.
-

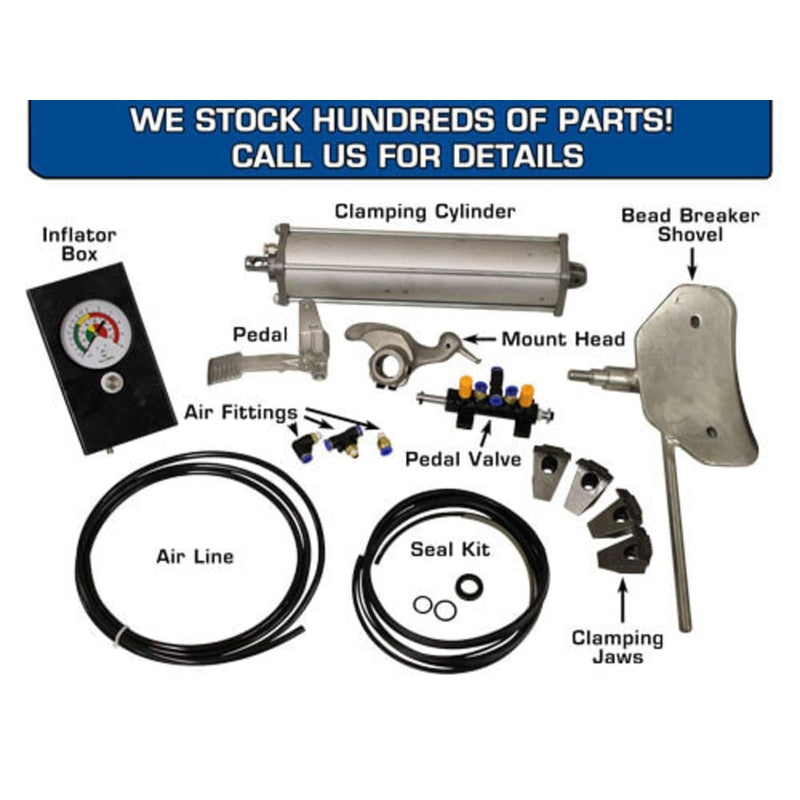

Reliable Support: Replacement parts and wear items are always available.
-
Warranty: Covered by a 1-year parts-only warranty.
Specifications
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

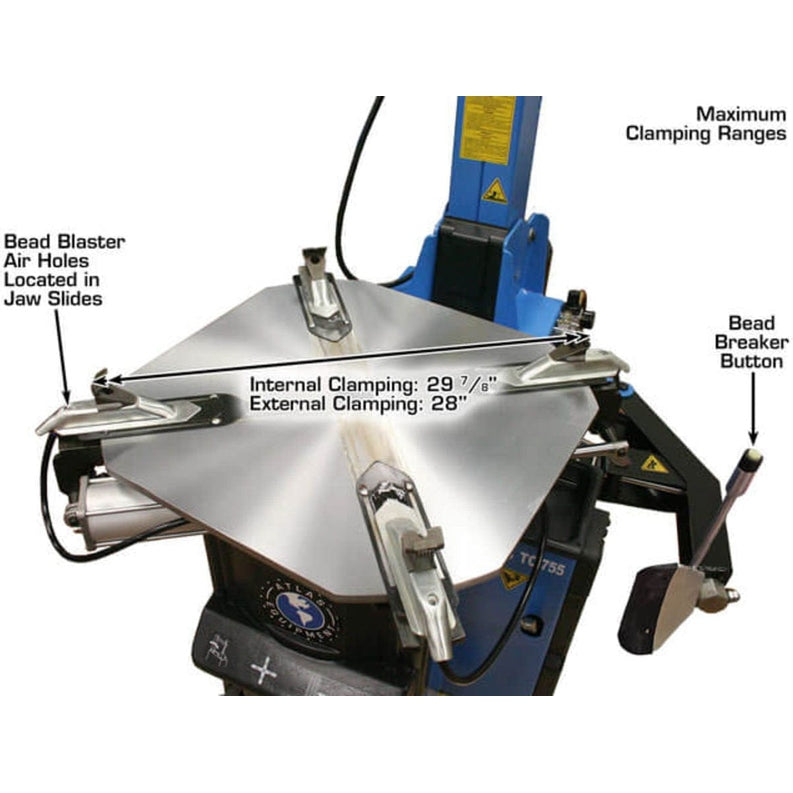

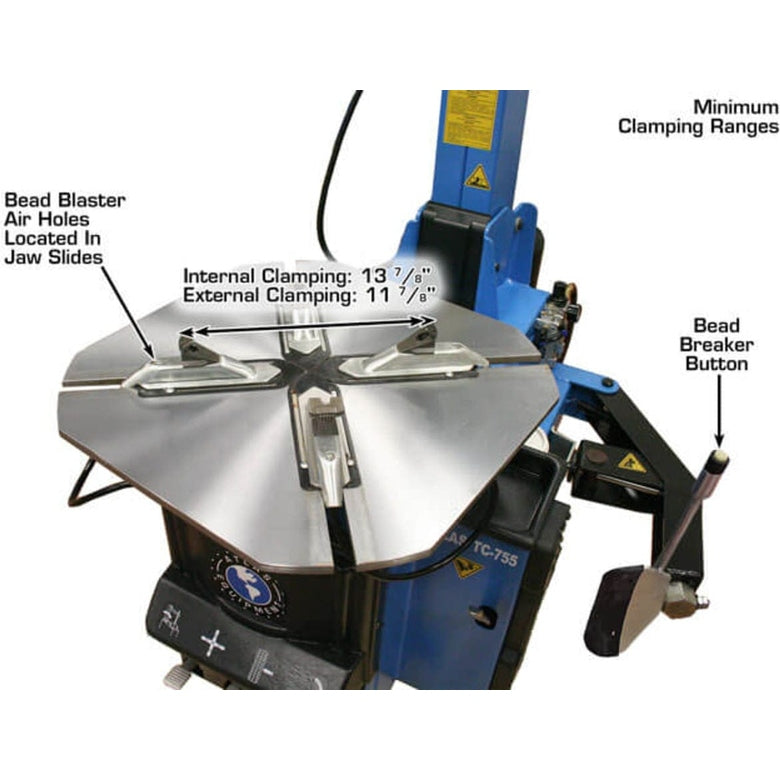

| External Locking Rim Dimensions (3 Positions) | 1) 11 7/8"–26" 2) 12 7/8"–27" 3) 13 3/4"–28" |
| Internal Locking Rim Dimensions (3 Positions) | 1) 13 7/8"–27 7/8" 2) 14 5/8"–28 7/8" 3) 15 5/8"–29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (do not exceed 140 PSI) |
| Operating Voltage | 110V |

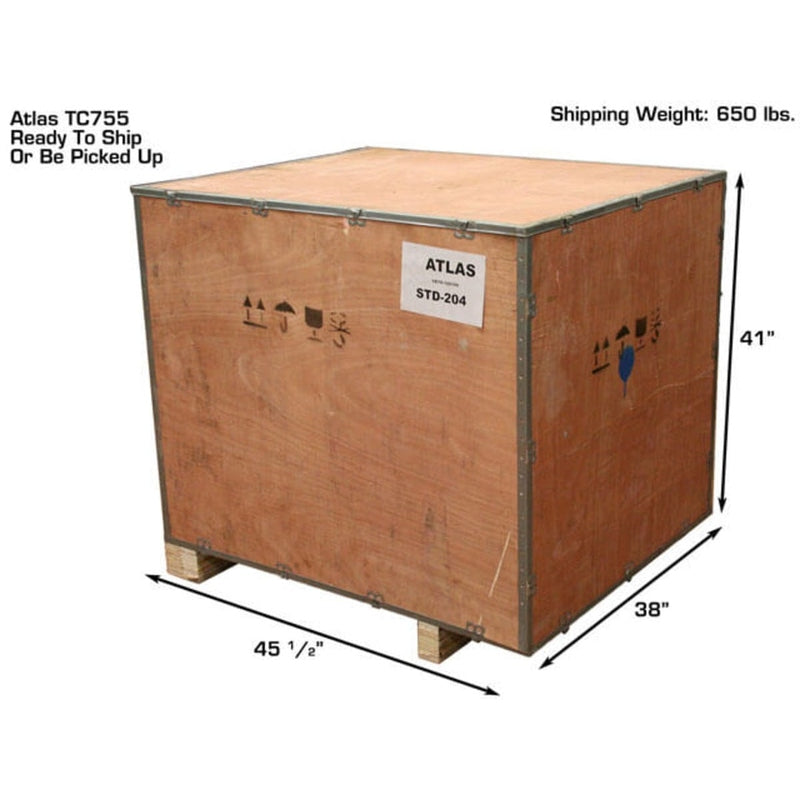

| Shipping Weight | 650 lbs |
