Description

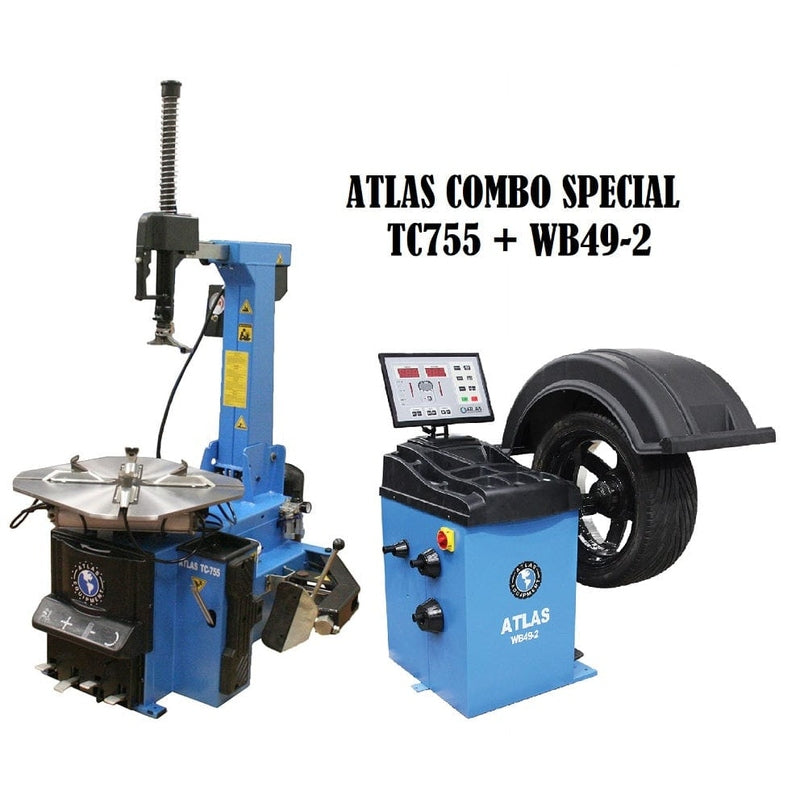

The Atlas® TC755 Tire Changer and WB49-2 Wheel Balancer Combo delivers premium performance for professional automotive shops and high-volume tire centers. Engineered for efficiency, precision, and reliability, this package includes the Atlas® TC755 Rim-Clamp Tilt-Back Tire Changer and the Atlas® WB49-2 Computerized Spin Balancer. Both units operate on 110V power, are CE certified, and are backed by the Atlas® 1-Year Parts-Only Warranty — ensuring dependable operation and long-term value.
Features

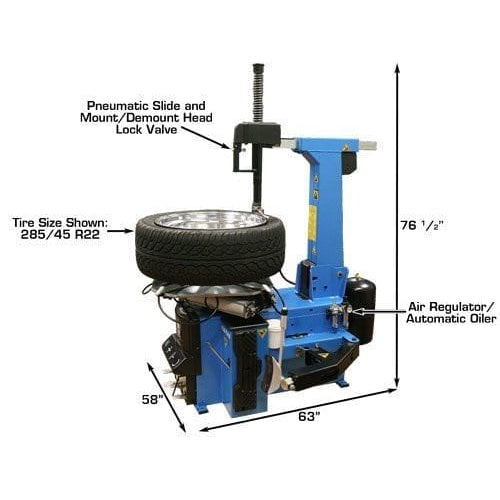

Atlas® TC755 Tilt-Back Rim Clamp Tire Changer
-

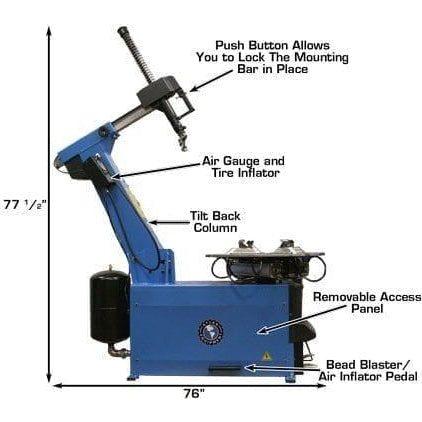

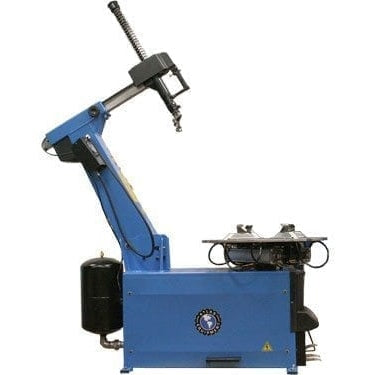

Tilt-Back Column Design: Provides fast setup and easy access for large or wide tires.
-
Rim-Clamp Style: Compatible with a wide variety of steel, aluminum, and alloy wheels.
-
Extra-Large Turntable: Offers more clearance for oversized wheels and tires.
-
Air-Operated Jaws & Bead Breaker: Ensures efficient tire mounting and removal (external air supply required).
-

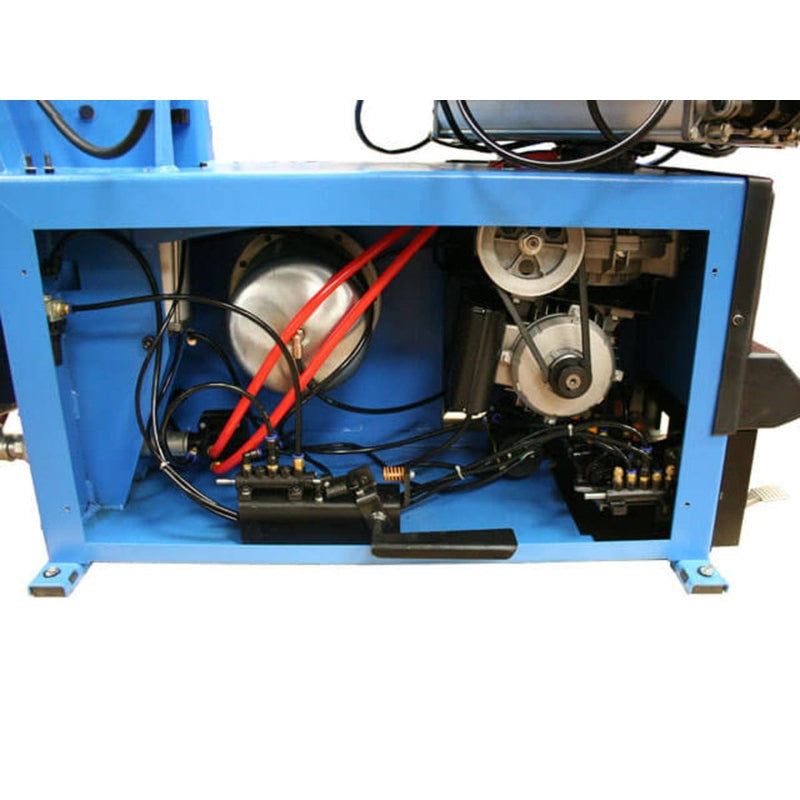

Electric Turntable Drive: Provides smooth and consistent rotation during operation.
-

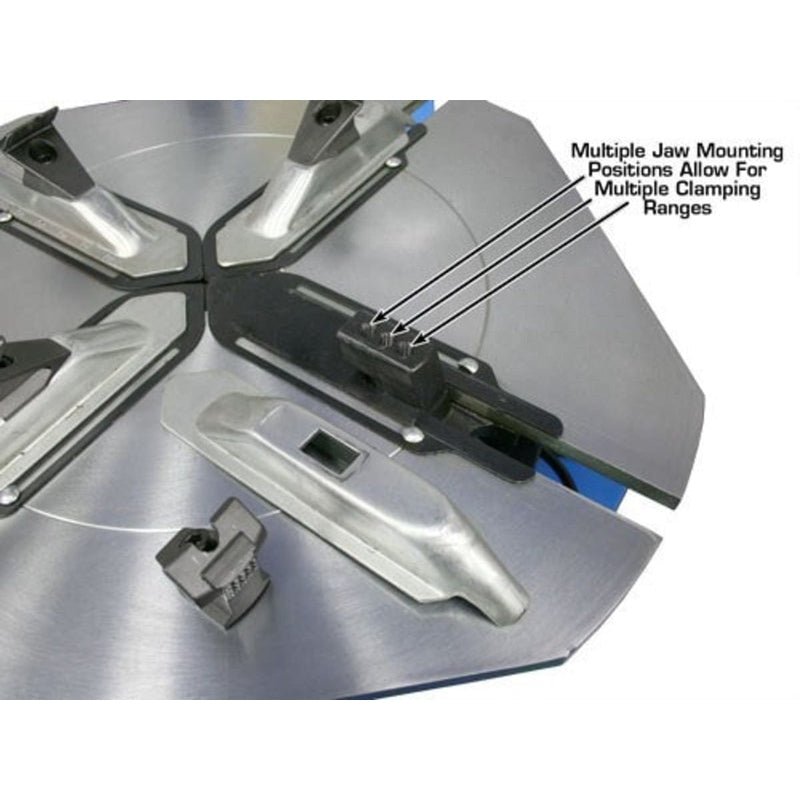

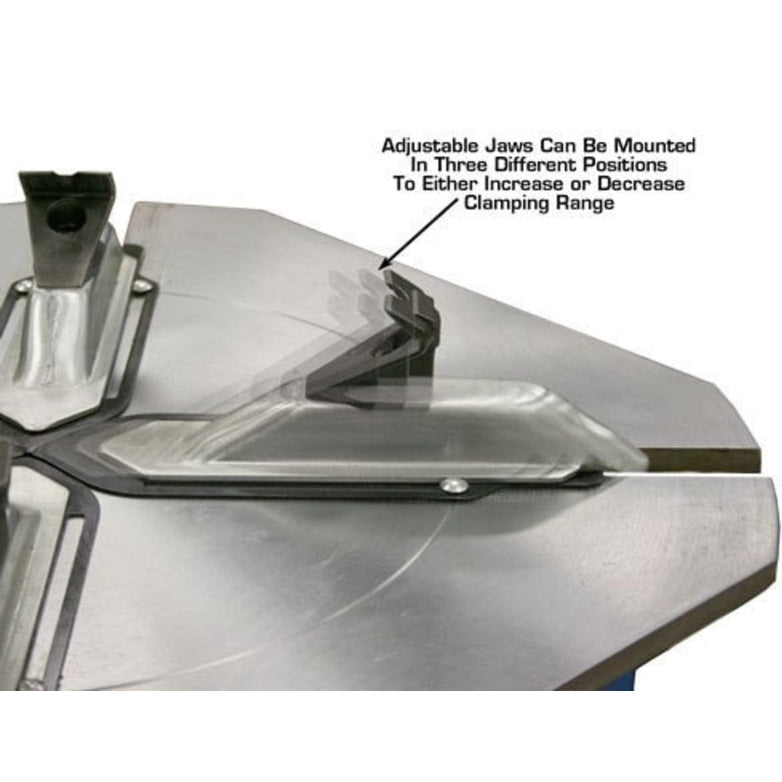

Adjustable Jaws: Three-position mounting for maximum versatility.
-

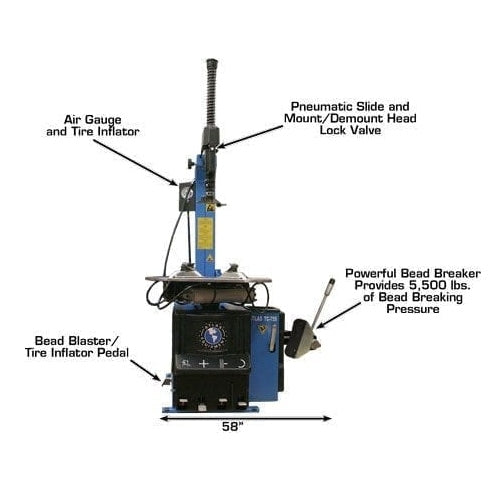

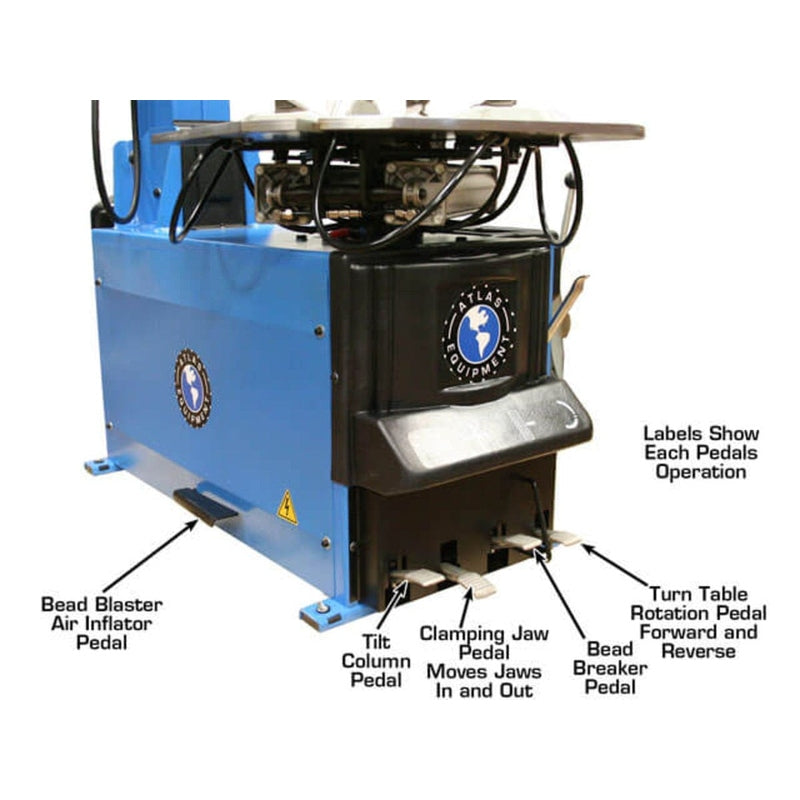

Button-Controlled Bead Breaker: Conveniently operated at the blade for precision control.
-

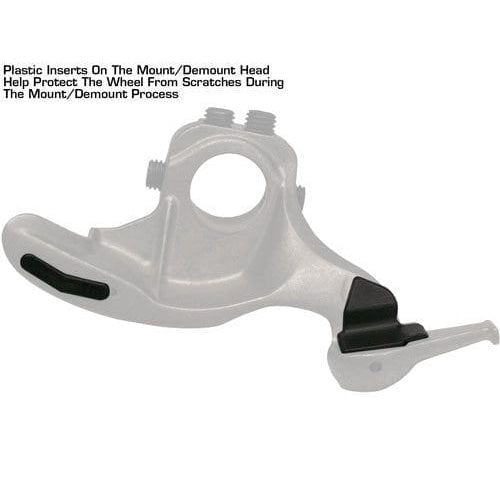

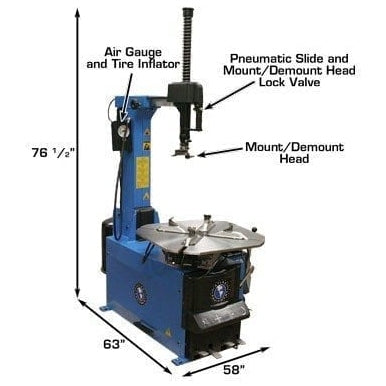

Durable Mount/Demount Head: Metal head with metal roller or replaceable plastic inserts to prevent rim damage.
-

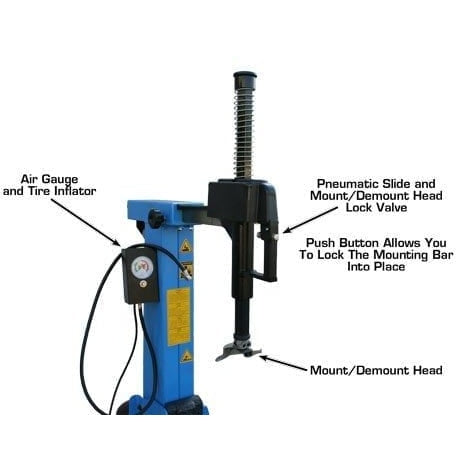

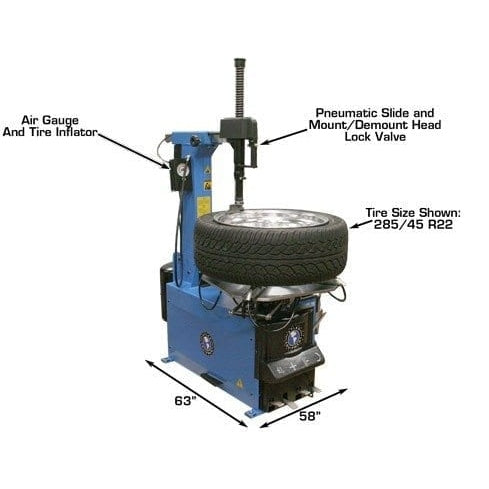

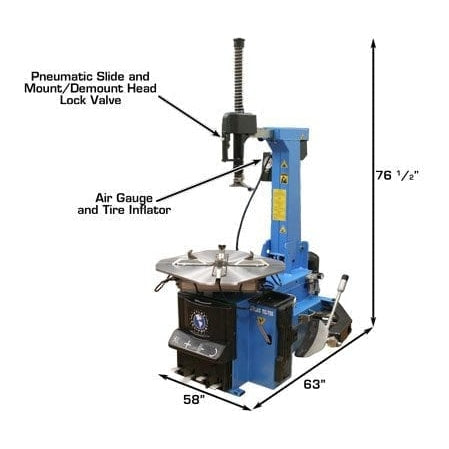

Integrated Inflator Box with Gauge: Conveniently mounted on the column for easy access.
-
Filter/Regulator/Lubricator Included: Keeps the air system clean and efficient.
-
Accessories Included: 20″ tire tool, lube bucket with brush, large plastic jaw covers, bead breaker shovel cover, and extra M/D head inserts.
-
Built-In Bead Blaster: Provides powerful air bursts for fast tire seating.

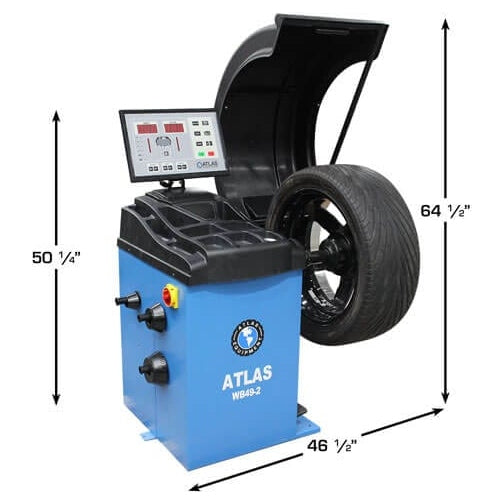

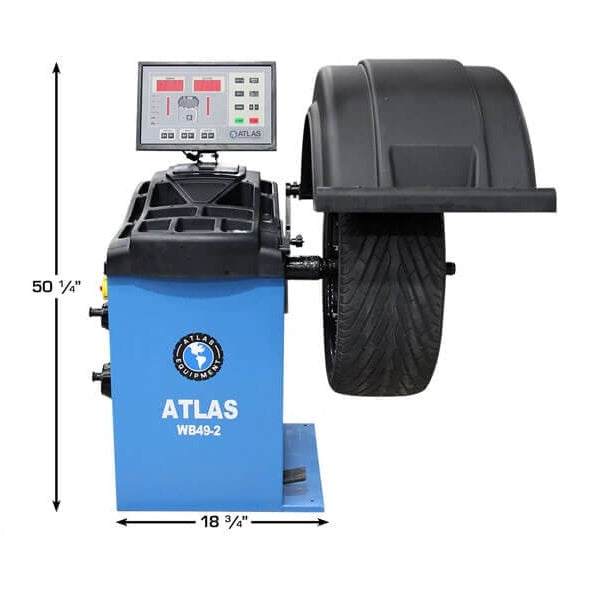

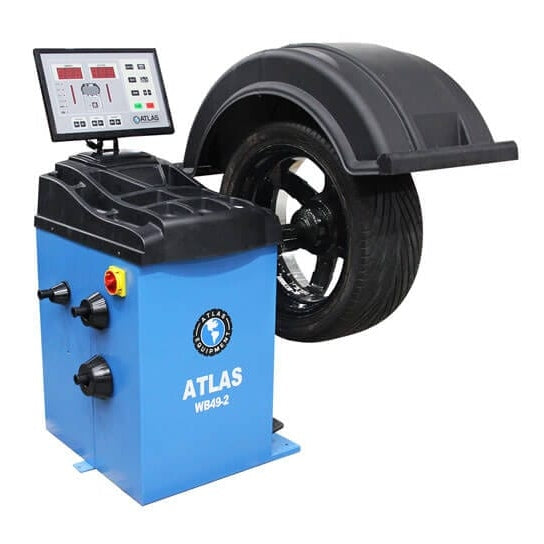

Atlas® WB49-2 Premium Computerized Wheel Balancer
-
Motorized Computer Control: Offers precise and fast balancing for cars and light trucks.
-

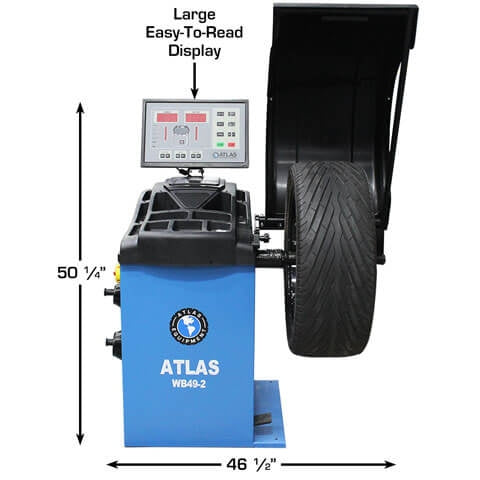

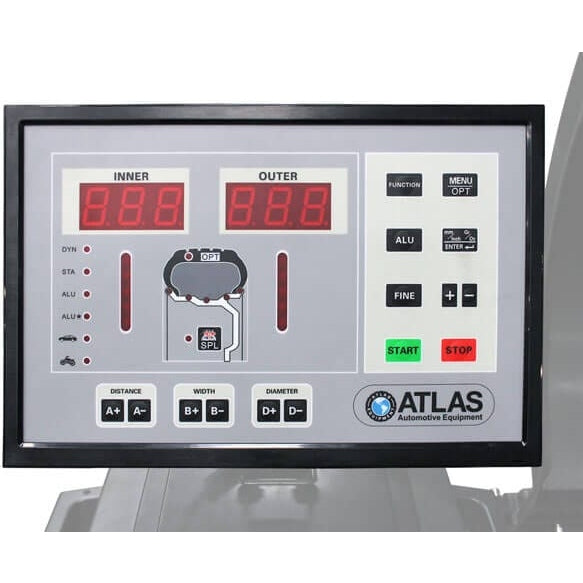

Raised, Easy-to-Read Display: Ergonomic design for improved visibility and operation.
-
Large Wheel Weight Tray: Provides convenient storage for tools and weights.
-

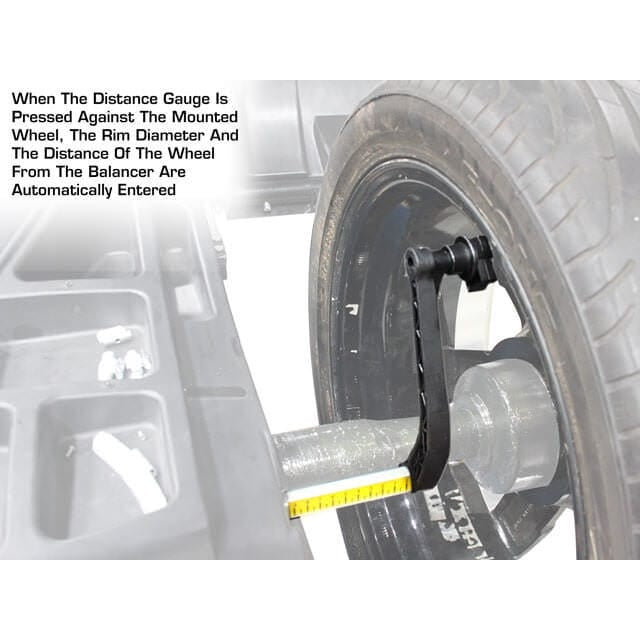

Automatic 2D Data Entry: Streamlines setup and reduces human error.
-
Optional 3D Data Entry (Sold Separately): Allows for fully automatic dimension input with width gauge.
-
Split-Weight Function: Perfect for hiding weights behind spokes on alloy wheels.
-
Automatic LED Work Light: Illuminates the wheel area for improved visibility.
-

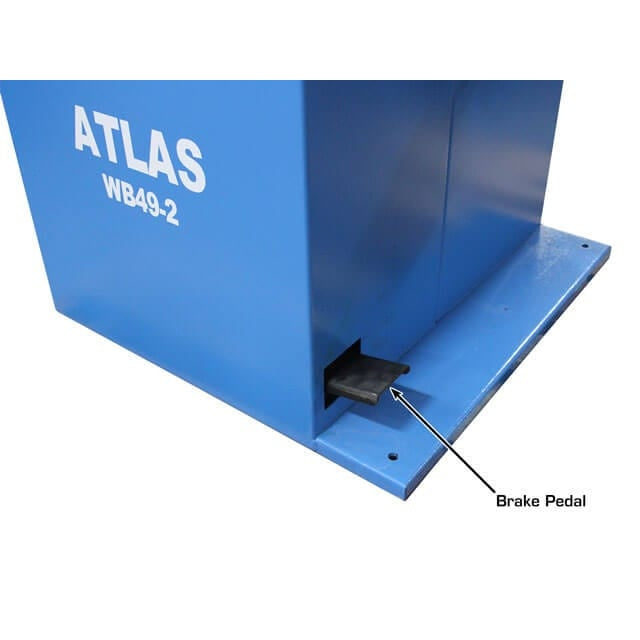

Auto-Positioning and Pedal Brake: Simplifies wheel weight placement and holds the wheel steady.
-
Automatic Start/Stop: Engages and halts operation when the hood is lowered or raised.
-
Balancing Modes: Supports static and dynamic balancing for maximum flexibility.
-
Rapid Optimization (OPT): Speeds up balancing adjustments.
-
Self-Diagnosis and Self-Calibration: Maintains long-term accuracy and reliability.
-
Versatile Measurement Display: Choose grams or ounces, millimeters or inches.
-
No Anchoring Required: Easy to set up anywhere in your workshop.
-

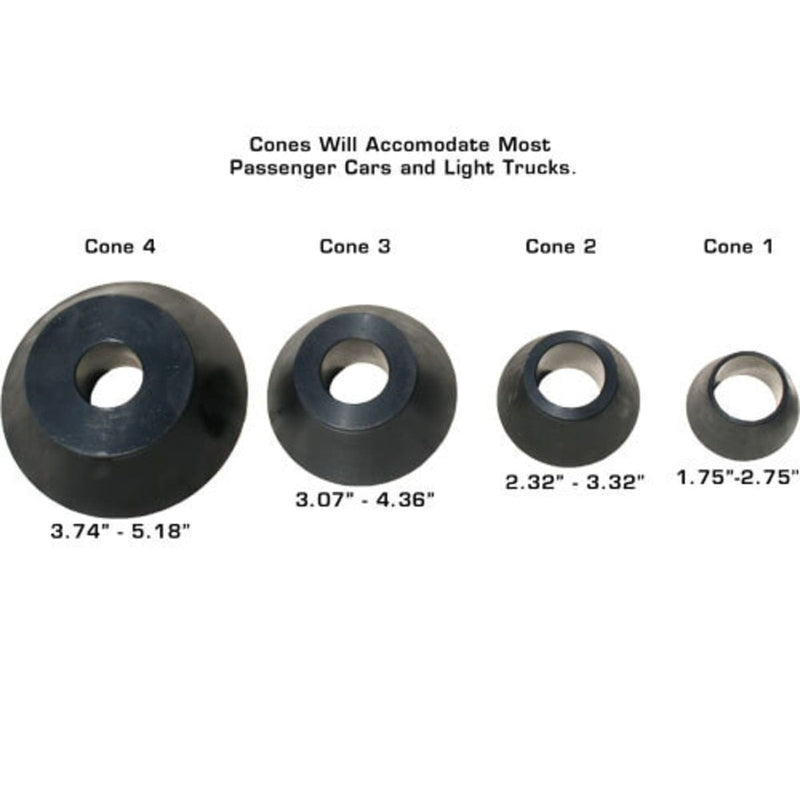

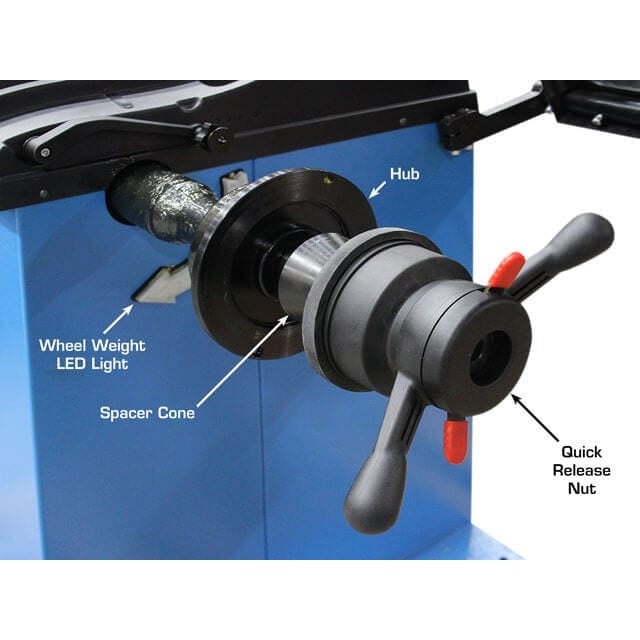

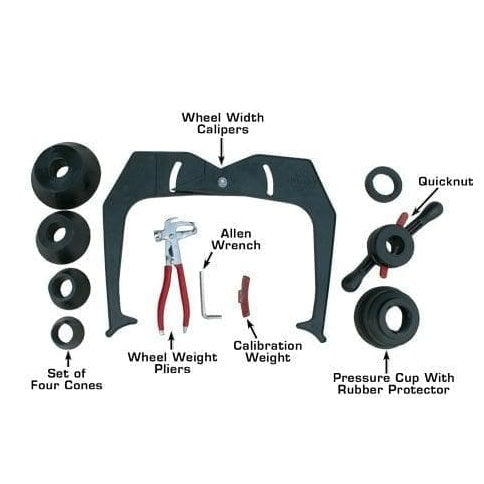

Included Accessories: Plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers.
Specifications
Atlas® TC755 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

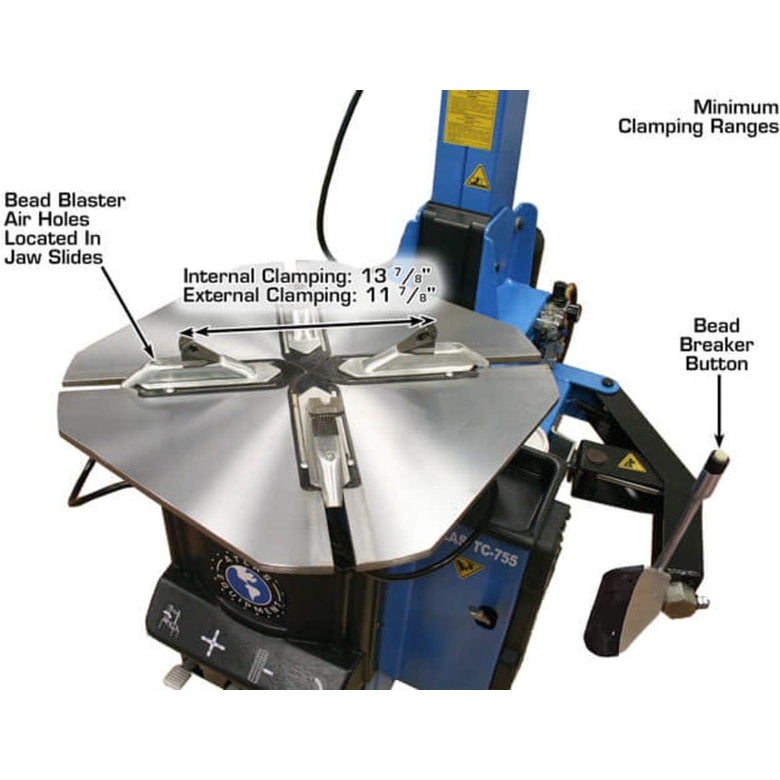

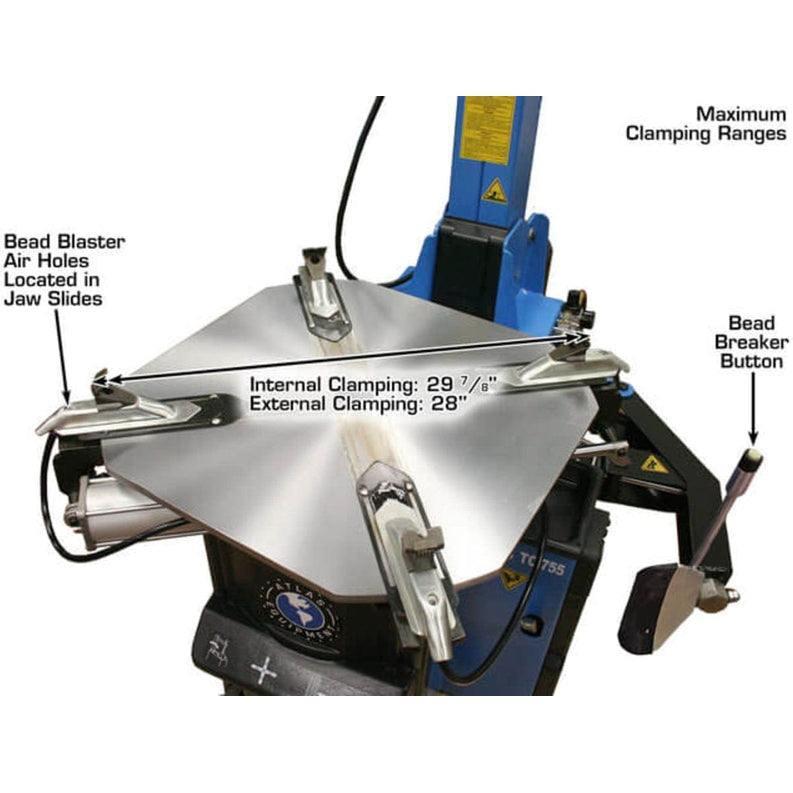

| External Locking Rim Dimensions (3 Positions) | 1) 11 7/8"–26" 2) 12 7/8"–27" 3) 13 3/4"–28" |
| Internal Locking Rim Dimensions (3 Positions) | 1) 13 7/8"–27 7/8" 2) 14 5/8"–28 7/8" 3) 15 5/8"–29 7/8" |
| Max Tire Diameter | 47" |
| Max Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |

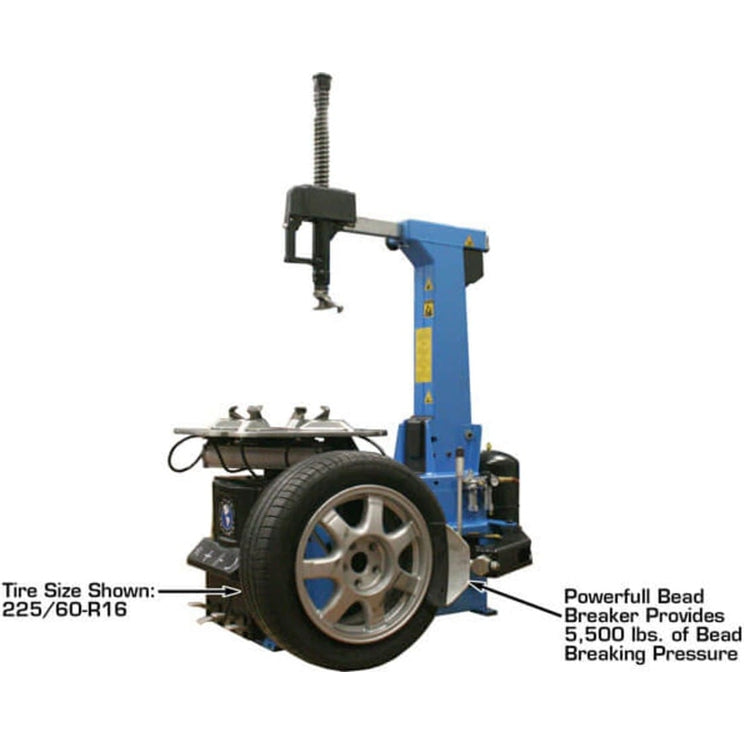

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do not exceed 140 PSI) |
| Operating Voltage | 110V |

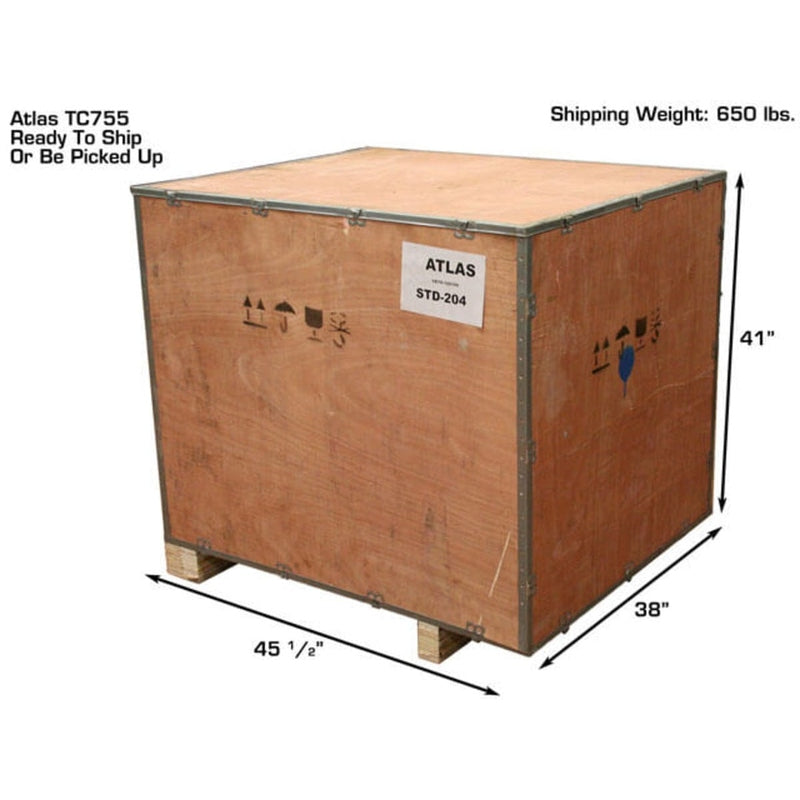

| Shipping Weight | 650 lbs |

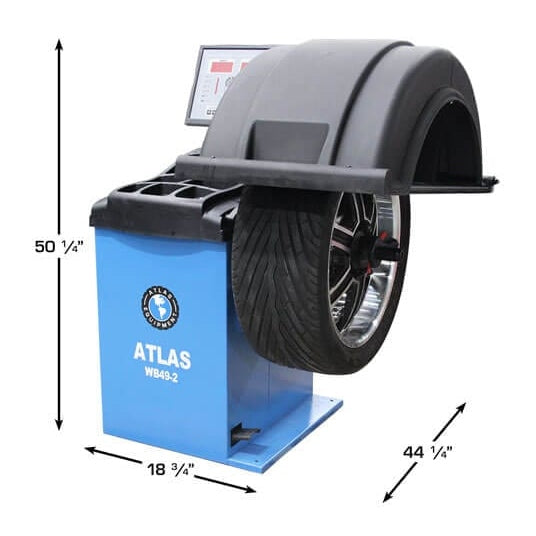

Atlas® WB49-2 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" (3' 6") |
| Rim Size Range | 10"–32" |
| Rim Width Range | 1.5"–20" |

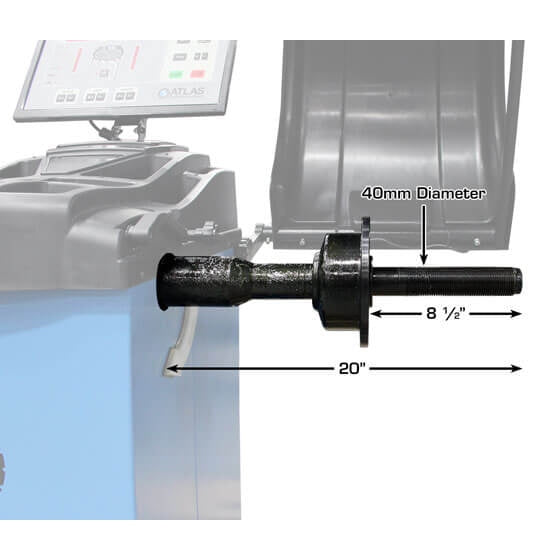

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Automatic 2D (Optional Automatic 3D) |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self-Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110V |
| Shipping Weight | 400 lbs |
This Atlas® TC755 + WB49-2 Combo combines power, precision, and reliability — an excellent choice for shops seeking professional-grade tire servicing and accurate wheel balancing with dependable, user-friendly operation.
