Description
Description

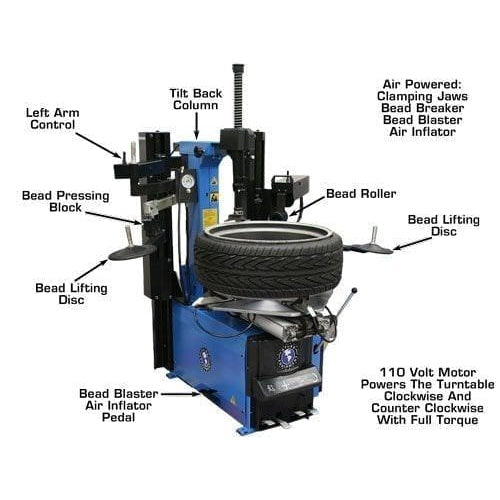

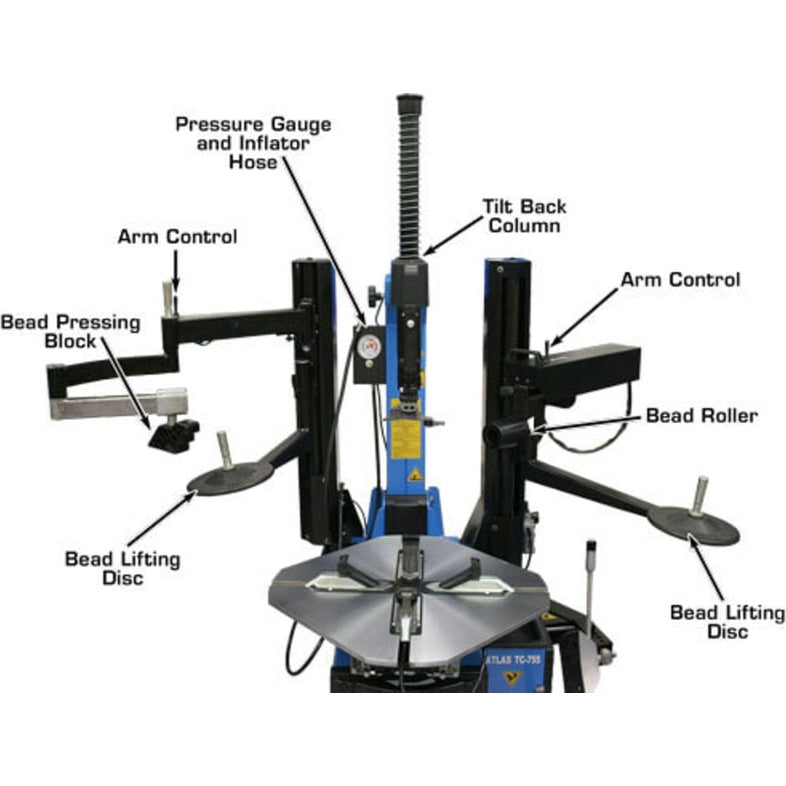

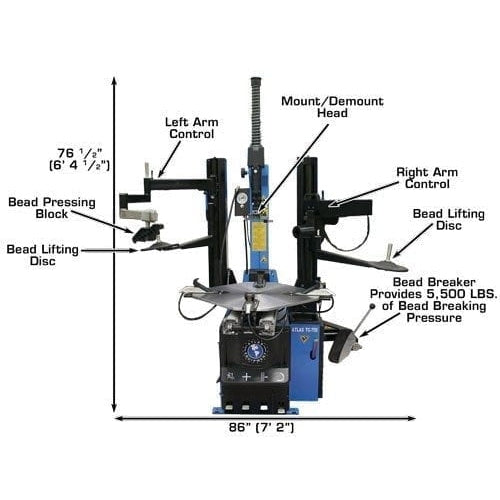

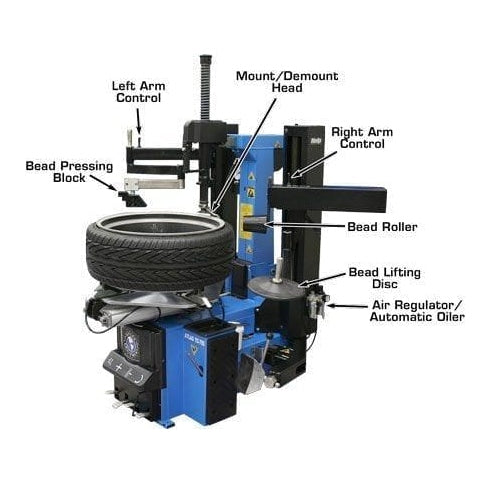

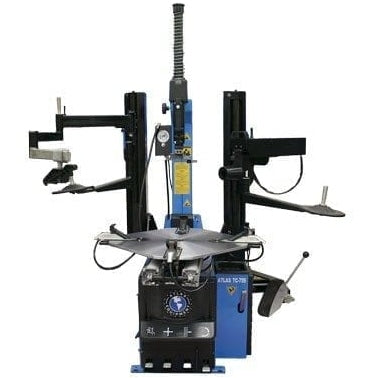

The Atlas® TC755DAA is a professional-grade, tilt-back rim clamp tire changer designed for high-volume tire shops, dealerships, and service centers. This model comes equipped with the Atlas® DAA-T Dual Assist Arm package, which includes:
-

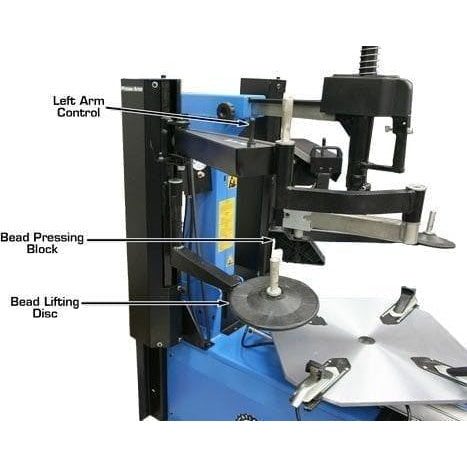

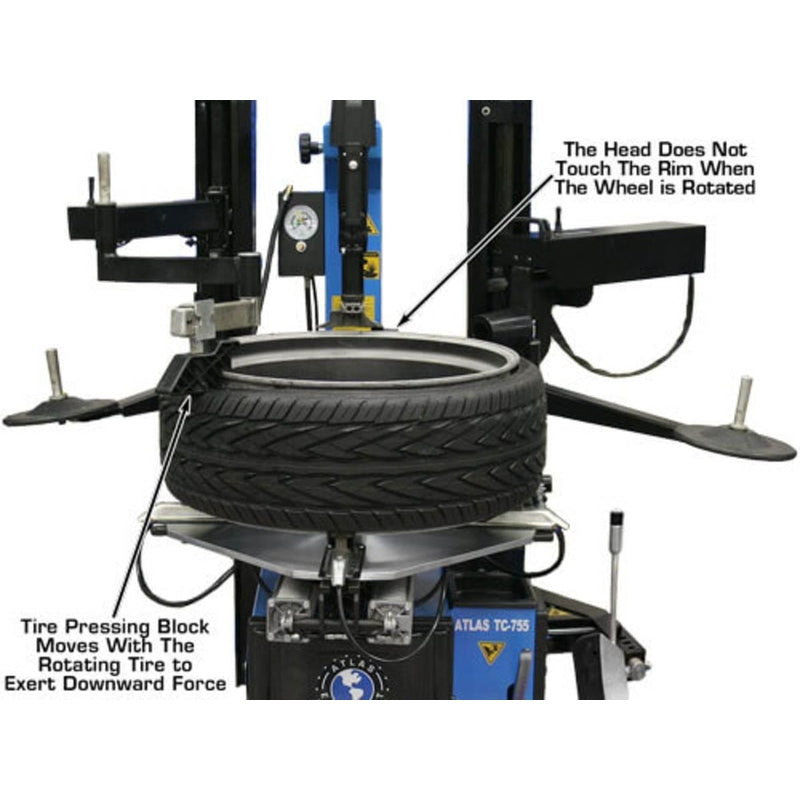

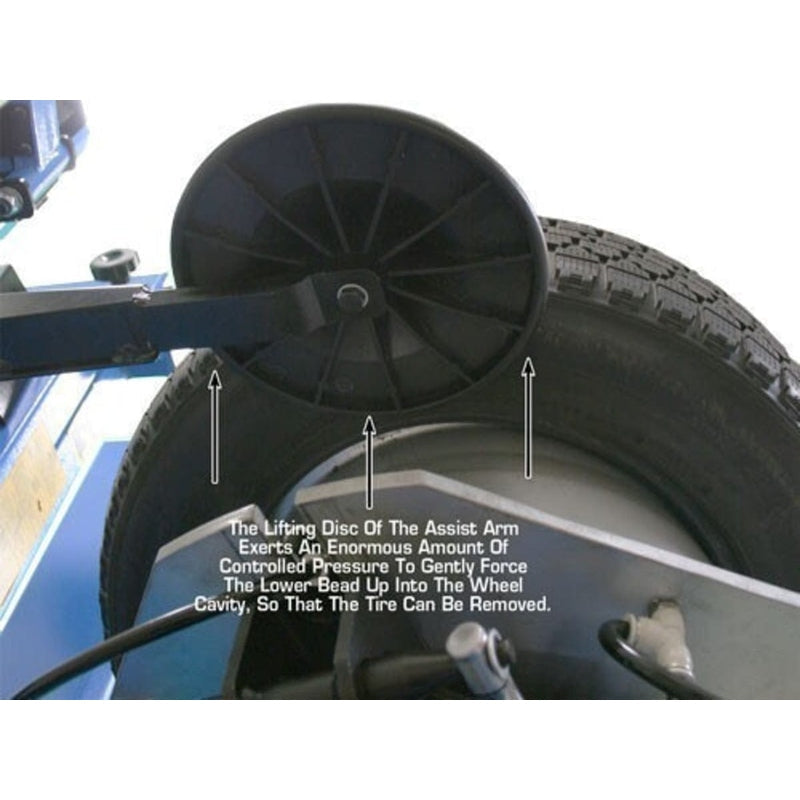

A left-hand assist arm with a pressing block and lifting disc, and
-

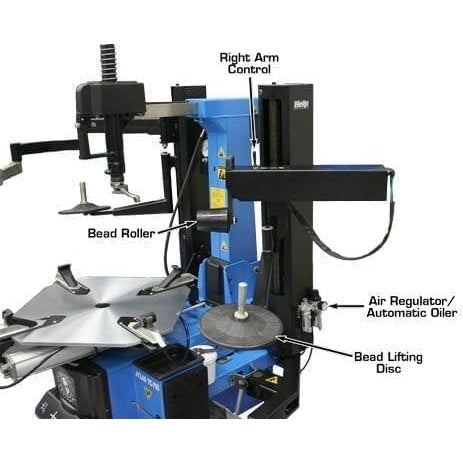

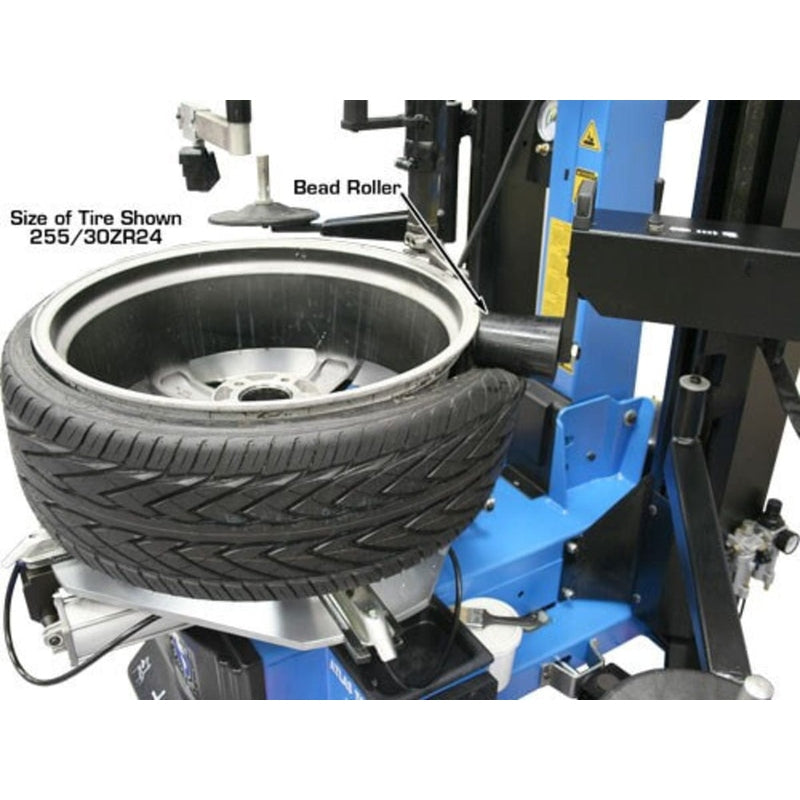

A right-hand assist arm with a lifting disc and bead roller.

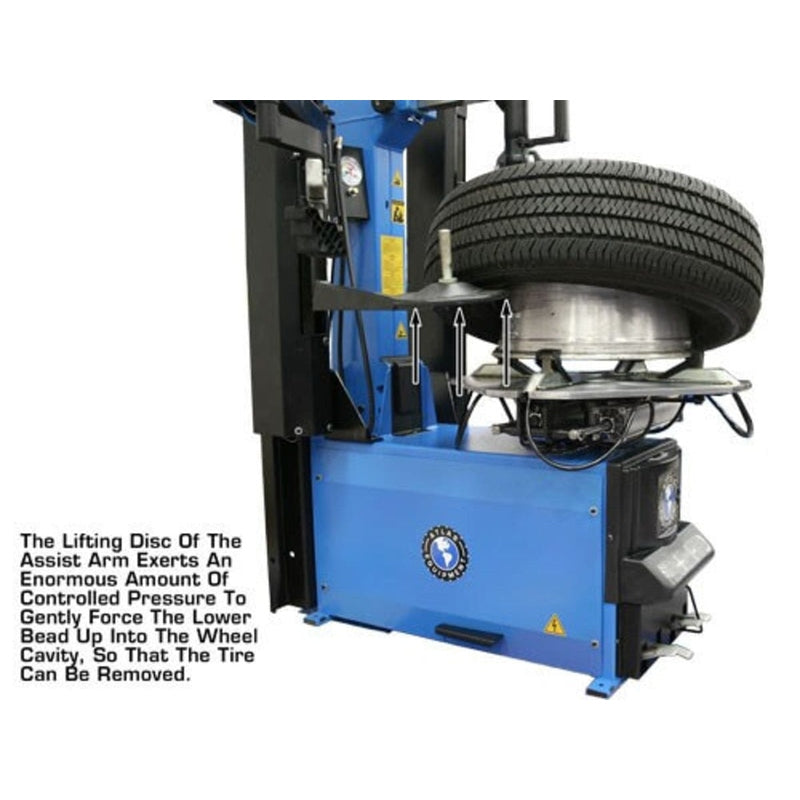

These dual assist arms act as an extra set of hands—essential for efficiently changing low-profile, stiff sidewall, and run-flat tires. They significantly reduce strain and increase productivity for single operators.

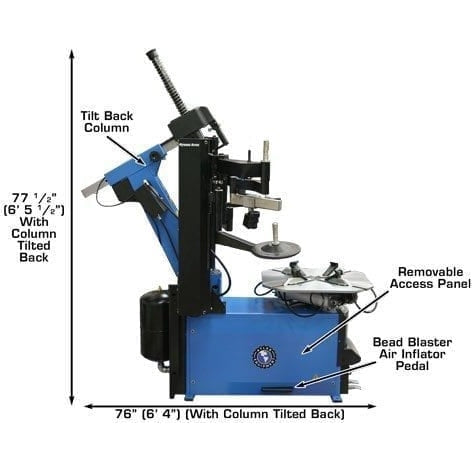

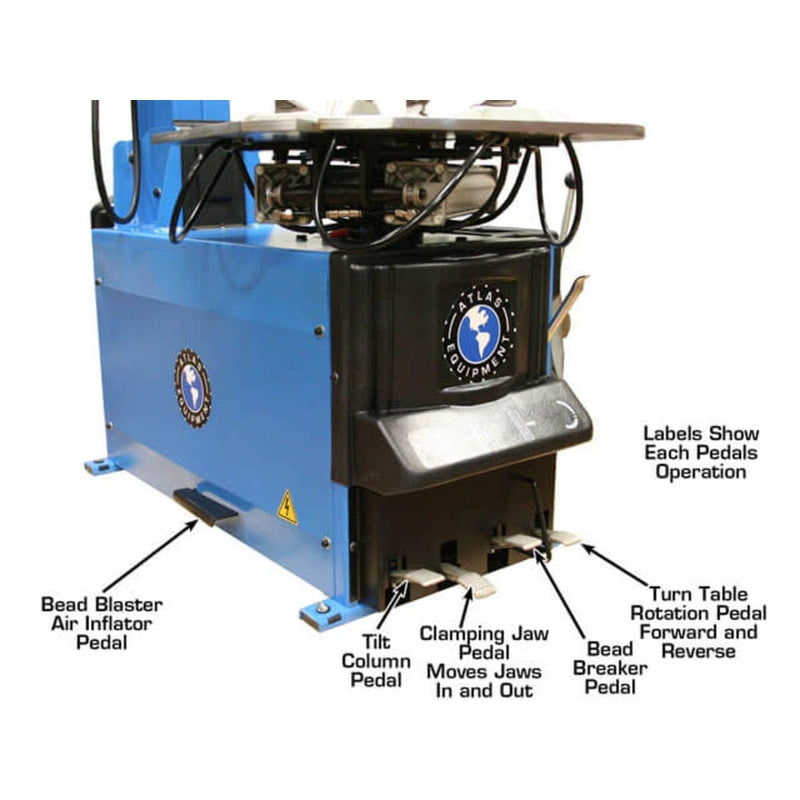

The foot-operated tilt-back column allows for quick tire mounting and demounting without repositioning the arm, while the pneumatic locking mount/demount head ensures stability and minimizes the risk of rim or tire damage during operation. The extra-large turntable accommodates most 26-inch chrome rims with ease, without the need for additional adapters.

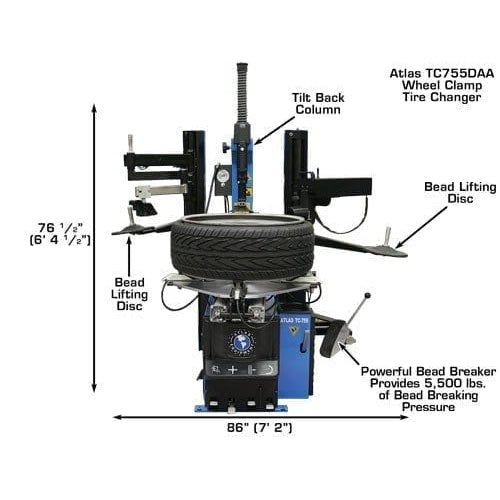

The built-in “Beadblaster” inflation system makes seating stubborn beads effortless, and the hand-controlled side-mounted bead breaker provides the power needed to handle even rusted or hard-to-break beads without damaging the rim. The adjustable turntable jaws (with included plastic covers) securely hold rims in three clamping positions to accommodate a wide range of wheel sizes and types.
Note: Some assembly is required after purchase.
Features
-
Professional Tilt-Back Column Design for smooth and efficient operation
-
Dual Assist Arms (left and right) for handling run-flat and low-profile tires
-
Rim-Clamp Style with extra-large turntable for greater clearance
-
Air-operated jaws and bead breaker (external air supply required)
-
Electric turntable with adjustable three-position jaws
-
Button-controlled bead breaker located at the blade for precision control
-

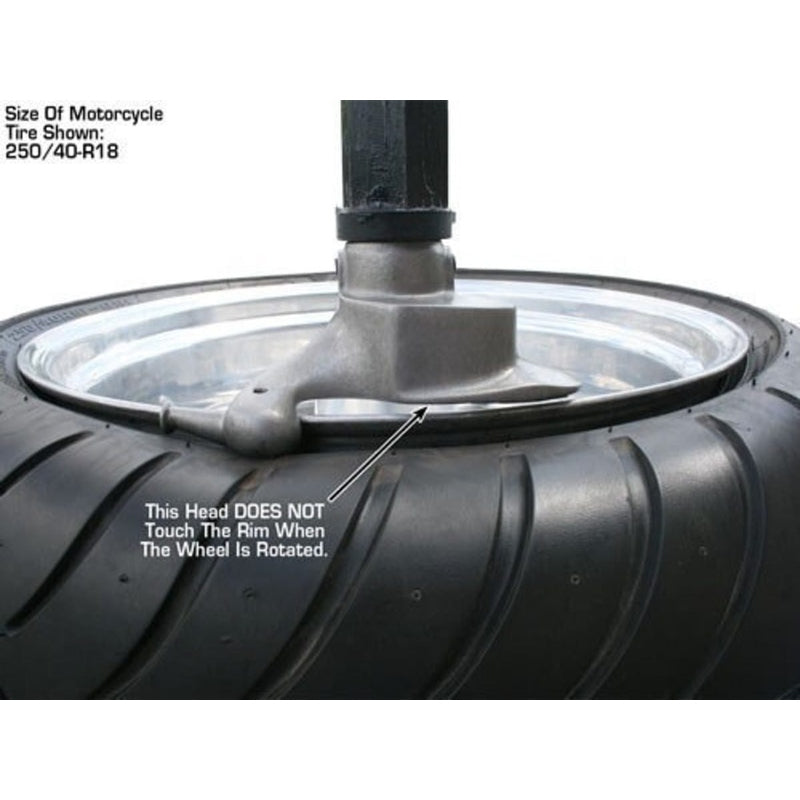

Durable metal mount/demount head with roller and replaceable plastic inserts
-
Column-mounted inflator box with pressure gauge included
-
Filter/Regulator/Lubricator for optimal pneumatic performance
-
20″ tire tool, lube bucket, and brush included
-
Plastic jaw covers and bead breaker shovel cover for rim protection
-
Multiple replacement inserts for the mount/demount head
-
Built-in “Beadblaster” inflation system for difficult tires
-

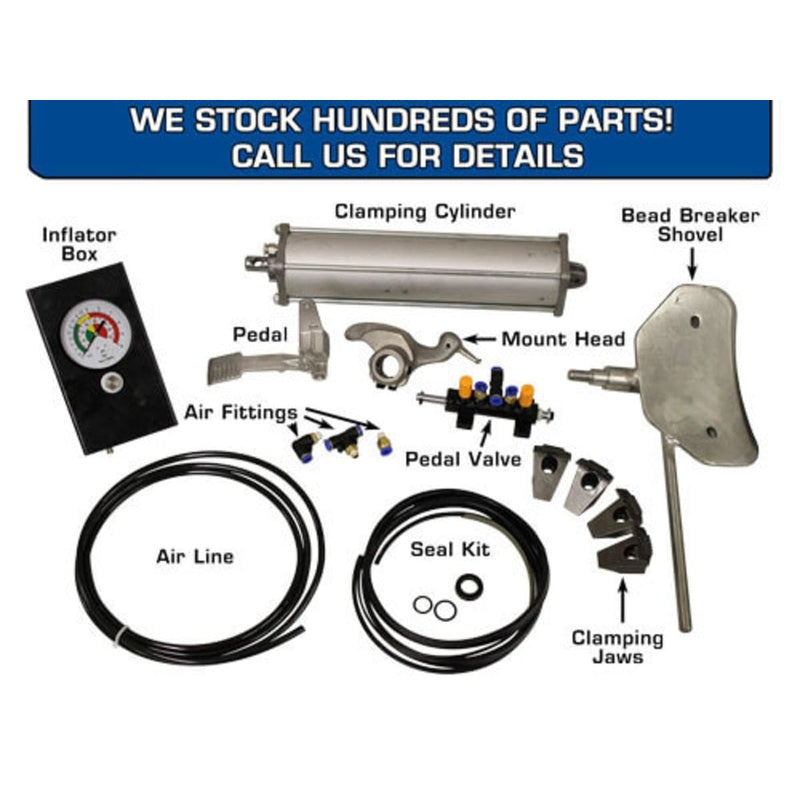

Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty
Specifications
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

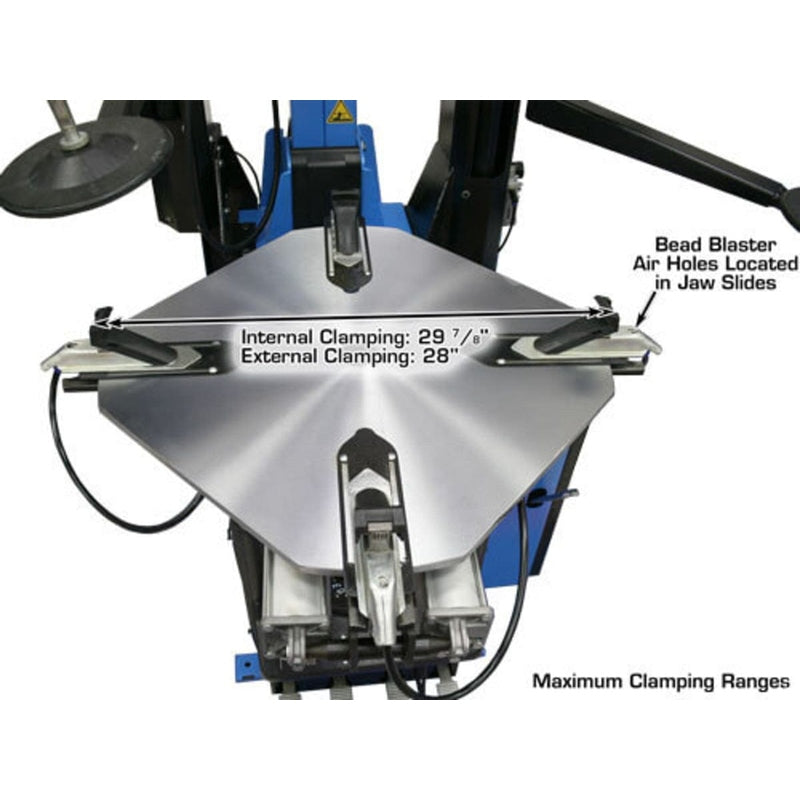

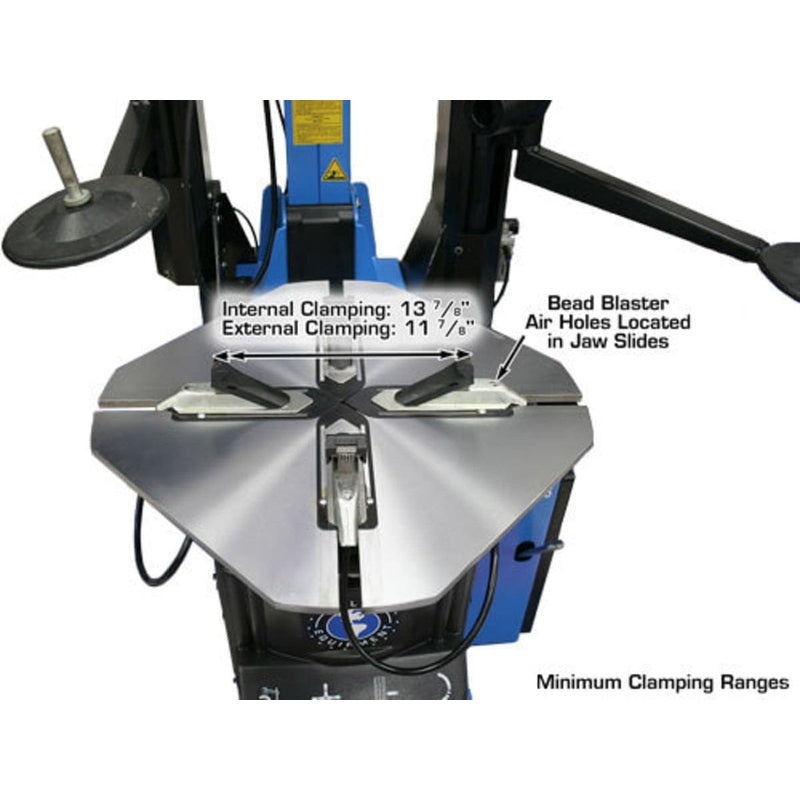

| External Locking Range (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Range (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |

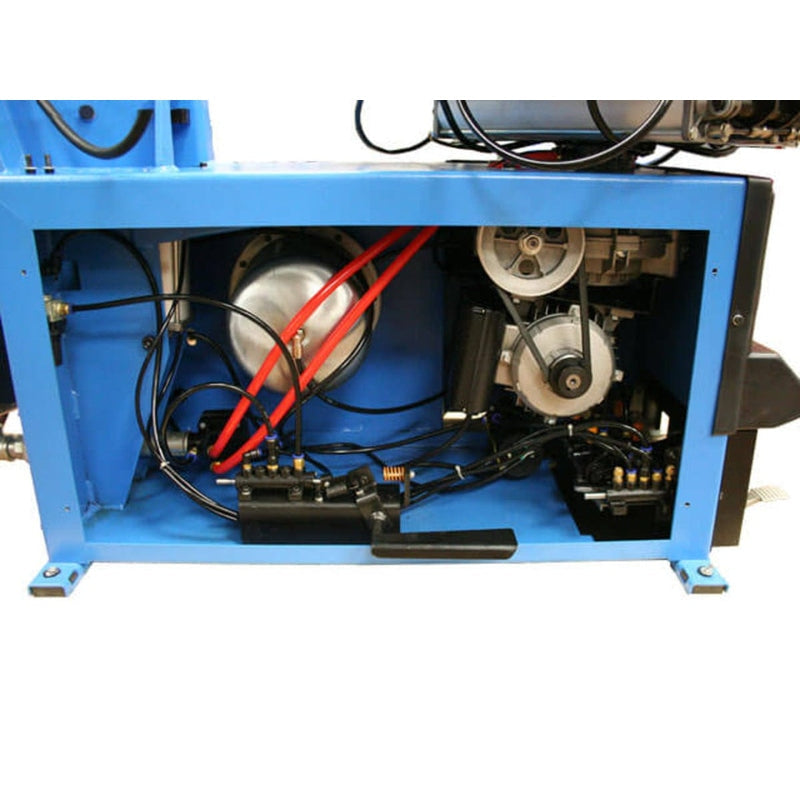

| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |

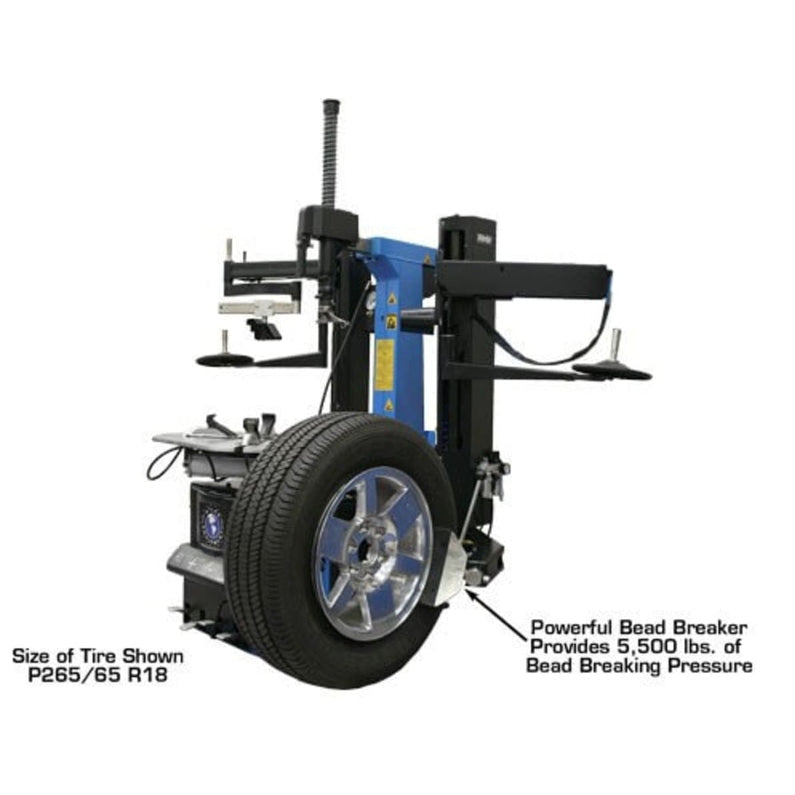

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

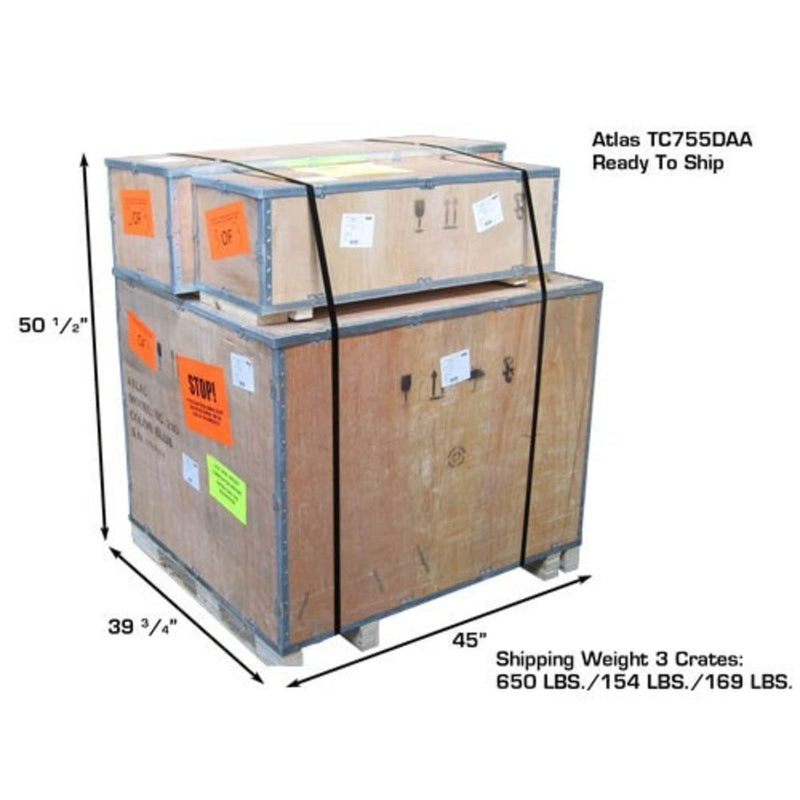

| Shipping Weight | 1,000 lbs |
