Description

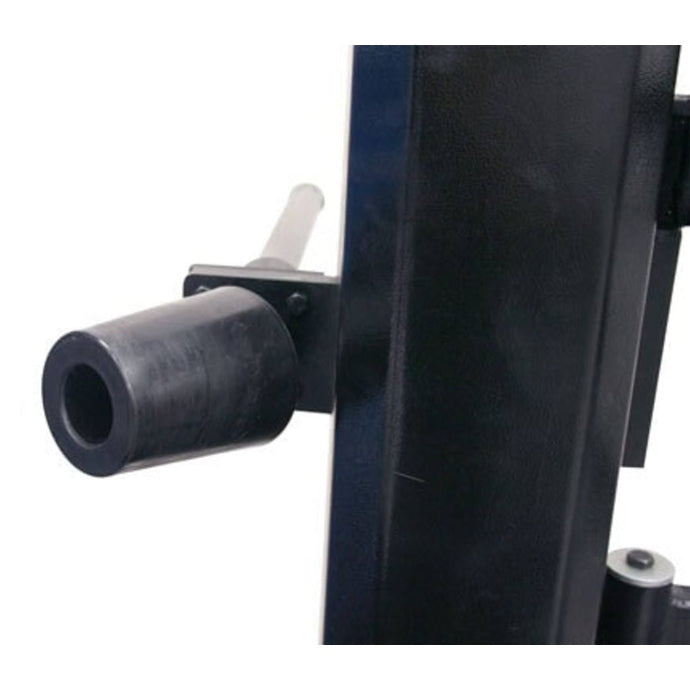

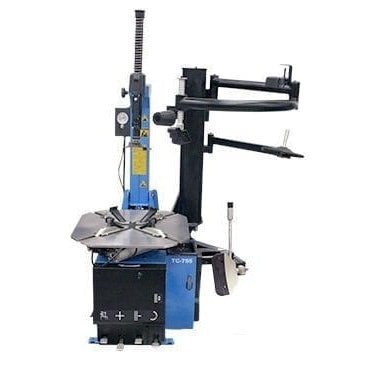

The Atlas TC755EZ is a tilt-back rim-clamp tire changer for high-volume tire shops, dealerships and service centers. It comes with the E-Z right-side assist arm, which combines a bead roller, a pressing/lifting disc and a pressing block for faster, safer work on stiff and low-profile tires. The foot-operated tilt-back column and pneumatic locking head speed up each change, and the extra-large turntable handles tires up to 47″ in diameter and 18″ wide with a 5,500 lb bead breaker. It runs on 110V with shop air at 90–110 PSI. Compare all tire changers or more Atlas equipment. Financing is available through Approve and Shop Pay.

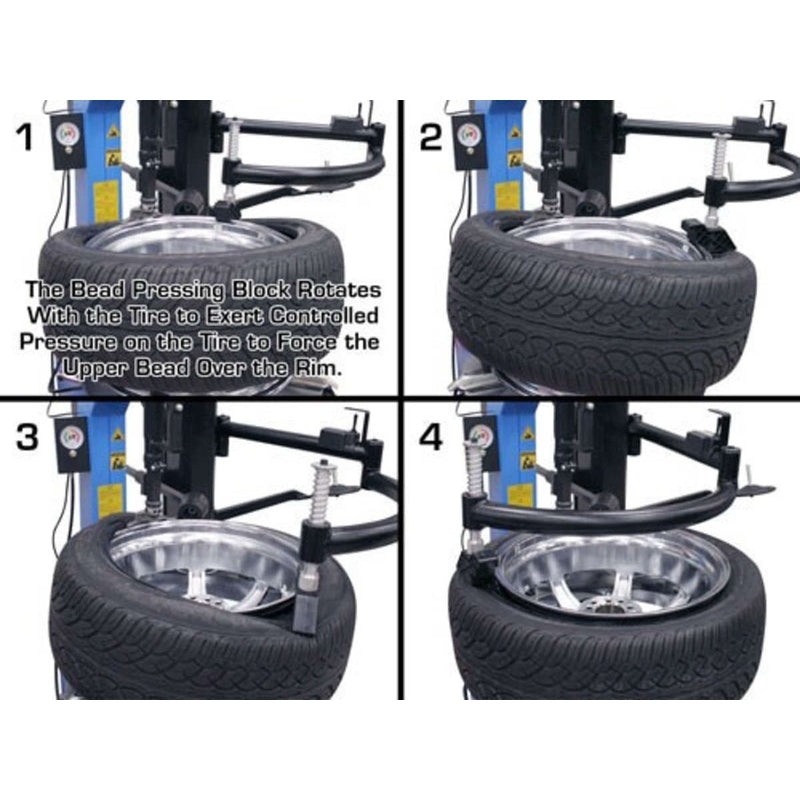

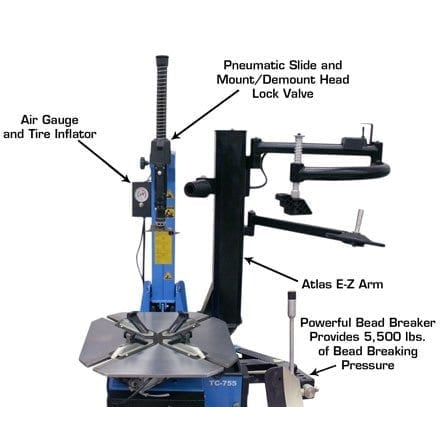

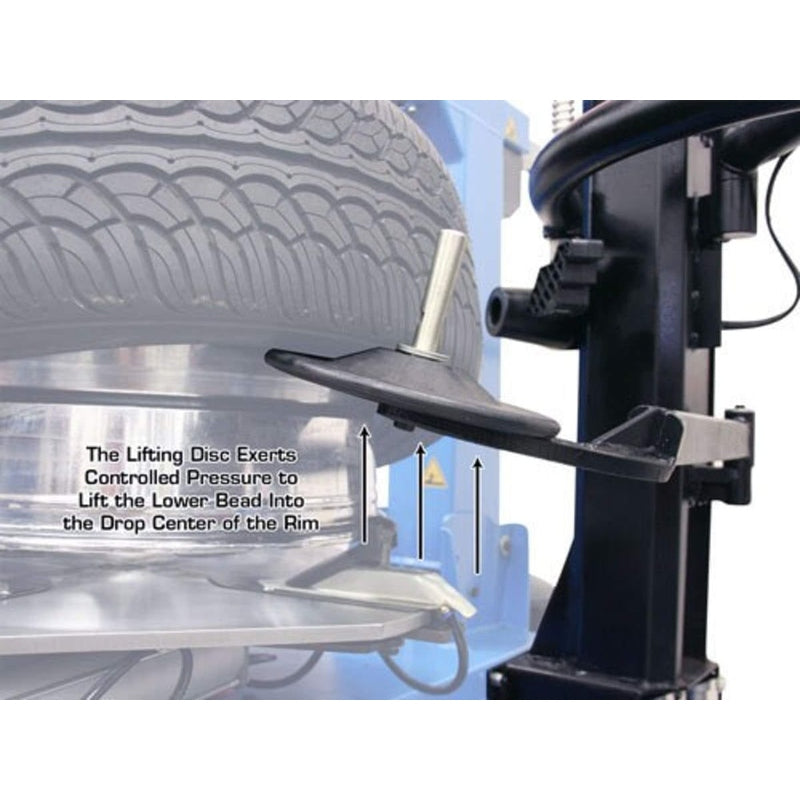

The Atlas® TC755EZ is a professional-grade tilt-back rim clamp tire changer designed for high-volume tire shops, dealerships, and service centers. This model includes the E-Z right-side assist arm, which combines the best features of the dual assist system — a pressing/lifting disc, bead roller, and pressing block — to make tire mounting and demounting faster, safer, and more efficient.

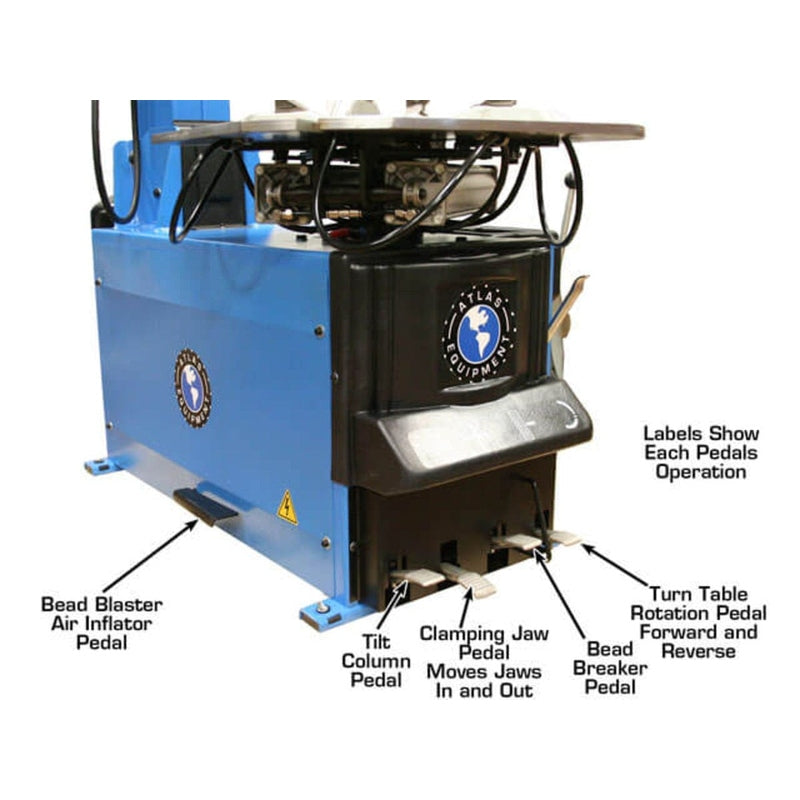

The foot-operated tilt-back column allows quick and easy tire changes without manually repositioning the arm, while the pneumatic locking mount/demount head minimizes movement during operation, reducing the risk of rim or tire damage. The TC755EZ also comes equipped with an extra-large turntable capable of handling most 26-inch chrome rims without additional adapters.

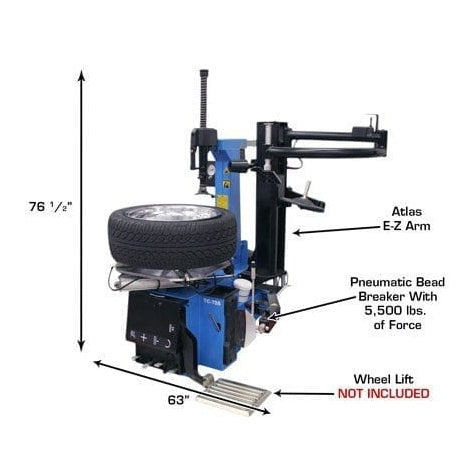

Built with a powerful hand-controlled bead breaker and a built-in “Beadblaster” inflation system, this machine easily handles even stiff or hard-to-inflate sidewalls. The air-operated jaws with optional plastic covers secure the wheel safely, and their adjustable three-position design accommodates a wide variety of rim sizes.
Note: Some assembly is required after purchase.
Features
-
Professional Tilt-Back Column Design for fast and convenient operation
-

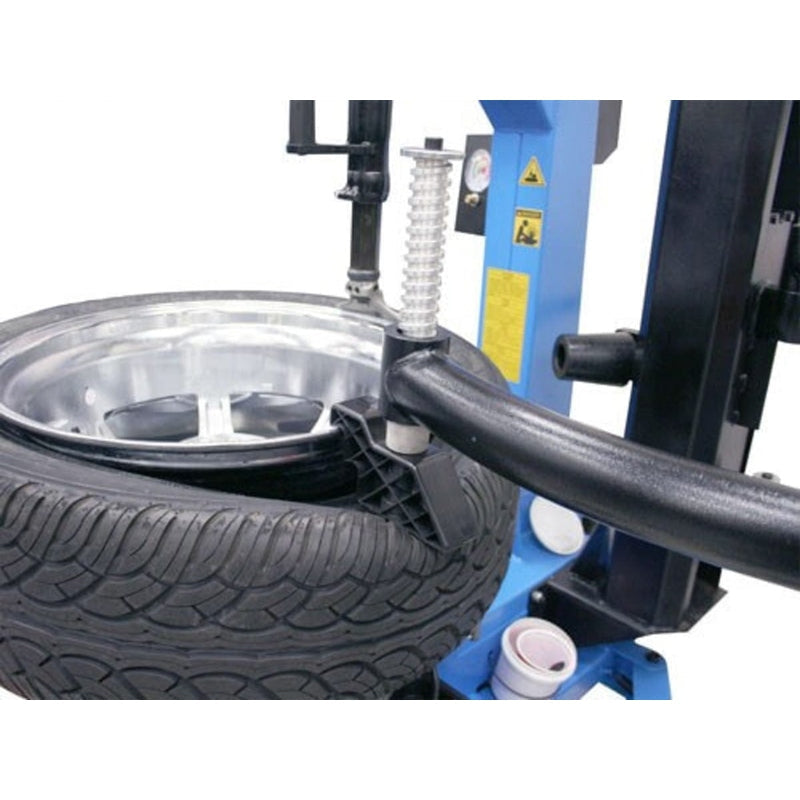

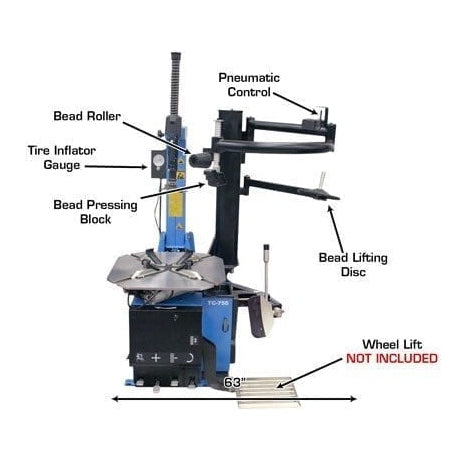

E-Z Assist Arm with bead roller, pressing/lifting disc, and pressing block
-
Rim-Clamp Style with extra-large turntable for greater clearance
-
Air-operated jaws and bead breaker (requires external air supply)
-

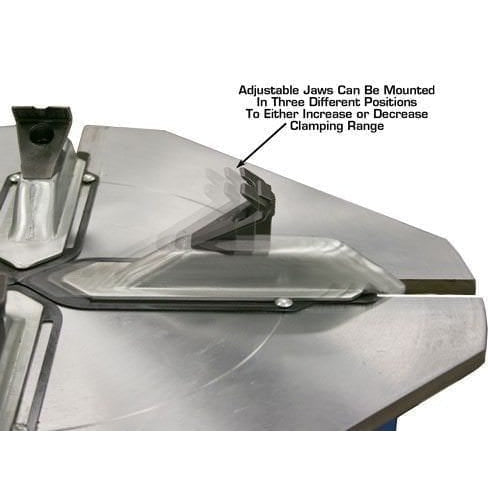

Electric turntable with adjustable jaws (three mounting positions)
-
Button-controlled bead breaker for precision and ease of use
-
Durable metal mount/demount head with roller or replaceable plastic inserts
-
Column-mounted inflator box with built-in gauge
-

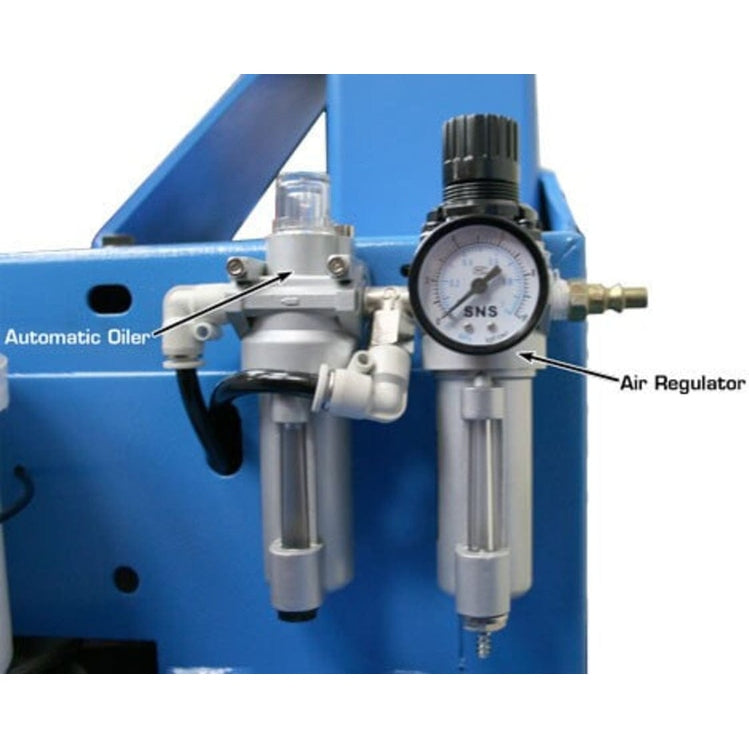

Filter/Regulator/Lubricator included for reliable air management
-
20″ tire tool, lube bucket, and brush included
-
Plastic jaw covers and bead breaker shovel cover to protect rims
-
Multiple replacement plastic inserts for the mount/demount head
-
Built-in “Beadblaster” inflation system for stubborn tires
-

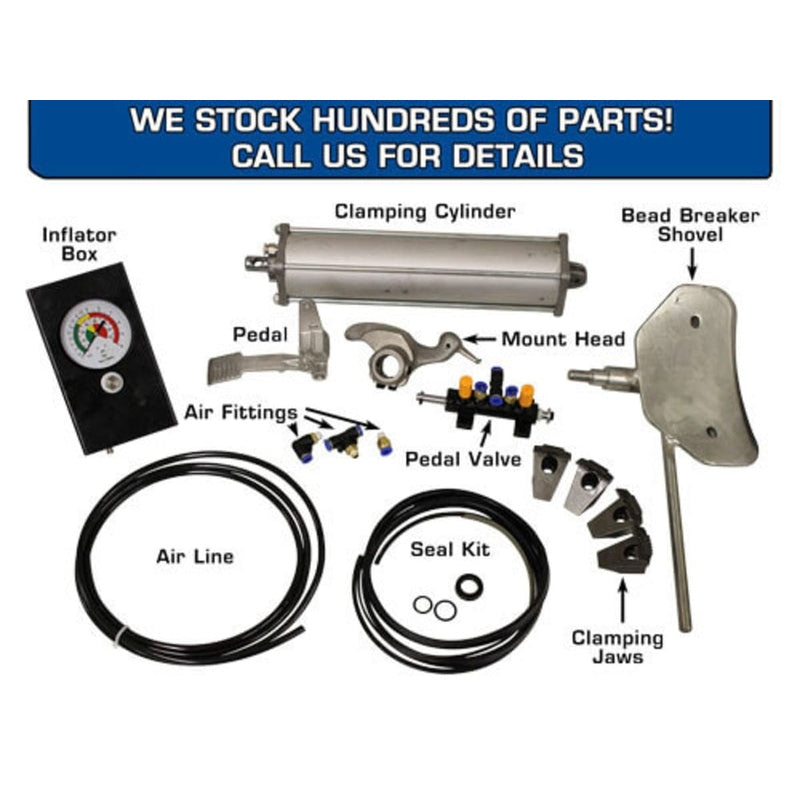

Replacement parts and wear items always available
-
1-Year Parts-Only Warranty
Specifications
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

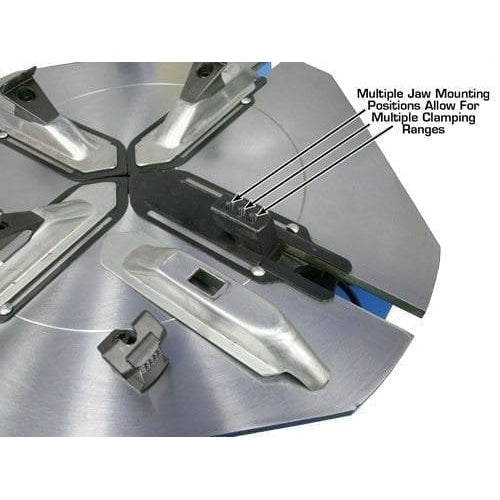

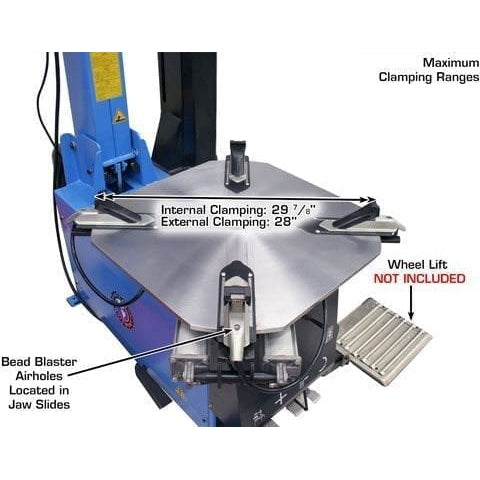

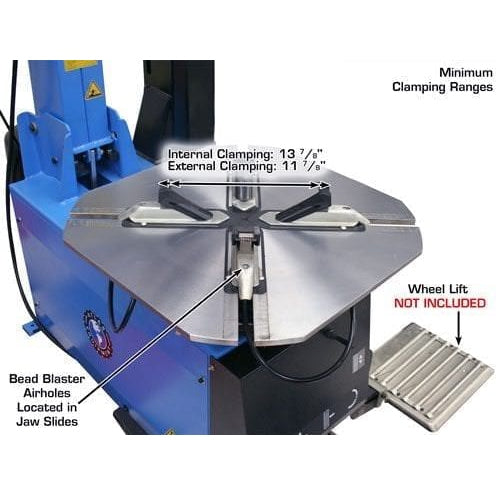

| External Locking Range (3 Positions) | 1) 11 7/8" – 26" 2) 12 7/8" – 27" 3) 13 3/4" – 28" |
| Internal Locking Range (3 Positions) | 1) 13 7/8" – 27 7/8" 2) 14 5/8" – 28 7/8" 3) 15 5/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |

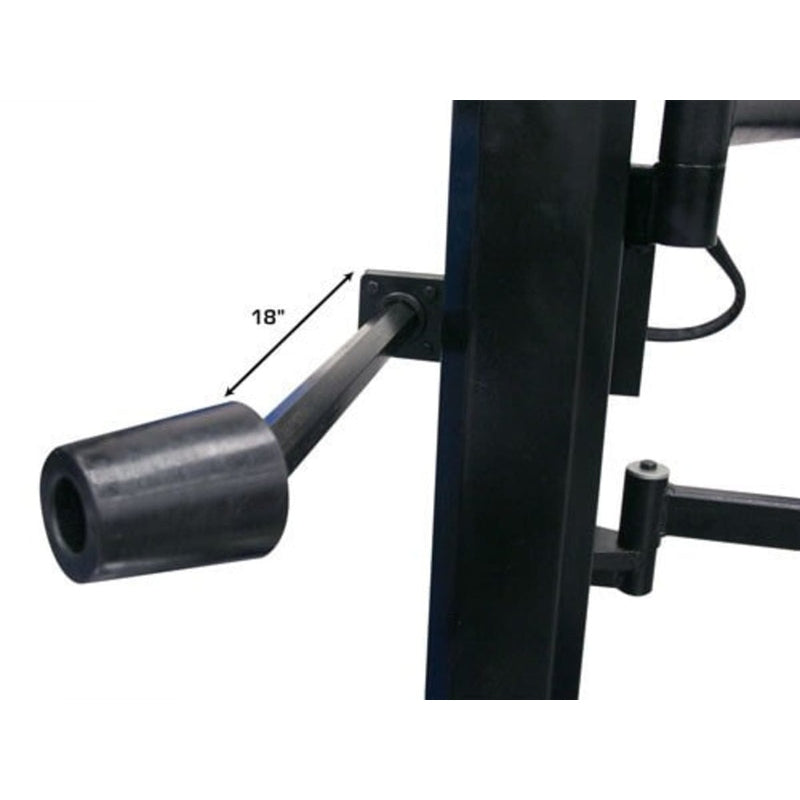

| Maximum Wheel Width (Bead Breaker) | 18" |

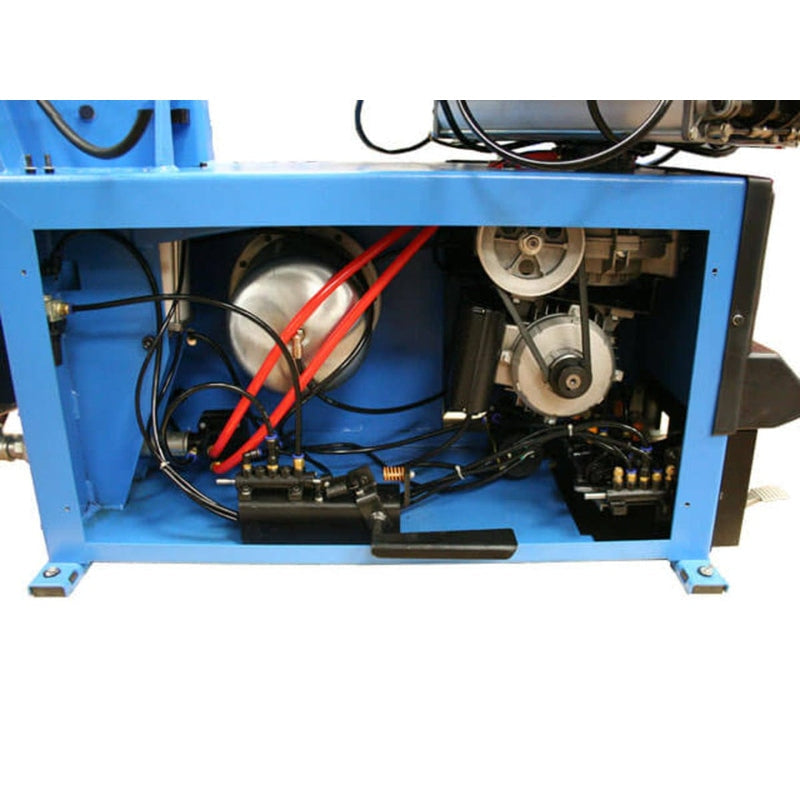

| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |

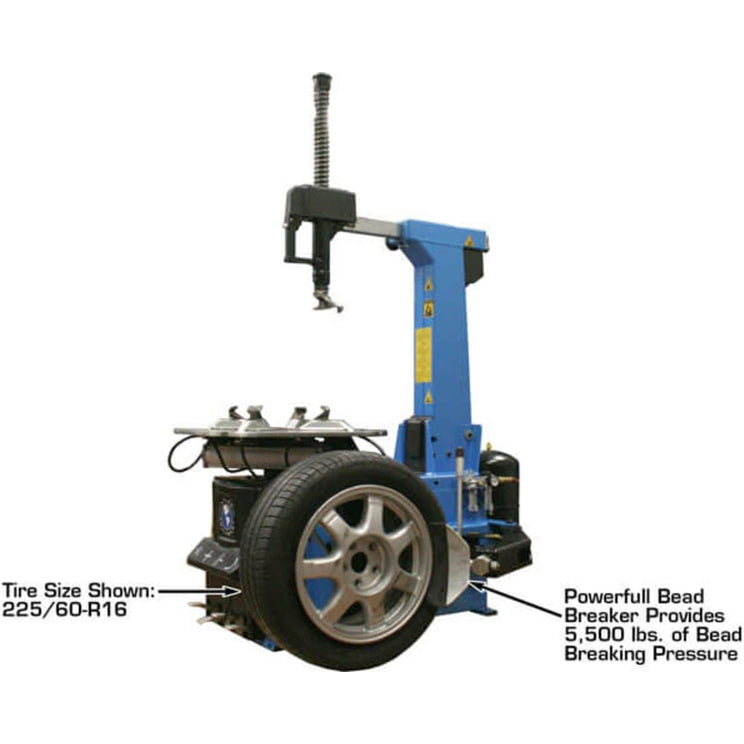

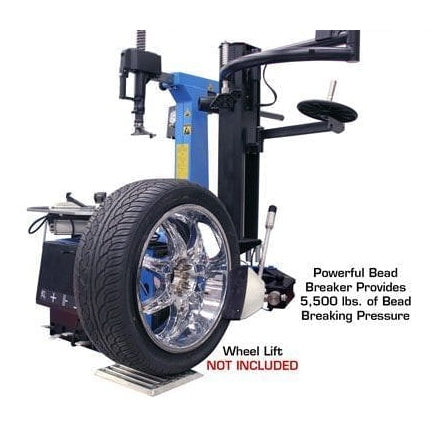

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 900 lbs |
