Description

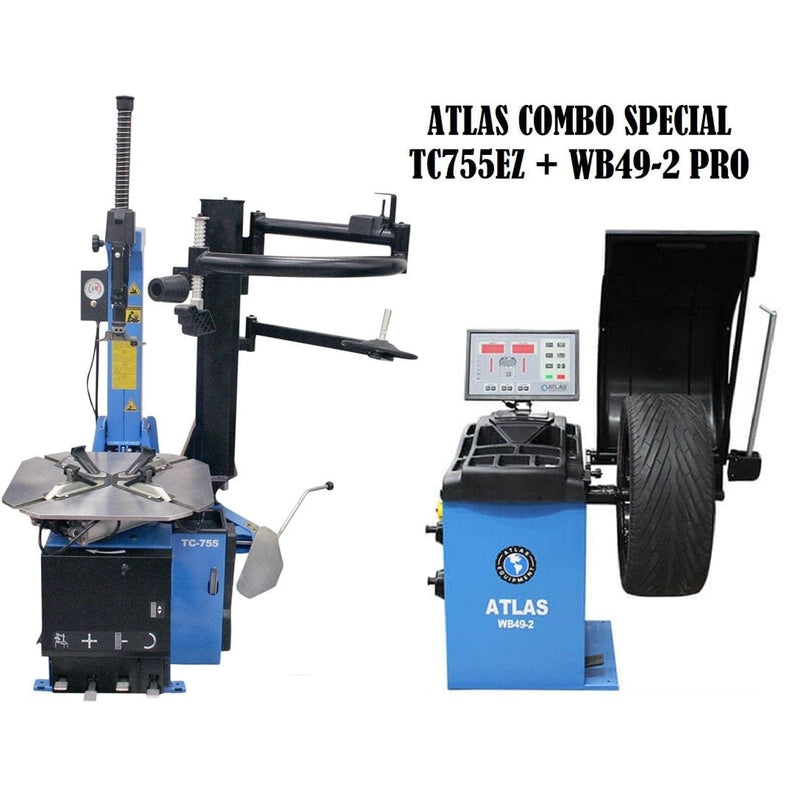

The Atlas® TC755 + WB49-2 Combo Package delivers a complete, high-performance tire service solution designed for professional automotive shops and high-volume tire centers. This premium package includes the Atlas® TC755 Rim-Clamp Tilt-Back Column Tire Changer with the EZ Assist Arm and the Atlas® WB49-2 Computerized Wheel Balancer with an integrated Width Measuring Gauge. Both machines operate on 110V power, are CE certified, and come backed by the Atlas® 1-Year Parts-Only Warranty for lasting reliability and peace of mind.
Features

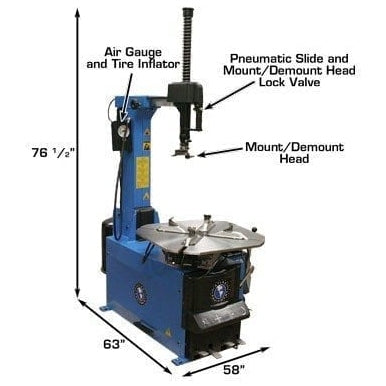

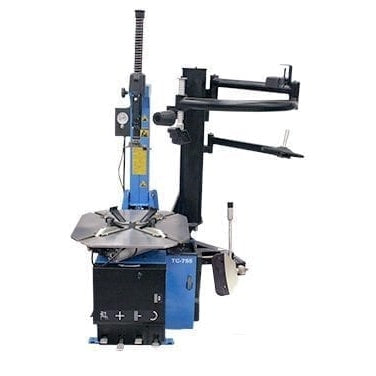

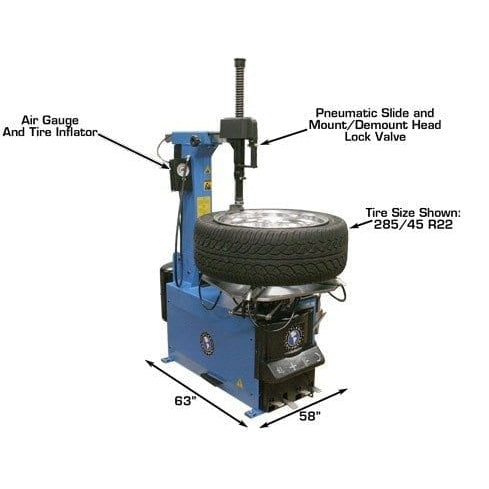

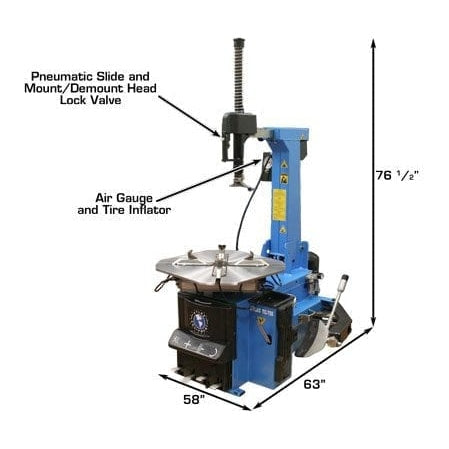

Atlas® TC755 Tire Changer
-

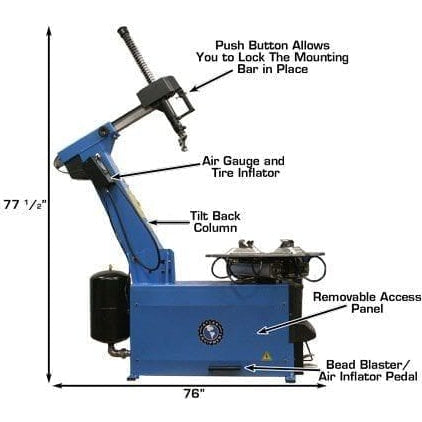

Tilt-Back Column Design: Streamlines wheel loading and enhances workspace efficiency.
-

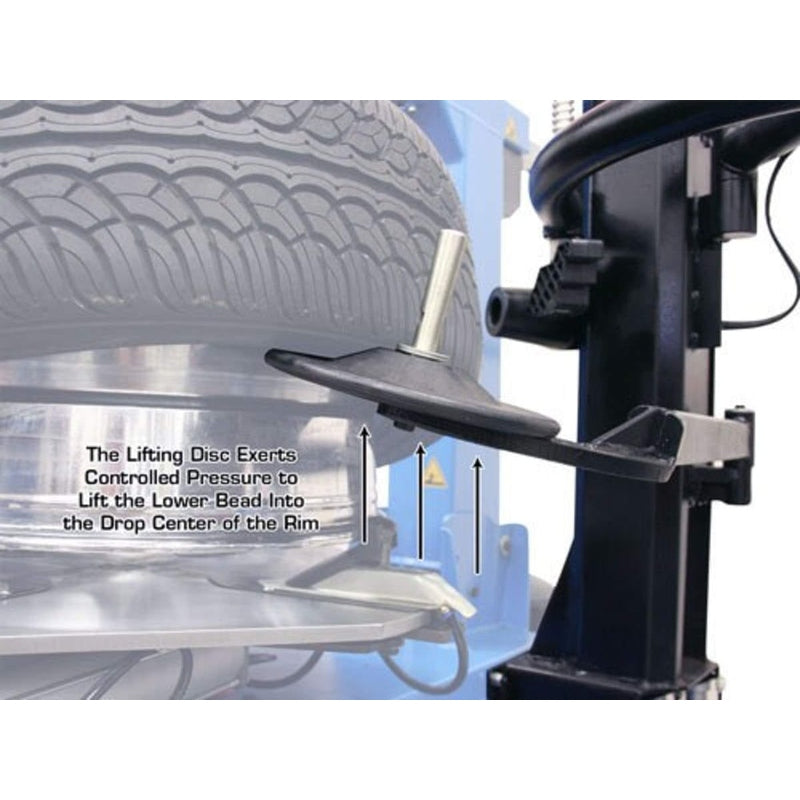

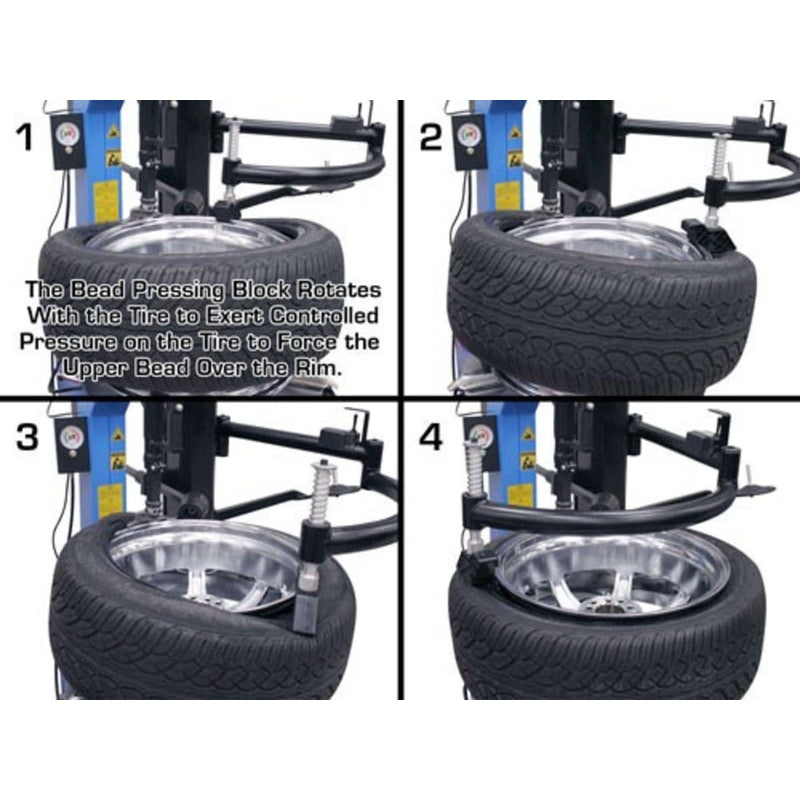

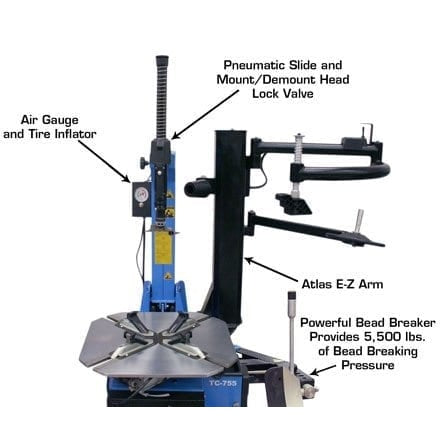

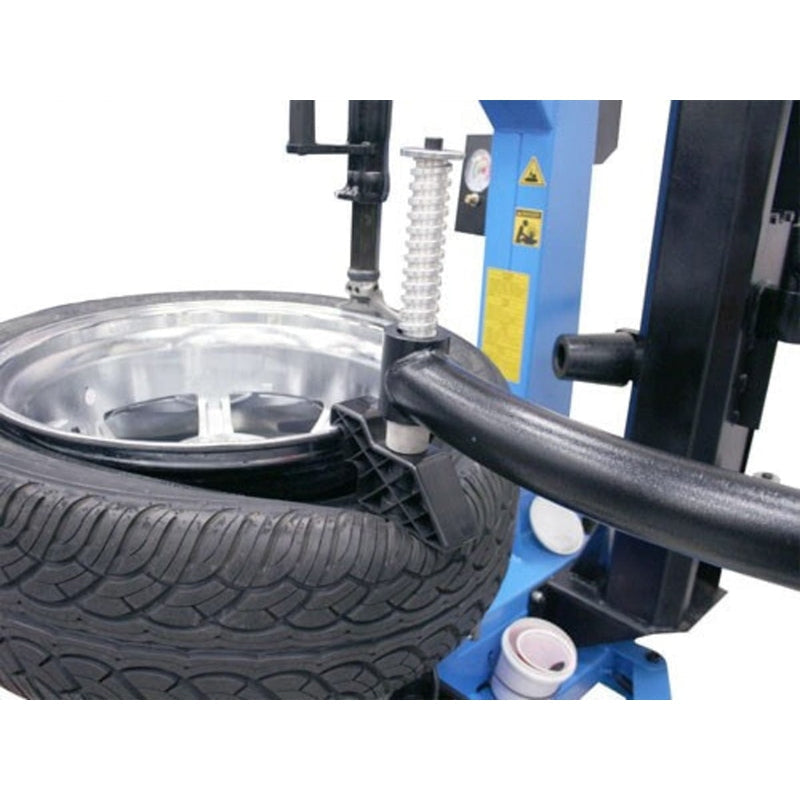

EZ Assist Arm Included: Provides extra leverage for handling stiff sidewalls and low-profile tires.
-
Rim-Clamp Style Operation: Securely grips steel, aluminum, or alloy wheels.
-
Extra-Large Turntable: Offers increased clearance for larger tires.
-
Air-Operated Jaws and Bead Breaker: (Requires external air supply) for precise and powerful operation.
-
Electric Turntable: Ensures smooth and consistent rotation.
-

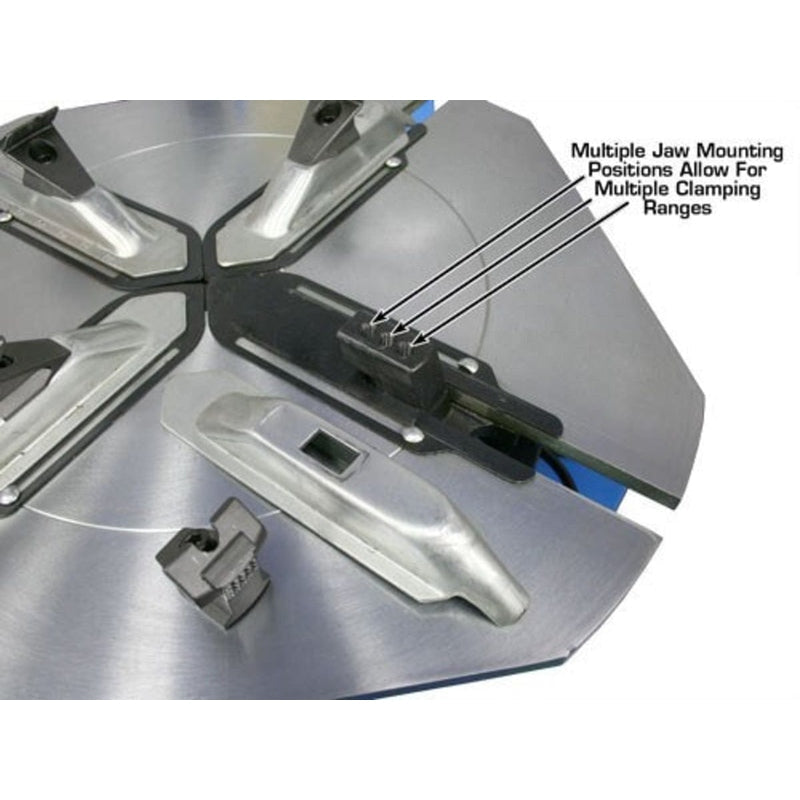

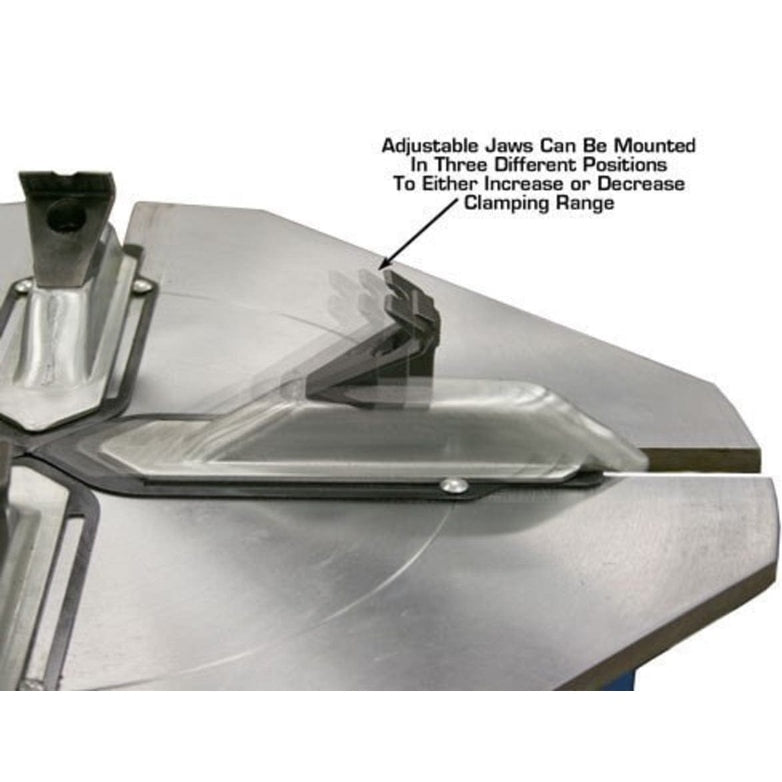

Adjustable Jaws: Three mounting positions for flexible clamping.
-

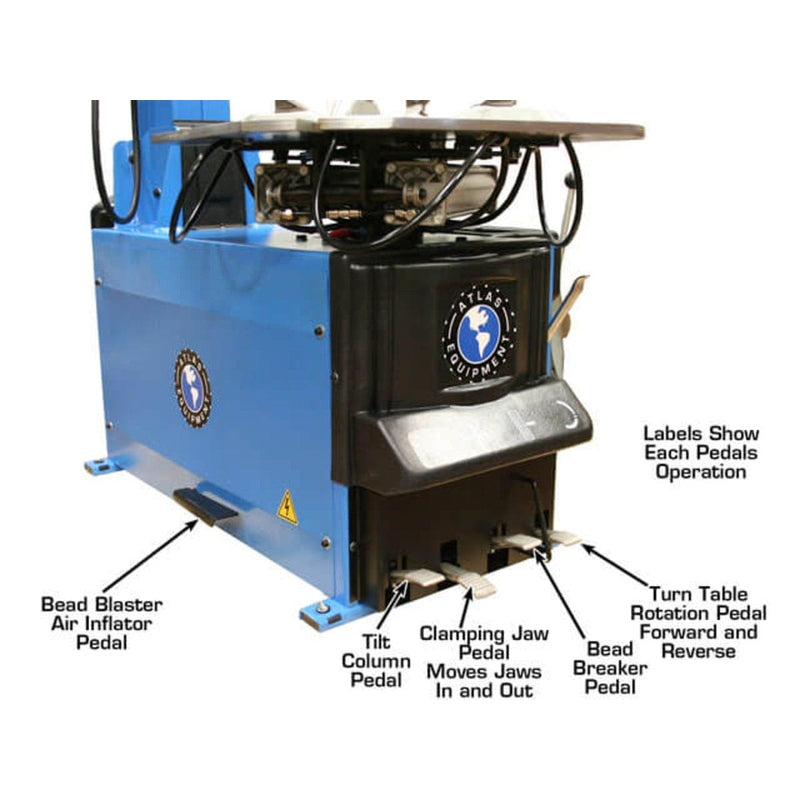

Button-Controlled Bead Breaker: Convenient control located at the blade for easy use.
-

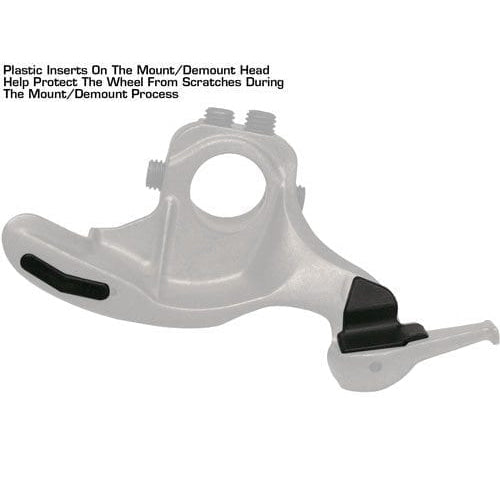

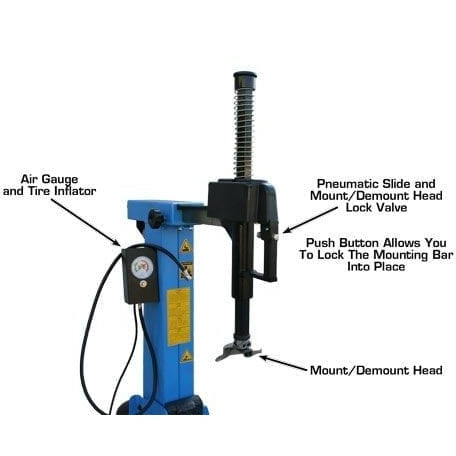

Durable Mount/Demount Head: Metal head with roller and replaceable plastic inserts to protect rims.
-
Built-In “Bead Blaster”: Simplifies seating the tire bead quickly and safely.
-

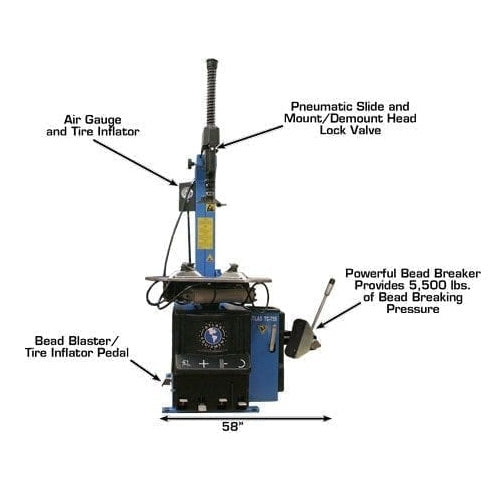

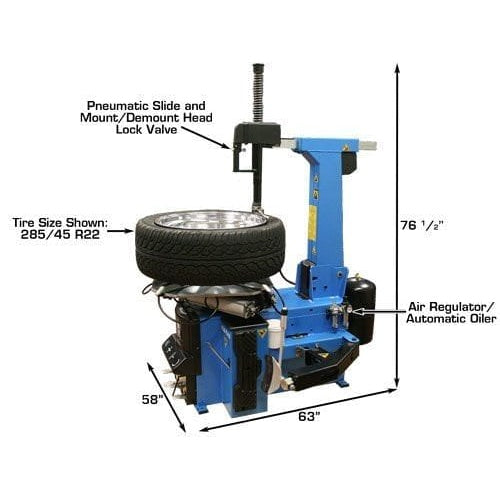

Column-Mounted Inflator Box with Gauge: Integrated for accurate inflation.
-
Complete Accessory Set Included:
-
Filter, regulator, and lubricator
-
20" tire tool
-
Lube bucket with brush
-
Plastic jaw covers and bead breaker shovel cover
-
Extra plastic inserts for mount/demount head
-

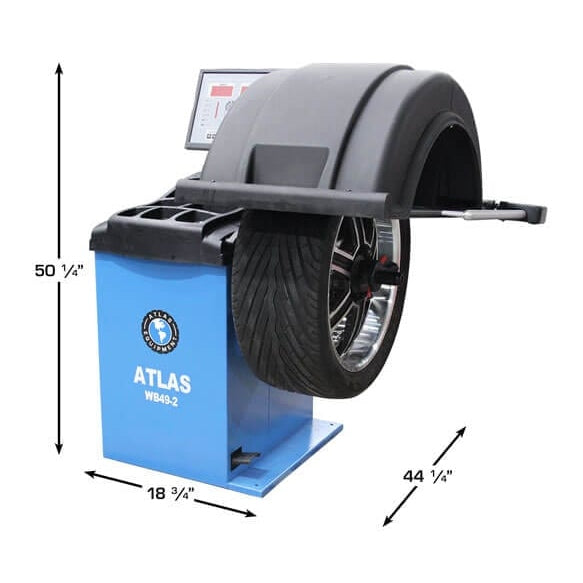

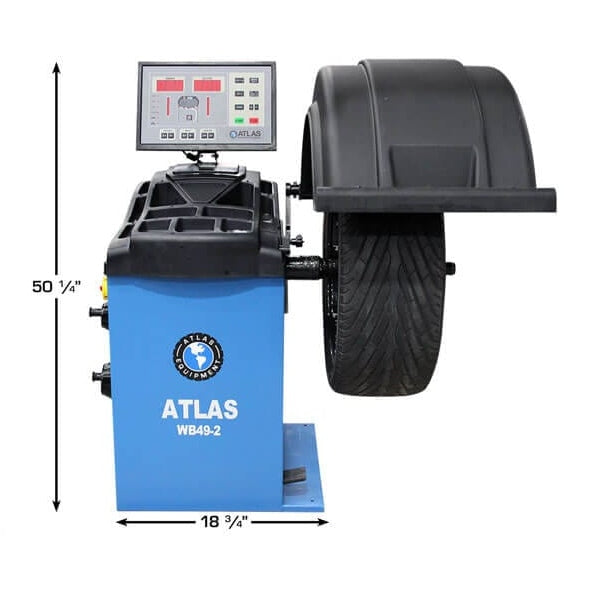

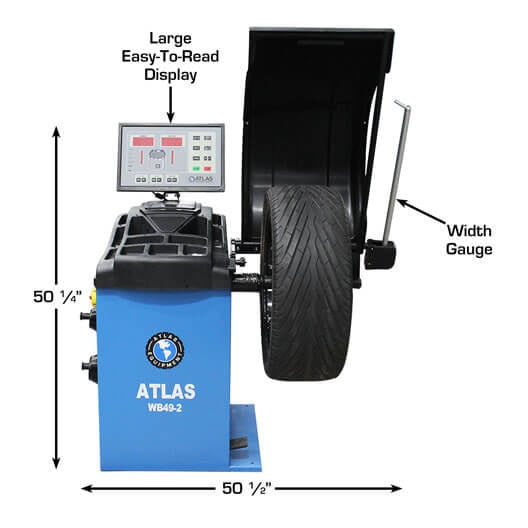

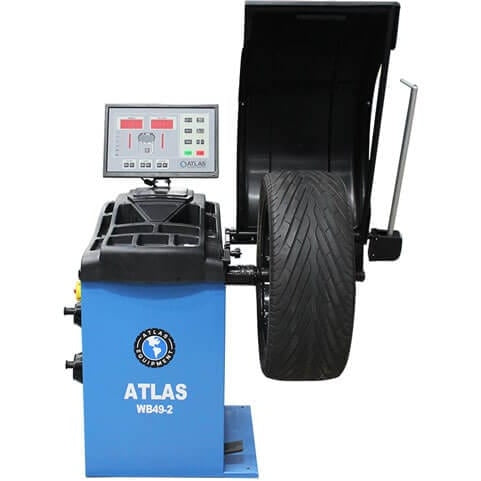

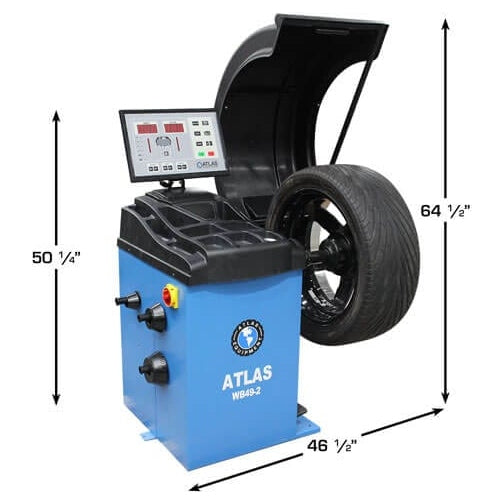

Atlas® WB49-2 Wheel Balancer
-
Advanced Computerized Spin Balancer: Designed for professional accuracy and efficiency.
-

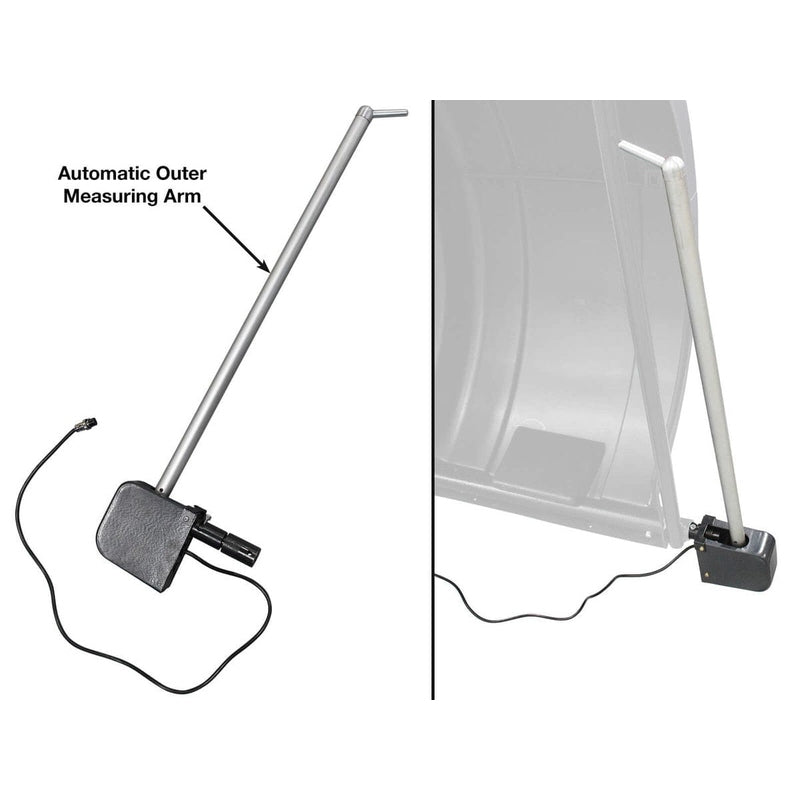

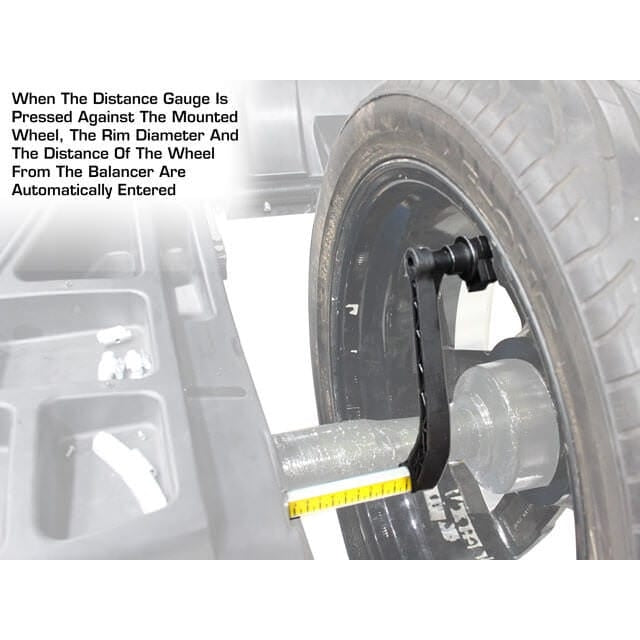

Automatic 3D Data Entry: Measures wheel distance, diameter, and width automatically.
-

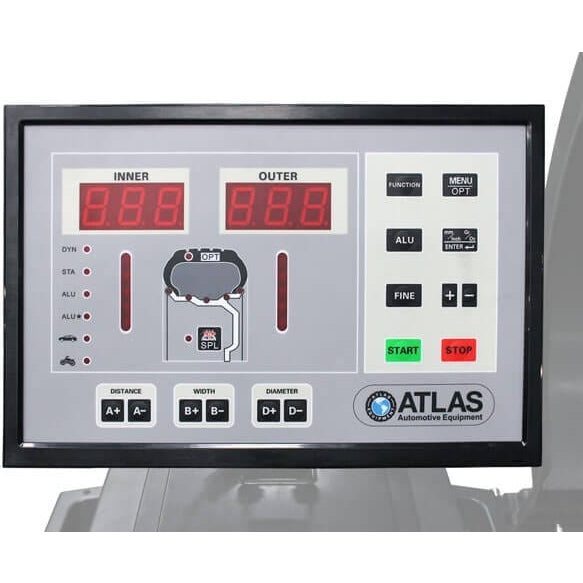

Raised Digital Display: Easy-to-read interface for fast operation.
-
Large Wheel Weight Tray: Keeps tools and weights within reach.
-
Split-Weight Function: Allows weights to be hidden behind spokes for a cleaner finish.
-
Automatic LED Work Light: Illuminates the wheel for improved visibility.
-

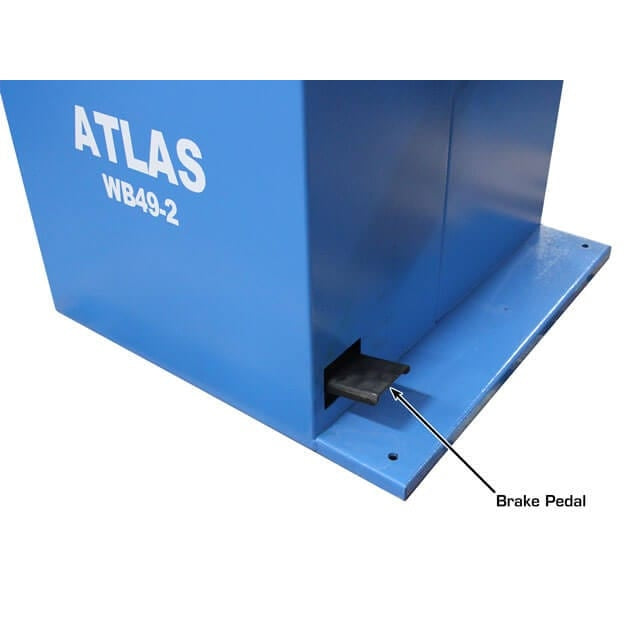

Auto-Positioning and Pedal Brake: Automatically brings the wheel to the correction position.
-
Automatic Start/Stop Function: Begins balancing when the hood lowers and stops when raised.
-
Multiple Balance Modes: Static and dynamic modes for various wheel types.
-
Rapid Optimization (OPT): Ensures fast and precise balancing results.
-
Self-Diagnosis and Calibration: Maintains performance accuracy over time.
-
Dual Measurement Display: Shows results in grams or ounces, and in mm or inches.
-
No Anchoring Required: Easy to install and move as needed.
-

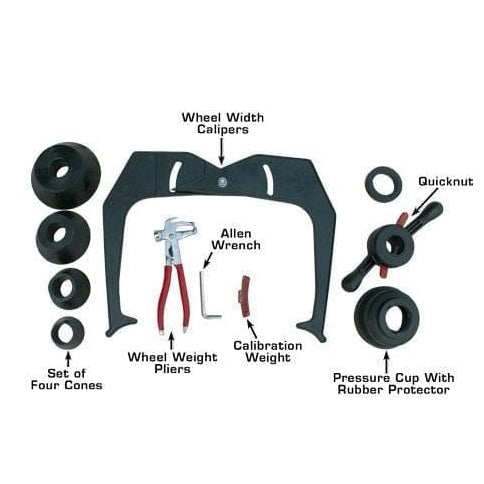

Included Accessories:
-

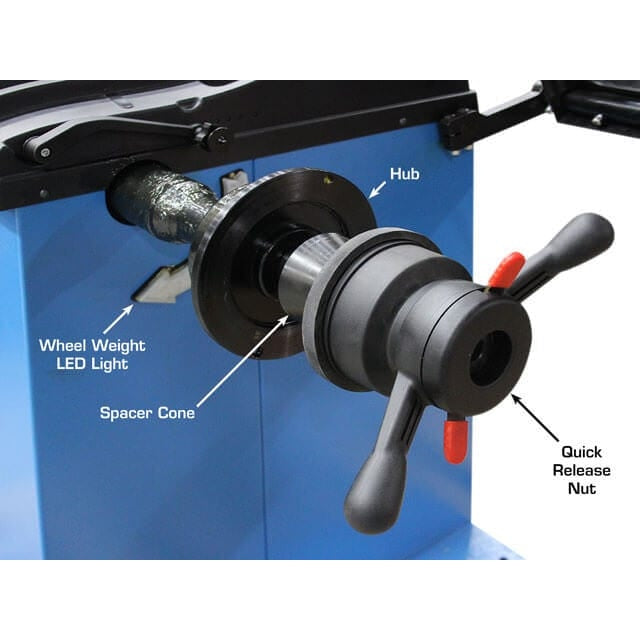

Plastic quick-release nut
-

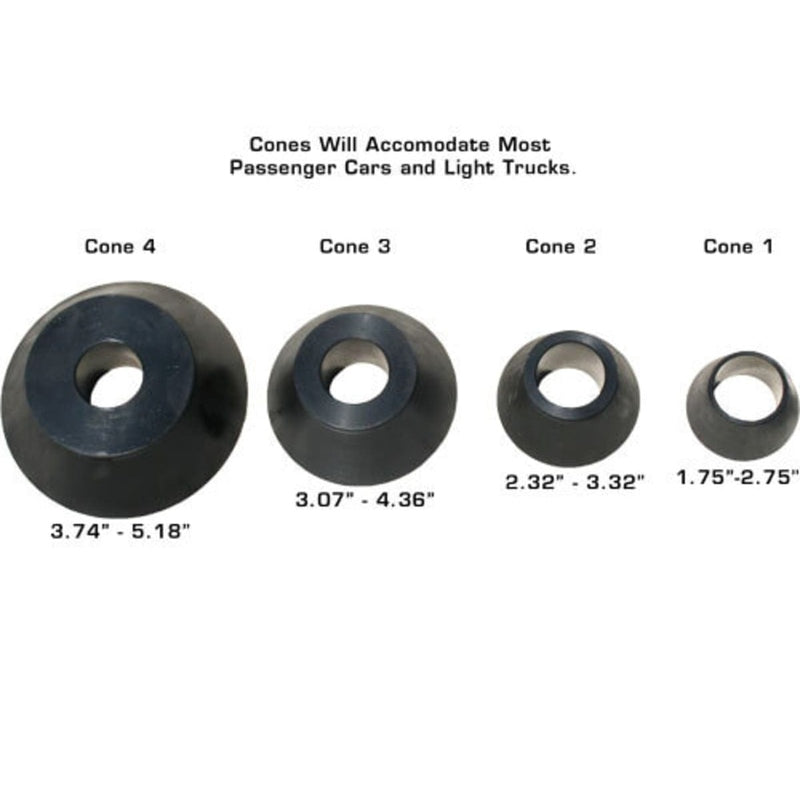

Four centering cones
-
Wheel weight pliers
-
Measuring calipers
-
Specifications
Atlas® TC755 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

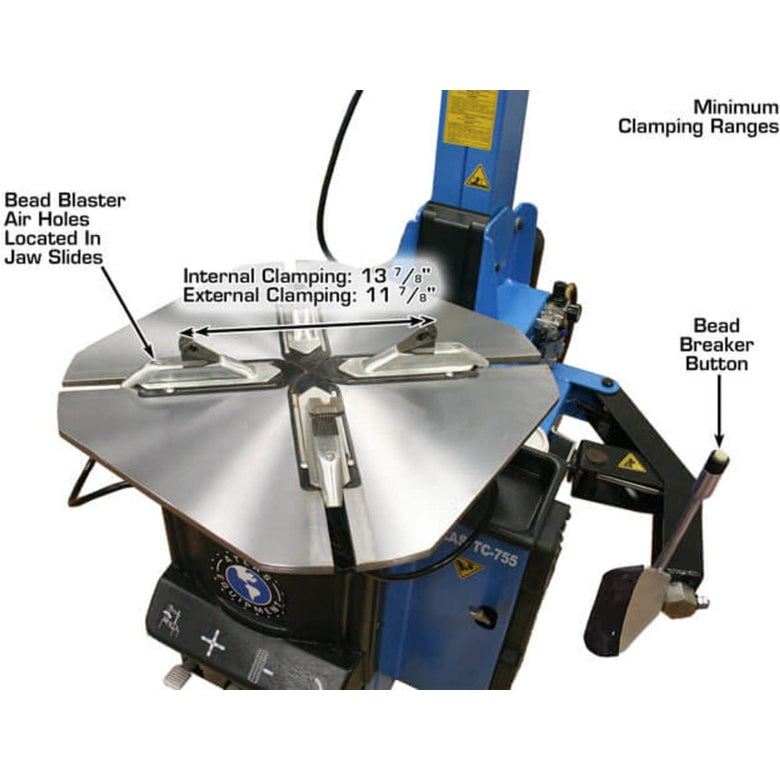

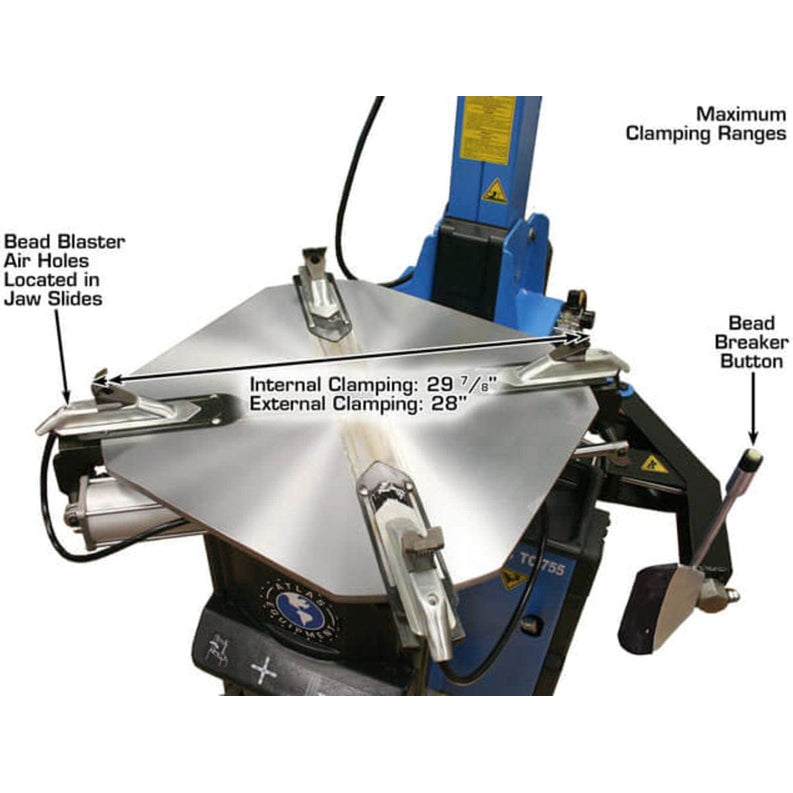

| External Locking Range (3 positions) | 11 ⅞" – 26" / 12 ⅞" – 27" / 13 ¾" – 28" |
| Internal Locking Range (3 positions) | 13 ⅞" – 27 ⅞" / 14 ⅝" – 28 ⅞" / 15 ⅝" – 29 ⅞" |
| Max Tire Diameter | 47" |

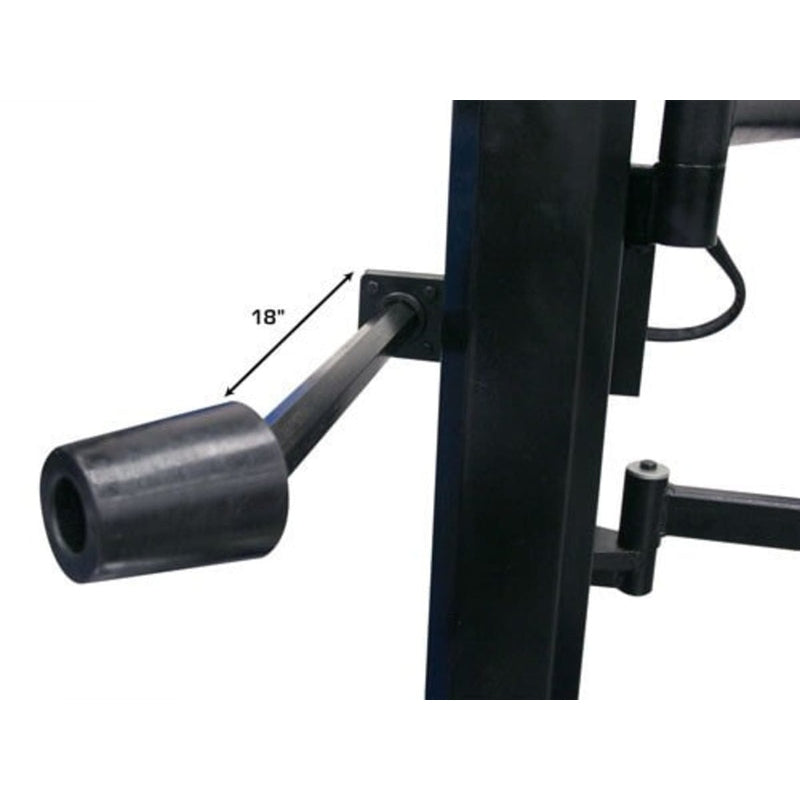

| Max Wheel Width (Bead Breaker) | 18" |

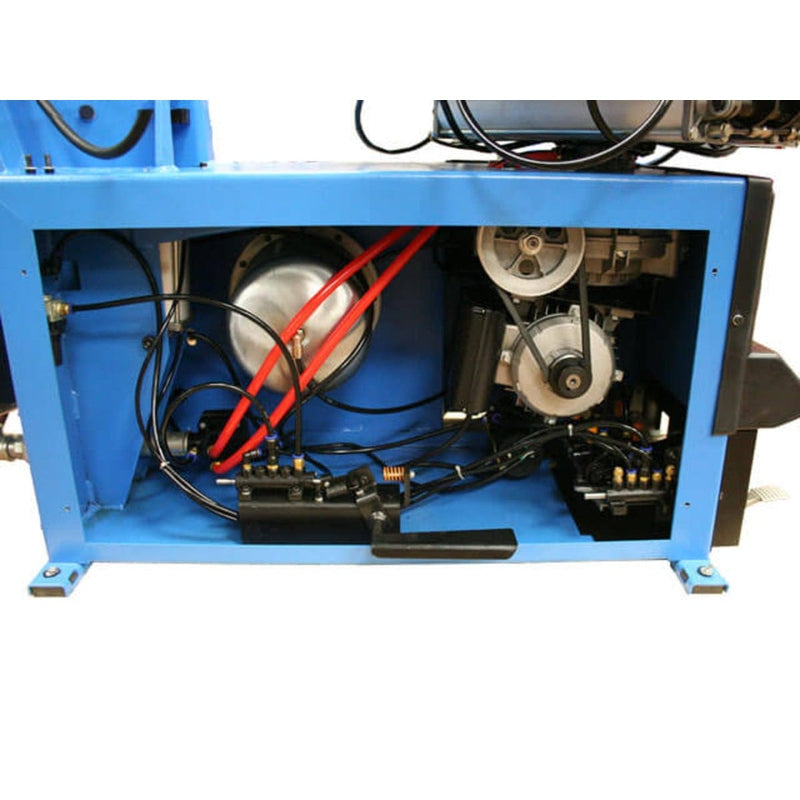

| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |

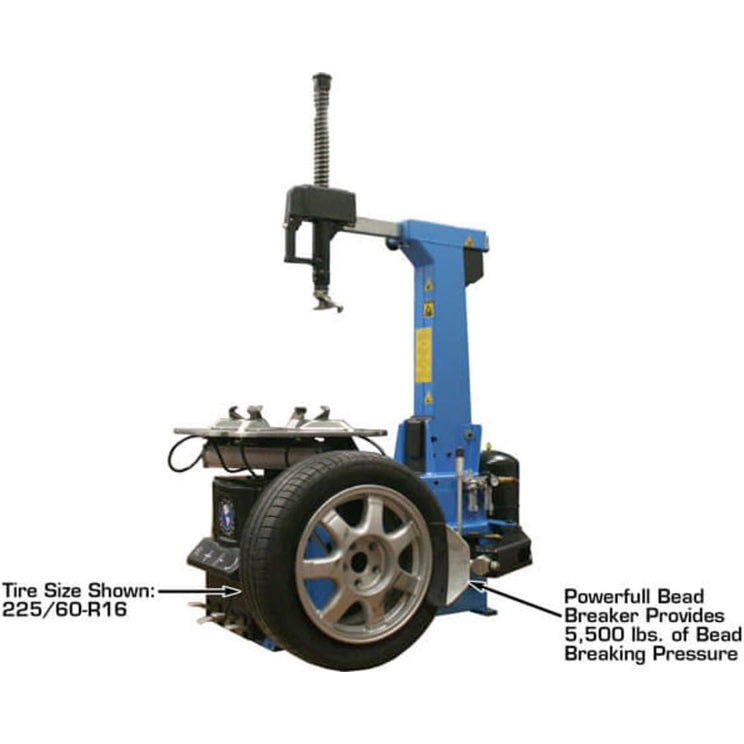

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |
| Shipping Weight | 650 lbs |
Atlas® WB49-2 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10" – 32" |
| Rim Width | 1½" – 20" |

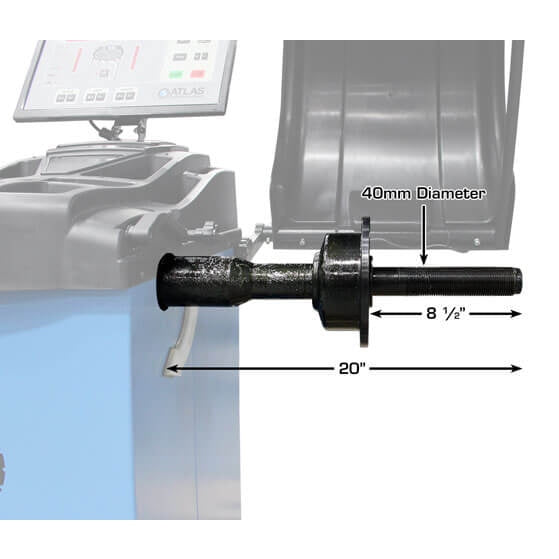

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Automatic 3D |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self-Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |
| Shipping Weight | 400 lbs |
This Atlas® TC755 + WB49-2 Combo is a professional-grade setup engineered for high precision, reliability, and workflow efficiency — ideal for modern automotive shops handling everything from daily drivers to performance vehicles.
