Features
-

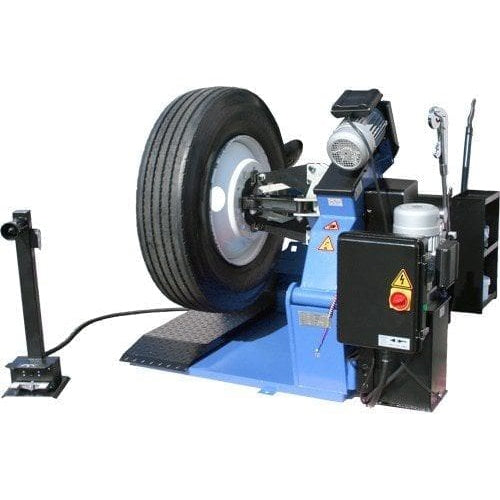

Standard Truck Tire Changer: Built for heavy-duty applications and consistent performance.
-
Versatile Rim Compatibility: Handles rims from 13″ to 27″ and tire diameters over 63″.
-
Wide Tire Capacity: Accommodates tires up to 30.5″ wide with ease.
-

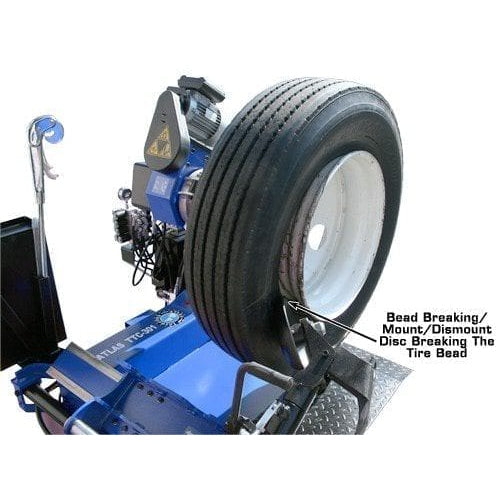

Efficient Bead Breaker: Delivers powerful bead separation for tough, large tires.
-

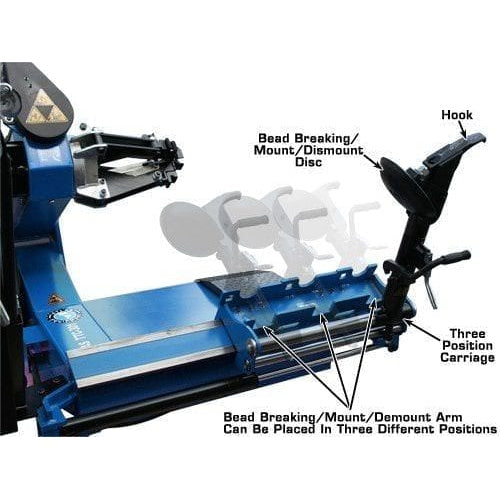

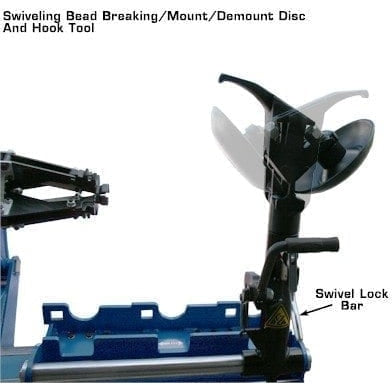

Durable Mount/Demount Head: Designed for long-term precision and reliability.
-

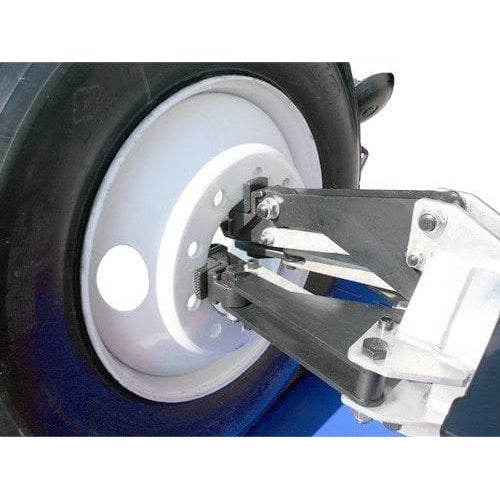

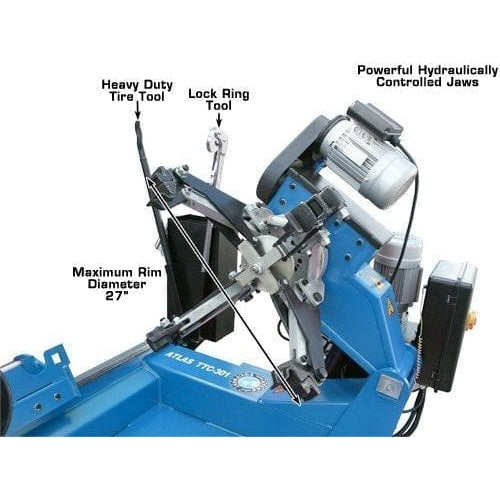

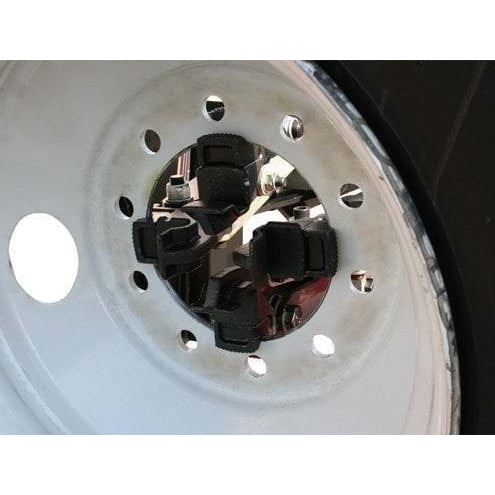

Electric/Hydraulic Self-Centering Four-Jaw Chuck: Ensures secure clamping and smooth operation.
-
Five Rim Locking Positions: Provides maximum flexibility for different wheel sizes and types.
-

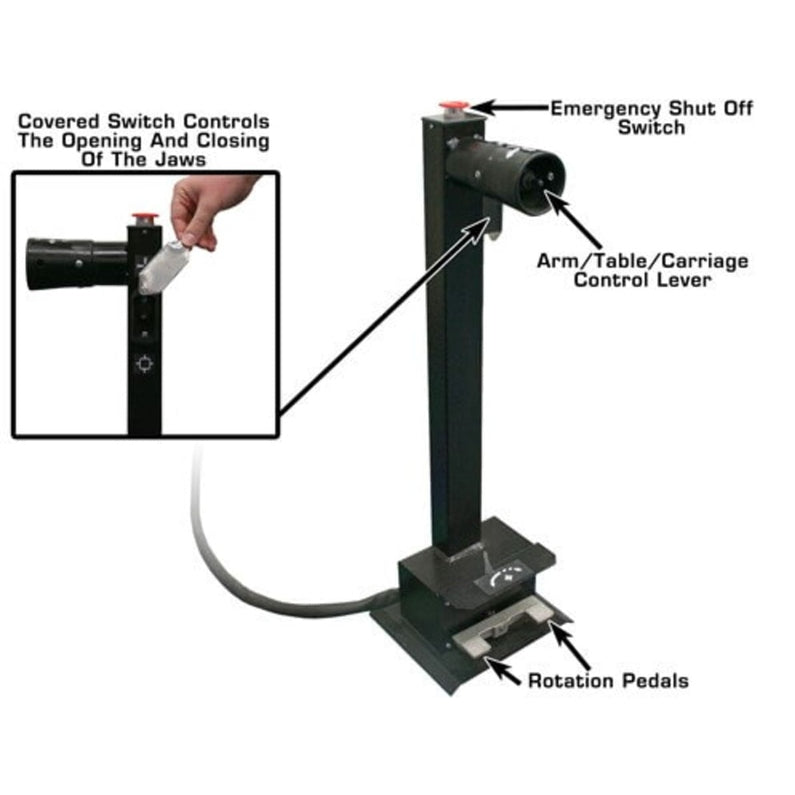

Wired Mobile Control Unit: Allows convenient, user-friendly operation.
-

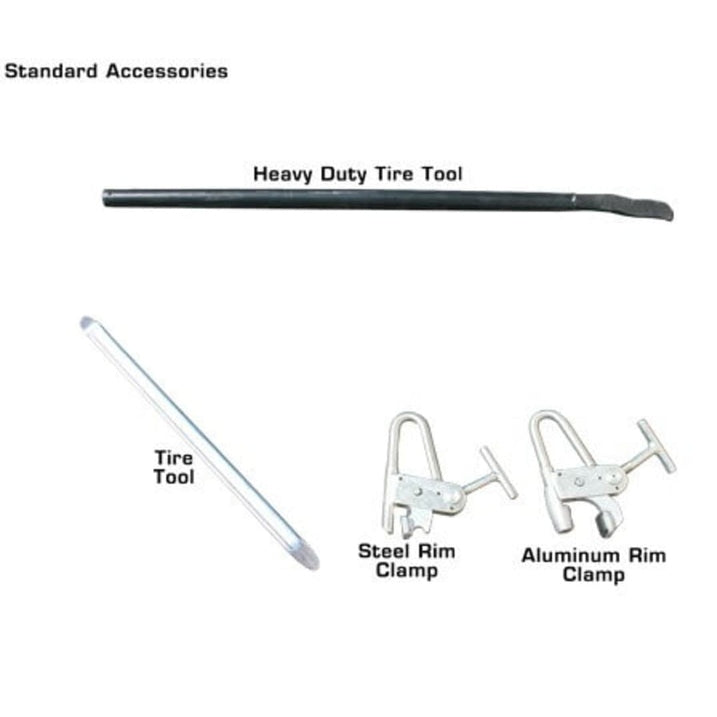

Heavy-Duty Tire Tool Included: Equipped for immediate, professional use.
-

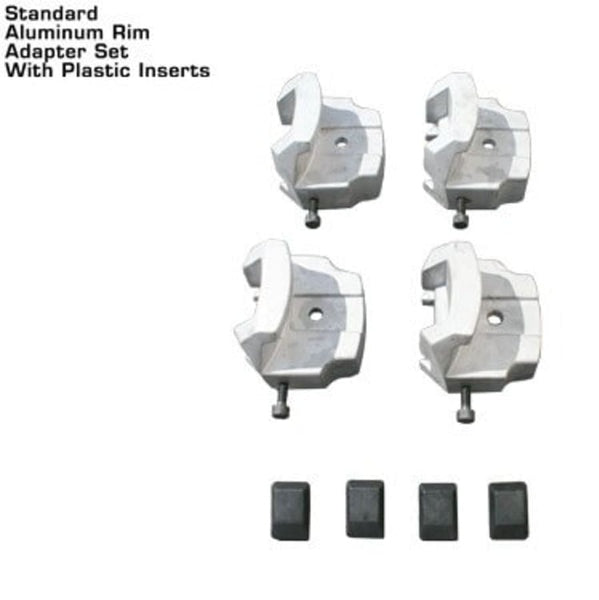

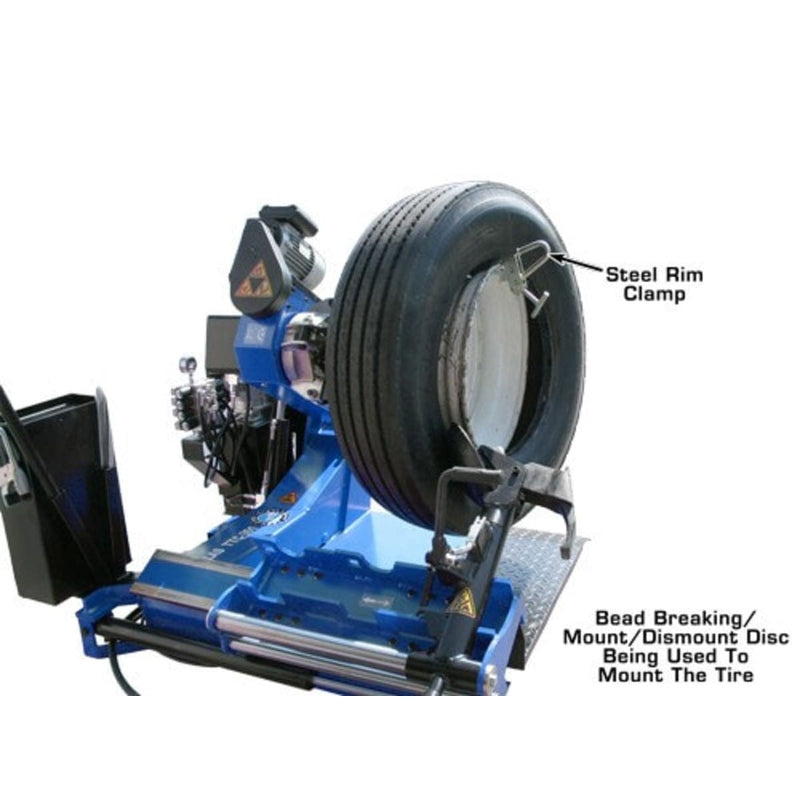

Steel and Alloy Compatibility: Includes rim clamps and alloy rim adapter set with protective plastic inserts.
-
Warranty: Backed by a 1-year parts-only warranty for peace of mind.
Specifications
| Specification | Details |
|---|---|
| Rim Clamping Range | 13" – 27" |
| Minimum Clamping Size (with Alloy Adapters) | 6 3/8" |
| Max Wheel Weight | 3,300 lbs. |

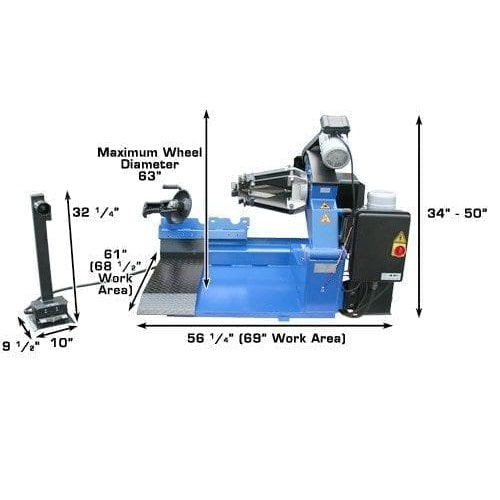

| Max Tire Diameter | 63" (5' 3") |
| Max Tire Width | 30 1/2" (2' 6 1/2") |
| Clamping Power | 6,614 lbs. |
| Operating Pressure | 0–1885 PSI |
| Noise Level | <70 dBA |
| Bead Breaker Force | 4,112 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single-piece frame with solid floor plate |

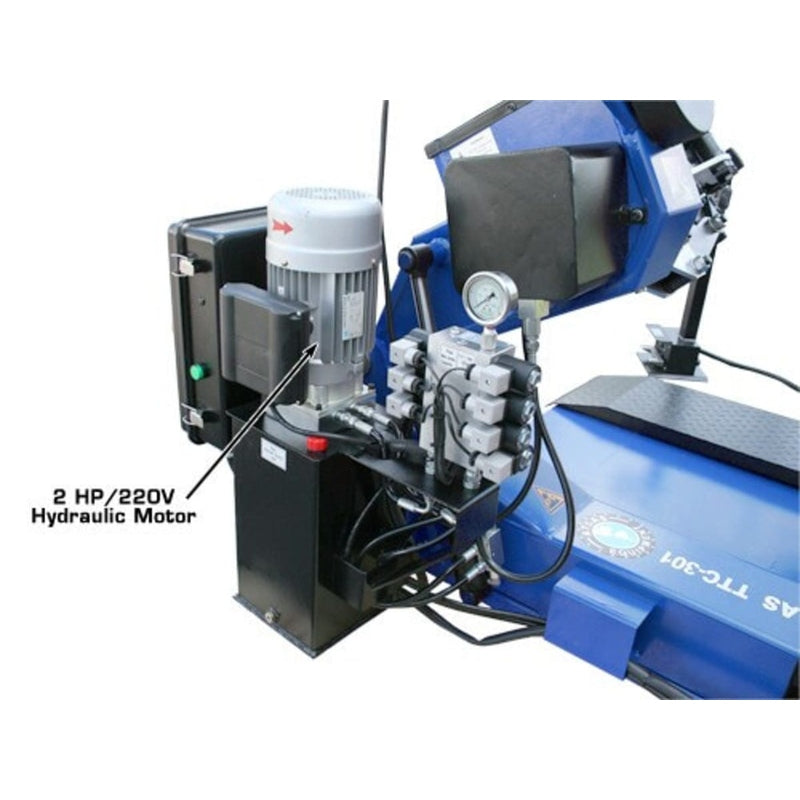

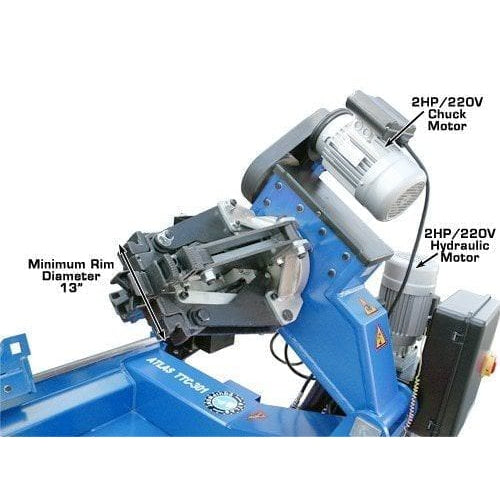

| Hydraulic Motor Power | 2 HP, 220V ±5% (1 Phase), 30 Amp Breaker Required |
| Chuck Motor Power | 3 HP, 220V ±5% (1 Phase), 30 Amp Breaker Required |

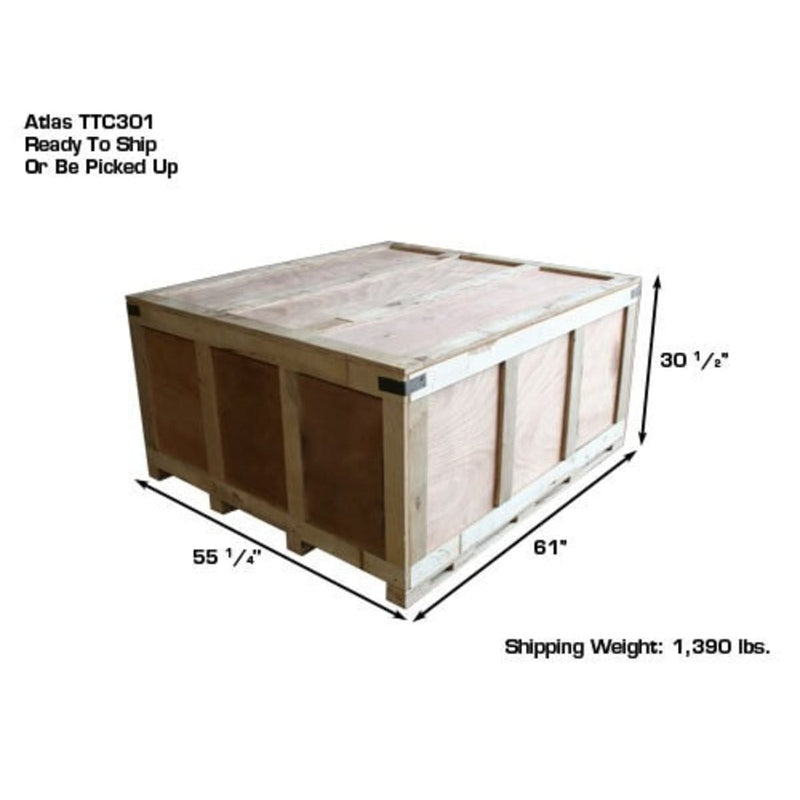

| Shipping Weight | 1,390 lbs. |
