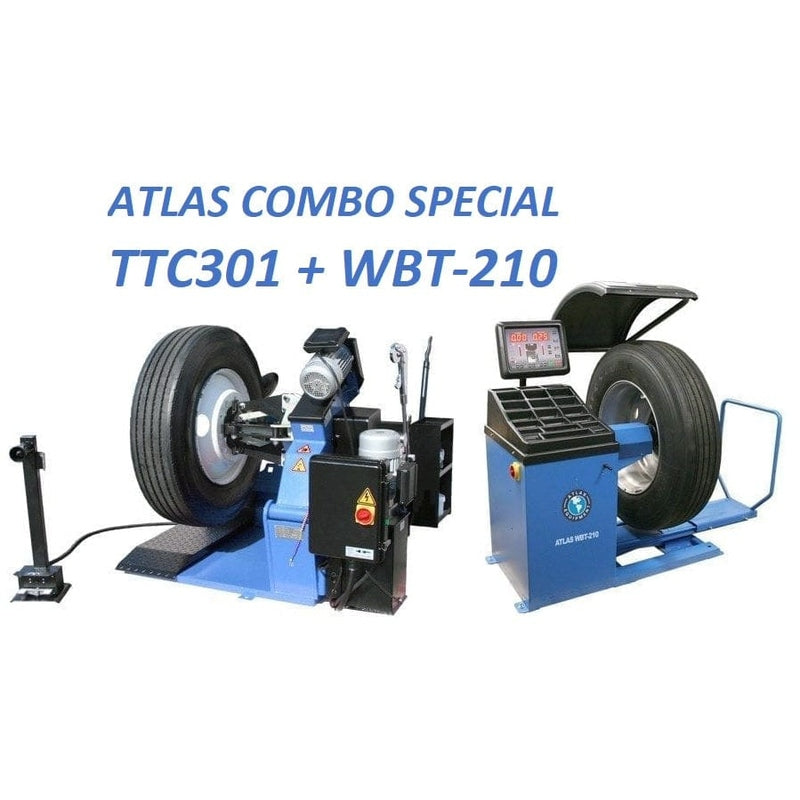

The Atlas® TC301 Truck Tire Changer and WBT-210 Wheel Balancer Combo delivers a powerful, professional-grade solution for heavy-duty tire service. Engineered for precision and durability, this combo is ideal for truck shops, fleet maintenance facilities, and commercial garages handling a wide range of tire sizes.
The Atlas® TC301 Truck Tire Changer is a heavy-duty, electro-hydraulic machine designed to handle rim sizes from 13" to 27" and tire diameters exceeding 63". With a maximum tire width of 30.5", it accommodates everything from light trucks to large commercial vehicles. Built from a partnership between a renowned Italian wheel service manufacturer and a leading Asian equipment producer, the TC301 combines advanced engineering with global reliability.
Paired with the Atlas® WBT-210 Heavy-Duty Computerized Wheel Balancer, this combo offers unmatched versatility. The WBT-210 balances everything from 14-inch car rims to 300-pound semi-truck tires, including oversized off-road and custom wheels. Its precision spin balancing system, robust 40mm shaft, and included truck adapters make it perfect for mixed-use shops and trucking companies that service cars, light trucks, and heavy commercial rigs.
Features

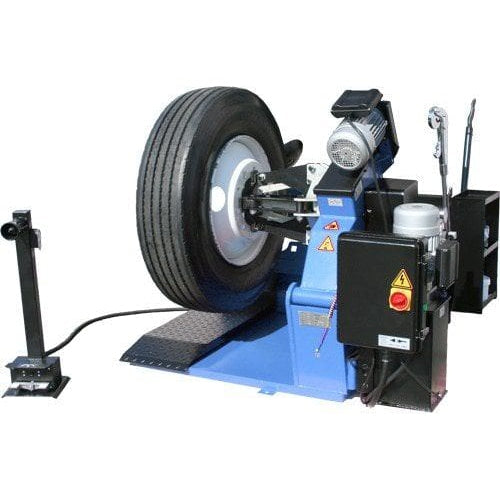

Atlas® TC301 Truck Tire Changer
-
Heavy-Duty Electro-Hydraulic Design: Handles rims from 13″ to 27″ and tires over 63″ in diameter.
-
Wide Capacity Range: Supports tires up to 30.5″ wide and wheel weights up to 3,300 lbs.
-

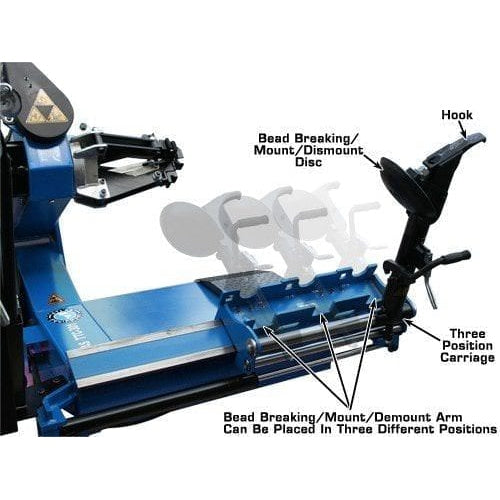

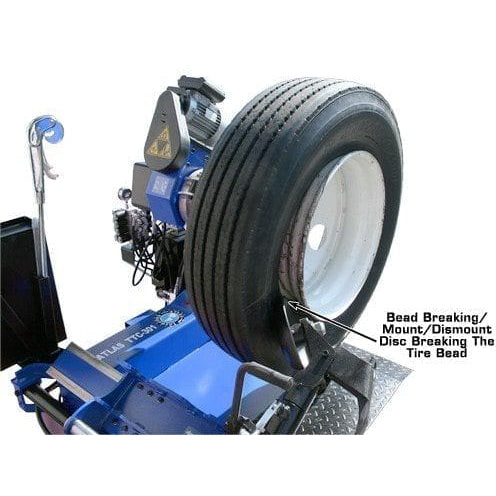

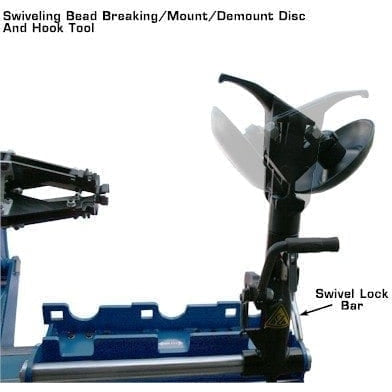

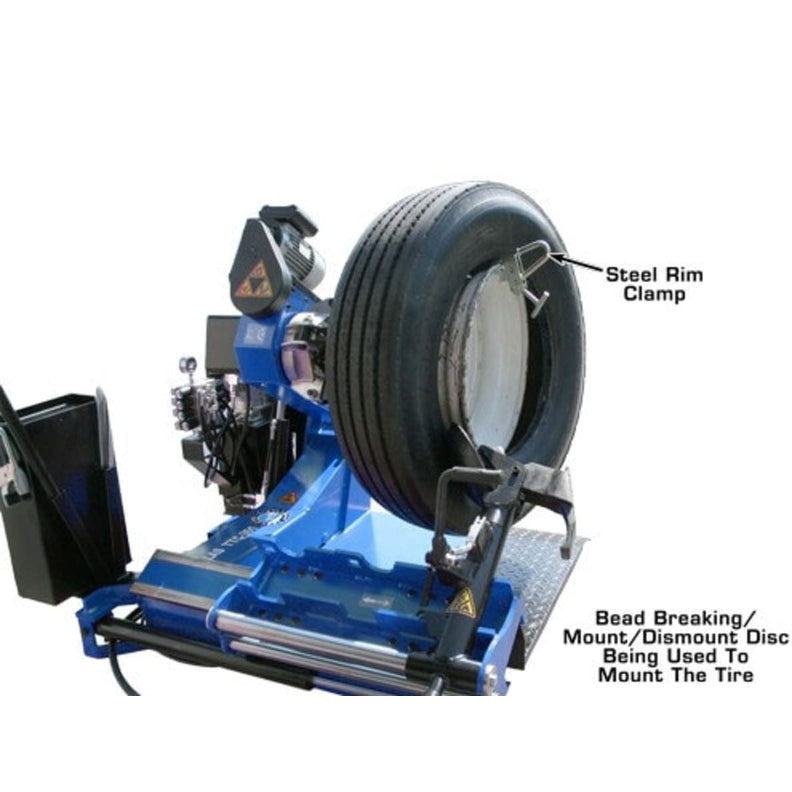

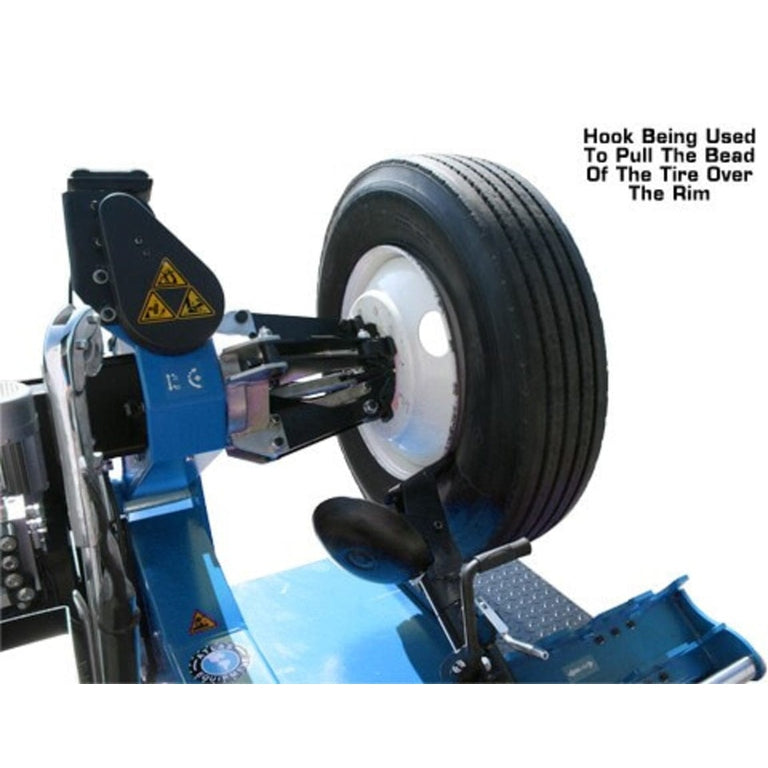

Bead Breaker & Mount/Demount Head: Simplifies the removal and installation of large tires.
-

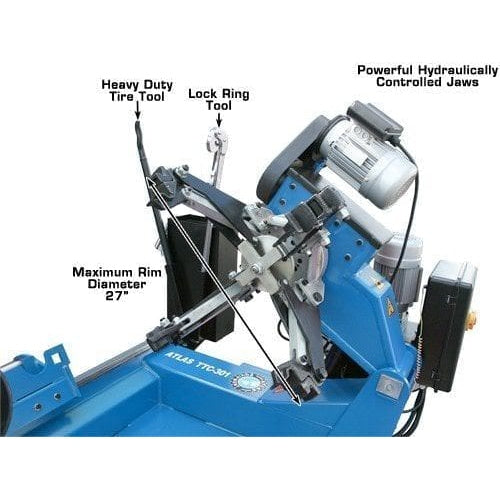

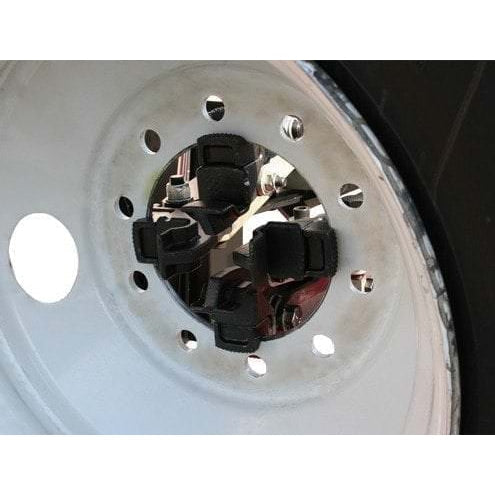

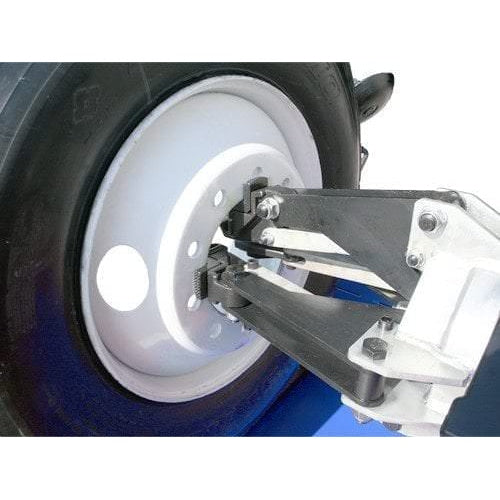

Self-Centering Four-Jaw Chuck: Electric/hydraulic operation for fast, accurate clamping.
-
Five Rim Locking Positions: Provides flexibility for a wide range of wheel sizes.
-

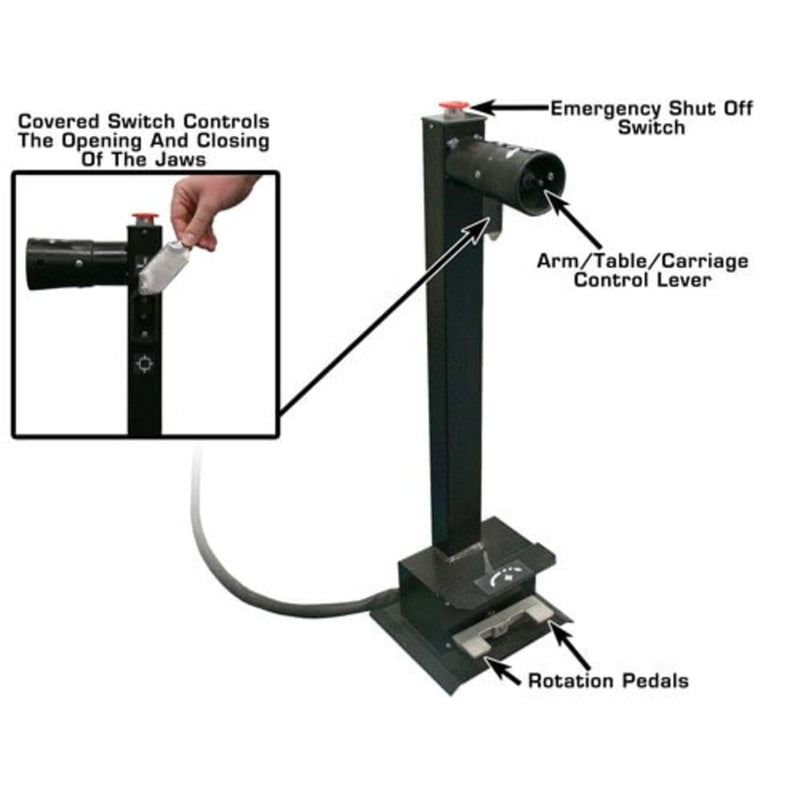

Mobile Control Unit: Wired control allows easy operation from a safe distance.
-

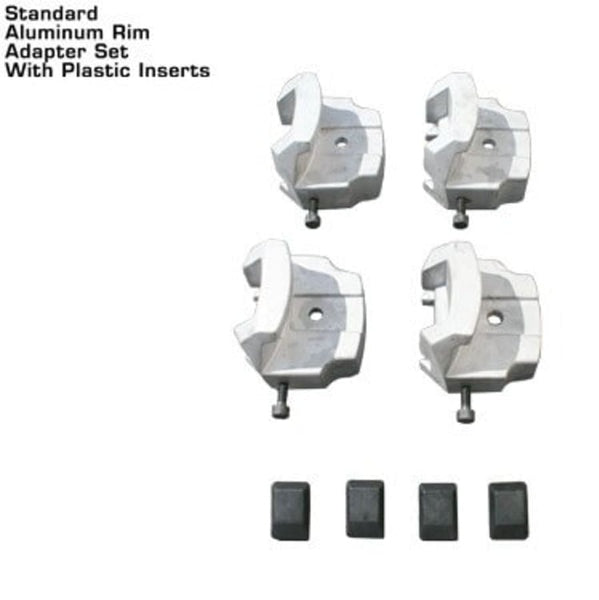

Alloy Rim Adapters with Plastic Inserts: Protects delicate rims from scratches or damage.
-
Durable Construction: Single-piece frame with solid floor plate for superior stability.
-

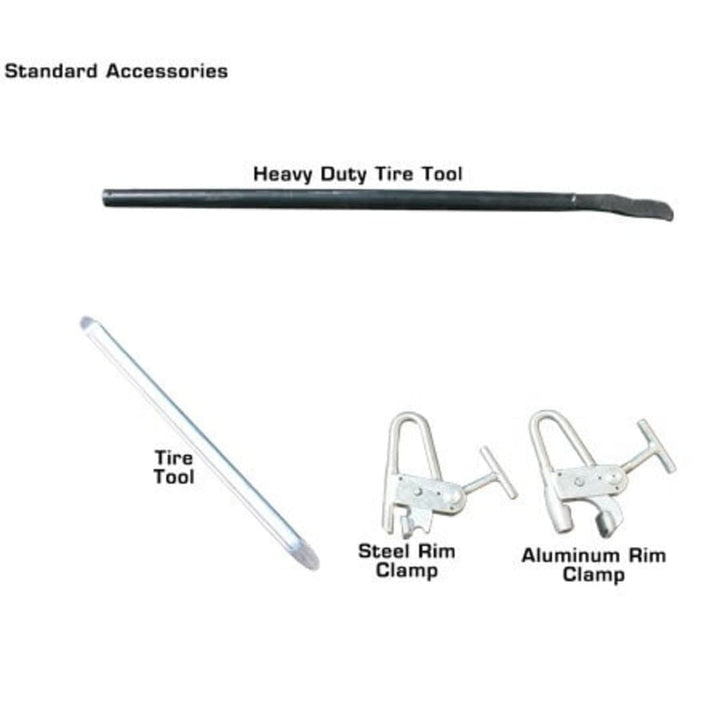

Includes Heavy-Duty Tire Tool and Rim Clamps for both steel and alloy wheels.
-
1-Year Parts-Only Warranty.

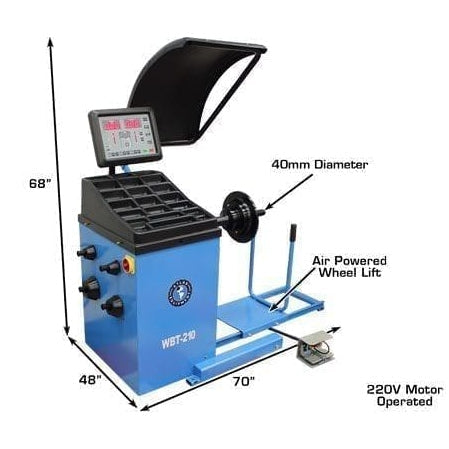

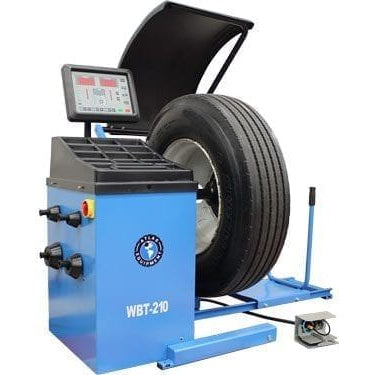

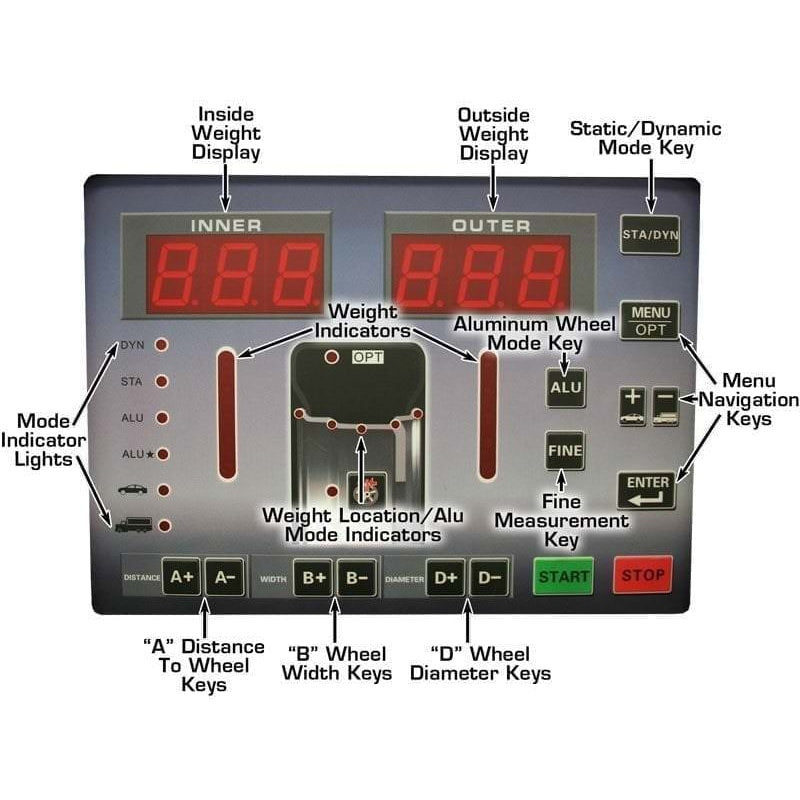

Atlas® WBT-210 Heavy Duty Wheel Balancer
-
Computerized Spin Balancer: Designed for cars, light trucks, buses, and semi-truck tires.
-
Wide Application Range: Balances wheels from 10″ to 32″ in rim size and up to 440 lbs in weight.
-

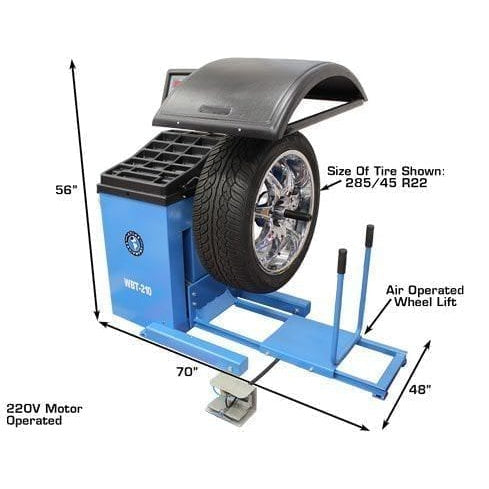

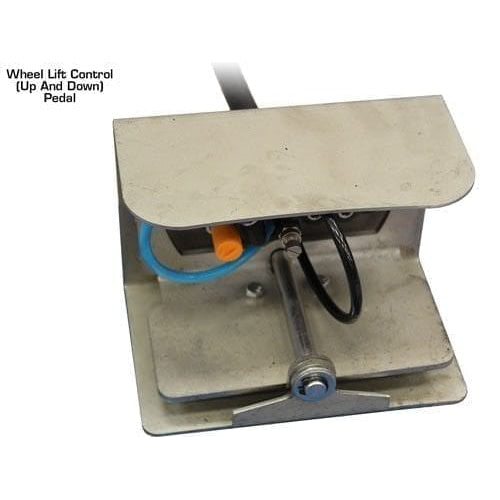

Pneumatic Wheel Lift: (Requires external air supply) for easy handling of large truck tires.
-
Static and Dynamic Modes: Ensures precise balancing for all tire types.
-
Rapid Optimization (OPT): Streamlines balancing corrections.
-
Self-Diagnosis & Self-Calibration: Maintains long-term accuracy and ease of use.
-
Dual Measurement Options: Displays in grams or ounces, and in millimeters or inches.
-

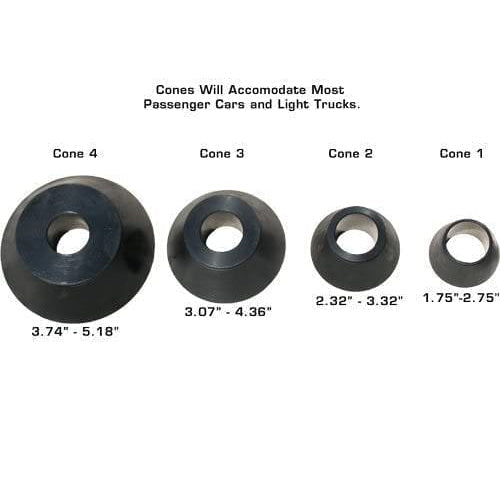

Truck Adapters & Cone Sets Included: Accommodates both passenger and commercial applications.
-
Heavy-Duty Steel Wing Nut & Plastic Quick-Release Nut Included.
-

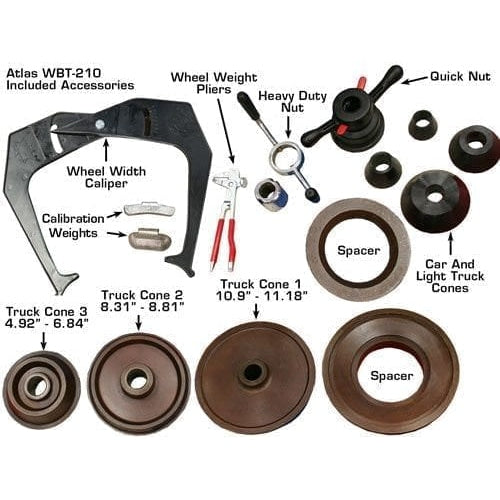

Accessories Included: Wheel weight pliers, width calipers, and all essential adapters.
-
1-Year Parts-Only Warranty.
Specifications

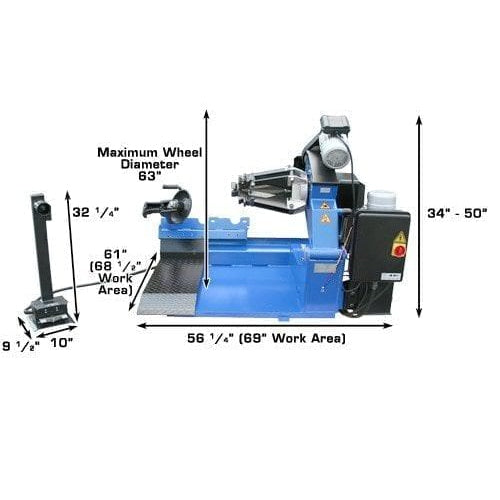

Atlas® TC301 Truck Tire Changer
| Specification | Details |
|---|---|
| Rim Clamping Range | 13" – 27" |
| Minimum Clamping (with Alloy Adapters) | 6 3/8" |
| Max Tire Diameter | 63" (5' 3") |
| Max Tire Width | 30.5" (2' 6.5") |
| Max Wheel Weight | 3,300 lbs |
| Clamping Power | 6,614 lbs |
| Bead Breaker Force | 4,112 lbs |
| Tool Arm / Head Positioning | Manual |
| Operating Pressure | 0–1,885 PSI |
| Acoustic Pressure | <70 dBA |

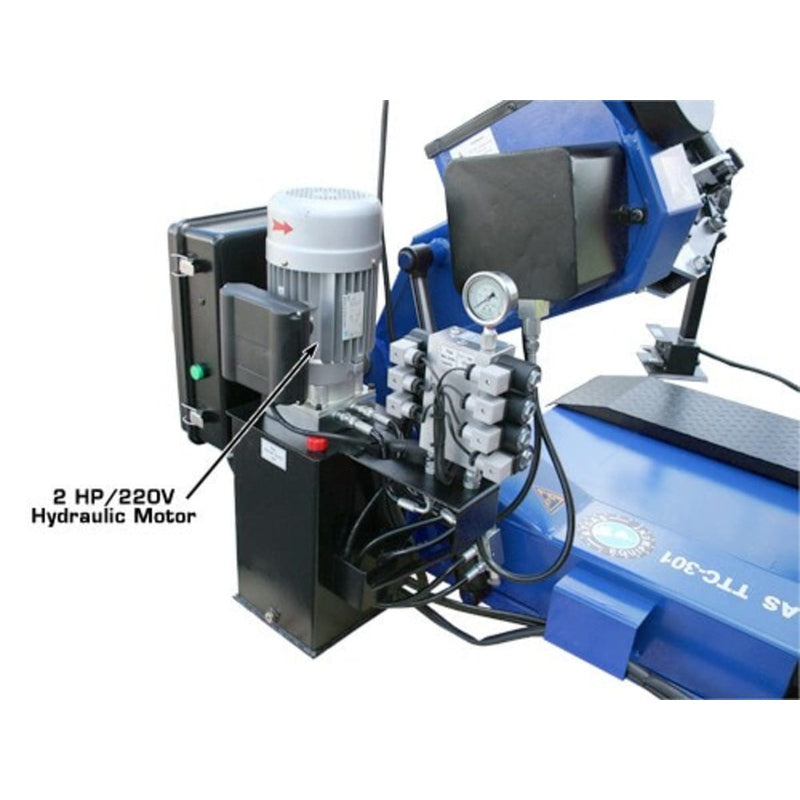

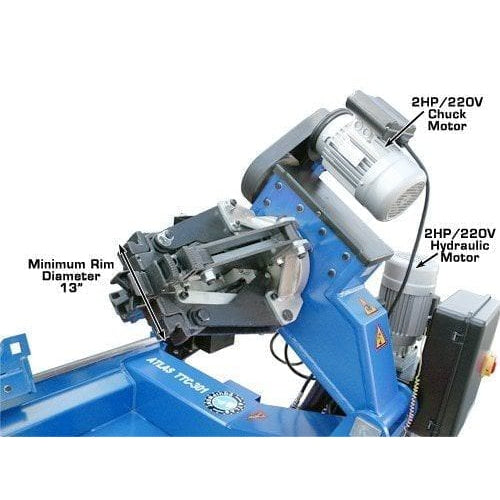

| Hydraulic Motor Power | 2 HP, 220V 1PH (30A breaker required) |
| Chuck Motor Power | 3 HP, 220V 1PH (30A breaker required) |
| Construction | One-piece frame with solid floor plate |

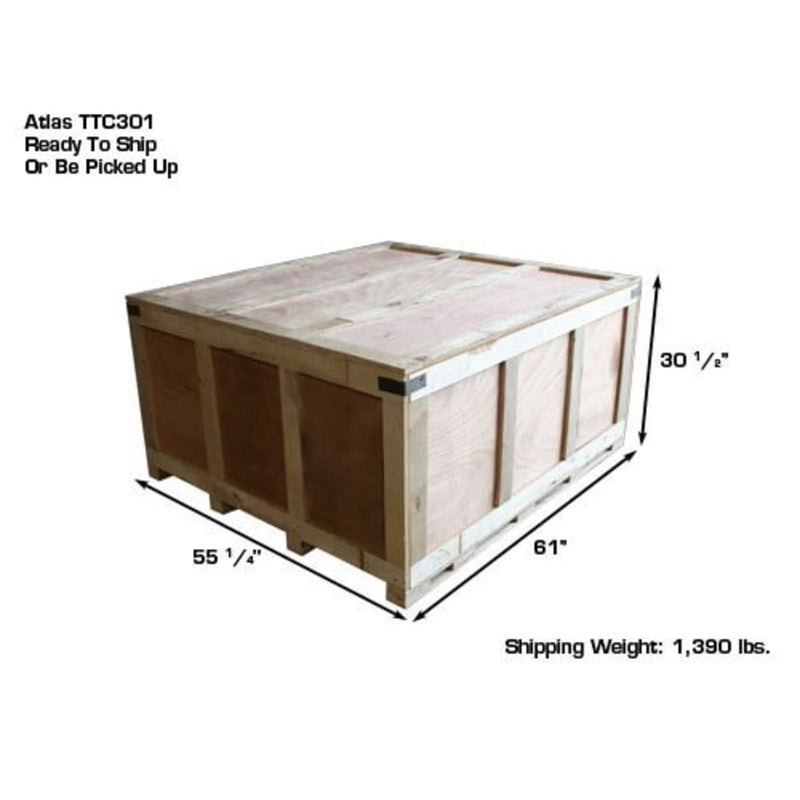

| Shipping Weight | 1,390 lbs |

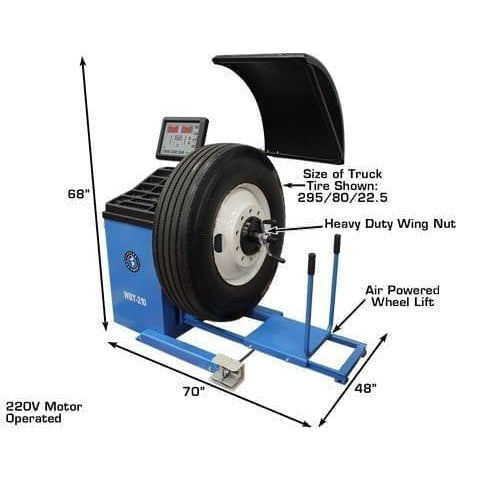

Atlas® WBT-210 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 47" |
| Rim Size Range (Cars & Light Trucks) | 10" – 32" |
| Rim Width Range | 1.5" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 440 lbs |
| Balancing Speed | 150 RPM (Car/Light Truck) / 90 RPM (Truck Mode) |
| Accuracy | 1g (Car Mode) / 10g (Truck Mode) |
| Weight Position Resolution | 1.4° |
| Data Entry | Manual (All Dimensions) |
| Measurements | Standard or Metric |
| Self-Calibration | Yes |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (Do not exceed 140 PSI) |
| Power Supply | 220V ±5% (1PH, 30A breaker required) |

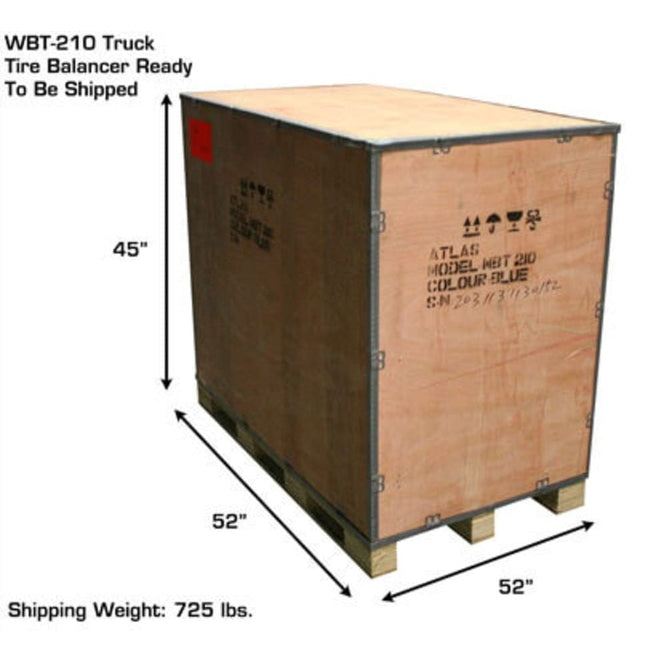

| Shipping Weight | 725 lbs |
This Atlas® TC301 + WBT-210 Combo is a comprehensive, professional-grade system that delivers power, precision, and reliability — ideal for shops servicing everything from standard vehicles to heavy-duty commercial trucks.
