Features
-

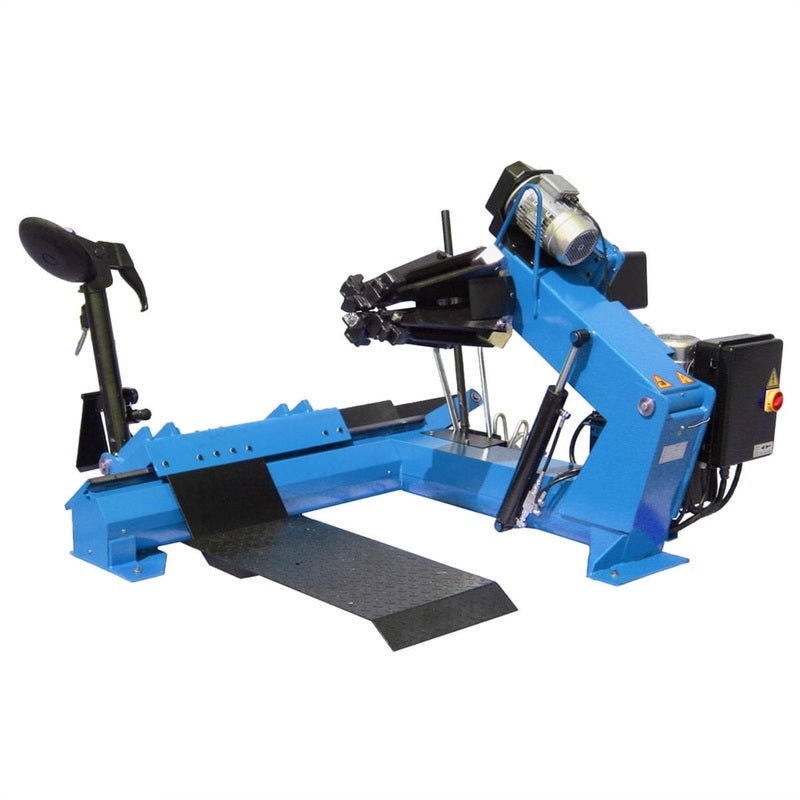

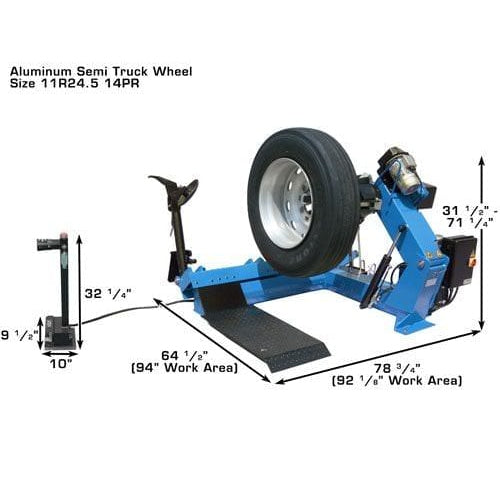

Super Duty Truck Tire Changer
-
220V 1-Phase Electric Operation
-

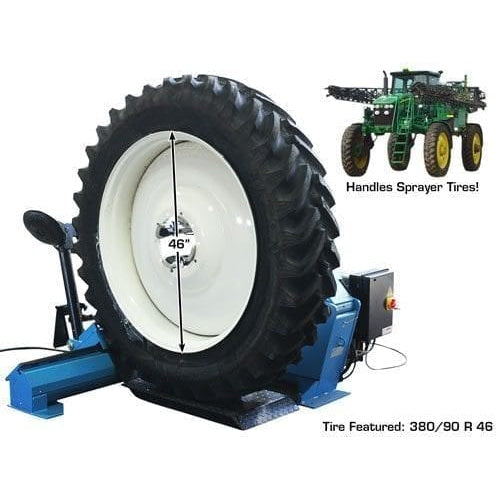

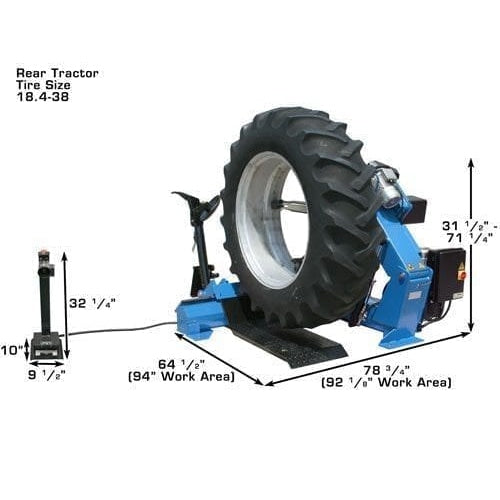

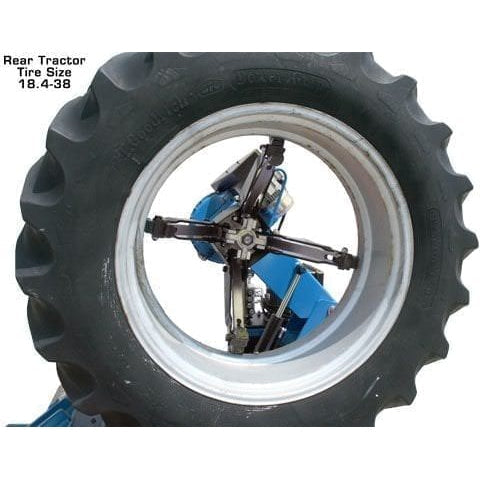

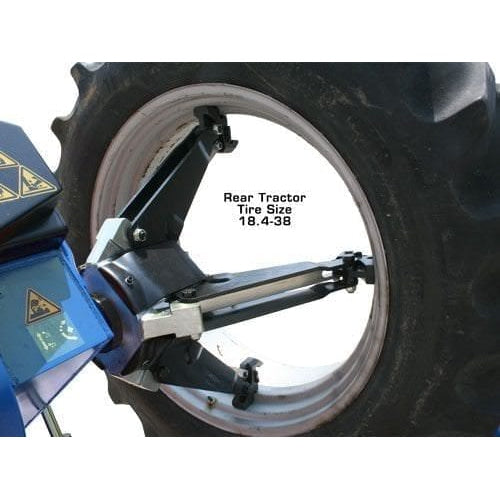

Handles rims from 14″ to 56″ and tire diameters exceeding 90″
-
Accommodates tires with a maximum width of 42″
-

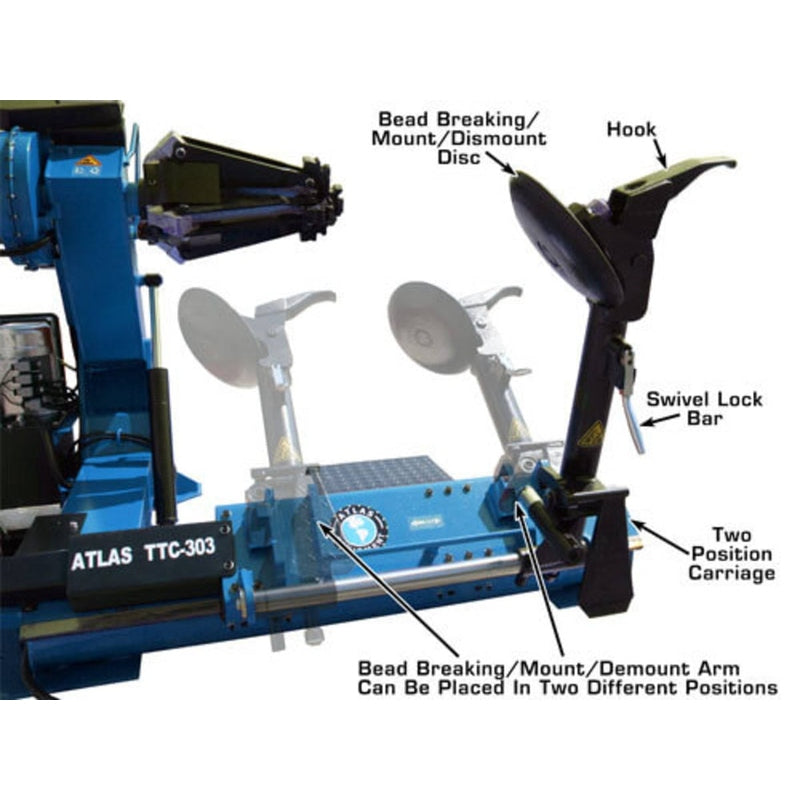

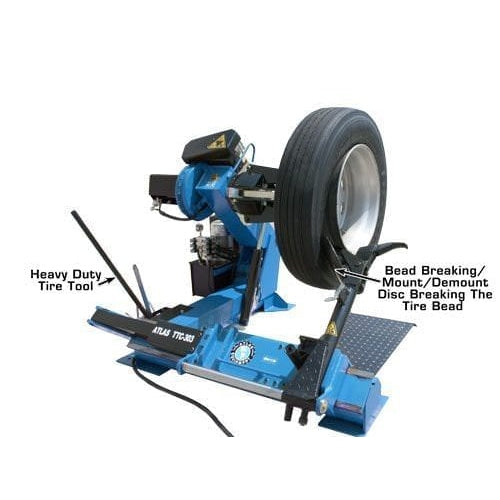

Equipped with a powerful bead breaker for quick and efficient operation
-

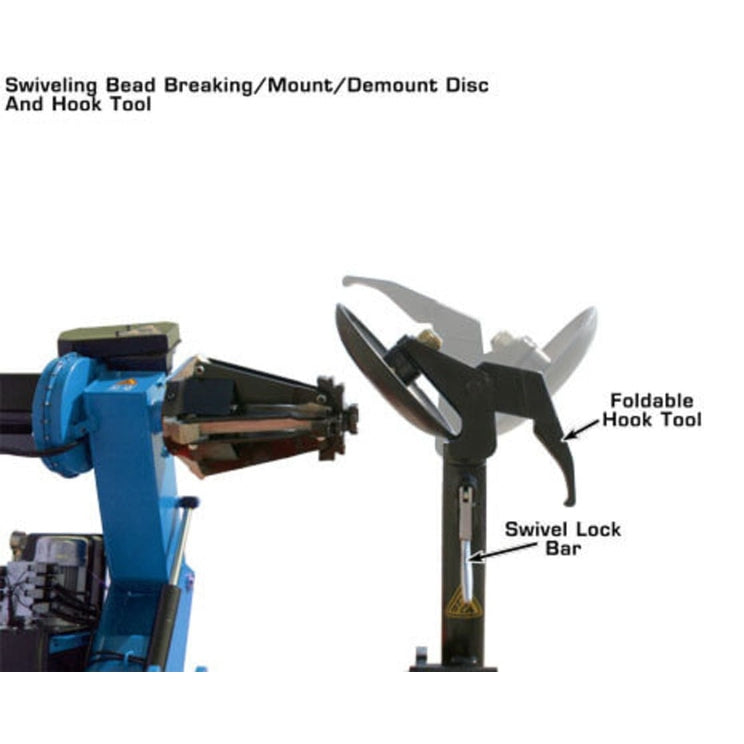

Includes mount/demount head for versatile tire handling
-

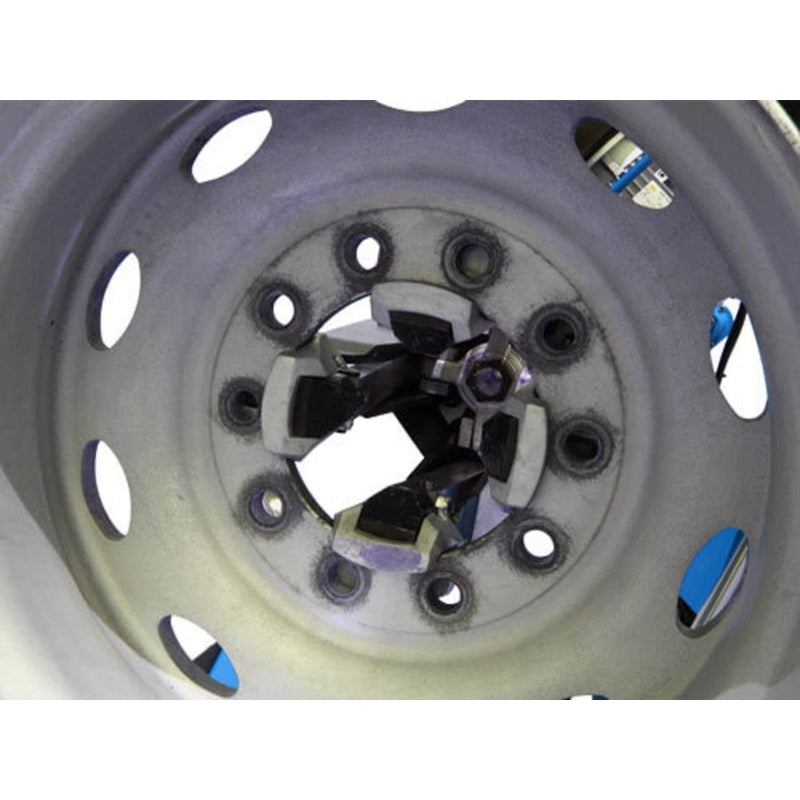

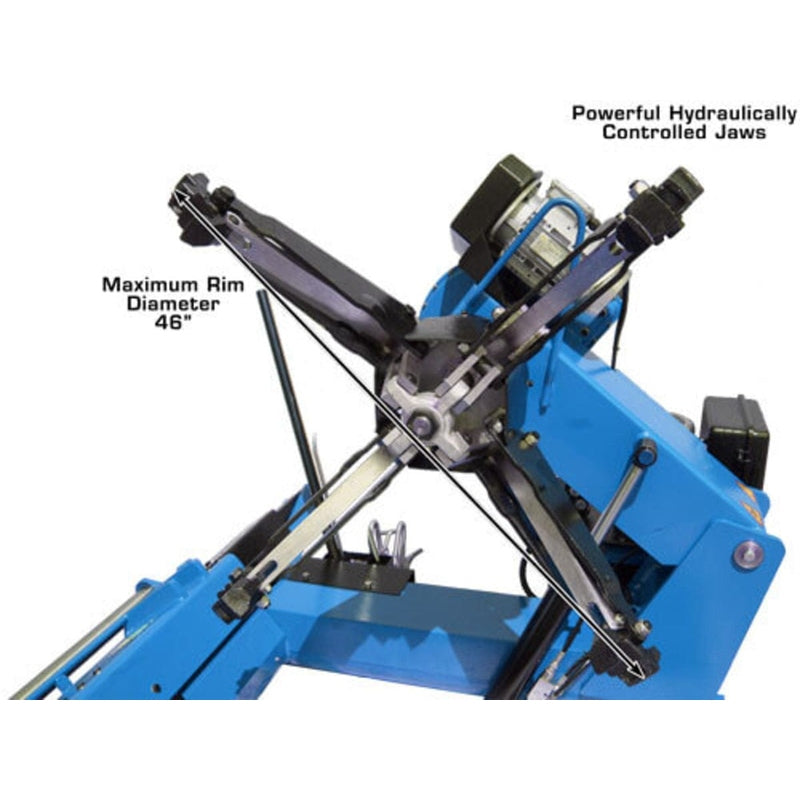

Electric/Hydraulic self-centering four-jaw chuck for superior stability and control
-
Five adjustable rim locking positions for flexible use
-

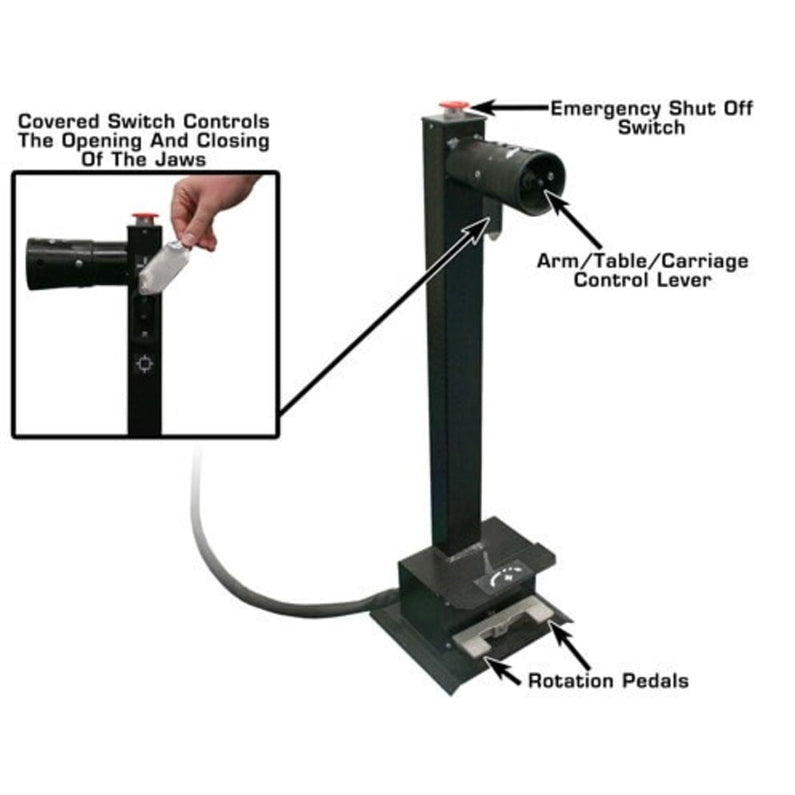

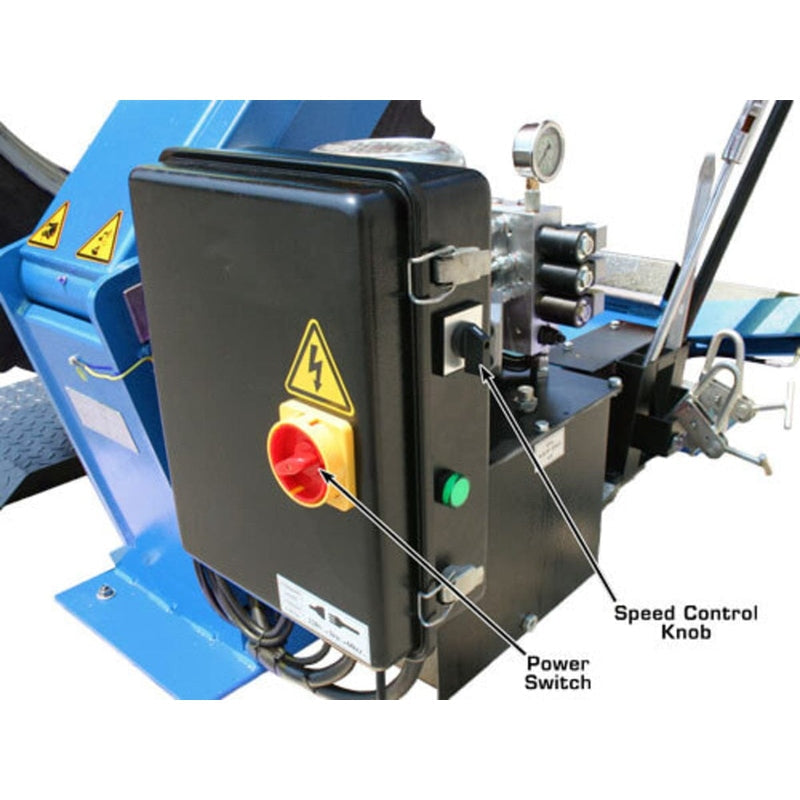

Wired mobile control unit for convenient operation
-

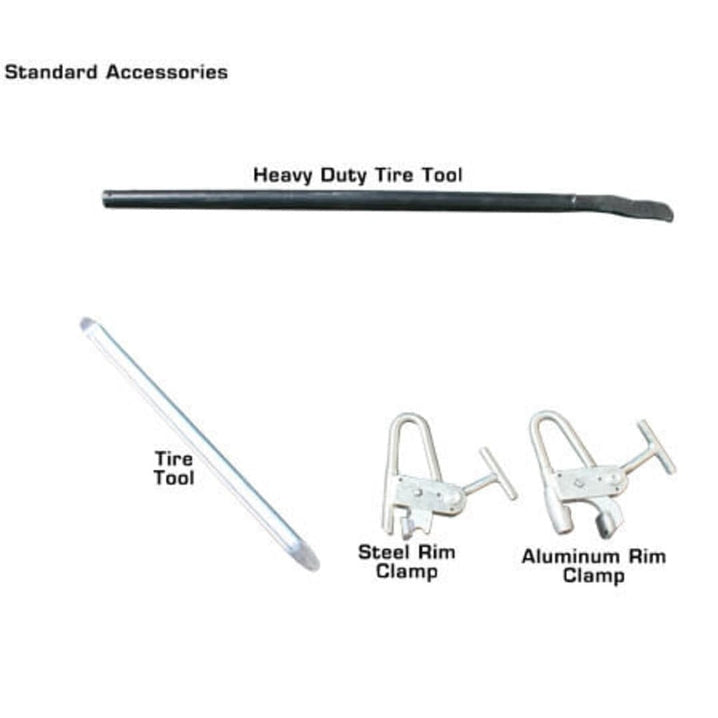

Heavy-duty tire tool included
-

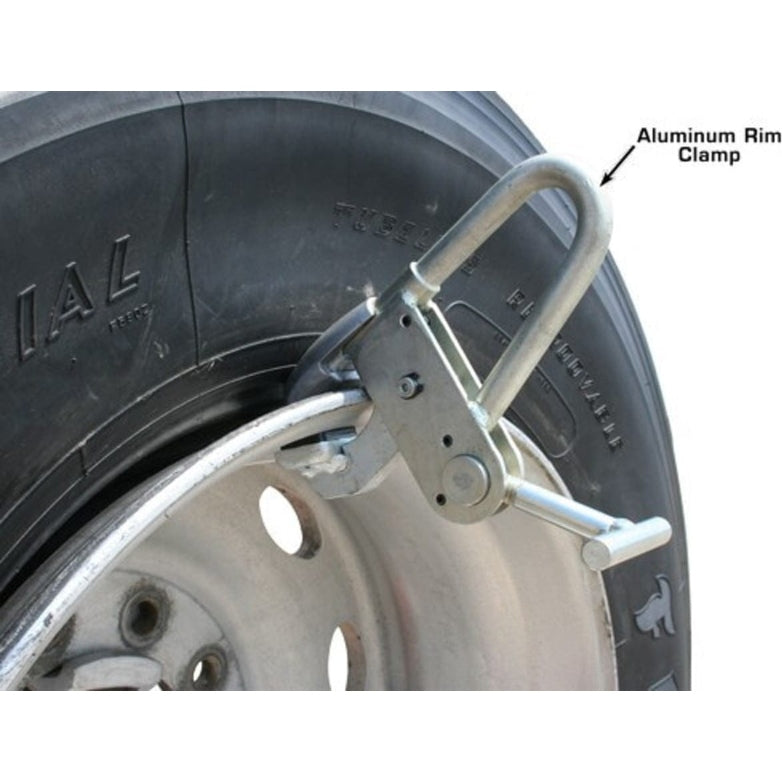

Comes with rim clamps for steel and alloy wheels
-

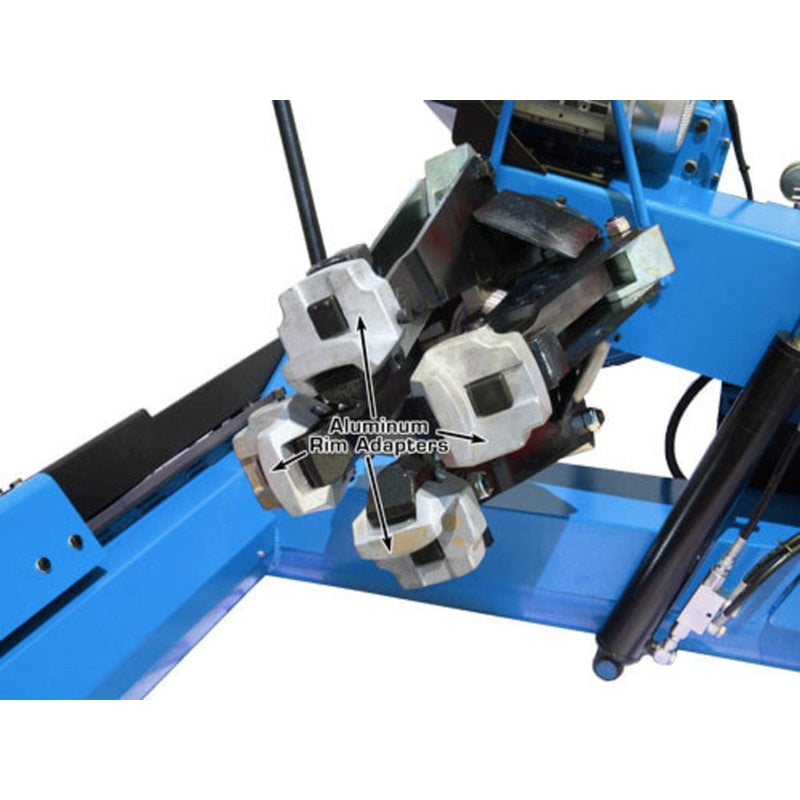

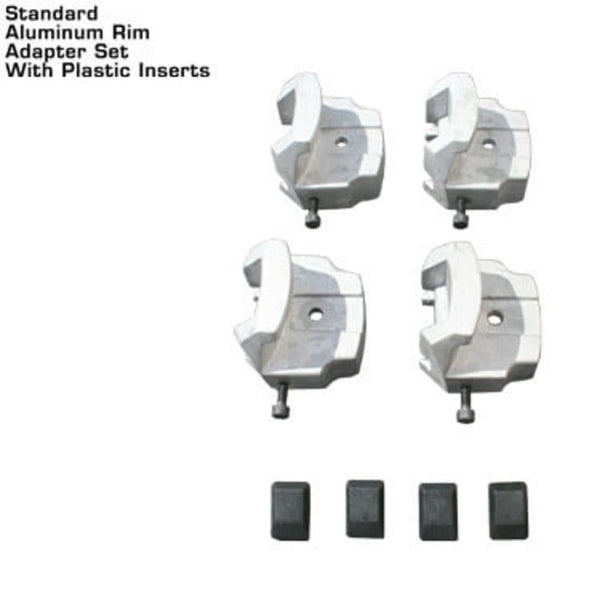

Includes alloy rim adapter set with plastic inserts for rim protection
-
1-Year Parts-Only Warranty
Specifications
| Model | Atlas® TTC303 |
|---|---|

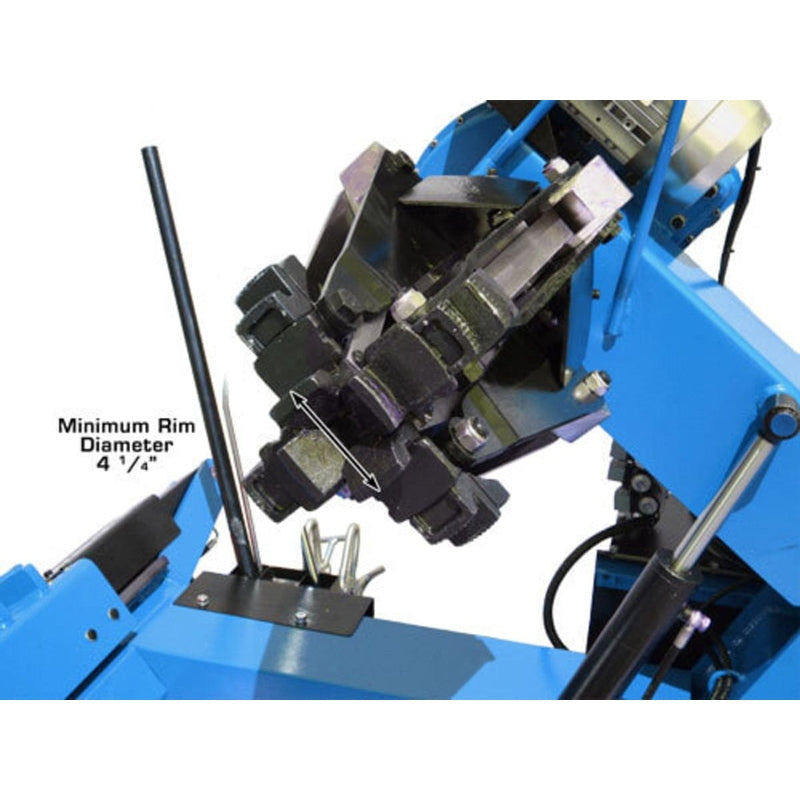

| Rim Clamping Range | 14" – 46" |

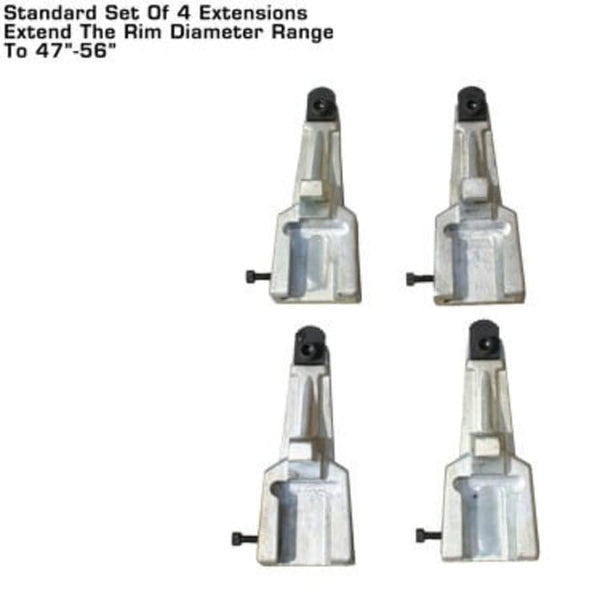

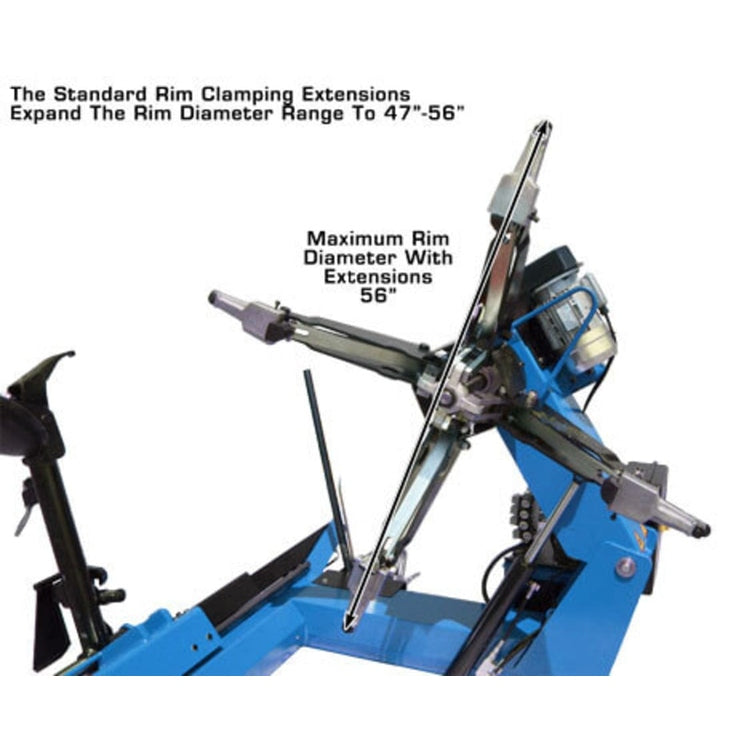

| Max Clamping Size (with Extensions) | 56" |
| Max Wheel Weight | 3,300 lbs |

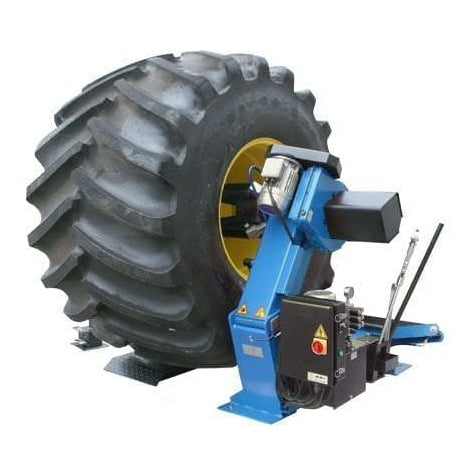

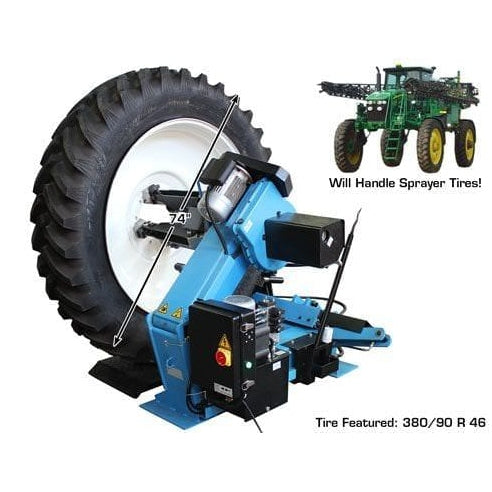

| Max Tire Diameter | 90 ½" (7' 6 ½") |
| Max Tire Width | 42" (3' 6") |
| Clamping Power | 13,173 lbs |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 5,930 lbs |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single-piece frame with solid floor plate |

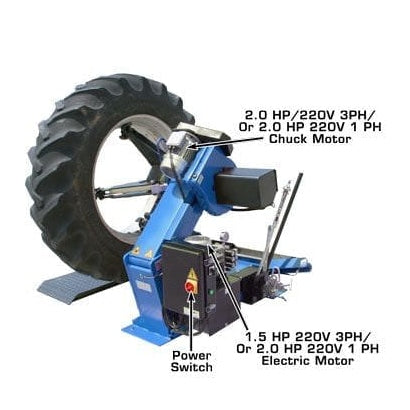

| Hydraulic Motor Power | 2 HP, 220V (±5% 209–231V) 1PH, 30A breaker required |
| Chuck Motor Power | 2 HP, 220V (±5% 209–231V) 1PH, 30A breaker required |

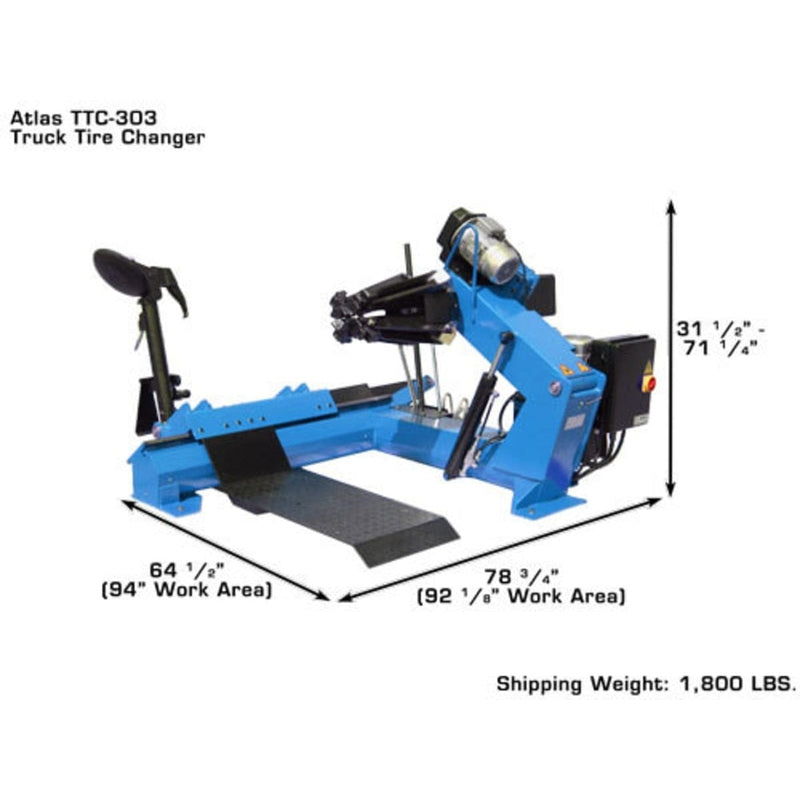

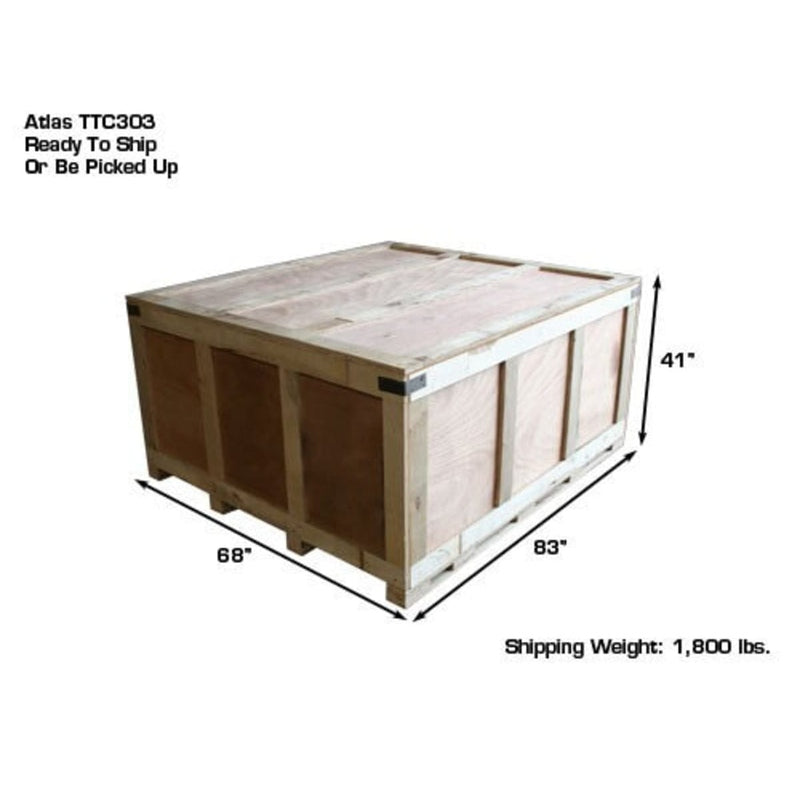

| Shipping Weight | 1,800 lbs |
