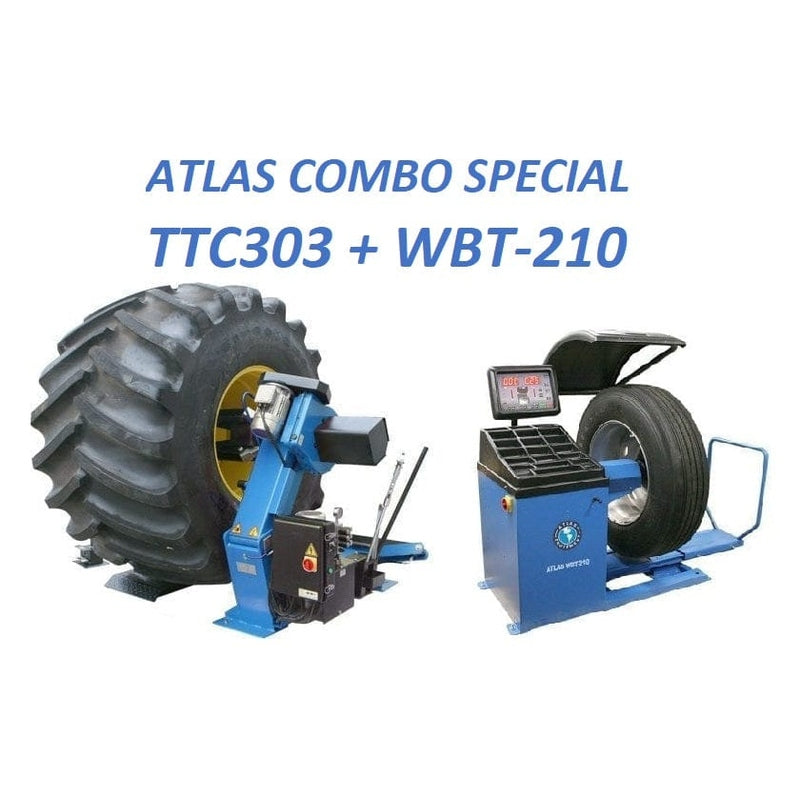

The Atlas® TTC303 Truck Tire Changer and WBT-210 Wheel Balancer Combo is a professional-grade package designed for shops and fleets that service everything from passenger vehicles to heavy-duty trucks. Engineered for performance, reliability, and versatility, this combo provides the perfect balance of power and precision for comprehensive tire service operations.

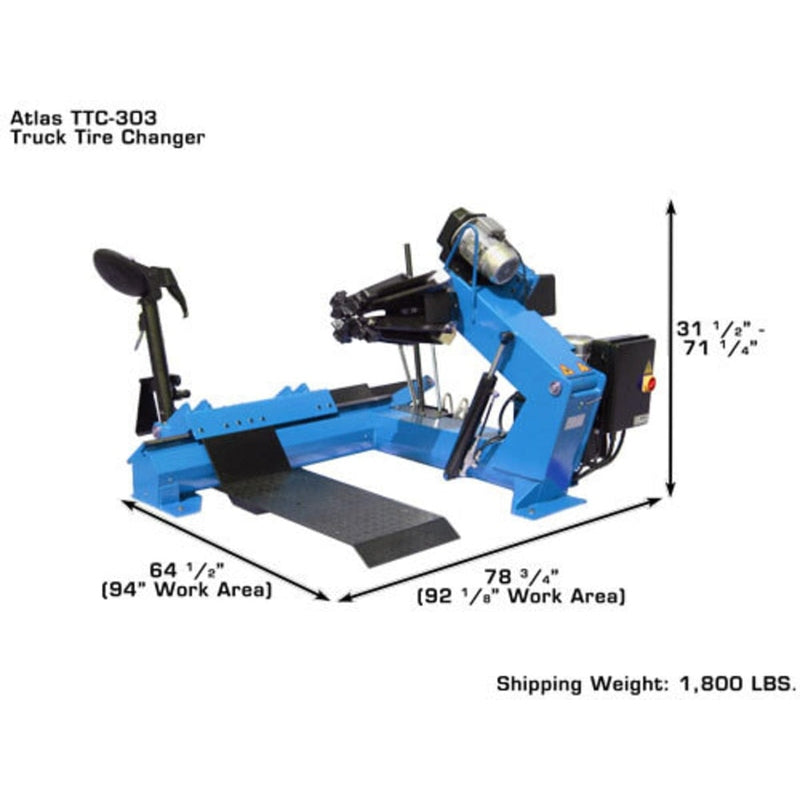

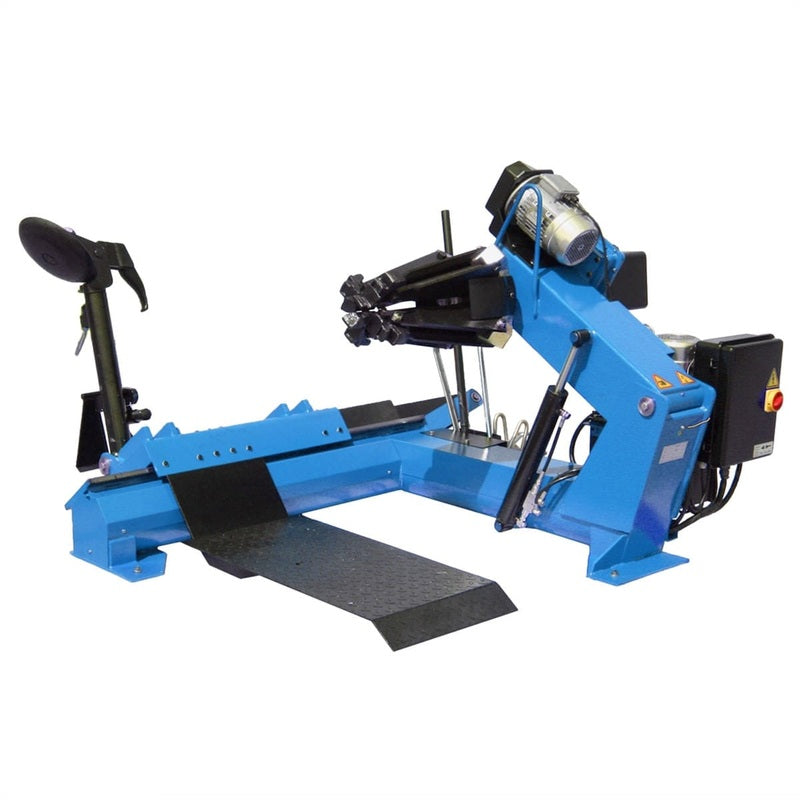

The Atlas® TTC303 Super Duty Truck Tire Changer is built to handle large, heavy tires with ease. It accommodates rims from 14" to 56" and tire diameters exceeding 90", with a maximum tire width of 42". This powerful changer is equipped with an electric/hydraulic self-centering four-jaw chuck, manual bead breaker, and five rim locking positions to ensure stability and accuracy. Developed through a collaboration between a leading Italian wheel service manufacturer and a premier Asian equipment producer, the TTC303 combines European engineering precision with durable global manufacturing quality.

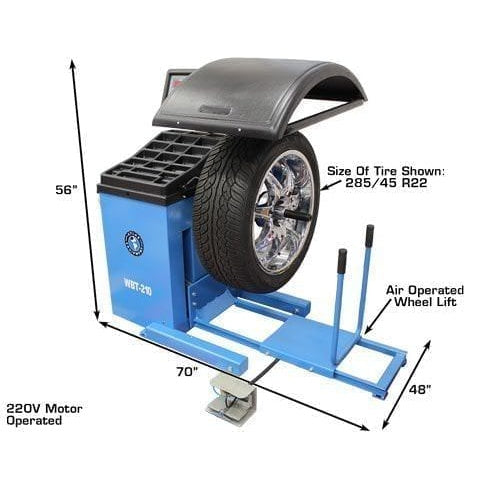

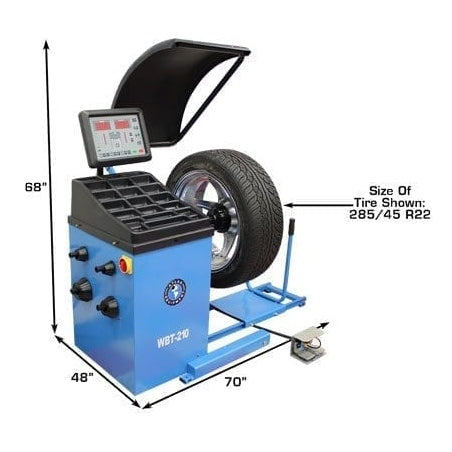

The Atlas® WBT-210 Heavy-Duty Wheel Balancer complements the tire changer with advanced digital accuracy. Designed to handle everything from 14-inch car rims to 300-pound semi-truck tires, it’s ideal for mixed-use workshops and fleet maintenance. The WBT-210 features computer-controlled static and dynamic balancing, rapid optimization (OPT), self-calibration, and self-diagnosis capabilities. Its 40mm heavy-duty shaft supports standard mounting cones for cars and trucks, while included adapters make balancing BUDD-style and oversized wheels effortless.
Together, the TTC303 and WBT-210 form a complete heavy-duty tire service solution for professionals demanding efficiency, strength, and precision.
Features
Atlas® TTC303 Super Duty Truck Tire Changer
-

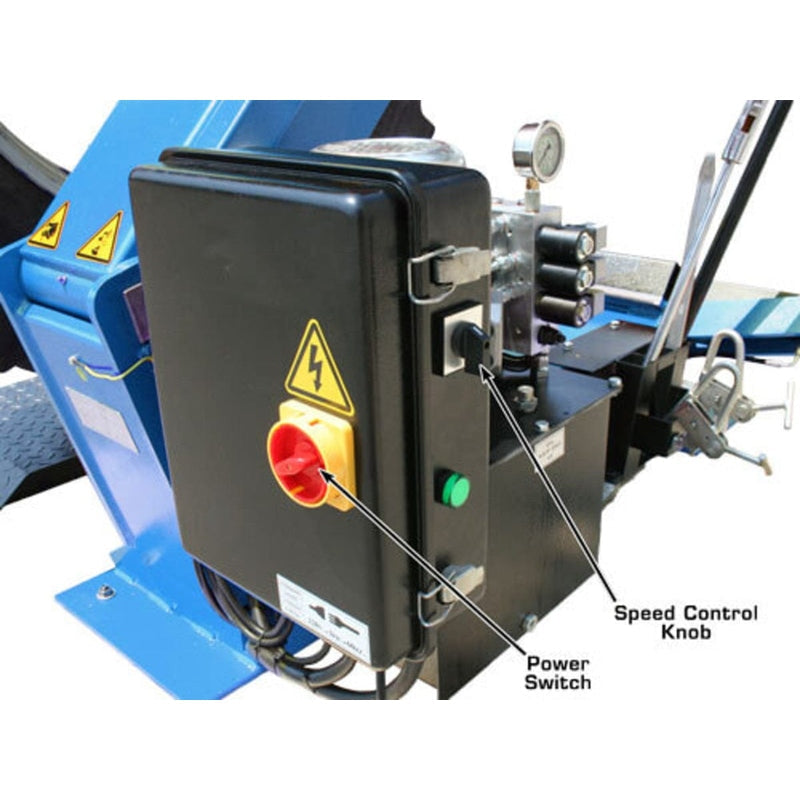

Powerful 220V, 1-Phase Electric System
-
Handles rims from 14" to 56" and tire diameters over 90"
-
Supports tires with a maximum width of 42"
-

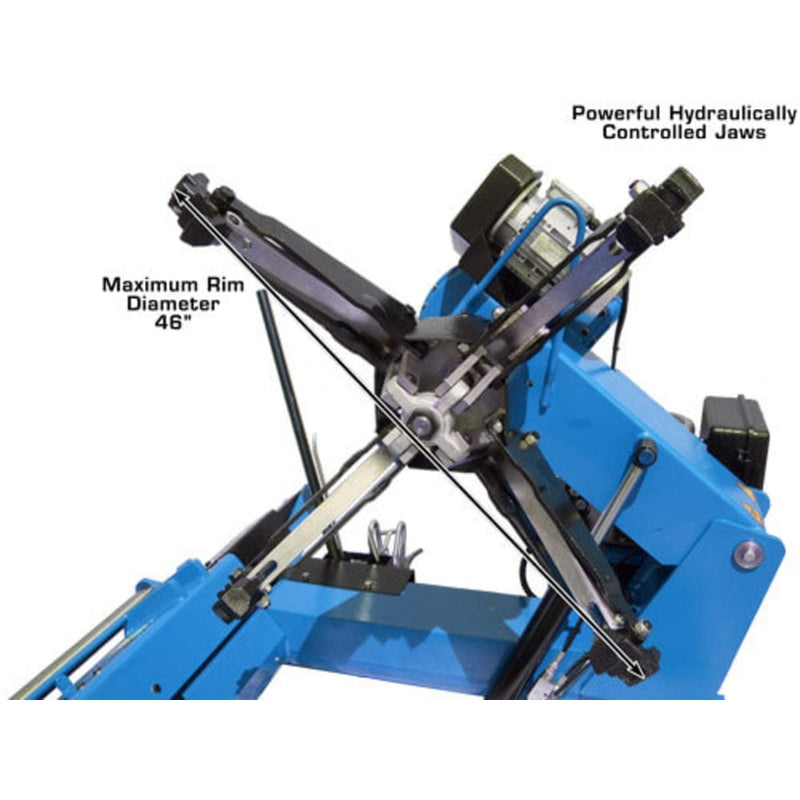

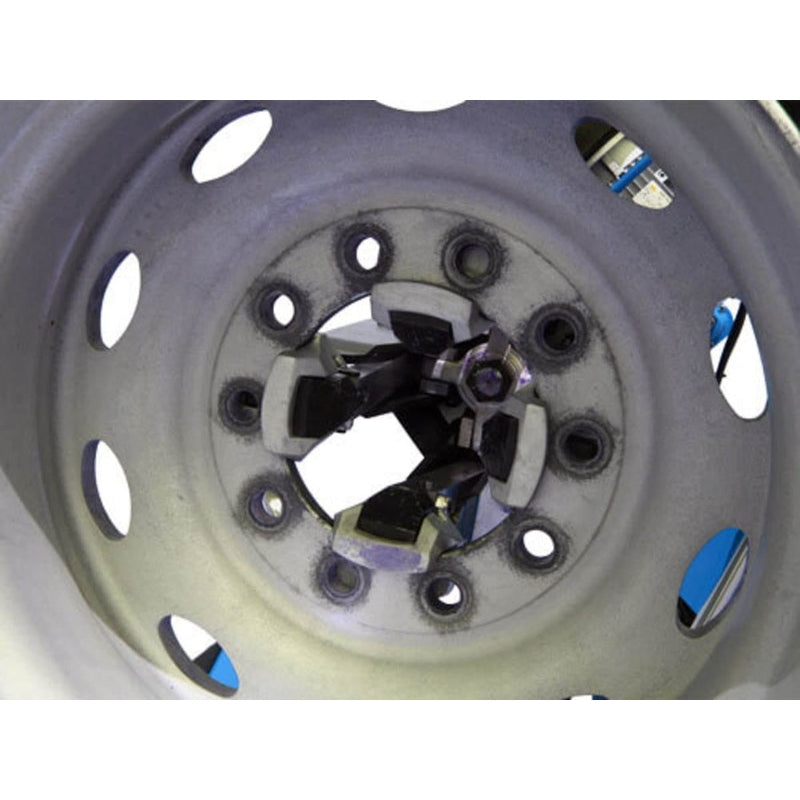

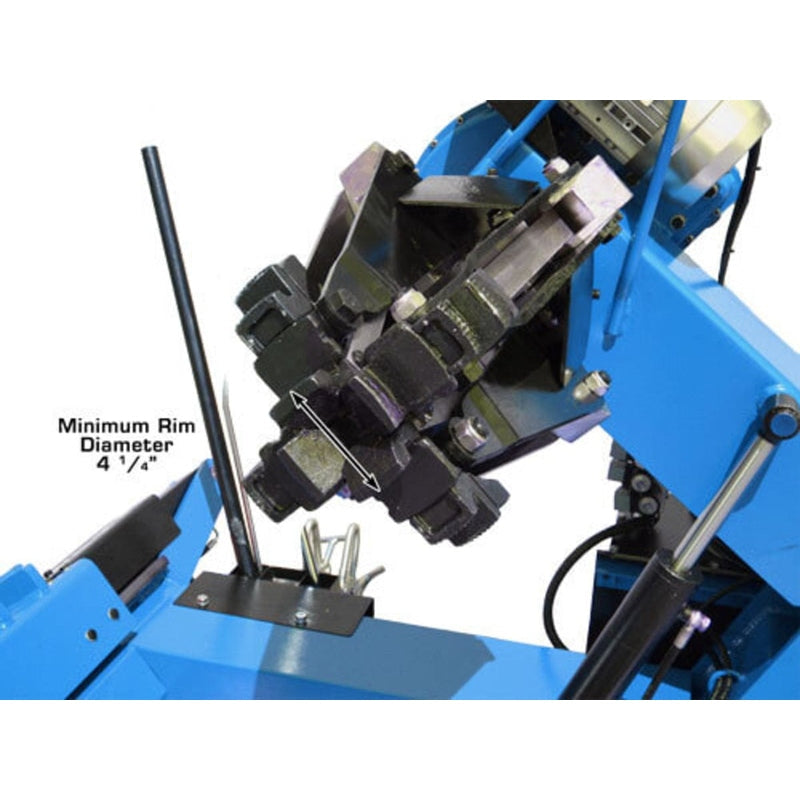

Electric/Hydraulic Self-Centering Four-Jaw Chuck
-
Five rim locking positions for secure clamping
-

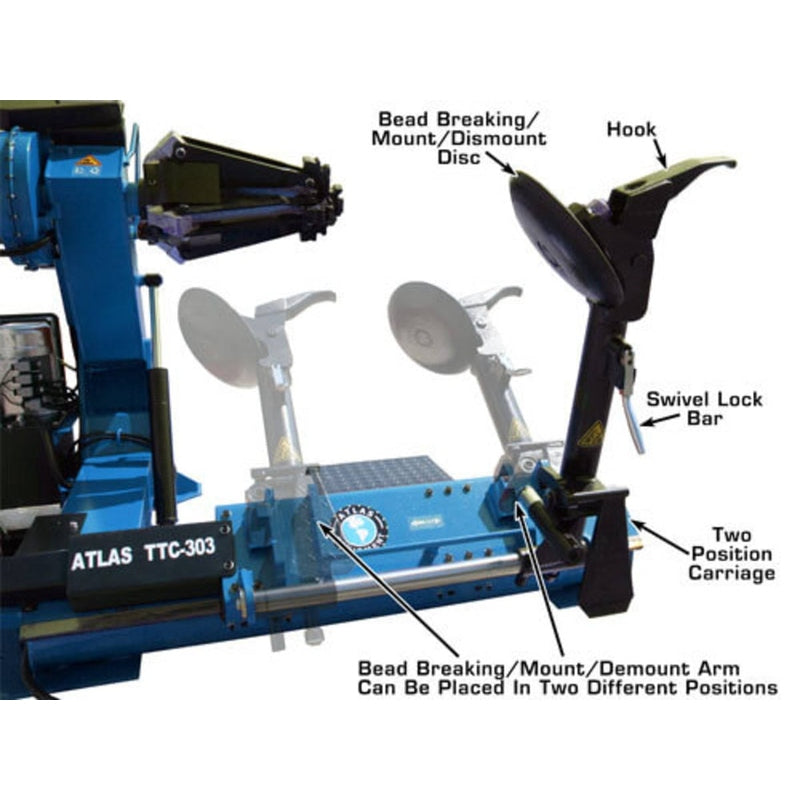

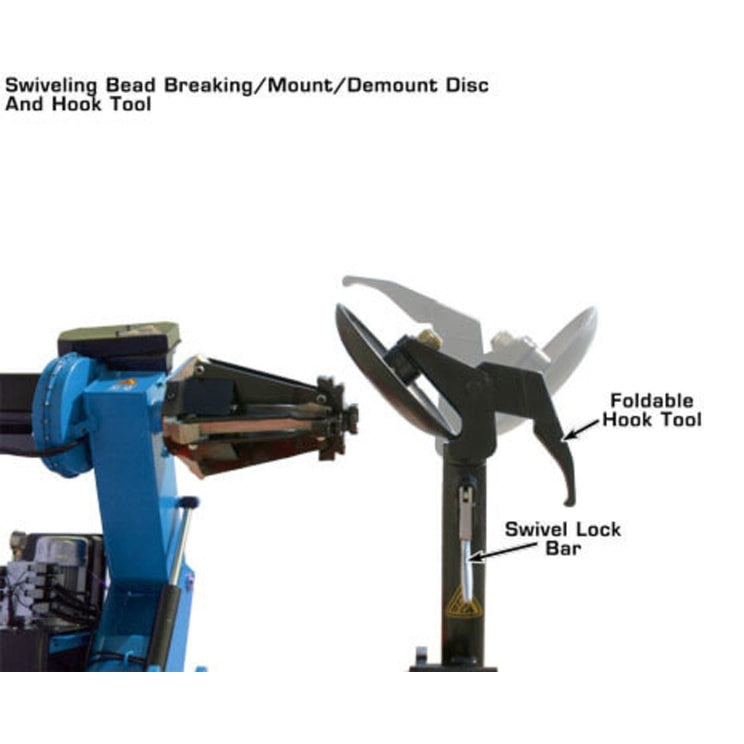

Manual mount/demount head and bead breaker for control and stability
-

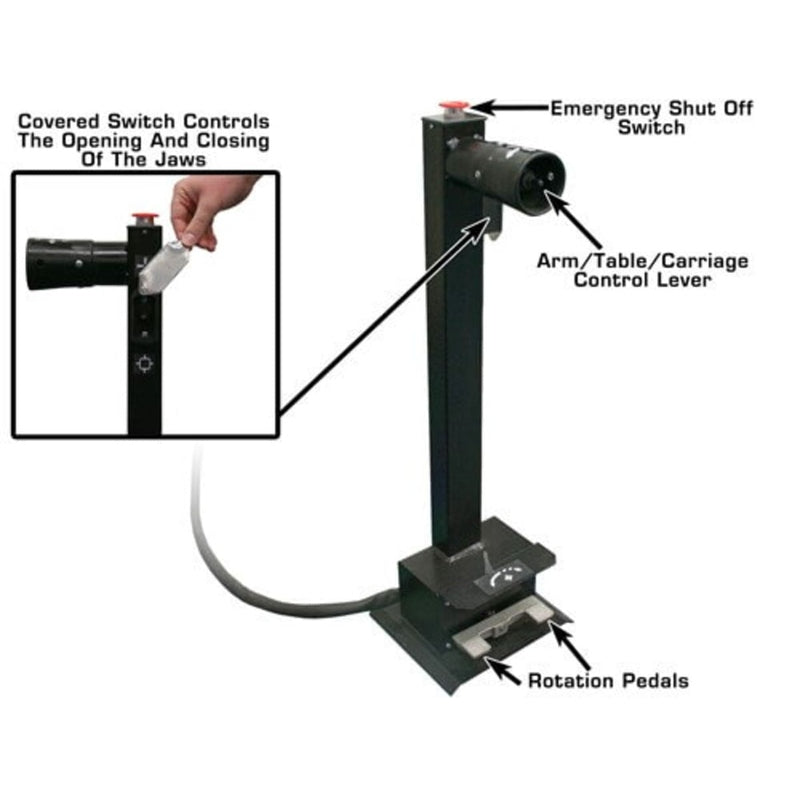

Wired mobile control unit for convenient operation
-

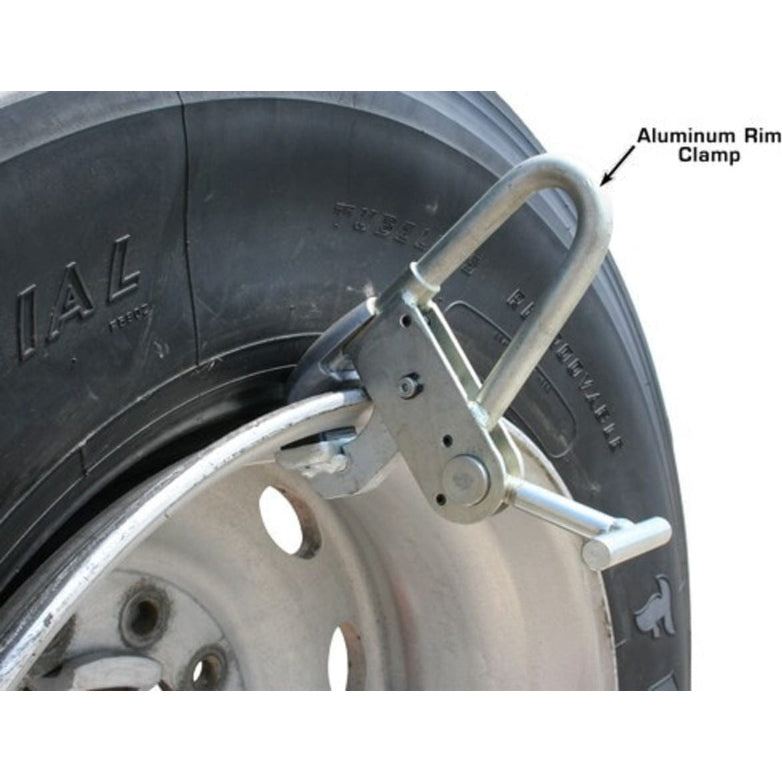

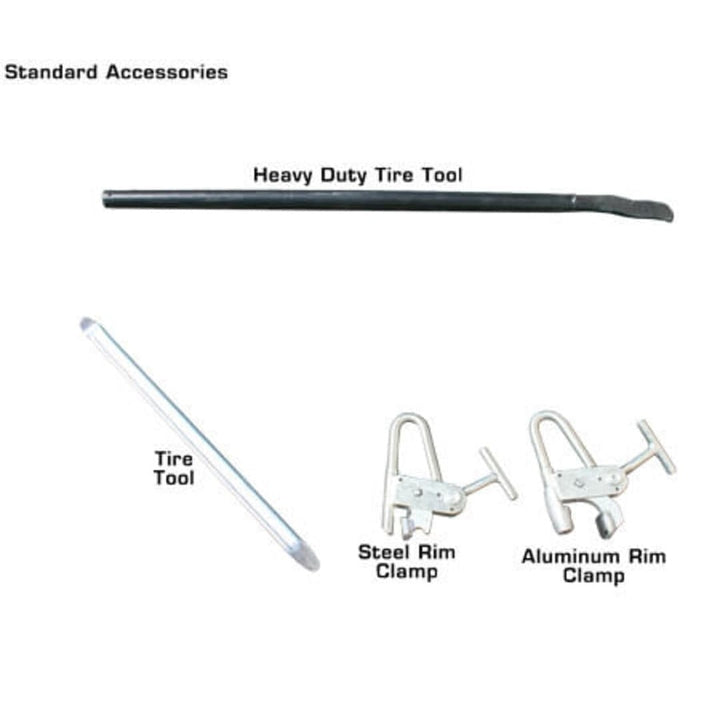

Includes rim clamps for both steel and alloy wheels
-

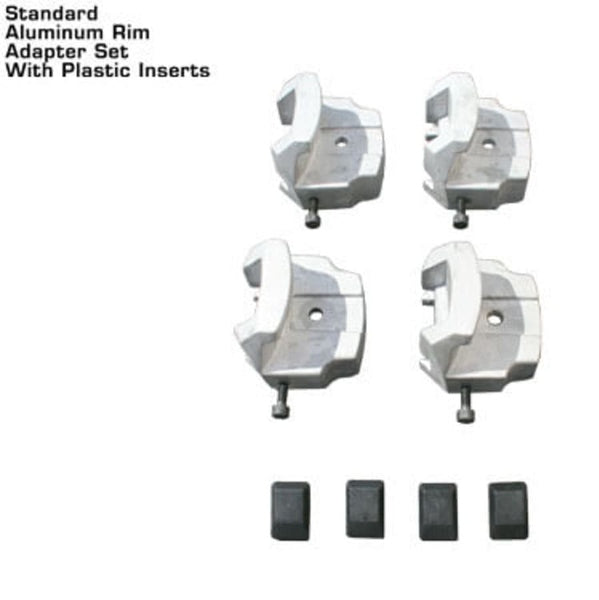

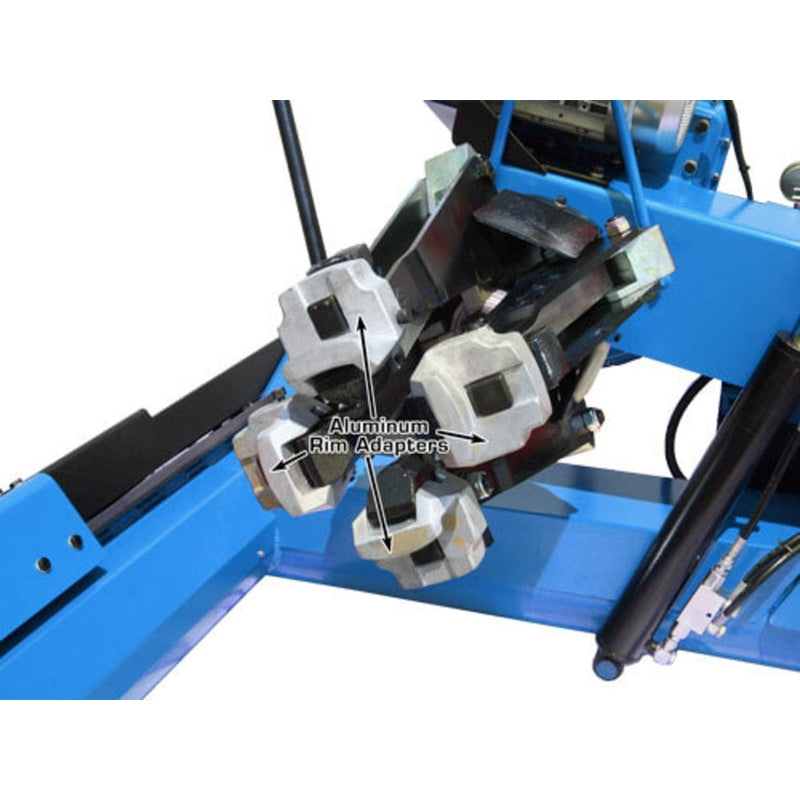

Alloy rim adapter set with protective plastic inserts
-
Heavy-duty tire tools included
-
Single-piece frame construction with a reinforced floor plate for rigidity
-
1-Year Parts-Only Warranty

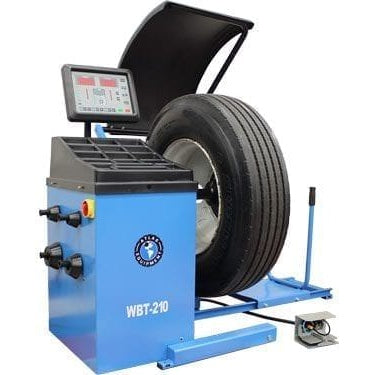

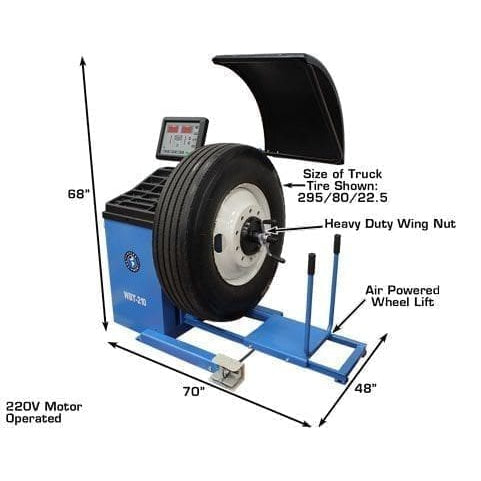

Atlas® WBT-210 Computer-Controlled Wheel Balancer
-
Balances everything from 14" car wheels to 300 lb. semi-truck tires
-

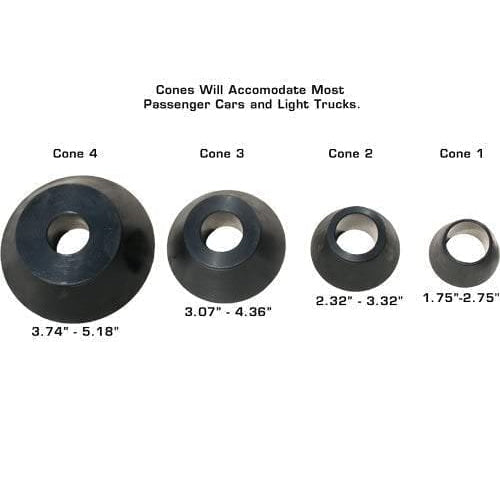

Cone and spacer sets for both light and heavy-duty wheels
-
Plastic quick-release nut and heavy-duty steel wing nut included
-

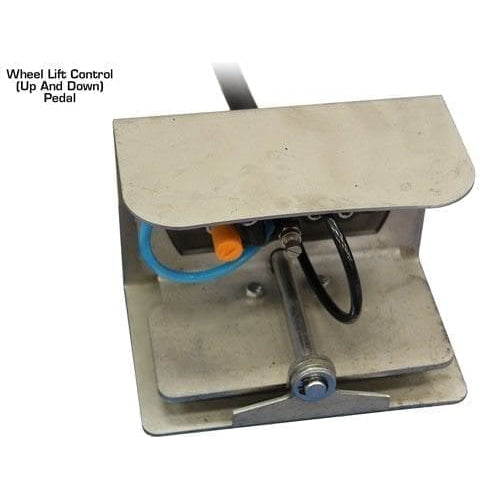

Pneumatic wheel lift for effortless handling (requires external air supply)
-
Automatic start/stop when the hood is lowered or raised
-

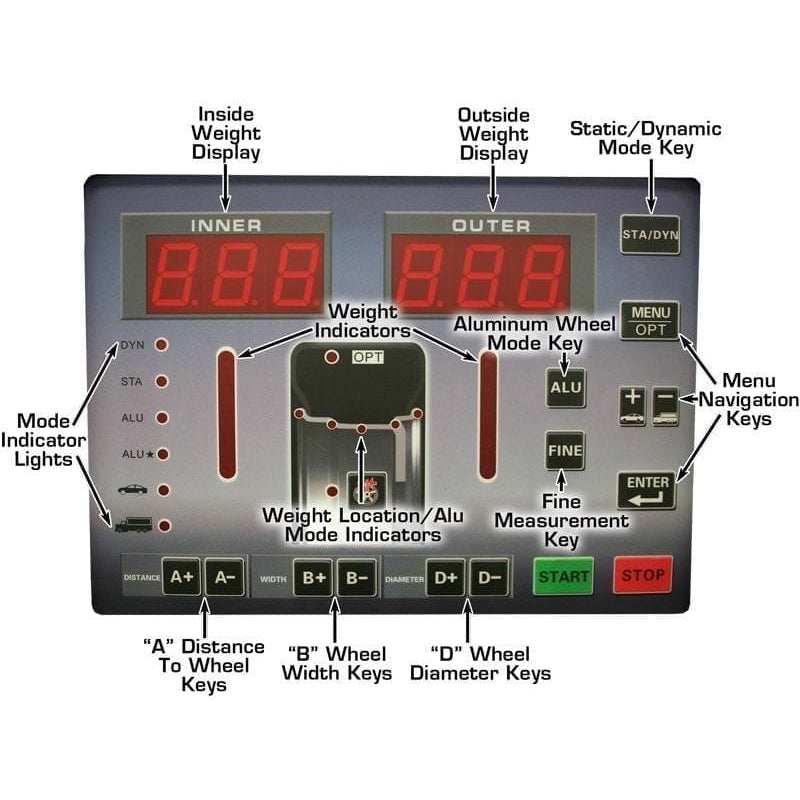

Static and dynamic balancing modes
-
Rapid optimization (OPT) for faster, more accurate balancing
-
Self-diagnosis and self-calibration functions
-
Displays in grams/ounces and mm/inches
-
Exceptional stability and accuracy in unbalance readings
-

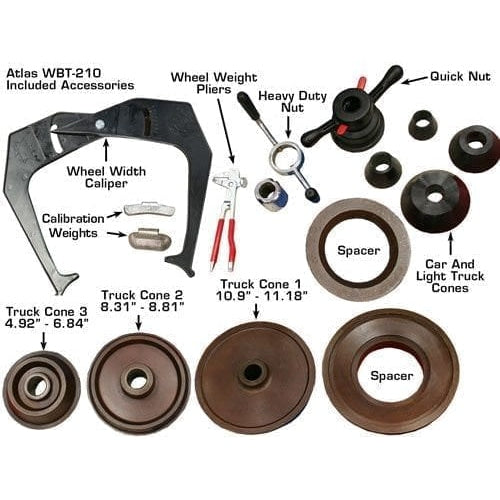

Includes wheel weight pliers and width calipers
-
Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty
Specifications
Atlas® TTC303
| Specification | Value |
|---|---|
| Rim Clamping Range | 14" – 46" |

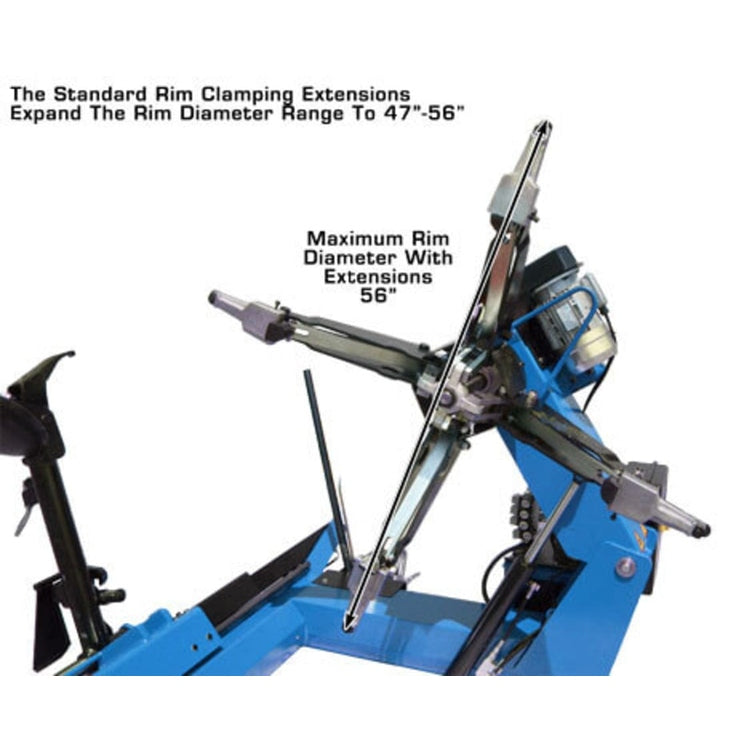

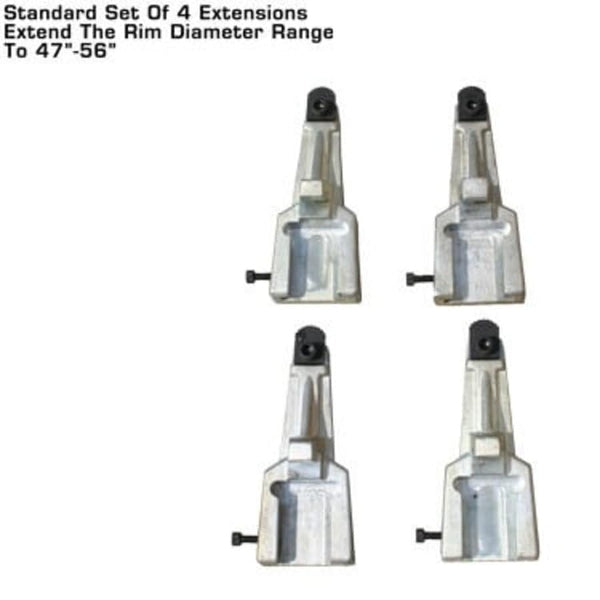

| Max Clamping Size (with Extensions) | 56" |
| Max Wheel Weight | 3,300 lbs |
| Max Tire Diameter | 90.5" (7' 6.5") |
| Max Tire Width | 42" (3' 6") |
| Clamping Power | 13,173 lbs |
| Operating Pressure | 0–1885 PSI |
| Bead Breaker Force | 5,930 lbs |
| Acoustic Pressure | <70 dBA |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Solid single-piece frame with floor plate |
| Hydraulic Motor Power | 2 HP, 220V (±5%), 1-phase, 30A breaker |
| Chuck Motor Power | 2 HP, 220V (±5%), 1-phase, 30A breaker |

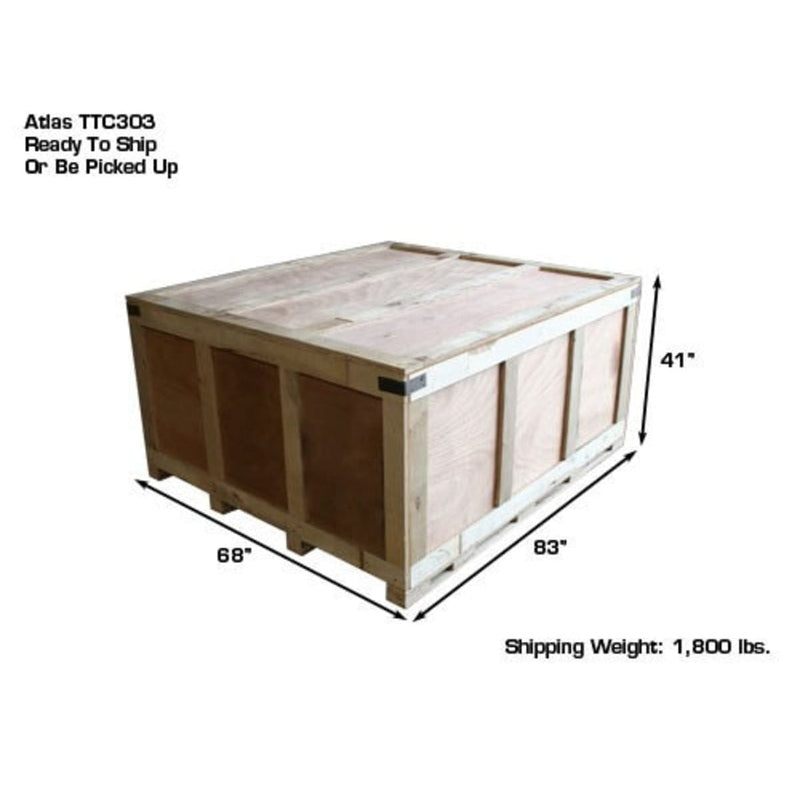

| Shipping Weight | 1,800 lbs |
Atlas® WBT-210
| Specification | Value |
|---|---|
| Max Tire Diameter | 47" |
| Rim Size Range | 10" – 32" |
| Rim Width | 1.5" – 20" |

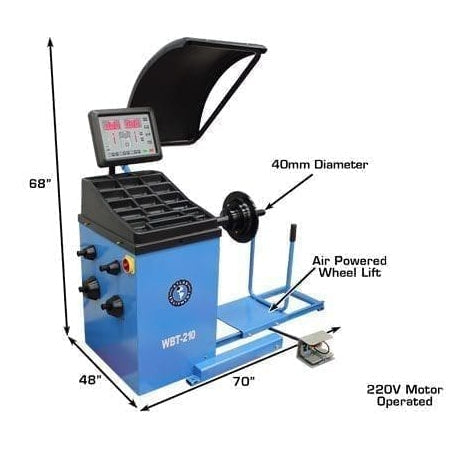

| Shaft Size | 40 mm |
| Max Wheel Weight | 440 lbs |
| Balancing Speed | 150 RPM (Car/Light Truck) / 90 RPM (Truck) |
| Accuracy | 1 g (Car/Light Truck) / 10 g (Truck) |
| Weight Position Resolution | 1.4° |
| Data Entry | Manual for all dimensions |
| Measurement Units | Standard or Metric |
| Self-Calibration | Yes |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (Do not exceed 140 PSI) |
| Power Supply | 220V (±5%), 1-phase, 30A breaker |

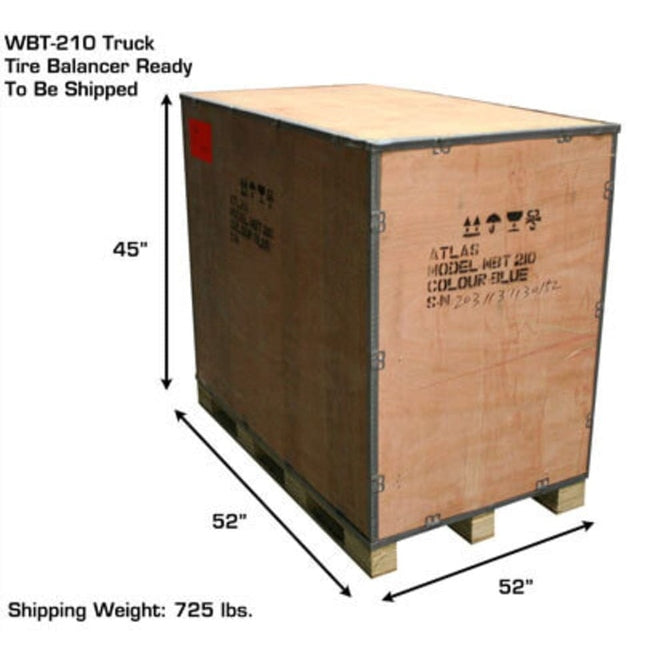

| Shipping Weight | 725 lbs |
The Atlas® TTC303 + WBT-210 Combo delivers unmatched strength, precision, and reliability — making it the ideal setup for professional tire shops, fleet service operations, and heavy-duty repair facilities.
