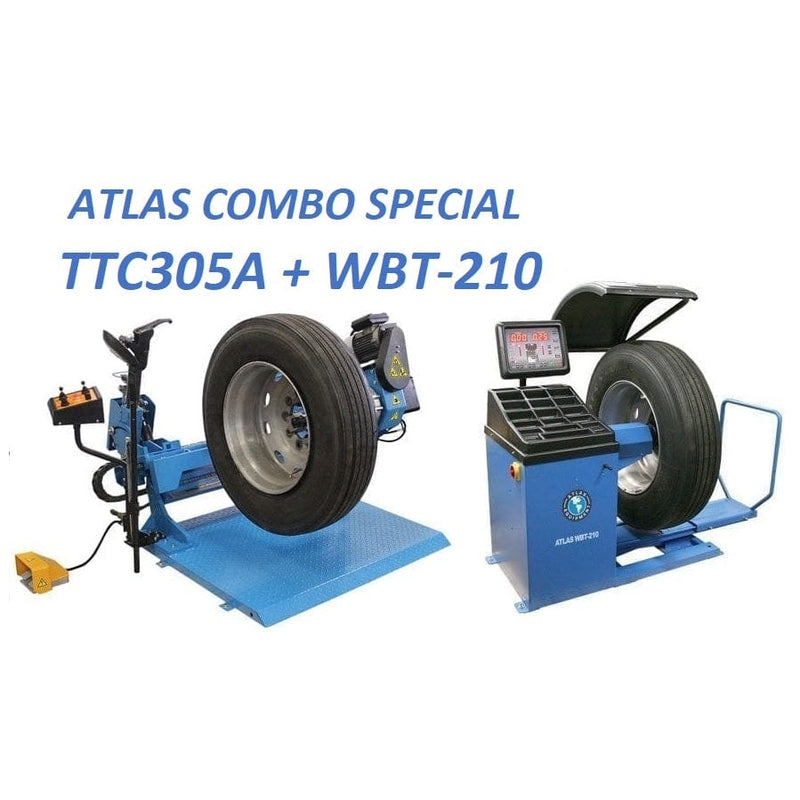

The Atlas® TC305A Truck Tire Changer and WBT-210 Wheel Balancer Combo delivers professional-grade power and precision for heavy-duty wheel service. Designed for versatility and durability, this package is ideal for commercial shops servicing everything from light vehicles to large trucks and buses.

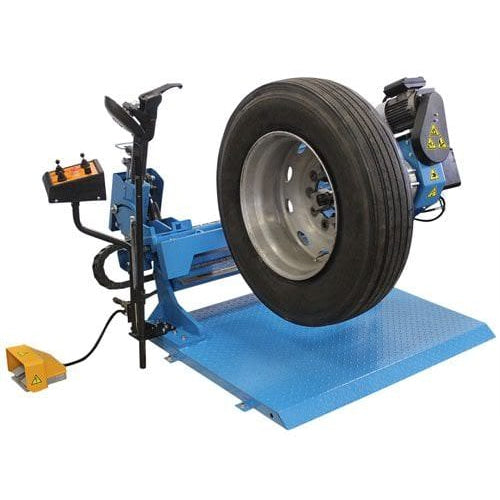

The Atlas® TC305A Automatic Truck Tire Changer is engineered to handle rim bore sizes from 8" to 26" and tire diameters exceeding 55", with a maximum tire width of 30.5". Built through a collaboration between a leading Italian manufacturer and a top Asian engineering team, the TC305A combines advanced automatic functionality with proven reliability. It features a hydraulic self-centering chuck, automatic bead tool movement, and five adjustable rim-locking positions for maximum efficiency and safety.
The Atlas® WBT-210 Heavy Duty Wheel Balancer complements the changer perfectly, accommodating everything from 14" passenger rims to 300-pound truck tires. This computerized balancer is built for precision, stability, and ease of use, offering both static and dynamic modes along with rapid optimization, self-calibration, and multiple display options. Its heavy-duty 40mm shaft and included truck adapters make it ideal for balancing a wide range of wheel types, from light vehicles to semi-trailers.
Features

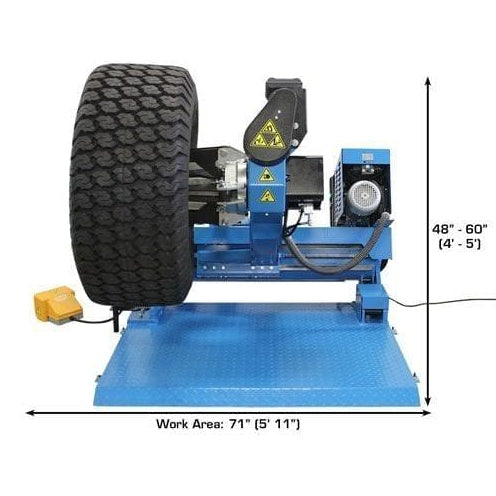

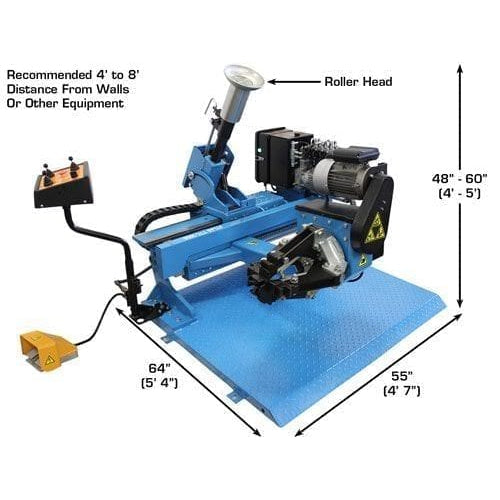

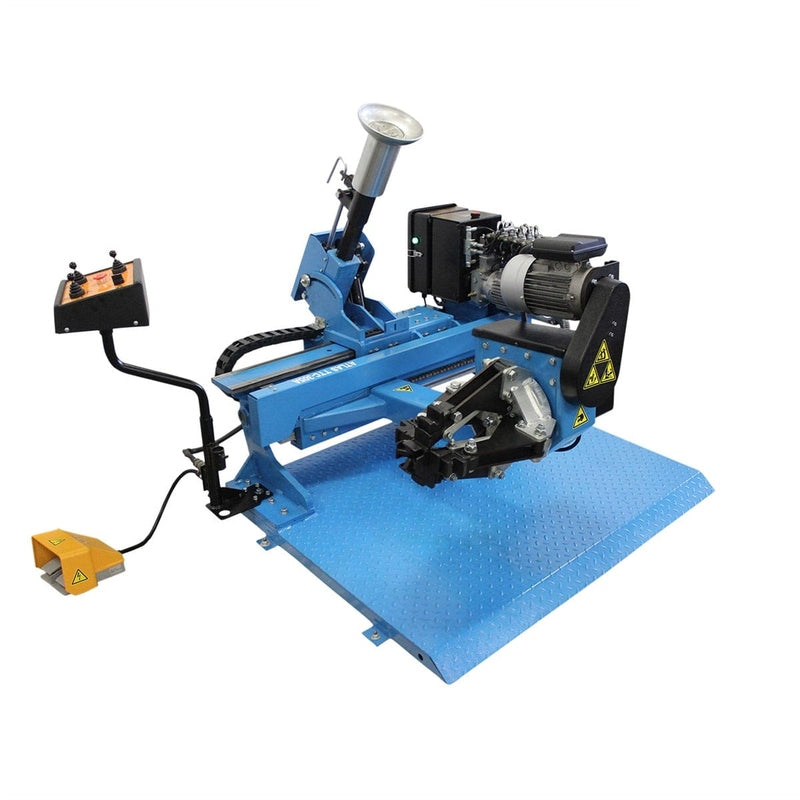

Atlas® TC305A Truck Tire Changer
-
Fully automatic design for efficient operation
-
Handles rims from 8"–26" and tires over 55" in diameter
-
Supports tires up to 30.5" wide
-
Automatic movement and positioning of bead tool, carriage, and chuck arm
-

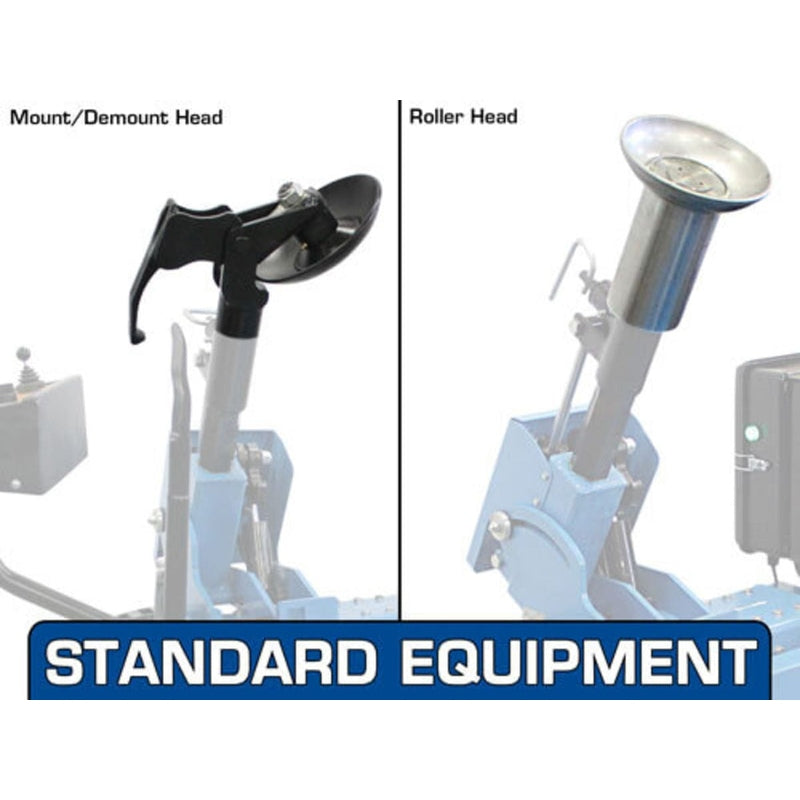

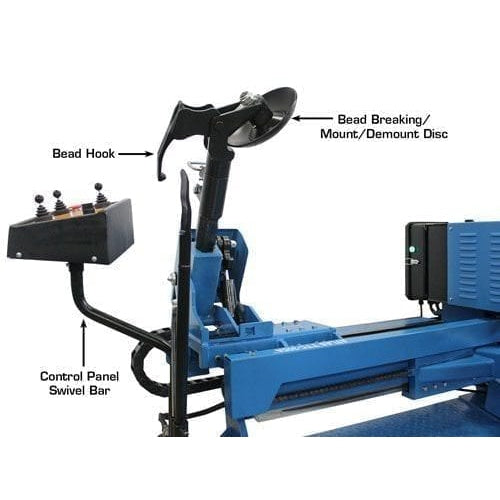

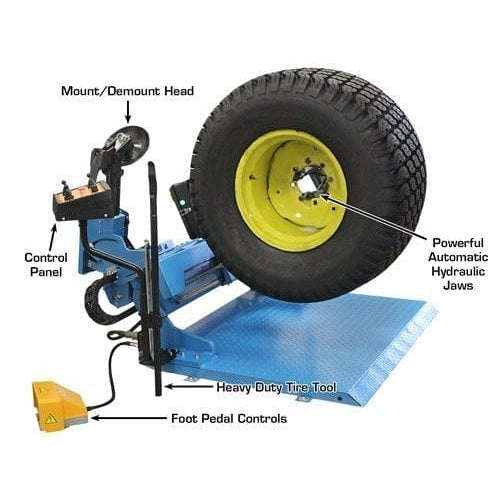

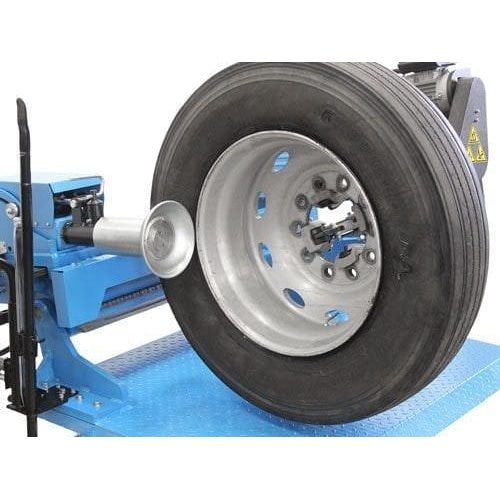

Powerful bead breaker and interchangeable mount/demount heads
-

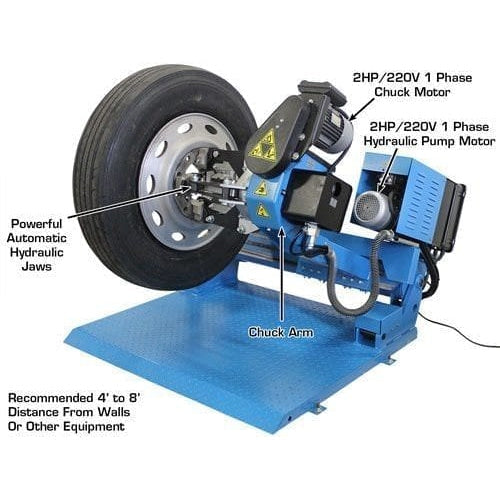

Electric/hydraulic self-centering 4-jaw chuck
-
Five adjustable rim locking positions
-

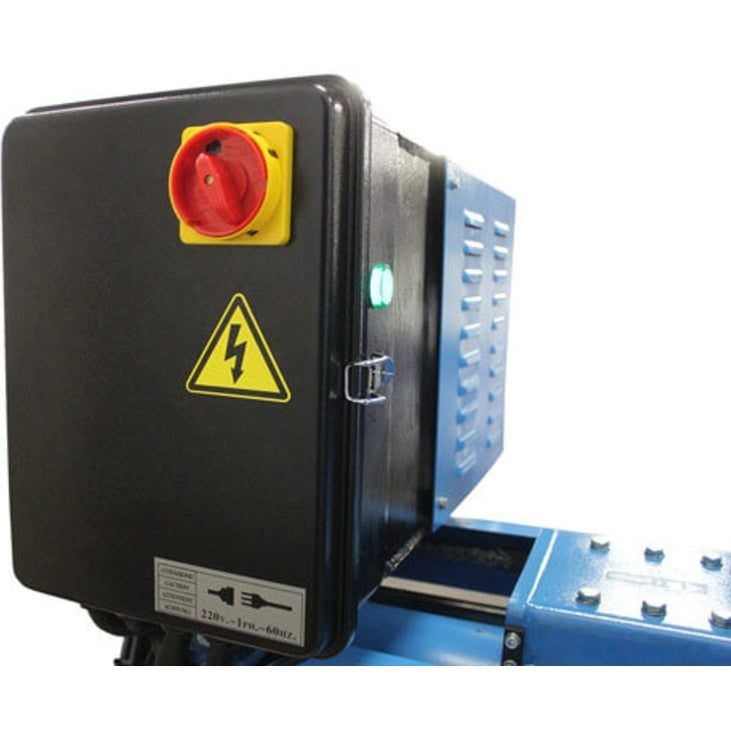

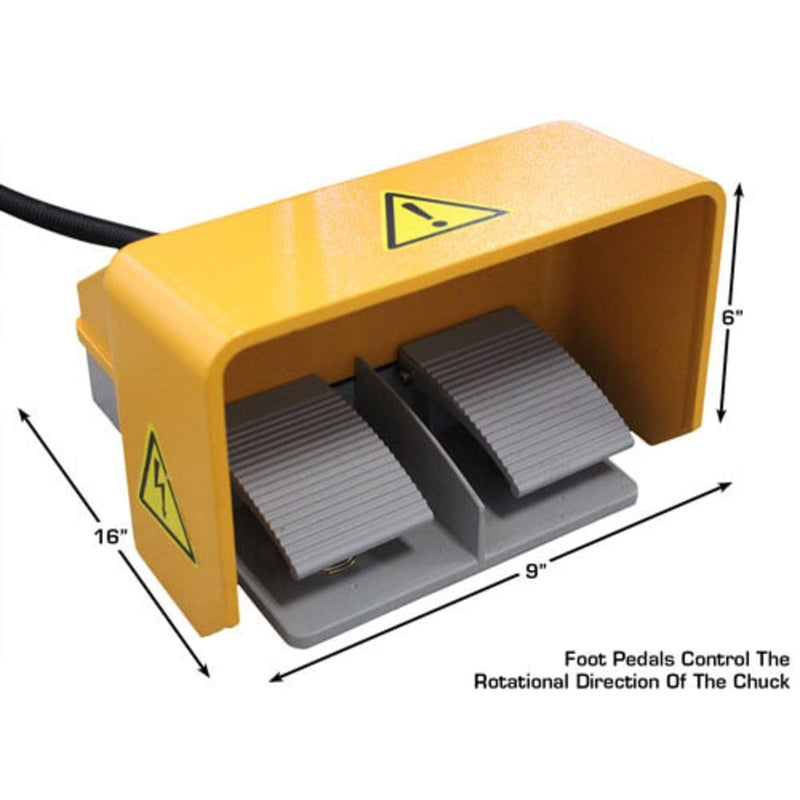

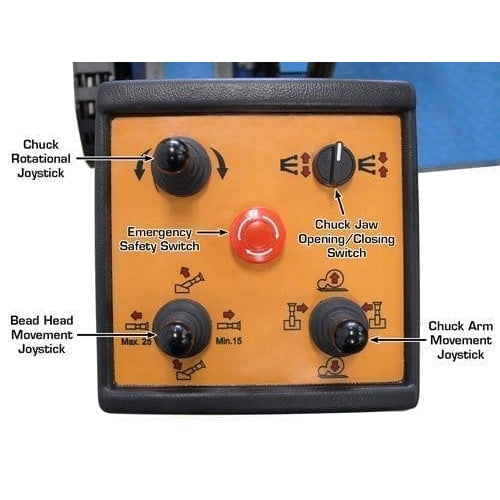

Mounted control unit with foot pedal operation
-

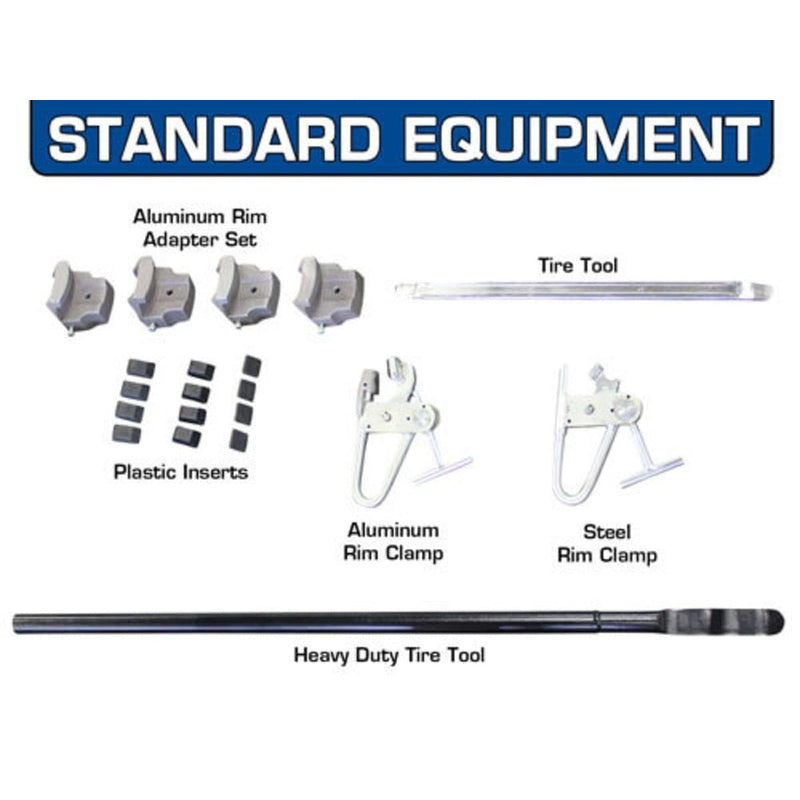

Heavy-duty tire tools and rim clamps for steel and alloy wheels included
-
Alloy rim adapter set with plastic inserts
-
1-Year Parts-Only Warranty

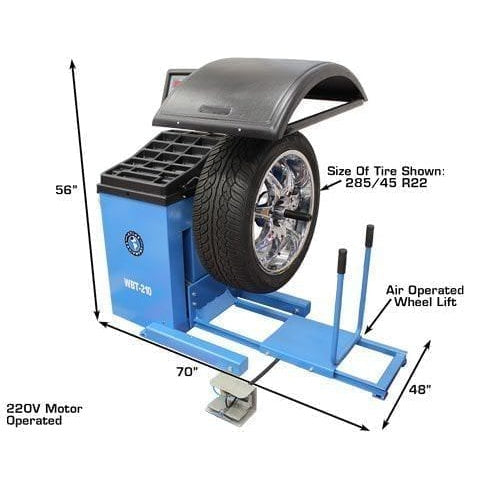

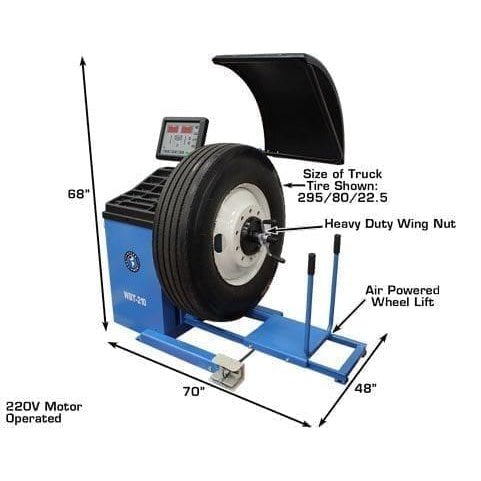

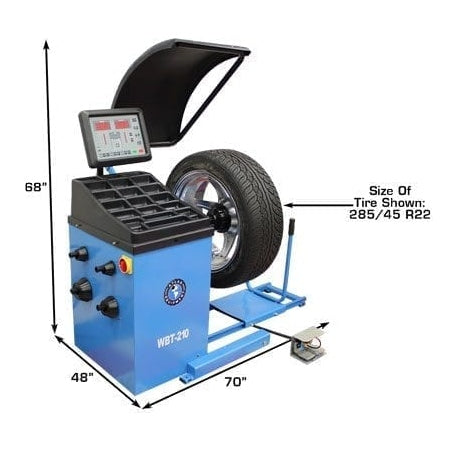

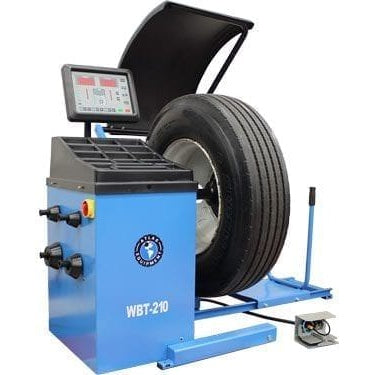

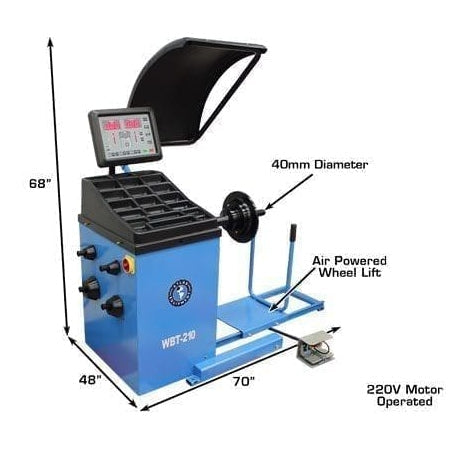

Atlas® WBT-210 Heavy Duty Wheel Balancer
-
Computer-controlled spin balancer for car, light truck, and semi-truck wheels
-

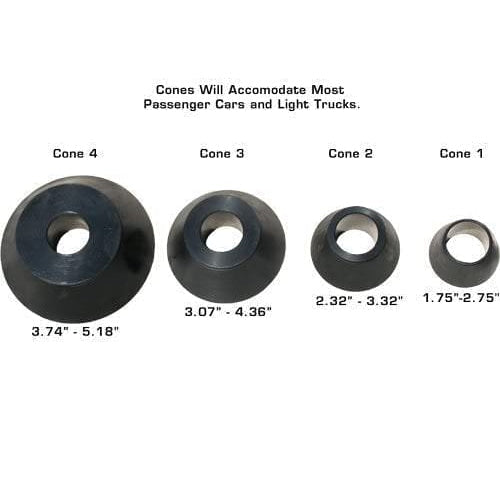

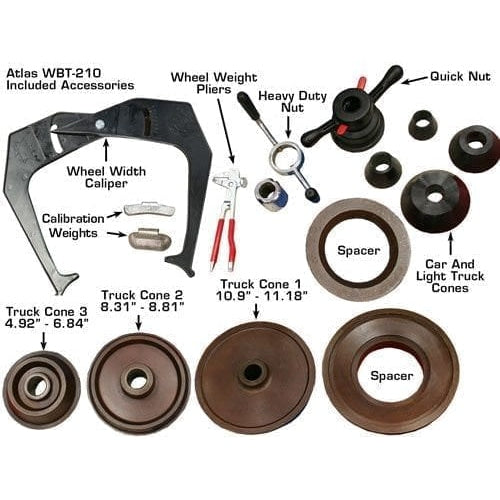

Includes cone sets for automotive and heavy-duty applications
-
Plastic quick-release and steel wing nuts included
-

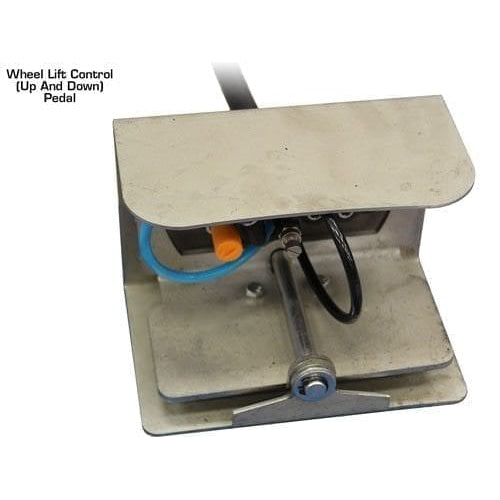

Pneumatic wheel lift (external air source required)
-
Automatic start/stop when hood is raised or lowered
-

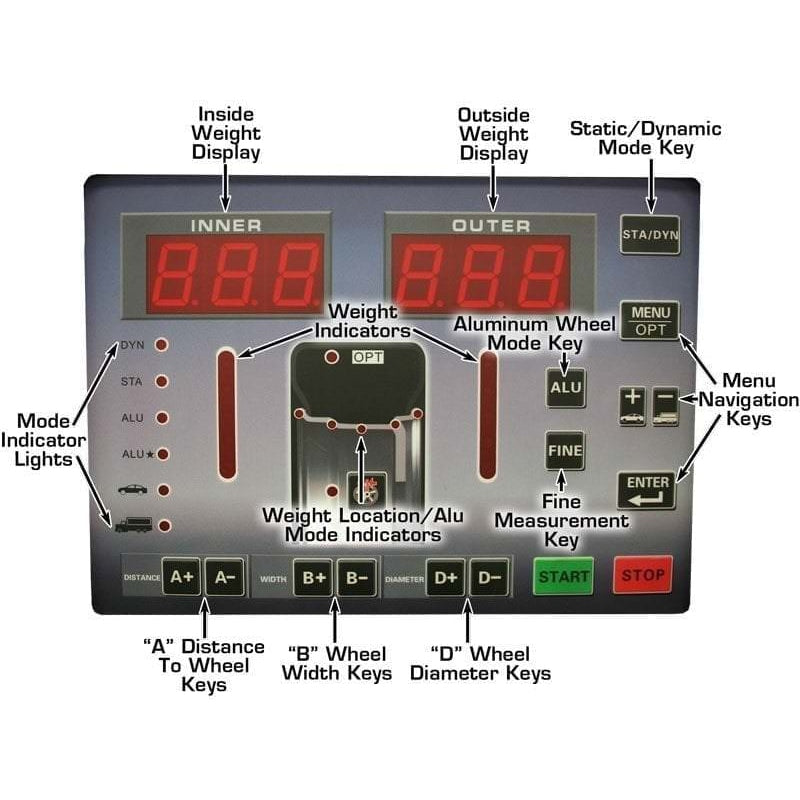

Static and dynamic balancing modes with rapid optimization (OPT)
-
Self-diagnosis and self-calibration functions
-
Dual-unit measurement in grams/ounces and mm/inches
-
High stability for accurate unbalance detection
-
Includes wheel weight pliers and calipers
-
1-Year Parts-Only Warranty
Specifications
Atlas® TC305A
| Specification | Value |
|---|---|

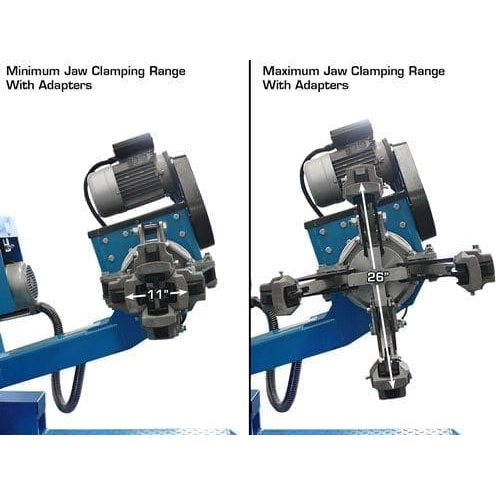

| Rim Clamping Range | 13" – 26" |
| Minimum Clamping Size (with Alloy Adapters) | 8" |
| Max Wheel Weight | 838 lbs |
| Max Tire Diameter | 55" |
| Max Tire Width | 30.5" |
| Clamping Power | 6,600 lbs |
| Operating Pressure | 0–1885 PSI |
| Bead Breaker Force | 3,990 lbs |
| Acoustic Pressure | <70 dBA |
| Tool Arm/Head Positioning | Automatic |
| Motor Power (Hydraulic) | 2 HP, 220V 1PH |
| Motor Power (Chuck) | 3 HP, 220V 1PH |
| Construction | Solid single-piece frame with floor plate |

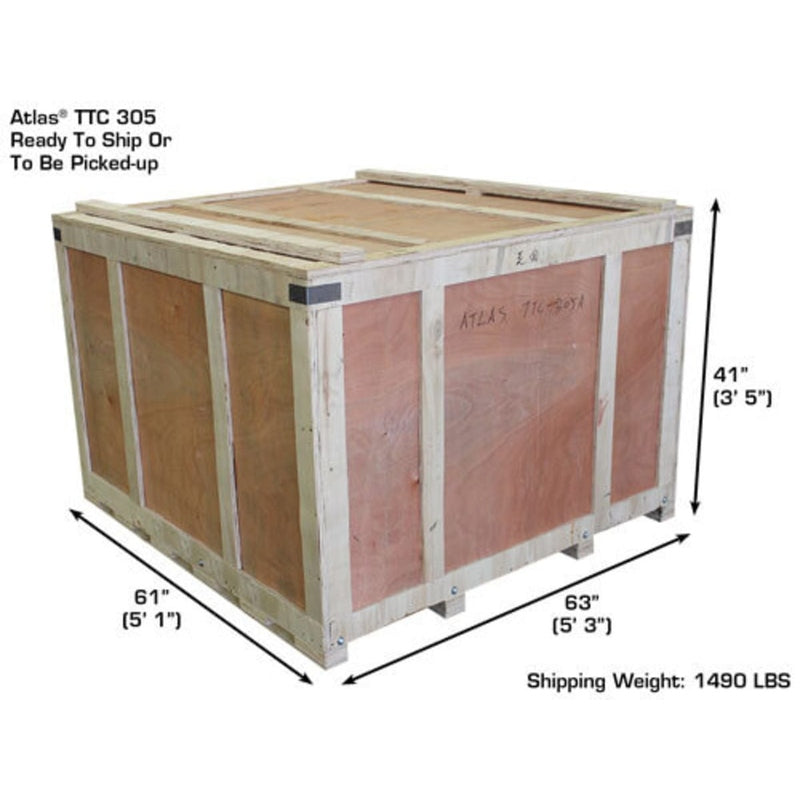

| Shipping Weight | 1,490 lbs |
Atlas® WBT-210
| Specification | Value |
|---|---|
| Max Tire Diameter | 47" |
| Rim Size Range | 10" – 32" |
| Rim Width | 1.5" – 20" |
| Shaft Diameter | 40 mm |
| Max Wheel Weight | 440 lbs |
| Balancing Speed | 150 RPM (Car/Light Truck), 90 RPM (Truck) |
| Accuracy | 1 g (Car/Light Truck), 10 g (Truck) |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (max 140 PSI) |
| Power Supply | 220V 1PH |

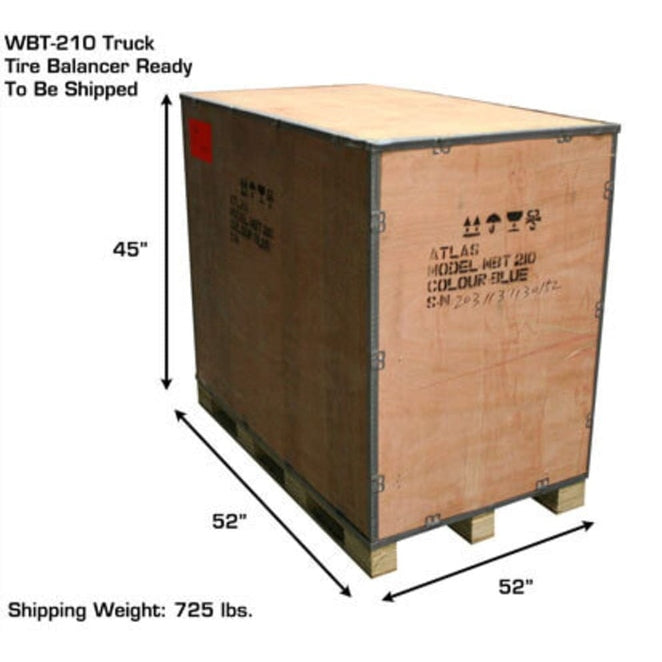

| Shipping Weight | 725 lbs |
This combo package delivers unmatched value for commercial operations seeking reliability, power, and precision in heavy-duty tire service.
