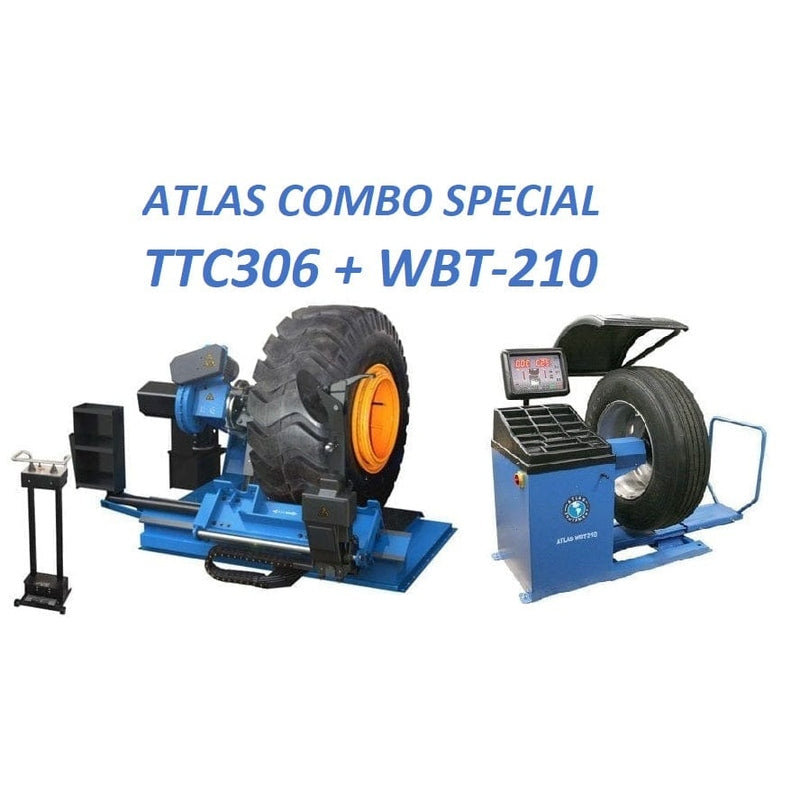

The Atlas® TTC306 Truck Tire Changer and WBT-210 Wheel Balancer Combo is a professional-grade package built for shops handling everything from standard truck tires to oversized agricultural and earthmover applications. Designed for strength, automation, and precision, this combo is ideal for high-volume operations that demand efficiency and reliability.

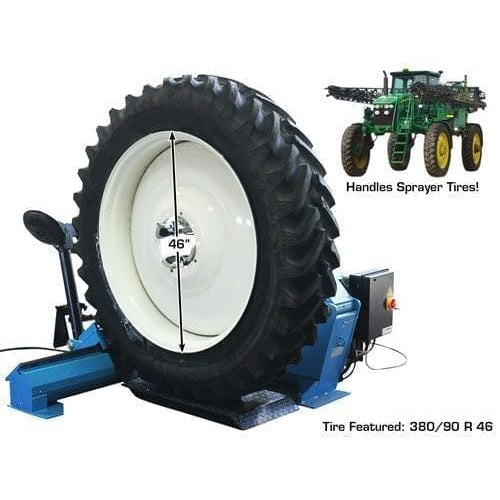

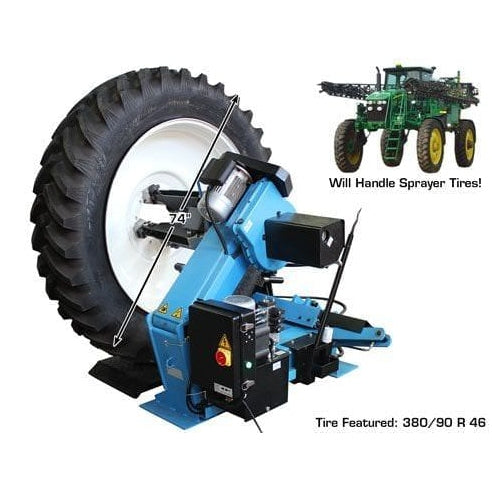

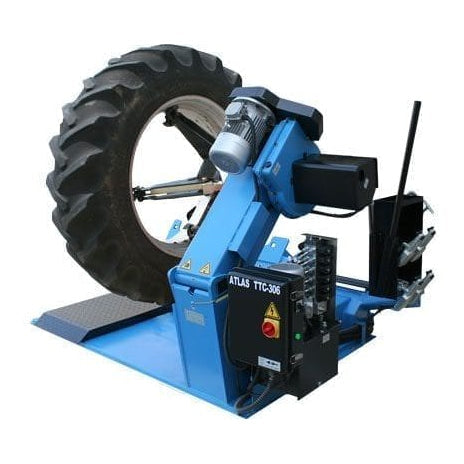

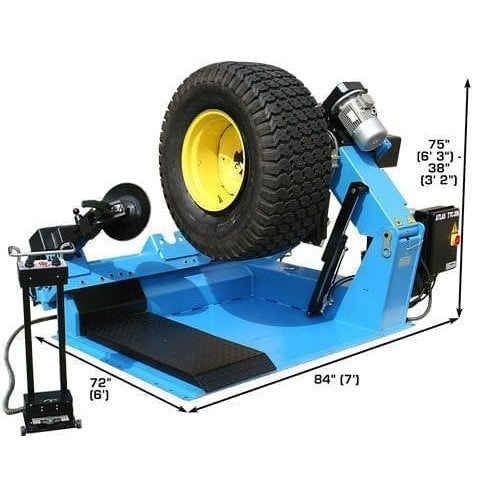

The Atlas® TTC306 Deluxe Automated Truck Tire Changer expands upon the popular TTC303 model with enhanced automation and greater capacity. Featuring a remote control system for automatic bead breaker, carriage, and mount/demount head positioning, this super-duty machine can handle rims from 14" to 56" and tire diameters up to 97", with a maximum tire width of 53". Its 2-speed hydraulic chuck with five locking positions and electric/hydraulic self-centering 4-jaw chuck ensures smooth operation on even the largest commercial tires. Built from a solid, single-piece frame, the TTC306 matches the performance of tire changers costing more than $20,000.

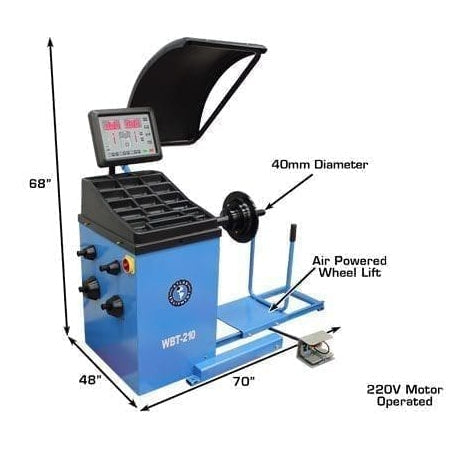

The Atlas® WBT-210 Heavy-Duty Wheel Balancer complements the changer with precision balancing capabilities. It accommodates everything from 14-inch car rims to 300-pound semi-truck tires, making it perfect for mixed fleets. The balancer features static and dynamic balancing modes, self-diagnosis, self-calibration, and rapid optimization (OPT) for superior accuracy. Its heavy-duty 40mm shaft and included adapters allow compatibility with both passenger and BUDD-style truck wheels.
Features

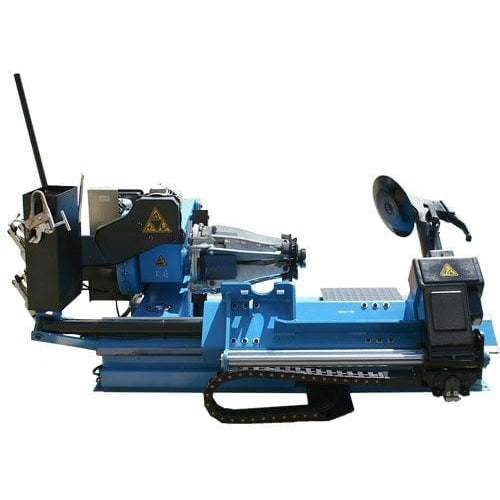

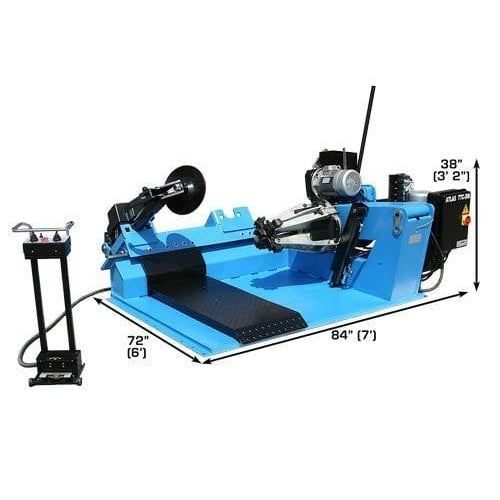

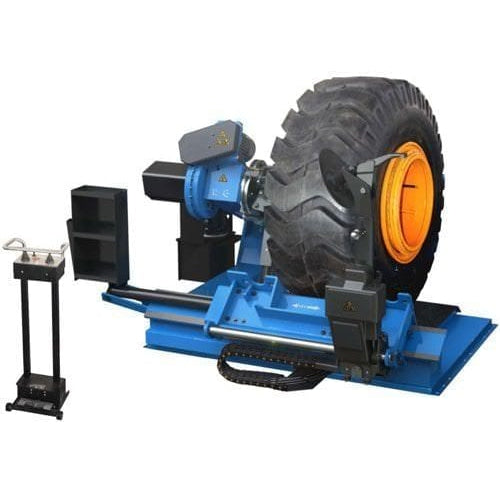

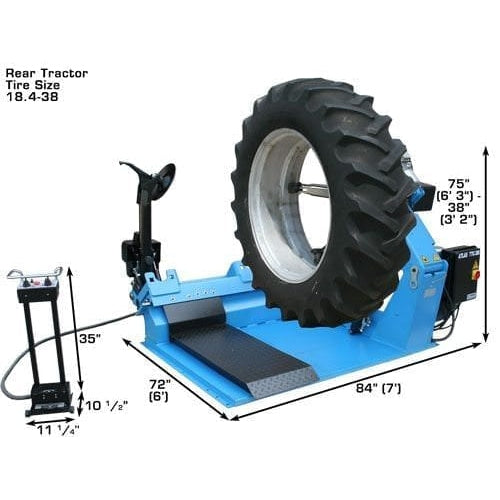

Atlas® TTC306 Deluxe Automated Truck Tire Changer
-

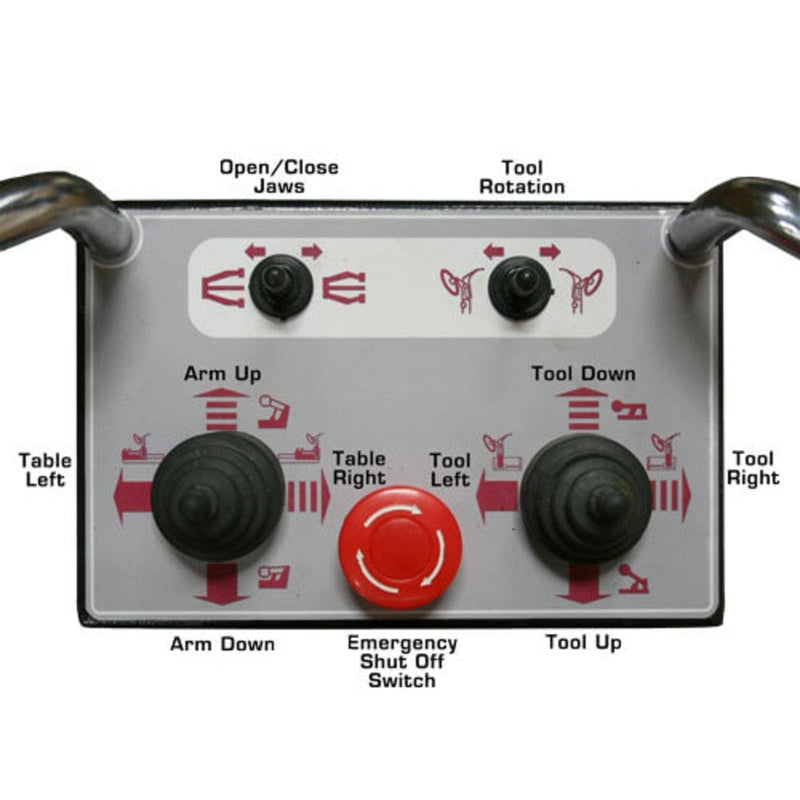

Fully automated design with remote control for bead breaker, carriage, and chuck arm movement
-
Handles rims from 14" to 56" and tires over 97" in diameter
-
Accommodates tire widths up to 53"
-
2-speed hydraulic chuck with 5 locking positions
-

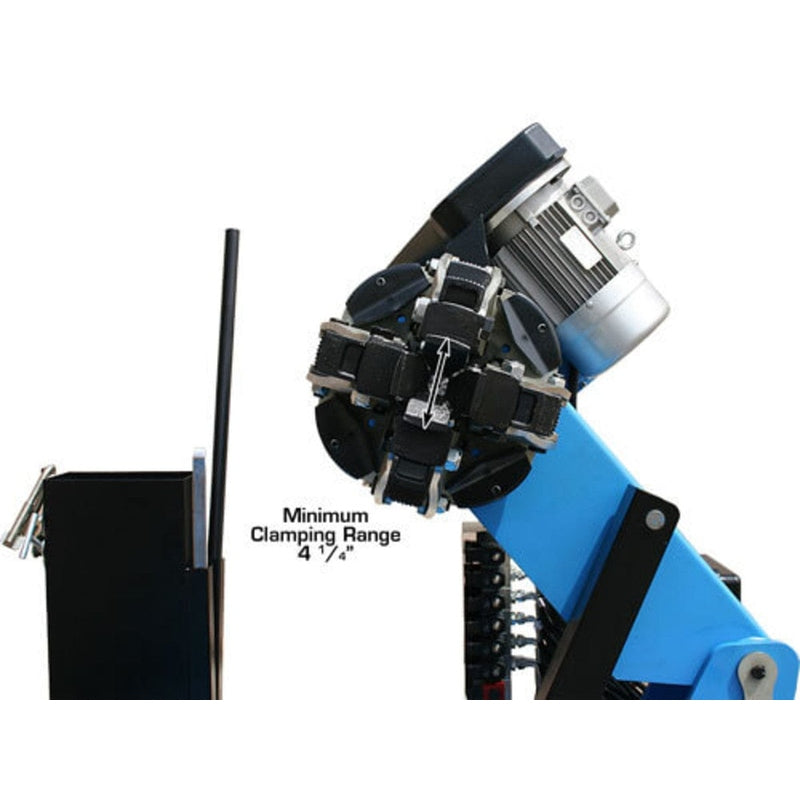

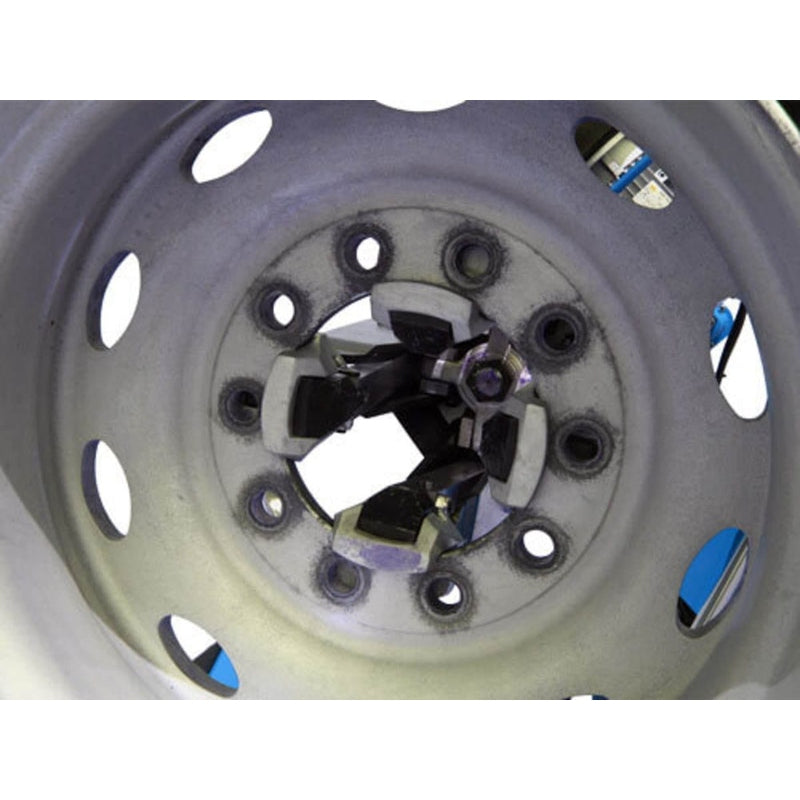

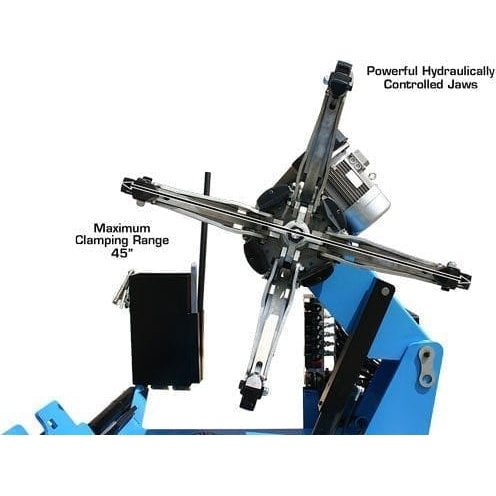

Electric/hydraulic self-centering 4-jaw chuck for secure clamping
-

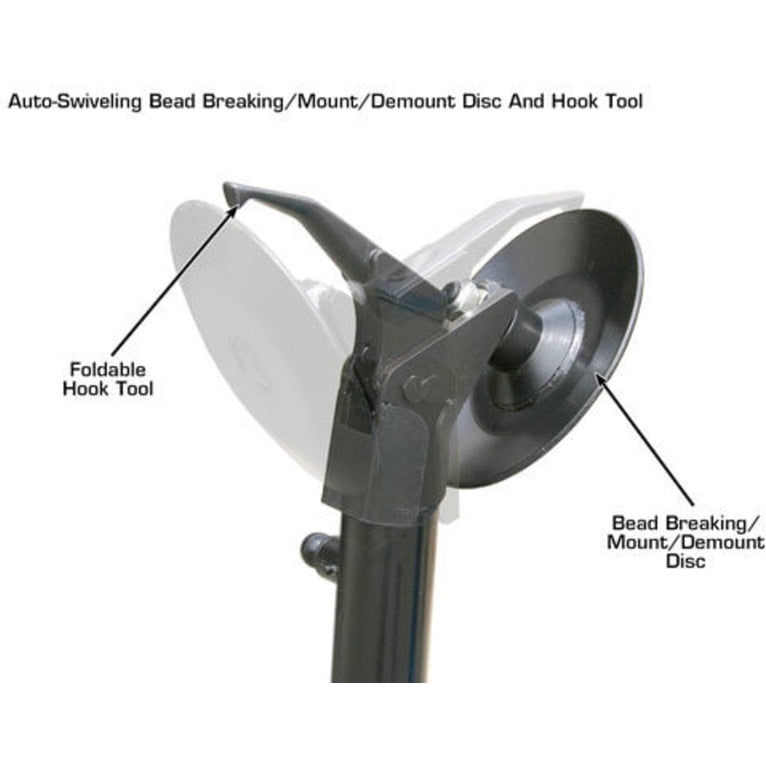

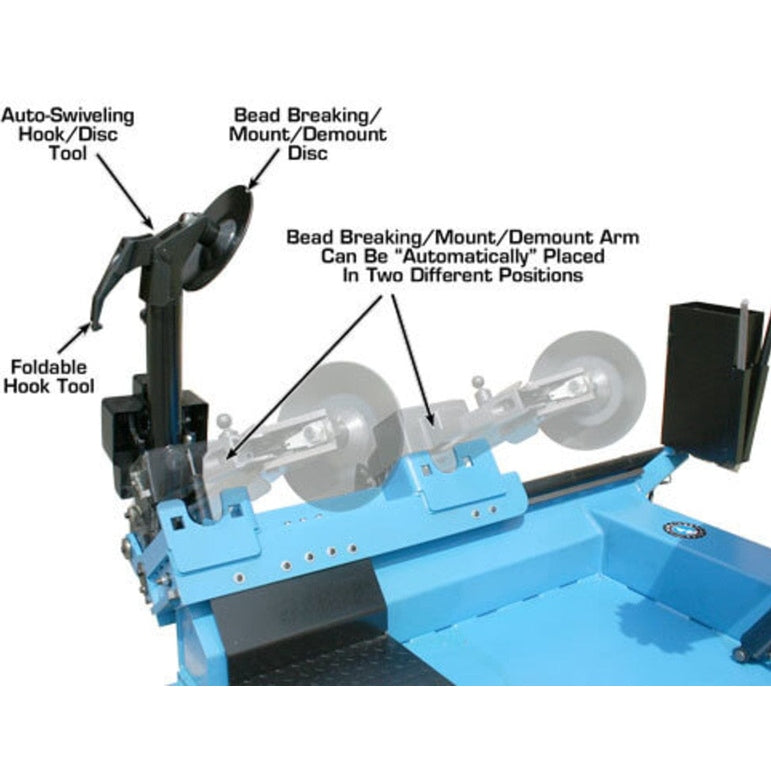

Heavy-duty bead breaker and interchangeable mount/demount heads
-

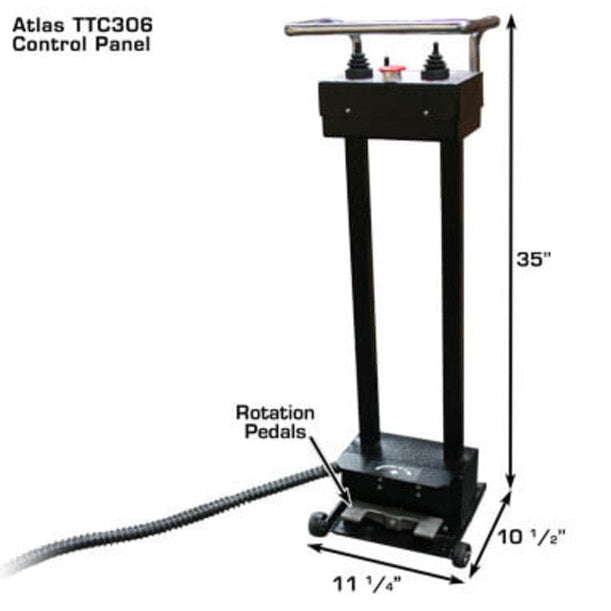

Wired mobile control unit (wireless control optional)
-

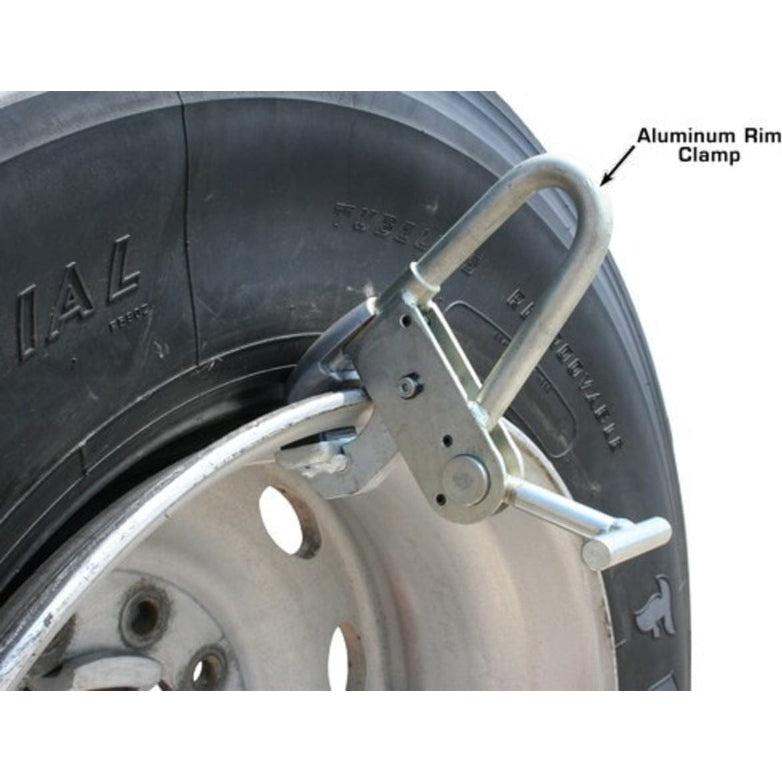

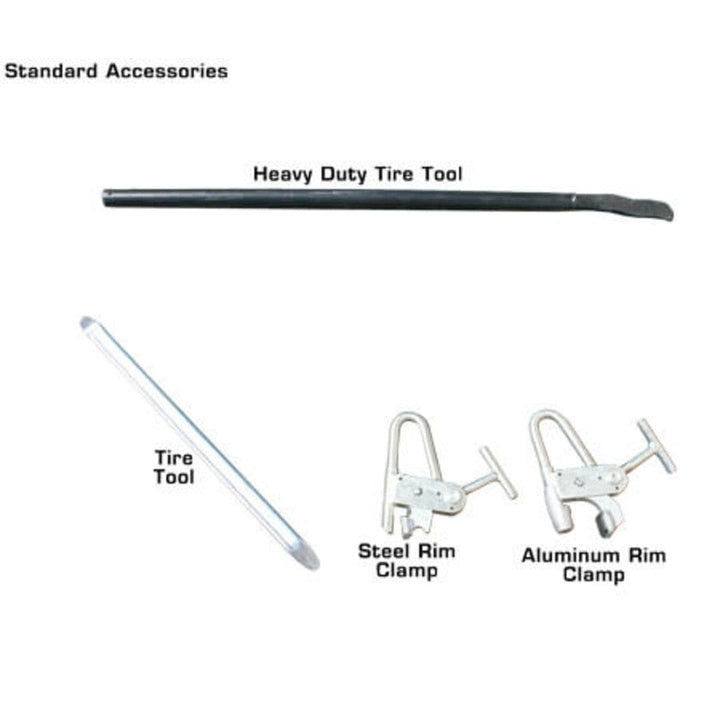

Includes rim clamps for steel and alloy wheels
-

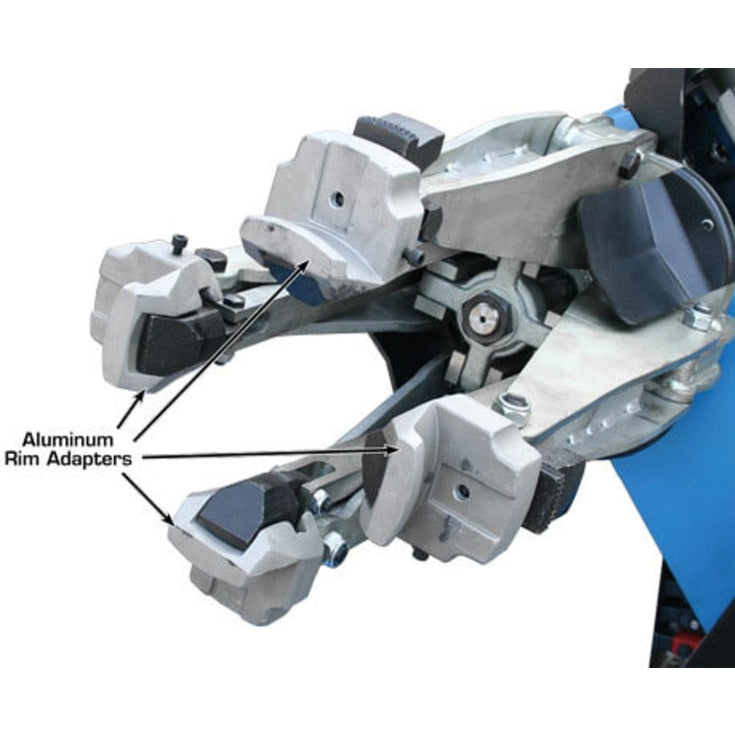

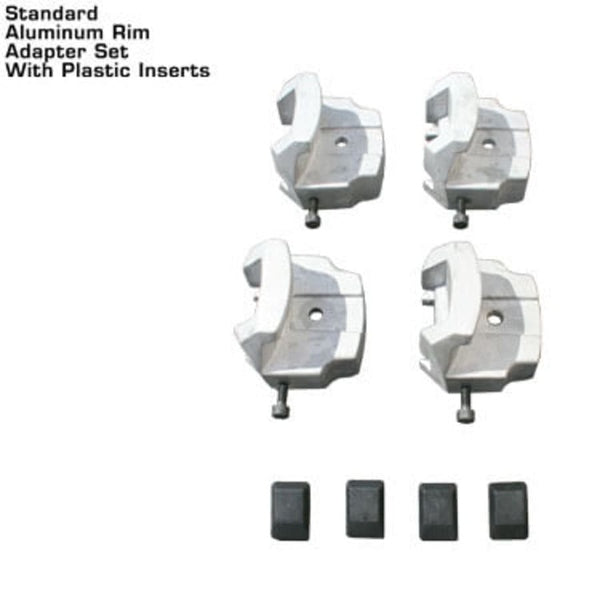

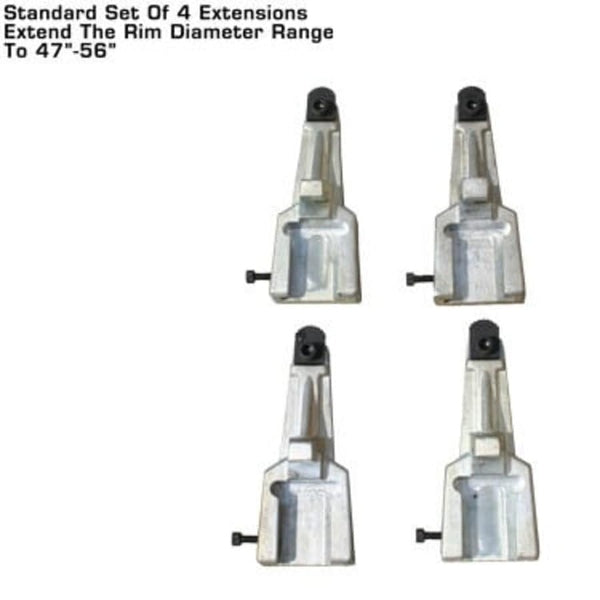

Alloy rim adapter set with plastic inserts and clamping extensions
-
Heavy-duty tire tools included
-

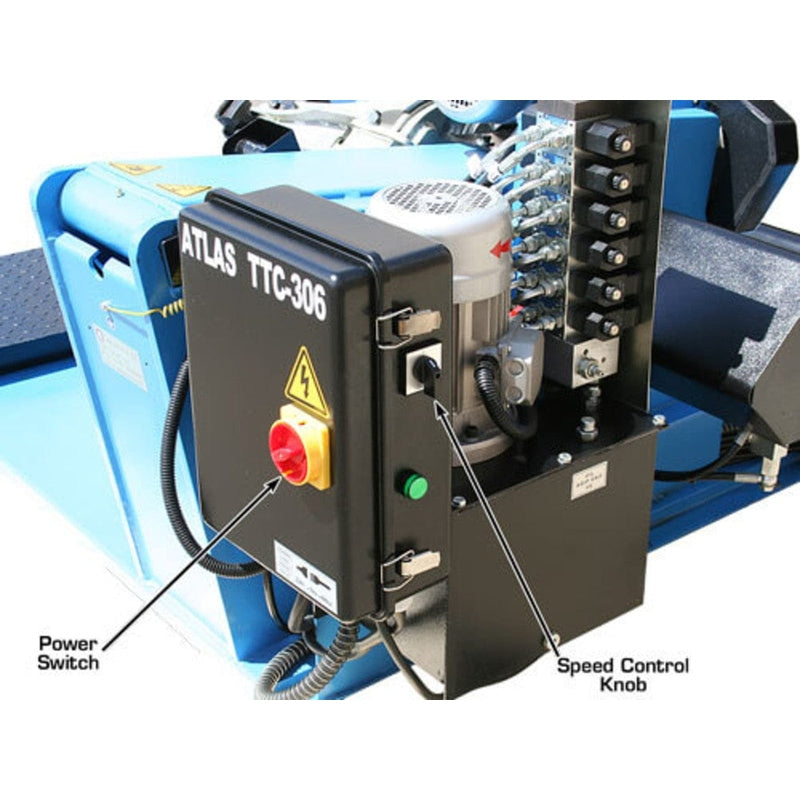

220V, 3-phase electric power
-
1-Year Parts-Only Warranty

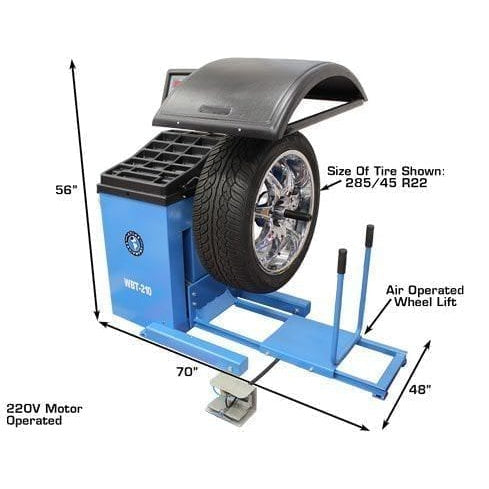

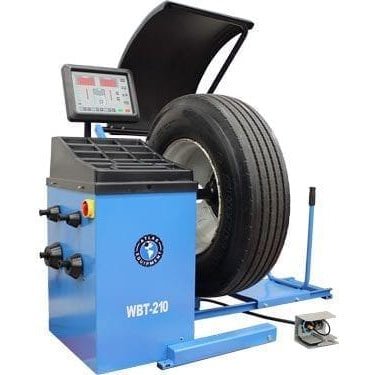

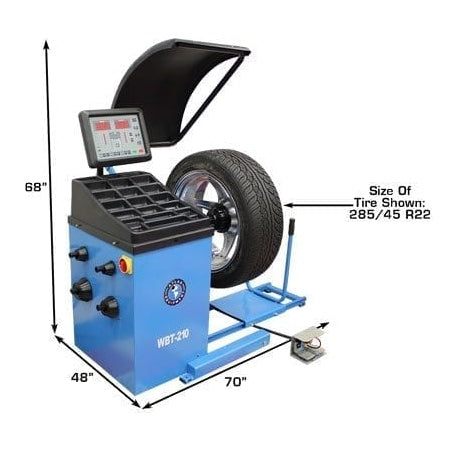

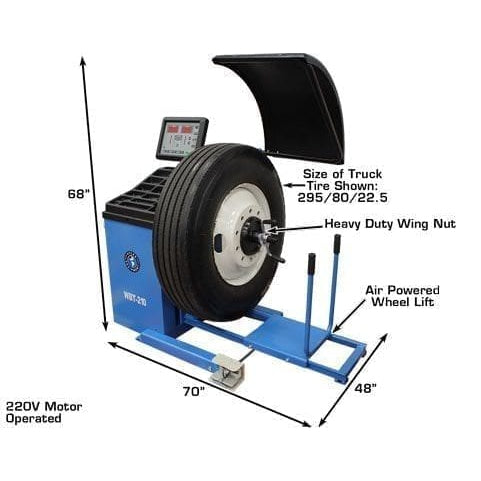

Atlas® WBT-210 Computerized Heavy-Duty Wheel Balancer
-
Computer-controlled balancing for cars, trucks, and buses
-

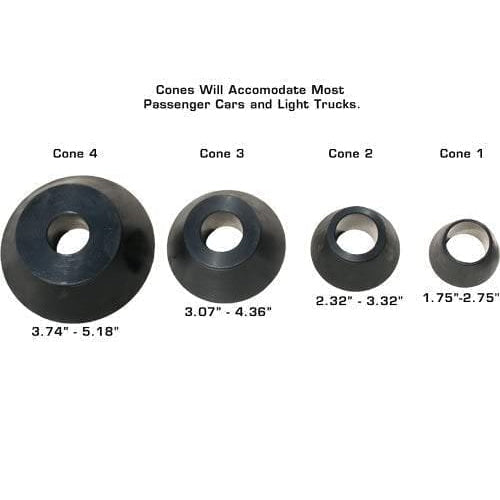

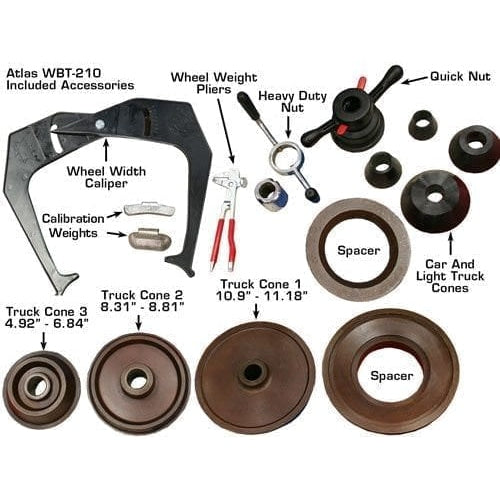

Cone and spacer sets for both light and heavy-duty wheels
-
Plastic quick-release nut and heavy-duty steel wing nut included
-

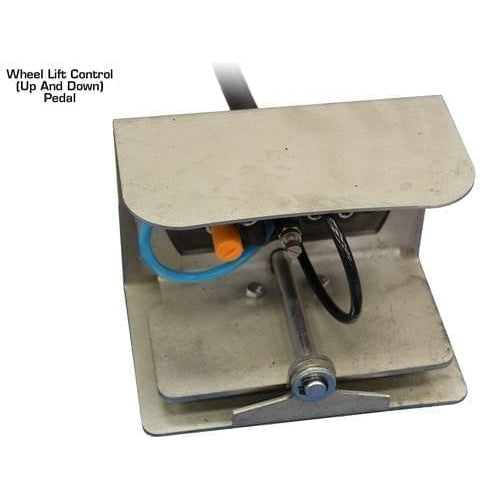

Pneumatic wheel lift (external air source required)
-
Automatic start/stop when the hood is raised or lowered
-

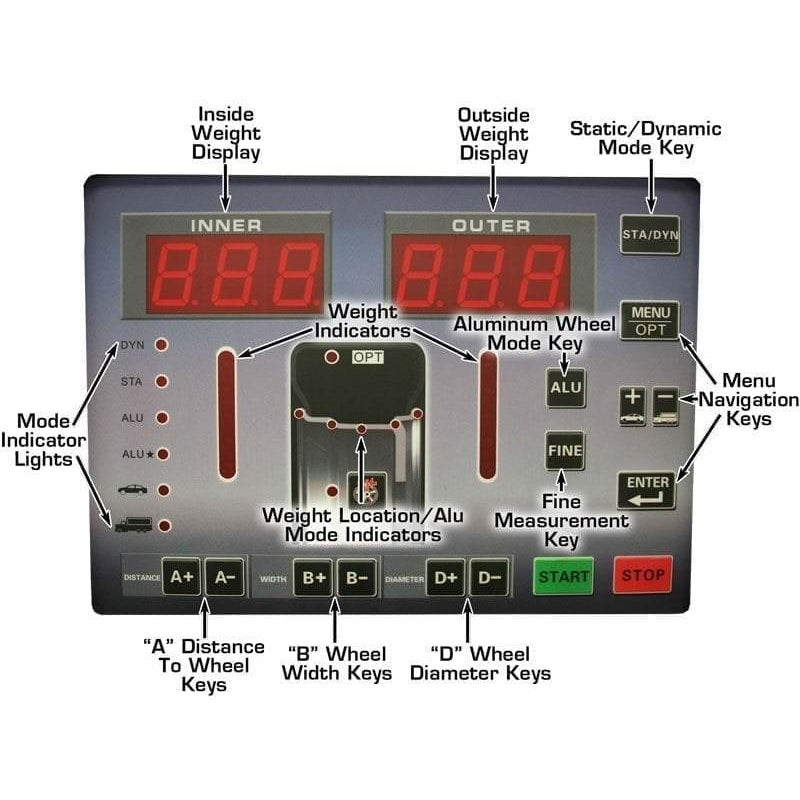

Static and dynamic balancing modes with rapid optimization (OPT)
-
Self-calibration and self-diagnosis for long-term reliability
-
Displays measurements in grams/ounces and mm/inches
-
Exceptional stability and accuracy in dual-plane unbalance readings
-
Includes wheel weight pliers and width calipers
-
Replacement parts and consumables always in stock
-
1-Year Parts-Only Warranty
Specifications
Atlas® TTC306
| Specification | Value |
|---|---|
| Rim Clamping Range | 14" – 46" |

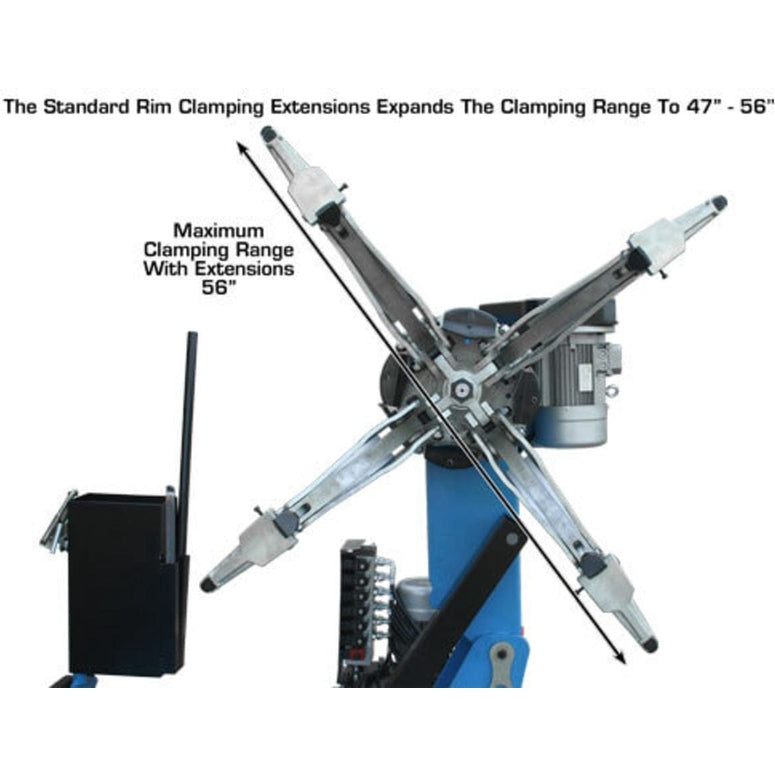

| Max Clamping Size (with Extensions) | 56" |
| Max Wheel Weight | 3,968 lbs |
| Max Tire Diameter | 98" (8' 2") |
| Max Tire Width | 42" (3' 6") |
| Clamping Power | 13,173 lbs |
| Operating Pressure | 0–1885 PSI |
| Bead Breaker Force | 5,930 lbs |
| Acoustic Pressure | <70 dBA |
| Tool Arm / Head Positioning | Automatic |
| Construction | Solid single-piece frame with floor plate |
| Hydraulic Motor Power | 3 HP, 220V (±5%), 3-phase, 30A breaker |
| Chuck Motor Power | 3.5–4 HP, 220V (±5%), 3-phase, 30A breaker |
| Shipping Weight | 2,260 lbs |
Atlas® WBT-210
| Specification | Value |
|---|---|
| Max Tire Diameter | 47" |
| Rim Size Range | 10" – 32" |
| Rim Width | 1.5" – 20" |
| Shaft Size | 40 mm |
| Max Wheel Weight | 440 lbs |
| Balancing Speed | 150 RPM (Car/Light Truck) / 90 RPM (Truck) |
| Accuracy | 1 g (Car/Light Truck) / 10 g (Truck) |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (max 140 PSI) |
| Power Supply | 220V (±5%), 1-phase, 30A breaker |

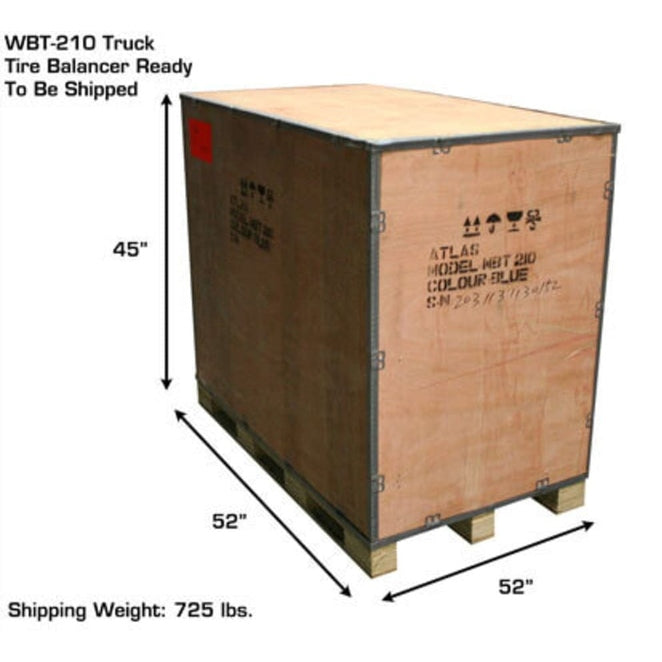

| Shipping Weight | 725 lbs |
The Atlas® TTC306 + WBT-210 Combo provides unmatched performance for professional tire service centers handling both standard and oversized tires. With advanced automation, superior precision, and durable construction, this duo is built to outperform and outlast.
