Description

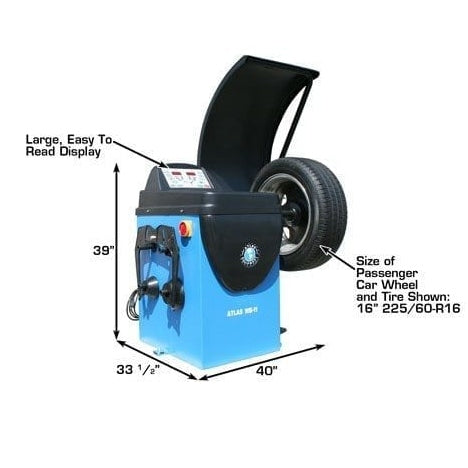

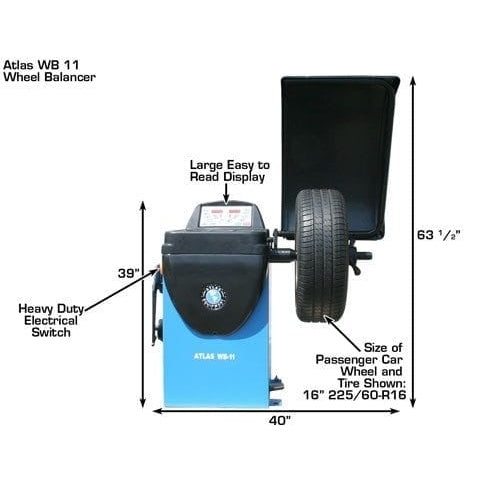

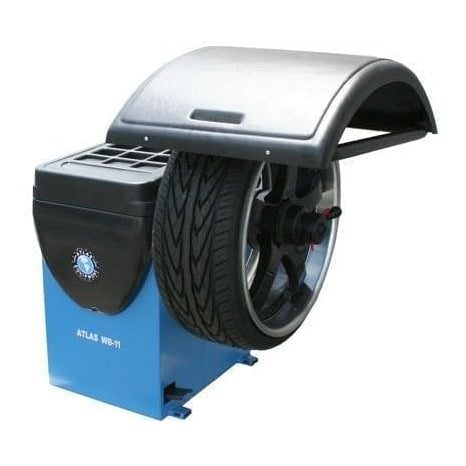

The Atlas® WB11 stands as one of the best-selling and most trusted wheel balancers in the Atlas® lineup. Known for its affordability, reliability, and repeatable accuracy, this model is a favorite among both professional and home garage users.
Despite its simplicity, the WB11 is a highly capable and efficient computerized wheel balancer. Its modular “plug-and-play” electrical components make maintenance and repairs quick and hassle-free.

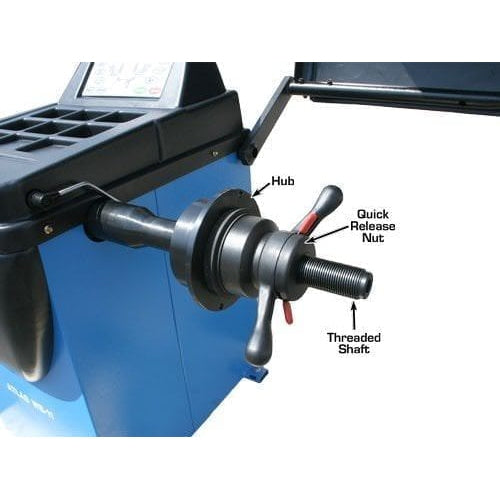

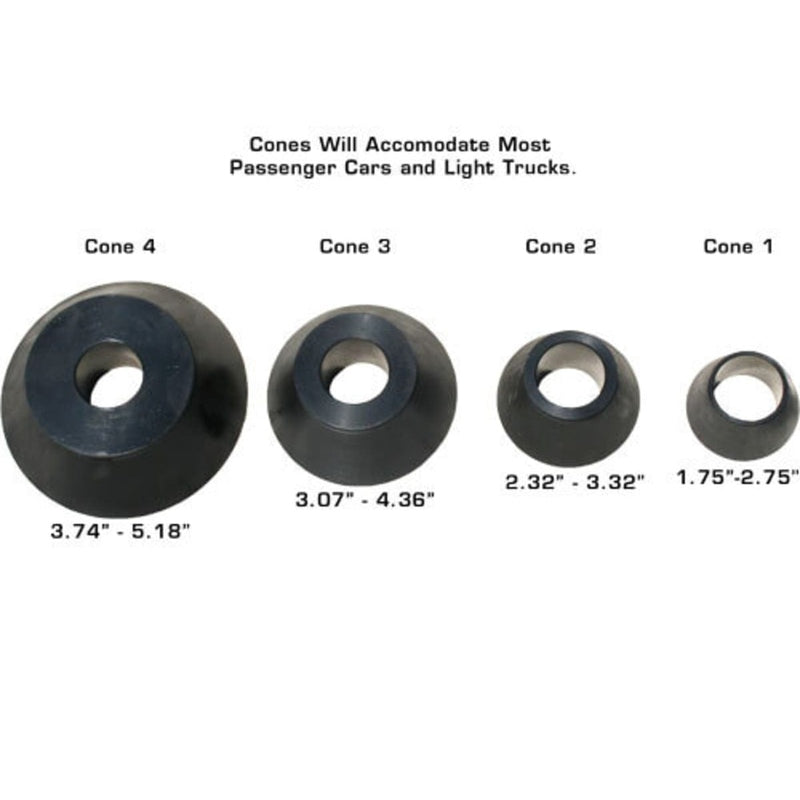

Equipped with self-diagnostic capabilities, the WB11 displays error codes to help operators identify and correct issues on-site—no need for costly technician visits. Designed to accommodate a wide variety of wheels, it can handle rims up to 32 inches in diameter and wheels weighing over 130 lbs. It also includes a quick-release nut for securing wheels and four standard cones to fit center holes from 1.75" to 5.18". For larger or more offset wheels, an optional Light Truck Adapter Kit (with a large cone and spacer) is available.
With its straightforward operation, durable construction, and user-friendly serviceability, the Atlas® WB11 delivers exceptional value and performance—making it the ideal choice for small shops, automotive professionals, and DIY enthusiasts alike.
Features
-
Computer-Controlled Motorized Spin Balancer for precise and efficient operation
-

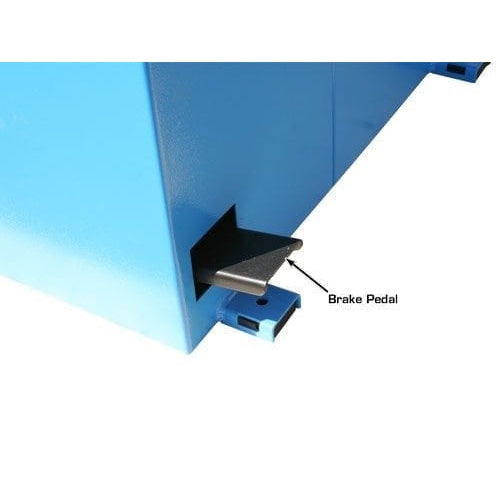

Automatic and pedal-operated braking system for convenience and safety
-
Automatic start/stop function activates when the hood is lowered or raised
-
Supports both static and dynamic balancing modes
-
Rapid Optimization (OPT) for quick and accurate balance adjustments
-
Self-diagnosing and self-calibrating functions ensure consistent accuracy
-
Exceptional stability for precise readings of imbalance between planes
-

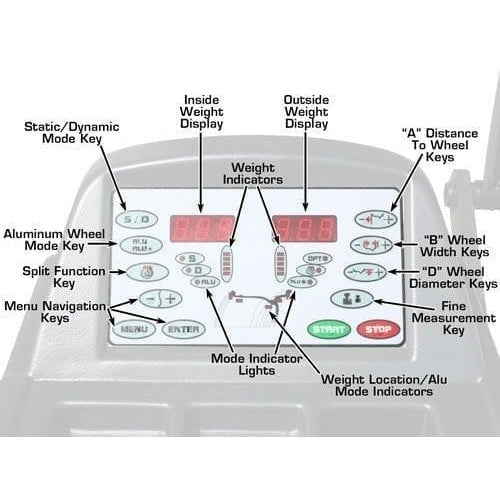

Dual-unit display in grams or ounces, and measurements in mm or inches
-
No anchor-down installation required, allowing flexible placement
-

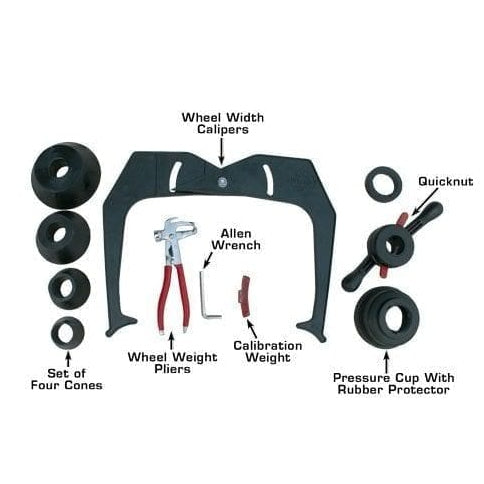

Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, and Measuring Calipers
-
Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty for added peace of mind
Specifications
| Model | Atlas® WB11 |
|---|---|

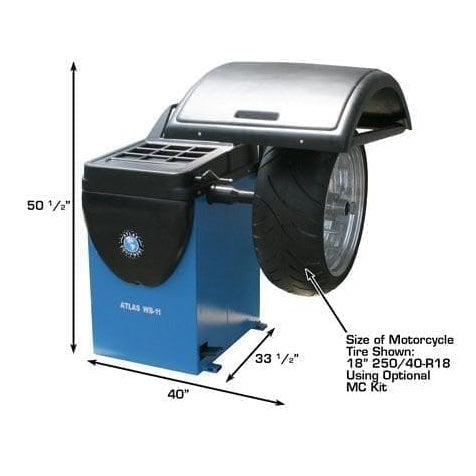

| Max Tire Diameter | 39" (3' 6") |
| Rim Sizes (Cars & Light Trucks) | 10"–32" |
| Rim Width | 1.5"–20" |

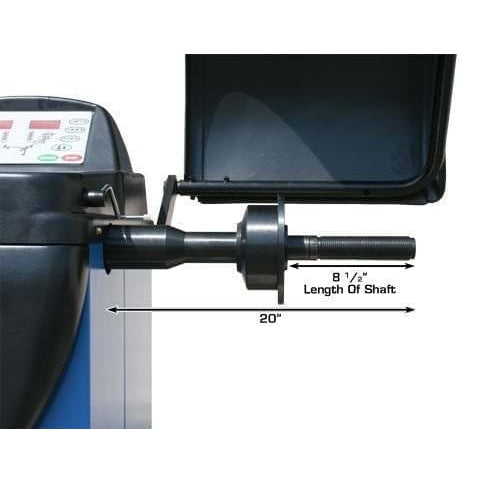

| Shaft Size | 40 mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 rpm |
| Data Entry | Manual for all dimensions |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 degrees |
| Self Calibration | Yes |
| Motor Power | 1/4 HP |
| Power Supply | 110V |

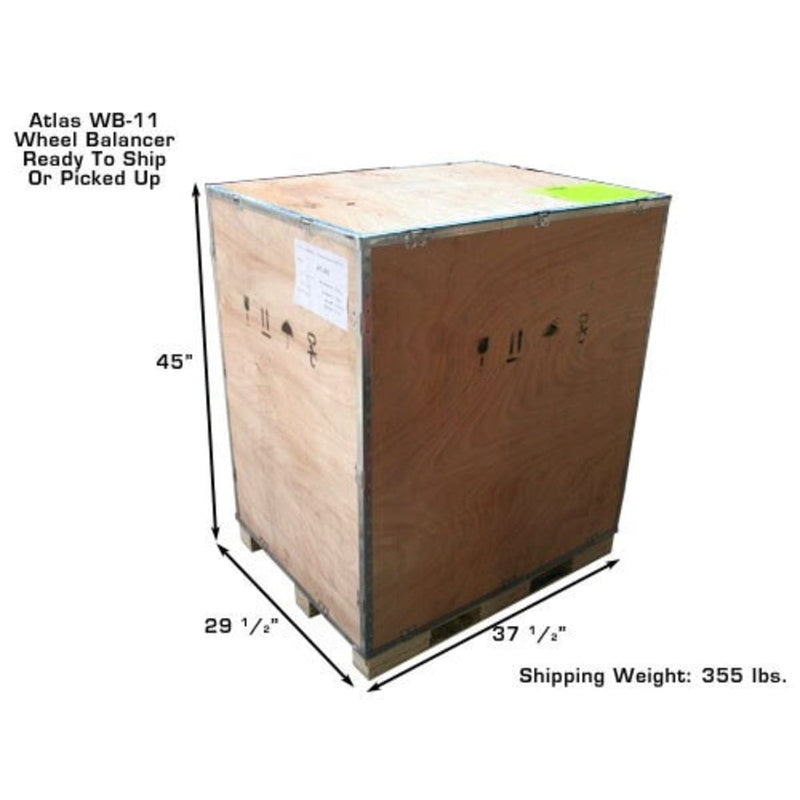

| Shipping Weight | 355 lbs |
