Description

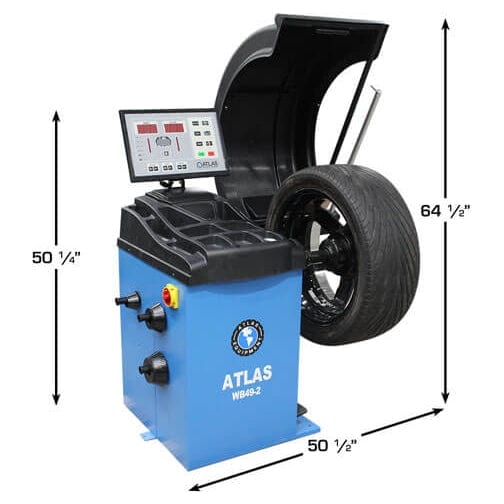

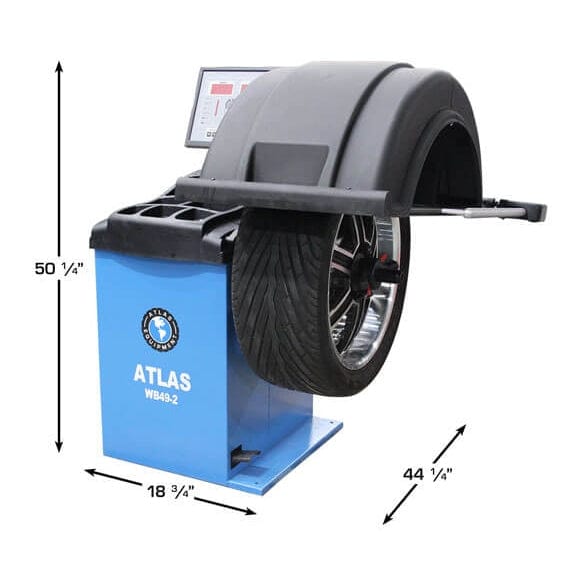

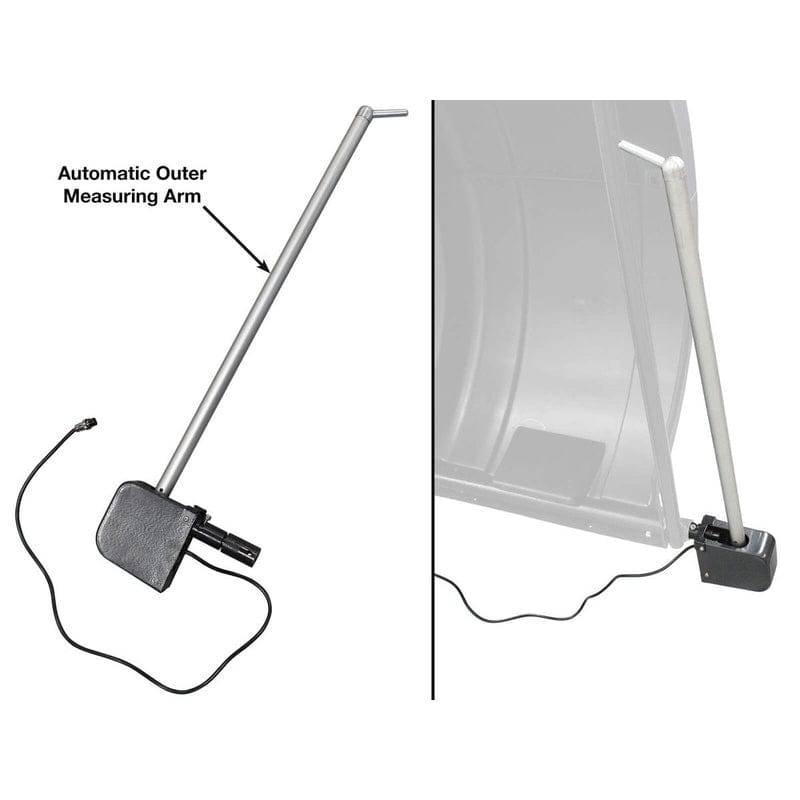

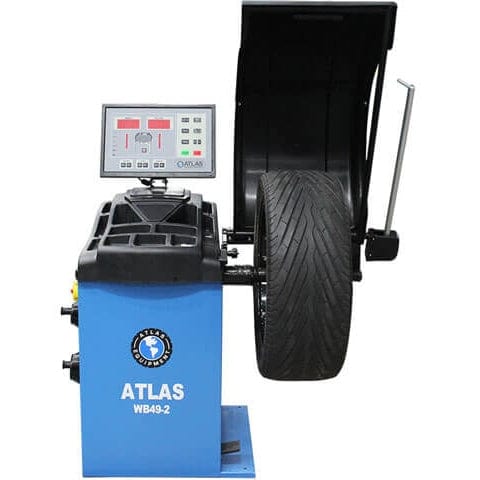

The Atlas® WB49-2-PRO enhances the premium Atlas® WB49-2 wheel balancer by adding a third automatic measuring gauge that records rim width, allowing full 3D automatic data entry for faster, more precise balancing. The updated LED display monitor and redesigned chassis give the machine a sleek, modern look while improving usability and workspace efficiency.
Engineered for precision and convenience, the WB49-2-PRO includes advanced features such as a Split-Weight Function for concealing weights behind spokes and an automatic LED rim light that illuminates the interior during weight placement. The machine’s self-diagnostic system identifies issues and displays error codes, enabling quick on-site troubleshooting without the need for costly service calls.

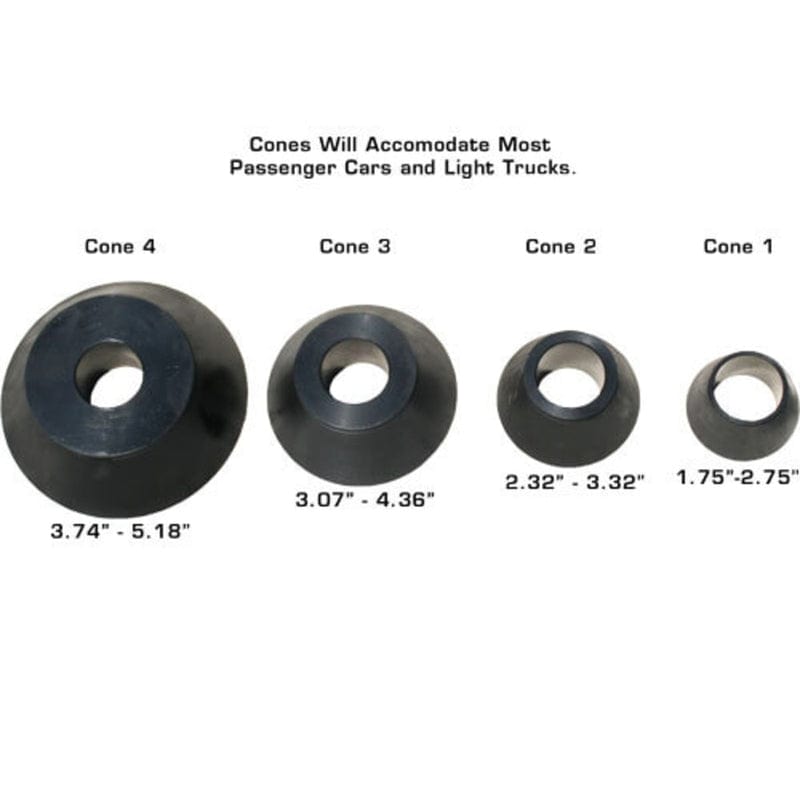

With the ability to balance wheels up to 150 lbs and handle rims up to 32 inches in diameter, this model is built to serve a wide range of passenger and light truck applications. It comes equipped with four centering cones covering 1.75" to 5.18" center holes, with optional Light Truck Adapter Kits available for larger or offset wheels. The WB49-2-PRO offers accuracy, reliability, and performance for busy tire shops and professional technicians.
Features
-
Computer-controlled motorized spin balancer for precision operation
-

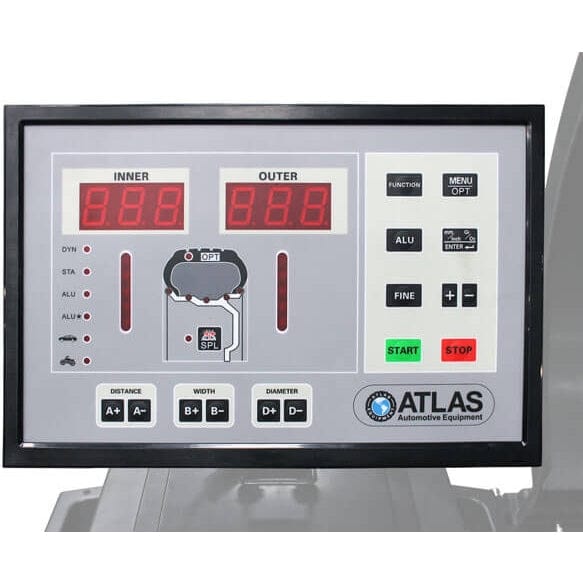

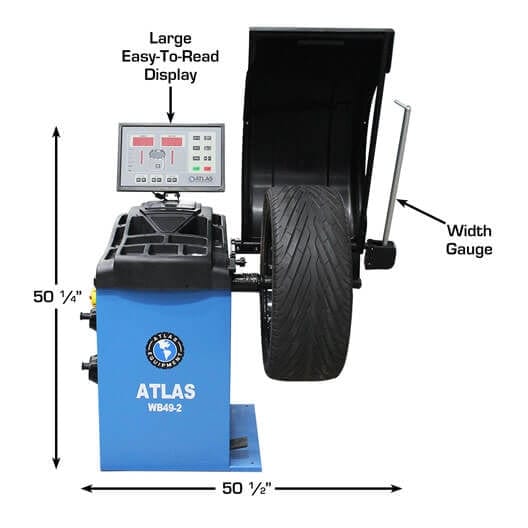

Raised, easy-to-read LED display for improved visibility
-
Spacious wheel weight tray for organized tool access
-

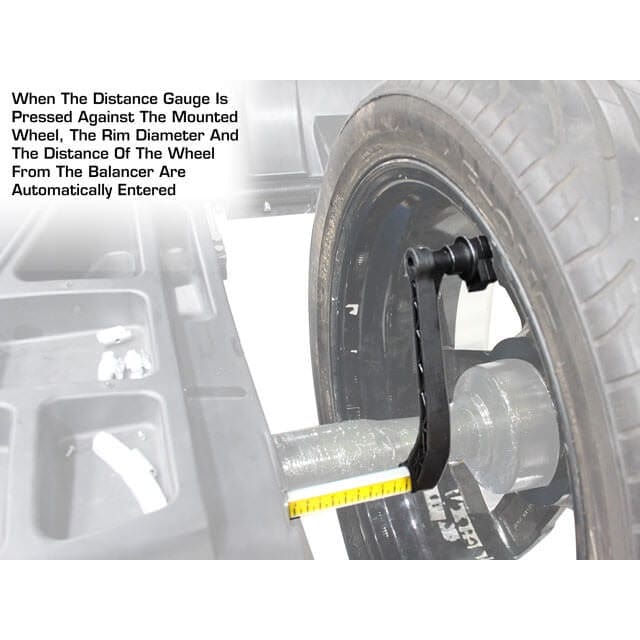

Fully automatic 3D data entry (rim distance, diameter, and width)
-
Split-Weight Function hides weights behind spokes for a cleaner finish
-

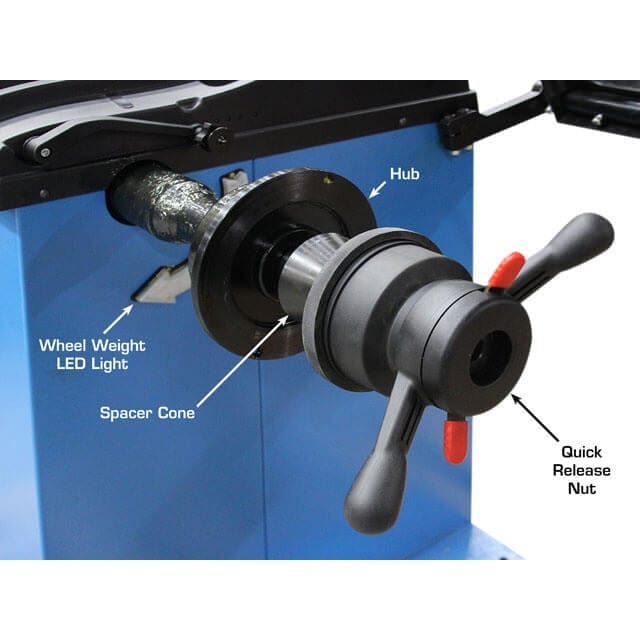

Automatic LED illumination of the rim interior during balancing
-

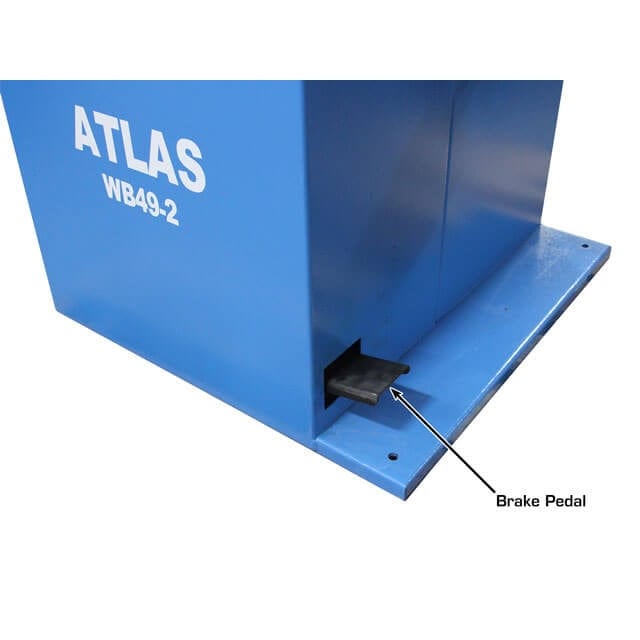

Auto-positioning and pedal-operated brake system for convenience
-
Automatic start/stop when the hood is lowered or raised
-
Static and dynamic balancing modes
-
Rapid optimization (OPT) for faster adjustments
-
Self-diagnosing and self-calibrating functionality
-
Exceptional stability for accurate unbalance readings
-
Measurement display in grams or ounces, mm or inches
-
No anchor-down installation required
-

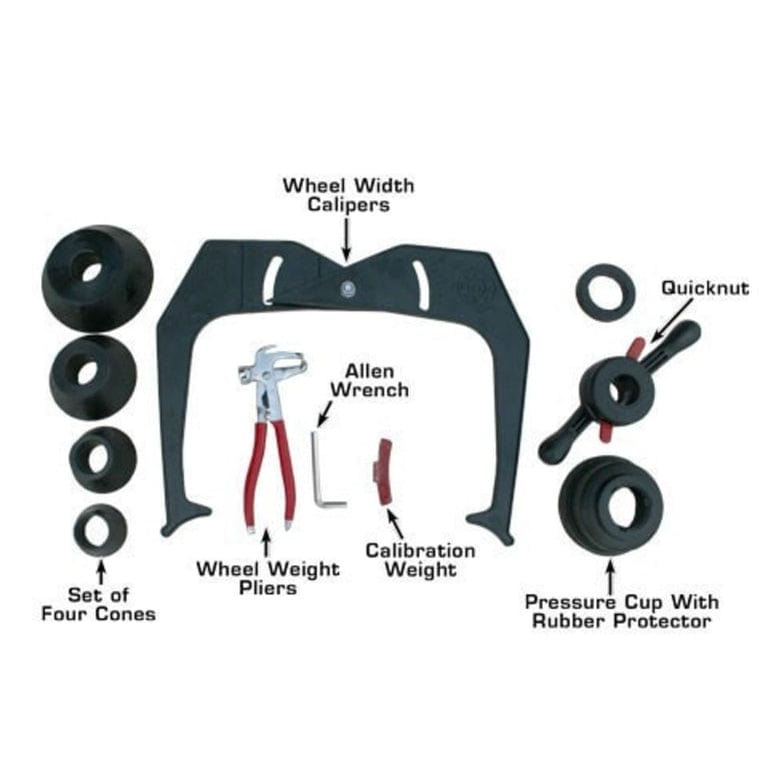

Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
-
Replacement parts and wear items always in stock
-
1-Year Parts-Only Warranty
Specifications
Atlas® WB49-2-PRO Wheel Balancer
-
Max Tire Diameter: 39" (3' 6")
-
Rim Size Range (Cars & Light Trucks): 10"–32"
-
Rim Width: 1.5"–20"
-

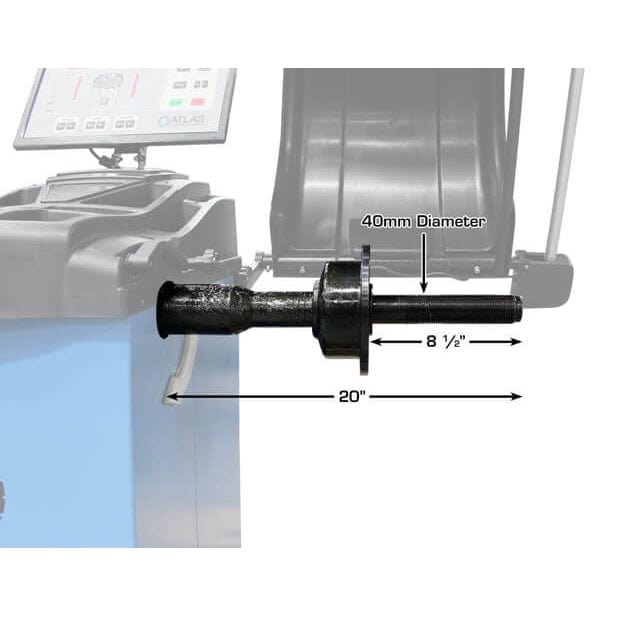

Shaft Size: 40mm
-
Max Wheel Weight: 150 lbs
-
Balancing Speed: 150 RPM
-
Data Entry: Automatic 3D
-
Measurements: Standard or Metric
-
Accuracy: 1 gram
-
Weight Position Resolution: 1.4°
-
Self-Calibration: Yes
-
Motor: 1/4 HP
-
Power Supply: 110V
-
Shipping Weight: 400 lbs
