Description

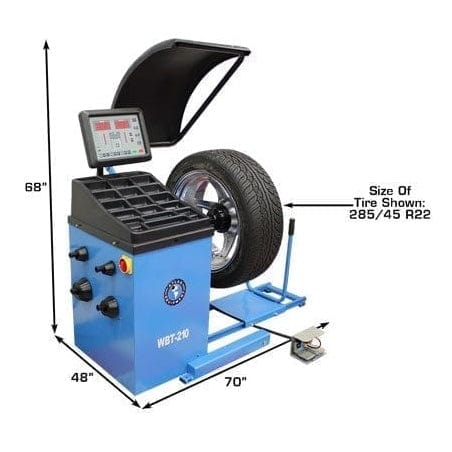

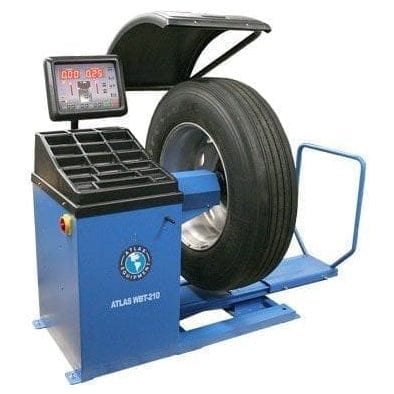

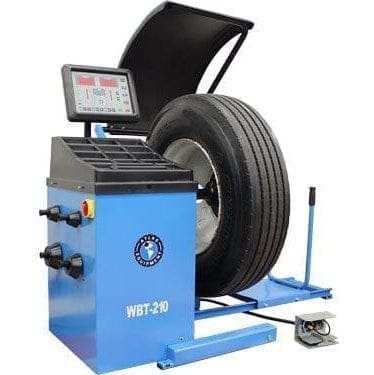

The Atlas® WBT-210 Truck Tire Wheel Balancer delivers exceptional value, combining professional-grade performance with affordability. Designed for versatility and reliability, it offers the same precision and durability found in higher-priced, big-name balancers—at a fraction of the cost.
Built to handle a wide range of wheels, the WBT-210 can balance everything from a 14-inch steel rim to a 300-pound semi-truck tire with ease. It’s equally capable of managing large 32-inch custom wheels and oversized off-road tires, making it an ideal choice for shops that service a diverse lineup of vehicles.
Perfect for trucking companies and service centers that maintain fleets of passenger cars, light trucks, and semi-trailers, this balancer features a 40mm heavy-duty shaft that fits standard mounting cones for most cars and pickups. The included truck adapter set also enables quick and secure balancing of most BUDD-style wheels.
The Atlas® WBT-210 combines simplicity with sophistication. Its plug-and-play electrical components make maintenance fast and hassle-free, while its self-diagnostic system identifies issues and displays error codes for on-site troubleshooting—eliminating costly downtime and service calls. With its ease of use, repair-friendly design, and broad compatibility, the Atlas® WBT-210 is a dependable, cost-effective solution for any professional tire and repair shop.
Features
-
Computer-Controlled Heavy-Duty Spin Balancer for precise and reliable performance.
-

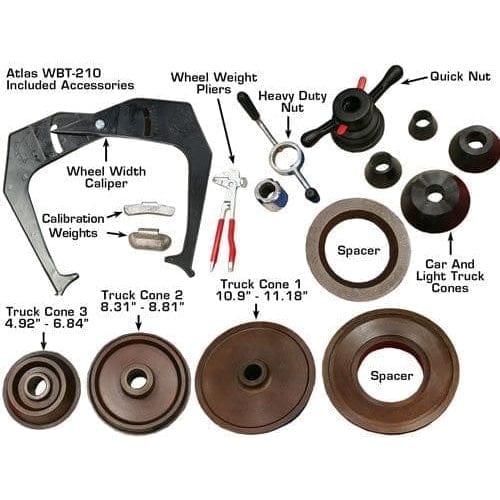

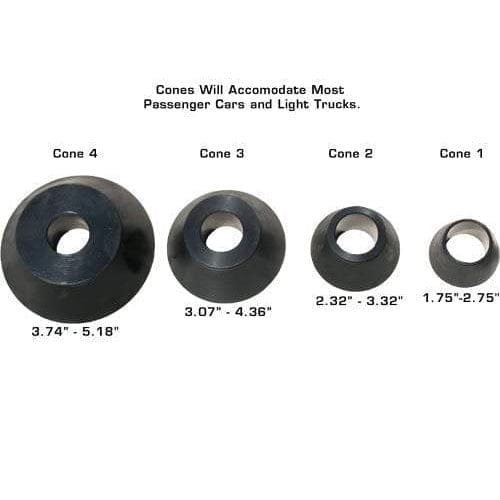

Includes cone sets for car and light truck tires.
-
Comes with a cone and spacer set for truck, bus, and agricultural/industrial tires.
-
Plastic quick-release nut and heavy-duty steel wing nut included for secure mounting.
-

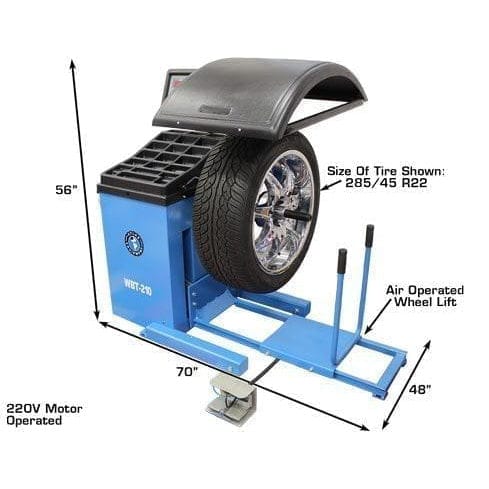

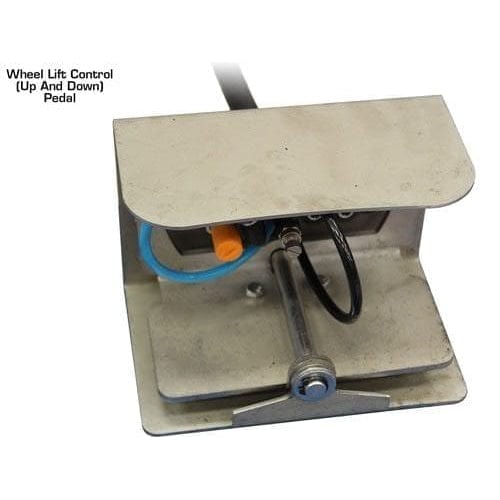

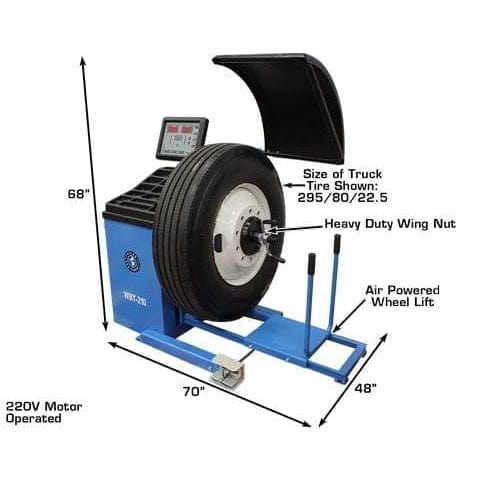

Pneumatic wheel lift for effortless handling of heavy wheels (requires external air supply).
-
Automatic start/stop operation when the hood is lowered or raised.
-

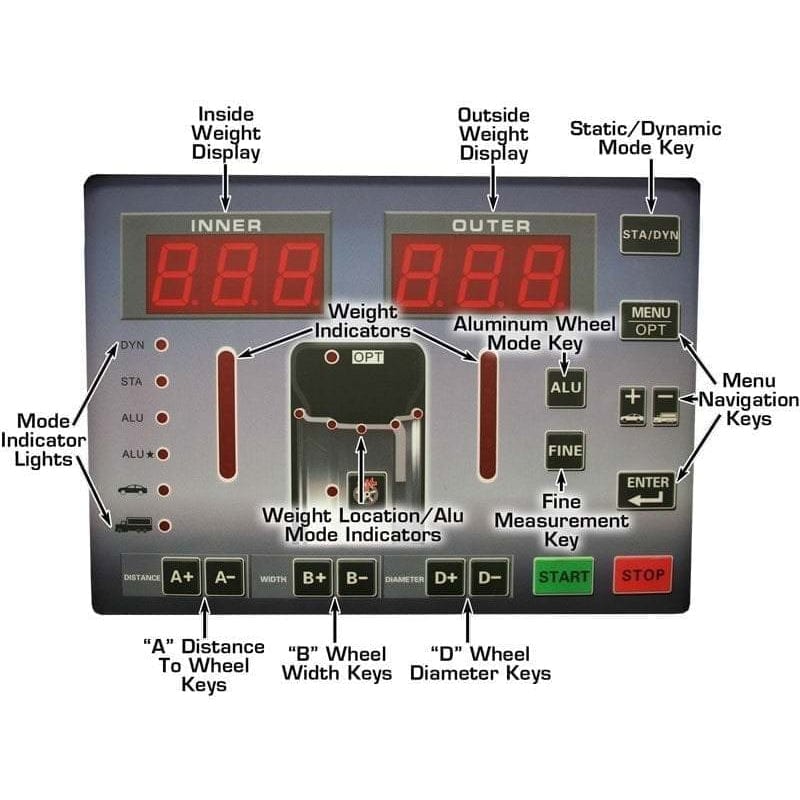

Supports static and dynamic balancing modes for comprehensive use.
-
Rapid optimization (OPT) feature enhances efficiency and precision.
-
Built-in self-diagnosis and self-calibration systems simplify maintenance and ensure accuracy.
-
Provides exceptional stability in detecting and correcting imbalance between planes.
-
Measurement display in grams or ounces, and dimensions in mm or inches.
-
Includes wheel weight pliers and wheel width calipers for convenience.
-
Replacement parts and wear items are readily available.
-
Backed by a 1-year parts-only warranty.
Specifications
Atlas® WBT-210 Specifications
-
Maximum Tire Diameter: 47"
-
Rim Sizes (Cars & Light Trucks): 10"–32"
-
Rim Width: 1.5"–20"
-

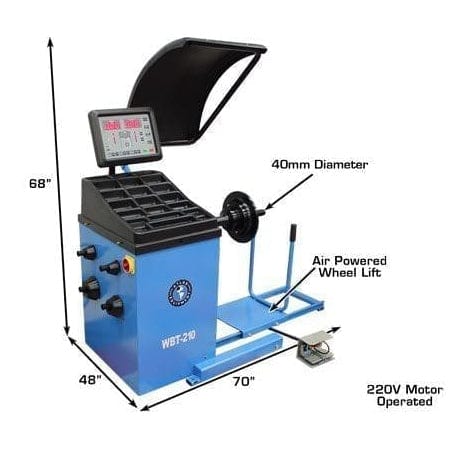

Shaft Size: 40mm
-
Maximum Wheel Weight: 440 lbs.
-
Balancing Speed: 150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode)
-
Data Entry: Manual entry for all dimensions
-
Measurements: Standard or metric units
-
Accuracy: 1g (Car/Light Truck Mode) / 10g (Truck Mode)
-
Weight Position Resolution: 1.4°
-
Self-Calibration: Yes
-
Motor Power: 1/3 HP
-
Air Requirement: 115–140 PSI (must not exceed 140 PSI)
-
Power Supply: 220V ±5% (209–231V), 1 phase, 30 amp breaker required
-

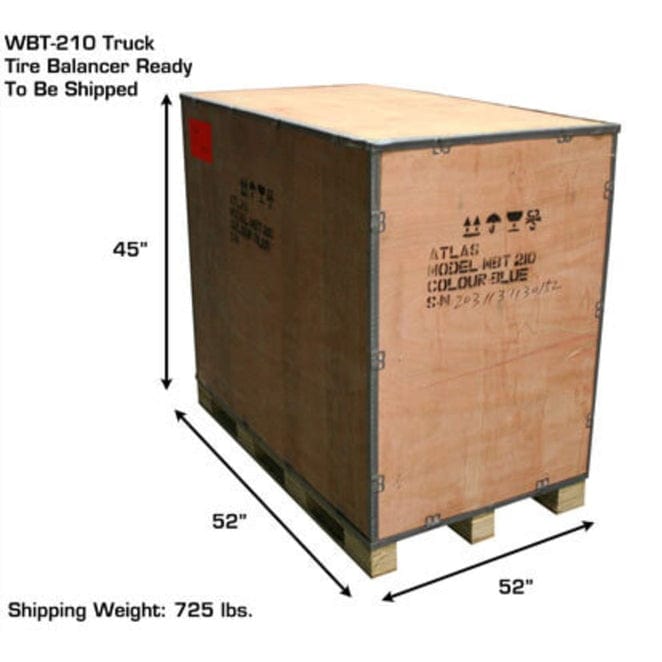

Shipping Weight: 725 lbs.
