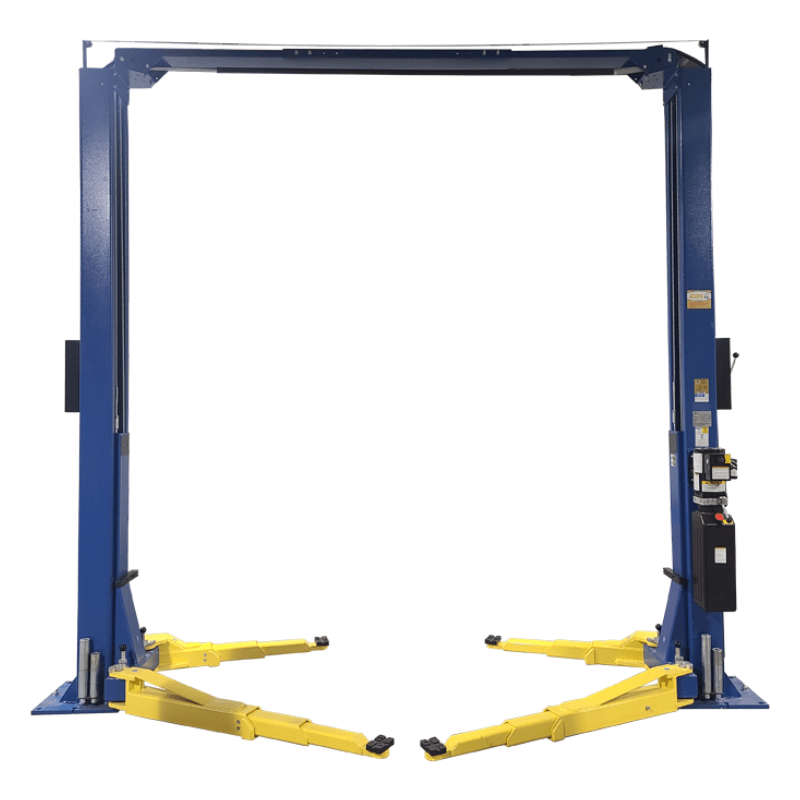

Daytona BR10-20H-33 ALI Certified 10,000 lb 2-Post Lift
ALI Certified 10,000 lb Overhead Lift for Professional Automotive Service
The Daytona BR10-20H-33 ALI Certified 2-Post Lift is engineered to deliver professional-grade lifting performance with the safety and reliability of ALI Certification. Featuring a 10,000-pound lifting capacity, this overhead lift is ideal for servicing passenger cars, SUVs, and light-duty trucks in professional repair shops, dealerships, and fleet maintenance facilities. Its adjustable-width design and compact three-stage arms support both symmetric and asymmetric lifting, providing exceptional versatility for a wide variety of vehicles.
Powered by dual direct-drive hydraulic cylinders, the BR10-20H-33 delivers smooth, balanced lifting with dependable long-term performance. Automatic safety locks, a single-point lock release, and automatic arm restraints work together to keep vehicles securely supported while simplifying operation. High-quality construction, combined with a durable matte powder-coated finish, provides outstanding resistance to corrosion and everyday shop wear.
Designed with technician convenience in mind, the BR10-20H-33 includes 1.5", 3", and 6" height extension adapters, along with two-stage drop-in lifting pads for added flexibility when positioning different vehicle types. For shops with taller ceilings, an optional 2-foot height extension kit is available, making this lift a versatile solution that can adapt as your service needs grow.
Daytona BR10-20H-33 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Maximum Lifting Height | 78.0" |
| Minimum Lifting Height | 4.3" |
| Overall Height (Adjustable) | 155.9" – 162.8" |
| Overall Width (Adjustable) | 140.4" – 152.2" |
| Drive-Through Clearance | Narrow: 88.15" • Medium: 94.06" • Wide: 99.96" |
| Inside Column Width | 111.42" – 123.23" |
| Outside Column Width | 140.9" – 152.7" |
| Maximum Arm Reach | 41.9" |
| Front Clearance | 15.5" |
| Base Plate Thickness | 0.8" |
| Motor | 220V, 3 HP, 12A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 8" thick, 3,000 PSI |
Shipping Information
- Lift: 142" L × 23" W × 44" H — 2,100 lbs
- Optional Height Extension Kit: 31" L × 18" W × 17" H — 200 lbs
Key Features
- ALI Certified to meet industry safety and performance standards
- 10,000 lb lifting capacity for cars, SUVs, and light-duty trucks
- Adjustable-width overhead design for flexible installation
- Dual direct-drive hydraulic cylinders provide smooth, synchronized lifting
- Automatic safety locks with convenient single-point lock release
- Automatic arm restraints enhance vehicle stability during service
- Compact three-stage front and rear arms support both symmetric and asymmetric lifting
- Matte powder-coated finish resists corrosion and everyday shop wear
- Includes 1.5", 3", and 6" height extension adapters
- Two-stage drop-in lifting pads provide flexible lifting point adjustment
- Optional 2-foot height extension kit available (BR10-2OH-33-EXT)
Daytona 5-2-1 Warranty
- 5-Year: Structural Components
- 2-Year: Electrical Components, Hydraulic Cylinders & Seal Kits
- 1-Year: Defective Parts
