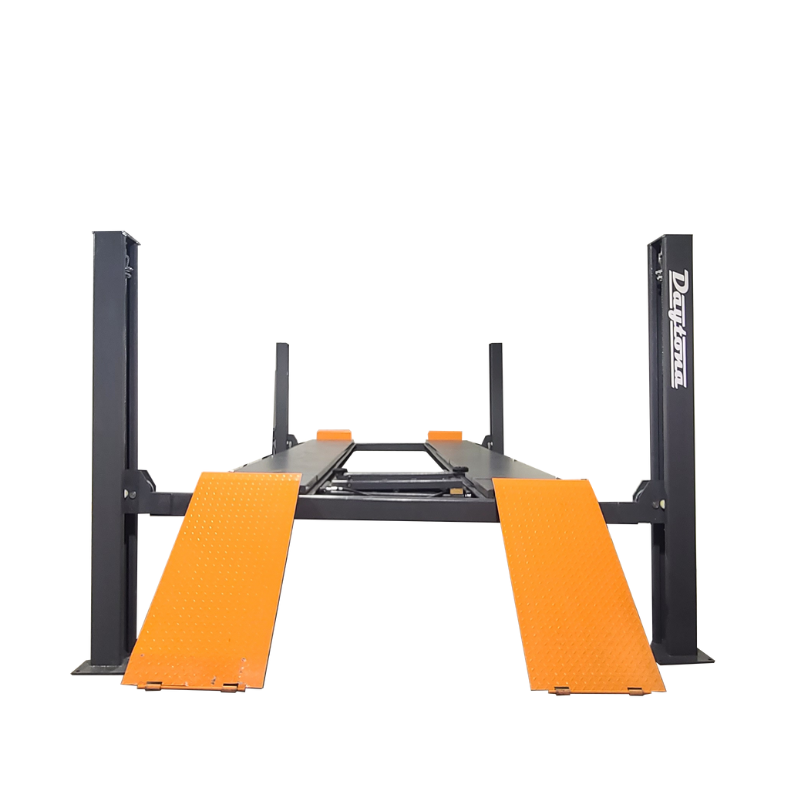

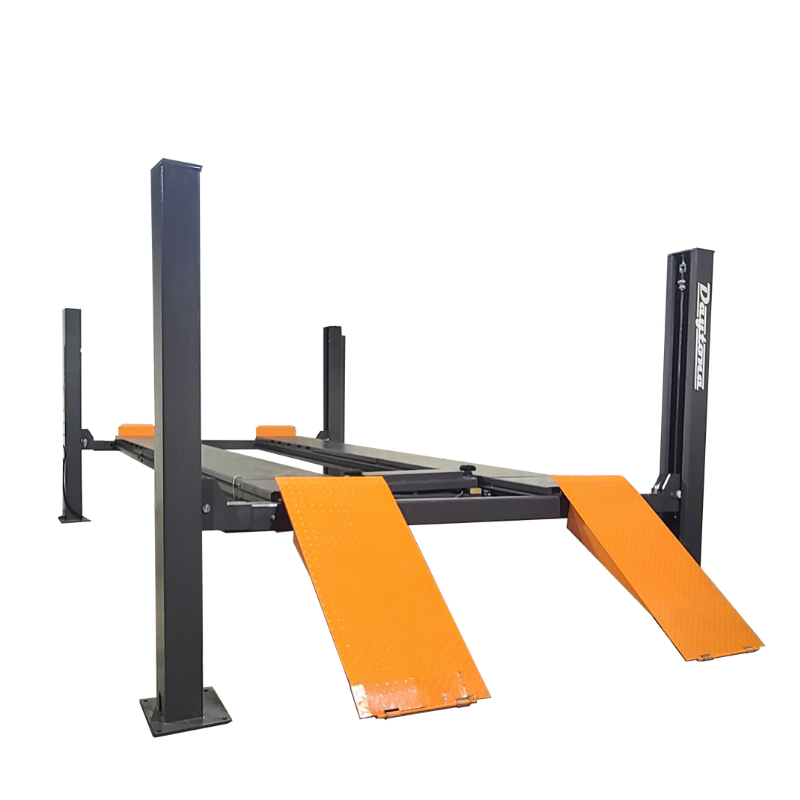

Daytona LFPA12 12,000 lb 4-Post Alignment Lift
Heavy-Duty 12,000 lb Alignment Lift for Professional Wheel Alignment & Vehicle Service
The Daytona LFPA12 12,000 lb 4-Post Alignment Lift is engineered for professional repair shops, dealerships, and alignment centers that require dependable lifting performance, alignment precision, and long-term durability. With a 12,000-pound lifting capacity, this commercial-grade alignment lift is designed to handle passenger vehicles, SUVs, light-duty trucks, and most dual-rear-wheel pickup trucks with confidence.
Purpose-built for wheel alignment services, the LFPA12 comes standard with built-in rear slip plates and adjustable front turntables, allowing technicians to perform precise alignments while improving workflow efficiency. A multi-position ladder lock system with manual release and locking intervals every 3.5 inches, beginning at 21 inches, provides exceptional safety and flexibility during service. Wide 26.1-inch runways accommodate a broad range of vehicle sizes, while bright orange tilting approach ramps make vehicle loading safer and easier.
Powered by a 4 HP motor and a heavy-duty 5-inch hydraulic cylinder, the LFPA12 delivers smooth, reliable lifting for demanding shop environments. Aircraft-grade lifting cables ensure exceptional strength and durability, while the matte dark gray powder-coated finish provides long-lasting protection against corrosion and everyday shop wear. Built for high-volume service facilities, the LFPA12 combines heavy-duty construction with professional alignment capability in one dependable lifting solution.
Daytona LFPA12 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Maximum Lifting Height | 66.9" |
| Minimum Lifting Height | 10.2" |
| Overall Height | 90.2" |
| Overall Length | 283.1" |
| Overall Width | 114.2" |
| Inside Length Between Posts | 216.5" |
| Runway Length | 216.5" |
| Runway Width (Each) | 26.1" |
| Width Between Runways | 41.7" |
| Drive-Through Clearance | 114.2" |
| Pump Projection | 6.7" |
| Approach Ramp Length | 53.2" |
| Base Plate Length | 13.4" |
| Motor | 240V, 4 HP, 15A, Single Phase, 60Hz |
| Rise Time | 110 seconds |
| Lowering Time | 110 seconds |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI |
Shipping Information
- Shipping Dimensions: 229" L × 30" W × 44" H
- Shipping Weight: 4,500 lbs
Key Features
- 12,000 lb lifting capacity for cars, SUVs, trucks, and commercial vehicles
- Alignment-ready design with built-in rear slip plates
- Adjustable front turntables included for precise wheel alignments
- Multi-position ladder lock system with manual release and 3.5" locking intervals
- Heavy-duty 5" hydraulic cylinder delivers smooth, dependable lifting
- Aircraft-grade lifting cables provide exceptional strength and long-term reliability
- Wide 26.1" runways accommodate a broad range of vehicle sizes
- Compatible with most dual-rear-wheel pickup trucks
- Bright orange tilting approach ramps simplify vehicle loading
- Durable matte dark gray powder-coated finish resists corrosion and everyday shop wear
- Ideal for alignment shops, dealerships, fleet maintenance facilities, and commercial service centers
Daytona 5-2-1 Warranty
- 5-Year: Structural Components
- 2-Year: Electrical Components, Hydraulic Cylinders & Seal Kits
- 1-Year: Defective Parts
