Description

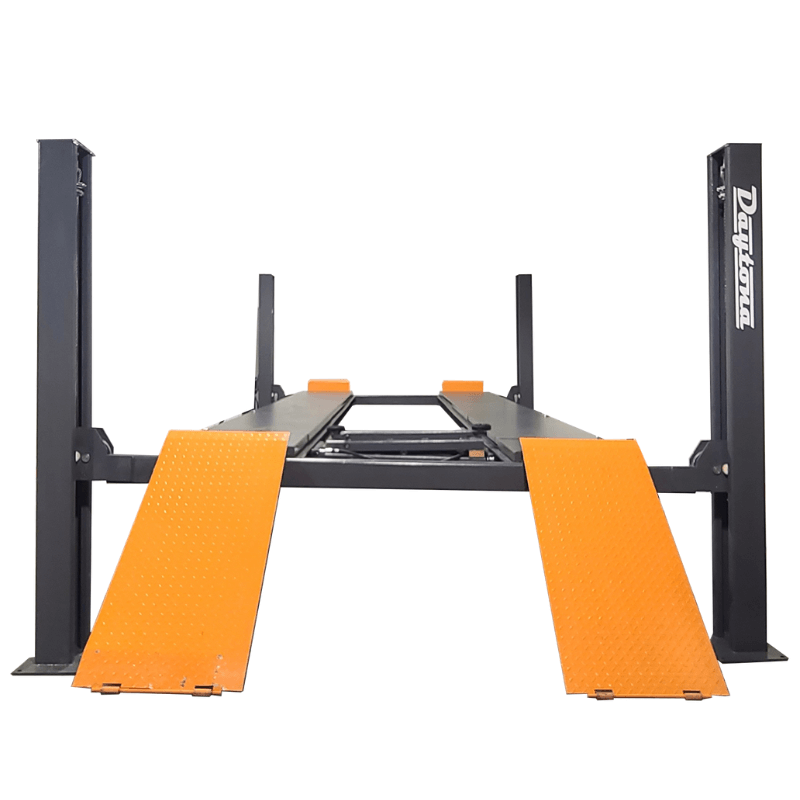

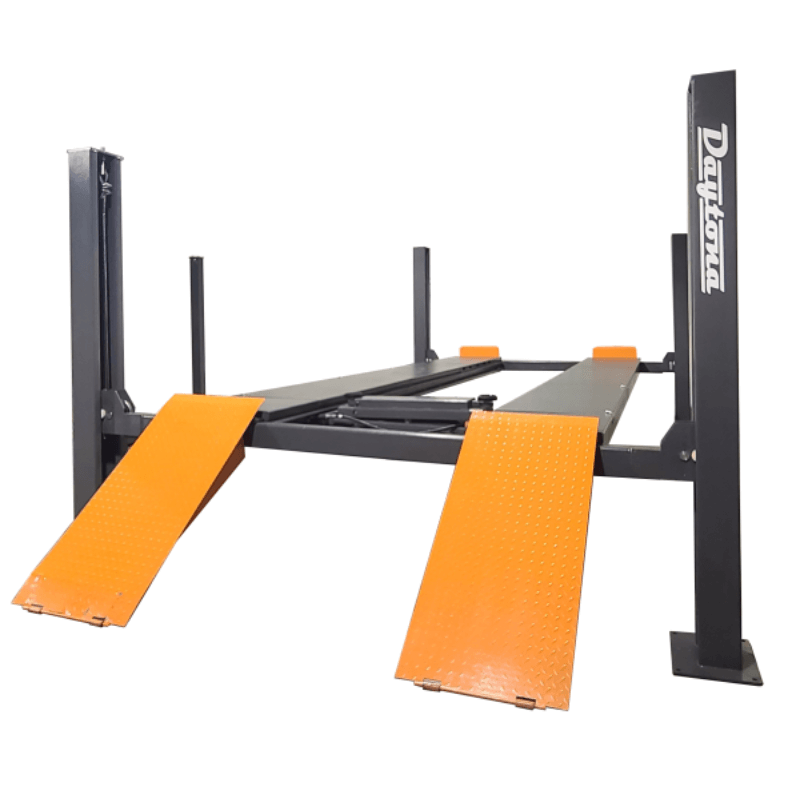

Daytona LFPA14 14,000 lb 4-Post Alignment Lift
Heavy-Duty 14,000 lb Alignment Lift for Professional Wheel Alignment & Service
The Daytona LFPA14 14,000 lb 4-Post Alignment Lift is designed for professional repair shops, dealerships, and alignment centers that require heavy-duty lifting capacity with precise wheel alignment capabilities. With a 14,000-pound lifting capacity, this commercial-grade lift easily accommodates passenger vehicles, SUVs, light-duty trucks, and most dual-rear-wheel pickup trucks.
Purpose-built for alignment work, the LFPA14 features built-in rear slip plates and adjustable front turntables, allowing technicians to perform accurate wheel alignments without additional modifications. Its 25.6-inch-wide runways provide excellent support for a broad range of vehicle sizes, while the multi-position ladder lock system, featuring locking points every 3.5 inches beginning at 21 inches, enhances safety and flexibility during service.
Powered by a 4 HP motor and a heavy-duty 5-inch hydraulic cylinder, the LFPA14 delivers smooth, dependable lifting performance for demanding shop environments. Aircraft-grade lifting cables, oversized column bases, tilting approach ramps, and a durable matte dark gray powder-coated finish ensure years of reliable operation. Please note that this listing includes the lift only; the wheel alignment machine and rolling jack are sold separately.
Daytona LFPA14 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14,000 lbs |
| Maximum Lifting Height | 59.1" |
| Minimum Lifting Height | 10.6" |
| Overall Height | 90.0" |
| Overall Length | 268.7" |
| Runway Structure Length | 247.5" |
| Overall Width | 153.9" |
| Width Between Posts | 116.5" |
| Inside Width Between Runways | 69.3" |
| Runway Length | 247.5" |
| Runway Width (Each) | 25.6" |
| Width Between Runways | 43.7" |
| Approach Ramp Length | 53.2" |
| Pump Projection | 6.7" |
| Base Plate Length | 13.4" |
| Base Plate Thickness | 0.6" |
| Motor | 240V, 4 HP, 15A, Single Phase, 60Hz |
| Rise Time | 110 seconds |
| Lowering Time | 110 seconds |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI |
Shipping Information
- Shipping Dimensions: 246" L × 29" W × 42" H
- Shipping Weight: 6,750 lbs
Key Features
- 14,000 lb lifting capacity for cars, SUVs, trucks, and commercial vehicles
- Alignment-ready design with built-in rear slip plates
- Adjustable front turntables included for precision wheel alignments
- Wide 25.6" runways accommodate a broad range of vehicle widths
- Supports most dual-rear-wheel pickup trucks
- Heavy-duty 5" hydraulic cylinder provides smooth, reliable lifting
- Aircraft-grade lifting cables for exceptional strength and durability
- Multi-position ladder lock system with 3.5" locking intervals
- Bright tilting approach ramps simplify vehicle loading
- Durable matte dark gray powder-coated finish resists corrosion and shop wear
- Ideal for alignment shops, dealerships, fleet maintenance facilities, and commercial repair centers
- Lift only — wheel alignment equipment and rolling jack sold separately
Daytona 5-2-1 Warranty
- 5-Year: Structural Components
- 2-Year: Electrical Components, Hydraulic Cylinders & Seal Kits
- 1-Year: Defective Parts
Daytona LFPA14 Manual
Optional Accessory (Sold Separately)
- Daytona RAJ8 8,000lb Rolling Jack
