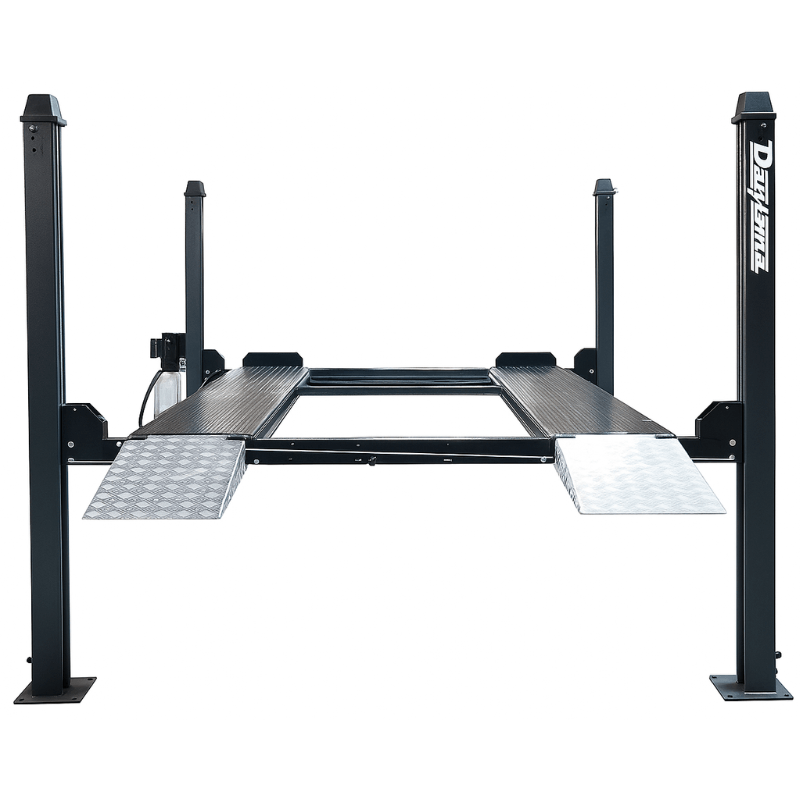

Daytona LFPP10-XLT 10,000 lb 4-Post Parking Lift
Extra-Tall & Extra-Long 10,000 lb Parking Lift for Vehicle Storage
The Daytona LFPP10-XLT 10,000 lb 4-Post Parking Lift is designed to maximize vehicle storage while providing the strength and versatility needed for larger vehicles. Featuring a 10,000-pound lifting capacity, an extra-long runway design, and additional lifting height, this lift is ideal for storing or servicing trucks, SUVs, extended-wheelbase vehicles, and other oversized vehicles. Whether installed in a residential garage, dealership, or commercial facility, the LFPP10-XLT offers a dependable solution for increasing parking capacity without expanding your footprint.
Engineered for long-lasting performance, the LFPP10-XLT incorporates four mechanical locking devices with primary and secondary safety locks, ensuring secure vehicle support at multiple working heights. A single-point manual safety release simplifies operation, while a 3.5-inch heavy-duty hydraulic cylinder and aircraft-grade lifting cables provide smooth, reliable lifting. Adjustable runways, removable aluminum approach ramps, and a durable matte powder-coated finish further enhance usability and durability in demanding environments.
For added convenience, the LFPP10-XLT includes a steel jack tray and three plastic drip trays, making it well-suited for both long-term vehicle storage and routine maintenance. Optional rolling jacks and a caster kit are available separately, allowing you to customize the lift to meet your shop or garage's specific needs.
Daytona LFPP10-XLT Specifications
| Specification | Details |
|---|---|
| Model | LFPP10-XLT |
| Lifting Capacity | 10,000 lbs |
| Maximum Lifting Height | 85" |
| Minimum Lifting Height | 6.35" |
| Overall Runway Width | 84.4" |
| Column Height | 105.2" |
| Overall Width | 134.7" (including motor) |
| Overall Length (With Ramps) | 245" |
| Overall Length (Without Ramps) | 208" |
| Drive-Through Clearance | 98" |
| Motor | 120V, 1.5 HP, 26A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI |
Shipping Information
- Lift (Pump Attached): 207" L × 22" W × 33" H — 2,660 lbs
Optional Caster Kit
- Dimensions: 40" L × 24" W × 10" H
- Weight: 120 lbs
Key Features
- 10,000 lb lifting capacity for cars, SUVs, trucks, and extended-wheelbase vehicles
- Extra-long and extra-tall design maximizes parking and storage flexibility
- Four mechanical locking devices with primary and secondary safety systems
- Convenient single-point manual safety lock release
- Heavy-duty 3.5" hydraulic cylinder for smooth, reliable lifting
- Aircraft-grade lifting cables for exceptional strength and durability
- Adjustable runways accommodate a wide variety of vehicle sizes
- Removable aluminum approach ramps simplify vehicle loading
- Pump can be mounted on any post for flexible installation
- Durable matte powder-coated finish resists corrosion and everyday shop wear
- Ideal for residential garages, dealerships, and commercial vehicle storage
Included Accessories
- Steel jack tray
- Three plastic drip trays
Optional Accessories (Sold Separately)
- Daytona RAJ5 Rolling Jack
- Caster Kit
Daytona LFPP10-XLT Manual
