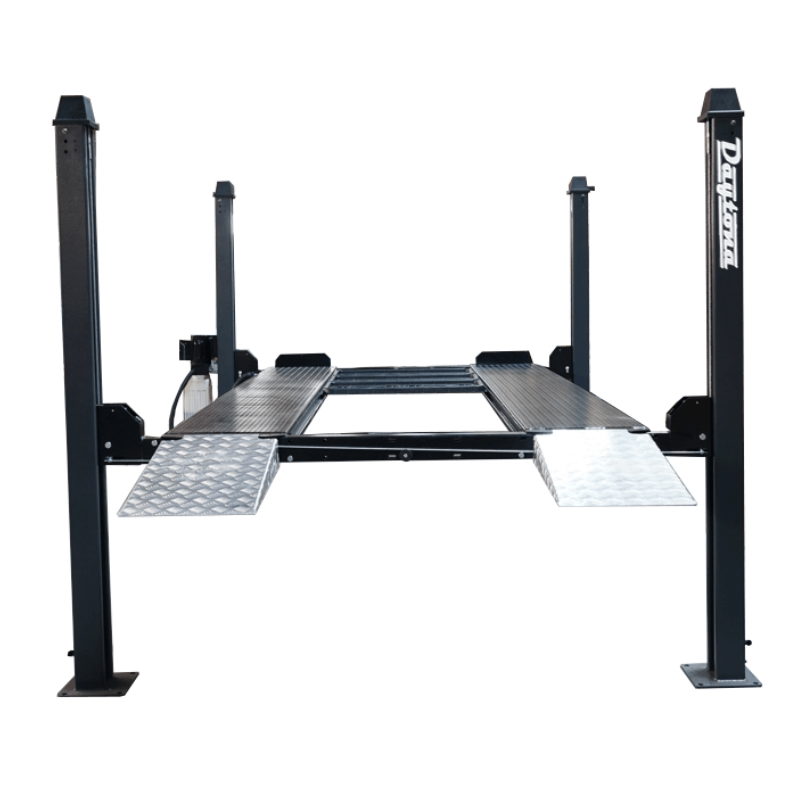

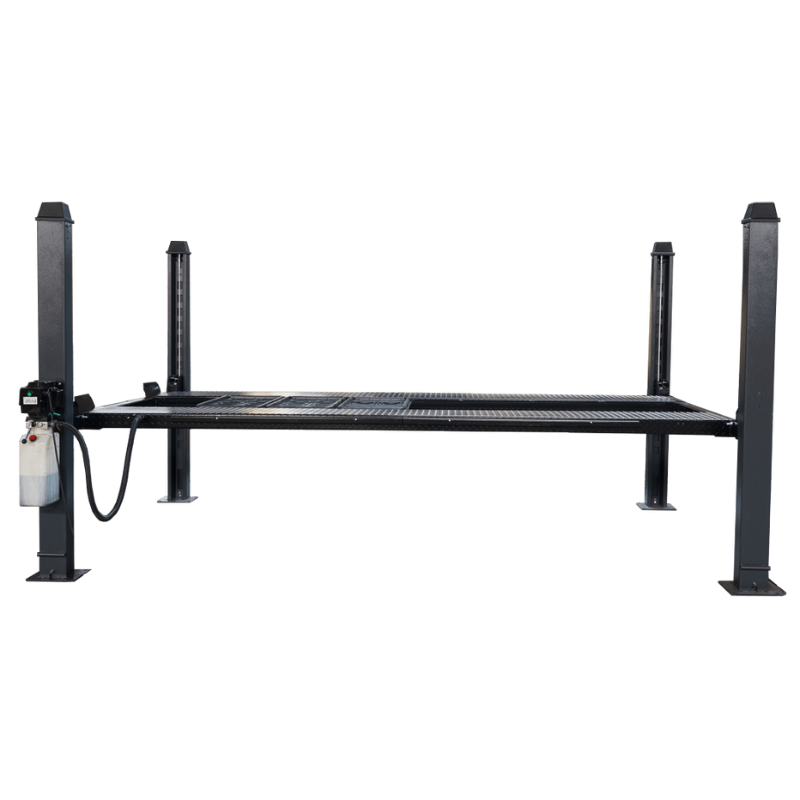

Daytona LFPP9 9,000 lb 4-Post Parking Lift
Space-Saving 9,000 lb Parking Lift for Vehicle Storage & Light Service
The Daytona LFPP9 9,000 lb 4-Post Parking Lift is a reliable and space-efficient solution for vehicle storage and light-duty maintenance in residential garages, automotive shops, and commercial facilities. With a 9,000-pound lifting capacity, this heavy-duty parking lift is designed to accommodate most passenger cars, SUVs, and light-duty trucks while maximizing available floor space. Its compact footprint and generous clearance beneath the runways make it ideal for storing a second vehicle, helping homeowners and businesses make the most of their garage space.
Built with safety and durability as top priorities, the LFPP9 features four mechanical locking devices with both primary and secondary safety locks, providing secure vehicle support during storage or service. A single-point manual safety release simplifies operation, while a 3-inch heavy-duty hydraulic cylinder and aircraft-grade lifting cables deliver smooth, dependable lifting performance. The removable tilting aluminum approach ramps make vehicle loading quick and easy, and the durable matte powder-coated finish offers long-lasting protection against corrosion and everyday wear.
Whether you're creating additional parking space or performing routine maintenance, the LFPP9 combines dependable performance, practical features, and exceptional value in one versatile 4-post lift.
Daytona LFPP9 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Overall Length | 179.7" |
| Overall Width | 104.1" |
| Overall Height | 91.3" |
| Maximum Lifting Height | 70.9" |
| Minimum Lifting Height | 4.7" |
| Upper Structure Height | 71.2" |
| Drive-Through Width | 81.8" |
| Inside Width (Between Posts) | 87.3" |
| Side Clearance | 8.4" |
| Runway Length | 164.2" |
| Runway Width | 18.6" |
| Runway Surface Height | 3.4" |
| Runway Overall Thickness | 3.74" |
| Top Beam Height Above Platform | 19.3" |
| Lower Structure Height | 6.3" |
| Lower Side Column Height | 49.2" |
| Post/Base Extension Height | 11.8" |
| Cross Beam Clearance | 6.6" |
| Base Plate Thickness | 0.4" |
| Motor | 120V, 1.5 HP, 26A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI |
Shipping Information
- Pallet Dimensions: 177" L × 22" W × 28" H
- Shipping Weight: 1,900 lbs
Optional Caster Kit
- Dimensions: 40" × 24" × 10"
- Weight: 120 lbs
Key Features
- 9,000 lb lifting capacity for vehicle storage and light-duty service
- Four mechanical locking devices with primary and secondary safety locks
- Convenient single-point manual safety lock release
- Heavy-duty 3" hydraulic cylinder for smooth, reliable lifting
- Aircraft-grade lifting cables for superior strength and durability
- Removable tilting aluminum approach ramps for easy vehicle loading
- Compact design maximizes garage and shop space

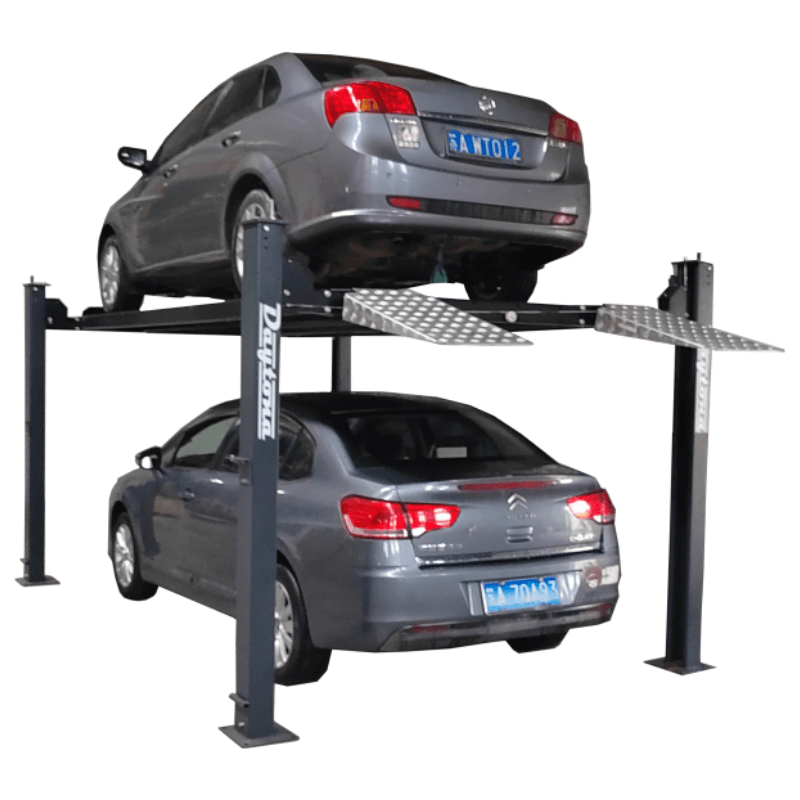

- Generous under-runway clearance for storing a second vehicle
- Durable matte powder-coated finish resists corrosion and everyday wear
- Ideal for residential garages, dealerships, and professional repair shops
Included Accessories
- Jack tray
- Plastic drip trays
Optional Accessories (Sold Separately)
- Daytona RAJ5 Rolling Jack
- Caster Kit
Daytona 5-2-1 Warranty
-
- 5-Year: Structural Components
- 2-Year: Electrical Components, Hydraulic Cylinders & Seal Kits
- 1-Year: Defective Parts
Daytona LFPP9 Manual
Daytona LFPP9 Optional Item Sold Separately:
- Daytona RAJ5 5,000lb Rolling Jack
