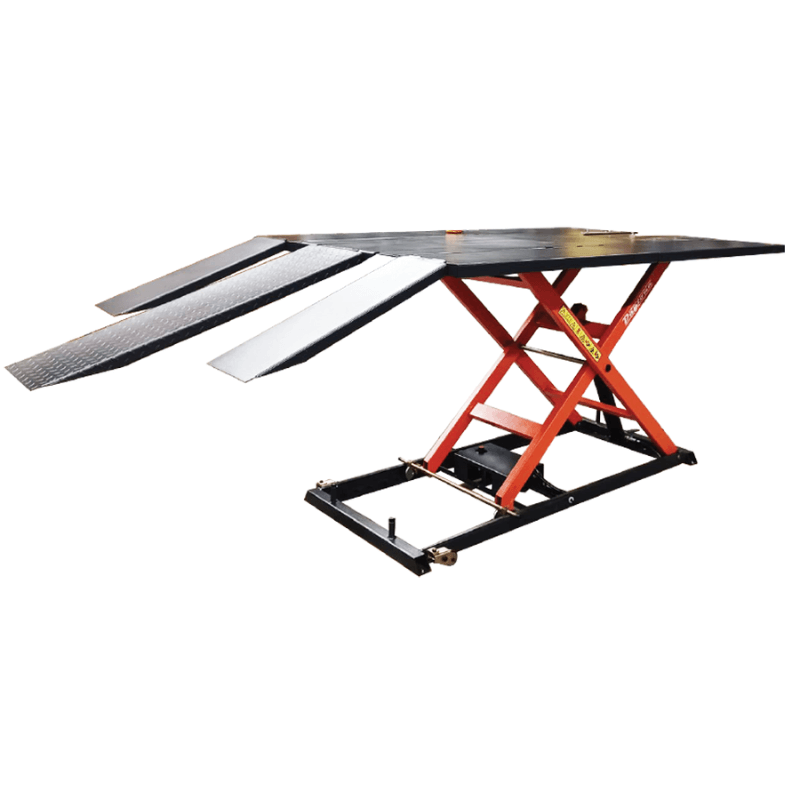

Daytona LMATV 2,200 lb Motorcycle & ATV Lift – With Side Extensions & Mobility Wheel Kit
The Daytona LMATV 2,200 lb Motorcycle & ATV Lift is a versatile, heavy-duty lifting solution designed for powersports service shops, dealerships, professional technicians, and home garages. Built to accommodate both motorcycles and ATVs, the LMATV provides a stable, elevated work platform that makes routine maintenance, repairs, tire service, and detailing more convenient.
With a substantial 2,200 lb lifting capacity and maximum lifting height of 47.2 inches, the LMATV can handle a wide variety of motorcycles and powersports vehicles. Removable side platform extensions allow the lift to be configured for different vehicle widths, while adjustable side ramps provide additional flexibility when loading ATVs with narrower wheel configurations.
For easier wheel and tire service, the LMATV features front and rear wheel dropouts, allowing wheels to be removed without taking the vehicle off the lift. A front wheel chock is included to help position the motorcycle, while the simple 2-button pendant control provides convenient operation during raising and lowering.
The included mobility wheel kit makes it easier to reposition the lift around the shop or garage when needed. Heavy-duty construction and a durable powder-coated finish provide the strength and wear resistance required for regular use in demanding service environments.
For even greater versatility, the LMATV can be equipped with an optional front wheel vise and 1,100 lb mini jack, allowing the lift to be configured into a more complete motorcycle and ATV service station.
LMATV Specifications
- Lifting Capacity: 2,200 lbs
- Maximum Lifting Height: 47.2"
- Minimum Lifting Height: 7.5"
- Overall Height – Collapsed: 5.2"
- Overall Width: 63.3"
- Overall Length: 88.2"
- Main Table Length: 86.6"
- Ramp Length: 28.5"
- Rear Extension Length: 23.6"
- Table Width – Narrow Section: 14.7"
- Motor: 1 HP
- Power Requirement: 120V / 8A / 1-Phase / 60 Hz
- Controls: 2-Button Pendant
LMATV Special Features
- Heavy-duty 2,200 lb lifting capacity
- Designed for both motorcycles and ATVs
- Maximum lifting height of 47.2 inches
- Removable side platform extensions for flexible vehicle configurations
- Adjustable side ramps accommodate different ATV wheel positions
- Front and rear wheel dropouts simplify wheel and tire service
- Included front wheel chock for convenient motorcycle positioning
- 2-button pendant control for simple lift operation
- Included mobility wheel kit for easier repositioning
- Heavy-duty construction for professional and home garage use
- Durable powder-coated finish for improved wear resistance
- Ideal for maintenance, repairs, tire service, detailing, and general powersports work
Included Equipment
- Removable side platform extensions
- Adjustable side ramps
- Front wheel chock
- Mobility wheel kit
- 2-button pendant control
Optional Accessories
- LPYON-056 Front Wheel Vise – Provides additional support for securing motorcycles during service
- LPYON-057 1,100 lb Mini Jack – Provides additional lifting capability for wheels-free service
Shipping Dimensions & Weight
- Lift: 87" x 30" x 12" – 485 lbs
- Included Items Skid: 48" x 40" x 16" – 245 lbs
- Optional Wheel Clamp: 23" x 18" x 9" – 33 lbs
- Optional Mini Jack: 21" x 13" x 5" – 38 lbs
Daytona 5-2-1 Warranty
- 5-Year Warranty: Structural Components
- 2-Year Warranty: Electrical Components, Cylinders & Seal Kits
- 1-Year Warranty: Defective Parts
Daytona LMATV Manual
