Description

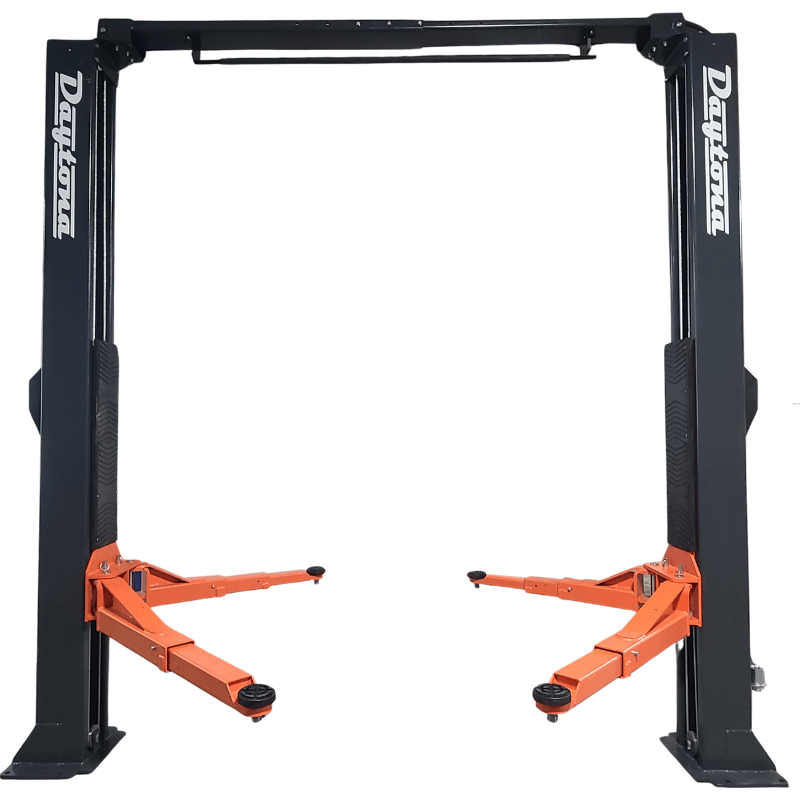

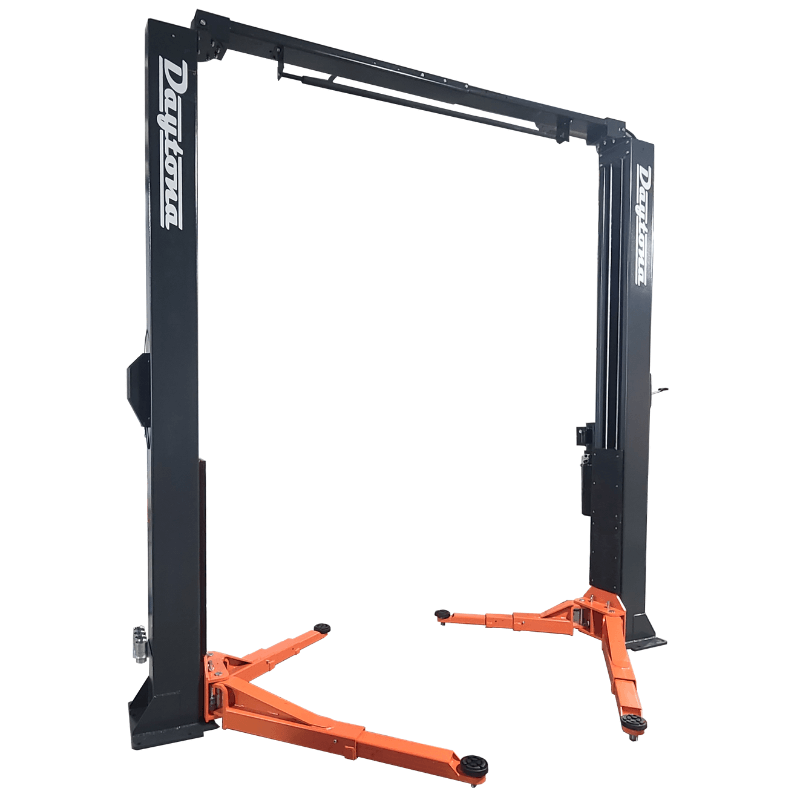

Daytona LTPA10 10,000 lb Adjustable Width 2-Post Lift
Heavy-Duty 10,000 lb 2-Post Lift for Professional Automotive Shops
The Daytona LTPA10 10,000 lb Adjustable Width 2-Post Lift is built for professional repair facilities and home garages that demand dependable lifting performance. With a 10,000-pound lifting capacity, this heavy-duty automotive lift is ideal for servicing everything from passenger cars and SUVs to light-duty trucks. Its three-position adjustable width design allows you to configure the lift to fit different vehicle sizes while maximizing available shop space. Equipped with dual direct-drive 6-foot hydraulic cylinders and a cable equalization system, the LTPA10 delivers smooth, balanced lifting and dependable operation day after day.
Designed with durability and operator safety in mind, the LTPA10 features automatic safety locks with a convenient single-point lock release for secure vehicle positioning. Three-stage front arms and 3-stage screw-up lifting pads provide exceptional versatility, making it easy to reach a variety of manufacturer-recommended lifting points. High-density polyethylene slide blocks help reduce wear for longer service life, while an integrated height limit switch protects vehicles from accidental overhead contact. Rubber door guards, a corrosion-resistant powder-coated finish, and included truck adapters round out a professional-grade lift that's built to handle demanding shop environments.
Daytona LTPA10 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Maximum Lifting Height | 80.0" |
| Minimum Lifting Height | 4.5" |
| Overall Height | 141.5" |
| Overall Width (Adjustable) | 126.8" – 138.6" |
| Drive-Through Clearance | Narrow: 88.6" • Medium: 94.5" • Wide: 100.4" |
| Column-to-Column Width | 100.8" – 112.6" |
| Maximum Arm Reach | 43.3" |
| Front Clearance | 9.1" |
| Base Plate Thickness | 0.6" |
| Arm Configuration | Symmetric |
| Motor | 240V, 3 HP, 13A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 4" thick, 3,500 PSI |
Optional Height Kit
- Dimensions: 30" × 15" × 11"
- Weight: 165 lbs
Shipping Information
- Pallet 1: 143" L × 28" W × 24" H — 1,780 lbs
- Pallet 2: 32" L × 12" W × 12" H — 70 lbs
Key Features
- 10,000 lb lifting capacity for cars, SUVs, and light-duty trucks
- Adjustable-width columns with three drive-through configurations
- Symmetric arm design for balanced lifting
- Dual direct-drive 6-foot hydraulic cylinders with cable equalization
- Automatic safety locks with single-point lock release
- Three-stage front arms for increased lifting flexibility
- 3-stage screw-up lifting pads for multiple lifting point options
- High-density polyethylene slide blocks for reduced wear and smooth operation
- Integrated height limit switch for added overhead protection
- Rubber door guards help prevent accidental vehicle damage
- Durable powder-coated finish resists corrosion and everyday shop wear
- Includes truck adapters for servicing lifted and taller vehicles
Daytona 5-2-1 Warranty
-
- 5-Year: Structural Components
- 2-Year: Electrical Components, Hydraulic Cylinders & Seal Kits
- 1-Year: Defective Parts
