Description

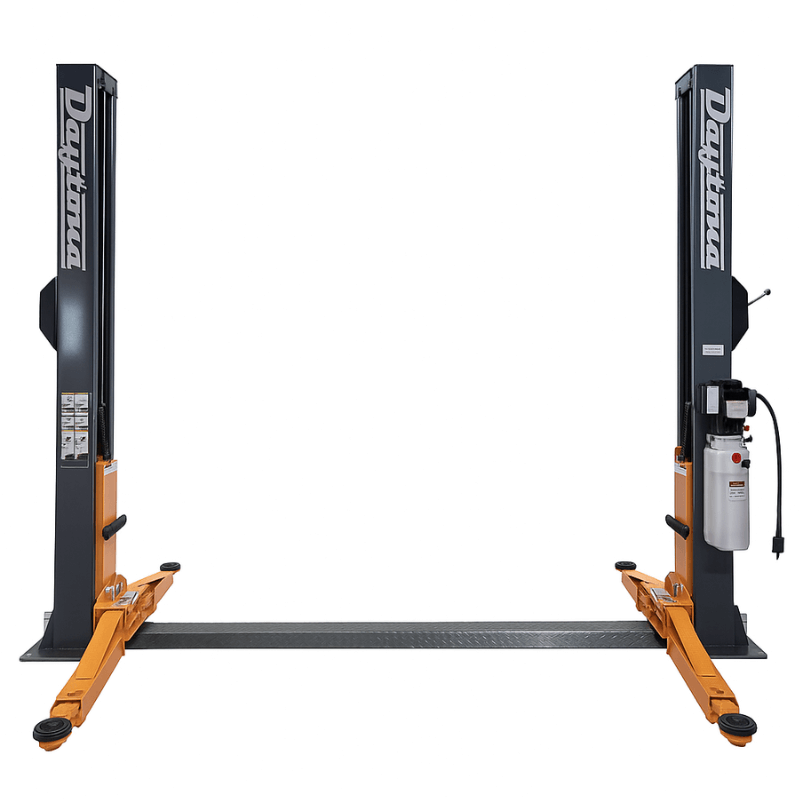

Daytona LTPF12 12,000 lb 2-Post Floor Plate Lift
Heavy-Duty Floor Plate Lift for Professional Repair Shops
The Daytona LTPF12 12,000 lb 2-Post Floor Plate Lift is engineered for automotive professionals who need dependable lifting power, long-term durability, and exceptional safety. With a 12,000-pound lifting capacity, this commercial-grade lift is ideal for servicing passenger vehicles, SUVs, light-duty trucks, and larger commercial vehicles. Its floor plate design makes it an excellent choice for shops with lower ceilings while still providing the strength and versatility required for demanding daily use.
Built for smooth, reliable performance, the LTPF12 utilizes dual hydraulic cylinders with a dual chain-drive equalization system to deliver stable, synchronized lifting. Automatic safety locks with a single-point lock release simplify operation while keeping vehicles securely supported throughout service. High-density polyethylene slide blocks reduce friction and wear, helping extend the lift's lifespan while minimizing maintenance.
To maximize versatility, the LTPF12 is equipped with three-stage front arms, screw-up lifting pads, and included truck adapters, making it easy to service a wide range of vehicle sizes and lifting points. Additional features such as an integrated height limit switch, full-length rubber door guards, and a durable powder-coated finish provide added safety, corrosion resistance, and long-lasting performance in busy shop environments.

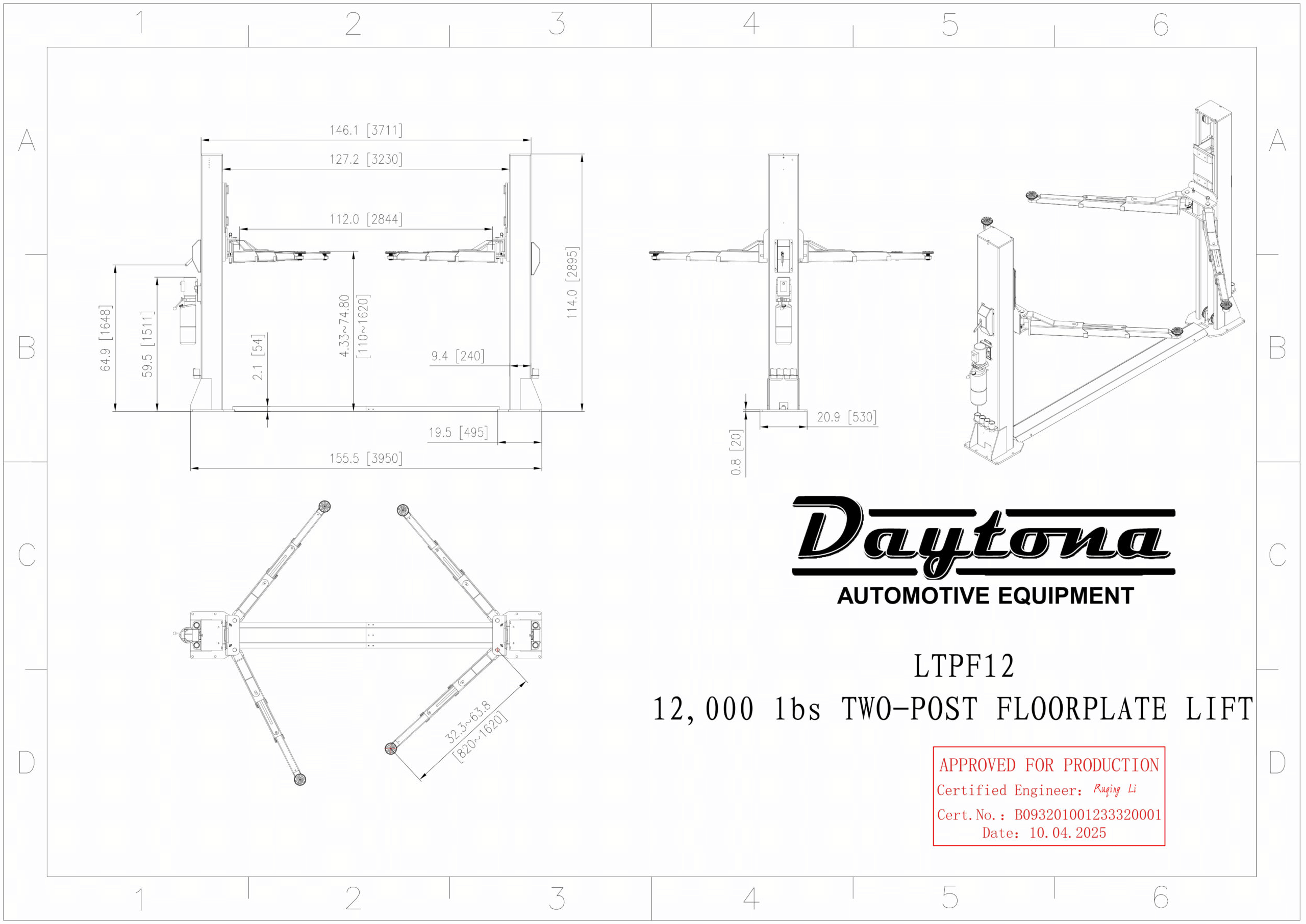

Daytona LTPF12 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Maximum Lifting Height | 74.8" |
| Minimum Lifting Height | 2.1" |
| Overall Height | 114.0" |
| Overall Width | 155.5" |
| Drive-Through Clearance | 112.0" |
| Outside Column Width | 127.2" |
| Maximum Arm Reach | 146.1" |
| Front Clearance | 9.4" |
| Base Plate Thickness | 20.9" |
| Motor | 240V, 3 HP, 13A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 4" thick, 3,500 PSI |
Shipping Information
- Lift: 116" L × 22" W × 39" H — 2,200 lbs
- Power Unit: 31" L × 12" W × 11" H — 60 lbs
Key Features
- 12,000 lb lifting capacity for cars, SUVs, trucks, and commercial vehicles
- Floor plate configuration ideal for facilities with lower ceiling heights
- Dual hydraulic cylinders with dual chain-drive equalization for smooth, dependable lifting
- Automatic safety locks with convenient single-point lock release
- Three-stage front arms for flexible vehicle positioning
- High-density polyethylene slide blocks reduce wear and extend service life
- Screw-up lifting pads provide precise lifting point adjustment
- Standard truck adapters included for servicing larger vehicles
- Integrated height limit switch enhances operator safety
- Full-length rubber door guards help protect vehicle doors and finishes
- Durable powder-coated finish resists corrosion, scratches, and everyday shop wear
- Designed for professional repair shops, fleet maintenance facilities, dealerships, and commercial service centers
