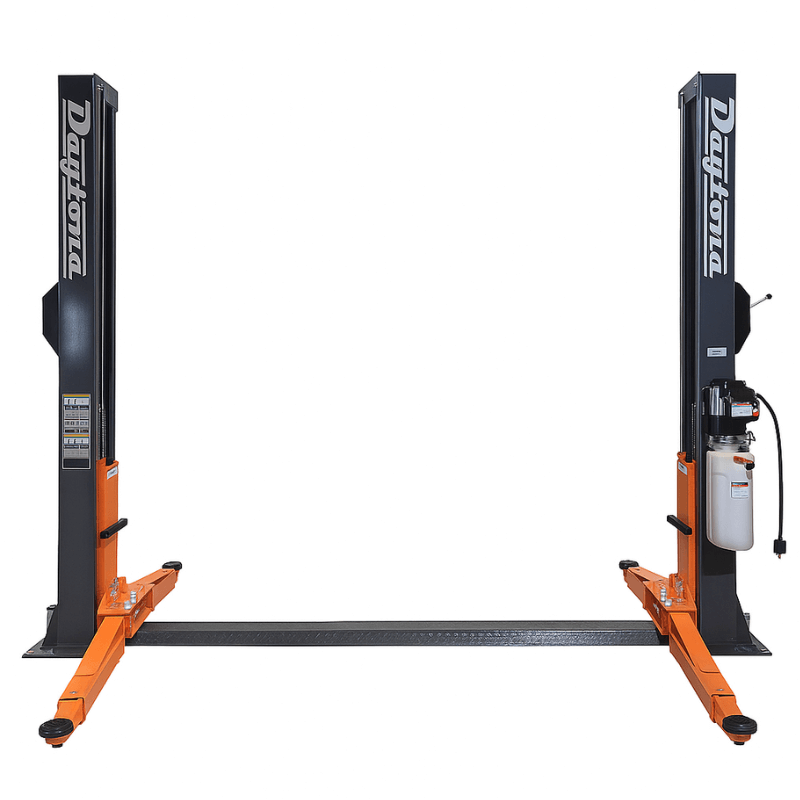

Daytona LTPF9 9,000 lb 2-Post Floor Plate Lift
Heavy-Duty 9,000 lb Floor Plate Lift for Professional & Home Garages
The Daytona LTPF9 9,000 lb 2-Post Floor Plate Lift is designed to deliver dependable lifting performance, exceptional safety, and long-lasting durability for both professional automotive shops and serious home garages. With a 9,000-pound lifting capacity, this floor plate lift easily accommodates most passenger vehicles, SUVs, and light-duty trucks, making it an excellent all-around solution for routine maintenance and repairs.
Built with a chain-over-hydraulic lifting system, the LTPF9 provides smooth, controlled lifting while maintaining reliable synchronization throughout every lift cycle. Automatic safety locks with a single-point lock release ensure secure vehicle support and easy operation. Durable high-density polyethylene slide blocks reduce wear and maintenance, extending the lift's service life even in demanding shop environments.
For added versatility, the LTPF9 features asymmetric three-stage front arms, allowing for easier vehicle positioning and improved door access. Screw-up lifting pads and included truck adapters make servicing a wide range of vehicle types simple, while rubber door guards help protect vehicle finishes. An integrated height limit switch enhances safety by preventing overhead contact, and the durable powder-coated finish provides excellent resistance against corrosion and everyday shop wear.
Daytona LTPF9 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Maximum Lifting Height | 74.8" |
| Minimum Lifting Height | 4.5" |
| Overall Height | 110.0" |
| Overall Width | 131.2" |
| Drive-Through Clearance | 98.9" |
| Width Between Columns | 110.5" |
| Internal Base Width | 124.6" |
| Long Arm Reach | 32.7" – 51.9" |
| Short Arm Reach | 22.8" – 41.3" |
| Motor Mount Height | 62.6" |
| Pump Reservoir Height | 41.7" |
| Column Width | 11.2" |
| Base Plate Depth | 16.9" |
| Base Plate Width | 14.8" |
| Floor Plate Height | 0.6" |
| Overhead Extension | 7.0" |
| Motor | 240V, 3 HP, 13A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 4" thick, 3,500 PSI |
Shipping Information
- Lift: 114" L × 18" W × 30" H — 1,250 lbs
- Power Unit: 31" L × 12" W × 11" H — 60 lbs
Key Features
- 9,000 lb lifting capacity for cars, SUVs, and light-duty trucks
- Chain-over-hydraulic lifting system for smooth, reliable operation
- Asymmetric arm configuration for easier vehicle entry and positioning
- Automatic safety locks with convenient single-point lock release
- Three-stage front arms provide flexible lifting point access
- High-density polyethylene slide blocks reduce wear and maintenance
- Screw-up lifting pads accommodate a variety of vehicle heights
- Integrated height limit switch for added operator safety
- Rubber door guards help protect vehicle finishes
- Durable powder-coated finish resists corrosion and everyday shop wear
- Includes truck adapters for servicing larger vehicles
