Description

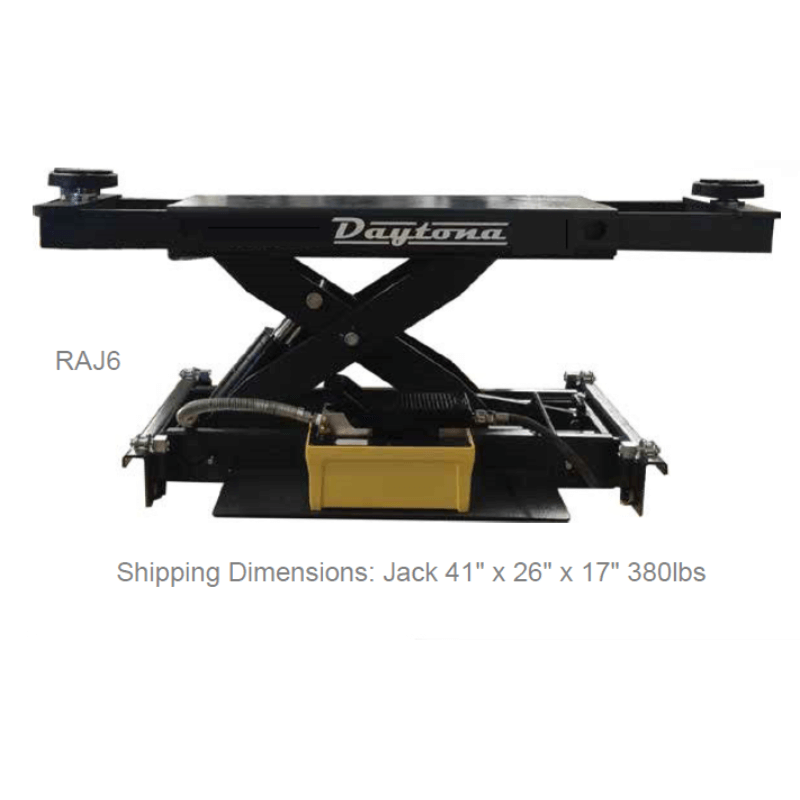

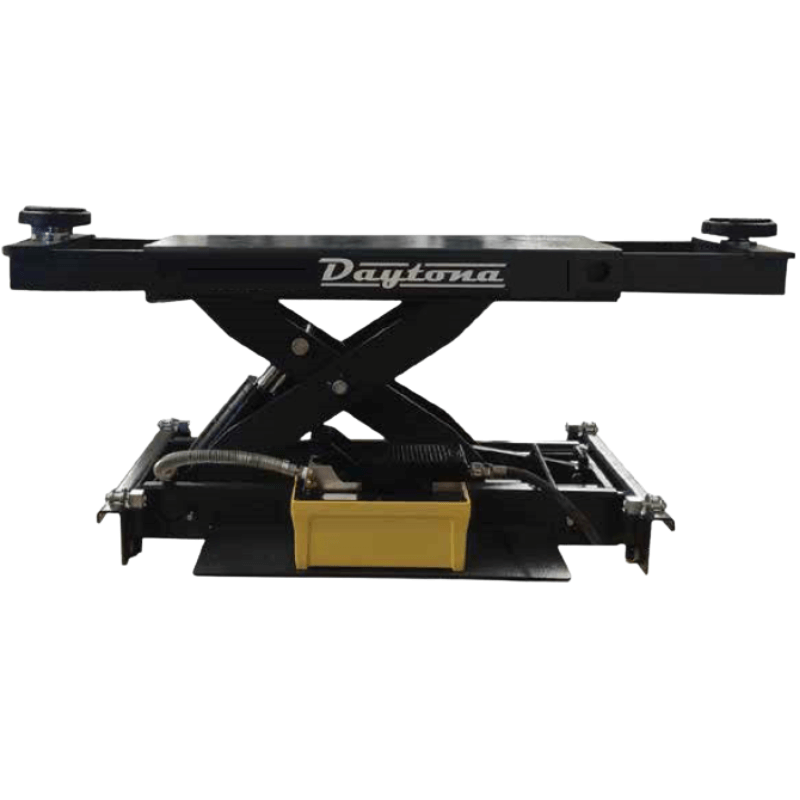

Daytona RAJ6 6,000 lb Capacity Rolling Jack – For 9K & 10K Parking Lifts
The Daytona RAJ6 6,000 lb Capacity Rolling Jack is a heavy-duty accessory designed to add wheels-free lifting capability to compatible Daytona 9,000 lb and 10,000 lb parking lifts. Ideal for tire, brake, suspension, and undercarriage service, the RAJ6 allows technicians to raise a vehicle from the lift runways for easier access to the wheels and suspension components.
Featuring a 36" to 64" lifting span and double-stage arms, the RAJ6 provides the flexibility needed to accommodate a variety of cars, SUVs, and light-duty trucks. Its adjustable screw-up lifting pads offer a 1-1/2" to 3-1/2" pad height range, while the jack itself provides a lifting height range of 9.25" to 21".
Powered by standard 110–150 PSI shop air, the RAJ6 delivers smooth and efficient lifting with minimal operator effort. Its rugged, heavy-duty construction is designed for dependable performance in both professional automotive shops and well-equipped home garages.
RAJ6 Specifications
- Lifting Capacity: 6,000 lbs
- Lifting Height Range: 9.25" – 21"
- Lifting Span: 36" – 64"
- Arm Design: Double-Stage Arms
- Pad Style: Adjustable Screw-Up Pads
- Pad Height Range: 1-1/2" – 3-1/2"
- Pad Size: 4-3/4"
- Peg Size: 1.96"
- Air Pressure Requirement: 110–150 PSI
- Shipping Dimensions: 41" x 26" x 17"
- Shipping Weight: 380 lbs
- Replacement Model: RAJ5
Compatible Daytona Parking Lifts
The RAJ6 is designed for use with select Daytona 9,000 lb and 10,000 lb four-post parking lifts, including:
- LFPP9 – 9,000 lb 4-Post Parking Lift
- LFPP10 – 10,000 lb 4-Post Parking Lift
- LFPP10-XLT – 10,000 lb Extra-Long, Extra-Tall 4-Post Parking Lift
RAJ6 Special Features
- Heavy-duty 6,000 lb lifting capacity
- Designed for compatible Daytona 9K and 10K parking lifts
- Provides wheels-free lifting for additional service capabilities
- Wide 36"–64" lifting span accommodates a variety of vehicles
- Double-stage arms for greater positioning flexibility
- Adjustable screw-up lifting pads
- Air-powered operation for smooth and efficient lifting
- Heavy-duty construction for long-term reliability
- Ideal for tire, brake, suspension, and undercarriage service
- Suitable for cars, SUVs, and light-duty trucks
- Designed for professional shops and home garages
Daytona RAJ6 Manual
Daytona RAJ6 Compatible Lifts:
- Daytona LFPP9 9,000lb 4 Post Parking Lift
- Dayton LFPP10 10,000lb 4 Post Parking Lift
-
Dayton LFPP10-XLT 10,000lb 4 Post Parking Lift XLT
