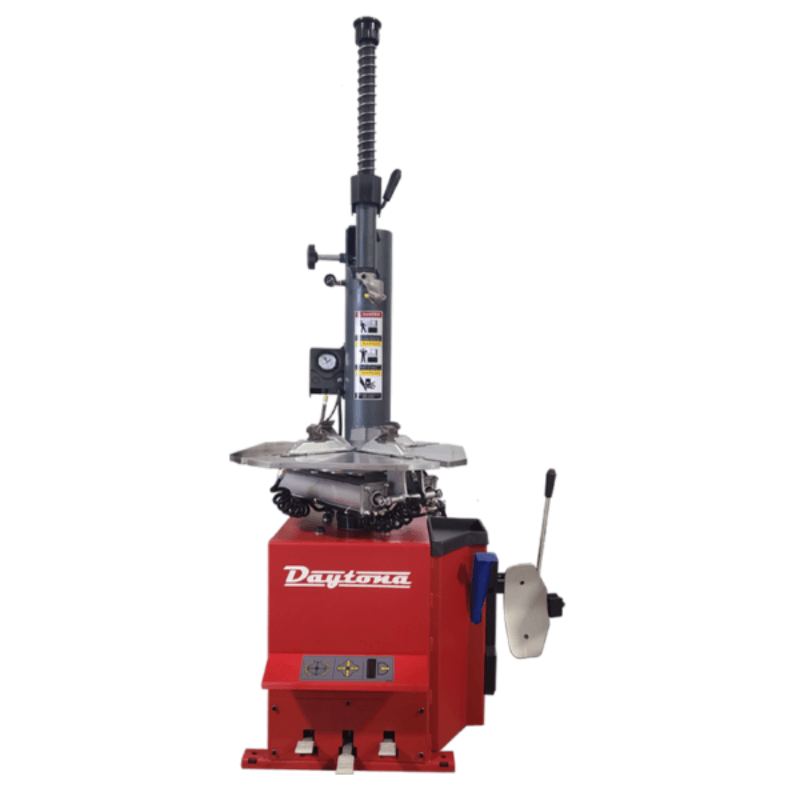

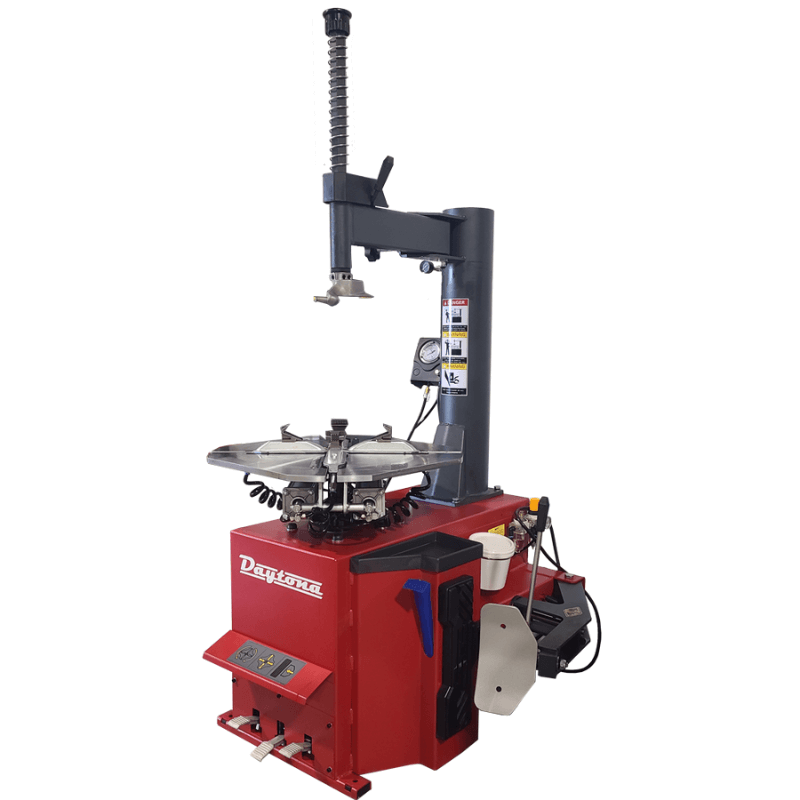

Daytona TC-880 Base Model Tire Changer – Swing Arm with Pneumatic Clamping
The Daytona TC-880 Base Model Tire Changer is a reliable, straightforward solution for everyday tire mounting and demounting applications. Designed for automotive repair shops, tire service centers, and well-equipped home garages, the TC-880 combines a durable swing-arm design with pneumatic wheel clamping for efficient and controlled tire service.
Equipped with four pneumatic clamps and double-acting cylinders, the TC-880 provides secure wheel positioning throughout the tire-changing process. Its clamping system accommodates 10" to 22" inside rim clamping and 12" to 24" outside rim clamping, allowing the machine to service a broad range of passenger vehicle and light-truck wheels.
A side-mounted bead breaker provides the force needed to separate stubborn tire beads from the rim, while the manual mount/demount system gives the operator direct control during tire installation and removal. The TC-880 also incorporates a portable bead-seating inflation system to help streamline the inflation and bead-seating process.
For consistent pneumatic performance, the TC-880 comes equipped with an integrated water separator, lubricator, and air pressure regulator. Combined with its compact footprint, simple controls, and heavy-duty construction, the TC-880 is a practical choice for shops looking for dependable tire-changing capability without unnecessary complexity.
TC-880 Specifications
- Inside Rim Clamping Range: 10" – 22"
- Outside Rim Clamping Range: 12" – 24"
- Maximum Wheel Diameter: 38"
- Maximum Tire Width: 10"
- Air Pressure Requirement: 120–145 PSI
- Power Requirement: 120V / 1.5 HP / 20A / 1-Phase / 60 Hz
TC-880 Special Features
- Durable swing-arm design for straightforward tire service
- Manual mount/demount operation for precise operator control
- Four pneumatic wheel clamps for secure wheel positioning
- Double-acting clamping cylinders for smooth, reliable operation
- Side-mounted bead breaker for efficient bead separation
- Integrated portable bead-seating inflation system
- Handles a wide range of passenger and light-truck wheel sizes
- Inside rim clamping range of 10"–22"
- Outside rim clamping range of 12"–24"
- Integrated water separator for cleaner air supply
- Built-in lubricator and air pressure regulator
- Compact design suitable for professional shops and home garages
- Built for dependable everyday tire service
Shipping Dimensions & Weight
- Body Box: 38" x 42" x 34"
- Shipping Weight: 575 lbs
Daytona 5-2-1 Warranty
- 5-Year Warranty: Structural Components
- 2-Year Warranty: Electrical Components, Cylinders & Seal Kits
- 1-Year Warranty: Defective Parts
Daytona TC-880 Manual
