Description

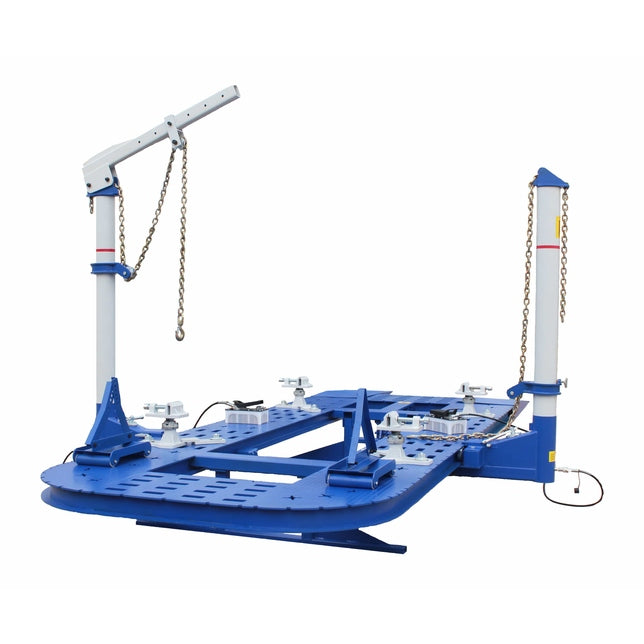

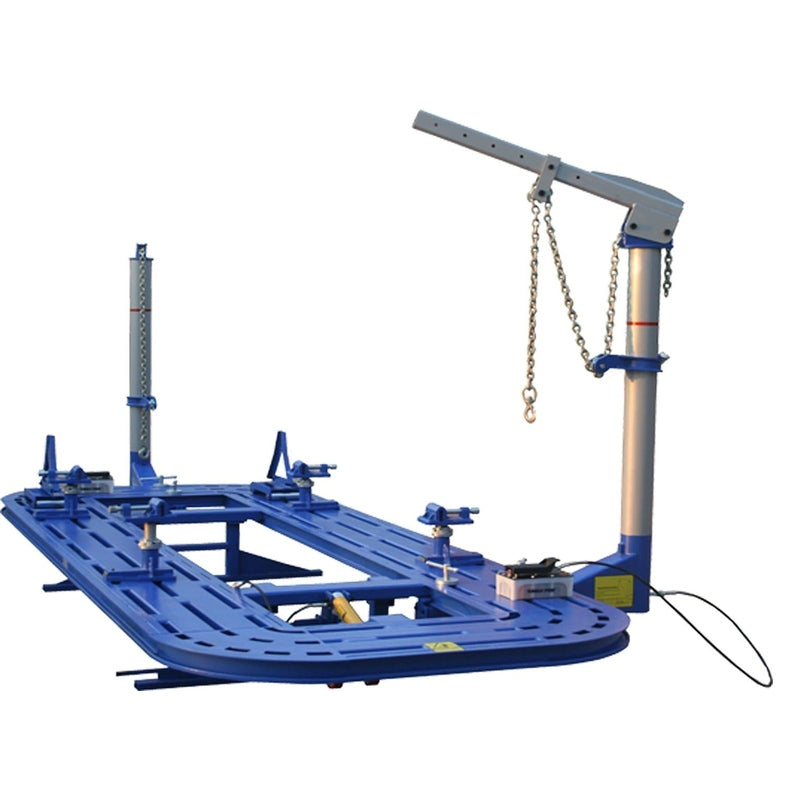

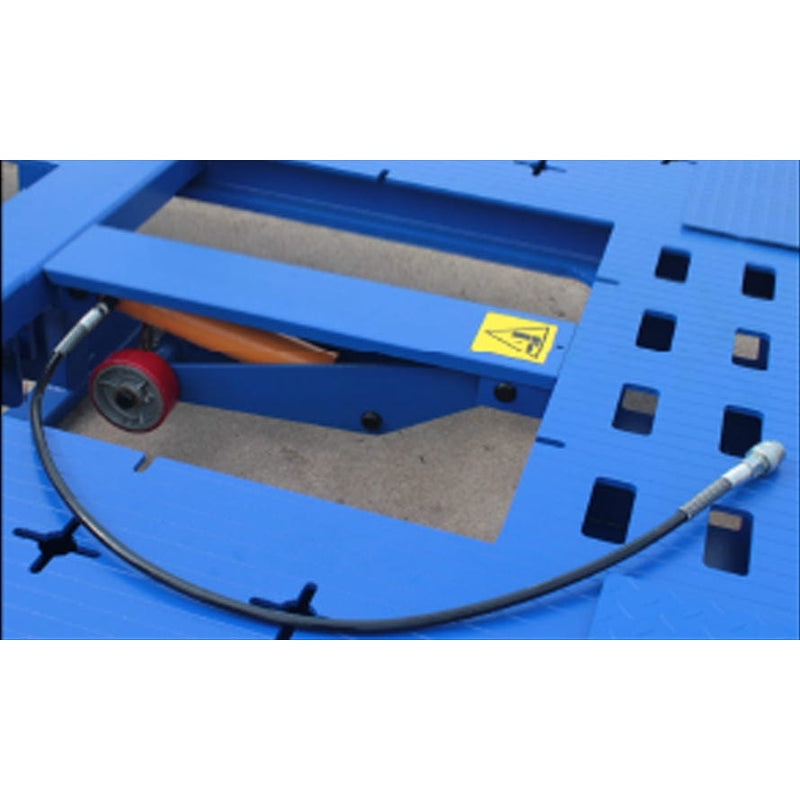

The iDEAL FR-77T-18 Frame Rack is a durable, high-quality frame straightening system engineered for precision, performance, and versatility. Built with a tilt-deck tubular steel platform, this rack is designed to accommodate both full-frame and uni-body vehicles, offering a 7,700 lb lifting capacity and rugged stability for demanding collision repair work.
Equipped with two 10-ton pulling towers featuring 360° clear-floor pulling capability, adjustable collars, and telescoping heads, the FR-77T-18 delivers flexibility for a wide range of repair angles and applications. Its universal anchoring system includes adjustable-height pinch weld clamps and multiple tie-down hole locations, ensuring secure vehicle positioning and precise frame alignment.
For added functionality, the system includes pulling chains and hooks, an overhead boom tower extension, dual air/hydraulic pumps with pressure gauges, and a universal wheel stand with a vehicle dolly. Finished with a durable powder coat, the FR-77T-18 combines strength, efficiency, and long-lasting performance—making it an essential addition to any professional body shop.
Features
-
Tilt-Deck Design — Simplifies loading and improves accessibility during repair work.
-
7,700 lb Lifting Capacity — Suitable for full-frame and uni-body vehicles.
-
Twin 10-Ton Pulling Towers — Provide 360° clear-floor pulling capability.
-
Telescoping Tower Heads & Adjustable Collars — Enable precise, multi-angle pulls.
-

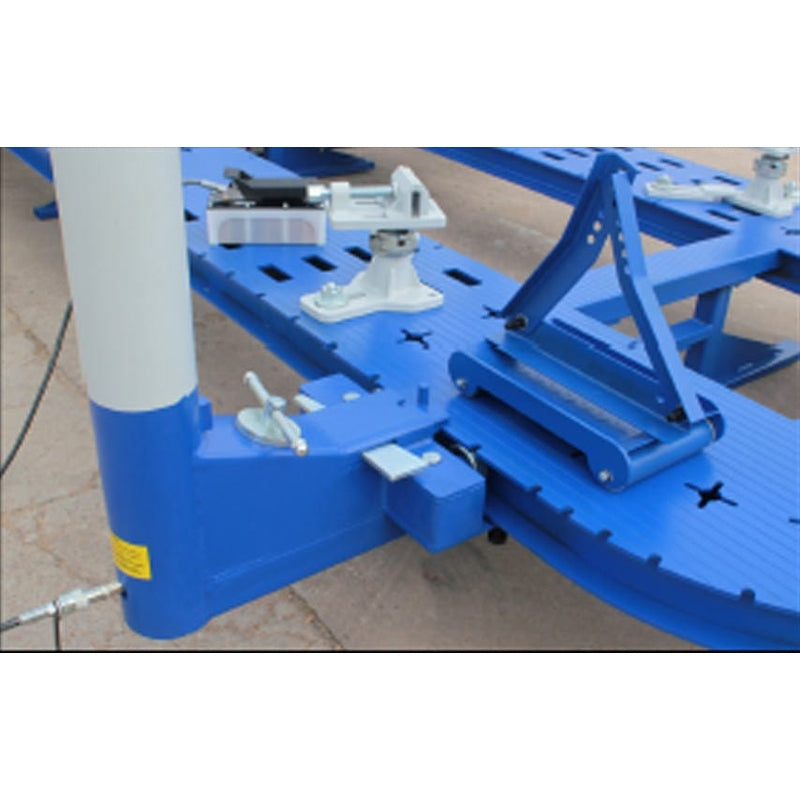

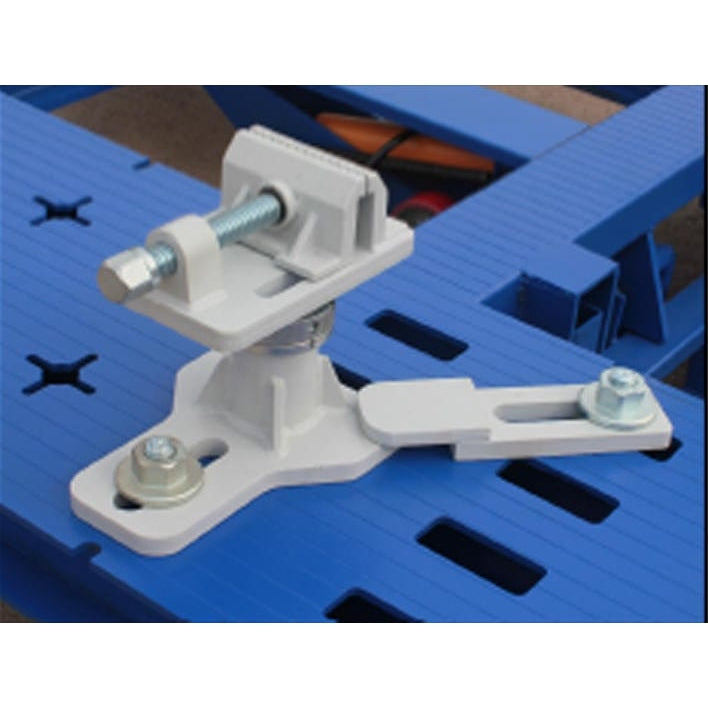

Universal Anchoring System — Features adjustable pinch weld clamps and multiple tie-down points.
-

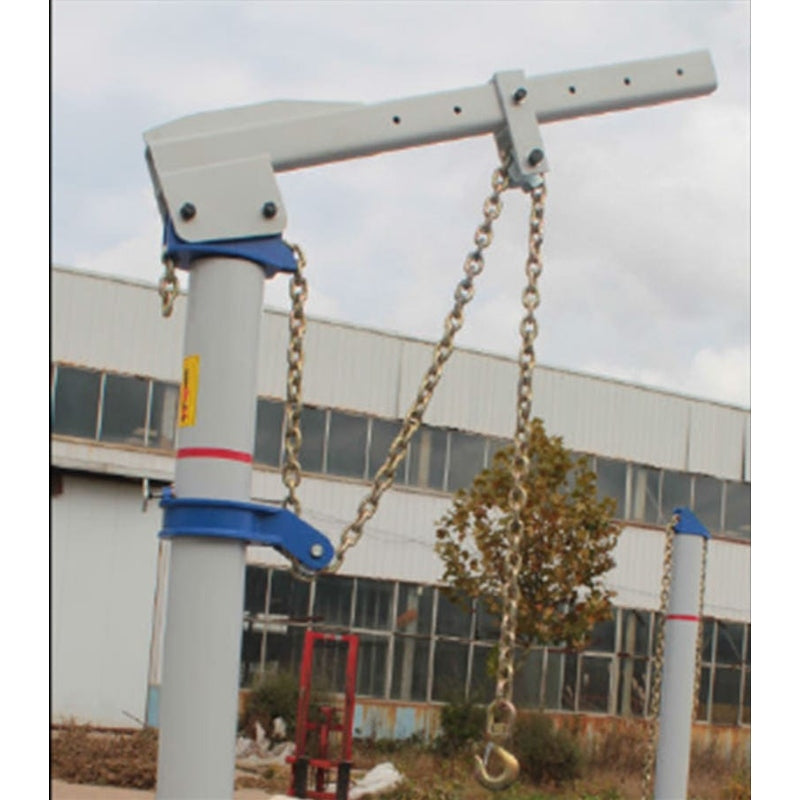

Overhead Boom Tower Extension — Adds vertical pulling versatility.
-
Quick-Disconnect Hydraulic Fittings — Allow fast, efficient setup and maintenance.
-
Dual Air/Hydraulic Pumps — Each equipped with pressure gauges for accurate operation.
-
Heavy-Duty Tubular Steel Deck — Ensures long-term durability and stability.
-

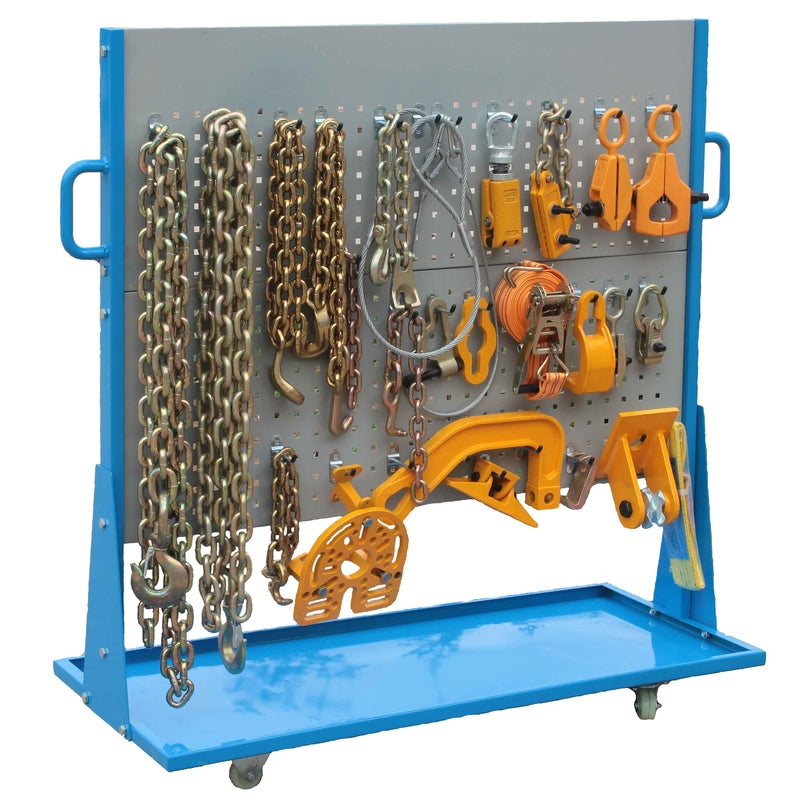

Includes Accessories — Two 10' pulling chains with hooks, universal wheel stand, and vehicle dolly.
-
Powder-Coated Finish — Provides corrosion resistance and a professional appearance.

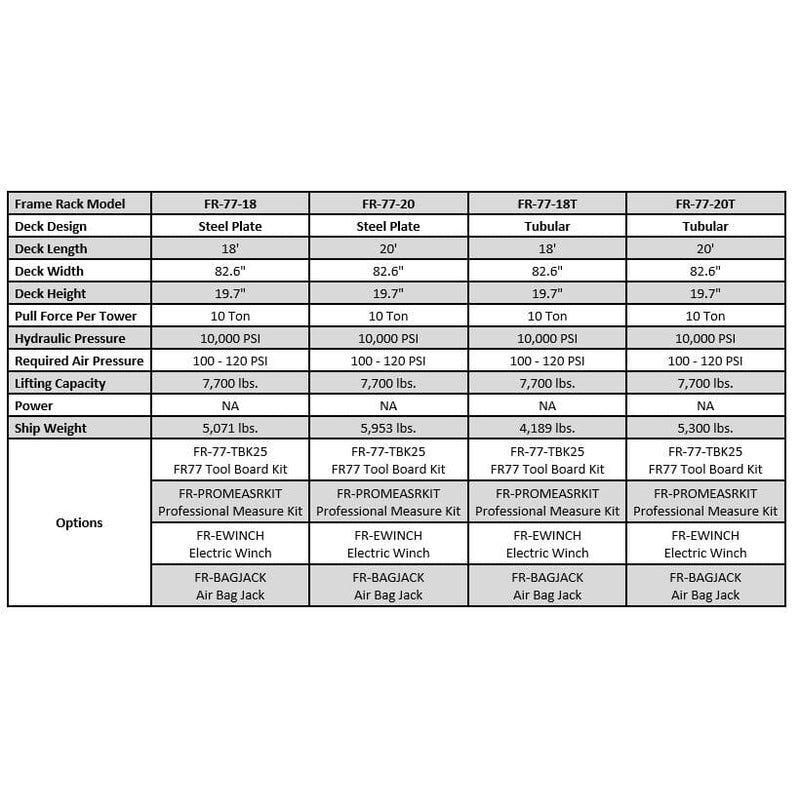

Specifications
| Specification | Details |
|---|---|
| Model | FR-77T-18 |
| Deck Design | Tubular Steel |
| Deck Length | 18′ |
| Deck Width | 82.6″ |
| Deck Height | 19.7″ |
| Pull Force per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100–120 PSI |
| Lifting Capacity | 7,700 lbs |
| Power | N/A |
| Shipping Weight | 4,189 lbs |
