Description

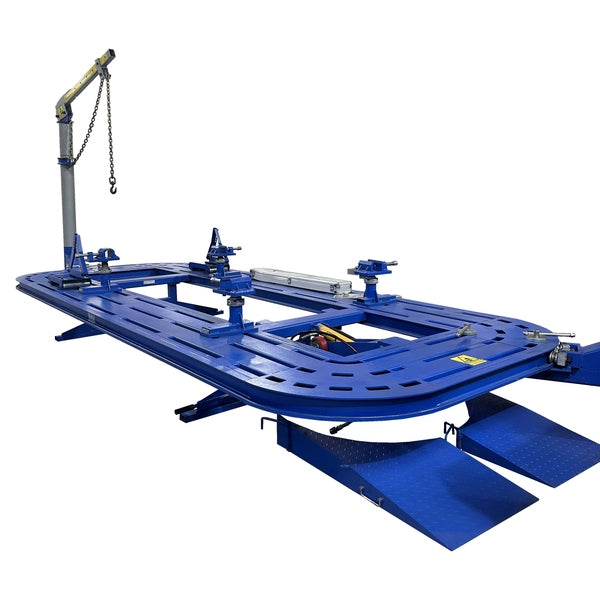

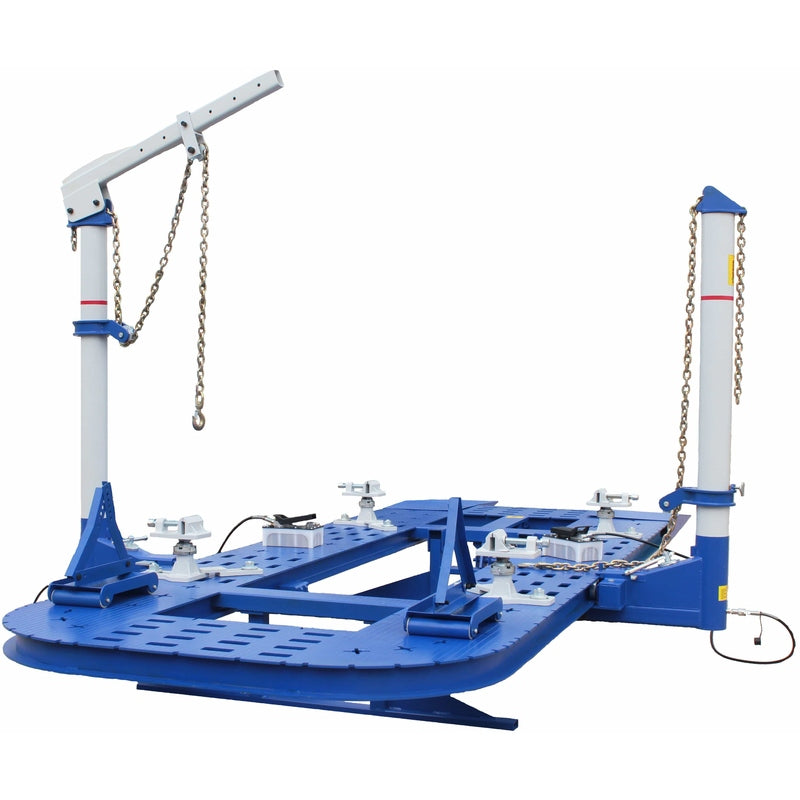

The iDEAL FR-77-20 20-Inch Frame Rack is a rugged, professional-grade collision repair system engineered for precision, power, and reliability. Built with a heavy-duty steel deck, this unit provides exceptional strength and stability for demanding frame straightening and body repair applications.
Featuring a tilt-deck design with a 7,700 lb lifting capacity, the FR-77-20 allows easy vehicle loading using the integrated drive-on ramps. Its universal anchoring system includes adjustable-height pinch weld assemblies for secure and accurate positioning across various vehicle types.
Equipped with two 10-ton pulling towers with telescoping heads, adjustable collars, and an overhead boom extension, this frame rack offers versatile pulling angles for comprehensive repair capability. The system includes dual 10-ton pulling chains with hooks, two air/hydraulic pumps with pressure gauges, and quick-disconnect hydraulic fittings for efficient setup and operation.
A powder-coated finish ensures long-lasting durability, while a universal wheel stand and dead vehicle dolly provide added convenience in any shop setting.
Features
-
Durable Steel Deck Construction — Heavy-duty platform designed for long-term professional use.
-

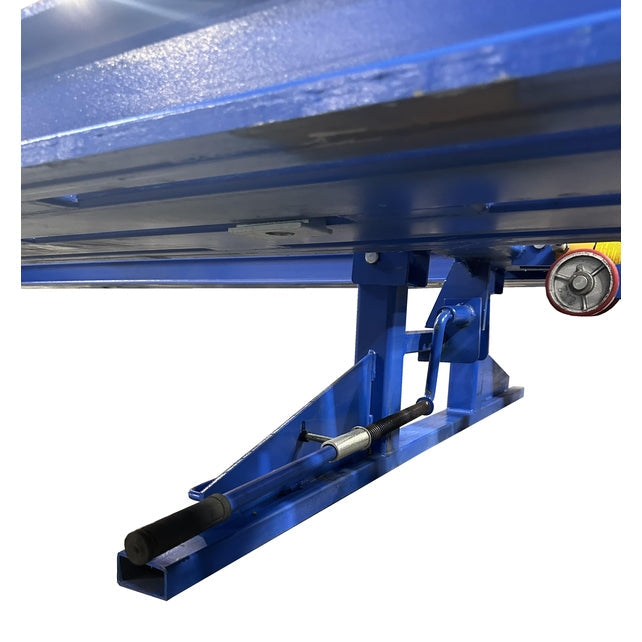

Tilt-Deck Operation — Simplifies vehicle loading and unloading with drive-on ramps.
-
7,700 lb Lifting Capacity — Handles a wide range of passenger vehicles and light trucks.
-

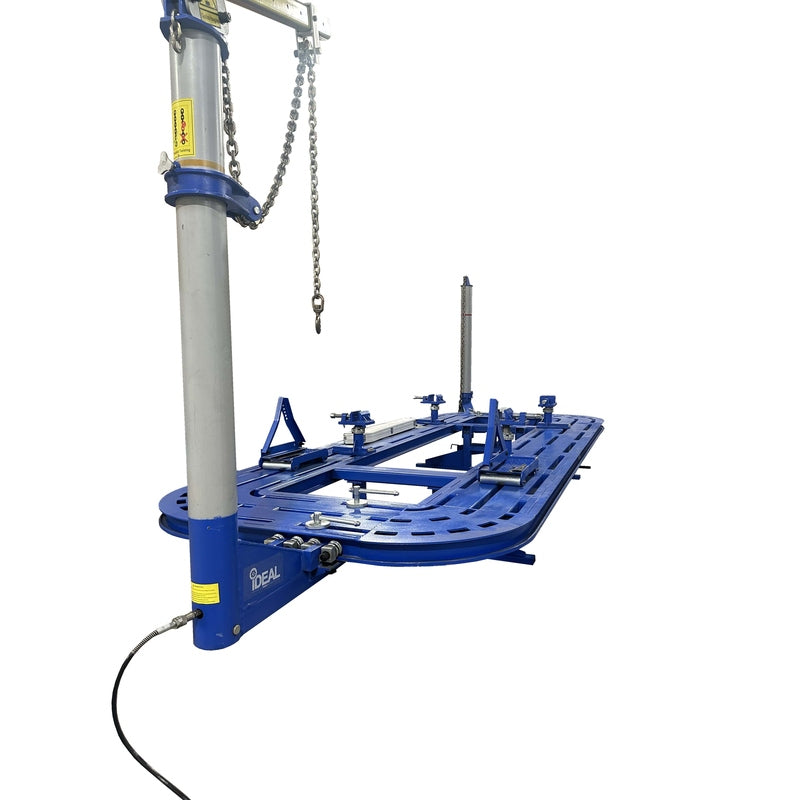

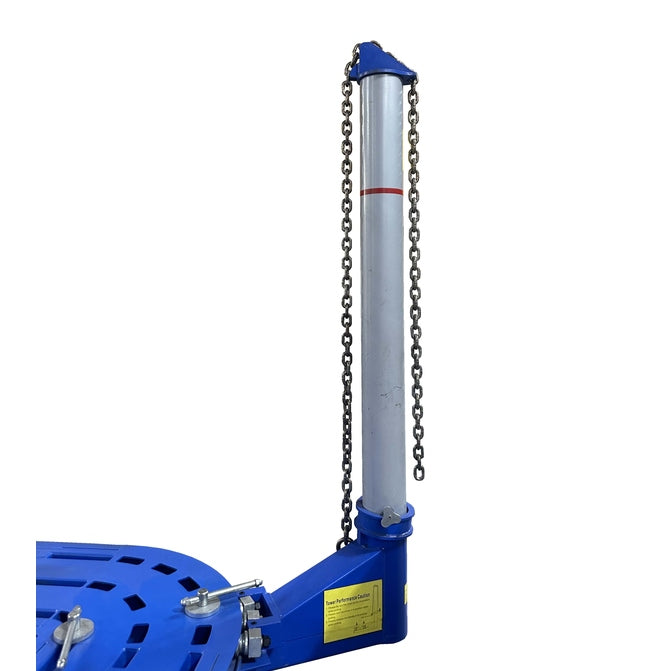

Two 10-Ton Pulling Towers — Equipped with telescoping heads for flexible pulling positions.
-

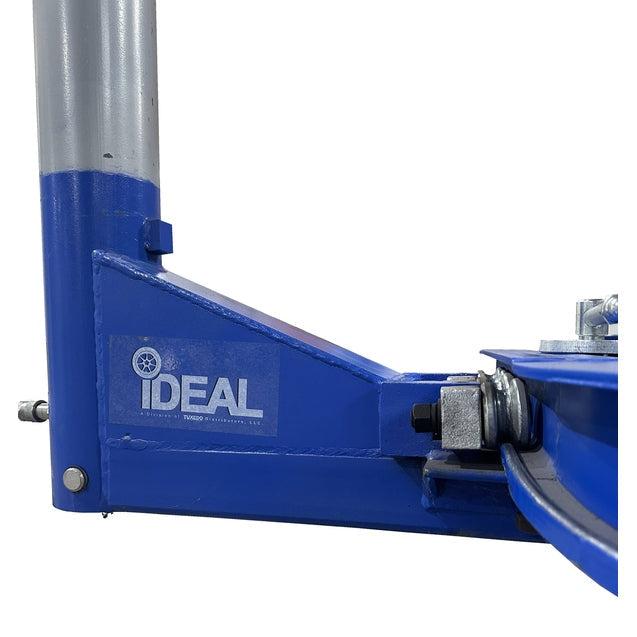

Adjustable Tower Collars — Enable precise tower alignment and secure positioning.
-

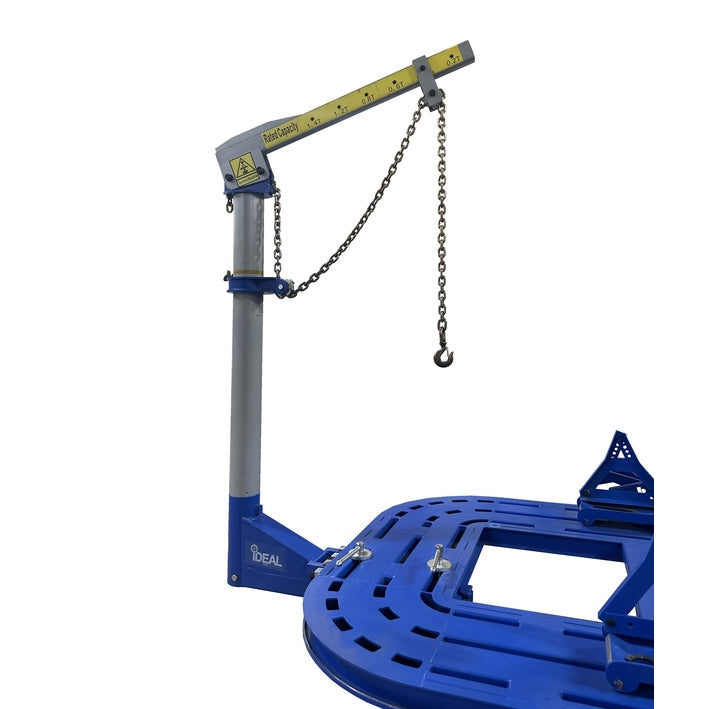

Overhead Boom Extension — Allows multi-angle pulling for complex frame corrections.
-

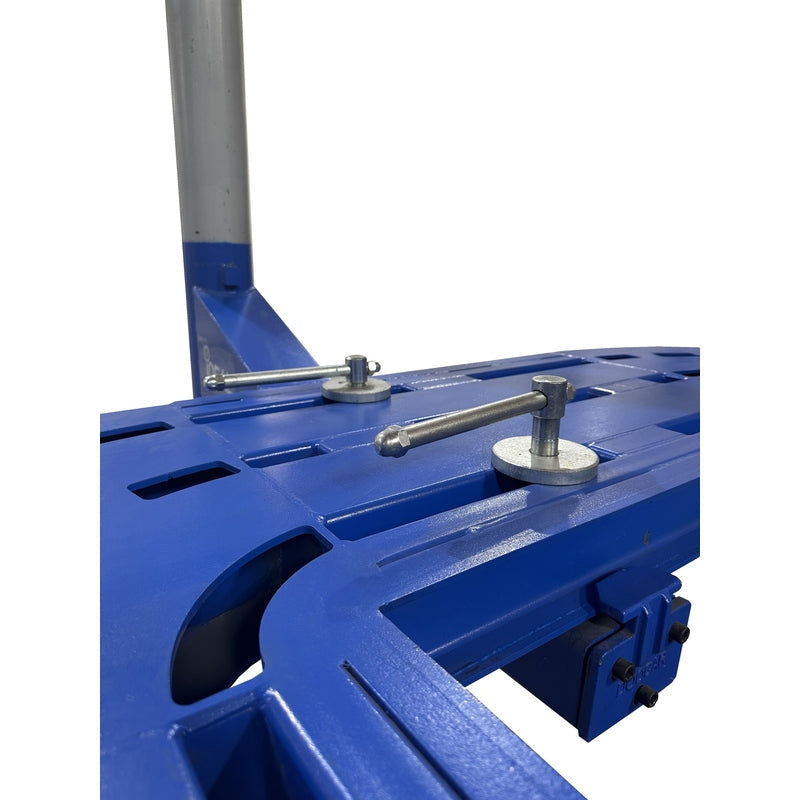

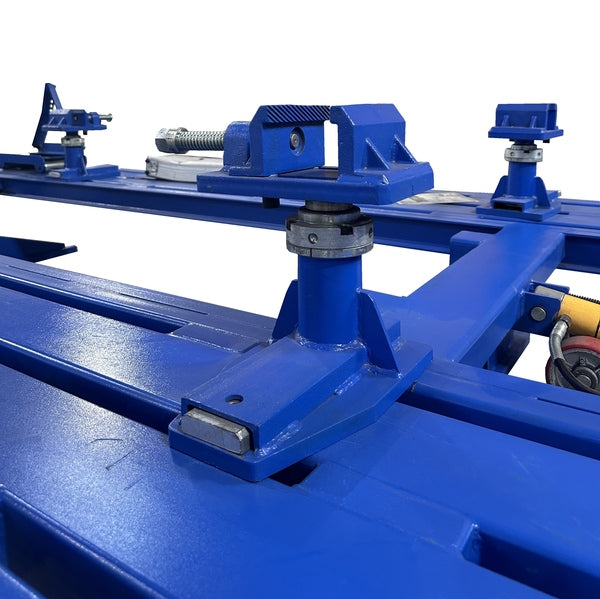

Universal Anchoring System — Includes adjustable-height pinch weld assemblies for versatility.
-
Quick-Disconnect Hydraulic Fittings — Simplify maintenance and tool changes.
-

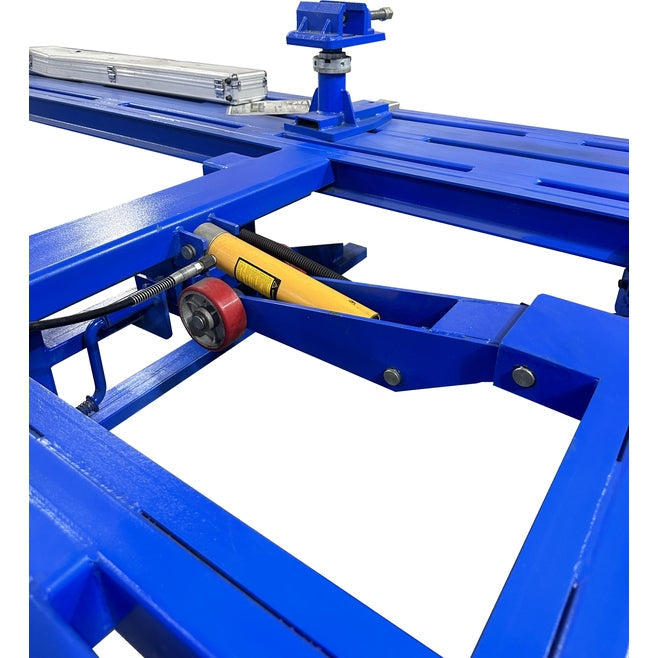

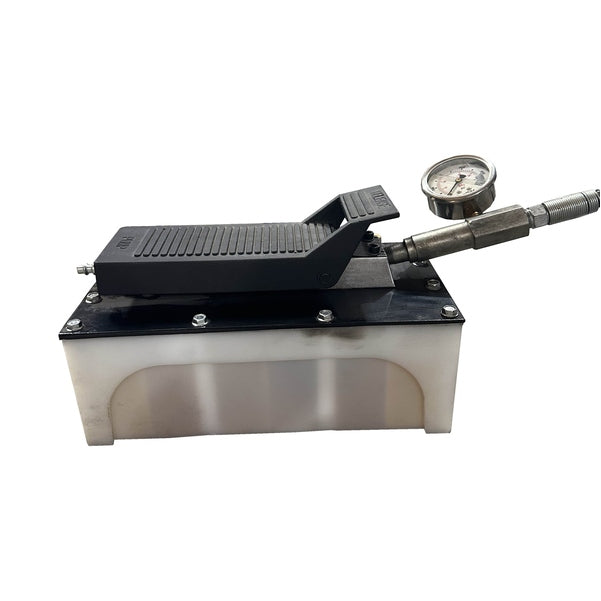

Dual Air/Hydraulic Pumps — Each with integrated pressure gauges for precise control.
-
10-Ton Pulling Chains with Hooks — Strong, dependable components for heavy-duty use.
-
Powder-Coated Finish — Protects against wear and corrosion.
-

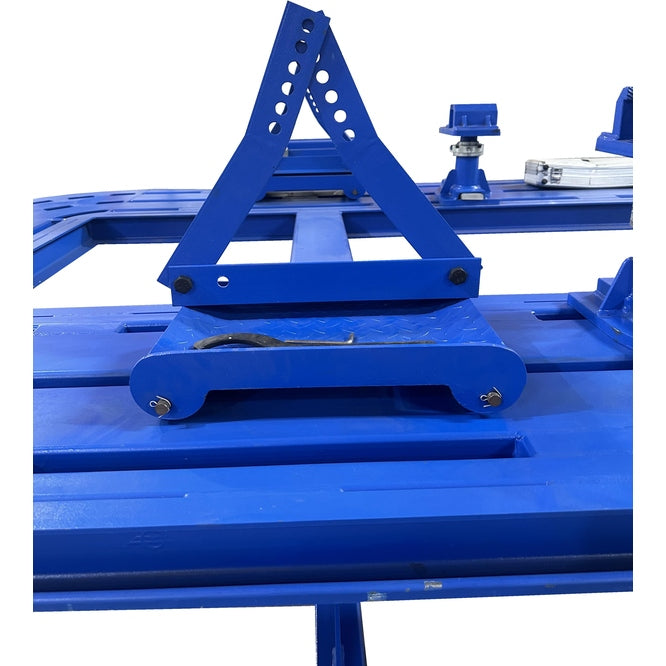

Universal Wheel Stand & Dead Vehicle Dolly — Enhance mobility and workflow efficiency.

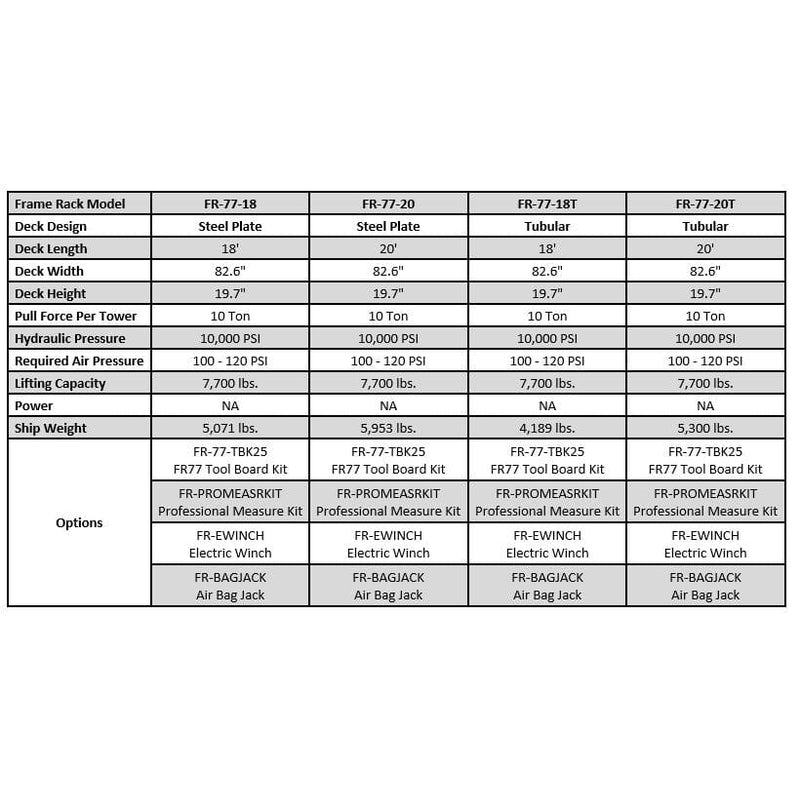

Specifications
| Specification | Details |
|---|---|
| Model | FR-77-20 |
| Deck Design | Steel Plate |
| Deck Length | 20′ |
| Deck Width | 82.6″ |
| Deck Height | 19.7″ |
| Pull Force per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100–120 PSI |
| Lifting Capacity | 7,700 lbs |
| Power | N/A |
| Shipping Weight | 5,953 lbs |
