Description
The iDEAL 3D HD Multi-Axle Imaging Wheel Aligner (Model IWA-60-8500-HD-K) delivers advanced precision and efficiency for heavy-duty vehicle alignment. Designed for trucks, semi-trailers, and buses, this state-of-the-art system performs multi-axle wheel alignments quickly and accurately — without requiring vehicle lifting.
Equipped with four high-definition industrial cameras, the system captures readings for up to four axles simultaneously, with capability for additional axles as needed. Its Wide Scope Technology provides extensive measurement coverage across various vehicle lengths and wheelbases, ensuring accuracy within ±0.01 degrees. Real-time imaging enables faster results and higher throughput, making it ideal for professional fleet maintenance operations.
The lightweight target assemblies are simple to mount on most wheel types, while the specialized truck alignment software offers detailed data sets, including rear axle thrust adjustment with shim assistance. A user-friendly interface with high-resolution LCD graphics, step-by-step instructions, and an integrated help system streamlines the alignment process for technicians at any experience level.
Built for precision, speed, and reliability, the iDEAL 3D HD Imaging Wheel Aligner represents one of the most advanced and cost-effective heavy-duty alignment systems available—fully supported across the United States.
Key Features
-
Heavy-Duty Multi-Axle Alignment System — Designed for trucks, semi-trailers, and buses.
-
No Vehicle Lifting Required — Performs accurate alignments directly at floor level.
-
Four High-Definition Cameras — Capture measurements across up to four axles simultaneously.
-
Wide Scope Technology — Provides extensive coverage for varying vehicle lengths and wheelbases.
-
Exceptional Accuracy — Delivers precision readings within ±0.01 degrees.
-
Real-Time Measurement Display — Enhances productivity and reduces setup time.
-

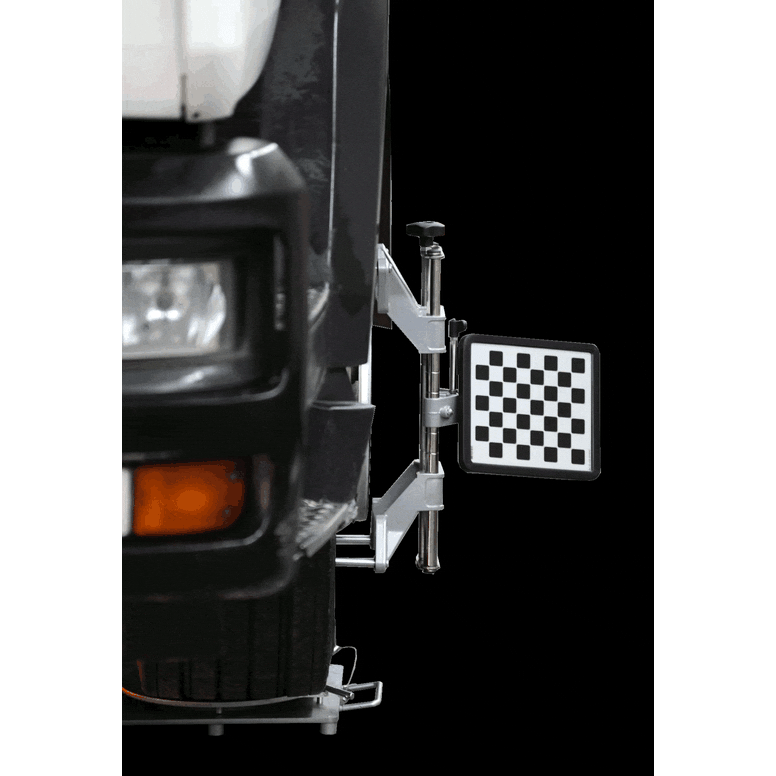

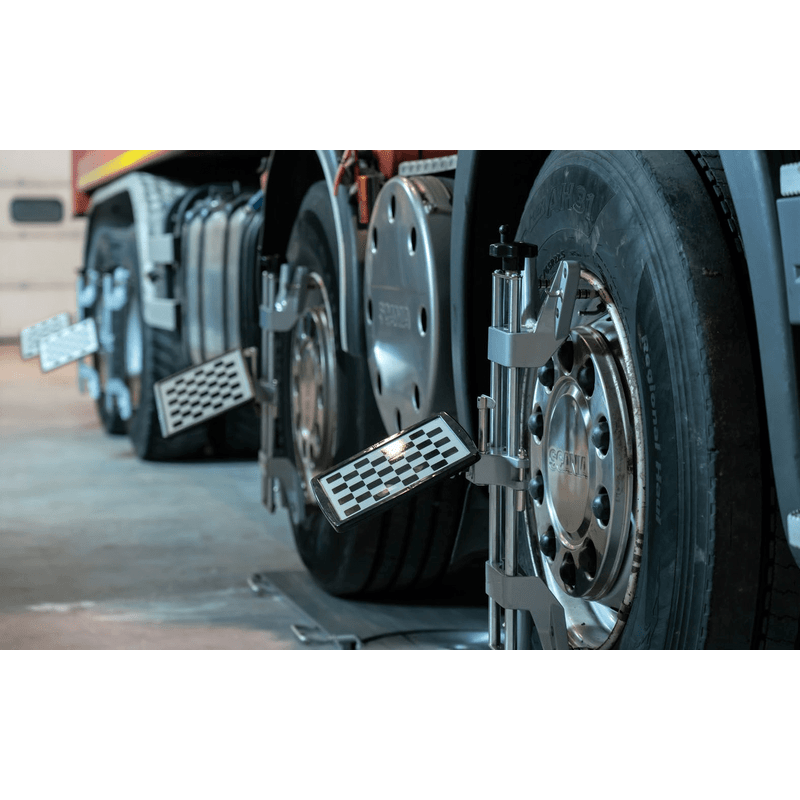

Lightweight Quick-Mount Targets — Easy installation on multiple rim styles.
-
Advanced Alignment Software — Includes truck-specific data with shim guidance for rear axle thrust settings.
-
User-Friendly Interface — Intuitive controls, clear LCD graphics, and integrated visual diagrams.
-
Full U.S. Support — Backed by comprehensive technical service and customer assistance.
Features
-
Multi-Axle Floor Alignment System – Perform full alignments without the need for a lift.
-
Designed for Long Vehicles – Accurately measures trucks, buses, and vehicles with trailers.
-
High-Resolution 3D Tower Cameras – Extended range imaging for up to four axles simultaneously.
-
Integrated Vehicle Database – Includes commercial vehicle specifications for quick reference.
-

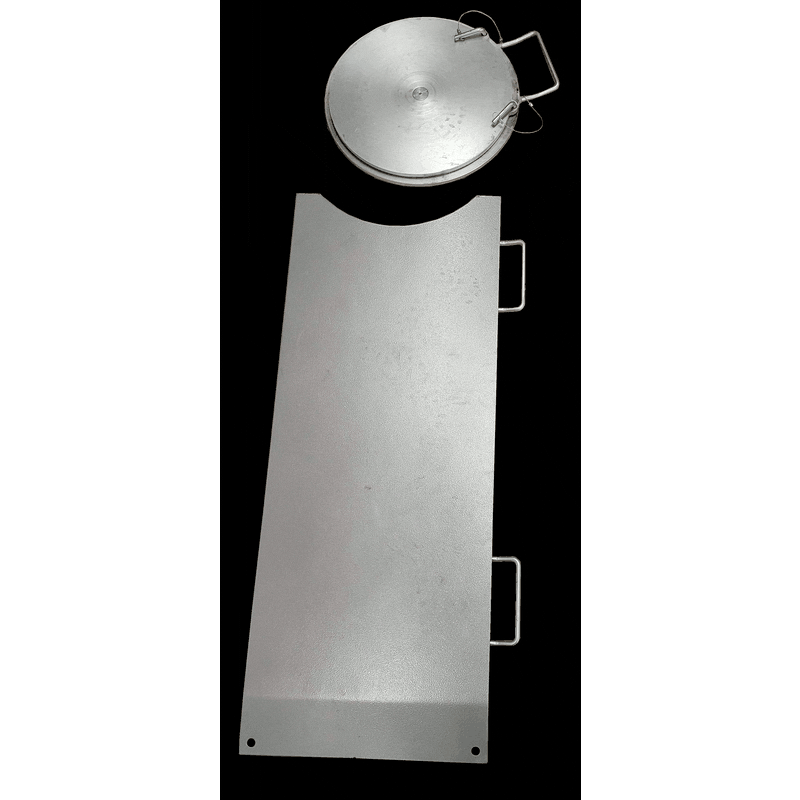

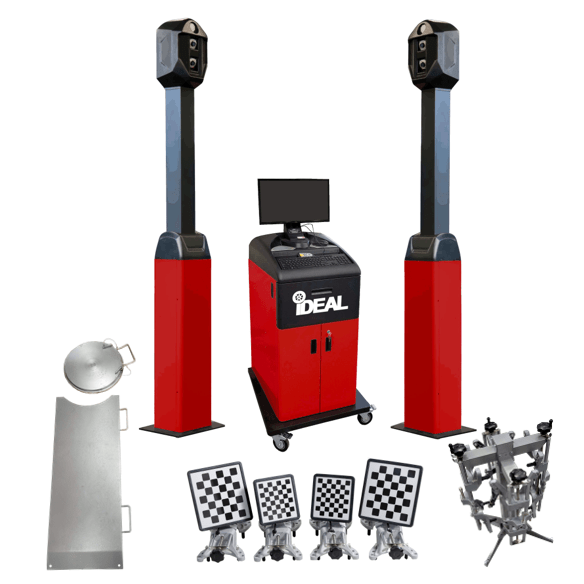

Complete Alignment Package – Includes heavy-duty turntables and drive-on floor ramps for fast front-end alignment.
-
Dynamic LED Tower Guide – Visual indicators assist technicians throughout the alignment process.
-
Flexible Installation Options – Mobile cabinet design allows side or centered placement for drive-thru or stationary setups.
-
Drive-Over Cable Plates – Included for seamless drive-thru operation.
-

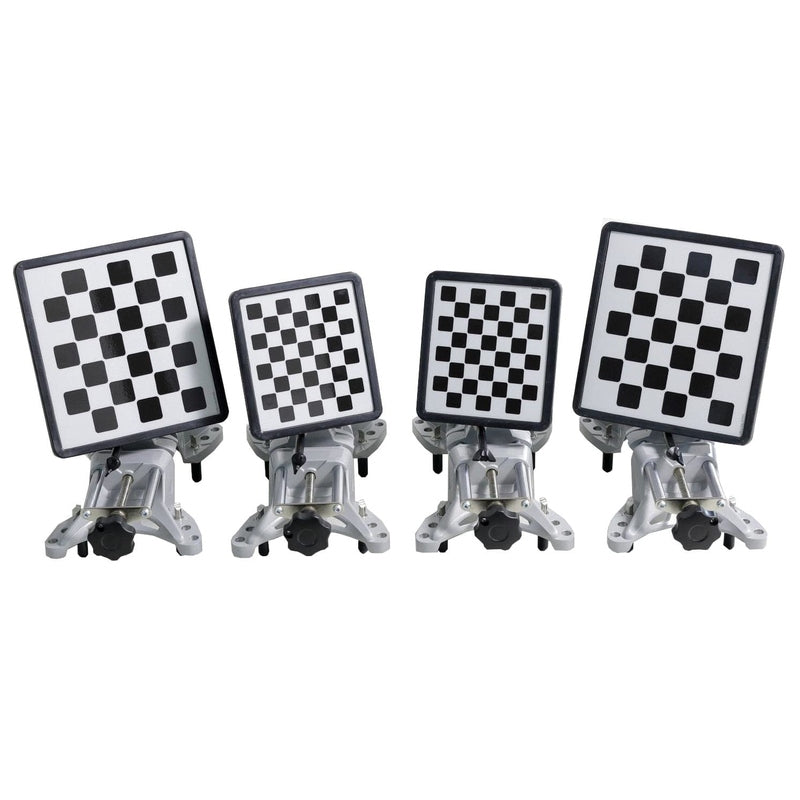

Lightweight Target System – (8) compact, durable targets for easy handling.
-

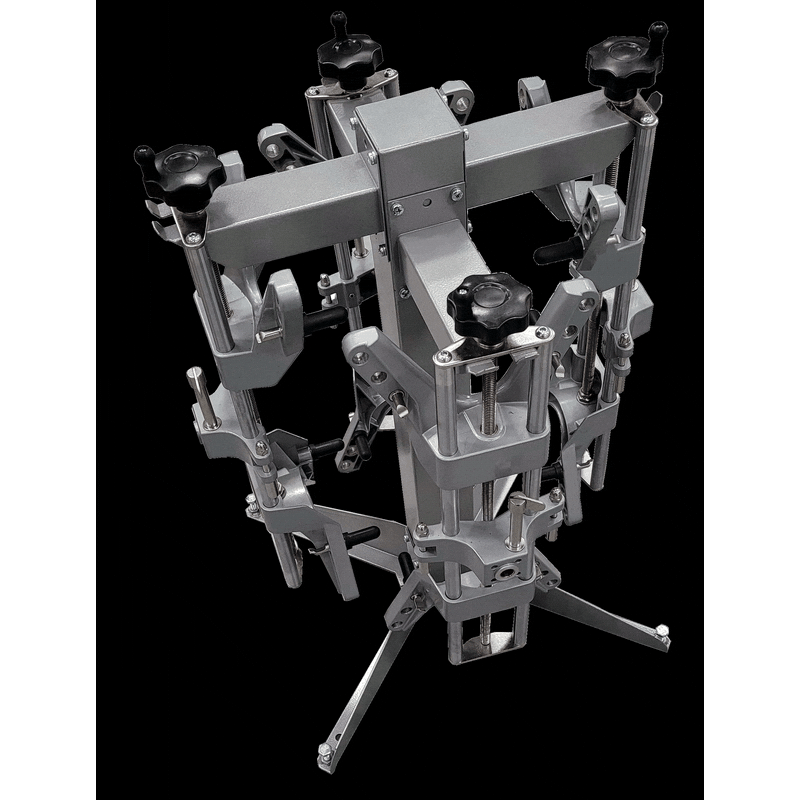

Adjustable Wheel Clamps – (8) clamps fit 15"–27" rims, suitable for most heavy-duty wheels.
-
Convenient Storage Racks – Organized stands for wheel clamp storage.
-

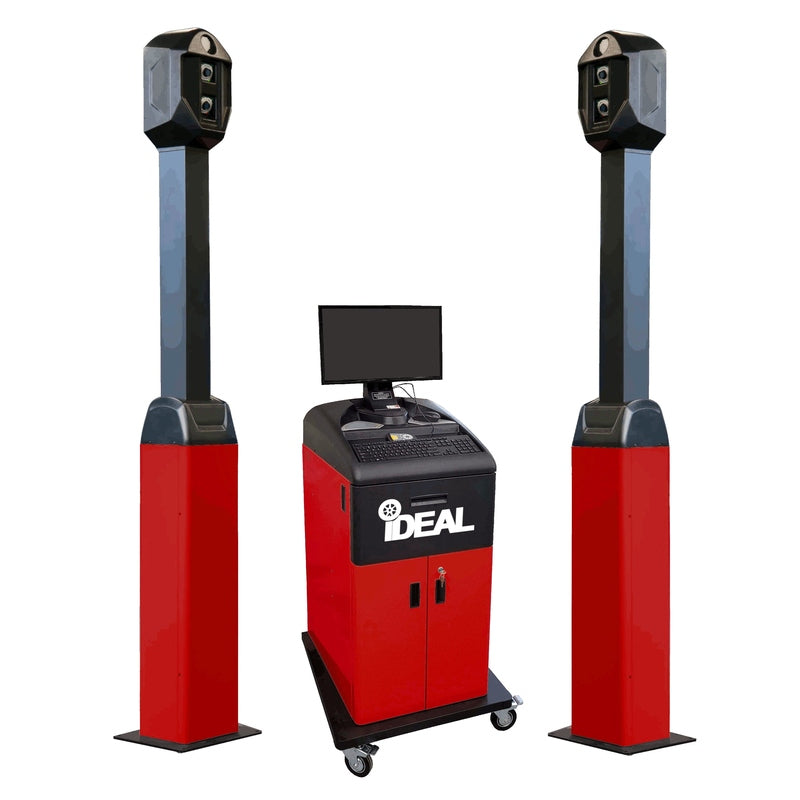

Dual Camera Towers – Provide a maximum viewing range of up to 50 feet.
-
Wireless Remote Control – Operate system functions even when away from the cabinet.
-

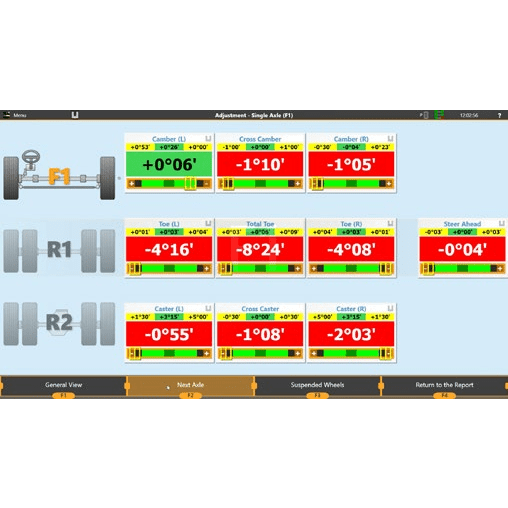

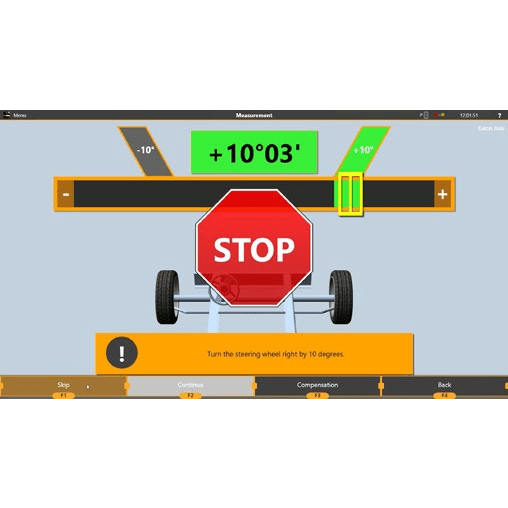

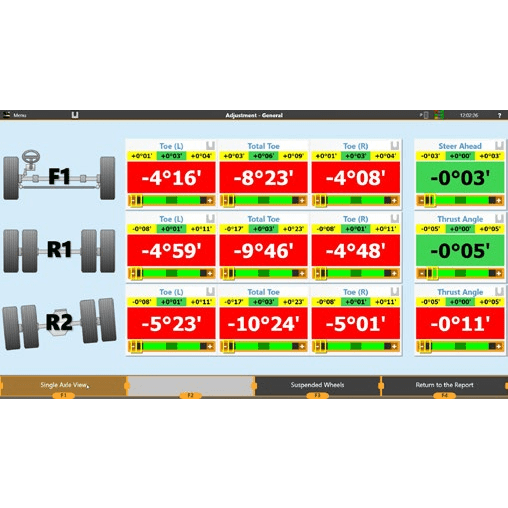

User-Friendly Interface – Includes live reading screens, illustrations, and built-in help system.
-
Comprehensive Reporting – Stores, recalls, and prints both current and past alignment data.
-
Customizable Vehicle Database – Optional yearly updates and customer management tools included.
-
Essential Accessories – Includes steering wheel holder, brake depressor, and wheel chocks.
-
Complete Hardware Package – System includes computer, monitor, keyboard, mouse, and color printer.
Specifications
| Specification | Details |
|---|---|
| Model | IWA-60-8500-HD-K |
| Type | Heavy-Duty 3D Multi-Axle Imaging System |
| Operating System | Windows |
| Software | Techno Vector 7 |
| Accuracy | ±0.01° |
| Certification | CE |
| Target Size | (8) Standard Lightweight Targets |
| Cameras | 4 High-Resolution Industrial Cameras |
| Lift/Hoist Compatibility | Not Required |
| Wheel Clamps | (8) Adjustable, Fits 15"–27" Rims |
| Toe Adjustment | Yes |
| Lifted Runout Compensation | Yes |
| Live Caster Reading | Yes |
| Runout Compensation | Yes |

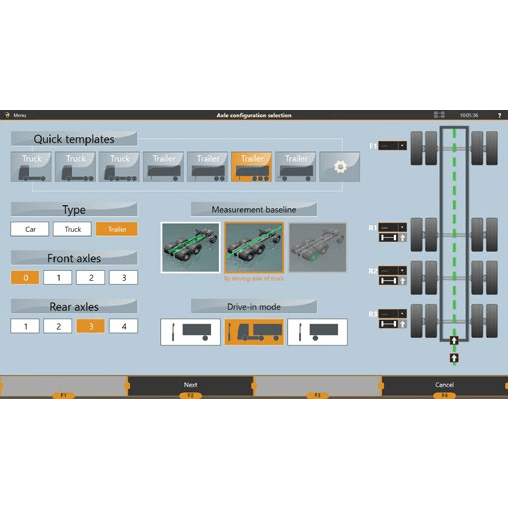

| Alignment Mode | Variable, 2–8 Wheels |
| Database Updates | Optional Yearly Updates |
| Customer Manager | Included |
| Max Track Width | Up to 13 ft |
| Max Wheelbase | Up to 50 ft |
| Power Requirement | 120V / 15 Amp / 1PH / 60Hz |
| Shipping Weight | 1,285 lbs (3 pieces) |
