Description

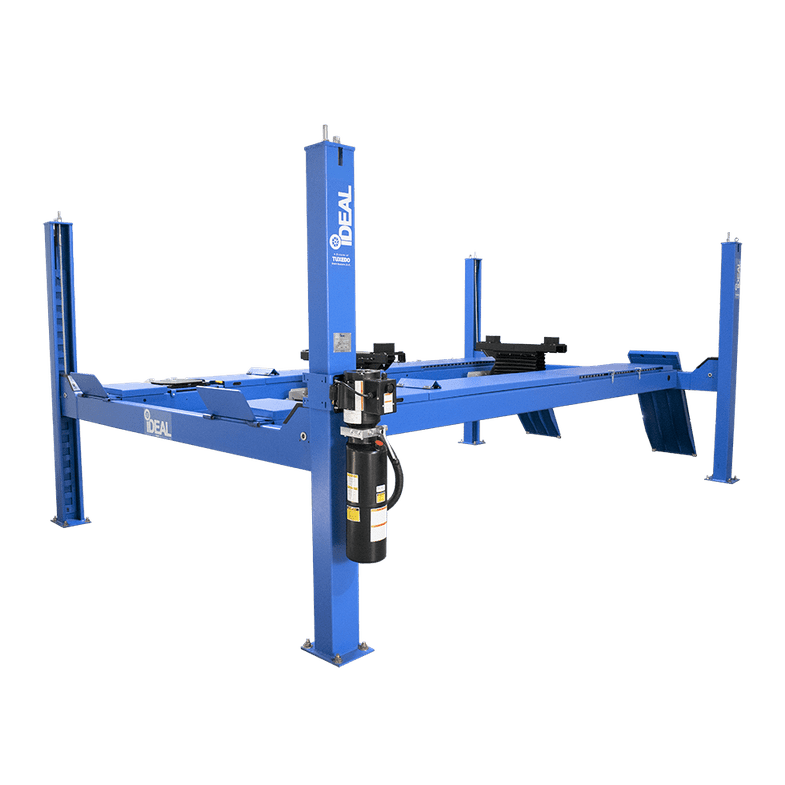

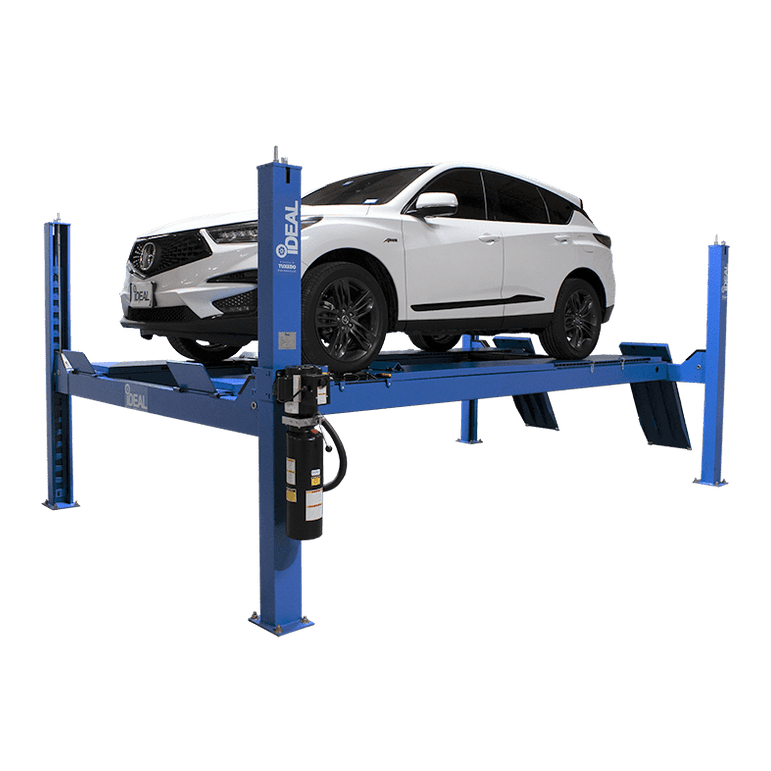

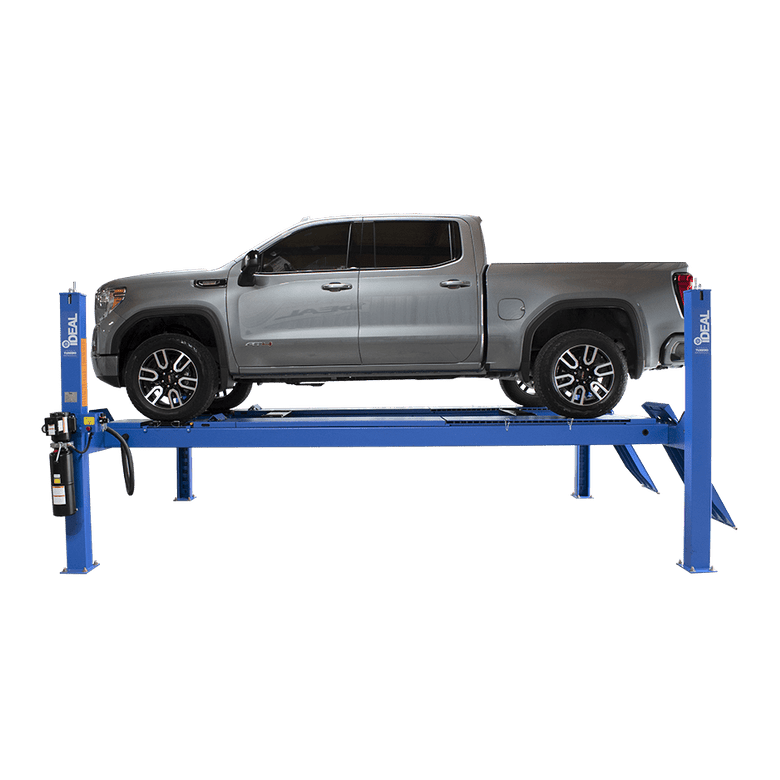

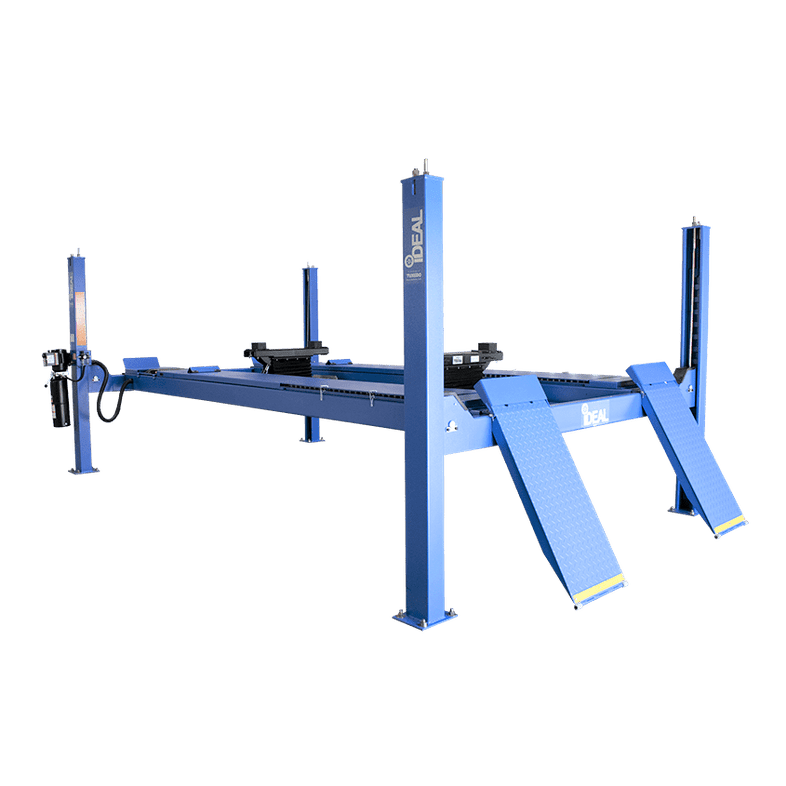

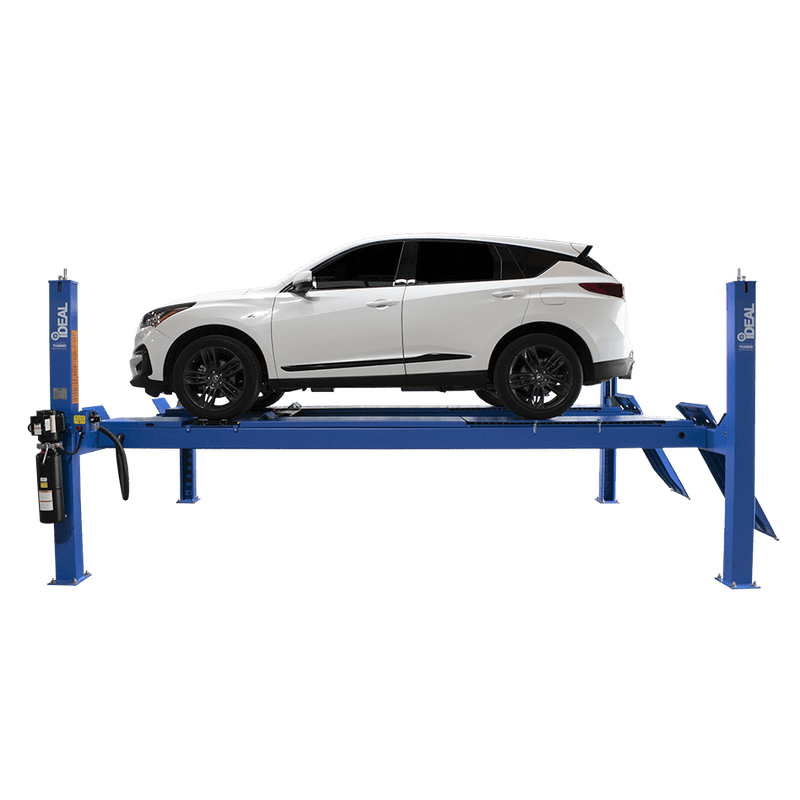

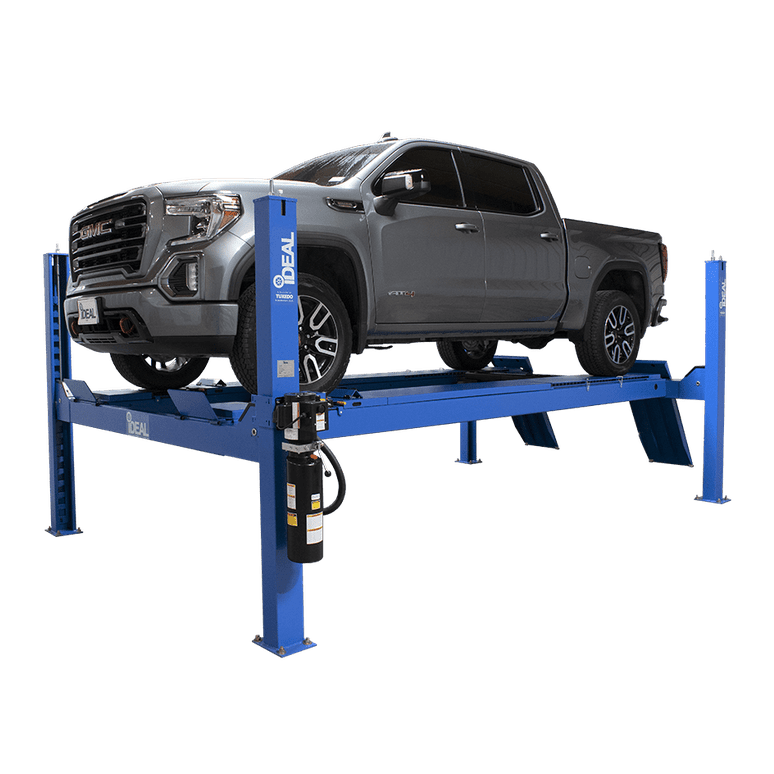

The iDEAL FP14KAC-X 14,000 lb. 4-Post Alignment Lift is engineered for precision, performance, and durability. This high-performance closed-front, cable-pull lift is purpose-built for servicing cars, SUVs, vans, and light to medium-duty trucks in professional automotive environments.

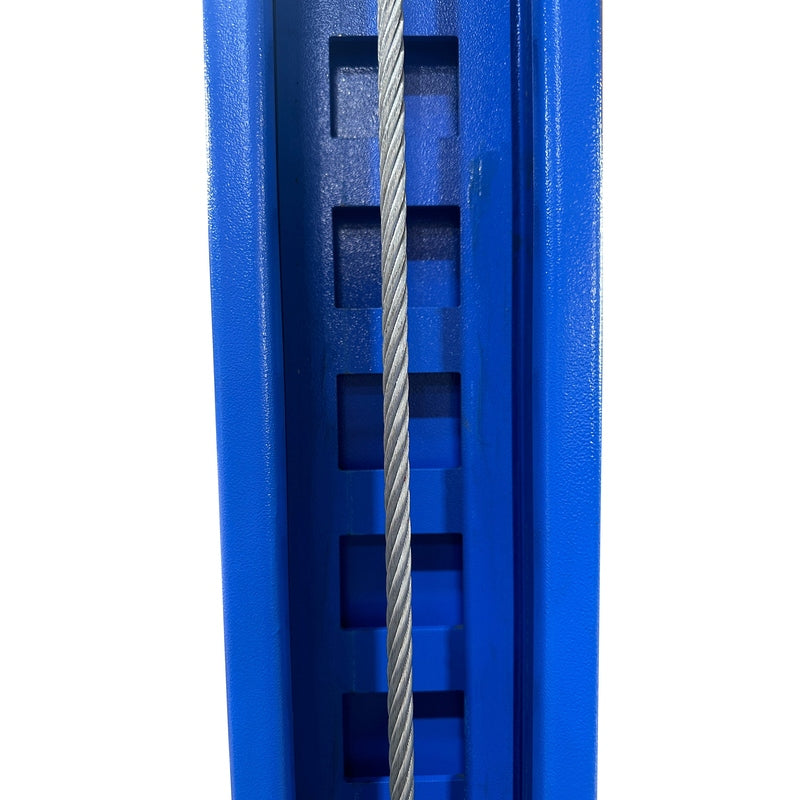

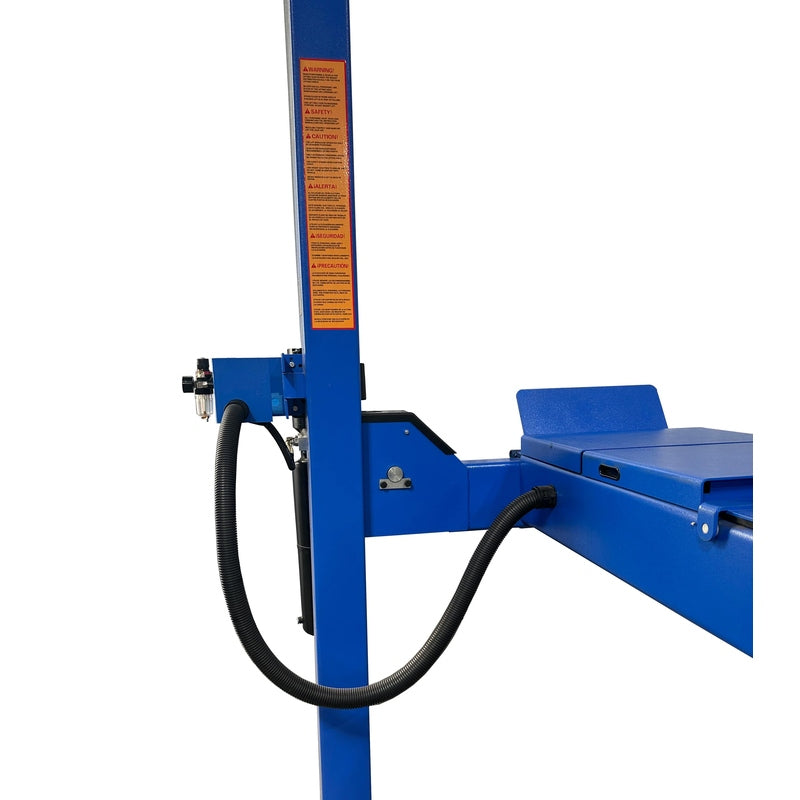

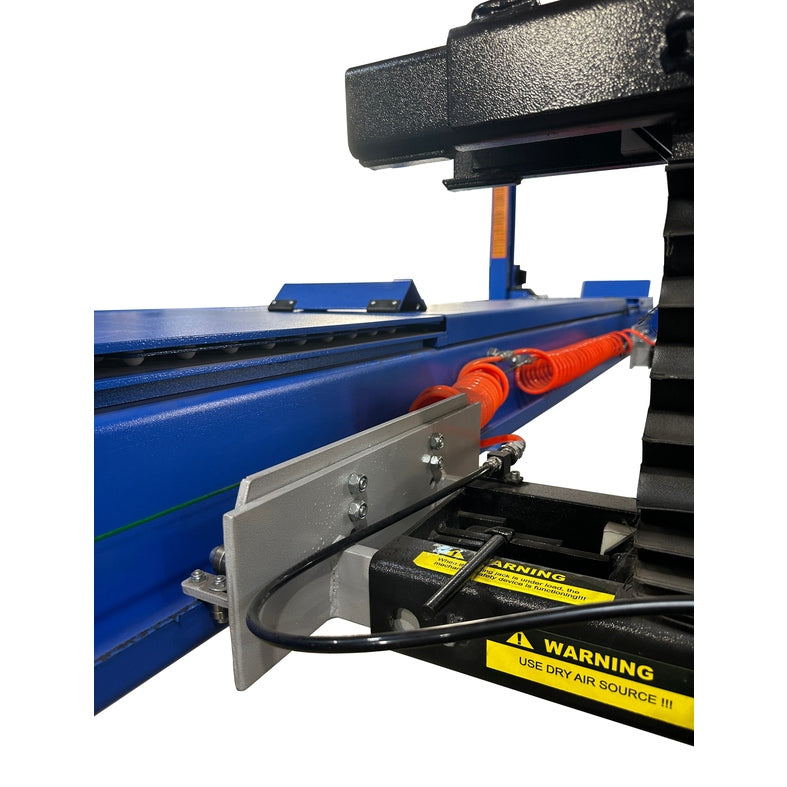

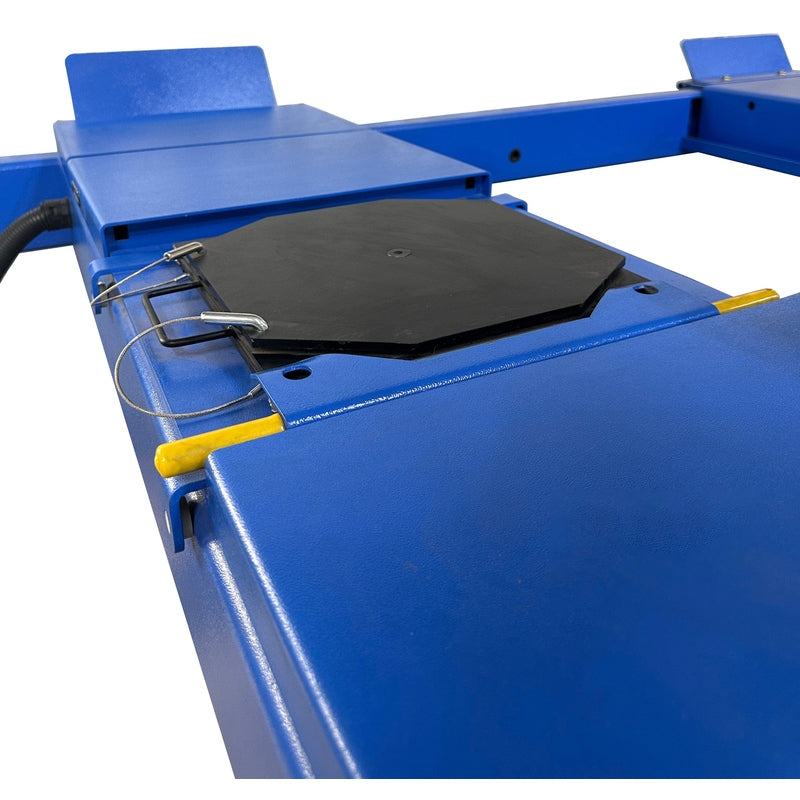

Designed with advanced safety and alignment features, the FP14KAC-X comes standard with full-width rear slip plates, turntables, roll-back spacers, and an integrated air-line kit. The lift incorporates a concealed hydraulic and mechanical cable system with slack cable safety locks, narrow or wide runway mounting options, and a rugged pulley and shaft assembly equipped with grease fittings for easy maintenance and extended service life.

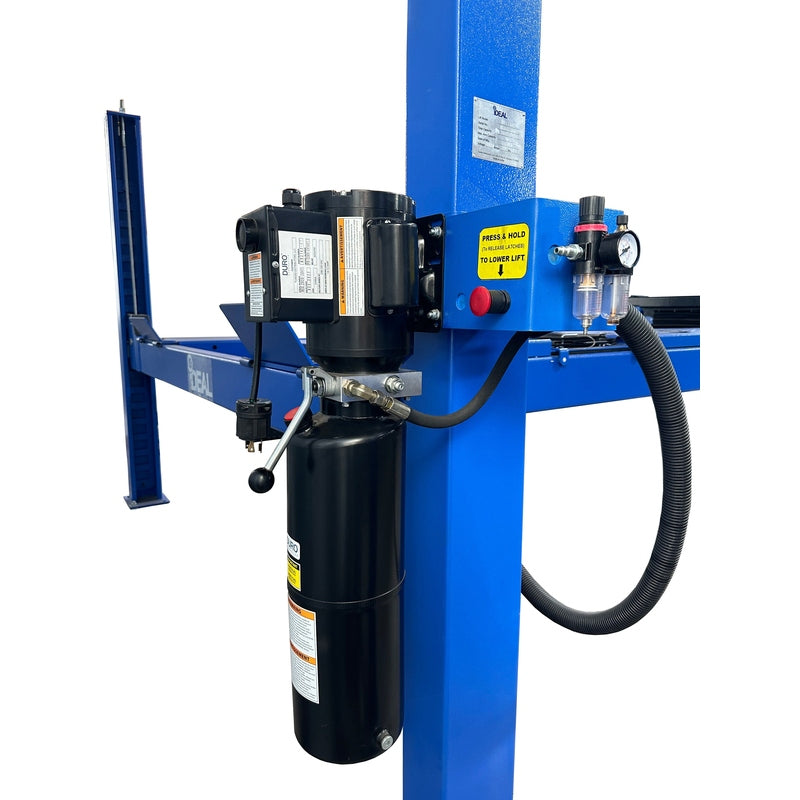

Operation is simple and efficient thanks to the single-point pneumatic lock release and high-quality DURO power unit, while self-chocking approach ramps and wheel stops add an extra layer of safety. With 20″ wide runways, 18 locking height positions, and an extended rise height, this lift offers both flexibility and functionality. The modular design also allows for runway extensions to accommodate longer vehicles or conversion into an advanced alignment system.
Finished with a durable powder-coated surface, the FP14KAC-X delivers professional-grade alignment performance at exceptional value.

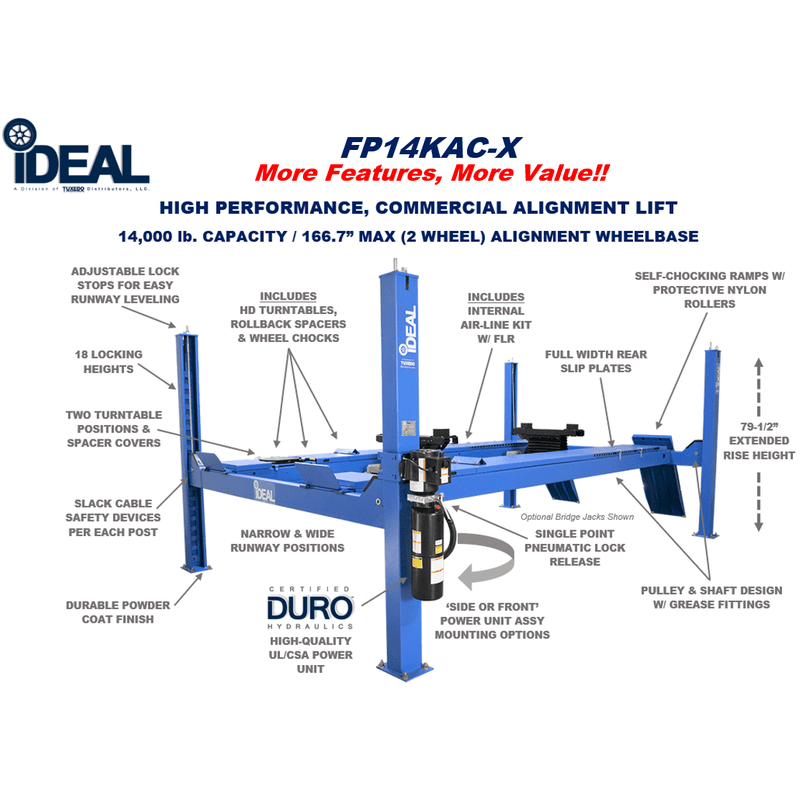

Key Features
-
14,000 lb. lifting capacity — ideal for commercial service use
-
Closed-front cable-pull design for stability and safety
-

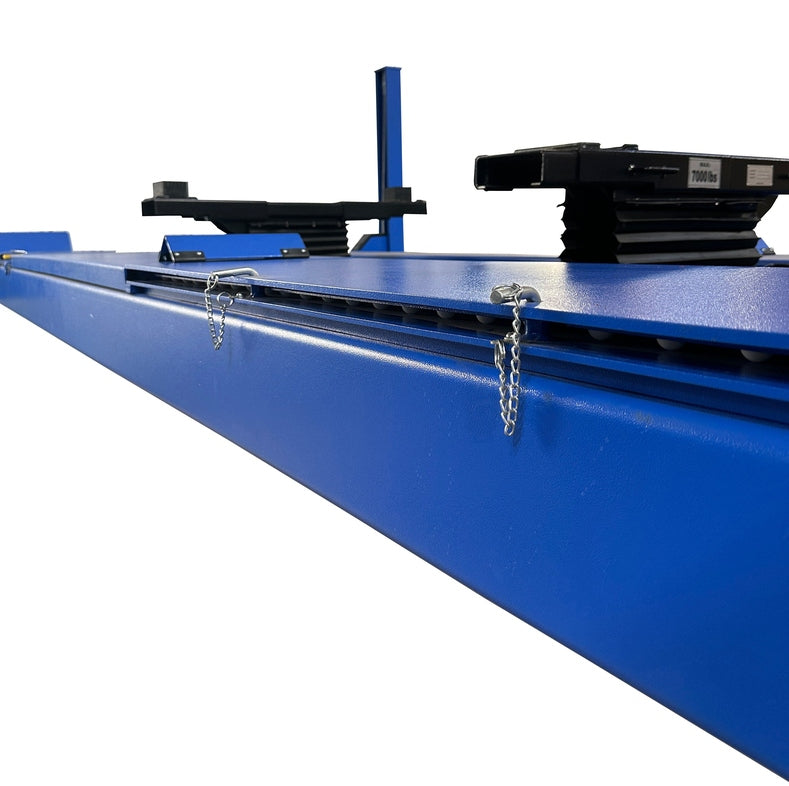

Comprehensive alignment package: rear slip plates, turntables, spacers & air-line kit included
-
Extended rise height for greater undercarriage access
-
182.5″ max service wheelbase for larger vehicles
-
166.7″ (2-wheel) / 157″ (4-wheel) max alignment wheelbase
-
18 locking positions for precise height control
-
20″ wide runways with narrow and wide mount options
-
Single-point pneumatic lock release for ease of operation
-

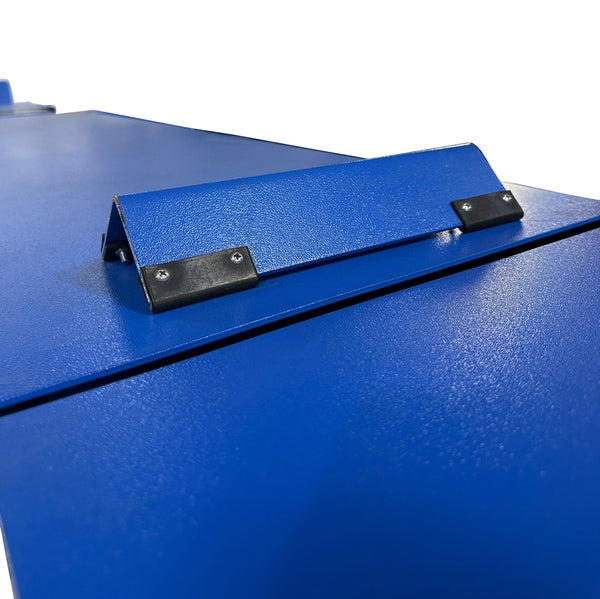

Adjustable lock stops for easy runway leveling
-
Slack cable safety devices ensure safe operation
-

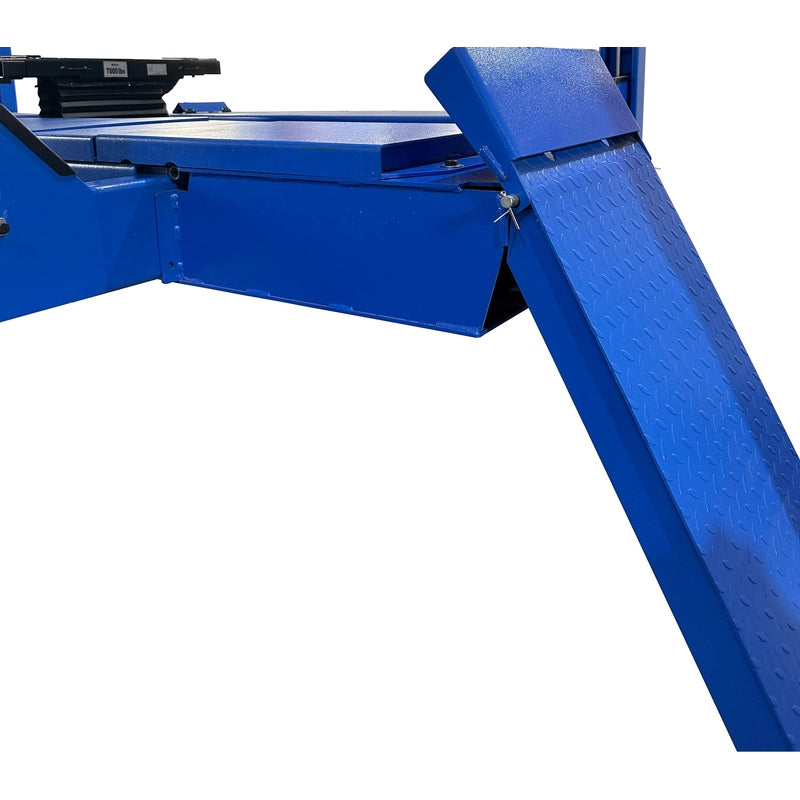

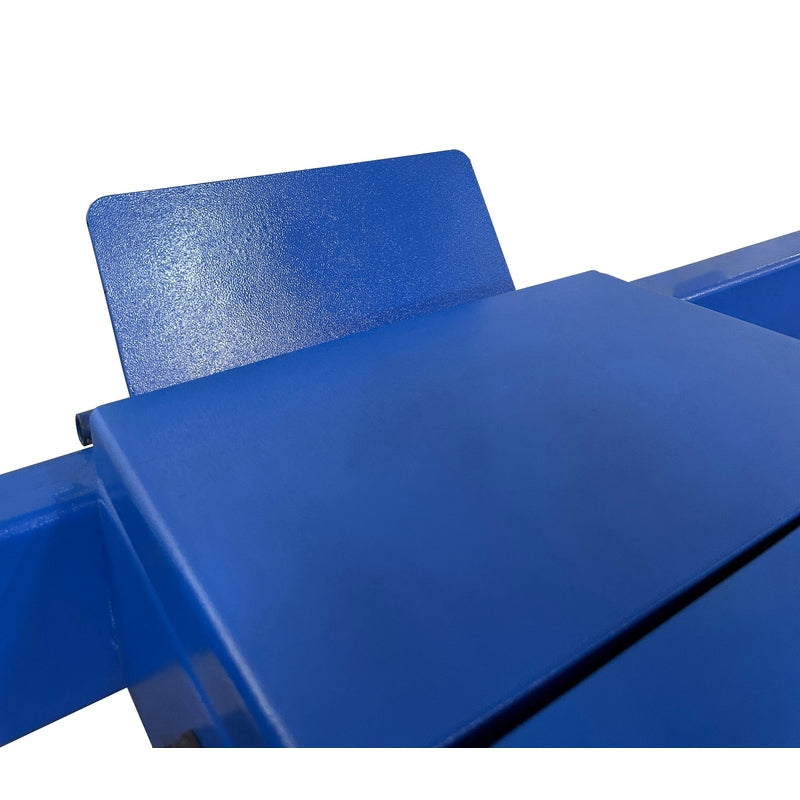

Self-chocking ramps with nylon rollers for added security
-
Durable powder-coat finish for long-term corrosion protection
-
Wheel chocks (1 pair) included
Specifications
| Specification | Detail |
|---|---|
| Model | FP14KAC-X |
| Capacity | 14,000 lbs |
| Overall Length (with Ramp) | 252.5″ |
| Overall Width (without / with Power Unit) | 131.9″ / 142″ |
| Overall Height | 92.5″ |
| Max Rise Height | 79.5″ |
| Min Height | 9.9″ |
| Width Between Posts | 116.25″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ |
| Runway Width | 20″ |
| Max Wheelbase (Service) | 182.5″ |
| Alignment Wheelbase (2-Wheel / 4-Wheel) | 166.7″ / 103″–157″ |
| Ramp Length | 44″ |
| Clearance Under Runway | 69.6″ |
| Drive-Thru Clearance | 100″ |
| Base Plate | 10.5″ × 9″ |
| Power Requirement | 220V, 20 Amp, 1PH |
| Shipping Weight | 3,810 lbs |
| Minimum Bay Size | 16′ × 25′ |
Manual
iDEAL FP14KAC-X 14,000 lb. 4 Post Commercial Alignment Lift Manual
