Description

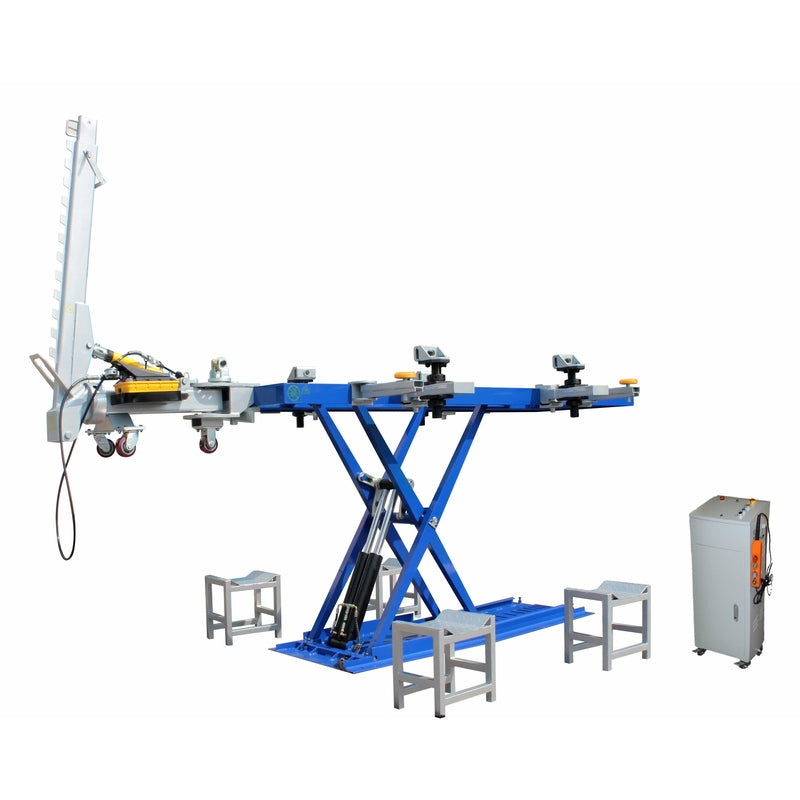

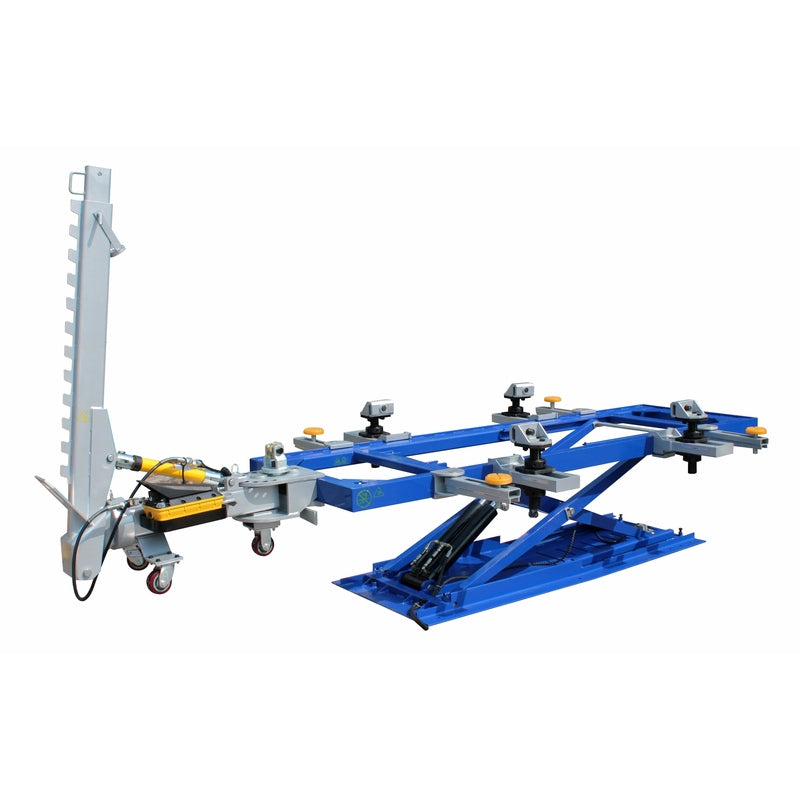

The iDEAL FR-55 Scissor Frame Rack 1P10T-5.5K delivers powerful and versatile frame repair performance in a compact, space-efficient design. Engineered to handle both full-frame and uni-body vehicles, this scissor-style frame rack provides a 5,500 lb lifting capacity, making it ideal for collision repair and structural straightening applications.

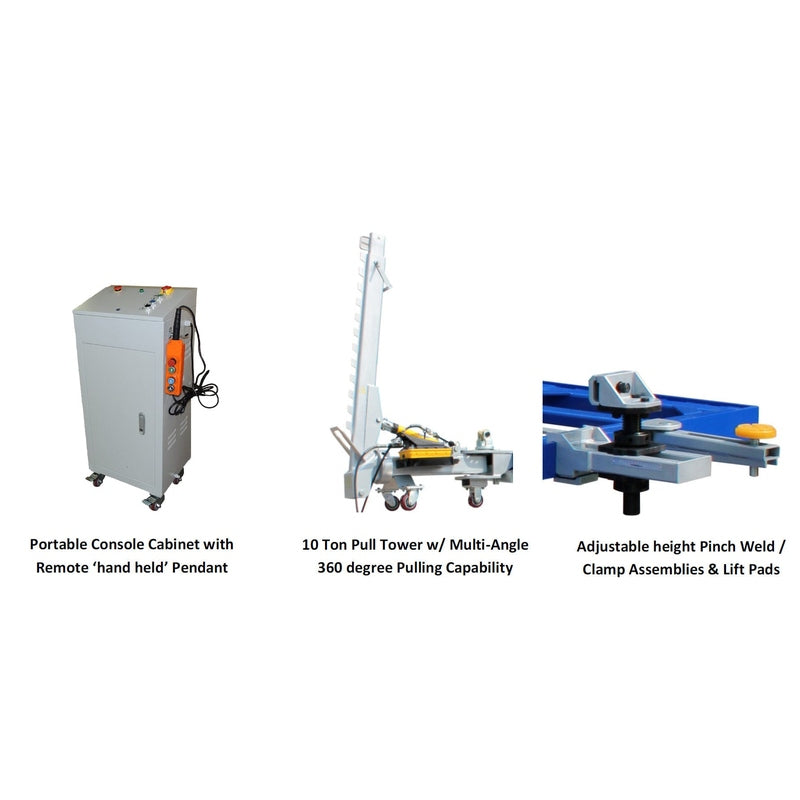

Equipped with a 10-ton pulling tower featuring a down-pull roller and multi-angle 360° pulling capability, the FR-55 ensures complete flexibility when tackling demanding repairs. The universal anchoring system includes adjustable-height pinch weld assemblies for secure and accurate vehicle positioning.
With quick-disconnect hydraulic fittings, air/hydraulic pump with pressure gauge, and four universal wheel stands, the FR-55 combines efficiency, safety, and precision. Its durable powder-coated finish ensures long-lasting performance in any professional workshop environment.
Key Features
-
Designed for both full-frame and uni-body vehicles
-
Scissor-lift operation with 5,500 lb lifting capacity
-
Universal anchoring system with adjustable-height pinch weld assemblies
-
10-ton pulling tower with down-pull roller
-
360° multi-angle pulling capability for maximum repair versatility
-
Quick-disconnect hydraulic fittings for easy setup and maintenance
-
Includes one 10′ pulling chain with hook
-
High-quality air/hydraulic pump with integrated pressure gauge
-
Four universal wheel stands included for added stability
-
Durable powder-coat finish for long-lasting protection

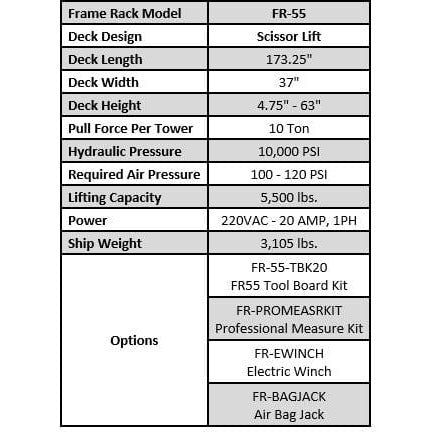

Specifications
| Specification | Detail |
|---|---|
| Model | FR-55 |
| Deck Design | Scissor Lift |
| Deck Length | 173.25″ |
| Deck Width | 37″ |
| Deck Height (Min/Max) | 4.75″ – 63″ |
| Pulling Force per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100–120 PSI |
| Lifting Capacity | 5,500 lbs |
| Power | 220V / 20 Amp / 1PH |
| Shipping Weight | 3,105 lbs |
