Description

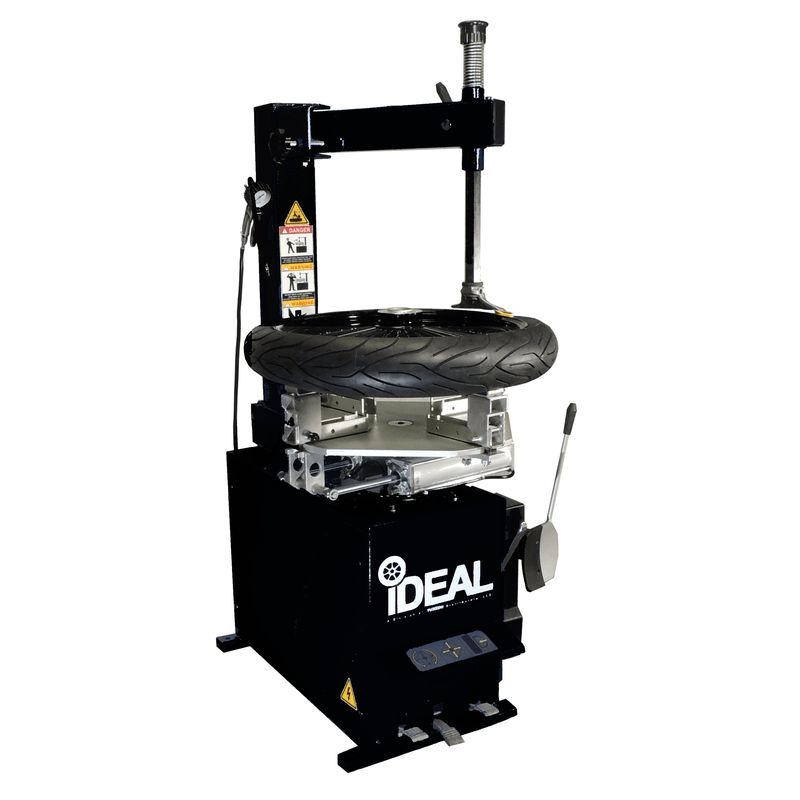

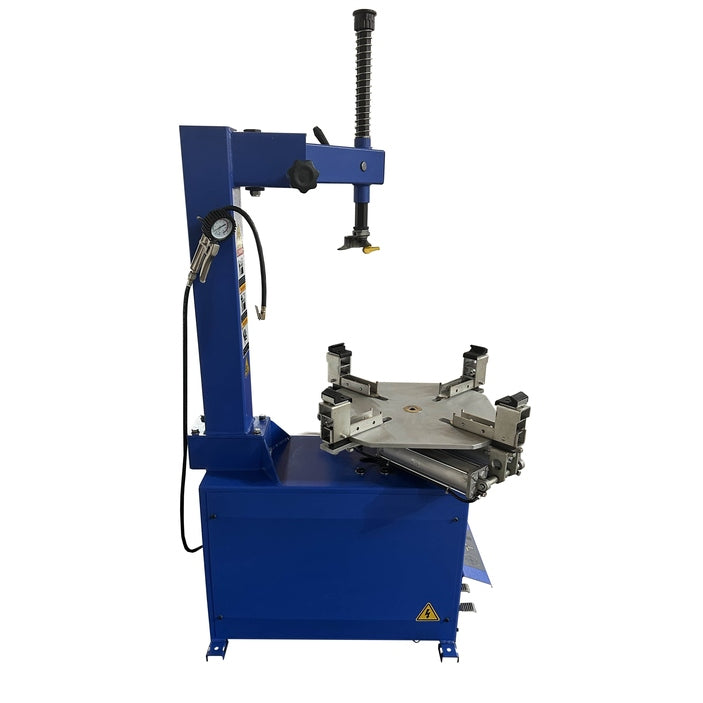

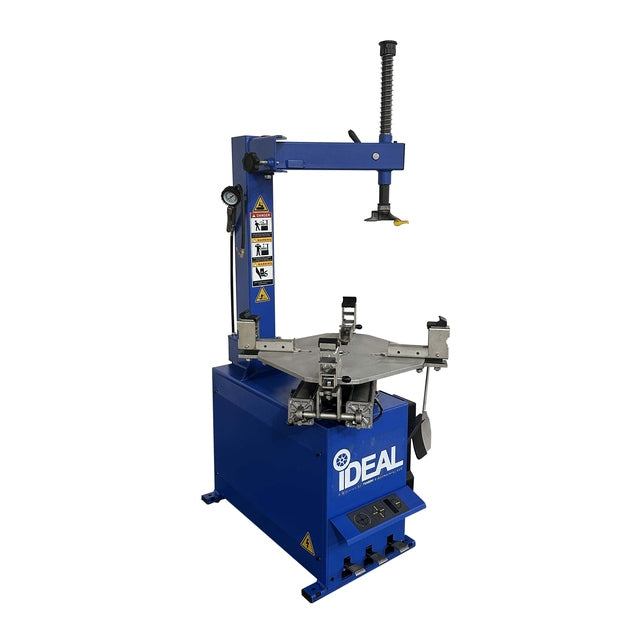

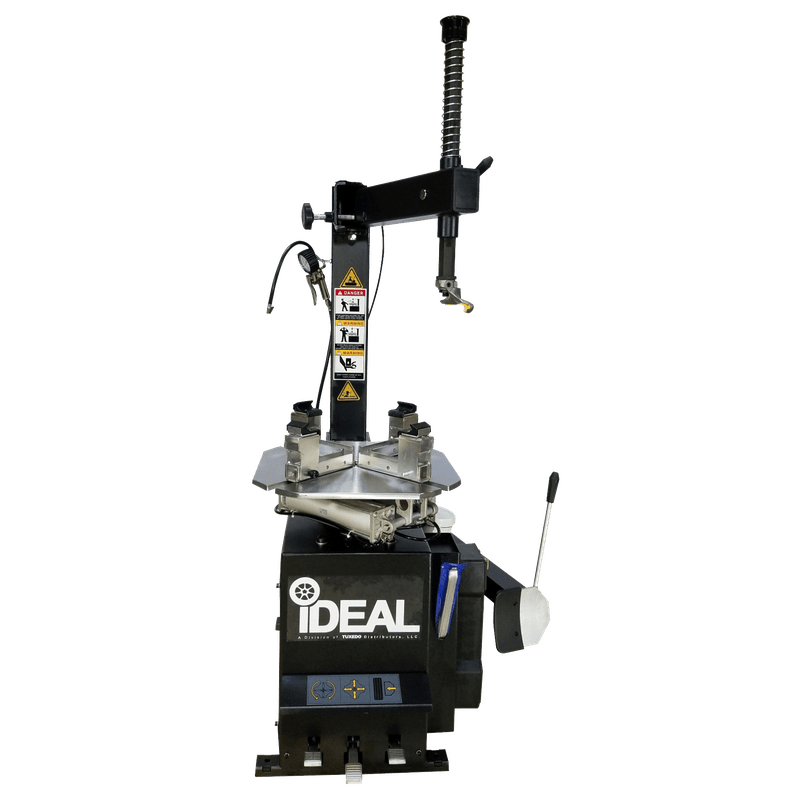

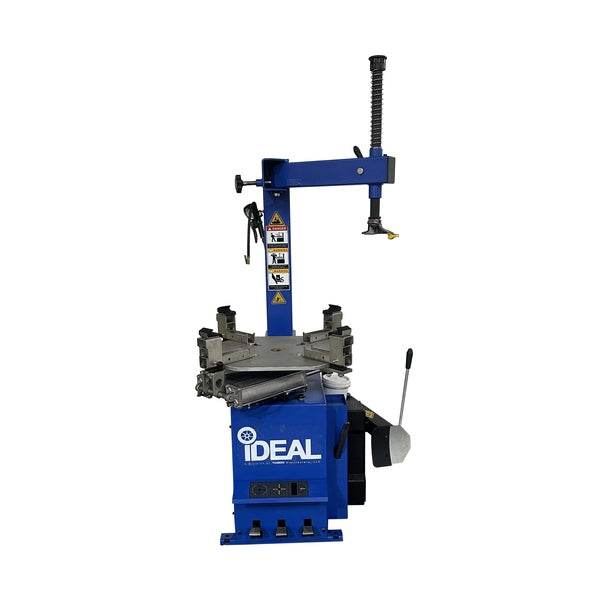

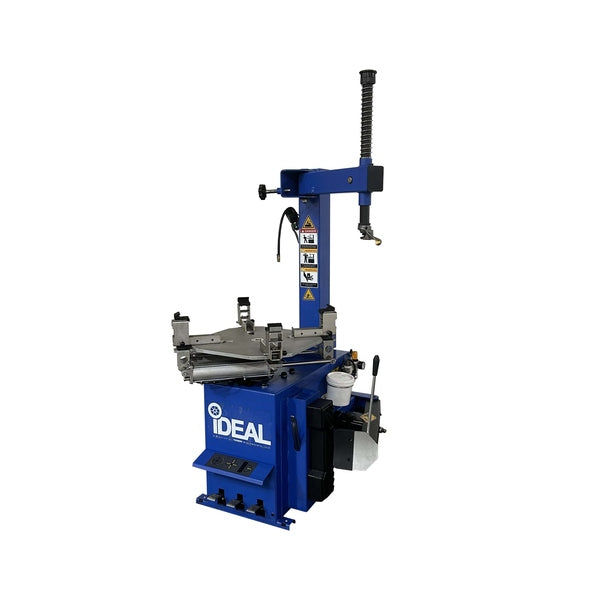

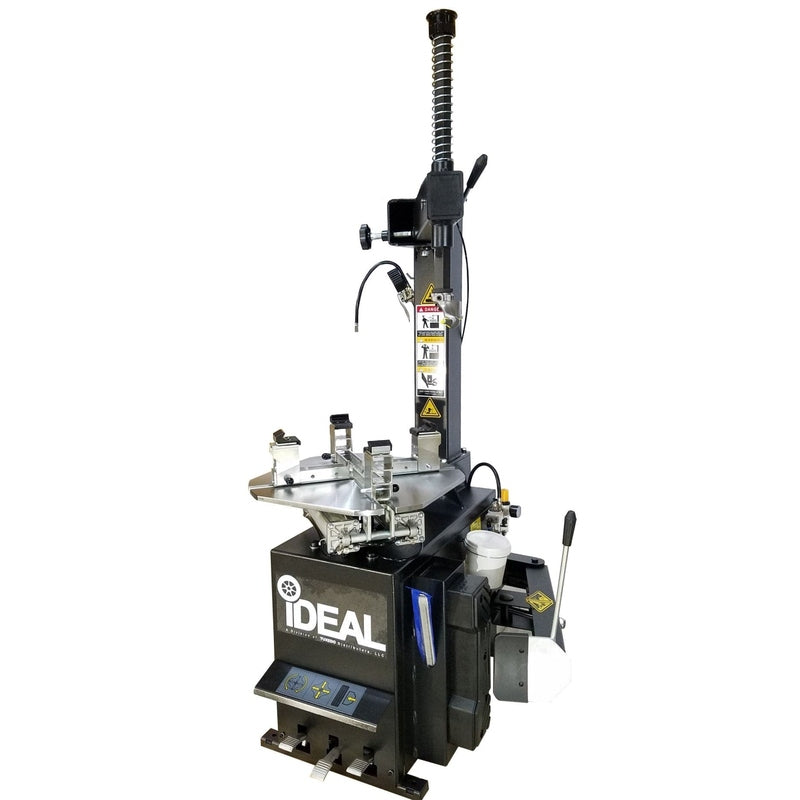

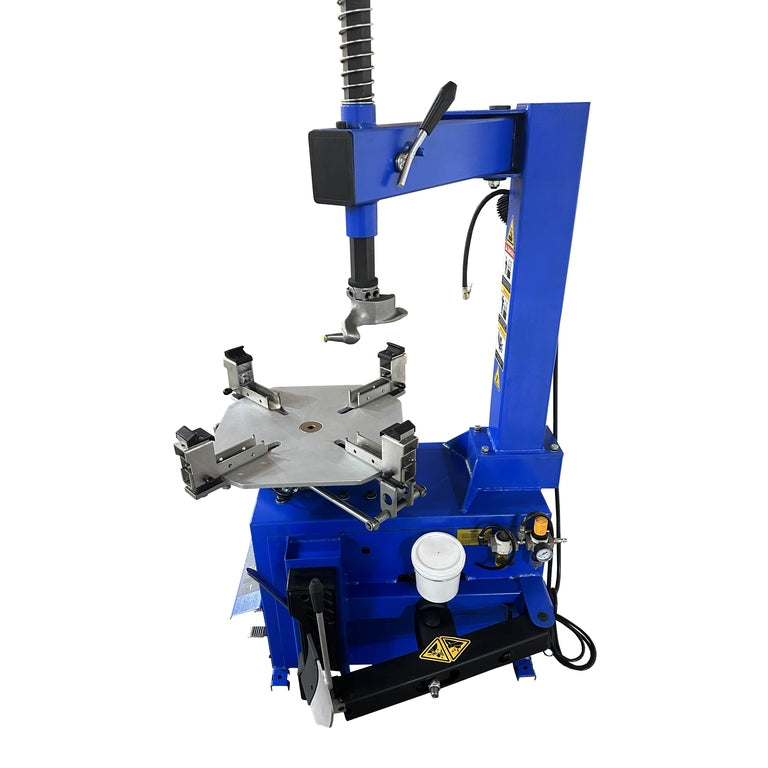

The iDEAL TC-400M-B-iDEAL PS Motorcycle Tire Changer is purpose-built for servicing motorcycle and ATV tires with precision and safety. Featuring an outside rim clamping range of 6″–24″, this machine is designed with raised clamps that easily secure wheels while allowing disc brakes and drive components to remain installed.

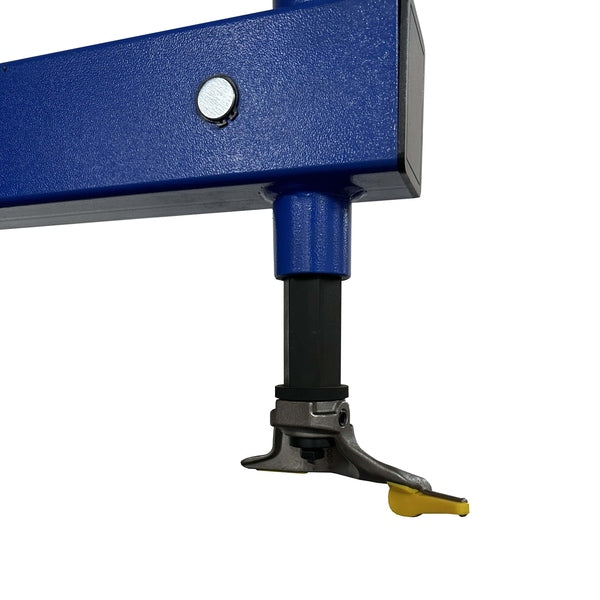

To protect wheel surfaces, all clamp touchpoints are fitted with plastic covers, minimizing the risk of marring or damage. The unit includes two interchangeable demount heads—a smaller one for ATVs and a larger one for motorcycles—each with protective plastic inserts to ensure safe handling of delicate rims.
Equipped with a powerful side-mounted bead breaker and a handheld inflation gun, the TC-400M-B-iDEAL PS delivers dependable performance for any motorcycle or powersport service operation.
Features
-
Outside Clamping Design — Provides secure grip on a wide range of motorcycle and ATV wheels.
-

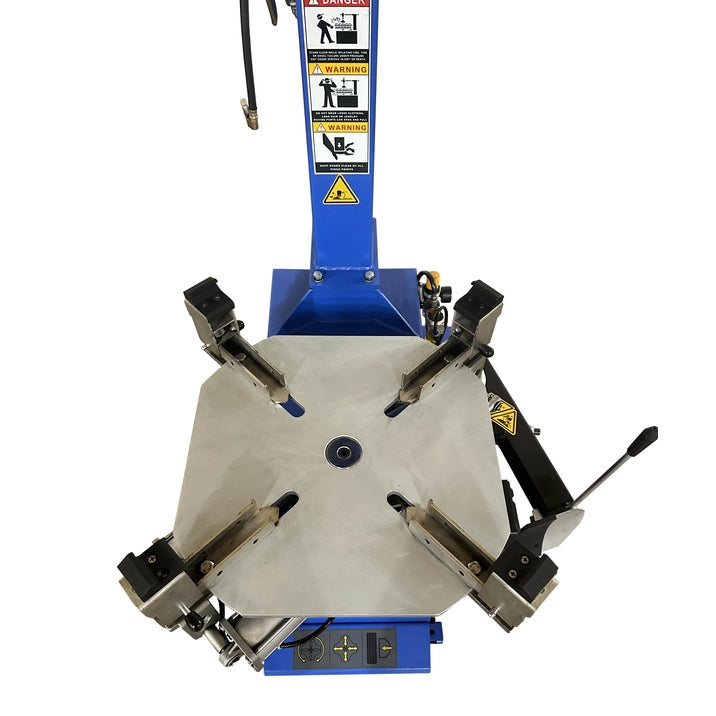

Four Adjustable Clamps — Offer full clamping flexibility for various wheel sizes.
-

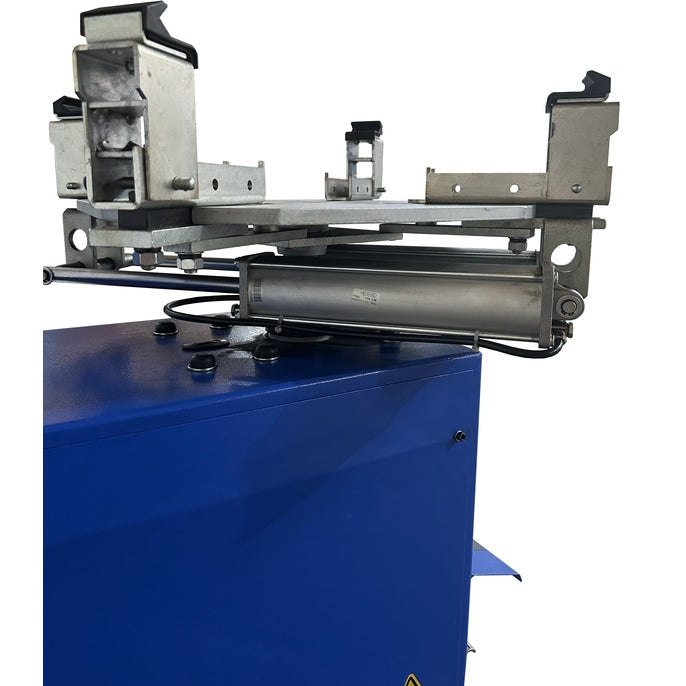

Double-Acting Pneumatic Cylinders — Deliver consistent, powerful clamping force.
-
Protective Plastic Clamps — Prevent rim damage and scratching during service.
-
High-Performance Bead Breaker — Effortlessly separates stubborn tire beads.
-
Handheld Inflation Gun — Allows for convenient, controlled tire inflation.
-

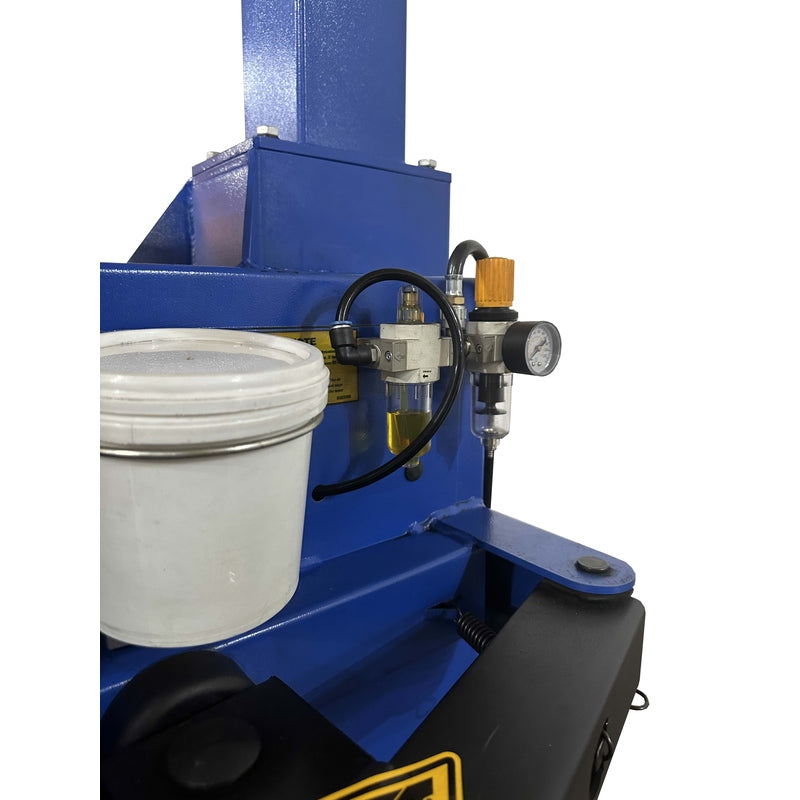

Integrated Regulator, Oiler, and Water Trap — Ensure long-lasting pneumatic performance and tool protection.
Specifications
| Model | TC-400M-B-IDEAL |
|---|---|
| Max Wheel Diameter | 37″ |
| Max Wheel Width | 10″ |
| Outside Rim Clamp Range | 6″–24″ |
| Power Supply | 110V / 15 Amp / 1PH |
| Bead Breaker Force | 5,500 lbs |
| Working Pressure | 125 PSI |
| Shipping Weight | 470 lbs |
