Description

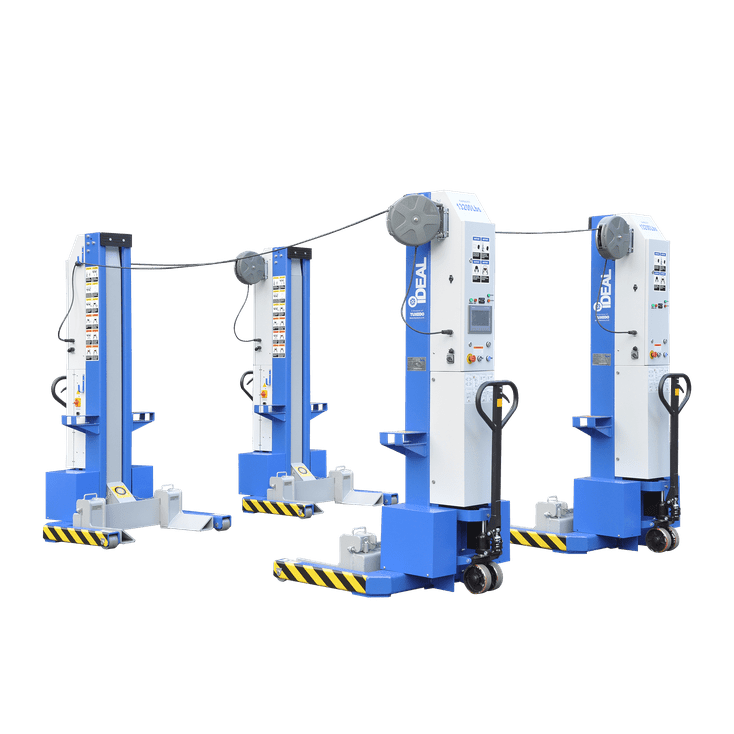

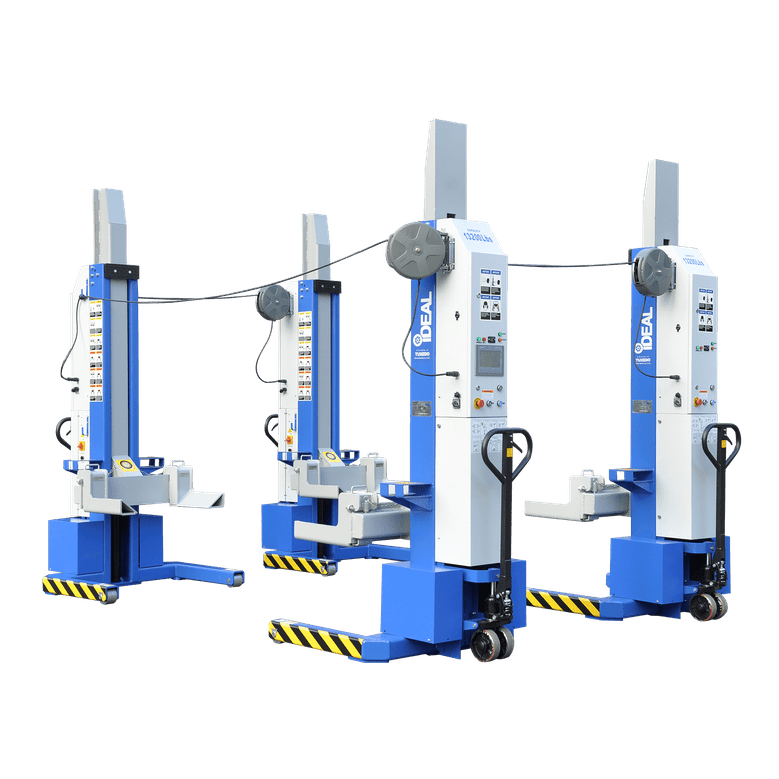

The iDEAL MSC-13K-B Wheel-Engaging Mobile Column Lift System offers a powerful, portable, and space-saving lifting solution for professional vehicle service operations. Available in sets of two, four, or six columns, this system provides a total lifting capacity of up to 78,000 lbs, making it ideal for passenger vehicles, light trucks, buses, and fire trucks.
Each column features a 24VDC battery-operated hydraulic system with an onboard charging capability, allowing for efficient, cordless operation. The direct-drive hydraulic cylinders ensure smooth, stable lifting, while the independent mechanical locking system enhances safety during operation.
With a compact footprint and pallet jack-style mobility, the MSC-13K-B can be easily moved between bays or stored out of the way when not in use. Its adjustable lifting forks accommodate a wide range of wheel sizes, providing maximum versatility for any shop looking to optimize space and workflow.
Key Features
-
Up to 78,000 lb Total Capacity — Available in 2-, 4-, or 6-column configurations.
-
Wheel-Engaging Design — Safely lifts by the wheels for easy undercarriage access.
-
Battery-Powered Operation — 24VDC system with onboard charging (batteries not included).
-
User-Friendly Control Panel — Operate lift functions from any column for flexibility.
-
Direct-Drive Hydraulic Cylinders — Provide reliable, smooth lift performance.
-
Independent Mechanical Locking System — Ensures safe and stable lifting at all times.
-
Adjustable Lifting Forks — Fit a wide range of wheel diameters (6.3"–22").
-
Portable and Space-Efficient — Easily moved for multi-bay use; stores compactly when not in operation.
-
Durable Construction — Heavy-duty design for long service life.
-
Optional Accessories Available — Expand lift versatility for smaller vehicles and additional applications.
Specifications
| Specification | Details |
|---|---|
| Model | MSC-13K-B-452 |
| Configuration | 4 Columns |
| Total Capacity | 52,000 lbs |
| AC Power Input (Per Column) | 100–140VAC, 60Hz, 1PH |
| DC Power Output (Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Height (Min/Max) | 88.6″ / 155.5″ |
| Column Width | 44.1″ |
| Fork Adjustment Range | 6.3″–22″ |
| Fork Length | 14″ |
| Fork-to-Column Clearance | 9.3″ |
| Rise Time | 75 seconds |
| Max Distance Between Columns | 32.8′ |
| Concrete Requirement | Minimum 3,000 PSI |
| Setup / Operation | Indoors |
| Battery Type (Recommended) | 12VDC Sealed Deep Cycle (BCI Group 31, AH-105) |
| Batteries Included | No |
| Shipping Weight | 1,210 lbs per column |
