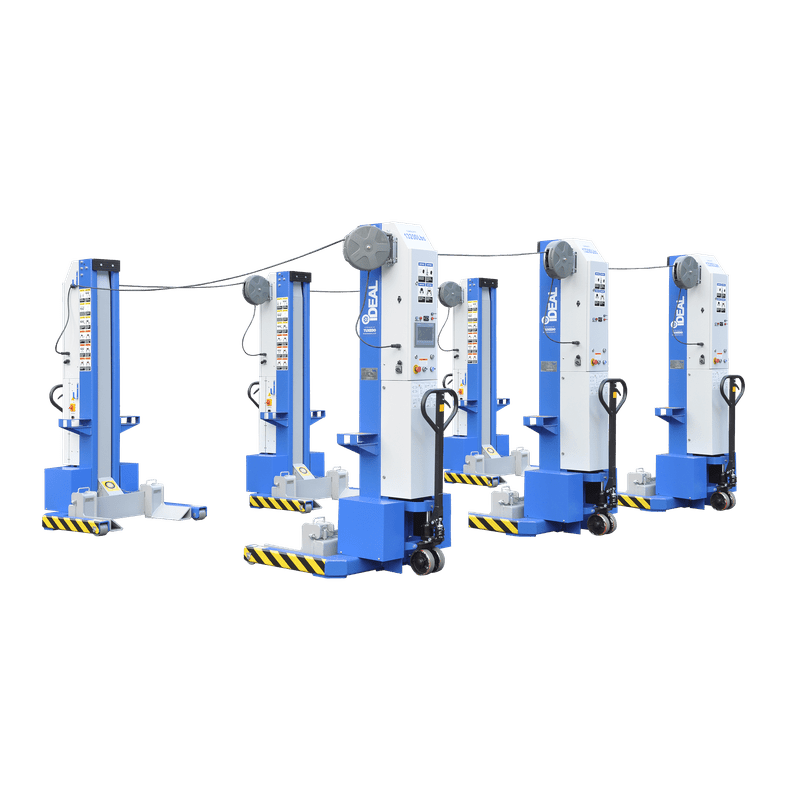

iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.
Roll over image to zoom in Click on image to zoom
iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.

iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.

Save $10,930.00
iDEALSKU: MSC-13K-B-678
Price:
$54,270.00 $65,200.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

The iDEAL MSC-13K-B Mobile Column Lift System delivers exceptional versatility, power, and mobility for servicing large vehicles in any shop environment. Available in configurations of two, four, or six columns, this system offers a total lifting capacity of up to 78,000 lbs., making it ideal for school buses, fire trucks, and commercial fleets, while optional accessories expand its use to light trucks and passenger vehicles.

Each column features a 24VDC battery-powered hydraulic system with an onboard charging unit for convenient, cordless operation. The system’s Siemens PLC and electro-optical encoder provide precise synchronization across all columns, ensuring safe, level lifting. Operators can control the lift from any column using the LCD master control panel, which displays clear visual data for lift height and settings.

The pallet jack-style mobility, compact footprint, and heavy-duty design make this lift both space-efficient and easy to position. With independent mechanical locks, emergency stop switches, and adjustable lifting forks, the MSC-13K-B combines performance, safety, and convenience for professional heavy-vehicle maintenance.

Key Features

  • Up to 78,000 lb Total Capacity — Available in 2-, 4-, or 6-column configurations.

  • Advanced Synchronization System — Siemens PLC with electro-optical encoder ensures perfect column alignment.

  • User-Friendly LCD Control Panel — Operate from any column with visual feedback on height and settings.

  • Adjustable Lifting Forks — Accommodate a wide range of wheel diameters (6.3"–22").

  • Direct-Drive Hydraulic Cylinders — Deliver smooth, reliable lifting performance.

  • Independent Mechanical Locking System — Provides maximum operator safety.

  • Emergency Stop Switches — Located on each column for enhanced safety assurance.

  • Heavy-Duty Carriage Bearings — Ensure long-lasting durability and fast, stable lifting.

  • Pallet Jack-Style Mobility — Easily reposition or store the columns when not in use.

  • Compact Design — Fits in standard flat bays without permanent installation.

  • Battery-Powered Operation — 24VDC system with onboard charging (batteries sold separately).

  • Optional Jack Stands and Accessories — Expand functionality for varied service applications.

Specifications

Specification Details
Model MSC-13K-B-678
Configuration 6 Columns
Total Capacity 78,000 lbs
AC Power Input (Per Column) 100–140VAC, 60Hz, 1PH
DC Power Output (Per Column) 24VDC
Lifting Height 67.1″
Column Height (Min/Max) 88.6″ / 155.5″
Overall Width 44.1″
Fork Adjustment Range 6.3″–22″
Fork Length 14″
Fork-to-Column Clearance 9.3″
Rise / Descent Time 75s / 60s
Max Distance Between Columns 32.8′
Concrete Requirement 3,000 PSI Minimum
Noise Level 70 dB(A)
Setup / Operation Indoors
Battery Type (Not Included) 12VDC Sealed Deep Cycle (BCI Group 31, AH-105)
Shipping Weight 1,210 lbs per column

Manual

iDEAL MSC-13K-B Mobile Column Lift, Six Column Set, 78,000 lbs. Manual
