Description

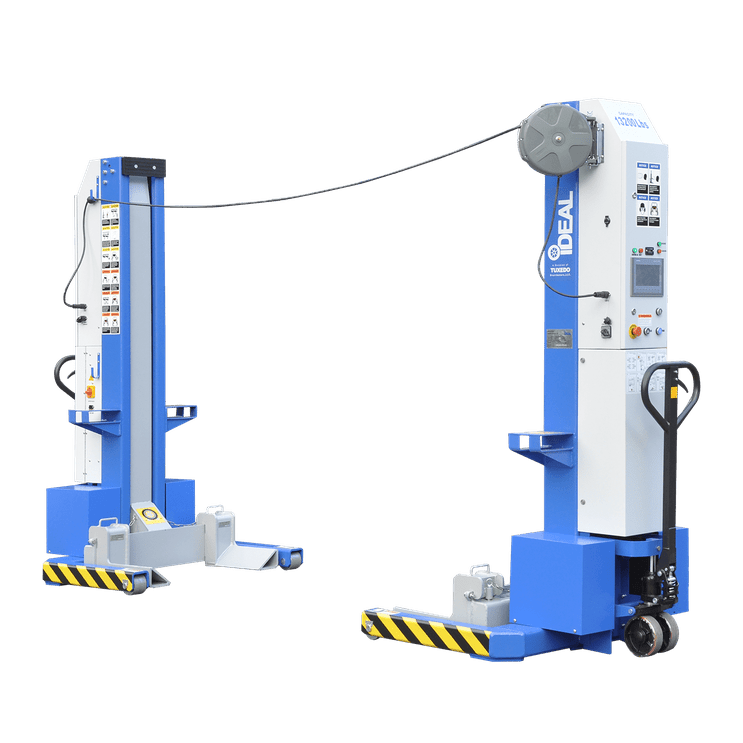

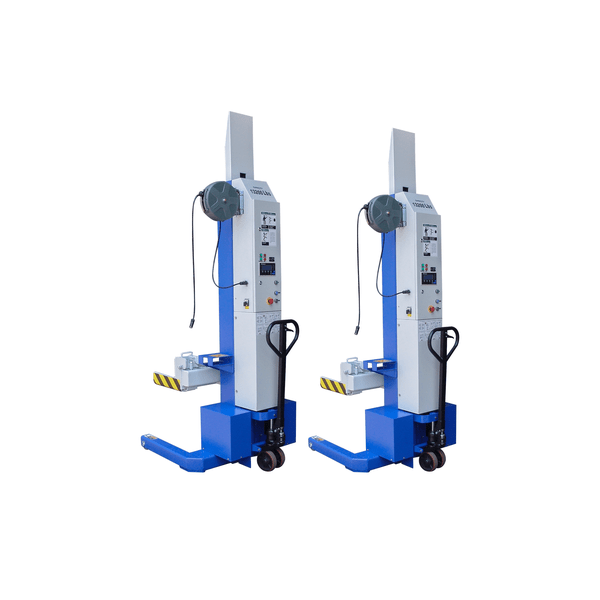

The iDEAL MSC-13K-B Mobile Column Lift System offers heavy-duty lifting power in a compact, portable design. Available in sets of two, four, or six columns, it provides a total lifting capacity of up to 78,000 lbs., making it suitable for servicing a wide range of vehicles—from passenger cars and light trucks (with optional accessories) to school buses and fire trucks in standard configuration.
Each column features a 24VDC battery-powered hydraulic system with an onboard charging unit (sold separately) for cordless operation. The direct-drive hydraulic cylinder ensures smooth, consistent lifting performance, while the independent mechanical locking system enhances safety during operation.
The user-friendly control panel allows operation from any column, and the system’s pallet jack-style mobility makes it easy to reposition between bays. With its small footprint and space-saving design, the MSC-13K-B is a versatile solution for busy shops requiring flexible, high-capacity lifting capability.
Key Features
-
Up to 78,000 lb Total Capacity — Available in 2-, 4-, or 6-column configurations.
-
Compact Mobile Design — Easily moves between bays for flexible use.
-
Heavy-Duty Construction — Designed for long-lasting durability in demanding shop environments.
-
24VDC Battery-Powered Operation — Provides clean, cordless power (charger sold separately).
-
Direct-Drive Hydraulic System — Ensures reliable and smooth lifting.
-
Independent Mechanical Locking — Provides added safety during service operations.
-
Adjustable Lifting Forks — Accommodate a wide range of wheel diameters (6.3"–22").
-
Easy-to-Use Control Panel — Operate lift functions from any column.
-
Space-Saving Storage — Small footprint for convenient out-of-the-way placement.
-
Optional Accessories — Expand compatibility for passenger vehicles and light trucks.
Specifications
| Specification | Details |
|---|---|
| Model | MSC-13K-B-226 |
| Configuration | 2 Columns |
| Capacity | 26,000 lbs (13,000 lbs per column) |
| AC Power Input (Per Column) | 100–140VAC, 60Hz, 1PH |
| DC Power Output (Per Column) | 24VDC |
| Lifting Height | Min. 88.6″ / Max. 155.5″ |
| Overall Column Height | 44.1″ |
| Fork Adjustment Range | 6.3″–22″ |
| Fork Length | 14″ |
| Fork-to-Column Clearance | 9.3″ |
| Rise / Descent Time | 75s / 60s |
| Max Distance Between Columns | 32.8′ |
| Concrete Strength Requirement | 3,000 PSI |
| Noise Level | 70 dB(A) |
| Setup / Operation | Indoors |
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle (Group 31, AH-105) |
| Shipping Weight | 1,210 lbs per column |
