Description

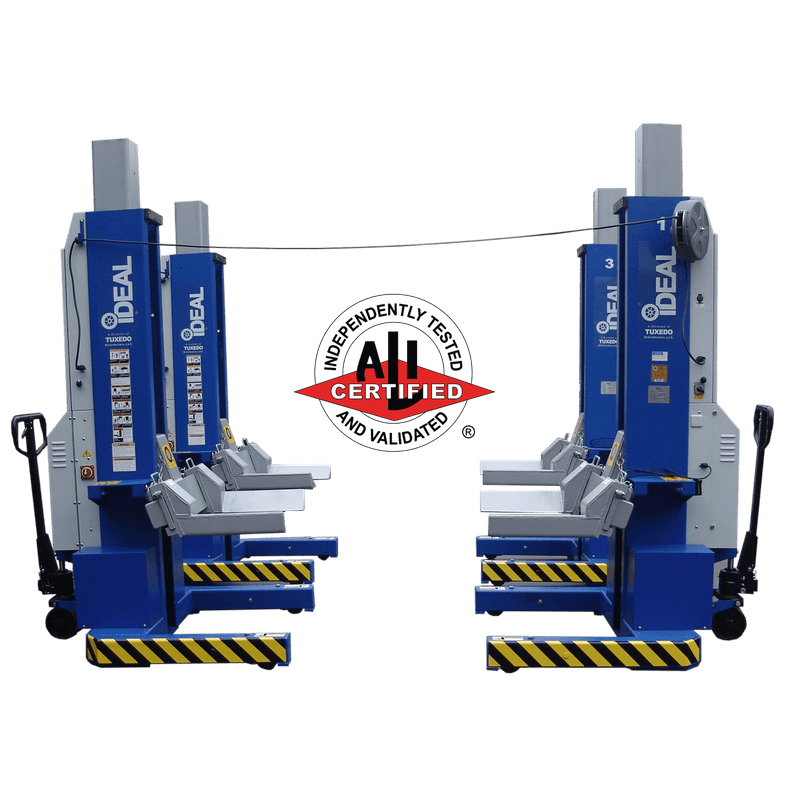

This iDEAL MSC-18K-X set includes four ALI certified mobile column lifts for a combined 72,000 lb capacity, made for lifting fire trucks, buses and other large commercial vehicles by the wheels in any flat bay. Each column runs on a 24VDC battery with onboard charging, so there are no cords across the floor, and an optical encoder keeps all four columns level as they rise to 67.1″. Columns can be run individually, in pairs or together from any column’s LCD control panel, and the adjustable forks fit wheels from 12.6″ to 22″. Browse all mobile column lifts or ALI certified lifts. For a fleet or multi-bay order, request a commercial quote. Financing is available through Approve and Shop Pay.

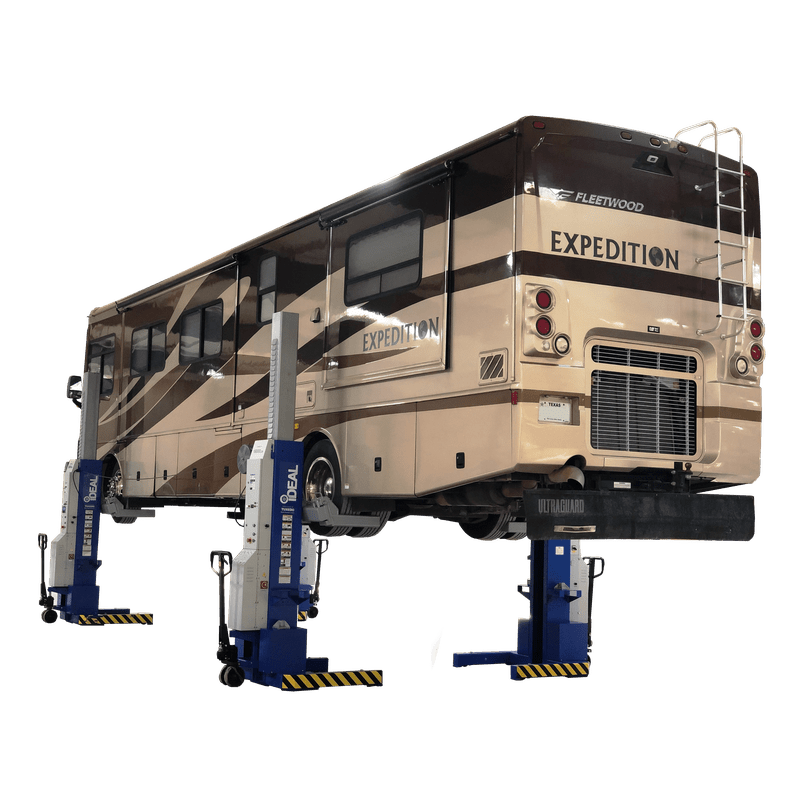

The iDEAL MSC-18K-X Mobile Column Lift System is an ALI-certified, heavy-duty lifting solution engineered for maximum versatility, safety, and efficiency. Available in two-, four-, or six-column configurations, this system offers lifting capacities from 36,000 lbs up to 108,000 lbs, making it ideal for servicing fire trucks, buses, and other large commercial vehicles directly by the wheels.
Each column operates on a 24VDC battery-powered hydraulic system with an onboard charging unit, allowing for flexible, cordless operation. The optical encoder synchronization system ensures precise, level lifting across all columns, while the user-friendly control panel with an LCD display and keypad enables simple, accurate operation from any column.
The mobile design and pallet jack-style base allow for quick setup and easy repositioning, transforming any flat bay into a fully functional lift bay. When not in use, its compact footprint ensures efficient storage without sacrificing valuable workspace. Optional ALI-certified accessories further expand functionality for passenger cars and light trucks, offering the perfect blend of power, precision, and portability.
Key Features
-
ALI Certified — Complies with ANSI/ALI ALCTV safety and performance standards.
-
Lifting Capacity up to 108,000 lbs — Configurable as 2-, 4-, or 6-column systems.
-
24VDC Battery Power — Cordless operation with onboard charging system.
-
Continuous Synchronization — Optical encoder and PLC maintain precise lift height alignment.
-
Operate from Any Column — Control lift functions individually, in pairs, or as a synchronized group.
-
LCD Control Interface — Easy-to-read display with simple keypad input.
-
Independent Mechanical Locking System — Provides maximum operator safety.
-
Retractable Communication Cables — U-shaped wiring allows easy drive-through access.
-
Adjustable Lifting Forks — Fit wheel diameters from 12.6" to 22".
-
Pallet Jack-Style Base — Enhances mobility for use in multiple bays.
-
LED Work Lights — Magnetic base lights for improved visibility (one per two columns).
-
Compact Design — Stores easily to save shop floor space.
-
Optional Certified Accessories — Extend compatibility for smaller vehicles or wheel-free lifting.
-
Batteries Sold Separately — Uses standard 12VDC sealed deep-cycle batteries (Group 31, AH-105).
Specifications
| Specification | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
|---|---|---|---|
| Column Configuration | 2 Columns | 4 Columns | 6 Columns |
| Total Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power Input (Per Column) | 100–140VAC, 60Hz, 1PH | ||
| DC Power Output (Per Column) | 24VDC | ||
| Lifting Height | 67.1″ | ||
| Column Height (Min/Max) | 88.6″ / 155.5″ | ||
| Overall Width | 44.1″ | ||
| Fork Adjustment Range | 12.6″–22″ | ||
| Fork Length | 17.9″ | ||
| Fork-to-Column Clearance | 10″ | ||
| Rise / Descent Time | 100s / 60s | ||
| Max Distance Between Columns | 32′ 8″ | ||
| Concrete Requirement | 3,000 PSI Minimum | ||
| Noise Level | 70 dB(A) | ||
| Setup / Operation | Indoors | ||
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle (BCI Group 31, AH-105) | ||
| Shipping Weight | 1,584 lbs per column |
