Description

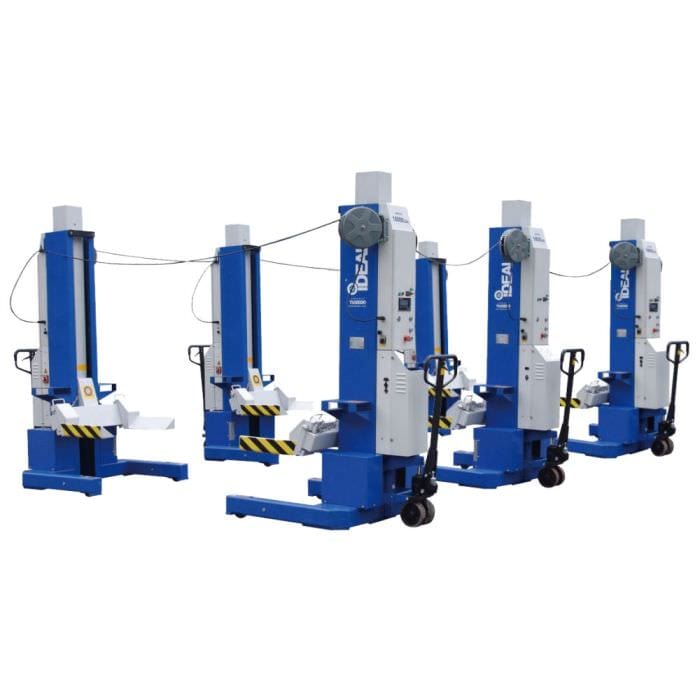

The iDEAL MSC-18K-X ALI Certified Mobile Column Lift System delivers exceptional lifting power and versatility for heavy-duty vehicle maintenance. Available in configurations of two, four, or six columns, the system offers lifting capacities of 36,000 lbs, 72,000 lbs, and up to 108,000 lbs, making it ideal for servicing fire trucks, school buses, and large commercial vehicles.
Each column operates on a 24VDC battery-powered system with an onboard charging unit, providing reliable, cordless operation. The PLC-controlled synchronization and optical encoder feedback ensure smooth, level lifting across all columns. A user-friendly control panel on each column allows for individual, paired, or synchronized operation, giving technicians full control from any position.
The compact, mobile design and pallet jack-style movement system make setup and storage fast and efficient, turning any flat bay into a lift-ready workspace. Optional ALI-certified accessories extend the system’s functionality for passenger vehicles, light-duty trucks, and wheel-free lifting applications—enhancing shop productivity and space utilization.
Key Features
-

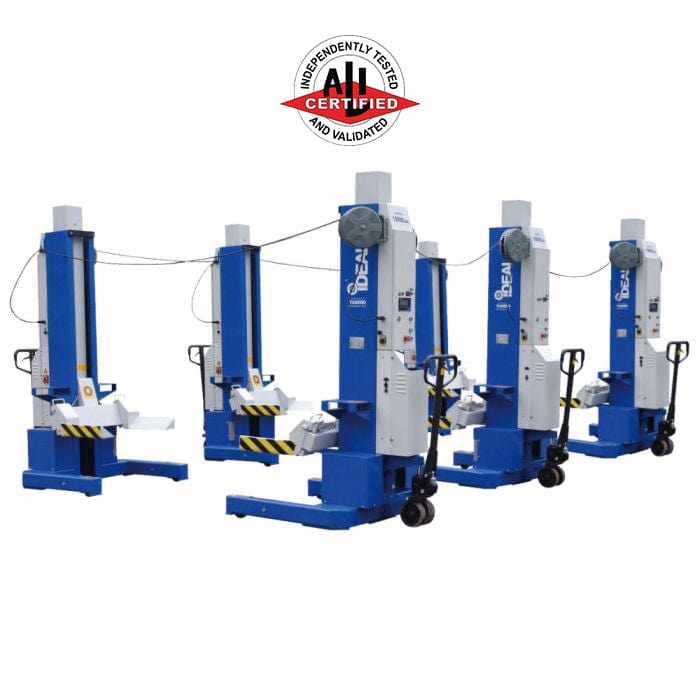

ALI Certified — Meets ANSI/ALI ALCTV safety and performance standards.
-
Flexible Configurations — Available in 2, 4, or 6-column setups (up to 108,000 lbs capacity).
-
Battery-Powered Operation — 24VDC power with onboard charging system for cordless efficiency.
-
Continuous Synchronization — PLC and optical encoder maintain precise lift height across all columns.
-
User-Friendly Control System — Operate from any column with individual or group synchronization.
-
LCD Display & Keypad — Provides easy-to-read real-time lift data and height settings.
-
Independent Mechanical Locking System — Ensures safety at all lifting heights.
-
Retractable Communication Cables — U-shaped wiring configuration allows quick vehicle entry/exit.
-
Adjustable Lifting Forks — Accommodates wheel diameters from 12.6" to 22".
-
Portable & Space-Efficient — Easily repositioned with pallet jack-style wheels; stores compactly when not in use.
-
Safety-Focused Design — Each column includes an emergency stop switch.
-
LED Work Lights (New!) — Magnetic-base lights enhance visibility at each column.
-
Optional Certified Accessories (New!) — Expand lift versatility for various vehicle types.
Specifications
| Model | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
|---|---|---|---|
| Column Configuration | 2 Columns | 4 Columns | 6 Columns |
| Total Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power Input (Per Column) | 100–140VAC, 60Hz, 1PH | ||
| DC Power Output (Per Column) | 24VDC | ||
| Lifting Height | 67.1″ | ||
| Column Height (Min/Max) | 88.6″ / 155.5″ | ||
| Overall Width | 44.1″ | ||
| Fork Adjustment Range | 12.6″–22″ | ||
| Fork Length | 17.9″ | ||
| Fork to Column Clearance | 10″ | ||
| Rise Time / Descent Time | 100 sec / 60 sec | ||
| Max Distance Between Columns | 32′ 8″ | ||
| Min Concrete Strength | 3,000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Setup / Operation | Indoors | ||
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle (Group 31, AH-105) | ||
| Shipping Weight | 1,584 lbs per column |
