Description

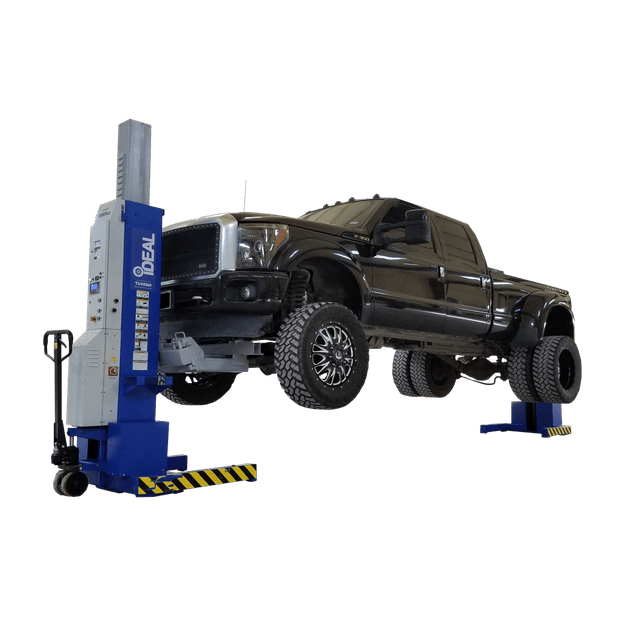

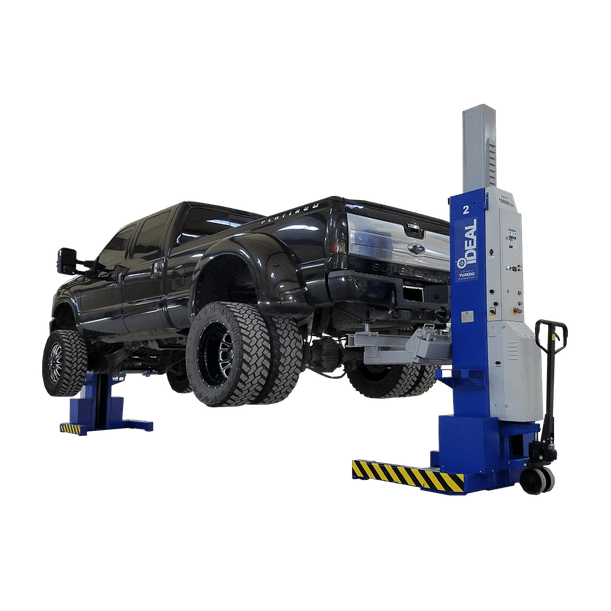

The iDEAL MSC-18K-X ALI Certified Mobile Column Lift System delivers dependable, high-capacity lifting power in a compact and portable design. Available in two, four, or six-column configurations, this system provides lifting capacities of 36,000 lbs., 72,000 lbs., and up to 108,000 lbs., making it ideal for servicing fire trucks, buses, and large commercial vehicles directly by the wheels.
Built for performance and safety, each column operates on a 24VDC battery-powered system with an onboard charging system for efficient, cable-free operation. The optical encoder synchronization system ensures precise, level lifting across all columns, while the user-friendly control panel and LCD keypad interface allow for easy setup and control from any column.
The pallet jack-style base provides effortless mobility, allowing technicians to quickly convert any flat service bay into a lift-ready workspace. Designed for flexibility, the MSC-18K-X system supports optional ALI Certified accessories for light-duty vehicles and wheels-free lifting—maximizing shop capability without sacrificing floor space.
Key Features
-
ALI Certified — Meets ANSI/ALI ALCTV standards for safety and reliability.
-
Lifting Capacity up to 108,000 lbs. — Available in 2-, 4-, or 6-column configurations.
-
24VDC Battery Operation — Independent power with onboard charging system.
-
Retractable Communication Cables — U-shaped wiring layout for quick vehicle entry and exit.
-
Operate from Any Column — Control panel at each column for flexible use.
-
Independent Mechanical Locking System — Provides secure, stable lifting at any height.
-
Optical Encoder Synchronization — Maintains continuous height accuracy between columns.
-
Pallet Jack Mobility — Poly caster wheels enable smooth movement and compact storage.
-
Adjustable Lifting Forks — Fit a wide range of wheel diameters (12.6"–22").
-
Emergency Shutoff Switch — Safety controls located on each column.
-
Simple LCD Display and Keypad — Provides easy, intuitive control for individual or synchronized operation.
-
LED Work Light with Magnetic Base — Enhances visibility at each column (one per two columns).
-
Optional ALI Certified Accessories — Expand functionality for various vehicle types.
Specifications
| Model | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
|---|---|---|---|
| Column Configuration | 2 Columns | 4 Columns | 6 Columns |
| Total Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power Input (Per Column) | 100–140VAC, 60Hz, 1PH | ||
| DC Power Output (Per Column) | 24VDC | ||
| Lifting Height | 67.1″ | ||
| Column Height (Min/Max) | 88.6″ / 155.5″ | ||
| Overall Width | 44.1″ | ||
| Fork Adjustable Range | 12.6″–22″ | ||
| Fork Length | 17.9″ | ||
| Fork-to-Column Clearance | 10″ | ||
| Rise / Descent Time | 100s / 60s | ||
| Max Distance Between Columns | 32′ 8″ | ||
| Concrete Strength Requirement | 3,000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Setup / Operation | Indoors | ||
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle (BCI Group 31, AH-105) | ||
| Shipping Weight | 1,584 lbs per column |
