Description

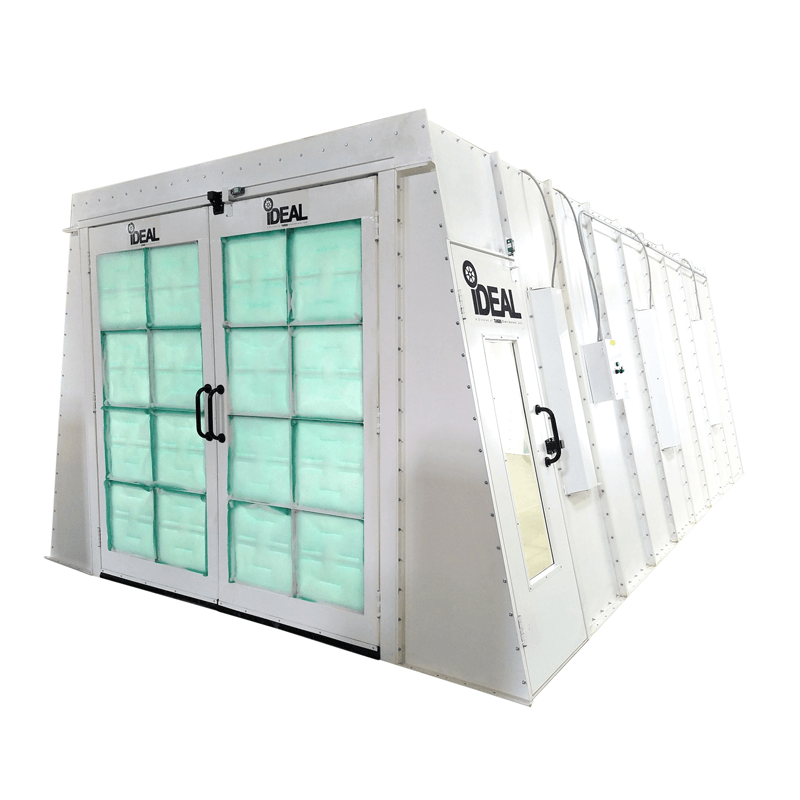

The iDEAL PSB-AFCF23B-AK is a cross-flow paint booth with a 22′6″ long, 13′ wide, 8′6″ tall interior for automotive and industrial refinishing. A UL-listed Dayton 24″ tube-axial fan with spark-resistant blades and a 3 HP, 3-phase motor moves 9,500 CFM at 0.5″ static pressure. It has 18-gauge white powder-coated steel panels, six light fixtures with 5000K daylight lamps, AFC intake and exhaust filters, a deluxe control panel with manometer, and double entry doors plus a personnel door. It is designed to meet NFPA 33. Browse all paint spray booths or paint mixing rooms. Financing is available through Approve and Shop Pay.
Experience professional-grade performance with the IDeal PSB-AFCF23B-AK Cross Flow Paint Booth, designed for maximum efficiency, durability, and safety. Featuring a spacious 22′6″ L × 13′ W × 8′6″ H interior, this booth provides ample room for large-scale finishing projects, making it ideal for automotive and industrial applications.
Equipped with a UL-listed Dayton 24″ tube-axial exhaust fan and NEMA-rated 3HP, 3-phase motor, the PSB-AFCF23B-AK delivers 9,500 CFM of cross-draft airflow at 0.5 static pressure, ensuring consistent air movement and a clean, controlled painting environment. The heavy-duty 18-gauge precision-punched steel panels feature a durable bright white powder-coated finish for enhanced light reflection and long-term protection.
Six LDPI industrial light fixtures with T8 fluorescent lamps (5000K daylight color) provide optimal illumination, while premium AFC filters, a deluxe control panel, and complete installation hardware make setup straightforward. Fully compliant with NFPA 33 standards, this booth combines strength, safety, and performance.
Key Features
-

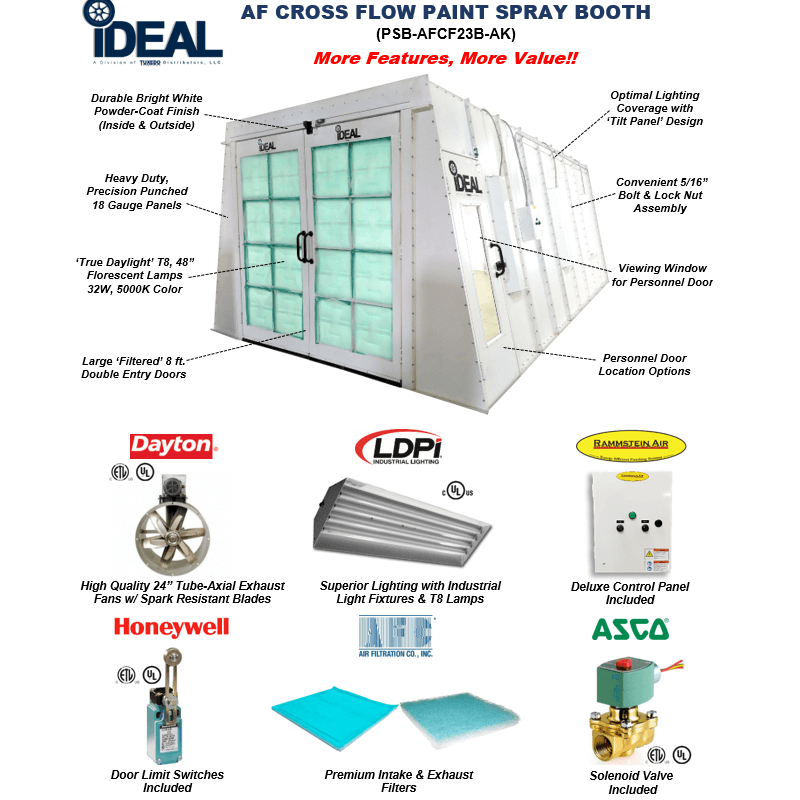

High-Performance Airflow: 9,500 CFM @ 0.5 static pressure for optimal cross-draft ventilation.
-
Powerful Exhaust System: UL-listed Dayton 24″ tube-axial fan with spark-resistant blades.
-

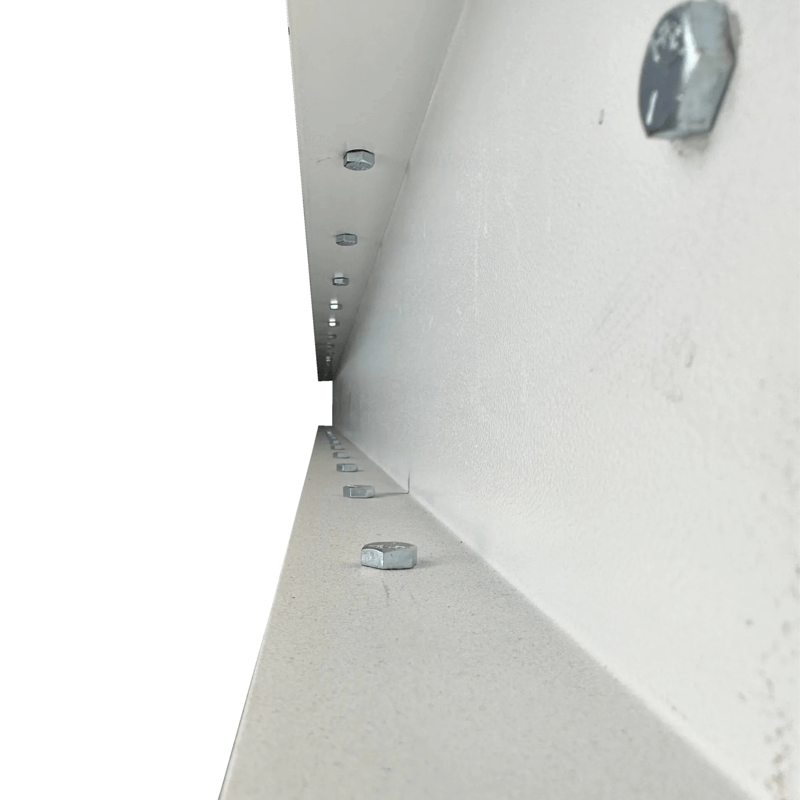

Durable Construction: Heavy-duty 18-gauge steel panels with precision-punched assembly.
-
Bright Powder-Coated Finish: White interior and exterior for superior visibility.
-
Industrial-Grade Lighting: (6) LDPI fixtures with (24) T8 fluorescent lamps, 5000K daylight color.
-

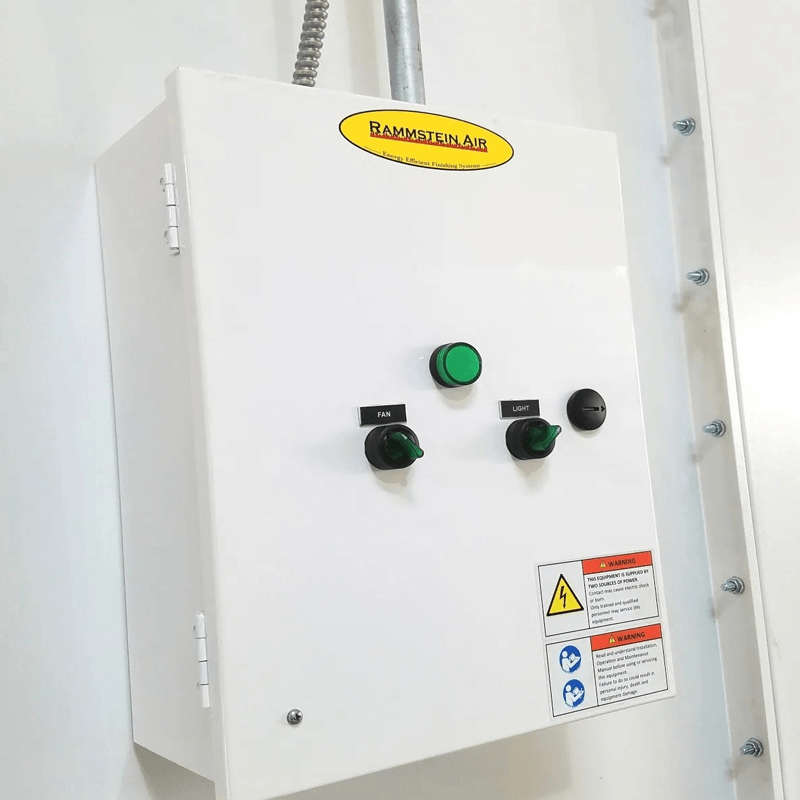

Comprehensive Control System: Deluxe control panel with manometer, solenoid valve, and hardware.
-
Premium Filtration: AFC intake and exhaust filters for clean, consistent airflow.
-

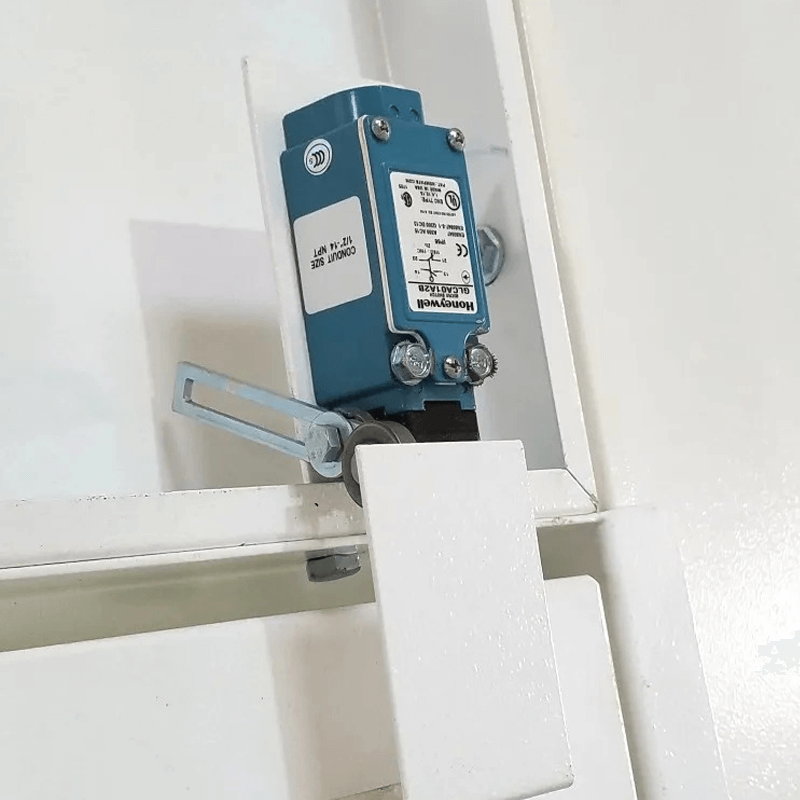

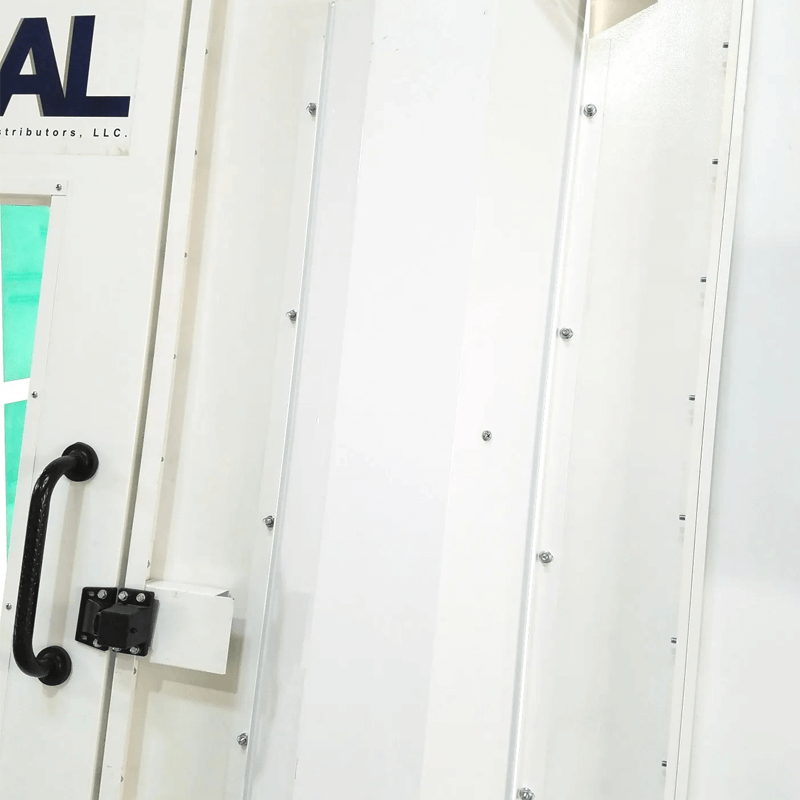

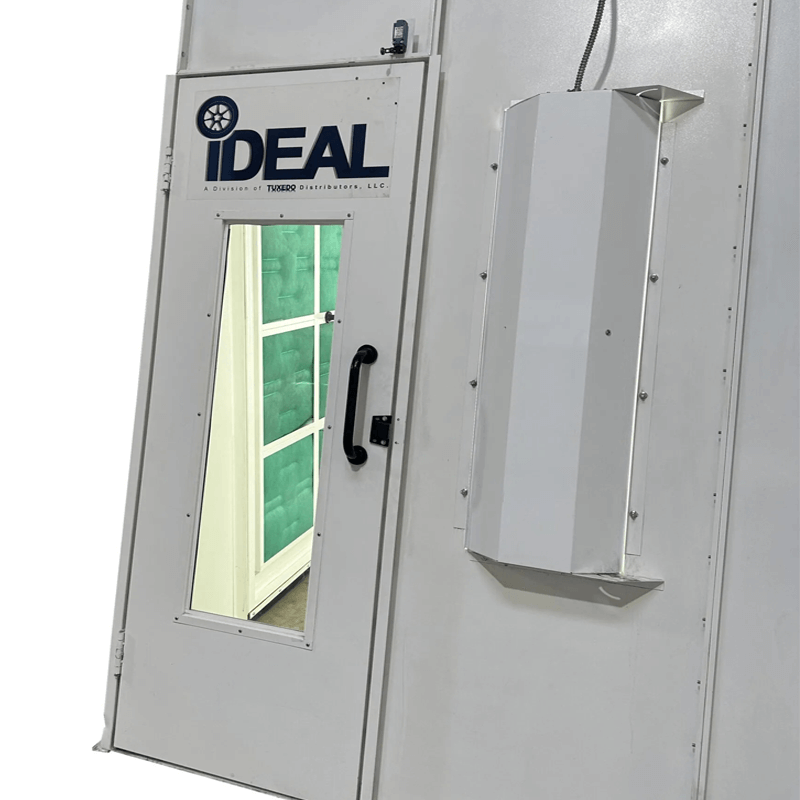

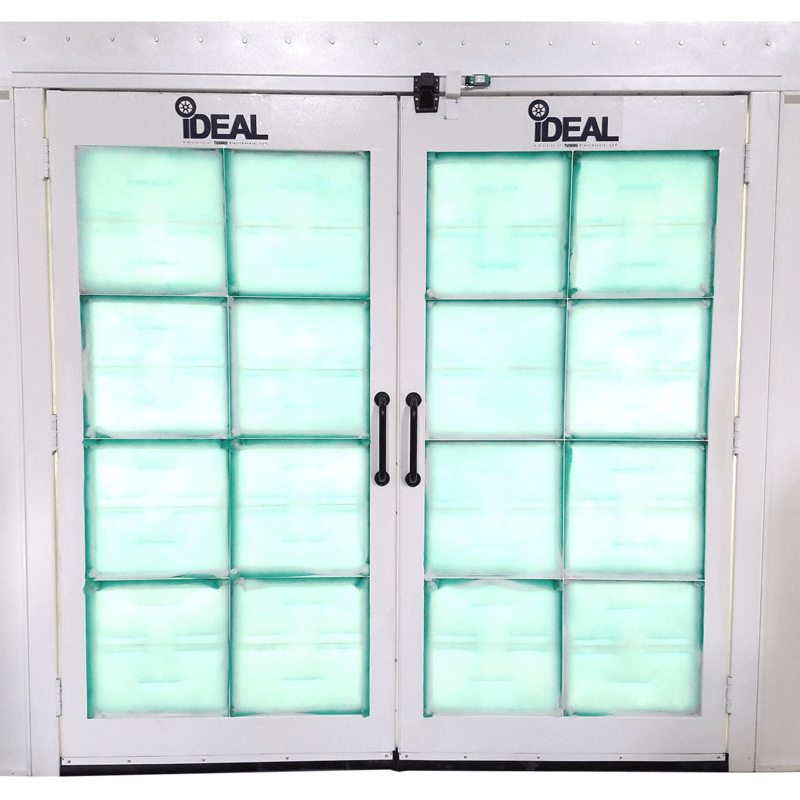

Accessible Design: Double entry doors and a personnel door with viewing window and shutoff switch.
-
Quick Installation: Includes all fasteners, sealant, and assembly hardware.
-
Compliance: Meets or exceeds NFPA 33 safety standards.
Specifications
| Specification | Details |
|---|---|
| Model | PSB-AFCF23B-AK |

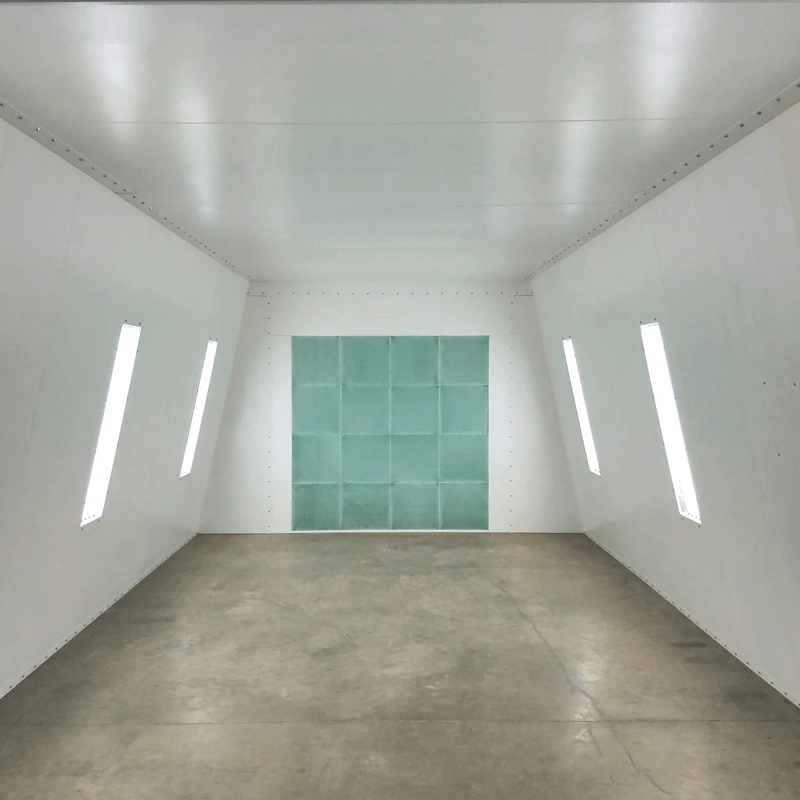

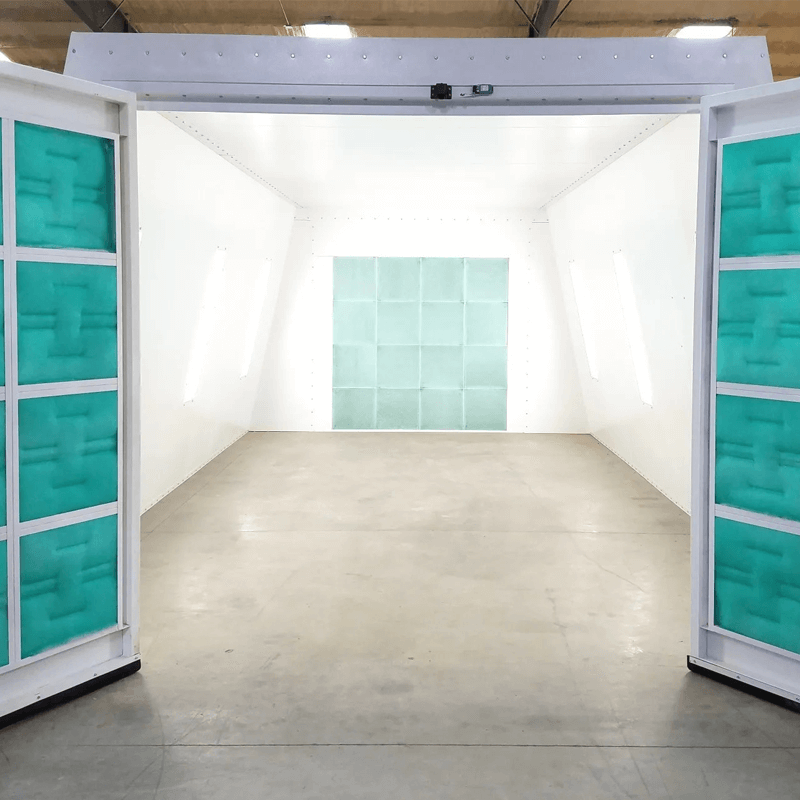

| Inside Dimensions | 22′6″ L × 13′ W × 8′6″ H |

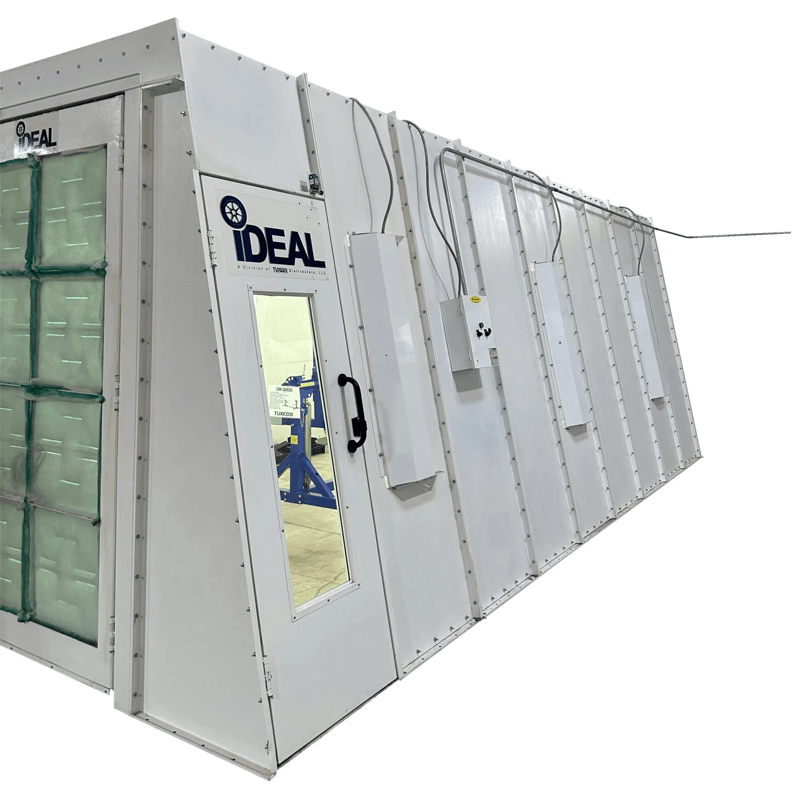

| Outside Dimensions | 25′4″ L × 13′4″ W × 8′10″ H |
| Fan / Motor | 24″ Tube Axial Fan, 3HP, 3PH, 230/460VAC, 60Hz, Non-Spark, NEMA Rated |
| Airflow | 9,500 CFM @ 0.5 Static Pressure |
| Lighting | (6) LDPI Industrial T8 Fixtures, 4-Bulb Each |
| Lamps | (24) GE T8 Fluorescent, 32W, 5000K |
| Construction | 18-Gauge Precision-Punched Steel Panels |
| Finish | Bright White Powder Coat (Inside & Outside) |
| Compliance | NFPA 33 |
| Included Equipment | Deluxe Control Panel, Manometer, Solenoid Valve, Hardware & Sealant |
| Optional Add-Ons | 8′ Exhaust Duct Kit (25″ Dia), Side Door Kit, Extension Panels, LED Lighting Upgrade, Electric Heater Kits |
| Weight | 3,620 lbs |
| Pallet Dimensions | 121″ L × 89″ W × 66″ H |
