Description

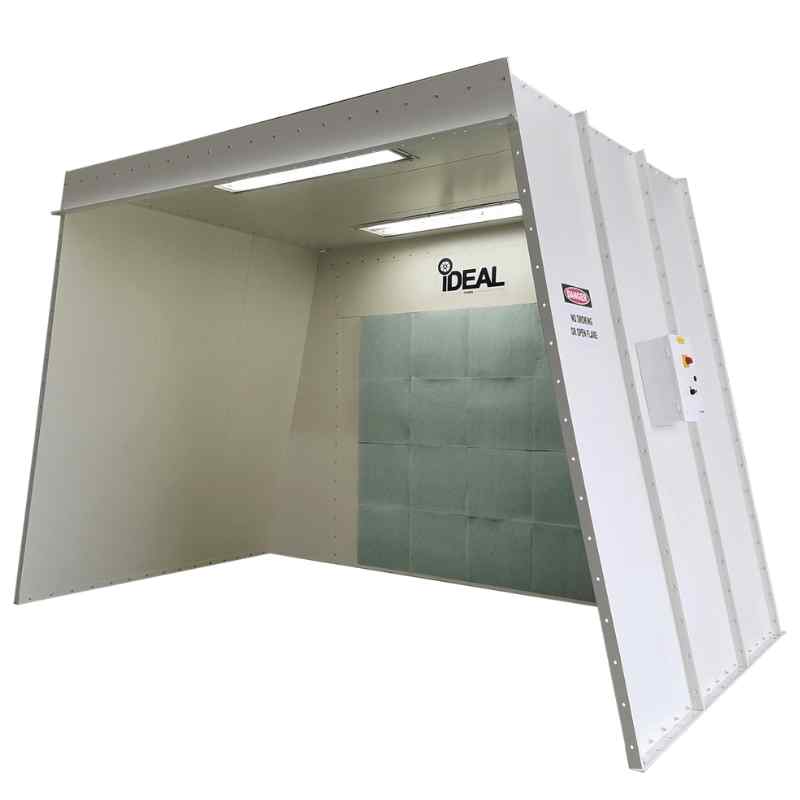

The iDeaL PSB-AFOFB1388-AK Open Face Paint Booth delivers commercial-grade performance, exceptional airflow, and reliable lighting—perfect for professional finishing applications. Designed for safety, efficiency, and compliance, this open-front booth provides 7,983 CFM of airflow at 0.5 static pressure through a UL-listed Dayton 24" tube-axial exhaust fan with spark-resistant blades and a NEMA-rated 2HP, 3-phase motor, ensuring consistent ventilation and safe operation.
With its bright white powder-coated panels, 18-gauge precision-punched steel construction, and LDPI industrial light fixtures offering true daylight illumination (5000K), the PSB-AFOFB1388-AK creates a clean, well-lit, and durable workspace for accurate, high-quality paint application.
This booth arrives complete with a deluxe control panel, AFC premium exhaust filters, and all assembly hardware, manometer, and sealant, making installation simple and straightforward. Fully compliant with OSHA and NFPA 33 standards, the PSB-AFOFB1388-AK is a professional-grade solution for shops that demand reliability, efficiency, and safety.

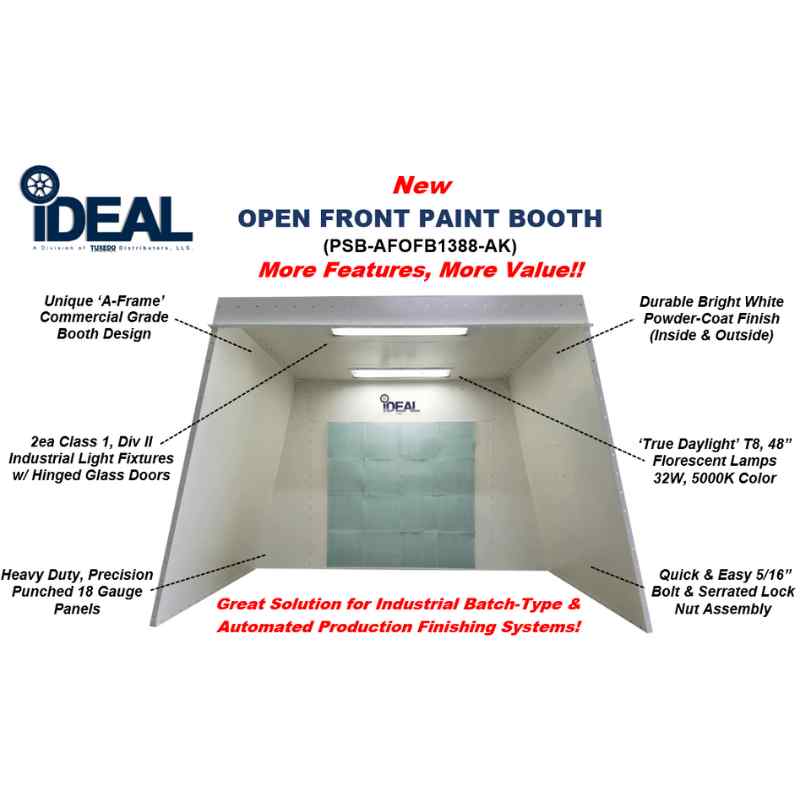

Key Features
-
High-Performance Airflow: 7,983 CFM @ 0.5 static pressure for optimal ventilation.
-
Powerful Exhaust System: UL-listed Dayton 24” tube-axial fan with spark-resistant blades.
-
Industrial-Grade Motor: NEMA-rated 2HP, 3-phase (230/460VAC, 60Hz).
-
Premium Lighting: (2) LDPI fixtures, UL & ETL listed (Class 1, Div 2, Groups A–D).
-
True Daylight Illumination: (8) T8 fluorescent bulbs, 32W, 5000K color temperature.
-
Durable Construction: 18-gauge precision-punched steel panels.
-
Powder-Coated Finish: Bright white interior and exterior for improved visibility and cleanliness.
-
Includes Deluxe Control Panel: Easy-to-use, factory-wired system.
-
Complete Hardware Package: Includes all fasteners, sealant, and manometer.
-
Compliance: Meets or exceeds OSHA and NFPA 33 safety regulations.
Specifications
| Specification | Details |
|---|---|
| Model | PSB-AFOFB1388-AK |

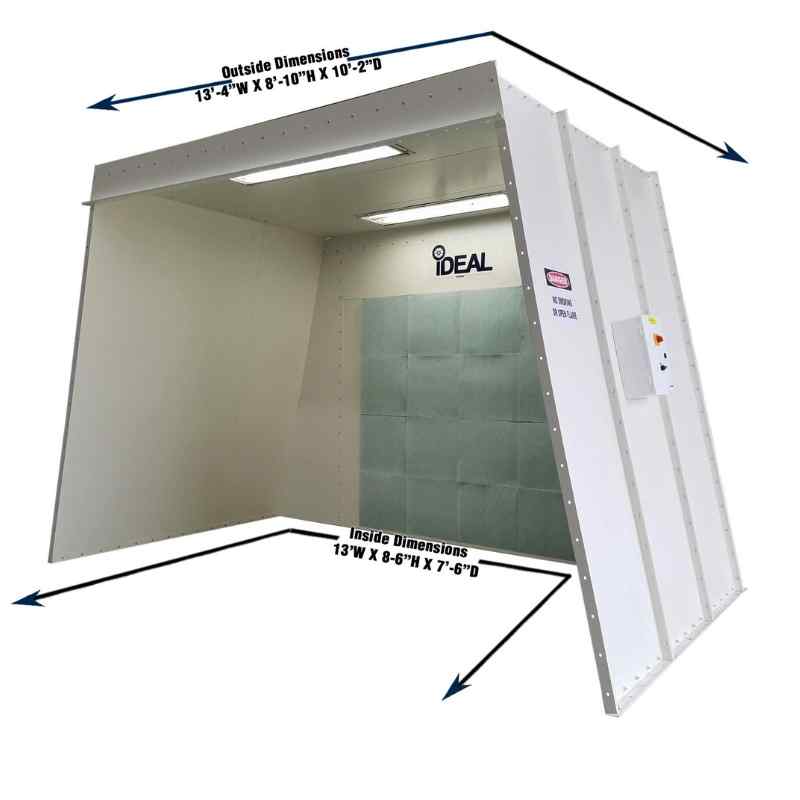

| Inside Dimensions | 13′ W × 8′6″ H × 7′6″ D |
| Outside Dimensions | 13′4″ W × 8′10″ H × 10′2″ D |
| Fan / Motor | (1) 24″ Tube Axial Fan, 2HP 3PH 230/460VAC 60Hz, Non-Spark, NEMA Rated |
| Airflow | 7,983 CFM @ 0.5 Static Pressure |
| Lighting | (2) 48″ LDPI Industrial Fixtures, 4-Bulb T8, UL & ETL Listed (Class 1, Div 2, Groups A–D) |
| Lamps | (8) T8 Fluorescent, 32W, 5000K |
| Options | Single-Phase Electrical Configuration, 8′ Exhaust Duct Kit (24″ Diameter), LED Upgrade Kit |
| Weight | 1,358 lbs |
| Pallet Dimensions | 121″L × 54″W × 38″H |
| Compliance | OSHA & NFPA 33 |
| Finish | Bright White Powder Coat (Inside & Outside) |
| Construction | 18-Gauge Precision-Punched Panels |
| Included Accessories | Deluxe Control Panel, Filters, Hardware, Manometer, Sealant |
