Description

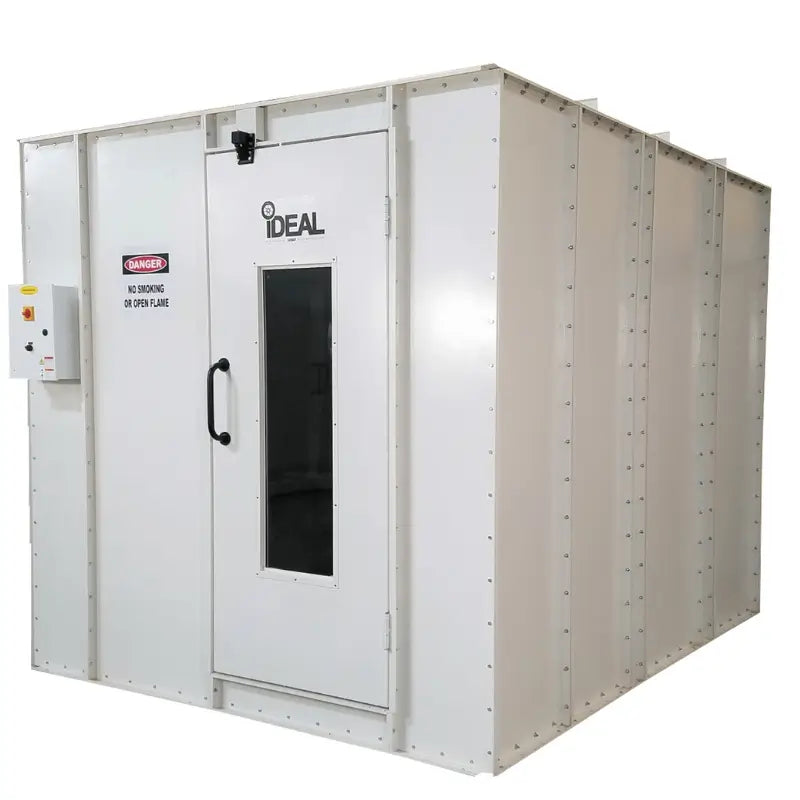

Transform your paint mixing area into a clean, efficient, and professional workspace with the IDeal PSB-PMR1088-AK Paint Mixing Room. Designed for superior airflow, visibility, and safety, this commercial-grade mixing room provides the ideal environment for precision paint work.
With an airflow rate of 1,429 CFM at 0.5 static pressure, premium AFC intake and exhaust filters, and a UL-listed Dayton 12” tube-axial exhaust fan with spark-resistant blades and a NEMA-rated ½ HP 3-phase motor, this system ensures consistent ventilation and a safer working atmosphere. The bright white powder-coated steel panels enhance light reflectivity and durability, while LDPI industrial light fixtures with 5000K daylight bulbs deliver accurate color matching and superior illumination.
Offering a spacious 10′ x 8′ x 8′ footprint, precision-punched 18-gauge panel construction, and flexible door placement options, the PSB-PMR1088-AK is engineered for quick installation, long-term reliability, and compliance with OSHA and NFPA 33 standards.
Key Features
-
Airflow Performance: 1,429 CFM at 0.5 static pressure for optimal ventilation.
-
Powerful Exhaust System: UL-listed Dayton 12” tube-axial fan with spark-resistant blades.
-
Durable Construction: Heavy-duty 18-gauge precision-punched steel panels.
-
Professional Lighting: (2) LDPI industrial fixtures, UL & ETL listed (Class 1, Div 2, Groups A–D).
-
True Daylight Illumination: (8) T8 48” fluorescent bulbs, 5000K color temperature.
-
Premium Finish: Bright white powder-coated interior and exterior surfaces.
-
Flexible Setup: Optional door placement on side or front of the room.
-
Deluxe Control Panel: Included for easy operation.
-
Convenient Access: Pre-hung 36” personnel door with viewing window.
-
Complete Kit: All necessary assembly hardware, sealant, and manometer included.
-
Compliance: Meets or exceeds OSHA and NFPA 33 requirements.
Specifications
| Specification | Details |
|---|---|
| Model | PSB-PMR1088-AK |
| Inside Dimensions | 10’L × 8’W × 8’H or 8’L × 10’W × 8’H |
| Outside Dimensions | 12′6″L × 8′4″W × 9′4″H or 8′4″L × 12′6″W × 9′4″H |
| Fan / Motor | (1) 12” Tube Axial Fan, ½ HP 3PH 208–230/460VAC 60Hz, Non-Spark UL Listed, NEMA Rated |
| Airflow | 1,429 CFM @ 0.5 Static Pressure |
| Lighting | (2) 48” 4-Bulb LDPI Industrial Fixtures, UL & ETL Listed (Cls 1, Div 2, Groups A–D) |
| Lamps | (8) T8 Fluorescent, 32W, 5000K (Daylight Color) |

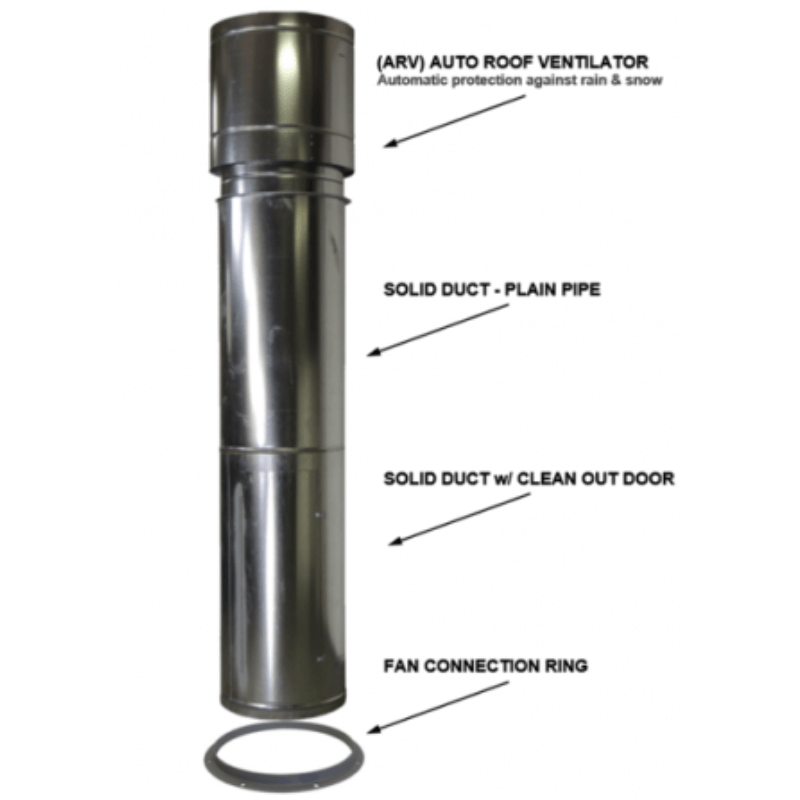

| Optional Add-ons | Single-Phase Electrical Configuration, 8′ Exhaust Duct Kit (13″ Diameter) |
| Compliance | OSHA & NFPA 33 |
| Construction | 18-Gauge Precision Punched Panels |
| Finish | Bright White Powder Coat (Inside & Outside) |
